Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

Basic Specifications

Model NO.
SVN-36XCW78-4G
Type
CCTV Camera
Sensor
CMOS
Format
8MP (3840*2160)
Kind
Autofocus Lens
Certification
CE, FCC, RoHS
Effective Distance
300m
Sensor Size
1/2.8 Inch
Compression
H.265 / H.264
P2P Support
Android, iOS

PTZ Camera Key Features

  • 1/2.8" 8.0MPixel Sony CMOS IMX415 with 36X Optical Zoom and Auto Focus.
  • Powerful Night Vision: 300M IR range or 150M Full Color with White Light (11PCS White Light, 7PCS IR Light).
  • Advanced Image Processing: True Day/Night, 3D DNR, and Digital WDR.
  • Smart Controls: Backlight compensation and Auto Gain Control (AGC).
  • Onvif Compatible: Supports Onvif 2.6 for broad system integration.
  • High Efficiency Encoding: H.265 main profile / H.264 main profile.
  • Integration Ready: Standard SDK and CGI for digital system compatibility.
  • Wide Protocol Support: TCP/IP, HTTP, NTP, DHCP, UDP, RTSP, P2P, and more.

Technical Parameters

Camera Module
Image Sensor1/2.8" 8.0M Pixel SONY IMX415
Effective Pixels8.0 Mpixes
Min. IlluminationColor: 0.01Lux, B/W: 0.001Lux @(F1.6, AGC ON)
Zoom36x, f=4.6mm~167mm, D/N( ICR-Cut)
WDRDigital WDR, ≥80dB
Shutter Speed1/2 - 1/20,000s
Network & Wireless
Video CompressionH.265 / H.264 / M-JPEG
Frame Rate4K (3840*2160) @ 1-15fps
4G ConnectivityLTE B1/B3/B7/B8/B38/B39/B40/B41; WCDMA; GSM
StorageMini SD Card up to 128GB (Optional)
PTZ & Mechanical
Pan / Tilt RangePan: 360° Continuous; Tilt: 0~90° (Auto Flip)
SpeedManual: 0~60°/S; Preset: 100°/S
EnvironmentTemp: -35ºC~55ºC; Humidity: 0%~90%
PowerDC12V±10%; 5A (Consumption <50W)

Product Display

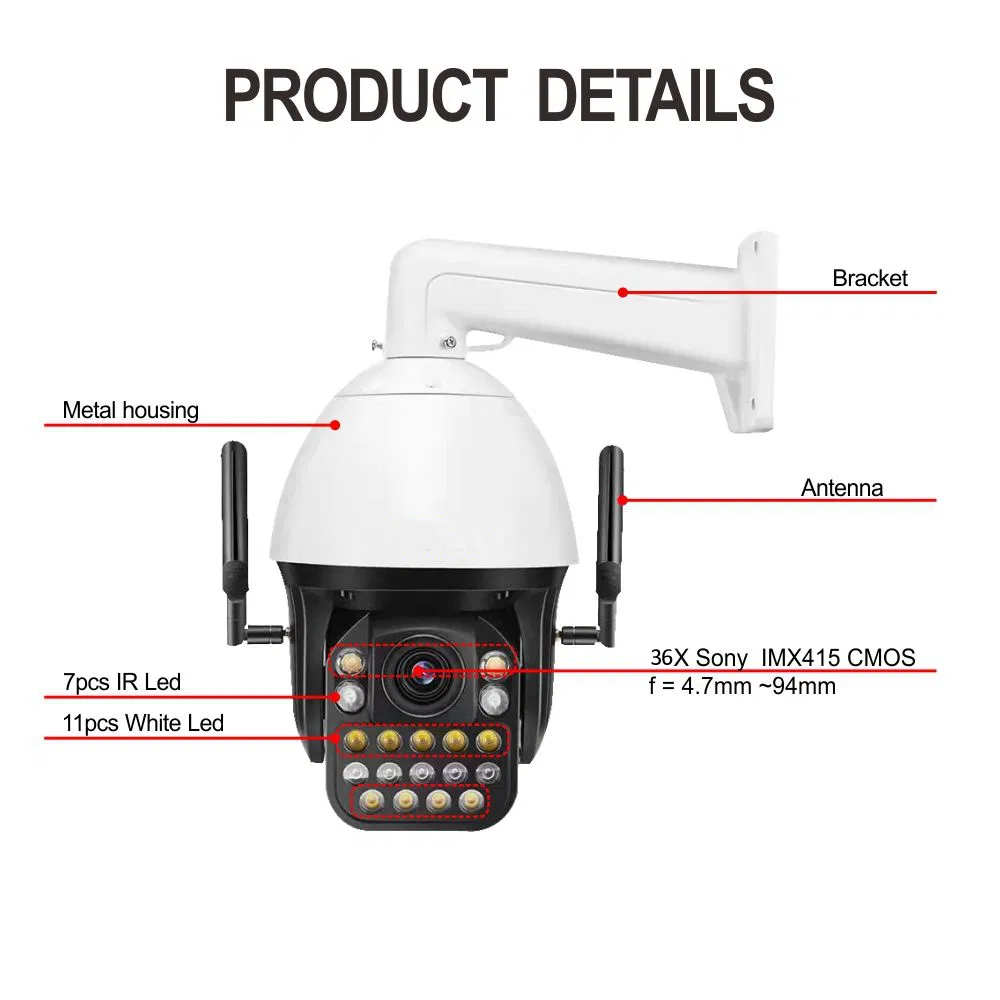

PTZ Camera View 1
PTZ Camera View 2
PTZ Camera View 3
PTZ Camera View 4
PTZ Camera View 5

Frequently Asked Questions

Q: What is the maximum resolution of this PTZ camera? A: The camera features an 8.0 Megapixel Sony IMX415 sensor, providing a maximum resolution of 4K (3840*2160) for ultra-clear video quality.
Q: How far can the camera see at night? A: It supports a long-range infrared (IR) distance of up to 300 meters and can provide full-color night vision up to 150 meters using its integrated white light LEDs.
Q: Does this camera support remote mobile monitoring? A: Yes, it supports P2P technology and is compatible with Android and iOS devices, allowing you to view live feeds remotely.
Q: What is the zoom capability of the lens? A: The camera is equipped with a 36X optical zoom autofocus lens (f=4.6mm to 167mm), allowing for detailed monitoring of distant objects.
Q: Is the camera suitable for harsh outdoor environments? A: Yes, the camera is waterproof and weatherproof, designed to operate in temperatures ranging from -35ºC to 55ºC.
Q: Does it support local storage? A: Yes, the camera has an optional Mini SD card slot that supports up to 128GB for local video recording.
