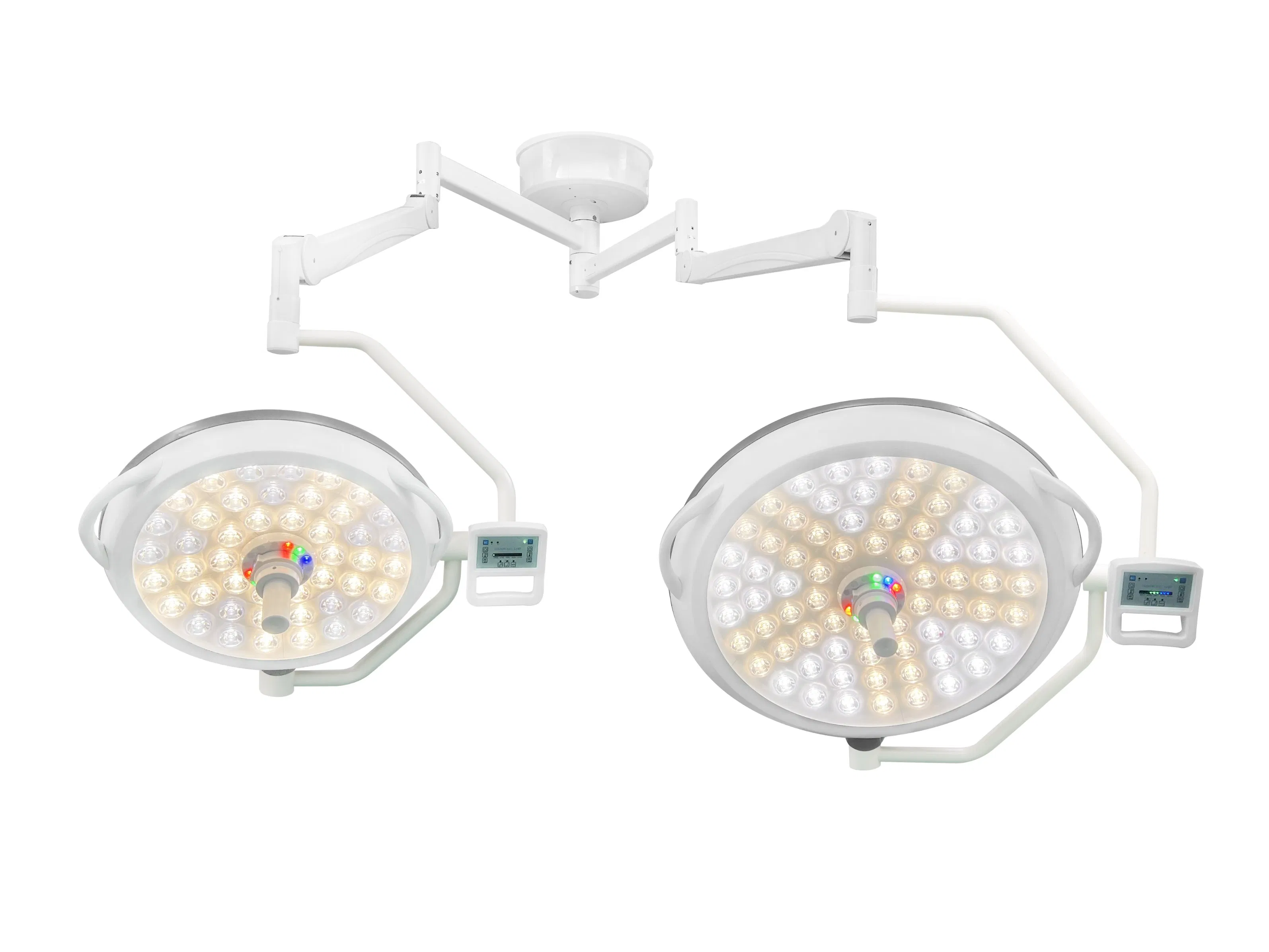

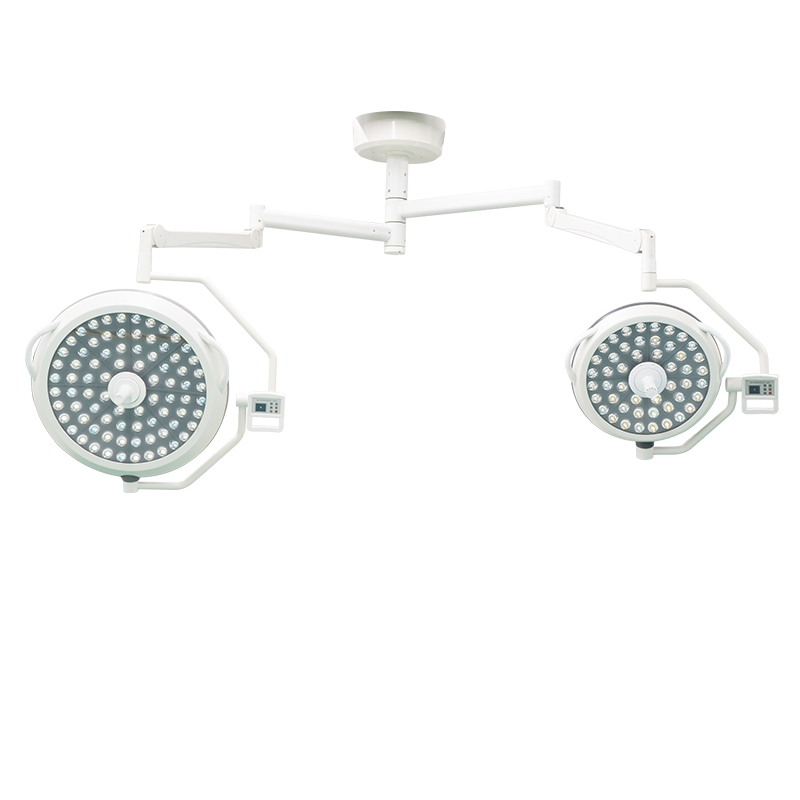

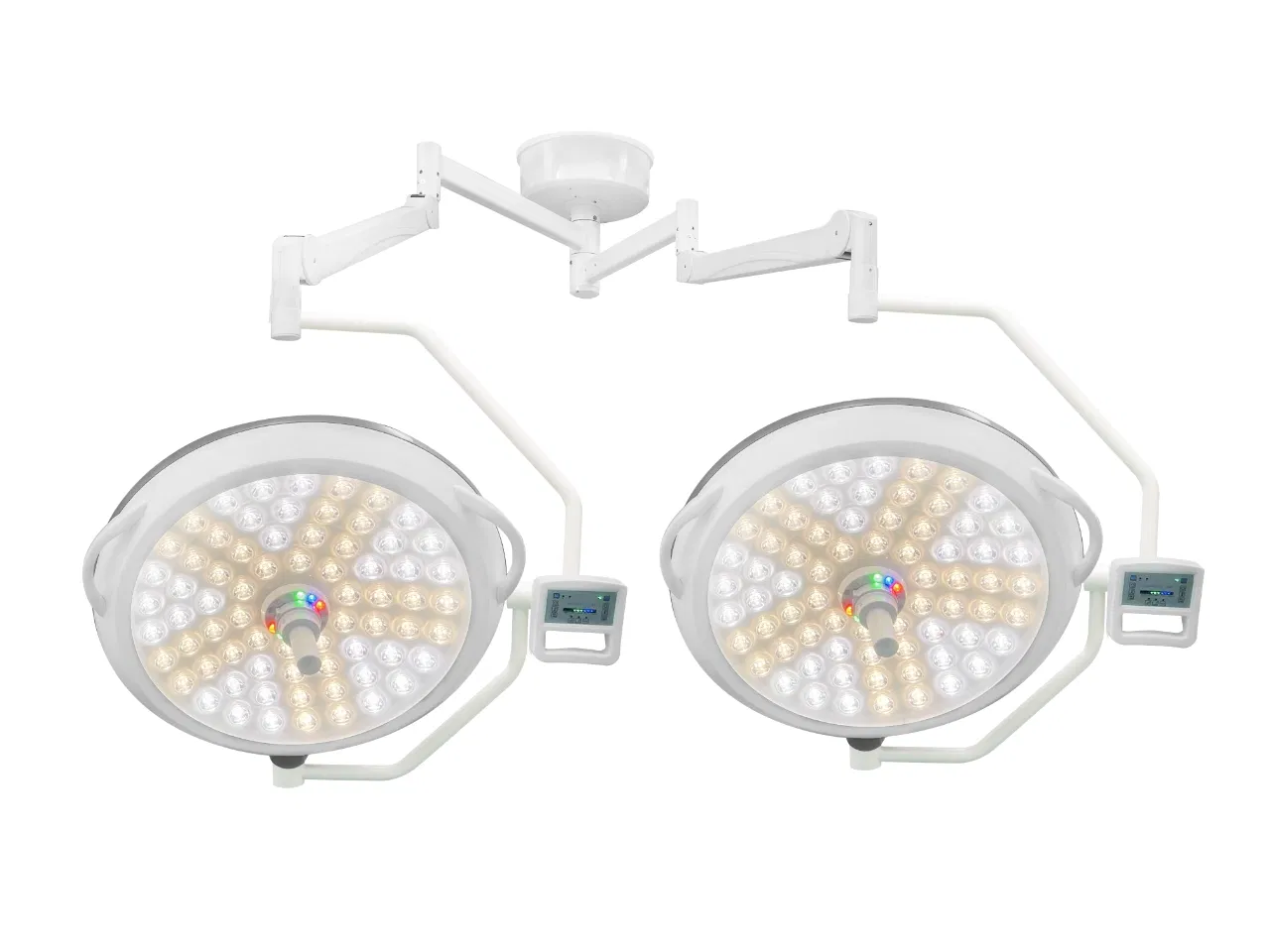

Mt Double Dome Ceiling Shadowless Medical Examination Surgical Mobile LED Operating Lamp

Customization:	Available
Type:	Operating Light
Kind:	LED

📋

Basic Specification

Model NO.

YDE700/500K

Certification

CE/ISO/FDA

Lamp Head

700mm

LED Quantity

44PCS

Illuminance

160,000lux

CRI

95ra

Light Depth

1400mm

Power Supply

90-240V

LED Life

100,000 hours

Focus

Manual

💡

Products Description

Utilising the most advanced LED technology available.
Designed to provide a high quality, shadowless beam with extremely low running costs.
Slim, fully enclosed head with colour touchscreen digital controls, perfect for all surgical rooms.
A breakthrough technological solution to the inherent problems of the incandescent light bulb.
High definition lighting solutions with no infrared, low environmental impact, and high brightness.
Low power consumption, no toxic chemicals and a long operating life.

⚙️

Technical Parameters

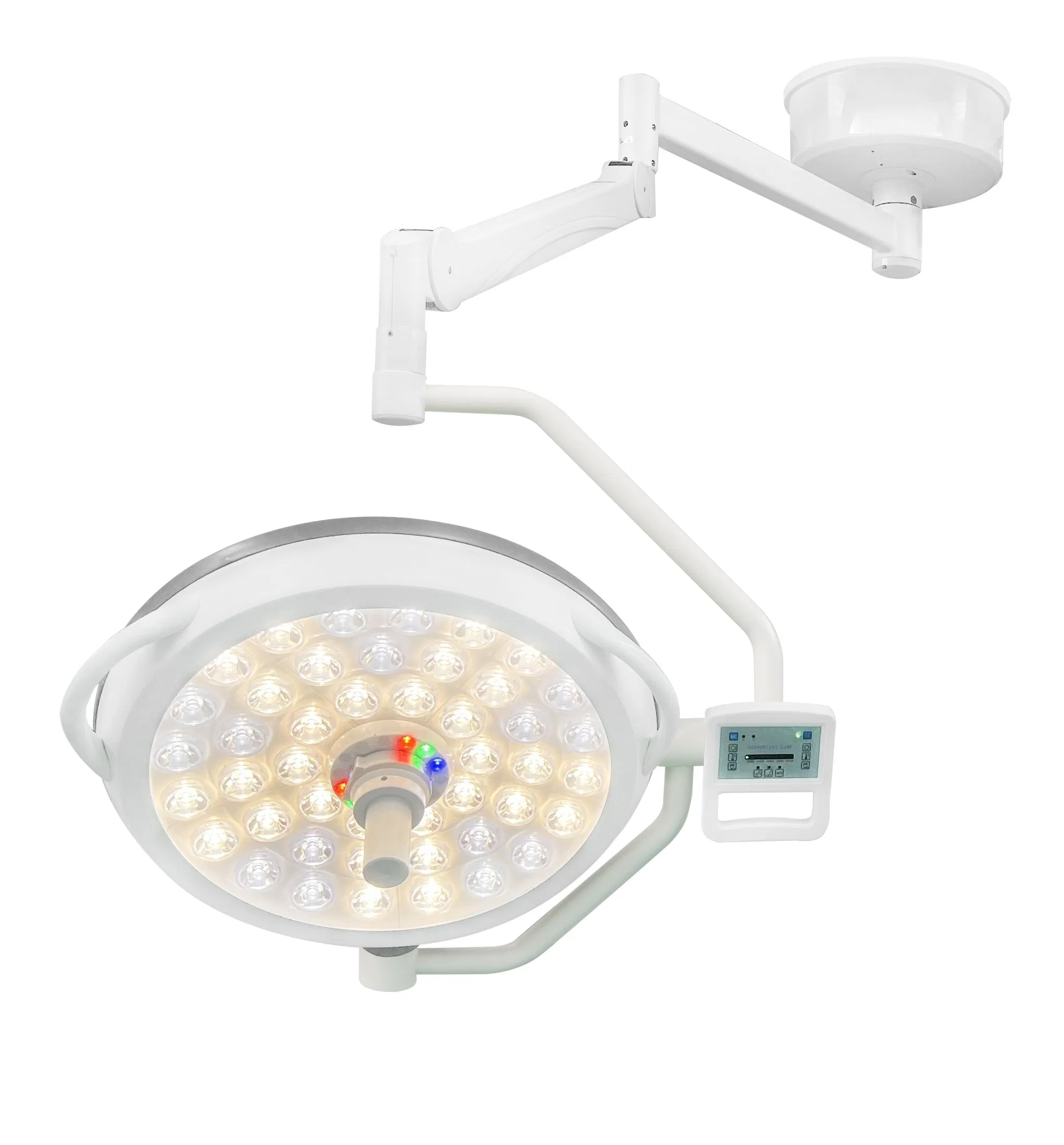

Single Head Ceiling Mounted LED Shadowless Surgery Light
Diameters	700mm	700mm
Illuminance	160000 Lux	160000 Lux
Color temperature	3600-5500K (±500K)
Color rendering index	≥95Ra	≥95Ra
Color Scale	R9:95 \| R13:92
Power of bulb(W)	1W*44pcs	1W*44pcs
Spot diameter d50(mm)	150	150
Depth of Illuminance (cm)	140	140
Focus system	Electric / Manual / Fixed
LED service life	100,000 hours
Temperature Rise	Temperature on surgeon's head < 1ºC

🖼️

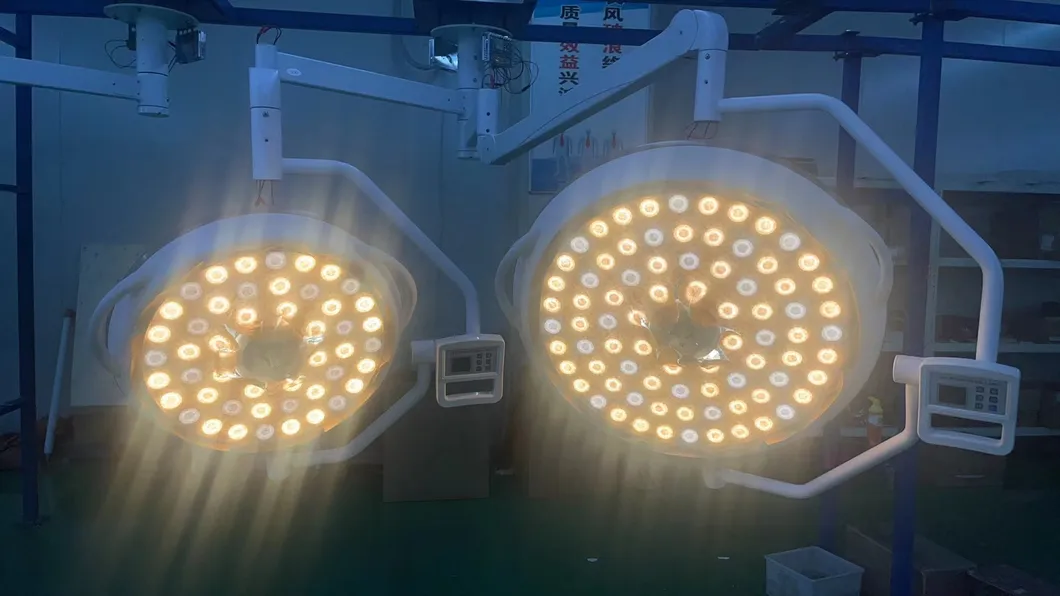

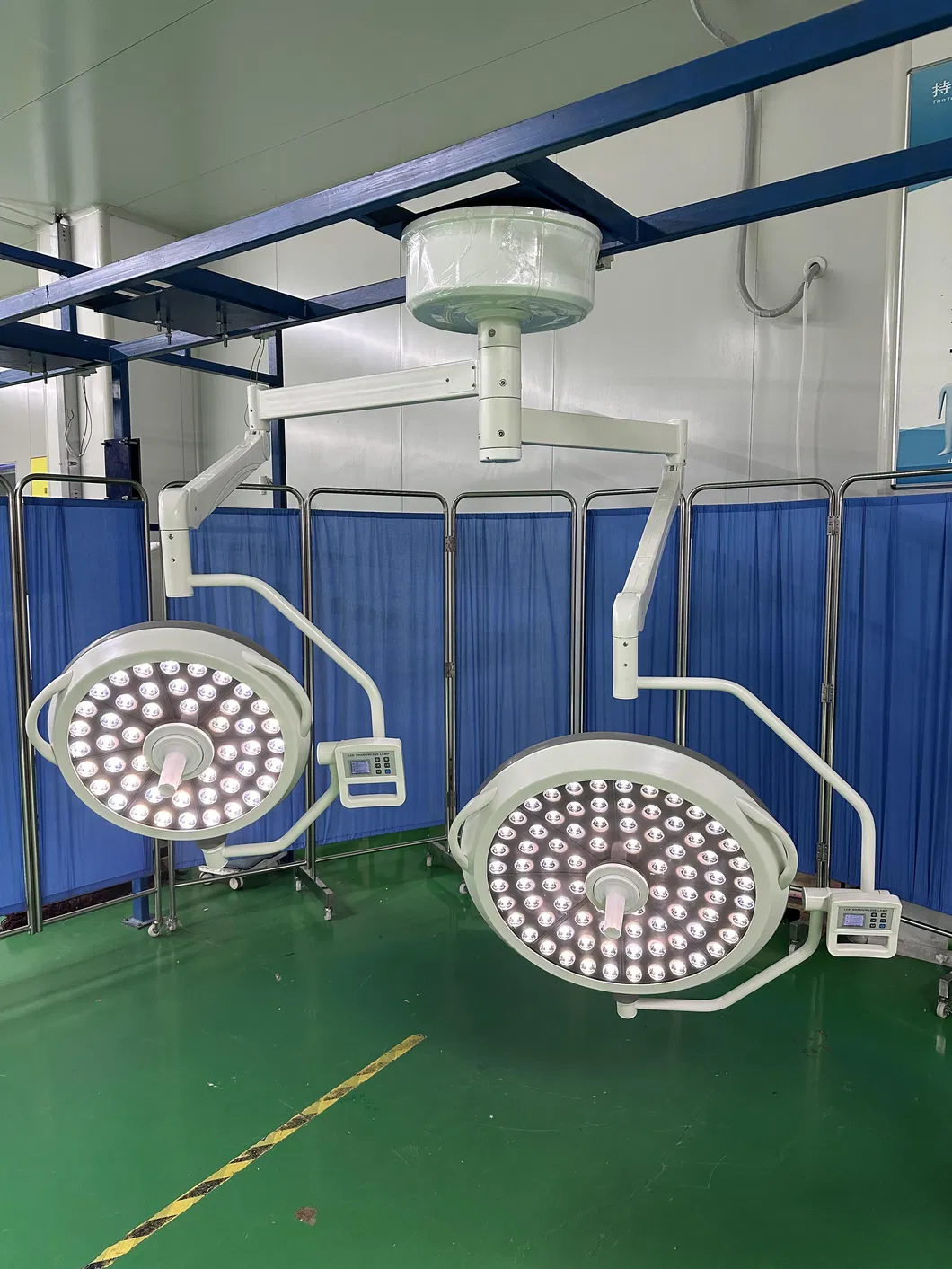

Product Gallery

🏭

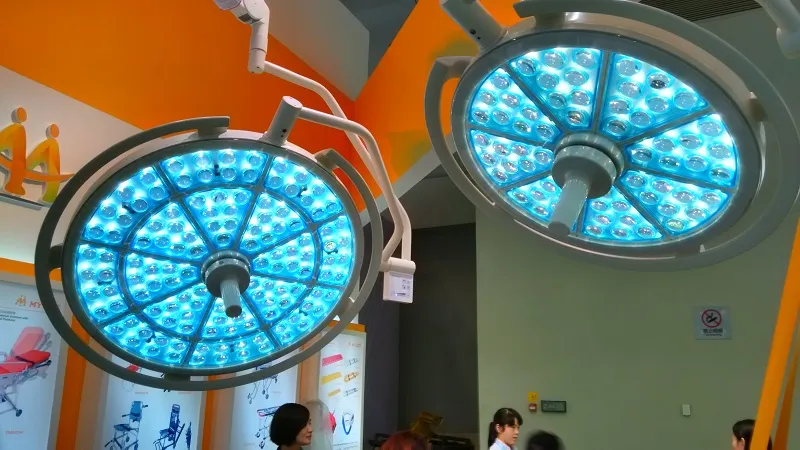

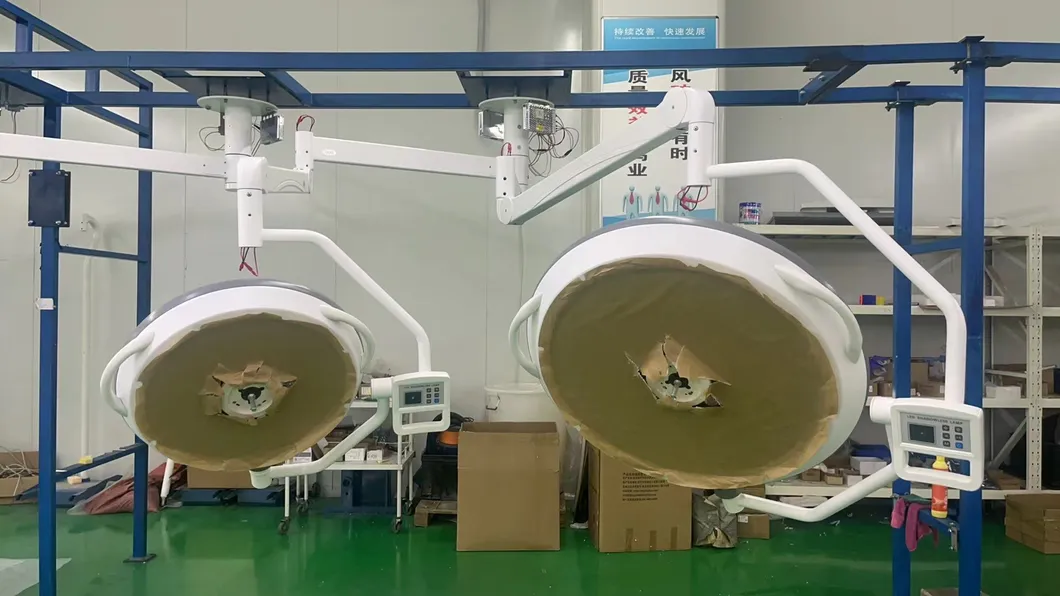

Manufacturing & Related Products

🏆

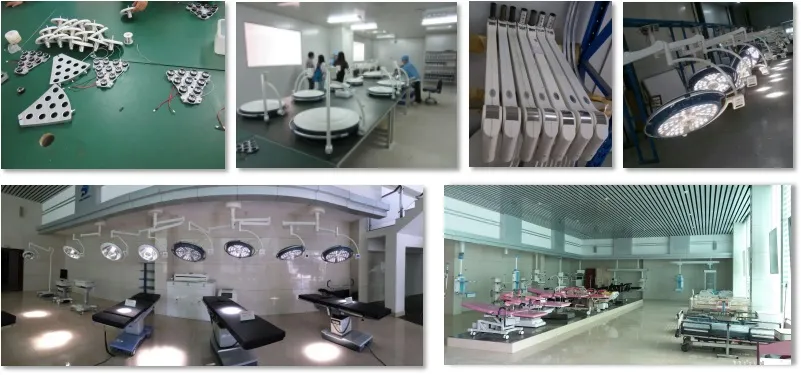

Quality Assurance & Showroom

❓

Frequently Asked Questions

What is the lifespan of the LEDs in the YDE700 series?

The LEDs are designed for extreme longevity, offering a service life of up to 100,000 hours, which significantly reduces maintenance costs.

Can the color temperature be adjusted?

Yes, the color temperature is adjustable within the range of 3600K to 5500K (±500K) to suit different surgical requirements.

Is the light shadowless?

Absolutely. The YDE700D series utilizes multi-lens technology to provide a high-quality, shadowless beam even when the surgeon's head or hands partially obstruct the light.

What are the power requirements for this equipment?

The equipment supports a wide voltage range of 90V-240V AC at a frequency of 50Hz, making it compatible with most global power standards.

Does the light emit heat onto the surgeon?

No, the LED technology ensures minimal heat radiation. The temperature rise on the surgeon's head area is kept to less than 1ºC.

What certifications does this surgical light hold?

The product is fully certified with CE, ISO, and FDA standards, ensuring it meets international medical safety and quality requirements.

Product Detail

Mt Double Dome Ceiling Shadowless Medical Examination Surgical Mobile LED Operating Lamp

Product Description

Related Products

Product Detail

Mt Double Dome Ceiling Shadowless Medical Examination Surgical Mobile LED Operating Lamp

Product Description

Related Products

Mobile Portable 360 Projection Inflatable Planetarium Dome

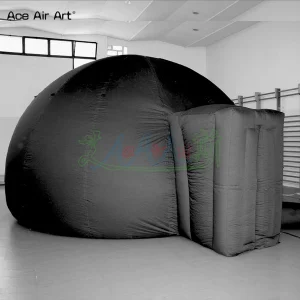

4m Diameter Portable Inflatable Planetarium Tent Movie Dome Mobile Inflatable Planetarium Dome

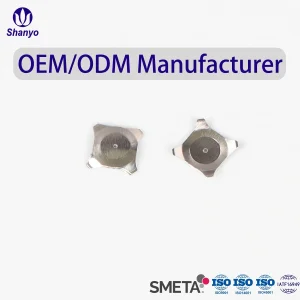

Shanyo Precision Stamping Cross Shape Tactile Snap Metal Dome Switches for Mobile Phone Buttons

UV-Resistant Inflatable Tent The Mobile Inflatable Sports Hall Air Dome for Sports Clubs

Air Domes Manufacturer Mobile Inflatable Storage Basin Air Dome for Coal Shed

Mobile Inflatable Classroom Projection Planetarium Dome

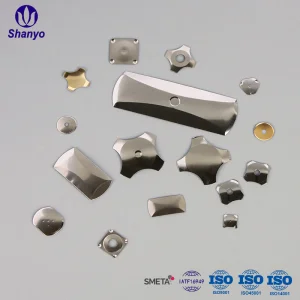

Free Sample Customized Tactile Switch Keypad Metal Snap Domes for Mobile Phones
