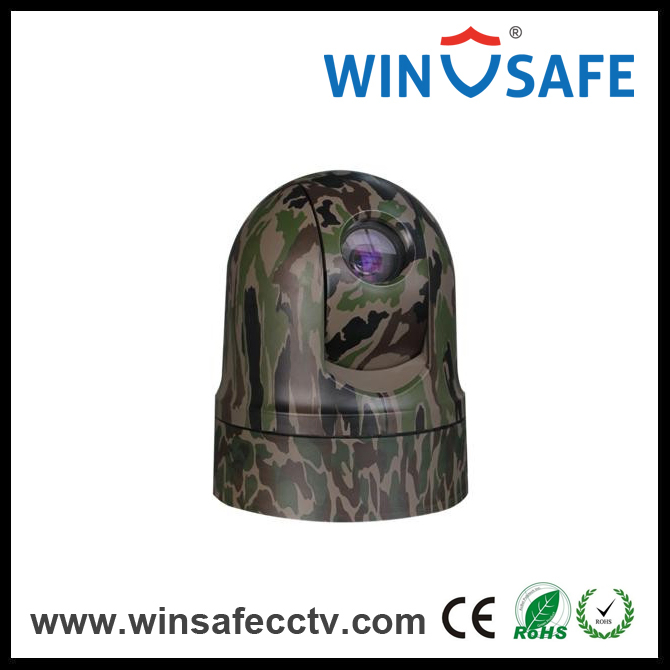

HD Vehicle Weather-Proof Mobile Security IP Anolog IR PTZ Dome Camera SDI

1 / 5

HD Vehicle Weather-Proof Mobile Security IP Anolog IR PTZ Dome Camera SDI

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Information

Model NO.

CAHC-A2001N

Type

Video Camera

Sensor

CMOS

HDMI Format

1080P

Resolution

2.2MP

Lens

Manual Focus Lens

Certification

CE, FCC, RoHS, ISO9001

Features

Waterproof, High Definition, Mini Size

IR Distance

≧30m

Sensor Size

1/3 inch

Optical Zoom

20X

Digital Zoom

16X

IP Code

IP66, TVS, Anti-Surge

Weight

1.6kg

Warranty

2 Years

HS Code

8525801390

Product Description

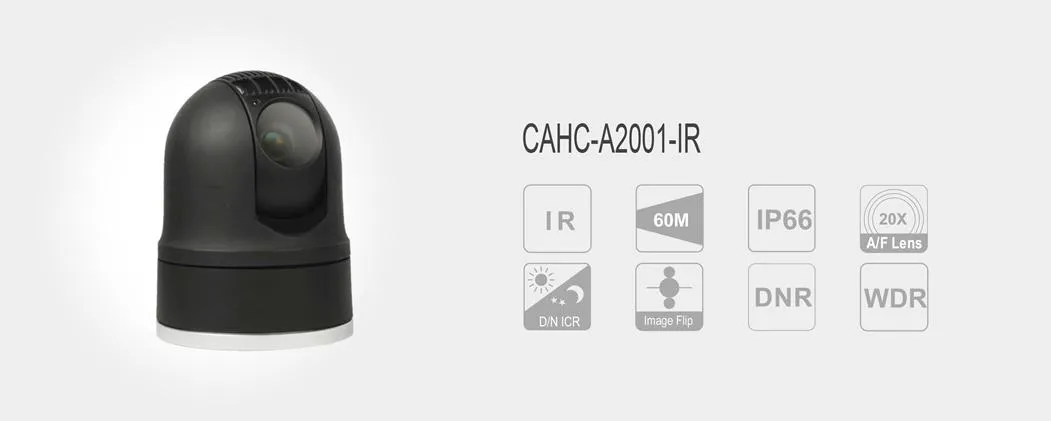

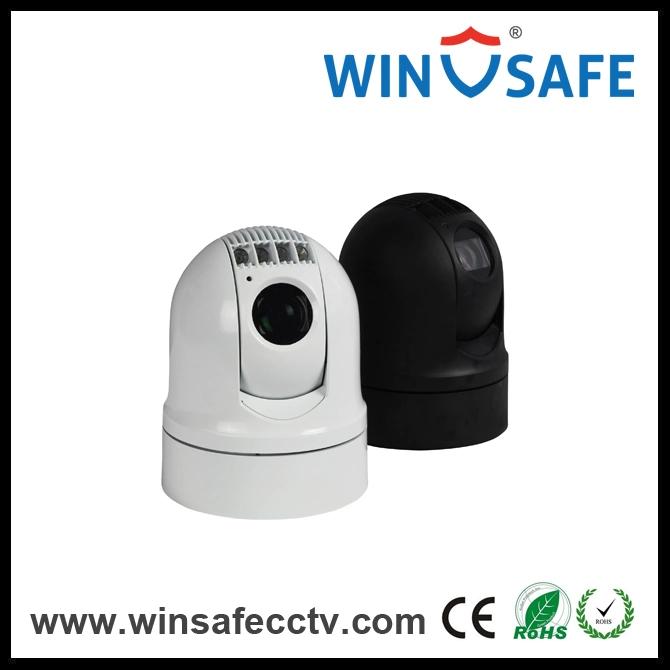

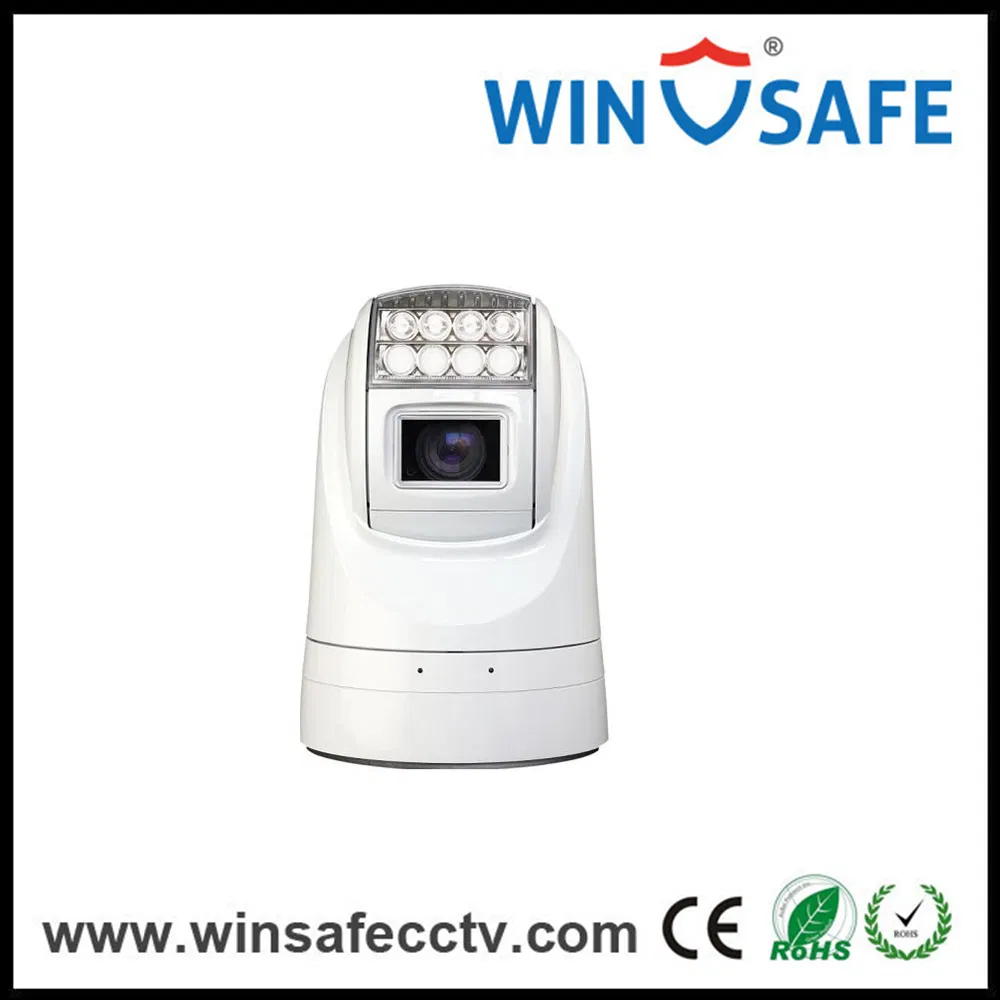

HD Vehicle Weather-Proof Security IR PTZ Dome Camera

◈ 2.2MP HD Sensor, supporting 1080P, 1080I, 720p and CVBS output

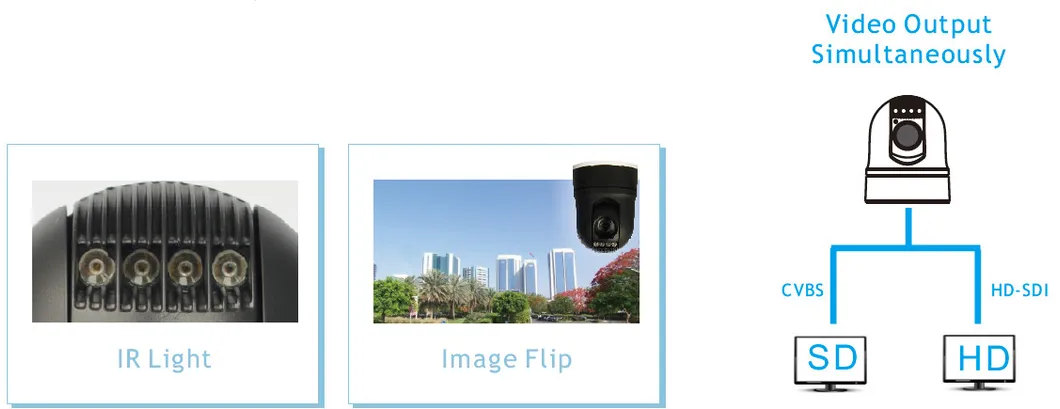

◈ HD-SDI and CVBS output simultaneous

◈ HD-SDI for transfer of HD video, CVBS, power and RS-485

◈ Efficient 60M IR Lighting, excellent night vision performance

◈ Magnesium Alloy front cover with compact design

◈ Advanced mechanical system with high speed motor

◈ Digital Image Stabilization (DIS) & WDR supported

◈ Built-in Defogger & Image Flip support

◈ Wide range of voltage input (10.8-28V)

◈ Auto power-off with low power supply protection

Technical Specifications

Camera
Image Sensor	1/3 inch, PS CMOS
Effective Pixel	1944(H) x 1092(V)
Video Output	HD: 1080p, 1080i, 720p / SD: PAL/NTSC
Min Illumination	Color: 1.5 Lux / B/W: 0.1 Lux
Focus / Exposure	Auto / Manual
Lens
Optical Zoom	20X
Digital Zoom	16X
Focal Length	f = 4.45 to 89mm
Field of View	H: 55.56° to 3.10° / V: 43.32° to 2.34°
PTZ Performance
Pan Range	360° Continuous
Pan Speed	Control: 0.05° - 120°/s; Preset: 150°/s
Tilt Range	-15° - 90° (Auto Flip)
Presets	256 Presets (± 0.05° Precision)
General
IR Distance	60M / 50M
Interface	RS-485 / HD-SDI / CVBS
IP Rating	IP66 Waterproof, Anti-surge
Working Temp	-35°C to +65°C
Power	DC 10.8 - 28V (15W - 30W)

Frequently Asked Questions

What is the night vision range of this camera?

The camera features efficient IR lighting with an effective range of up to 60 meters (850nm/940nm), ensuring excellent visibility in complete darkness.

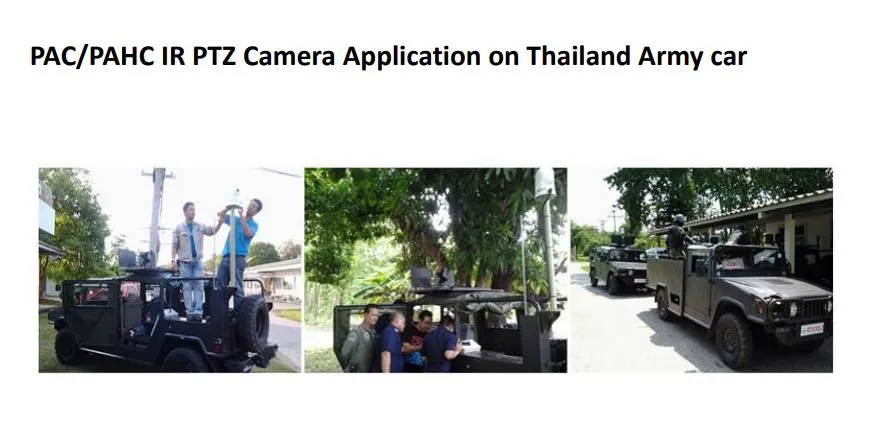

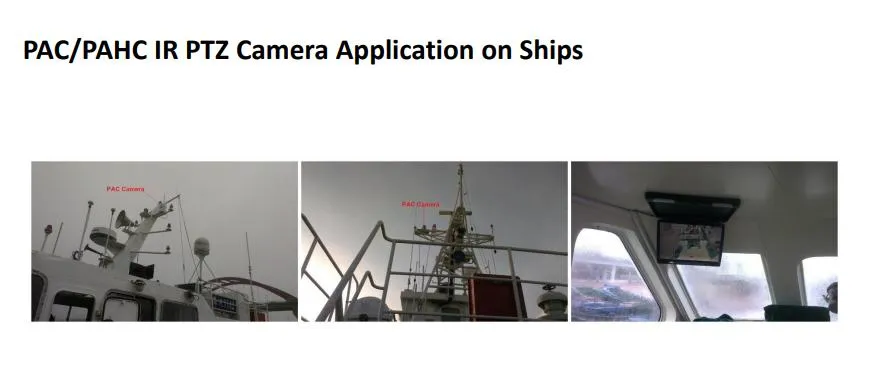

Can this camera be used for vehicle-mounted applications?

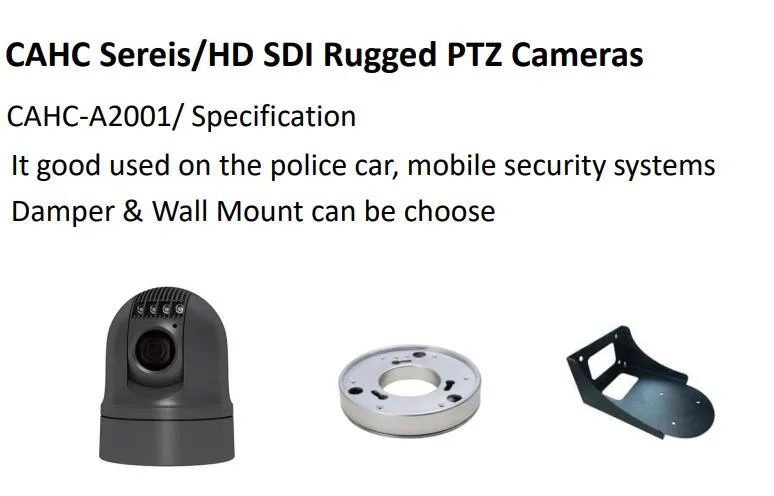

Yes, it is specifically designed for mobile security with a portable compact design, wide voltage input (10.8-28V), and optional damping systems to handle vibrations.

What video outputs does it support?

It provides simultaneous HD-SDI and CVBS outputs, supporting multiple resolutions including 1080p, 1080i, and 720p.

Is the camera waterproof and durable for outdoor use?

Absolutely. The camera is IP66 rated for waterproof and weatherproof performance. It also includes TVS and anti-surge protection with a magnesium alloy front cover.

What are the zoom capabilities?

The camera is equipped with a powerful 20X Optical Zoom and a 16X Digital Zoom, allowing for detailed observation over long distances.

Does it support remote control and protocol adaptation?

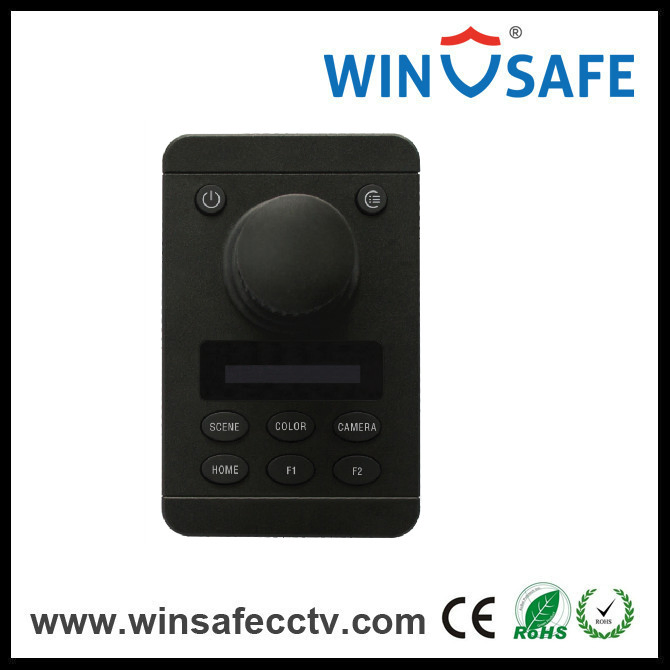

Yes, it supports RS-485 communication with self-adaptive protocol (Pelco-P/Pelco-D) and baud rate detection.
