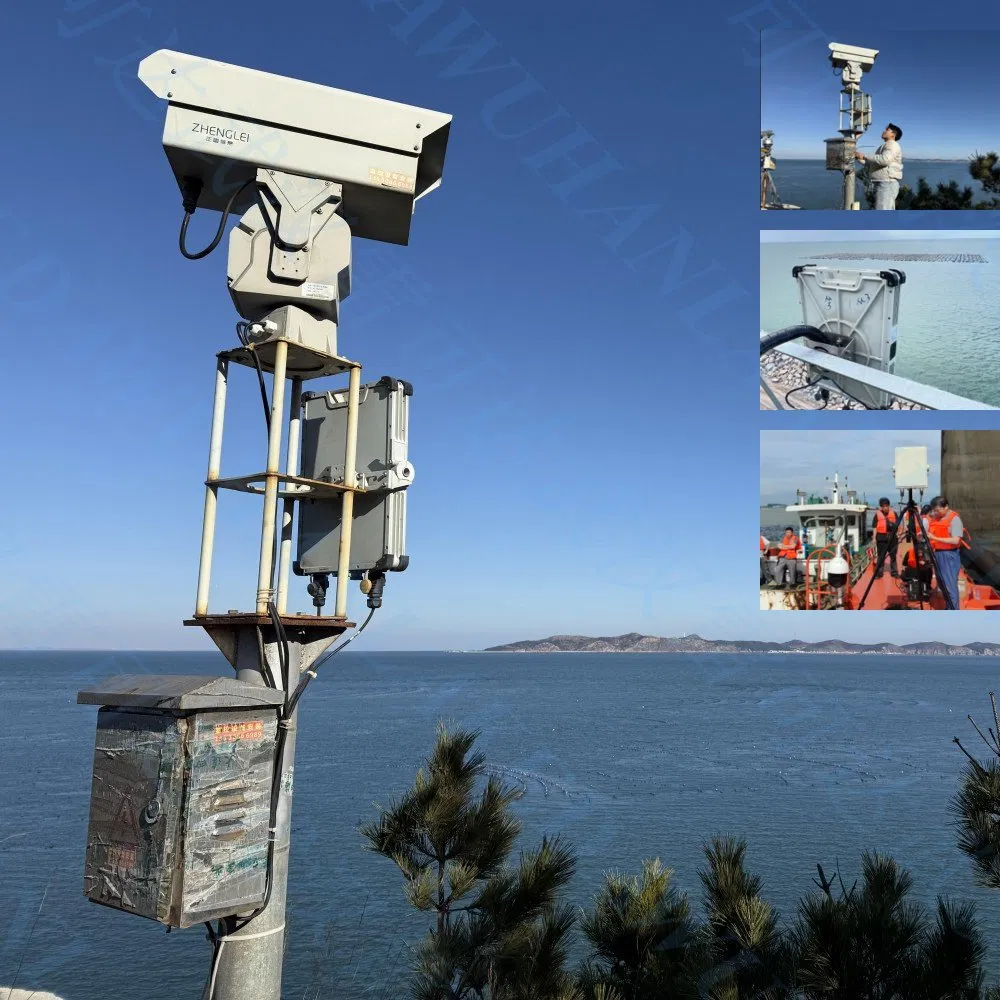

24/7 Operational 8km Radar with PTZ for Coastline Protection

1 / 5

24/7 Operational 8km Radar with PTZ for Coastline Protection

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

CS-RAD-S-8000C Coastline Surveillance Radar

The CS-RAD-S-8000C Radar operates in the C-band and adopts fully digital active digital phased array technology. Through modular and refined design, it comprehensively utilizes various technical means such as adaptive moving target detection, digital T/R (Transmit/Receive), DBF (Digital Beamforming), and analog-digital integrated design to ensure stable performance and functional implementation.

Basic Information

Model NO.	CS-RAD-S-8000C	Type	CCTV Camera / Surveillance Radar
Sensor	CMOS / Phased Array	HDMI Format	1080P
Certification	RoHS, ISO9001: 2000	Feature	Waterproof, Weatherproof, High Definition, Auto BLC
Working System	Pulse Doppler	Frequency Band	C Band
Weight	5.5kg	Azimuth Coverage	90 Degree

Product Description

The core purpose is to conduct detection, early warning, and target indication of moving ships in offshore areas. It can output the track information of targets in real time and with high accuracy, providing data support for relevant monitoring and dispatching work.

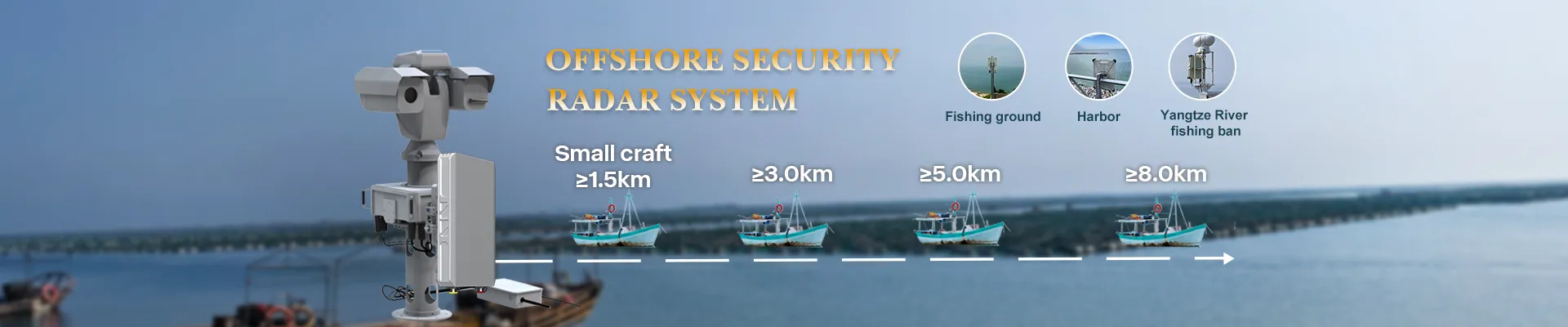

Key Detection Ranges

Pedestrians: 0.8 - 5 km
Vehicles: 1.2 - 8 km
Vessels (5-10m small boats): 1.5 - 8 km

Core Advantages

🚀 Advanced Detection Technology: Adopts a phase-sweep phased array system and realizes non-uniform detection through azimuth electrical scanning.

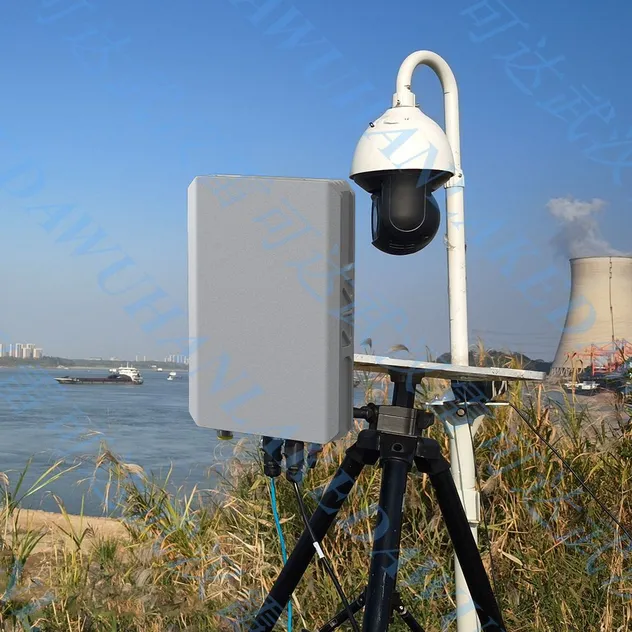

🛠️ Convenient Deployment: Features an overall lightweight design with a simple installation process, allowing operation by a single person.

🎯 Accurate Recognition: Equipped with adaptive moving target detection technology and Doppler clutter suppression technology.

Technical Specifications

Parameter Category	Specific Parameters
Operating System	Phased Array System
Operating Mode	Pulse Doppler
Operating Frequency	C-band
Transmit Peak Power	4W
Coverage Range	Azimuth: 90°, Elevation: ≥18°
Minimum Operating Distance	≤30m
Detection Speed Range	0.5m/s - 30m/s
Accuracy	Speed: ≤0.30m/s, Distance: ≤8m, Azimuth: ≤1°
Data Rate	≥2 frames/s
Simultaneous Targets	Up to 200 targets
Interface	RJ45
Rated Power Consumption	≤45W
Environment Standard	IP65, -40℃ to +55℃

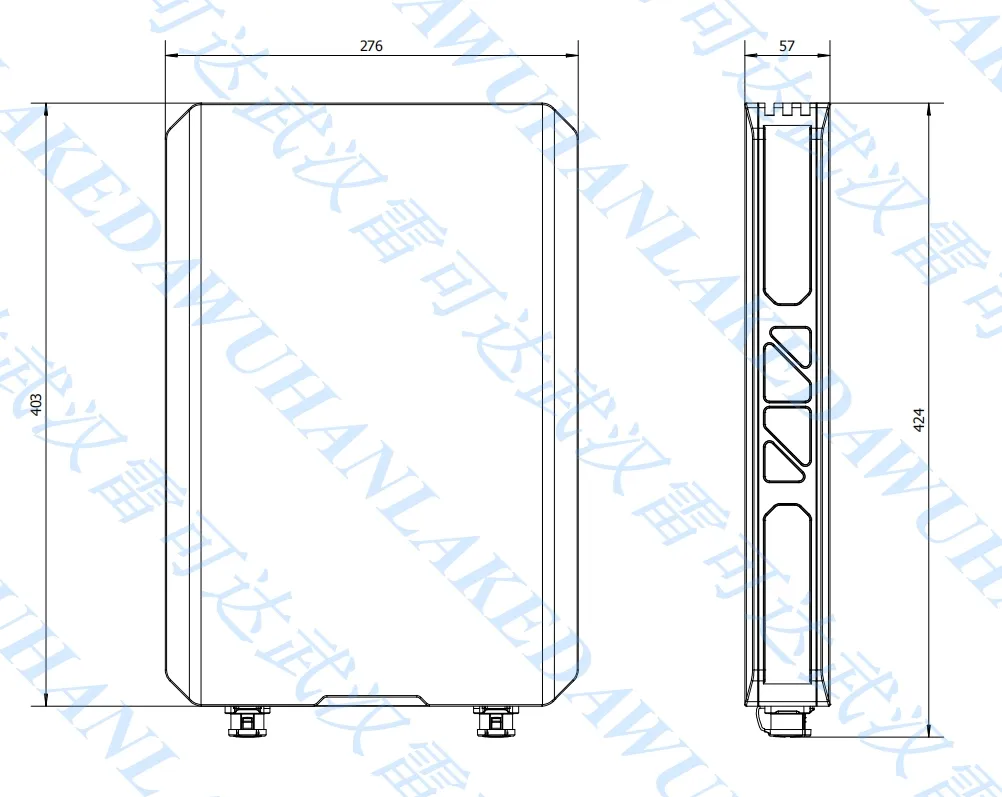

Drawings & Dimensions

After Sales Service

Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 36 months
Global Support: 24/7 technical assistance
Training: On-site or remote operation/maintenance training

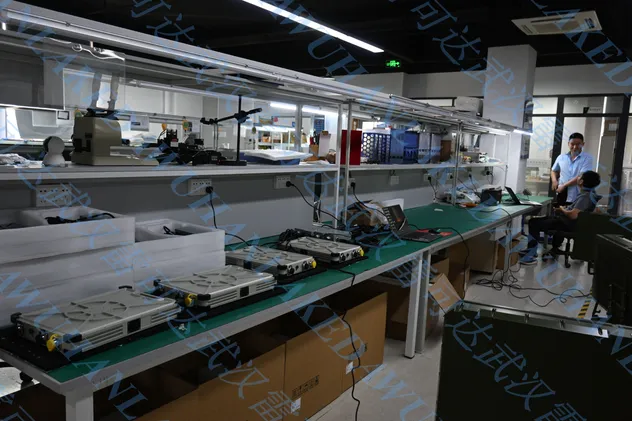

Profile & Capacity

Focusing on R&D and manufacturing of radar systems, we have formed three layouts including anti-UAV detection. With strong R&D capabilities, we provide first-class products and services, supporting the radar security industry and deepening outdoor safety solutions in multiple fields.
