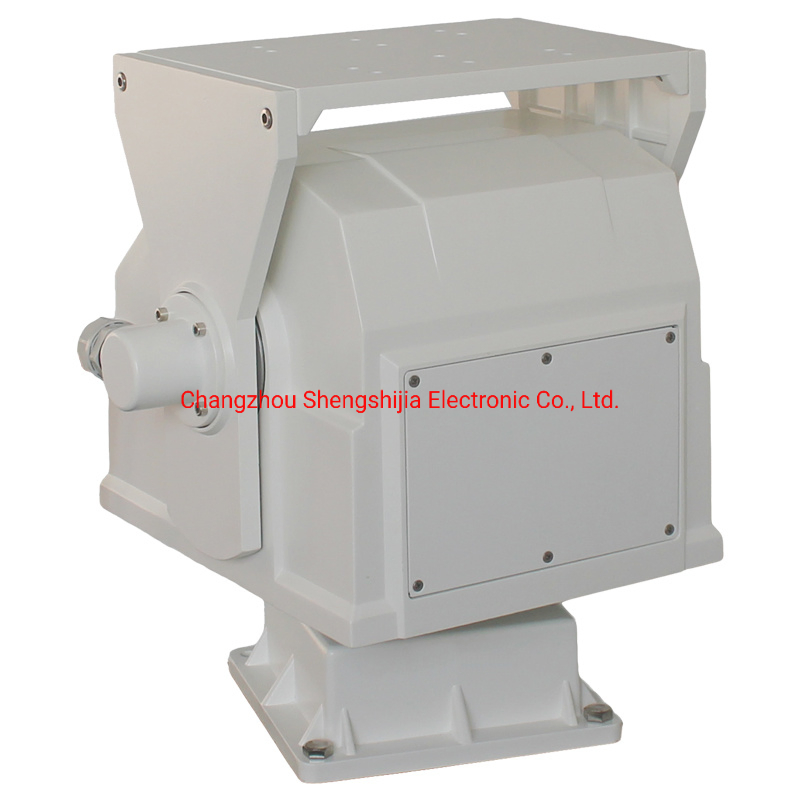

High Speed Heavy Duty Pan Tilt Motor PTZ for Marine (SHJ-PT22)

Customization:	Available
Top Loading:	22kg
Tracking:	8

Send Inquiry

Product Description

Basic Information

Model NO.

SHJ-PT22

Automatic Scan

Power

AC-24V/DC-24V

IP Grade

IP66

Specification

CE, ISO

Production Capacity

500PCS/Month

Product Description

Heavy-Load IP PTZ Camera with Real Time Feedback Function (SHJ-PT22)

Key Features:

Professional wiper structure with high/low temperature anti-ice design.
Advanced electromagnetic compatibility with triple lightning protection.
High-strength self-locking capability using large transmission ratio worm gear.
Dynamic voltage drive technology for high load capacity and wind resistance.
Full HD 1080P output with dual-stream support and ONVIF compatibility.

Application Fields: Forest fire prevention, safe cities, prisons, warehouses, oil depots, long-distance pipelines, large factories, mines, garages, sea side defense, marine fisheries, ecological protection areas, reservoirs, and other bases.

Technical Specifications

PTZ Specification
Pan Manual Control Speed	0.01°/S -- 40°/S
Tilt Manual Control Speed	0.01 /S -- 15°/S
Pan Angle	360° Endless Rotation
Tilt Angle	+40°~-75°
Preset Position	256 Positions

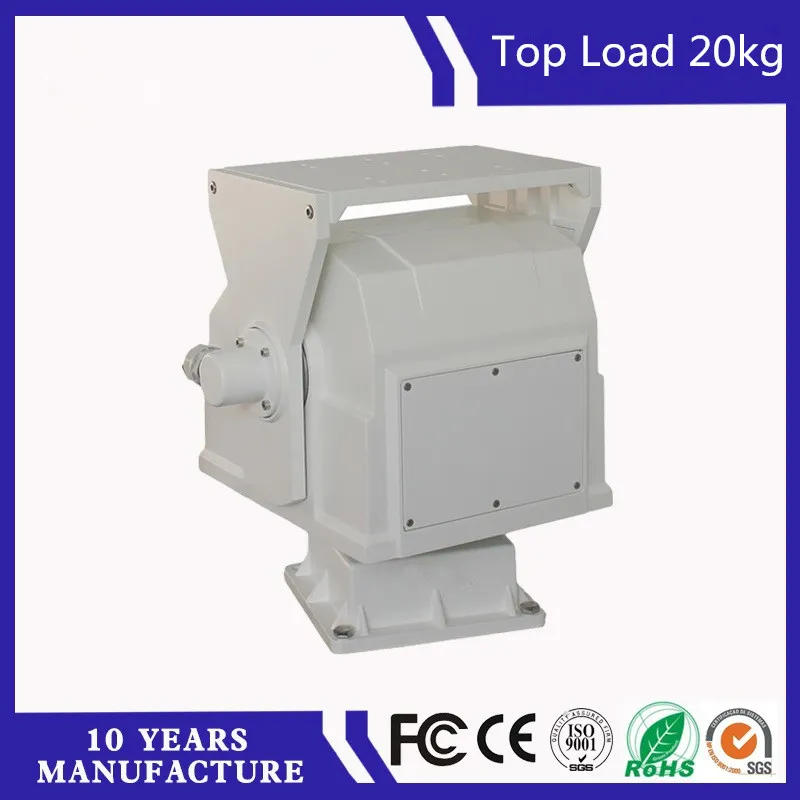

Loading	Top Loading 20KG
Control Way	RS485 control, Angle rotation backhaul
Working Temperature	-40 ºC - 55ºC
IP Grade	IP66

Network & Video Parameters
Video Compression	H.264 / H.265
Support Protocol	TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, IPv6, GB28181
Interface Protocol	ONVIF / PSIA / CGI / ISAPI
Storage Function	Support MicroSD storage
Intelligent Alarm	Motion detection, mask alarm, full memory, memory error
Dual-Stream	960P + D1
Security Mode	Authorized user/password, MAC address binding, HTTPS encryption, IP filtering

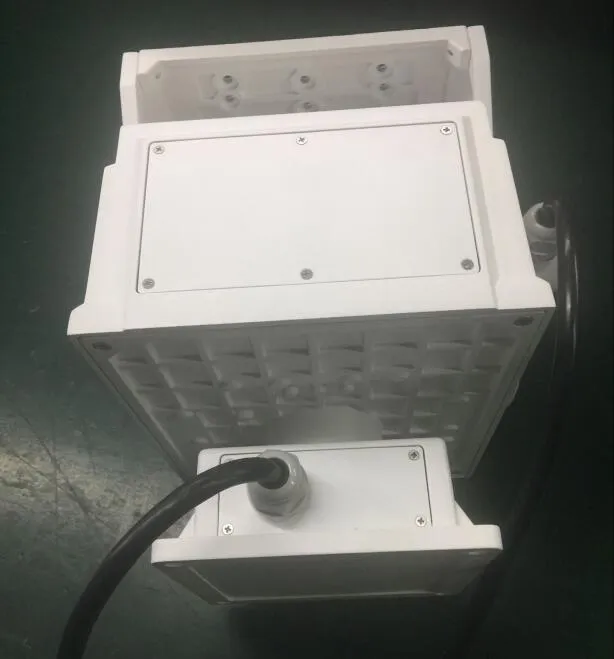

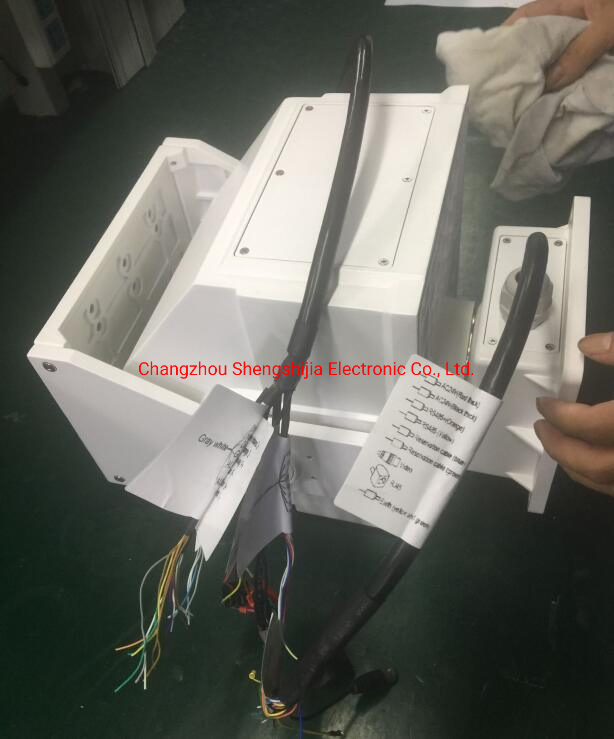

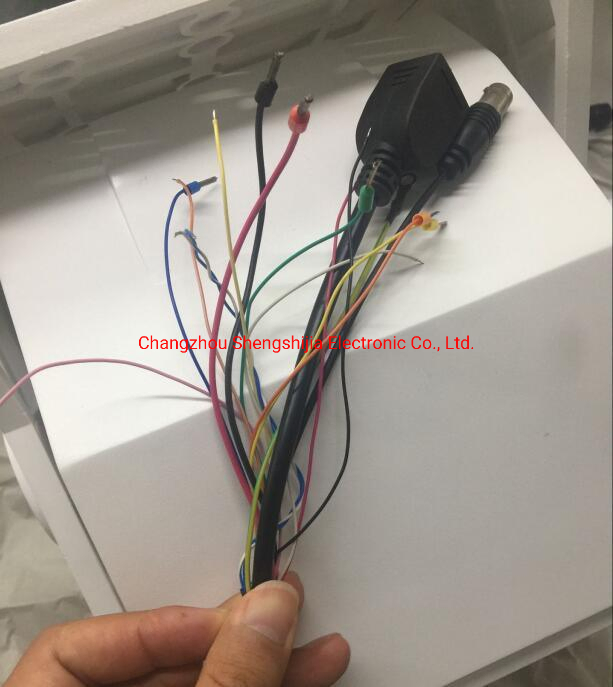

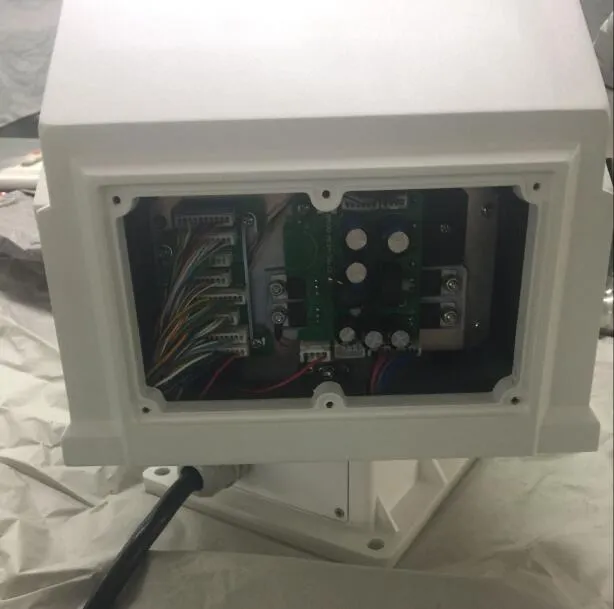

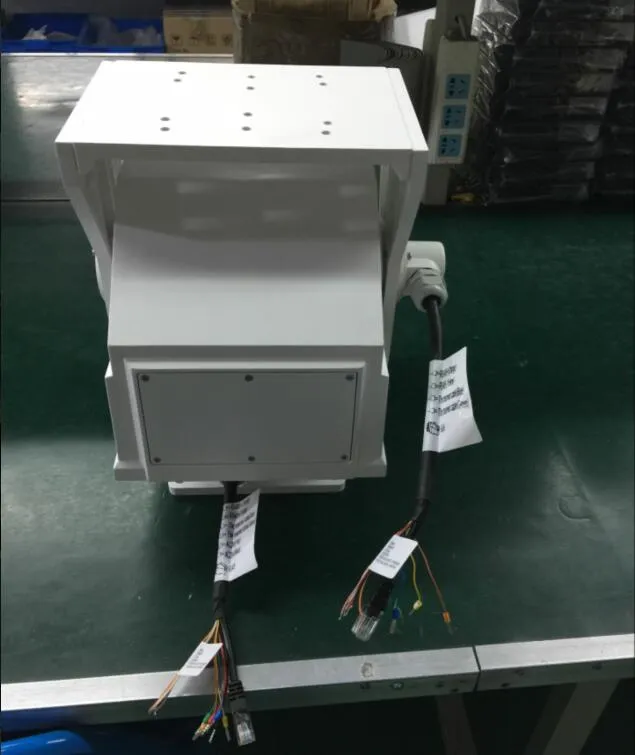

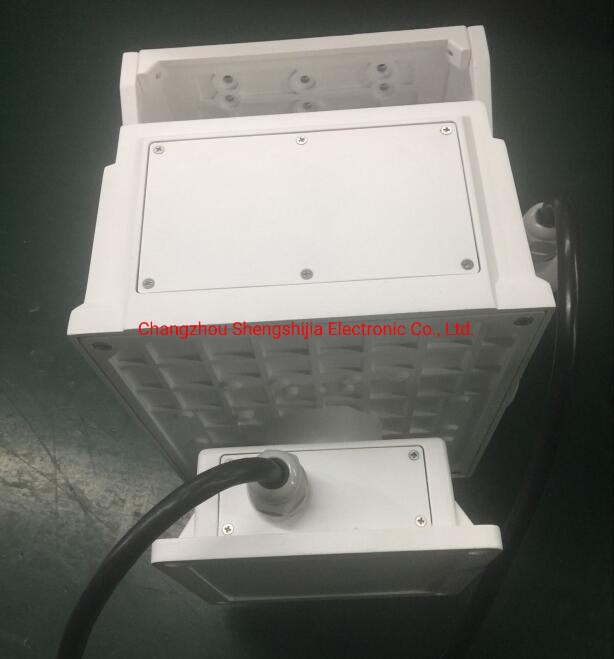

Detailed Photos

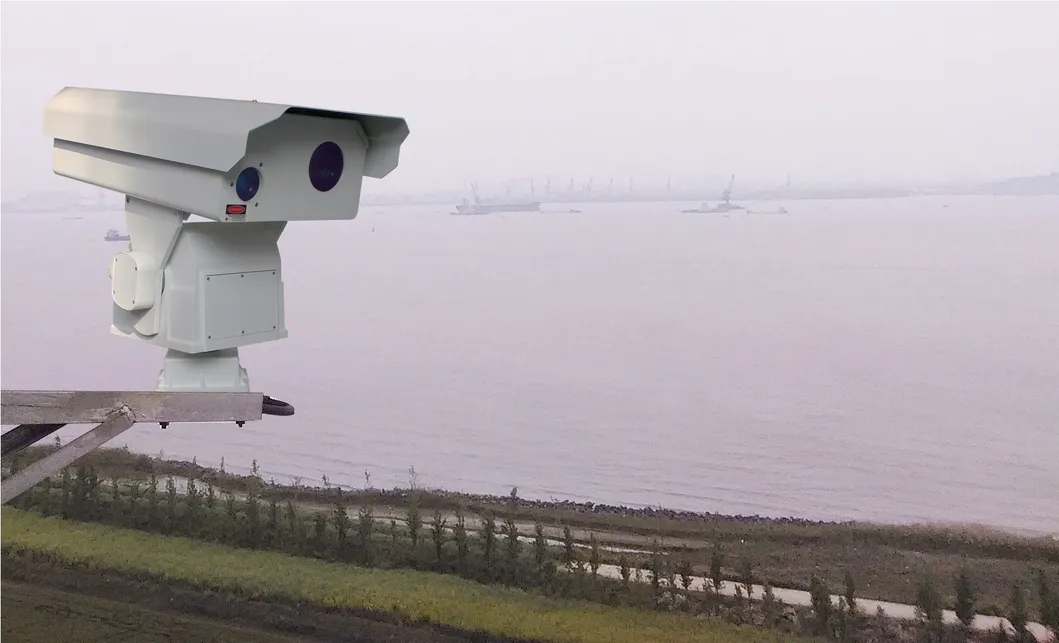

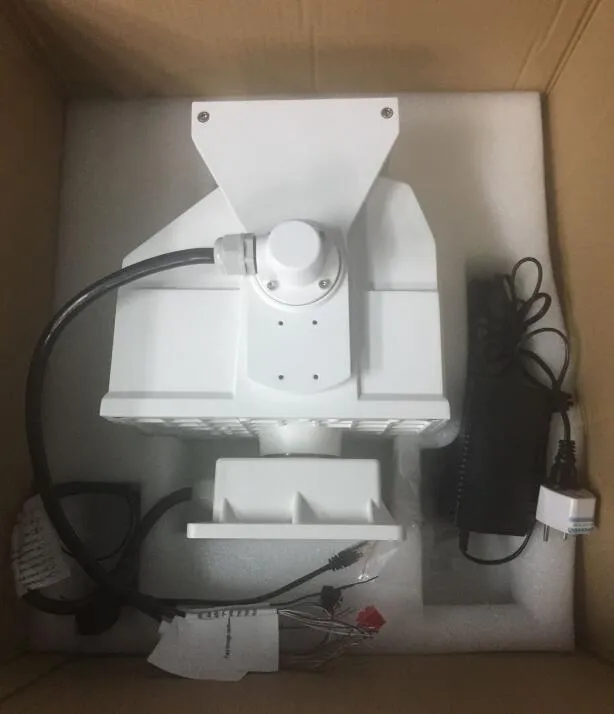

Packaging & Application

Frequently Asked Questions

What is the maximum load capacity of the SHJ-PT22?

The SHJ-PT22 supports a top-loading capacity of up to 20KG, making it suitable for heavy-duty sensors and long-range cameras.

Is this PTZ camera suitable for extreme weather conditions?

Yes, it features an IP66 waterproof rating and a working temperature range of -40ºC to 55ºC, plus a professional wiper for anti-ice and rain protection.

Does the system support high-definition video output?

Absolutely. It supports HD IP megapixel digital high-definition movement with a maximum 1080P output and H.265 compression.

What control protocols are supported by this device?

It supports RS485 control via PelcoD-P protocols and network interface protocols including ONVIF, PSIA, CGI, and ISAPI.

Can the camera return its current rotation angle?

Yes, the device features a real-time feedback function where the angle of rotation can be achieved through backhaul control.

What power supply does the SHJ-PT22 require?

The device is compatible with both AC24V and DC24V power inputs, with a power consumption of ≤100W.
