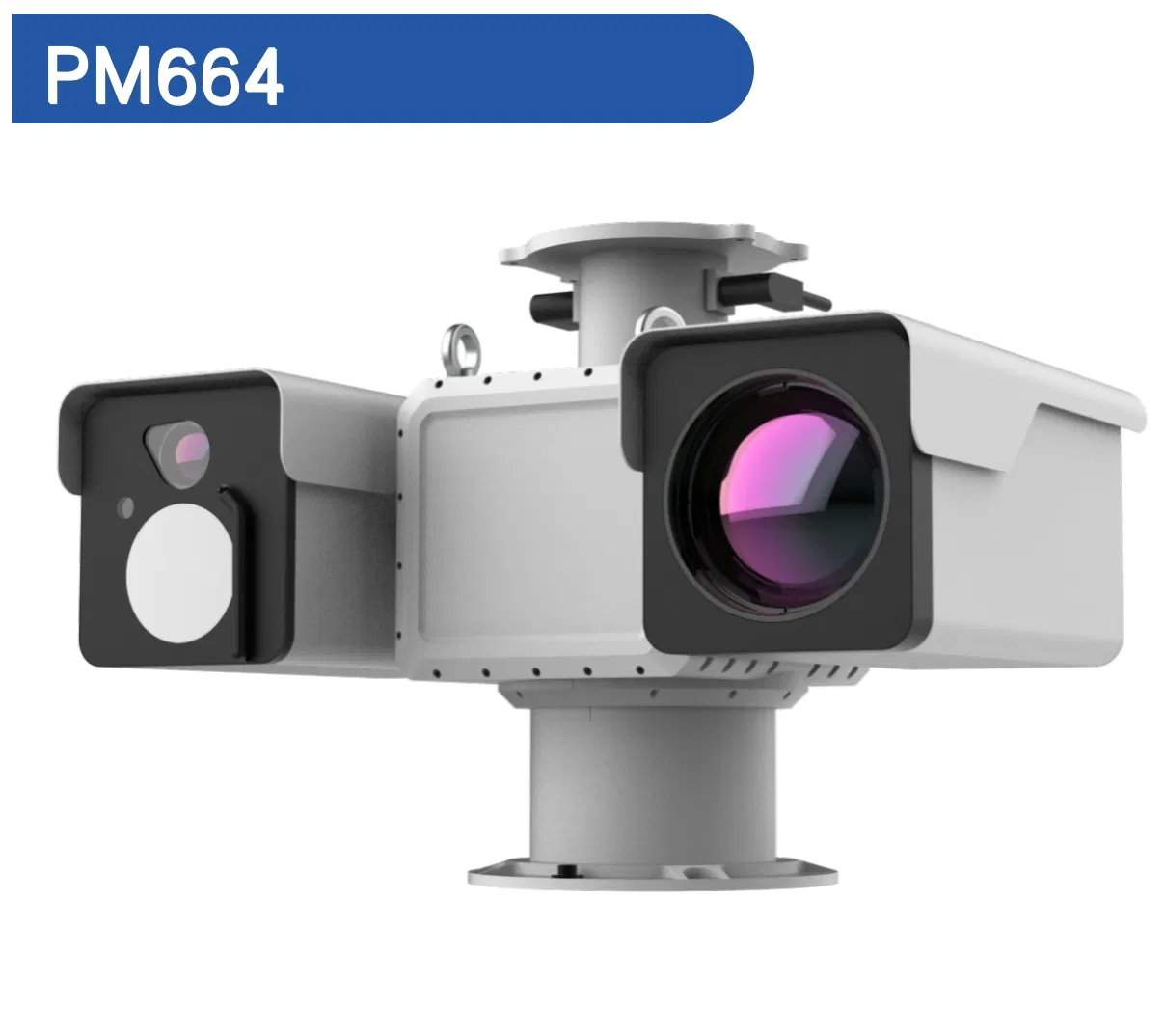

Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense
Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense
Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense
Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense
Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense
1 / 5
Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense
Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense
Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense
Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense
Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense

Pm664 Multi-Spectral Coaxial Thermal PTZ System for Border and Coastal Defense

Customization: Available
Technology: Infrared
Style: Pan/Tilt
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
PM664
Type
IP Camera
Sensor
CMOS
Kind
Autofocus Lens
Feature
Waterproof, High Definition
Architecture
Coaxial Tri-Spectrum
Thermal Type
Vox Uncooled & T2SL Cooled
Optical Zoom
15~775mm (50X+)
Payload
Up to 35kg
Detection
Vehicle 67.5km / Human 22km
★

Product Description

PM6 Series Coaxial E.O.S.

The PM664 Multi-Spectral Coaxial Thermal PTZ System is designed for high-end border and coastal defense. It integrates high-performance infrared detectors with advanced imaging algorithms.

  • Dual-spectrum imaging integrating visual and thermal sensors.
  • Flexible expansion for Laser Range Finder (LRF) and LiDAR integration.
  • Long-focal-length continuous zoom lens for long-distance detection.
  • AI-powered recognition and tracking for humans, vehicles, vessels, UAVs, and birds.

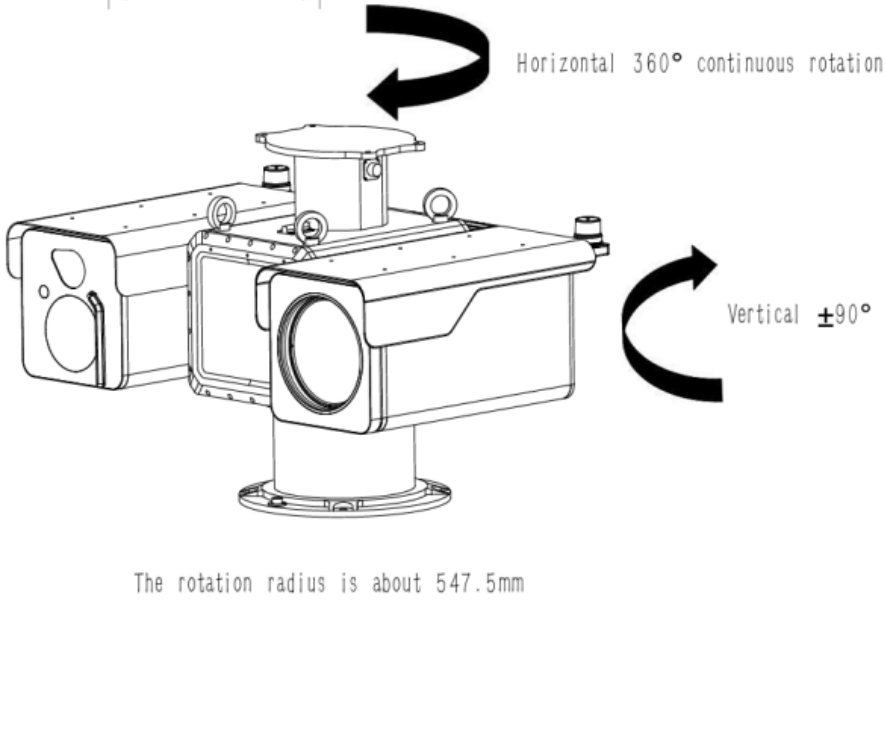

  • High-precision Pan/Tilt (±0.01°) with 120°/s rotation speed.
  • IP66 all-weather protective design, resistant to corrosion and salt spray.
  • Compatible with ONVIF protocols and provides comprehensive SDK support.

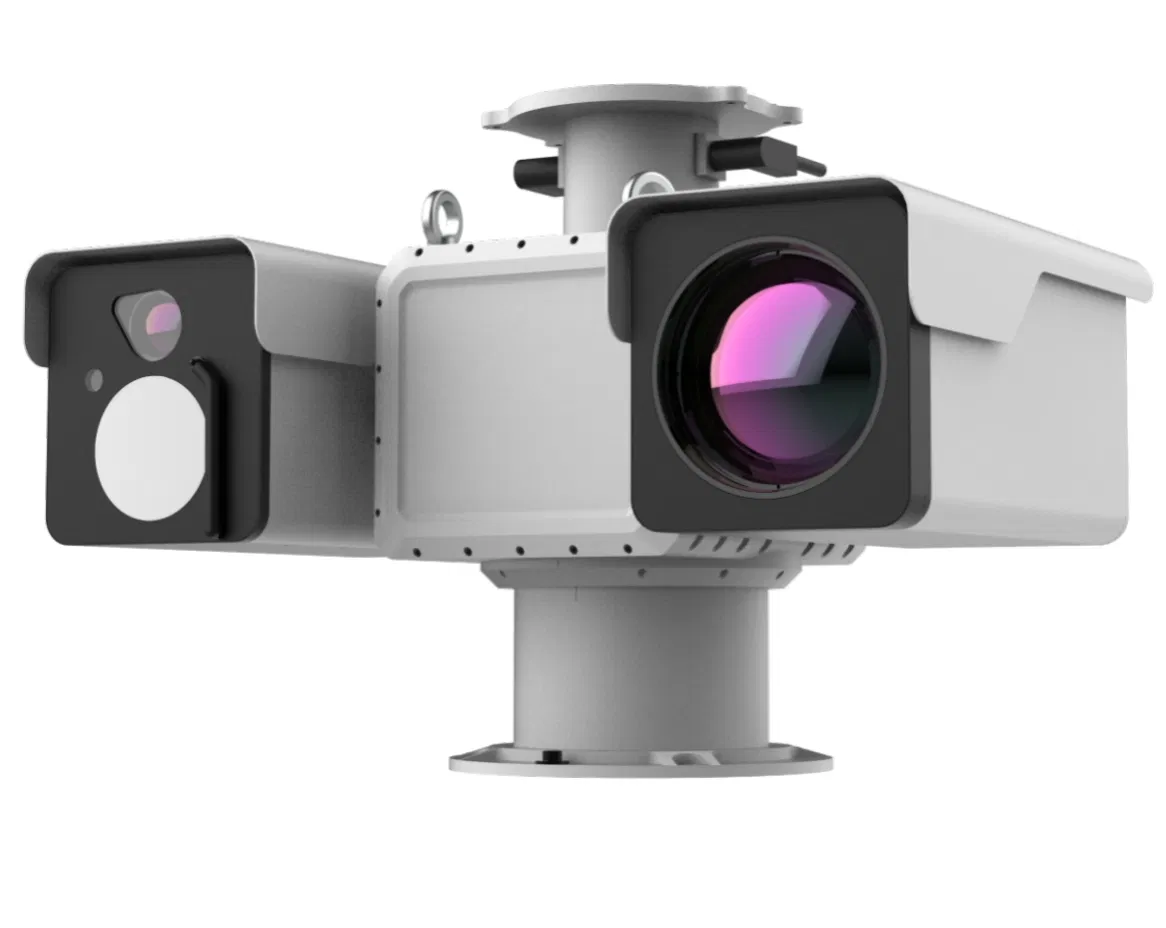

Multi-Spectral Coaxial Thermal PTZ System
📋

Technical Specification

Category Technical Details
ModelPM664 Coaxial E.O.S.
Thermal SensorVOx Uncooled FPA (12μm) / T2SL Cooled FPA (15μm)
Thermal Resolution640 × 512
Thermal Lens30~660mm Continuous Zoom
Visible Sensor1/1.8" 4MP CMOS
Visible Lens15~775mm Long-focal Lens (50x+)
Detection DistanceVehicle: 67.5km / Human: 22km
Pan/Tilt Precision±0.01° with Gyro-stabilization
IntelligenceAuto-tracking (Man, Vehicle, Vessel, UAV, Bird)
ProtectionIP66, TVS 6000V Lightning Protection
Operating Temp-40°C ~ +70°C
Power SupplyDC 48V ± 15%
🖼️

Visual Overview

Packing & Delivery
Company Overview
Production Facility
Certifications
Application Scenarios
?

Frequently Asked Questions

What is the maximum detection range of the PM664 system?
The system is capable of detecting vehicles at distances up to 67.5km and humans at up to 22km, making it ideal for long-range surveillance.
Does the system support intelligent target tracking?
Yes, it features dual-spectral recognition and auto-tracking for various targets including humans, vehicles, vessels, UAVs, and birds.
Is the device suitable for harsh coastal environments?
Absolutely. It features an IP66 protection rating and an all-weather protective design that is resistant to wind, water, corrosion, and salt spray.
What kind of optical zoom does the visible lens offer?
The system is equipped with a 15~775mm long-focal lens, providing over 50x optical zoom for detailed long-distance observation.
Can it be integrated with existing security software?
Yes, the system supports ONVIF standard protocols and provides an SDK for seamless integration with NVR and VMS software.
What are the power requirements for this PTZ system?
The system operates on DC 48V ± 15% with a power consumption of approximately 500W.
