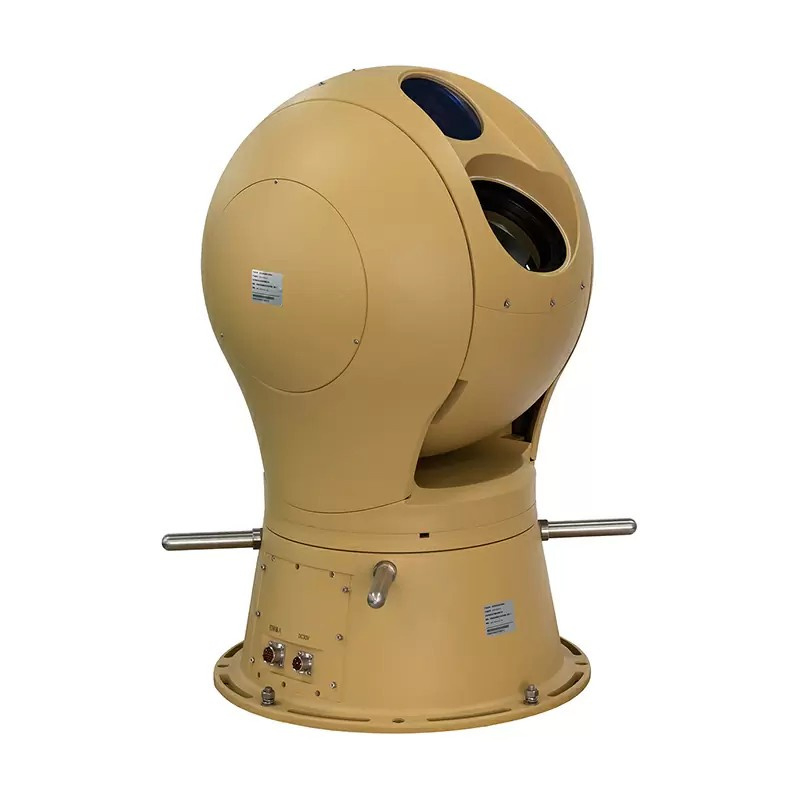

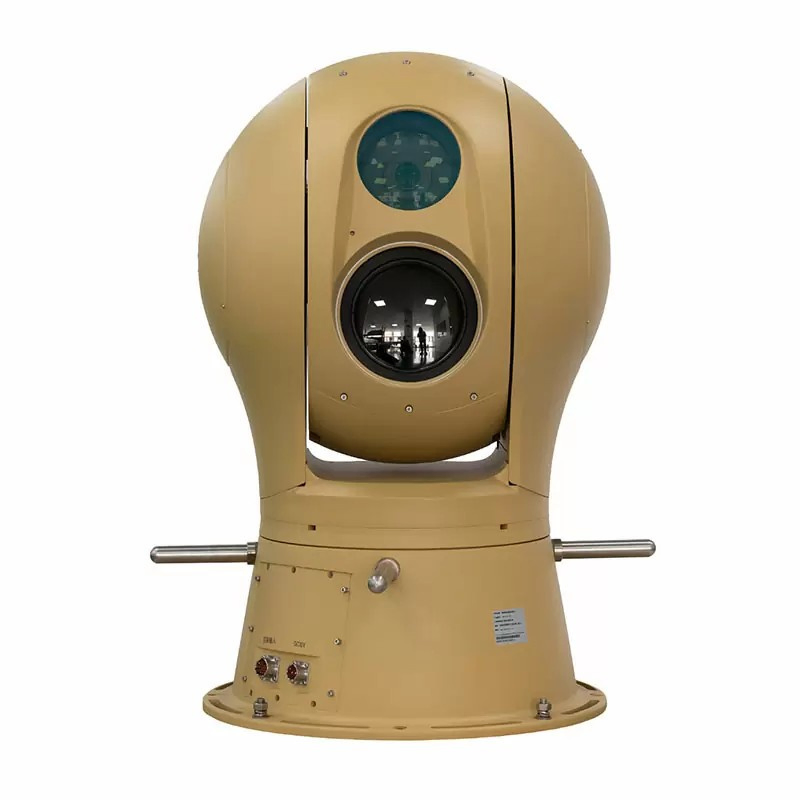

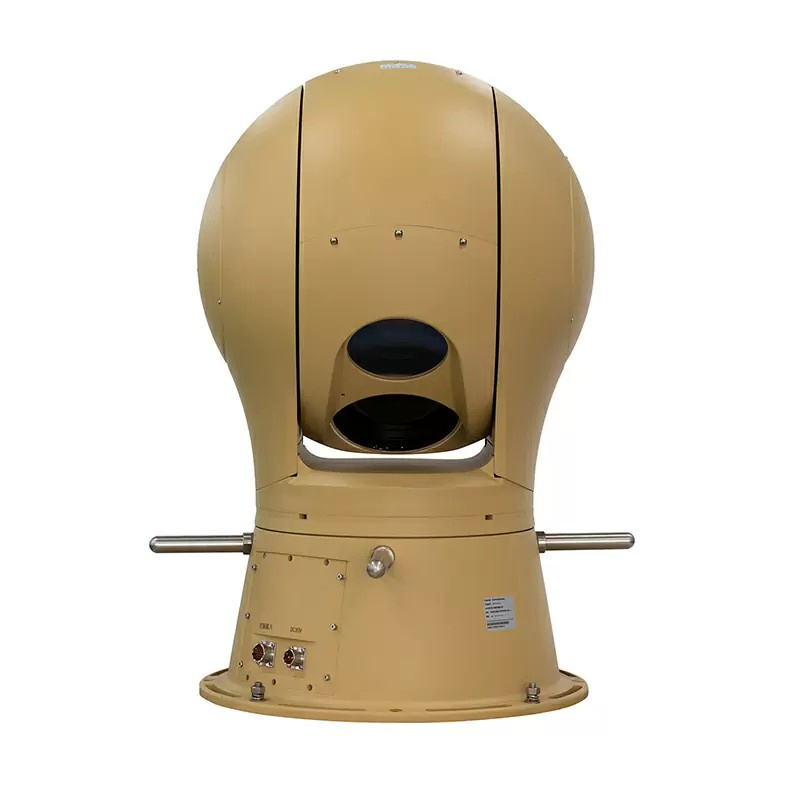

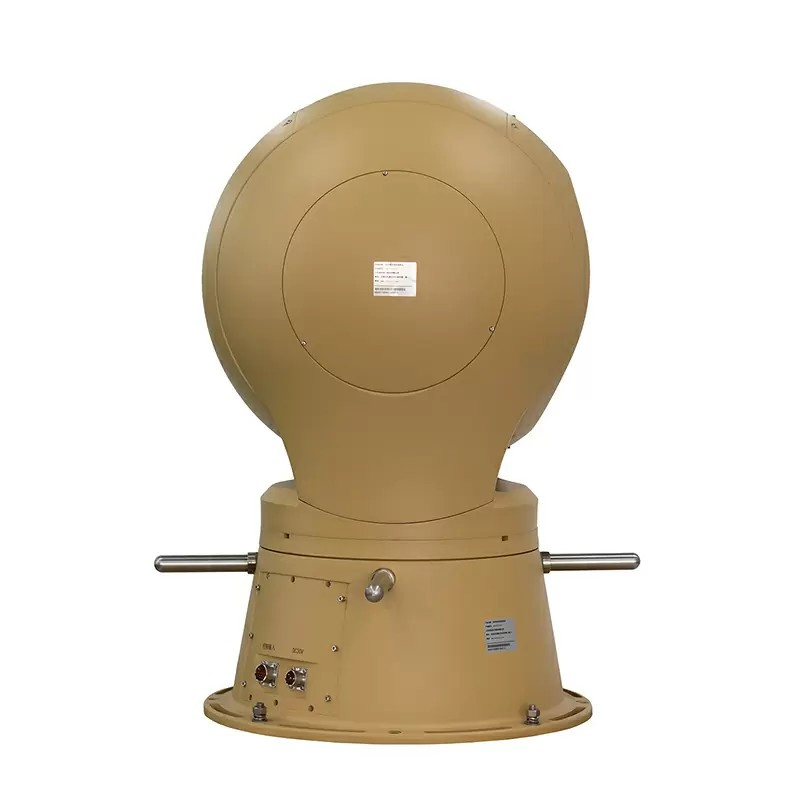

Coastal Surveillance PTZ – Electro-Optical System for Vessel Monitoring

Customization: Available
Technology: Infrared
Style: Pan/Tilt

Product Description

Basic Product Information

Model
SHR-GPT500HLV3020ZIR360
Type
IP PTZ Camera
Sensor
Cooled Focal Plane Array
Resolution
640X512 (Thermal) / 1080P (Visible)
Effective Distance
19km
Protection
IP66 / Waterproof / Vandal-proof
Spectral Range
3-5um
Rotation
0-360 Degree Continuous

Product Description

Harbor Vehicle Long Range 10km 15km Day Night IR PTZ Cooled Thermal Zoom Imaging Security Camera with LRF

  • Continuous Zoom Technology: Strong ability to penetrate fog and detect long-distance targets. Suitable for both wide-range search and close-range observation.
  • Dual-Channel Monitoring: 2 Megapixel low illuminance color camera integrated with thermal imaging for 24/7 continuous surveillance.
  • Intelligent Autofocus: Multi-position identification technology enables fast focusing through multiple trigger modes.
  • Maintenance Friendly: PTZ features a maintenance window and plug-in circuit board design for quick replacement without removing the shell.
  • Precision Positioning: Universal variable speed PTZ achieves all-round blind-free monitoring and high-precision positioning.
  • Rugged Design: Professional shell design is anti-high-temperature, corrosion-resistant, and anti-acid-rain.

Technical Specifications

Parameter Item Specifications
DistanceVisible Light6500m
Thermal (Vehicle)Detect: 20000m, Recognize: 13000m, Identify: 7000m
HD LensFocal Length12.5~750mm
FOV0.6°~35°
Auto FocusSupport
Thermal CameraDetector TypeCooled Focal Plane Array (MCT)
Resolution640×512
Lens Zoom30~300mm, 10× Optical Zoom
TurntableRotation AngleHorizontal: 360° Continuous, Pitch: -45° to +45°
Stabilization≤0.5mrad (RMS)
ProtectionIP66, Anti-saltfog (GB/T2423.17-2008)
PhysicalPowerDC30V, Consumption ≤180W
Size & Weight500mm×500mm×795mm, ≤80kg

Application Areas

This high-end electro-optical system is designed for demanding environments, including UAV detection and tracking, border defense, safe city monitoring, forest fire prevention, railway and harbor surveillance, and oilfield or freeway monitoring.

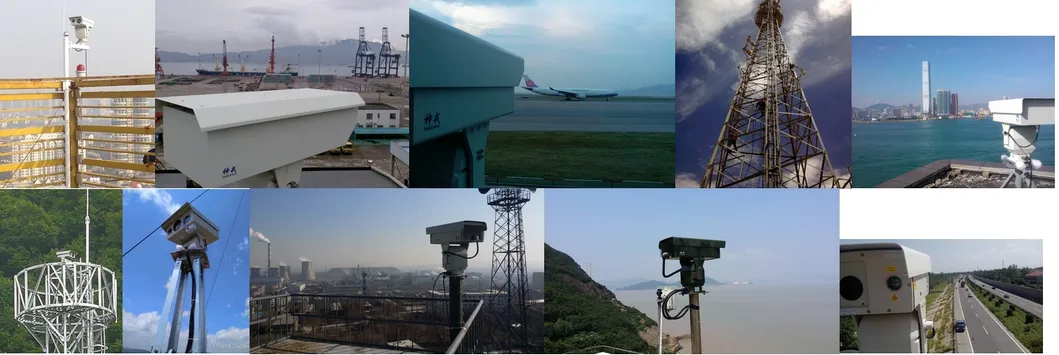

Coastal Surveillance PTZ Application

Service & Quality Assurance

Our Services

Manufacturing Excellence

Founded in 2004, the manufacturer is a leading provider of night vision and rugged information equipment. With independent intellectual property rights, the company developed the world's first laser night vision camera and uncooled continuous zoom infrared thermal imaging cameras. Products are widely used in national defense, infrastructure, and public safety across more than 40 countries.

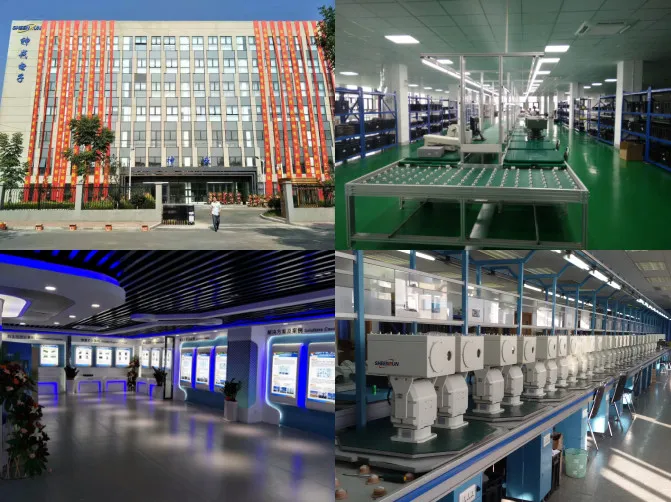

Workshop 1

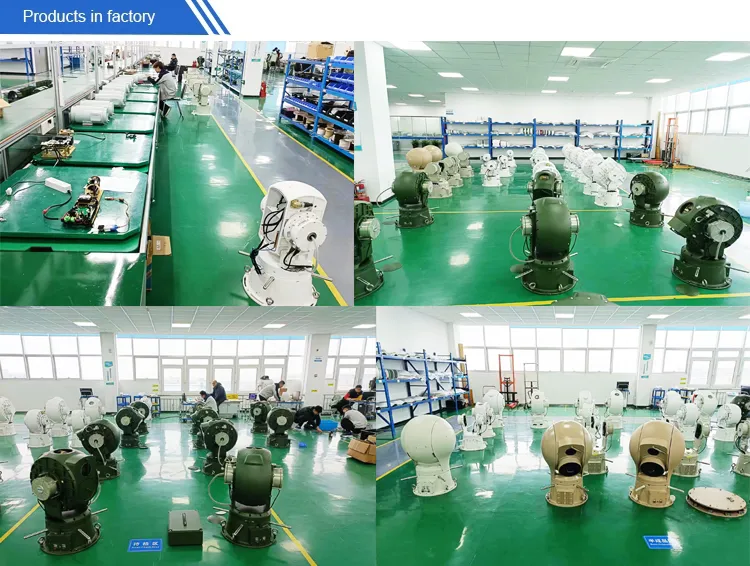

Workshop 2
Exhibition
Certificates

Frequently Asked Questions

What is the maximum detection range for this system?
The system can detect human targets at up to 13km and vehicles at up to 19km using its advanced cooled thermal imaging technology.
How does the camera perform in foggy conditions?
The camera utilizes continuous zoom thermal imaging and optical fog-penetration technology, ensuring clear visibility where standard visible light cameras fail.
Is the system durable for outdoor marine environments?
Yes, it features an IP66 protection grade and complies with GB/T2423.17-2008 standards for anti-salt fog, making it ideal for harbors and coastal surveillance.
What imaging sensors are integrated into this PTZ?
It integrates a Cooled Focal Plane Array (MCT) detector for thermal imaging and a 1/1.8'' Progressive Scan CMOS for high-definition visible light.
What intelligent functions does the software support?
It supports online upgrades, PTZ self-test, remote restart, heartbeat monitoring, and automatic gain/white balance control.
What is the Minimum Order Quantity (MOQ)?
The MOQ for this long-range thermal security camera is 1 piece.

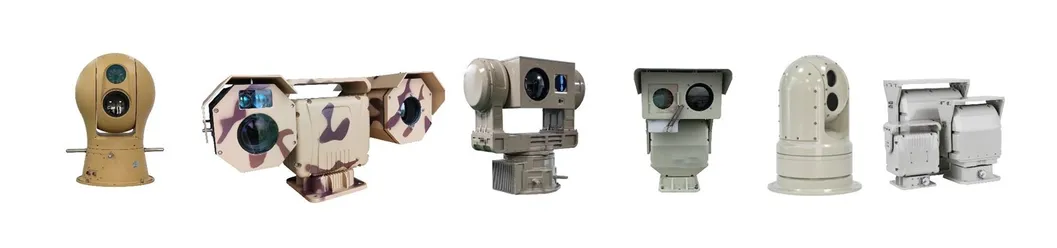

Product Summary
