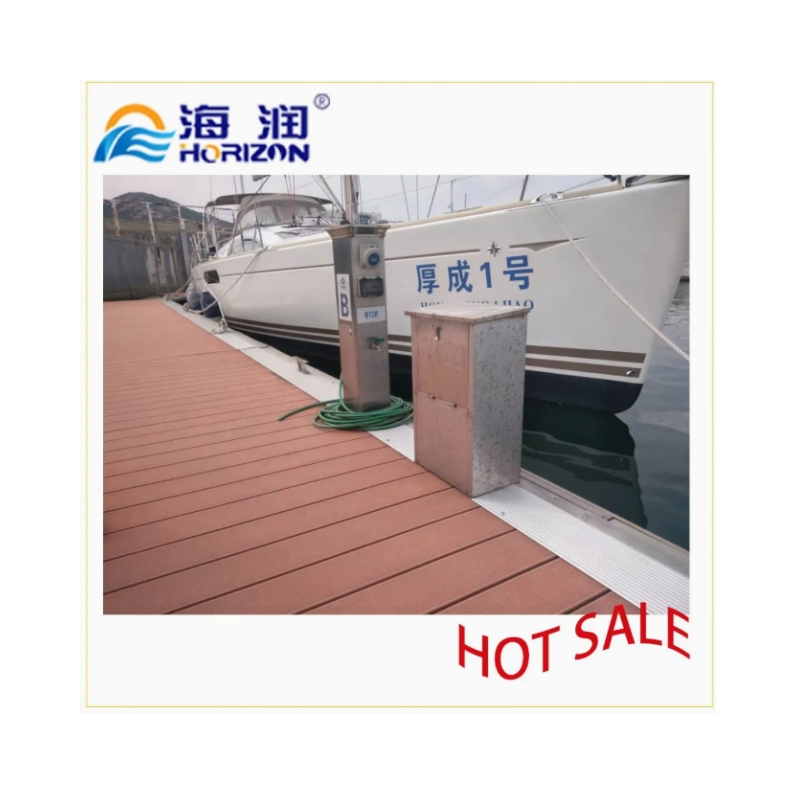

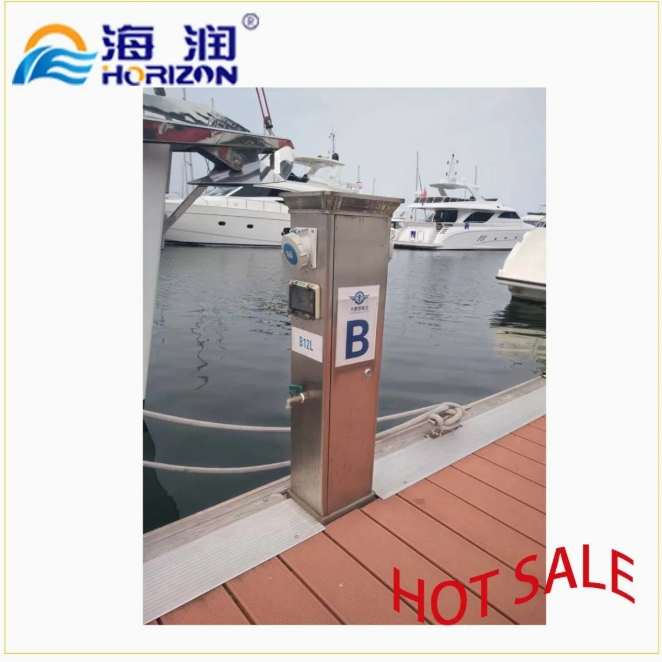

Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply
Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply
Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply
Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply
Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply
1 / 5
Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply
Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply
Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply
Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply
Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply

Corrosion-Resistant Service Pedestal Saltwater Rated for Coastal Power/Water Supply

Customization: Available
After-sales Service: 25 Years
Warranty: 25 Years
Send Inquiry

Product Description

Basic Information
Model NO.
Service Pedestal
Shape
Rectangle
Material
Aluminum Alloy/Stainless Steel 316L
Color
Blue
Certification
ISO
Water Meter
Liquid Seal, High Sensitive Meter
Electricity Meter
Advanced Electronic Watt-Hour Meter
Water Taps
2PCS, 1/2' waterpipe
HS Code
7612909000
Product Description

Premium Service Pedestal

Available in 2 sockets and 4 sockets configurations, this service bollard is designed to supply water and electricity power efficiently for two or four yachts simultaneously.

Key Components:
Equipped with sockets, electric meters, and MCB protection.
Integrated LED lighting with photo-electric sensors for intelligent operation.
Premium faucets and high-sensitivity water meters.
Intelligent system compatible with card pay electricity supply devices.
Material: Stainless Steel, Aluminum Alloy, or Polyethylene
Standard Size: 250*250*1000mm (Stainless Steel)
Voltage: 220V
Amperage Options: 16A, 32A, 63A, 125A
Impact Resistance Class: IK10
Technical Specifications
Sockets2 pcs / 4 pcs (200V~250V 2P+T)
MaterialAISI 316L Stainless Steel / Aluminum Alloy / FRP
Temperature Range-30°C ~ 70°C
Lighting10W 220V LED Light
Impact ClassIK10
Water Taps2pcs, 1/2' waterpipe
Visual Presentation

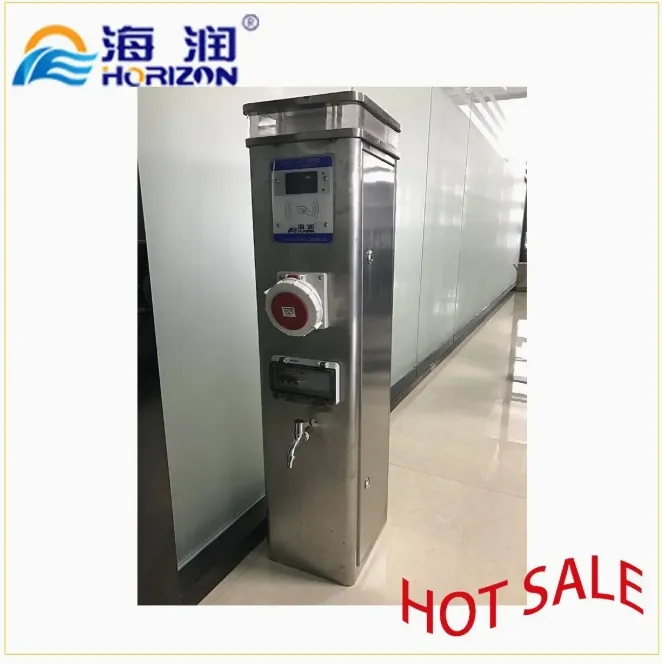

Service Pedestal Unit

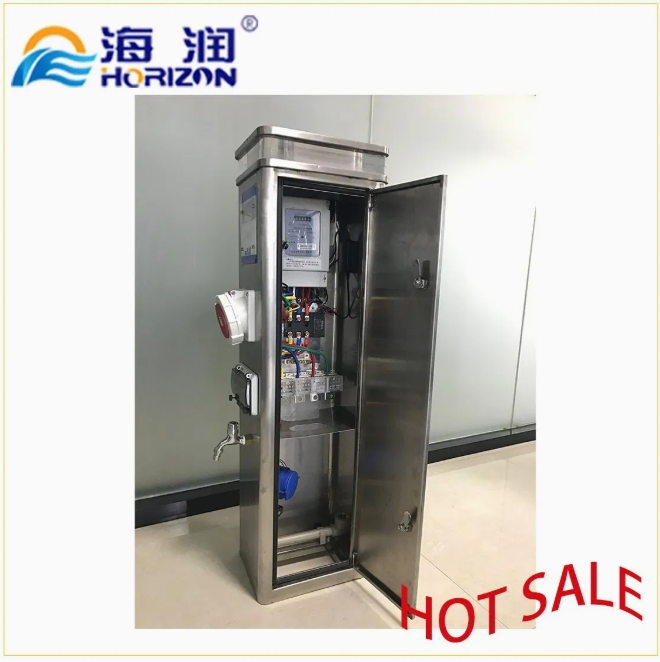

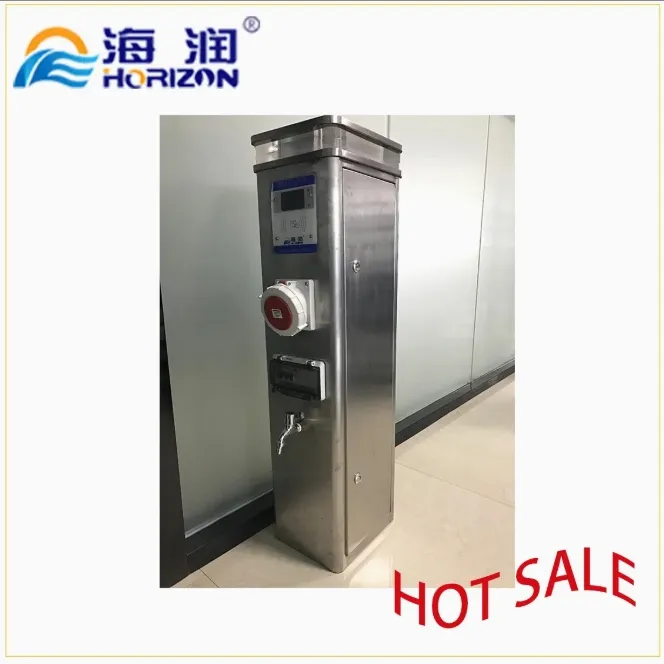

Power Supply Detail

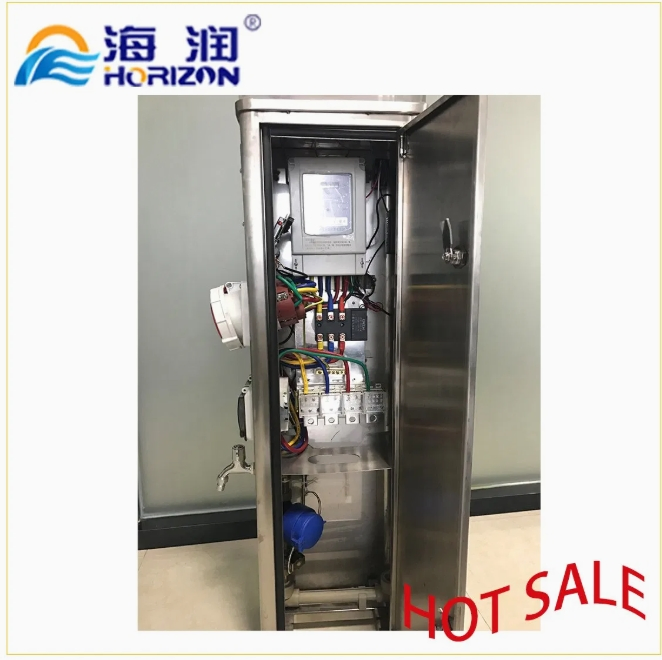

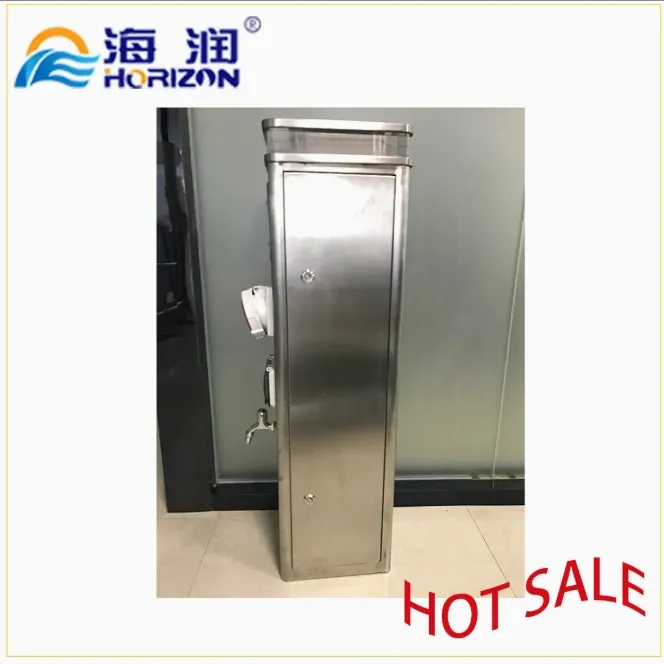

Internal Components

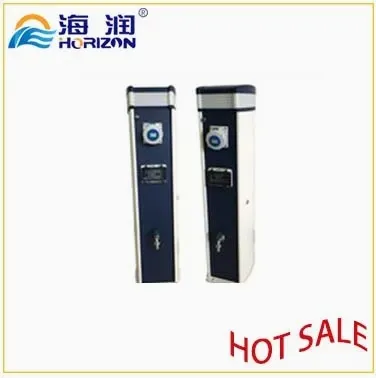

Water Tap Detail

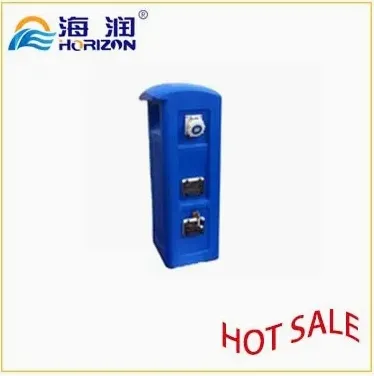

Socket View

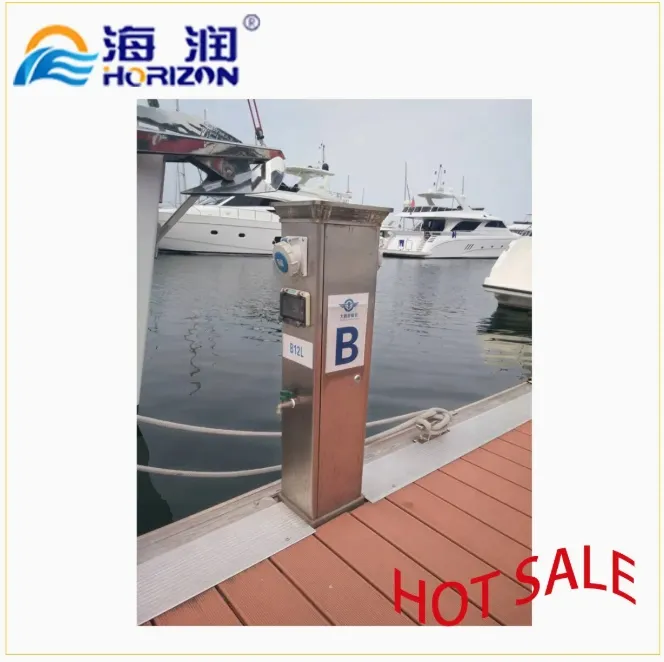

Pedestal Base
Pontoon & Marine Accessories
Component Material Specification
Main Pontoon / FingerMarine grade 6061 T6 Aluminium alloy, Full MIG welding
GangwayMarine grade 6061 T6 Aluminium alloy
DeckingWPC / Balav / Pine / Composite Wood
CleatStainless steel 316L
FenderPE / Rubber
Bolts and ScrewsStainless Steel 316L

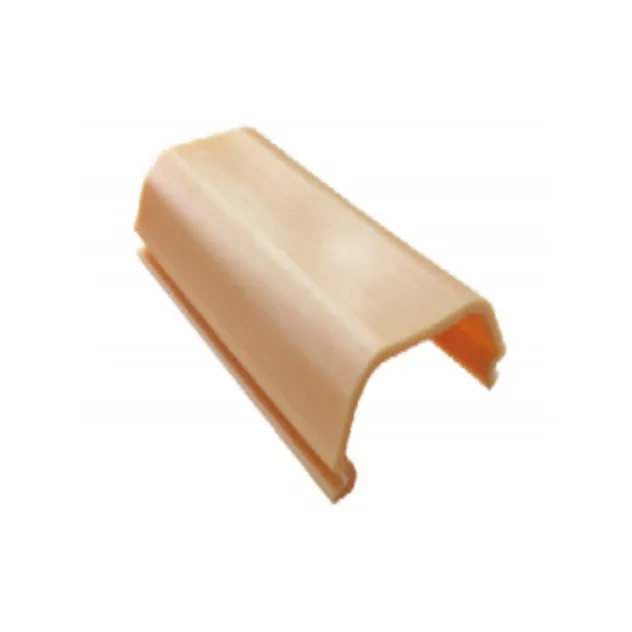

Marine Accessory 1

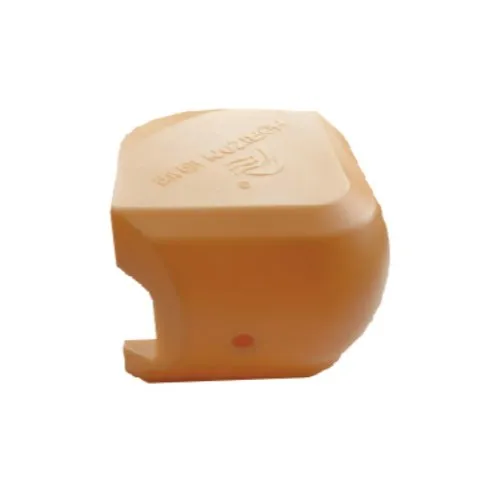

Marine Accessory 2
Marine Accessory 3
Global Project Cases

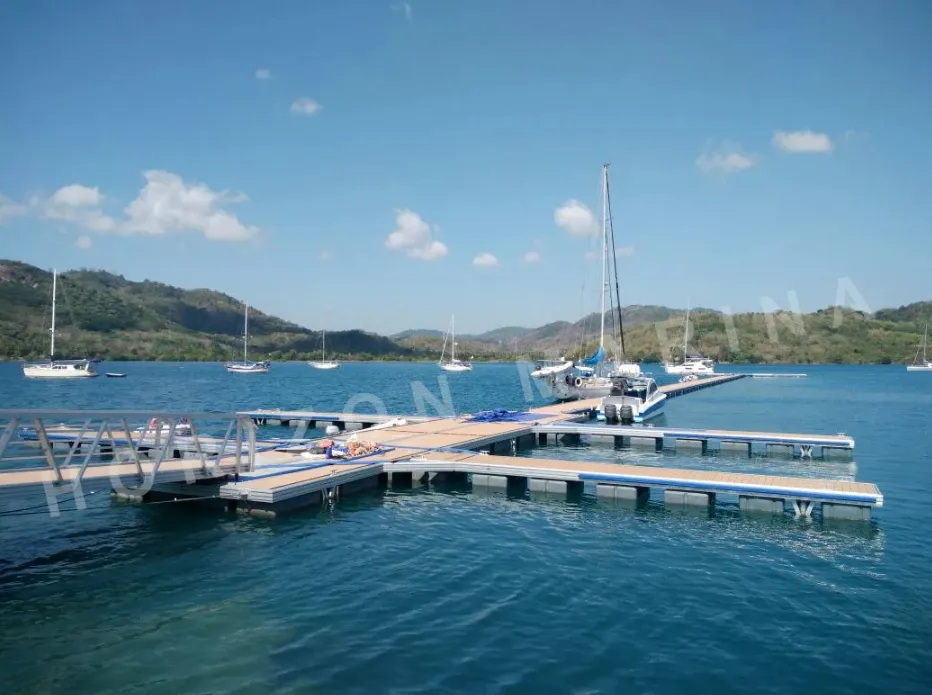

Jetty Project Indonesia

Jetty Pontoon Project in Indonesia

Sea Plate Project Maldives

Sea Plate Pontoon Project in Maldives

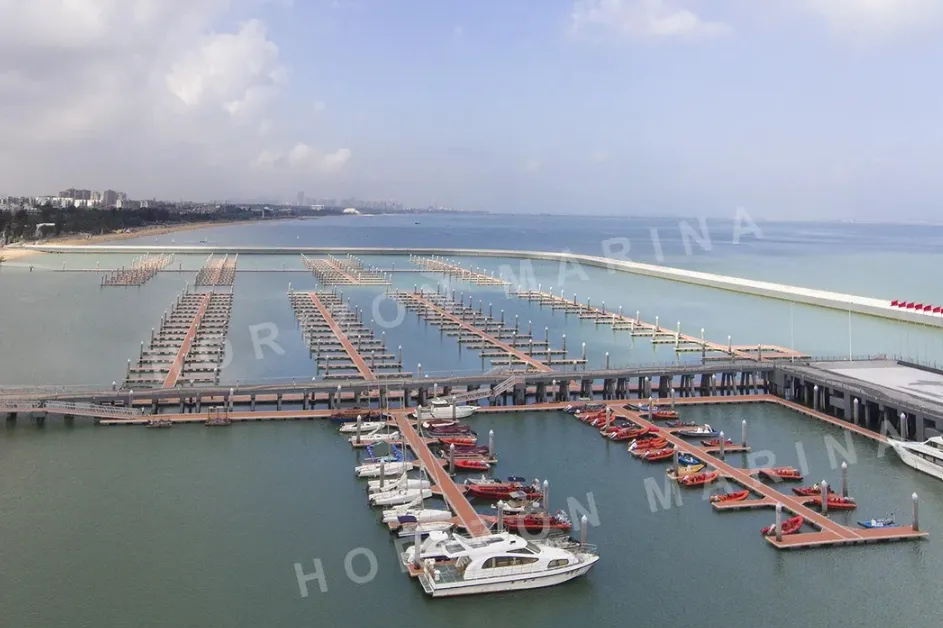

Jetty Project China

Jetty Project in Hainan, China

Frequently Asked Questions
Q: What materials are the service pedestals made of?
A: Our pedestals are constructed using high-quality Marine grade 316L Stainless Steel, Aluminum Alloy, or Polyethylene (FRP) to ensure maximum corrosion resistance in saltwater environments.
Q: How many yachts can one pedestal serve?
A: We offer configurations with 2 or 4 sockets, allowing a single unit to provide power and water for up to four yachts simultaneously.
Q: Does the pedestal include lighting?
A: Yes, each pedestal features a 10W 220V LED light equipped with an intelligent photo-electric sensor that automatically activates based on ambient light conditions.
Q: Is the metering system accurate?
A: Absolutely. We use advanced electronic watt-hour meters for electricity and liquid-sealed, high-sensitivity meters for water to ensure precise billing and usage tracking.
Q: Can the size or specifications be customized?
A: Yes, we welcome customer designs and can customize sizes, materials, and socket configurations to meet specific marina project requirements.
Q: What is the impact resistance rating?
A: Our service pedestals are rated at IK10, which is the highest level of protection against external mechanical impacts.
