7 Alarm Inputs & 2 Outputs Critical Infrastructure Protection PTZ System

Customization:	Available
Technology:	Infrared
Style:	PTZ Camera

Send Inquiry

Product Description

● Technical Overview

Model	PC6S4A1
Type	CCTV Camera
Certification	CE, FCC, RoHS, EMI/EMC
Feature	Waterproof / Weatherproof, High Definition, Auto BLC
Effective Distance	≧30m
Resolution	1280×1024
Focal Length	30~150mm/25~225mm
Pan/Tilt	360° Continuous / -90°~+90°

● Product Description

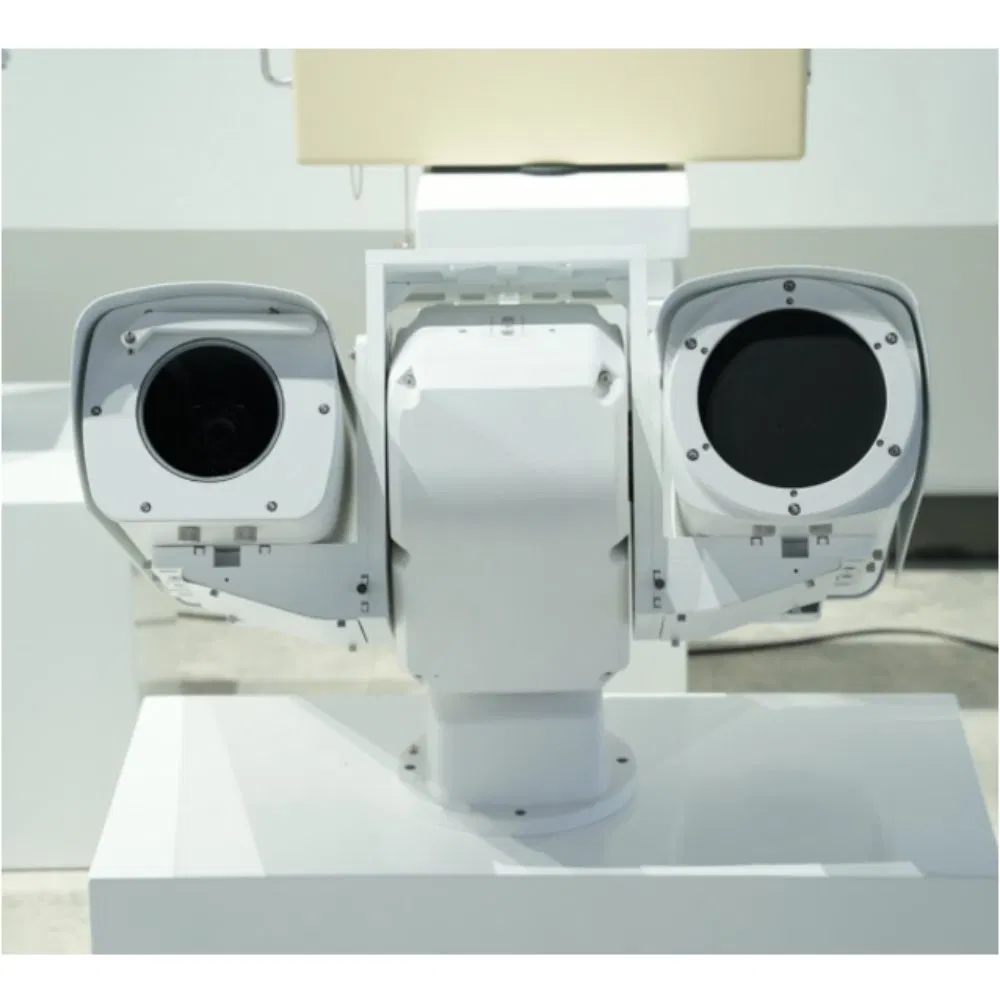

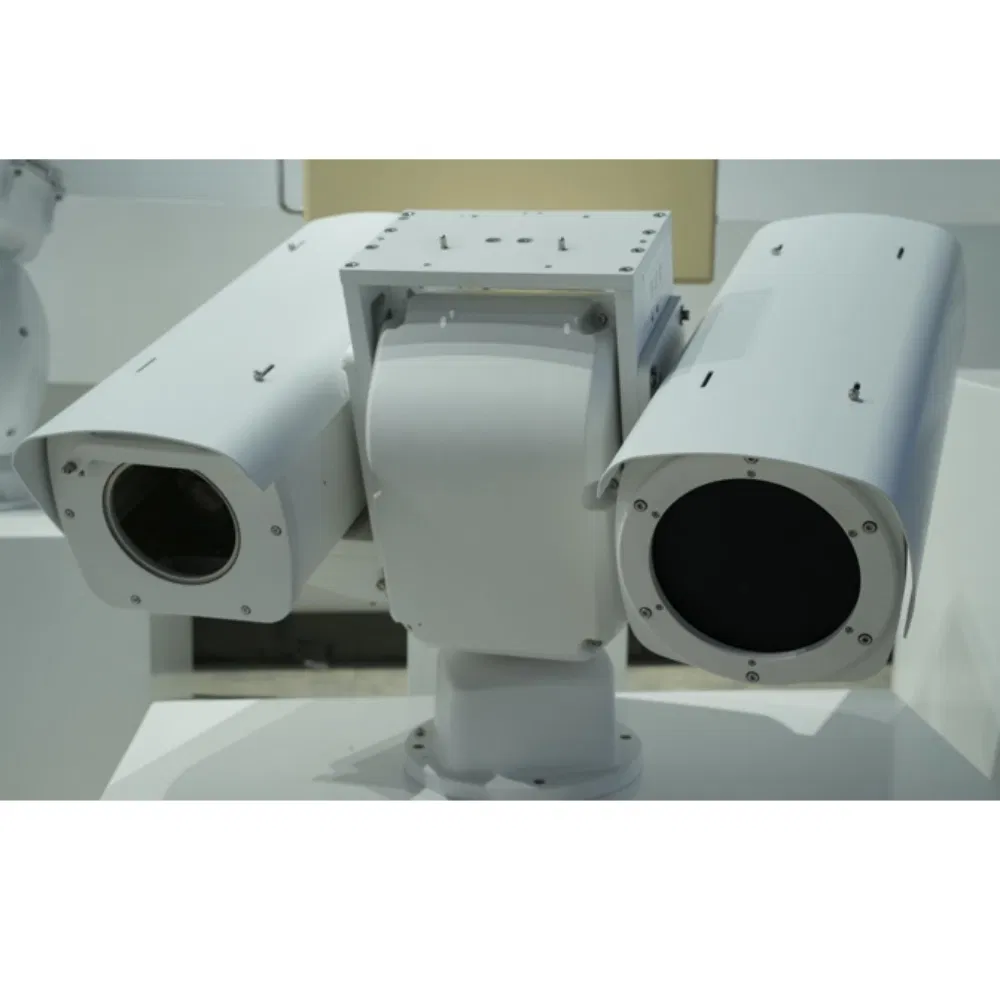

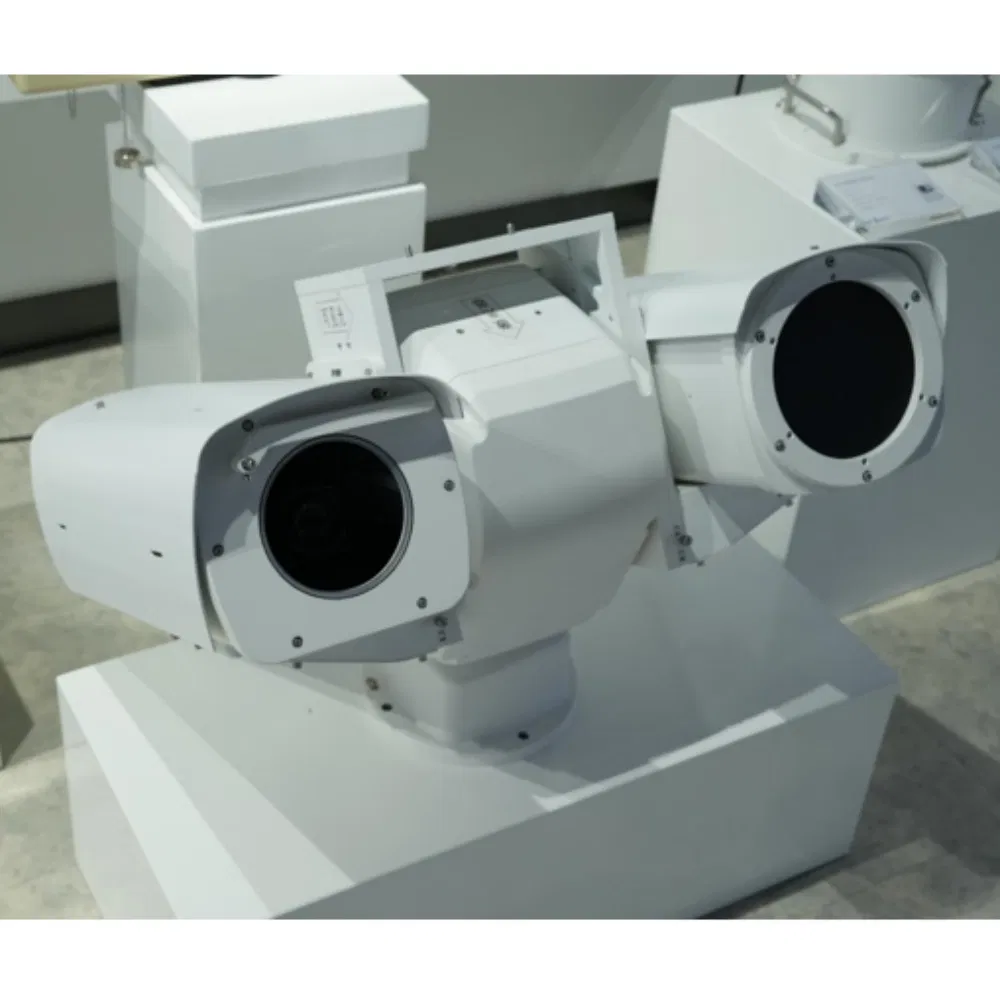

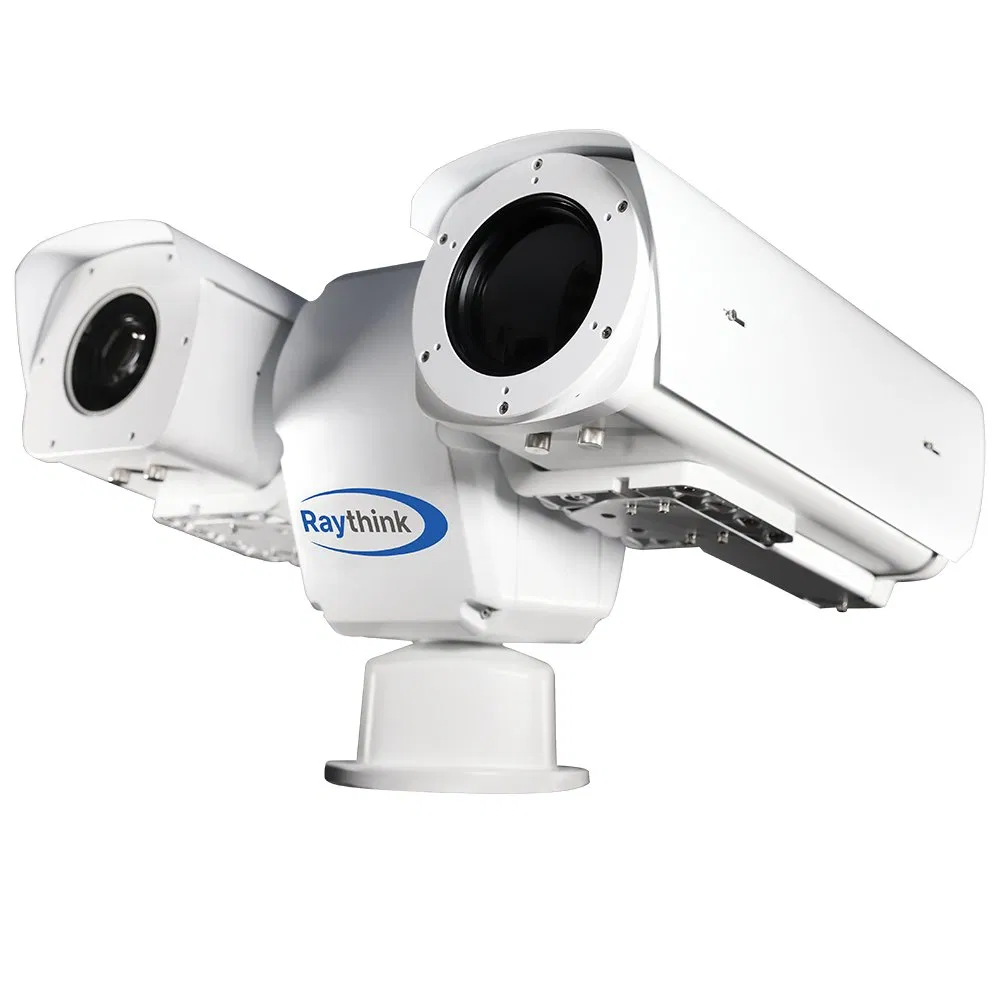

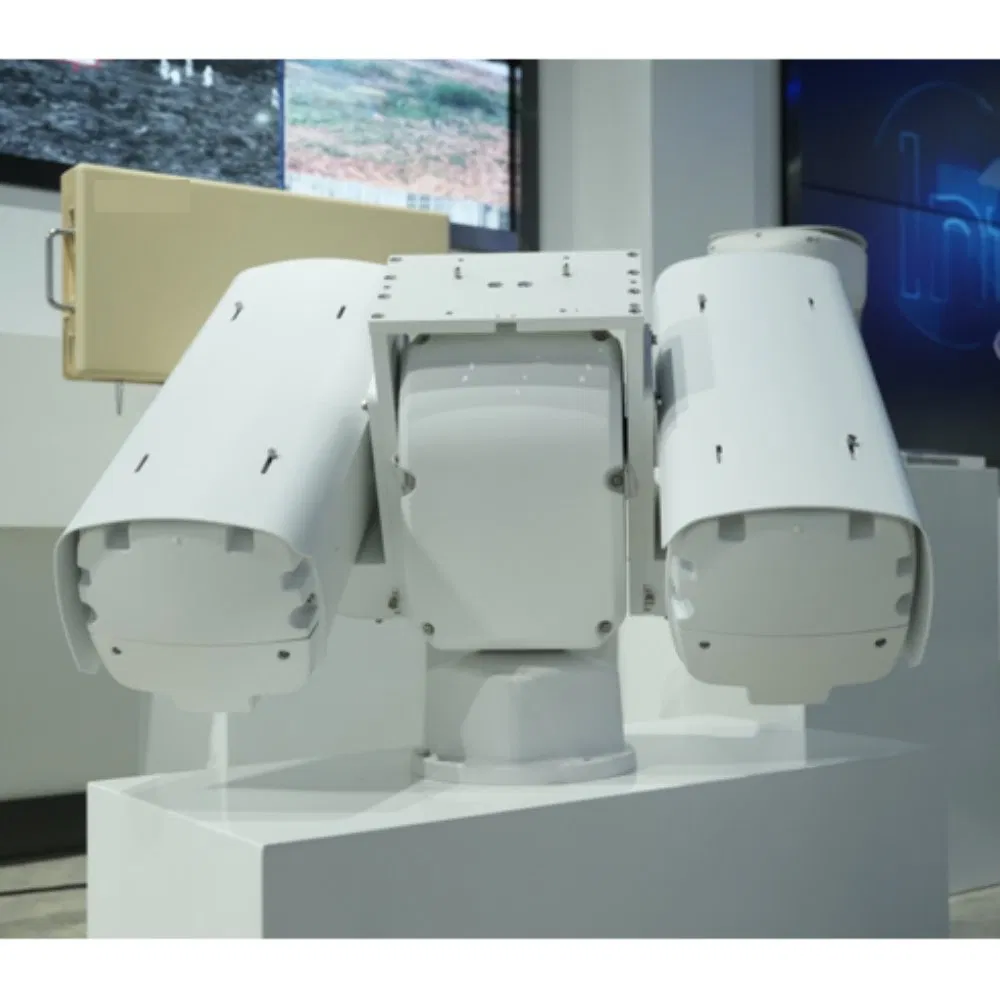

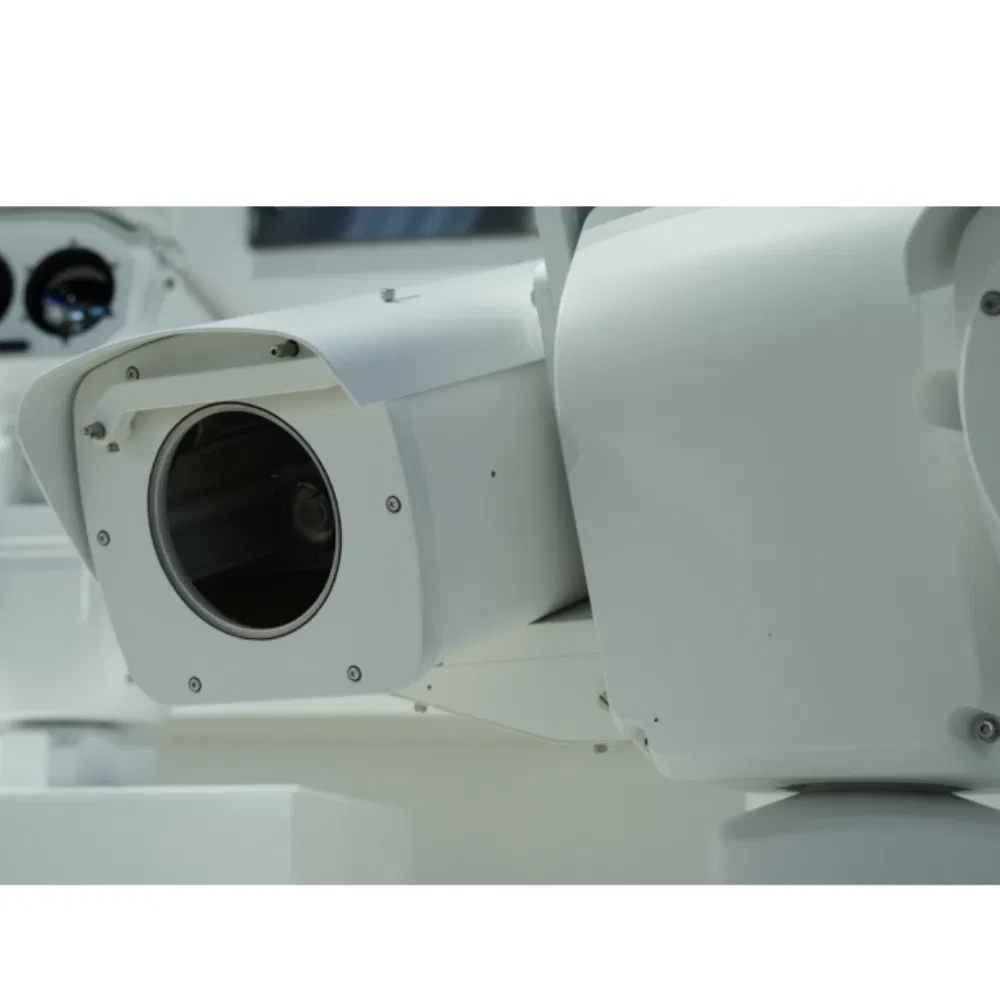

Critical Infrastructure Protection PTZ System

High-Performance Long-Range Surveillance

PC6 series is a long-range surveillance solution that integrates HD visible light, cooled/uncooled infrared thermal imaging, large focal-length thermal lens and a high-performance PTZ system. It features intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection, providing all-weather, 24/7 surveillance for perimeter security, forest fire prevention, and critical area protection.

● Product Highlights

★

12μm Uncooled Infrared Detector

Adopting the latest 12μm uncooled infrared detectors with advanced imaging algorithms for superior image quality.

★

Dual-Spectrum Imaging

Supports thermal imaging resolution up to 1.3 megapixels (1280×1024) and visible light resolution up to 4 megapixels (2688×1520).

★

Long-Range Detection

Equipped with 75mm/100mm fixed-focus or 25~75mm continuous zoom infrared lenses to meet extensive detection needs.

★

Intelligent Fire Detection & Video Analysis

Integrated algorithms for efficient fire monitoring, tripwire/intrusion detection, and significantly reduced false alarms.

● Specifications

Thermal Module
Detector Type	VOx, uncooled FPA detector
Spectral Range	8~14μm
NETD	≤40mK(@25°C,F#1.0,25Hz)
Pixel Pitch	12μm
Optical Module
Sensor	1/1.8" 4-megapixel CMOS image sensor
Focal Length	15-775mm
Resolution	2688×1520
PTZ & System
Scan Mode	Preset/Pattern Scan/Patrol Scan/Linear Scan/Panorama Scan
Protection	IP66 Standard; TVS 6000V Lightning Protection
Power Consumption	200W
Weight	42kg

● Application Scenarios

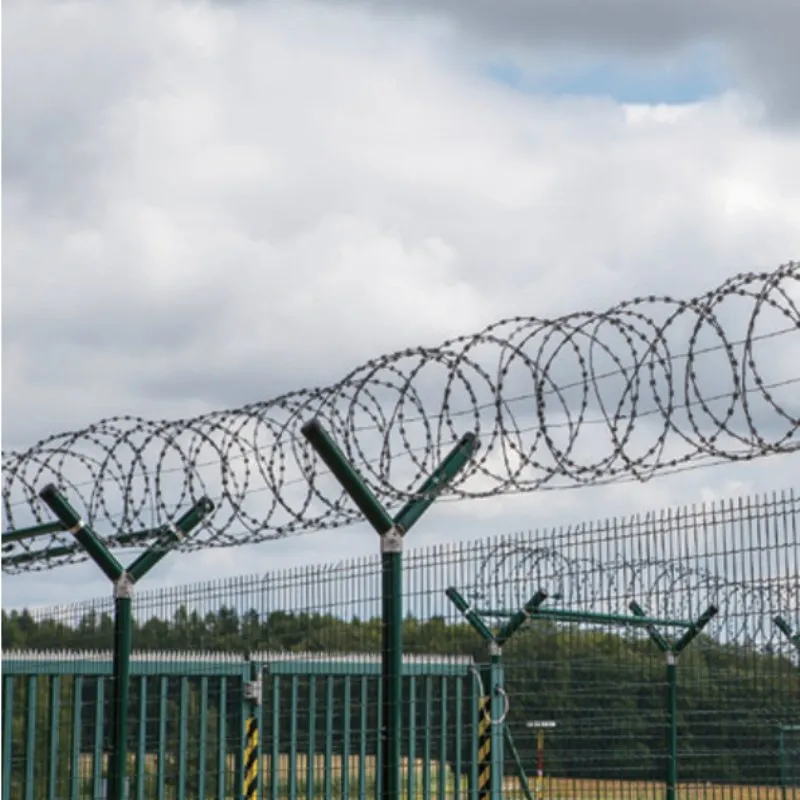

Perimeter Surveillance | Forest Fire Prevention | Urban High-Altitude Observation | Critical Infrastructure Protection

● Frequently Asked Questions

How can we guarantee quality?

We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing processes, a perfect quality management system, and a CNAS certification reliability test platform.

How long is your delivery time?

For small orders, it usually takes 7 working days. For OEM orders, please check the shipping time with us.

What's the MOQ?

The MOQ depends on the specific product type.

What's your payment terms?

Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.

What's the product warranty policy?

Thermal vision products come with a 2-year warranty, while thermal modules are covered by a 1-year warranty.

How about after-sale support?

We provide lifetime technical support. Our engineers respond to technical support requests within 24 hours.
