Multi-Sensor Smart Function PTZ with Thermal Lens for Border and Coastal Defense Monitoring

1 / 3

Multi-Sensor Smart Function PTZ with Thermal Lens for Border and Coastal Defense Monitoring

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

UV-CTC690110

Type

IP Camera

Sensor

CMOS

HDMI Format

1080P

Resolution

650tvl

Kind

Autofocus Lens

Certification

CE, FCC, RoHS

Effective Distance

≧30m

Product Overview

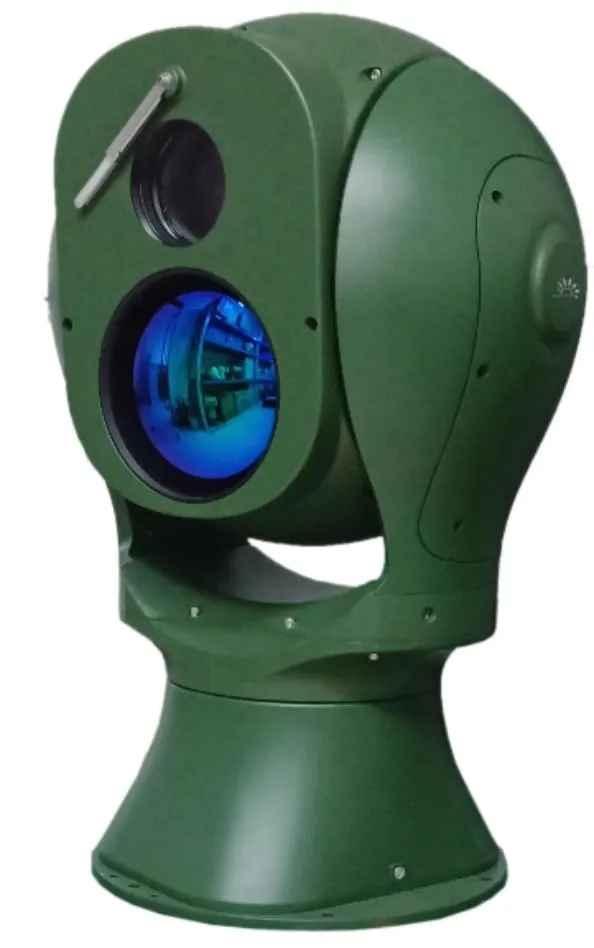

UV-CTC690110 heavy duty dual band photoelectric turntable is a long-distance photoelectric detection system. It integrates high-definition visible light camera, refrigeration thermal imaging and other multi-spectrum detection modules. It can realize the functions of all-weather, all-time and all-dimensional target discovery, positioning, tracking, and identification, with an action distance reaching up to 30km.

30km Long Distance

IP67 Protection

Modular Design

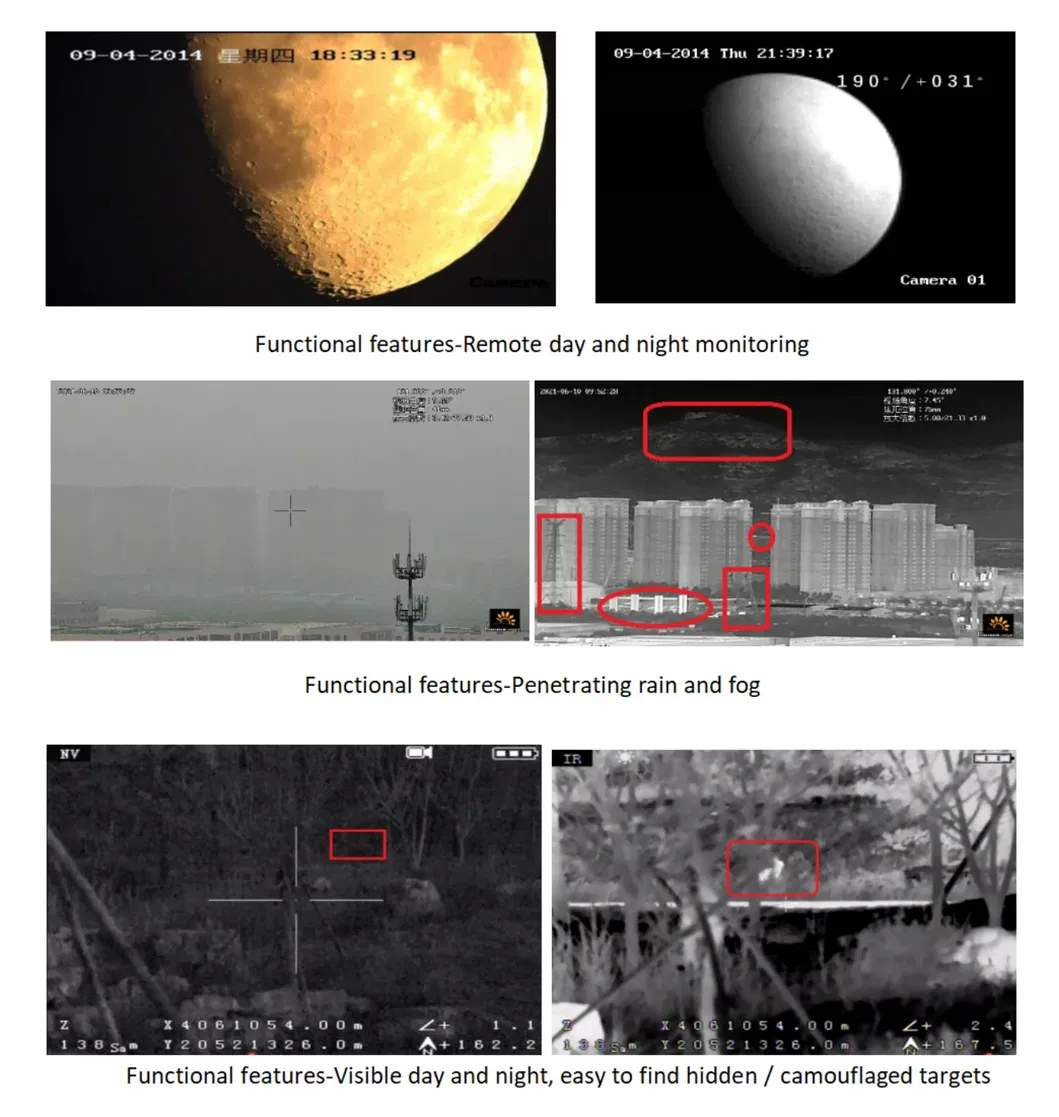

The product adopts a spherical design with strong wind resistance and stable imaging. Its modular design allows flexible selection of optical configurations to meet detection needs under all black, fog, rain, and snow conditions. The integrated die-casting molding process ensures structural rigidity and superior sealing for harsh field environments.

Technical Specifications

Detection Distance	Vessels detection distance: 30km; Identification distance: 15km

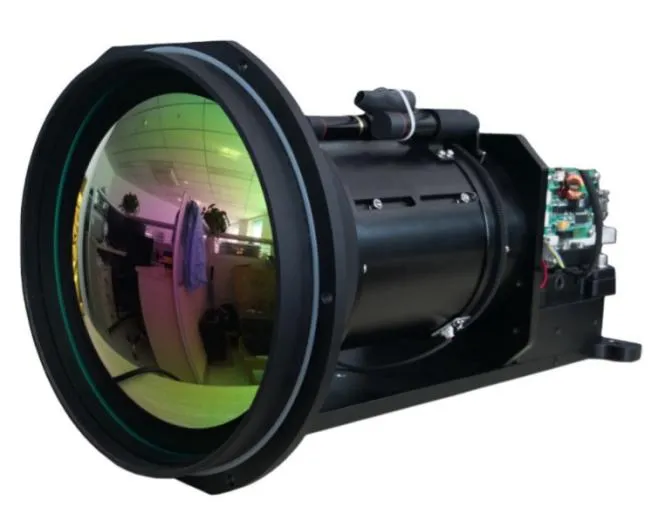

Thermal Module	Cooled MCT detector; Wavelength: 3.7 μm~4.8 μm; NETD: 25mK; 90~1100mm 12x continuous zoom; SDE digital enhancement; 16 pseudo color images.
Visible Module	Back-illuminated ultra-low illumination star level CMOS; 12~1100mm HD electric zoom; 2D/3D digital noise reduction; Electronic anti-shake; Optical fog penetration.
Video & Audio	H.265/H.264/MJPEG; Max resolution 2592 × 1520; Support OSD settings for PTZ azimuth and focal length.

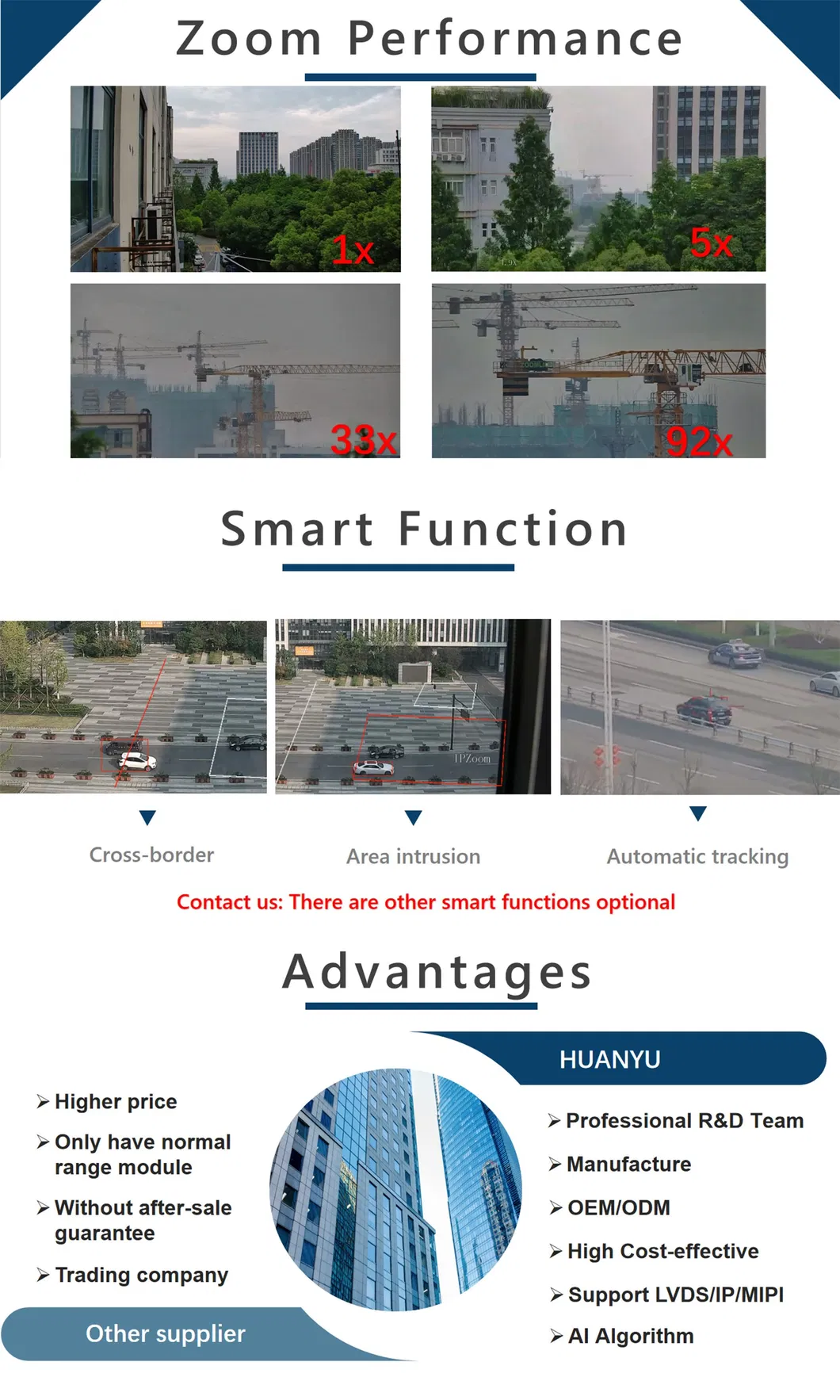

Intelligent Function	Fire point detection and alarm (up to 16 targets); Intrusion detection; Cross-border detection; Automatic target tracking; Dual-light image fusion.
Servo Turntable	Spherical structure; Continuous 360° horizontal rotation; -90° to +90° pitch range; Positioning accuracy better than 0.02°; Resists grade 12 wind.
Environment	Working temperature: -40 ºC ~ +60 ºC; Built-in 6000V surge protection; salt spray prevention (96 hours).

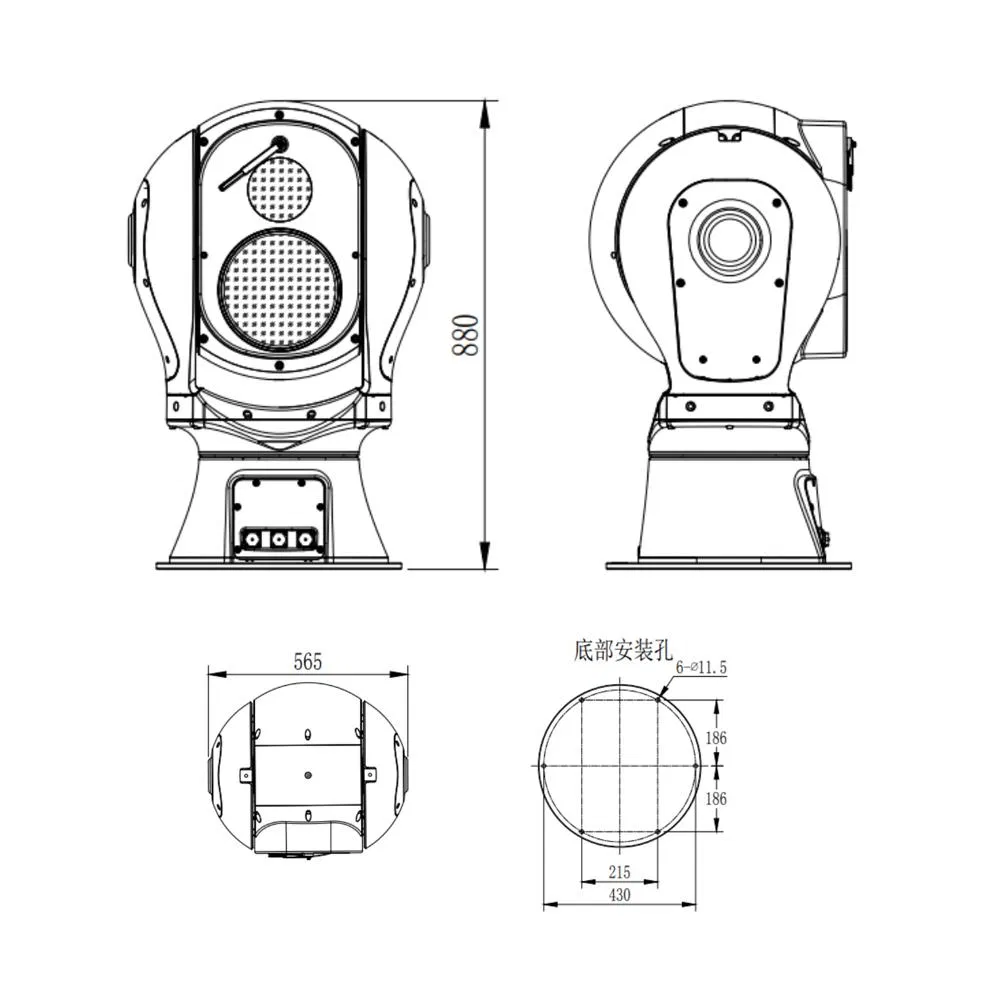

Weight & Dimensions	Total weight: ≤ 105kg; Overall dimensions: Ф 565mm × H880mm

Wide Applications

Mainly used for border and coastal defense monitoring, country security monitoring, airport monitoring, oilfield and oil depot security, forest and grassland fire monitoring, port and river monitoring, urban high-altitude lookout, and anti-UAV applications.

Frequently Asked Questions

What is the maximum detection distance of this system?

The UV-CTC690110 can detect vessels at distances up to 30km and identify them at approximately 15km under optimal conditions.

How does the camera perform in extreme weather?

The system is designed with an IP66/IP67 rating and can operate in temperatures ranging from -40ºC to +60ºC. It also features electronic and optical fog penetration for rain, snow, and foggy conditions.

Does the system support intelligent fire detection?

Yes, it includes fire point detection and alarm functions, capable of automatically tracking and displaying the most prominent hot spots for up to 16 targets.

Can the turntable withstand strong winds?

Absolutely. The spherical design and heavy-duty structure are engineered to resist grade 12 strong winds while maintaining stable and clear imaging.

What kind of thermal imaging technology is used?

It utilizes a cooled MCT detector with a wavelength of 3.7μm~4.8μm and a 12x continuous optical zoom, providing high sensitivity (25mK NETD) for long-range detection.

Is the system compatible with existing network protocols?

Yes, it supports standard protocols including ONVIF, GB28181, HTTP, HTTPS, RTSP, and more, making it easy to integrate into existing security infrastructures.
