Radar with 8km Detection & PTZ for Coastal Situational Awareness

1 / 5

Radar with 8km Detection & PTZ for Coastal Situational Awareness

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Info.

Model NO.	CS-RAD-S-8000C	Type	CCTV Camera
Sensor	CMOS	HDMI Format	1080P
Kind	Autofocus Lens	Certification	RoHS, ISO9001: 2000, ISO
Feature	Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC	Effective Distance	Alternative
Remote Control	With Remote Control	Frenquen Band	C Band
Azimuth Coverage	90 Degree	Working System	Pulse Doppler
Weight	5.5kg	Transport Package	Aluminum Alloy Package
Specification	42427657(Unit: mm)	Origin	China

Product Description

CS-RAD-S-8000C Coastline Surveillance Radar

The CS-RAD-S-8000C Radar operates in the C-band and adopts fully digital active digital phased array technology. Through modular and refined design, it comprehensively utilizes various technical means such as adaptive moving target detection, digital T/R (Transmit/Receive), DBF (Digital Beamforming), and analog-digital integrated design to ensure stable performance and functional implementation.

Core Purpose: Conduct detection, early warning, and target indication of moving ships in offshore areas. It outputs track information of targets in real time with high accuracy, providing data support for monitoring and dispatching work.

Technical Specifications

Parameter Category	Specific Parameters
Operating System	Phased Array System
Operating Mode	Pulse Doppler
Operating Frequency	C-band
Transmit Peak Power	4W
Coverage Range	Azimuth Coverage: 90° \| Elevation Coverage: ≥18°
Detection Range	Pedestrians: 0.8-5 km \| Vehicles: 1.2-8 km \| Vessels (5-10m boats): 1.5-8 km
Minimum Operating Distance	≤30m
Detection Speed Range	0.5m/s - 30m/s
Accuracy	Speed: ≤0.30m/s \| Distance: ≤8m \| Azimuth: ≤1°
Maximum Targets	200 Simultaneous Targets
Power Consumption	≤45W
Environment Standard	IP65 \| -40℃ to +55℃

Drawings & Dimensions

After Sales Service

Standard Warranty: 12 months from the date of delivery.
Extended Warranty: Optional coverage up to 36 months for long-term projects.
Global Support: 24/7 technical assistance through remote diagnostics.
Training: Comprehensive on-site or remote operation and maintenance training.

Company Profile

Founded in July 2016, our enterprise is a high-tech company with independent intellectual property rights. Focusing on R&D and manufacturing of military-civilian radar systems, we have established core expertise in anti-UAV detection and coastal surveillance. With strong R&D capabilities, we provide first-class products and services to support the radar security industry globally.

Frequently Asked Questions

What is the lead time for standard and customized orders?

Standard models ship within 15–30 days; customized units typically require 30–45 days depending on complexity.

Do you provide overseas after-sales support?

Yes, we provide 24/7 remote technical assistance and have partnered service centers in several key global regions.

Can the radar system be customized for specific detection needs?

Absolutely. We offer OEM/ODM services and can tailor the system's detection parameters and interface to meet your specific application requirements.

What documents are provided for international export?

We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

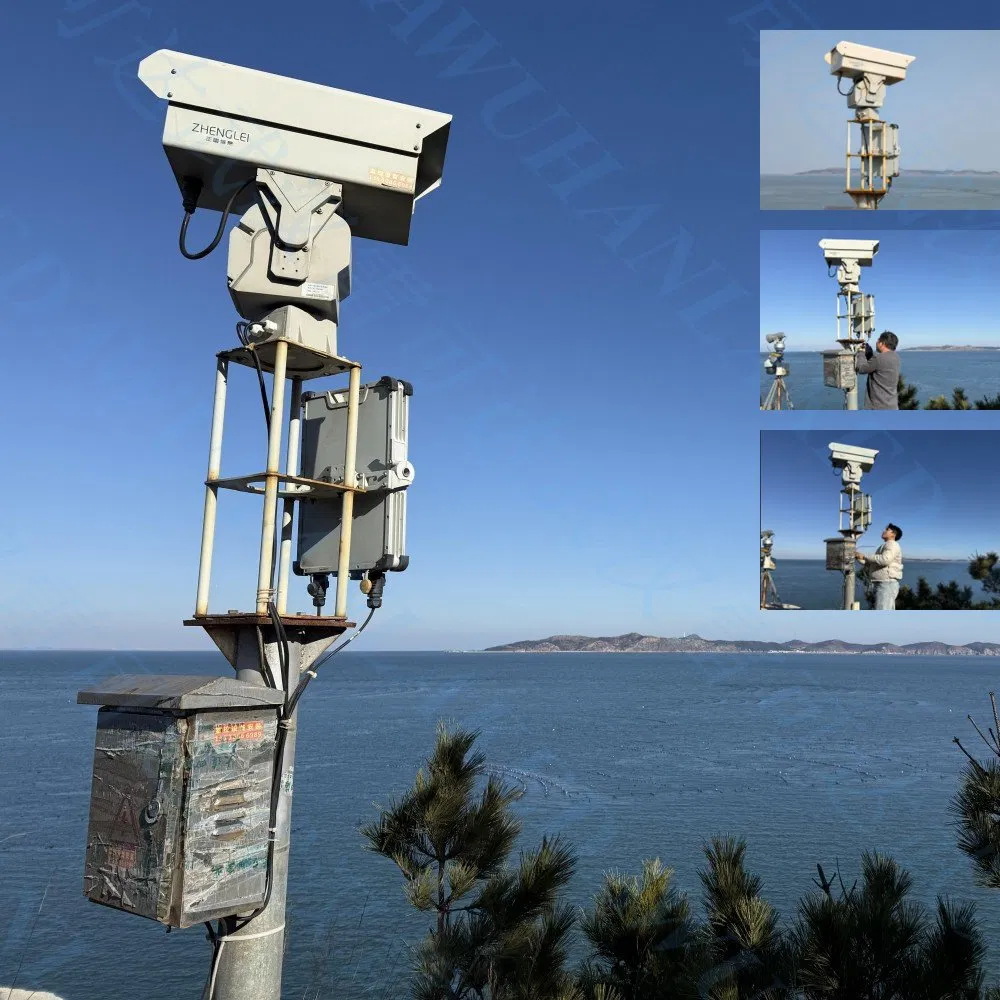

What are the primary applications for this surveillance radar?

It is widely used for marine fishing port management, inland river navigation safety, illegal smuggling detection, and bridge collision prevention.

How can I place an order or request a formal quote?

Please contact our sales team with your project requirements; we will provide a detailed quote, after which you can confirm with a Purchase Order (PO).
