Agr Dual-Screen Uav Ground Station 15.6-Inch Touch Displays 20 Channels Portable Controller

1 / 5

Agr Dual-Screen Uav Ground Station 15.6-Inch Touch Displays 20 Channels Portable Controller

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model	GDS-D15
Product Name	Dual-Screen Ground Control Station
Frame Weight	10 Kg
Operating System	Windows 10 / Linux
Material	Aluminum Alloy + High-Strength
Screen Size	15.6 Inches × 2
CPU	Intel I7 11th Gen
Graphics Card	Intel Iris Xe
Screen Brightness	1000 Nits
Battery Capacity	266 Wh
Working Duration	4-6 Hours
Specification	416 × 330 × 100 mm

🚀 Product Introduction

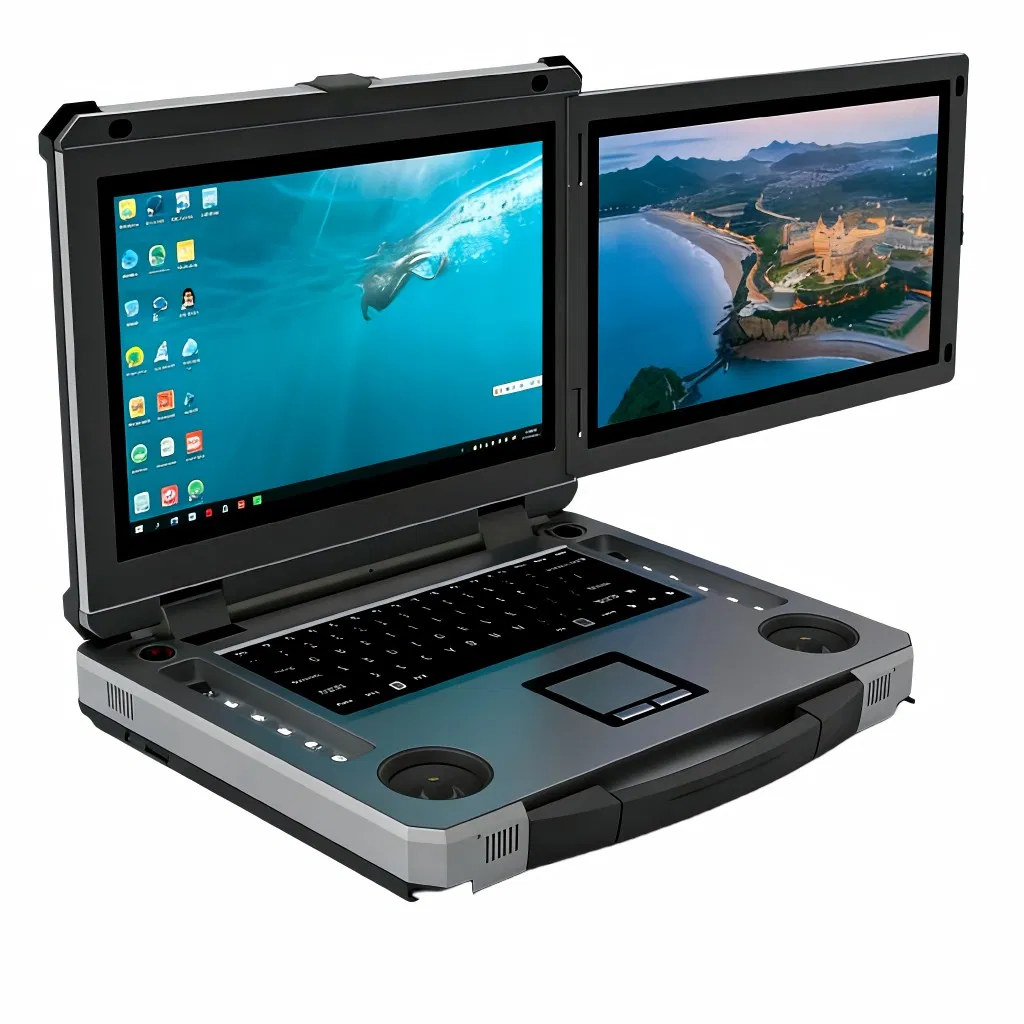

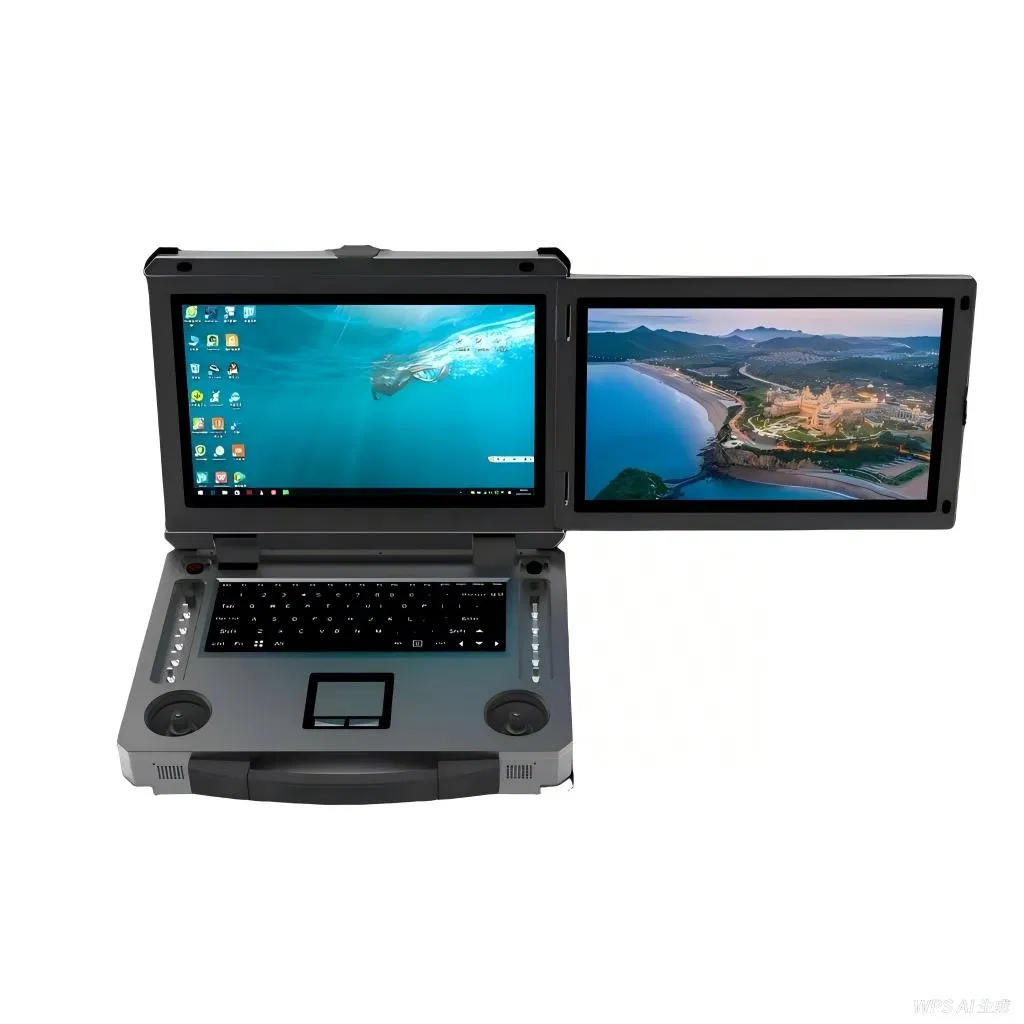

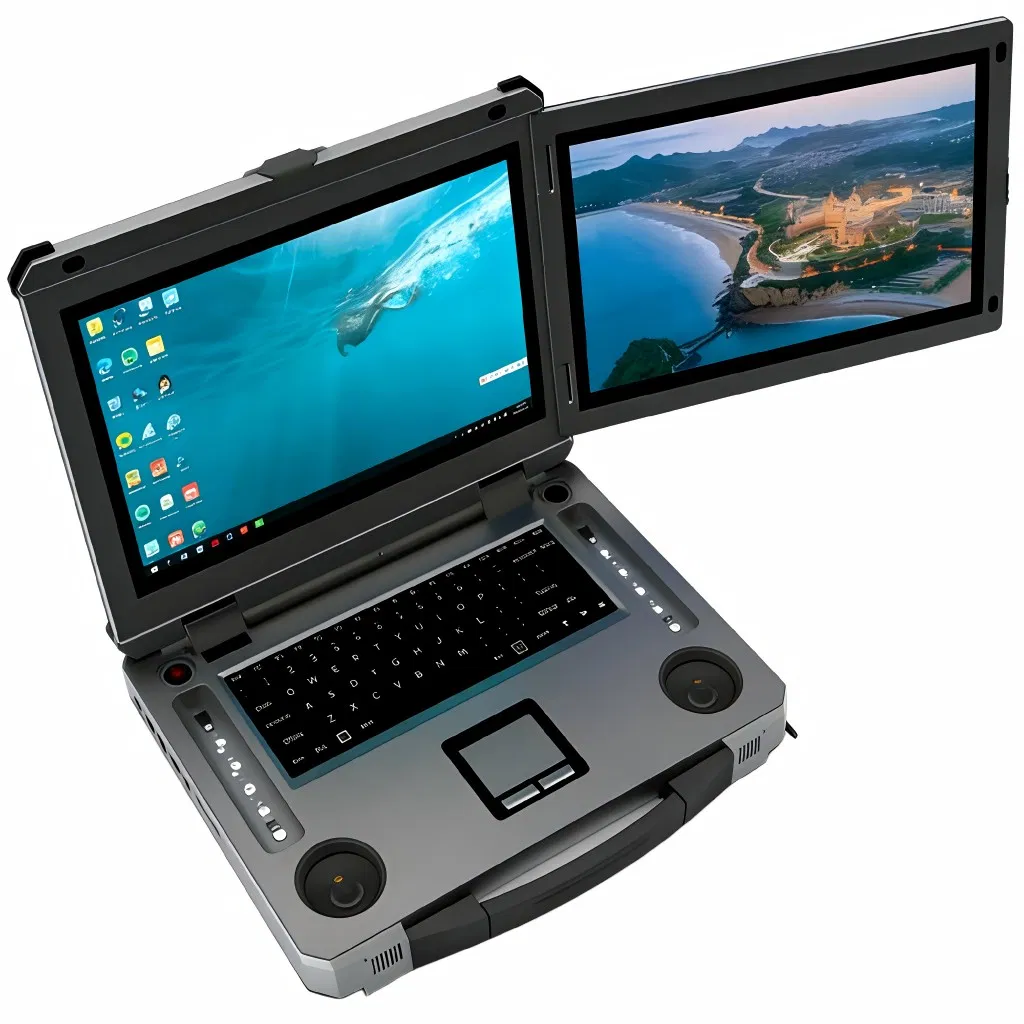

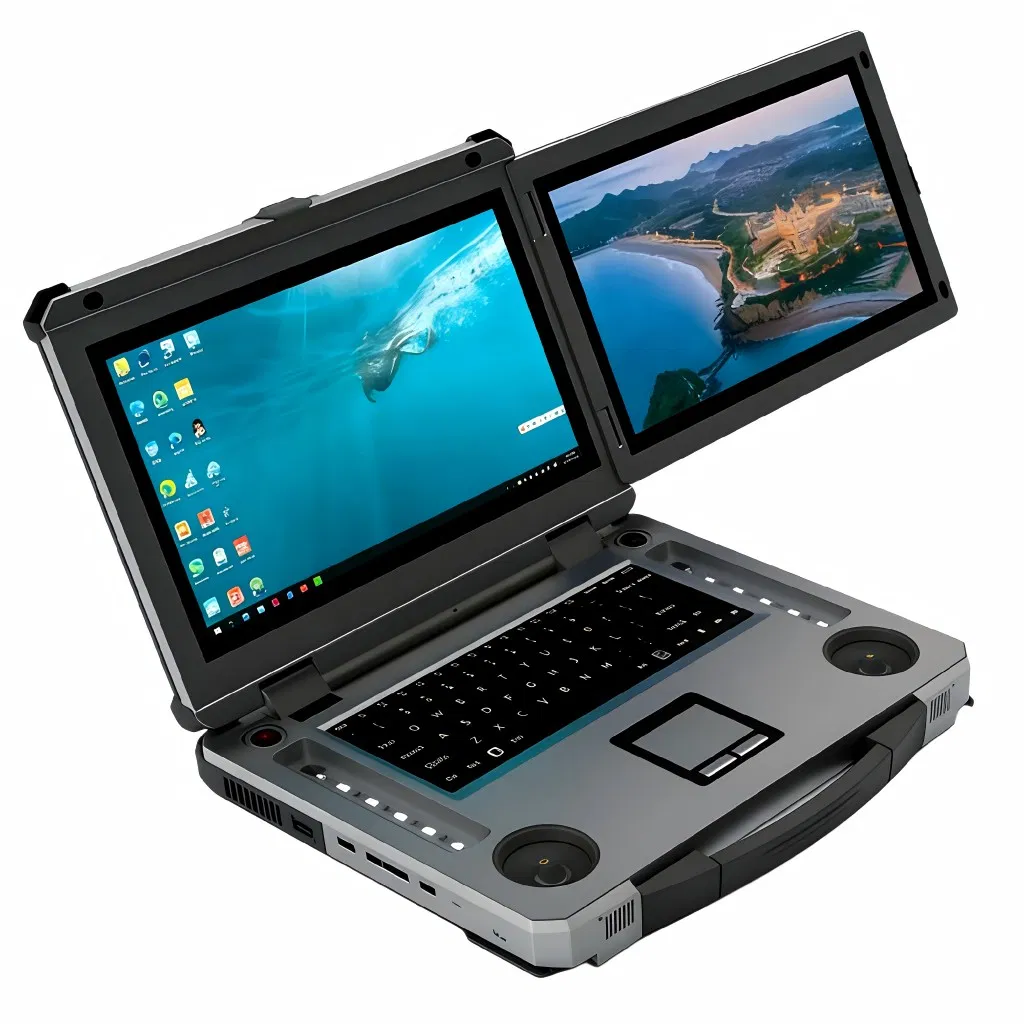

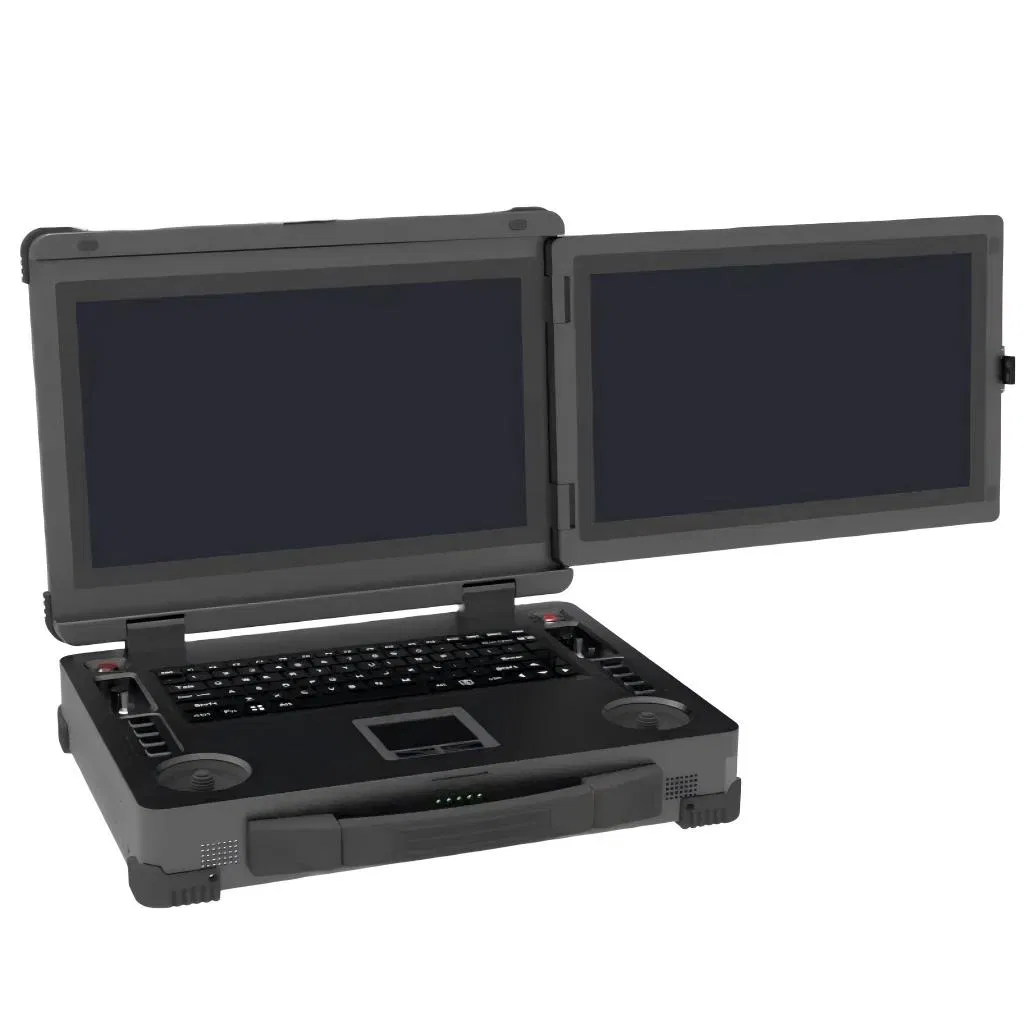

The GDS-D15 Portable Dual-Screen Ground Station is designed for precise drone monitoring and complex field operations. Featuring two 15.6-inch sunlight-readable touchscreens, it provides a powerful interface for real-time flight control and mission-critical data management.

💎 Core Advantages

High Performance

Intel i7 CPU, 16 GB RAM, and 512 GB SSD ensure seamless drone monitoring and high-speed data handling without latency.

Extensive Control

Supports 20 channels, SBUS, USB-HID, and various custom protocols for versatile UAV professional setups.

Sunlight Readable

Dual 1080p touch displays with 1000 nits brightness, making it perfectly visible even under direct outdoor sunlight.

Rugged Design

Durable aluminum alloy construction designed for extreme environments, operating from -10°C to 60°C.

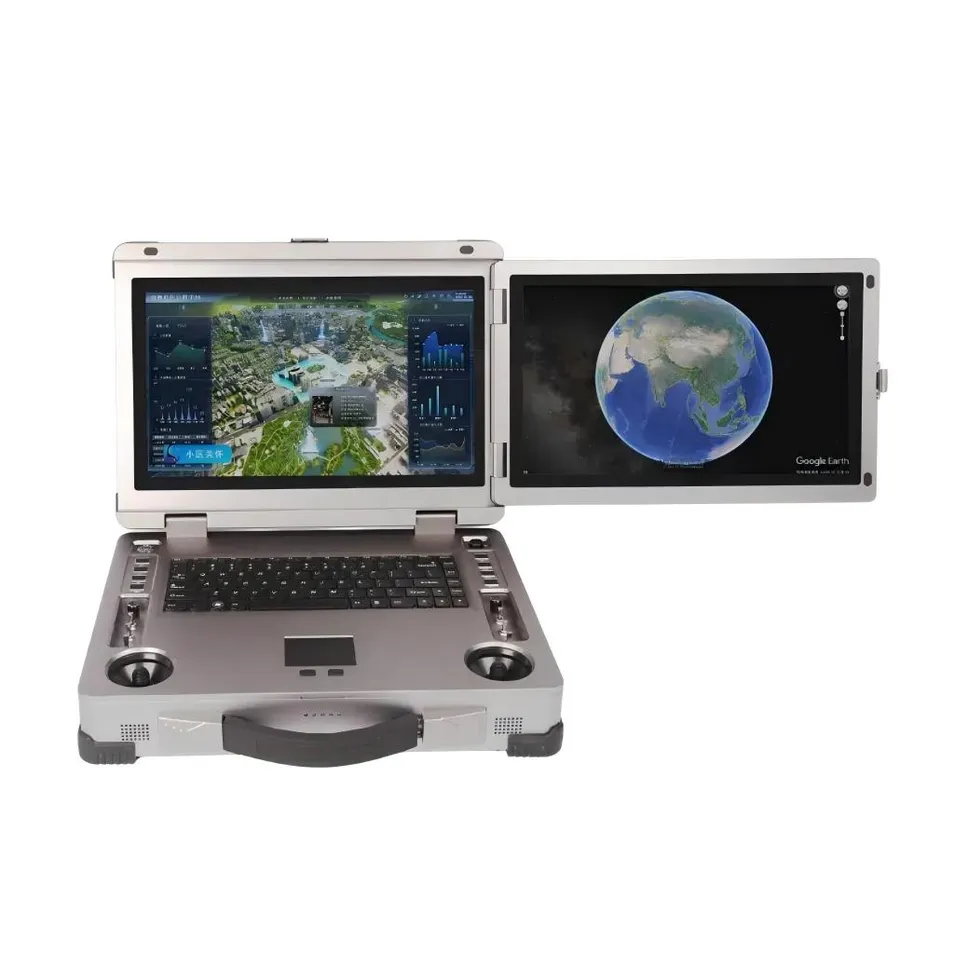

🛠️ Functional Modules & Structural Highlights

Control Interface: 3 joysticks, 6 toggle switches, 2 knobs, and 8 programmable buttons for customized operation.
Connectivity: Reserved ports including 6×RS232, 2×USB, 1×RJ45, and 12V 3A power output.
Visuals: Dual-screen interface enables simultaneous camera views, telemetry data, and flight map control.

⚙️ Technical Specifications

Dimensions	416 × 330 × 100 mm	Frame Weight	10 kg
OS	Windows 10 / Linux	GPU	Intel Iris Xe
Wireless	Wi-Fi 2.4G/5.8G, BT 4.0	Brightness	1000 nits
Touch	10-Point Capacitive	Battery	266 Wh (4-6 Hours)

🌍 Application & Quality Control

Ideal for field drone operations, real-time mission monitoring, industrial inspections, mapping, logistics, and emergency response. Every unit undergoes rigorous pre-shipment inspection, including functional testing of screens, ports, battery modules, and control switches.

📜 Certifications & Logistics

Our systems are housed in modular protective export packaging with high-density foam inserts to ensure safety during international sea and air transportation. All cables and battery accessories are included for immediate deployment.

❓ Frequently Asked Questions

Q1: How long is the battery life for the ground station? A1: The built-in 266 Wh battery supports continuous operation for 4 to 6 hours on a single charge.

Q2: Are the displays visible under direct sunlight? A2: Yes, the dual 15.6-inch screens feature a high brightness of 1000 nits, making them sunlight-readable for outdoor field use.

Q3: What operating systems are supported? A3: The system is compatible with both Windows 10 and Linux operating systems, providing flexibility for different UAV software requirements.

Q4: Can this station control multiple drones simultaneously? A4: Yes, it supports up to 20 channels and custom protocols, allowing for multi-channel control and coordinated drone operations.

Q5: What is the operating temperature range? A5: The device is designed for industrial environments and can operate reliably in temperatures ranging from -10°C to 60°C.

Q6: What type of touch interface does it use? A6: It features 10-point capacitive touch displays for intuitive and responsive control during flight missions.
