New IP66 Waterproof 1d 2D Barcode Scanner

Basic Specifications

Model NO.

T80s

OS

Android

Memory Capacity

2g RAM+16g ROM

CPU Type

Mtk

Internet Connection

GPRS / 4G

Classification

Bar-code Scanner

Product Name

New IP66 Waterproof 1d 2D Barcode Scanner

HS Code

8471604000

Dimensions

166mm(L)X77.5mm(W)X22mm(D)

Production Capacity

5000piece/Month

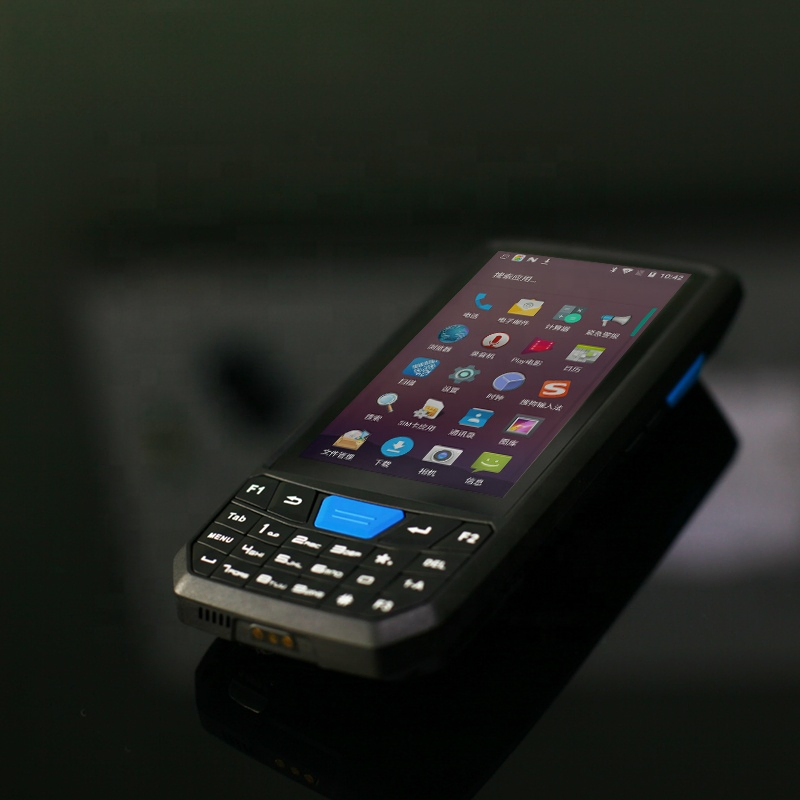

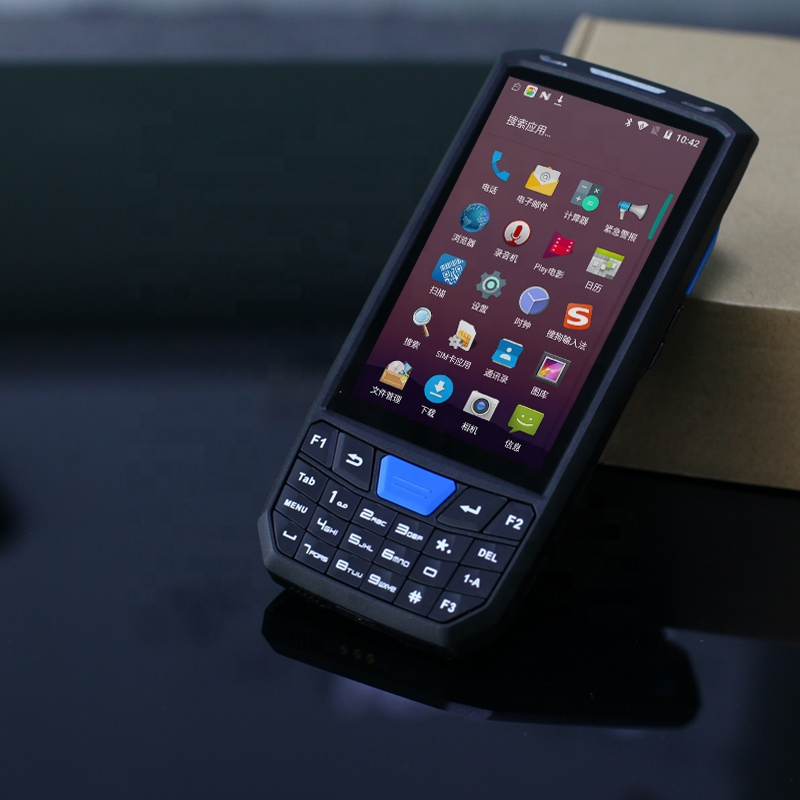

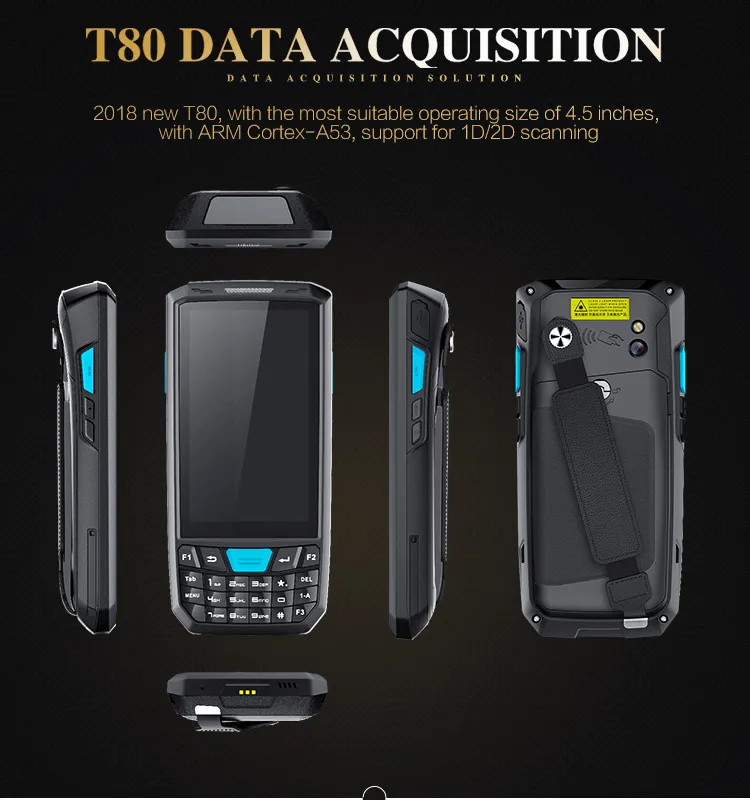

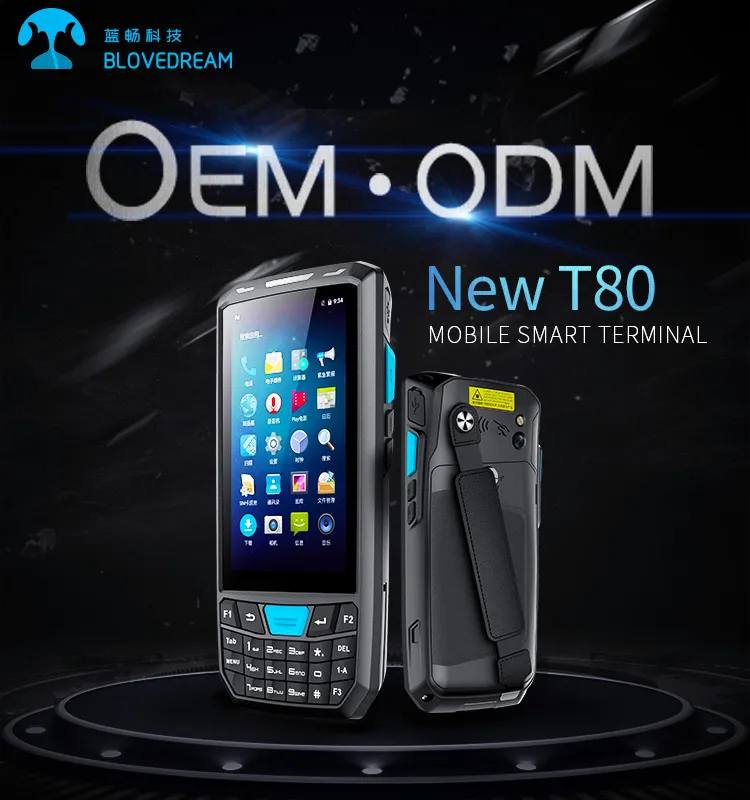

Product Showcase

Technical Parameters

Structural Parameters
Dimensions	166mm(L)X77.5mm(W)X22mm(D)
Weight	<500g
Display Screen	4.5inch IPS 480*854 px with Multi-point touch capacitive screen
Expand Port	SIM card, micro SD (TF) Card
Battery Capacity	Rechargeable Li-polymer Battery 3.8V 4200mAh
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input
Performance Parameters
OS	Android 8.1
CPU	ARM CORTEX-A53 64bit Quad-Core 2.0G
RAM / Flash ROM	2G RAM / 16G NAND Flash Storage
Data Communication
WI-FI	IEEE802.11 a/b/G/n protocol
4G / 3G / 2G	FDD/TDD-LTE, WCDMA, GSM/GPRS Support
Bluetooth	bt 2.0+EDR/3.0+HS/4.1+HS (5-10m)
Environmental & Protection
Sealed Environment	IP66 Waterproof & Dustproof
Drop Specifications	1.5m drop to cement floor (6 sides)
Operating Temp	-20°C to 55°C

Scanner Modules (Optional)

1D Laser: Symbol 955, Honeywell N4313, Mingde 966. Supports UPC/EAN, Code128, Code39, etc.

2D CMOS: Honeywell N6603, NewLand 3096. Supports PDF417, QR code, DataMatrix, etc.

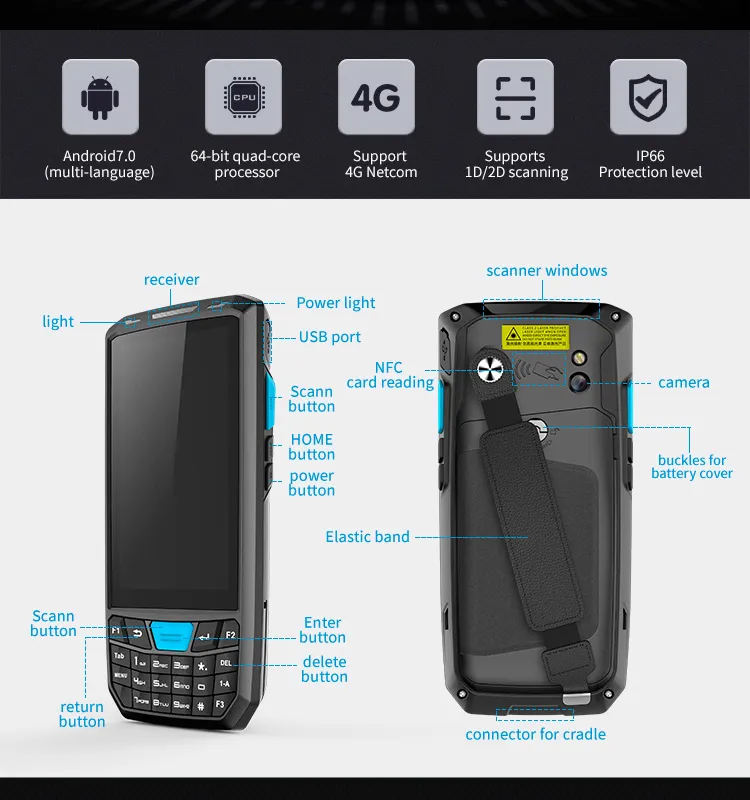

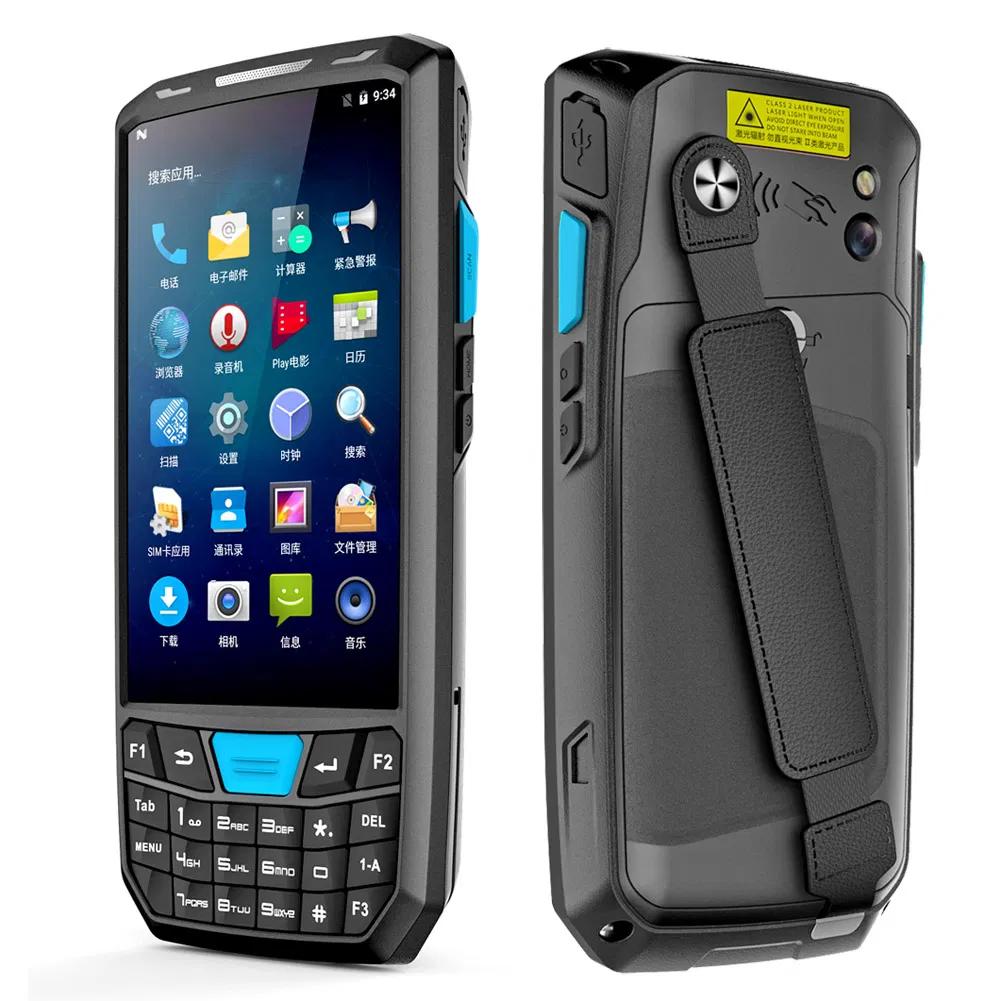

Detailed View

Support & Service

✔ 13 Months Warranty: We offer a comprehensive warranty covering quality issues (excluding human factors).

✔ Spare Parts Support: Provision of free spare parts (LCD, housing, keyboard) for local maintenance.

✔ Technical Guidance: Professional video guidance for assembly and repair; on-site support available if required.

✔ Lifetime Assistance: Ongoing technical assistance for the lifespan of the equipment.

❓ FAQ

1. What is the protection rating of this device?

The device is IP66 rated, making it waterproof and dustproof, suitable for harsh industrial environments.

2. Does it support both 1D and 2D barcode scanning?

Yes, it offers optional 1D Laser scanners (Symbol/Honeywell) and 2D CMOS scanners (Honeywell/NewLand) to meet different scanning needs.

3. What is the battery life and capacity?

The device is equipped with a high-capacity 4200mAh rechargeable Li-polymer battery (3.8V).

4. Is the device drop-resistant?

Yes, it is designed to withstand impacts from a 1.5m drop to a cement floor on all six sides.

5. Can I use a SIM card for mobile data?

Yes, it supports 4G LTE, 3G WCDMA, and 2G GSM networks via a built-in SIM card slot.

6. What operating system does it use?

The device runs on Android 8.1, providing a stable and flexible platform for various enterprise applications.
