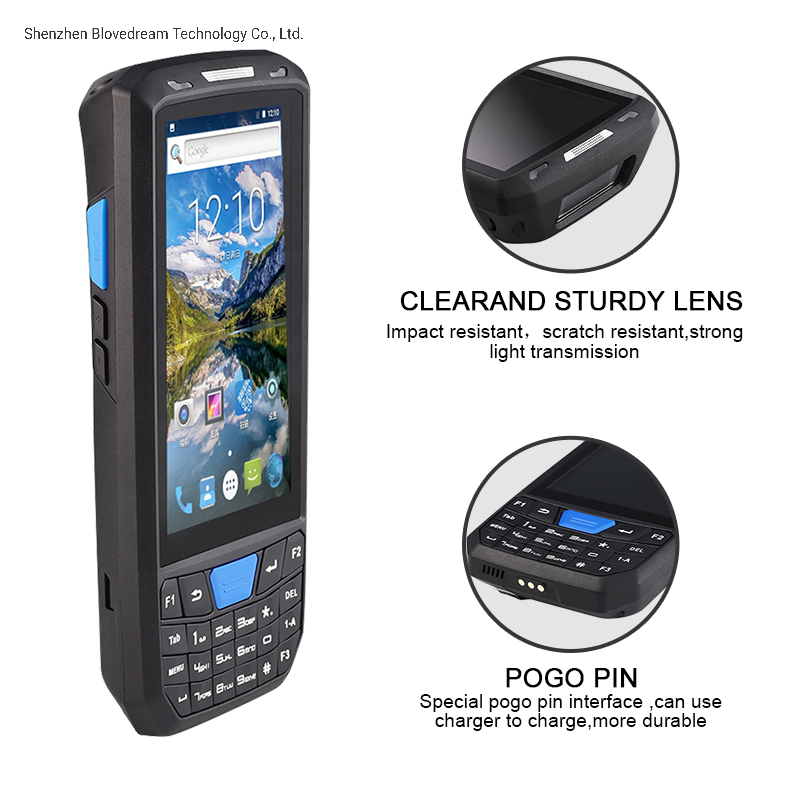

Android 4.5 Inch Mobile Terminal Barcode Industrial PDA

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.T80
Interface TypeUSB
Scan Speed200 scans/sec
Scan Element TypeLaser
Key WordsHandheld 1d 2D Rugged Wireless Bluetooth PDA
Transport PackageCarto Box with Bubble
Specification172mm(L) X 80mm(W) X 27mm(D)
OriginChina
HS Code8471604000
Production Capacity5000piece/Month

Key Product Features

Industrial Mobile Terminal with Free SDK Provided
Default Config: Wifi + BT + 4G + Phone + GPS + 8M Camera + Google Play
Scanner Options: 1D, 2D, NFC, LF, HID RFID are optional
Operating System: Safedroid OS (Android 8.1) Highly Optimized

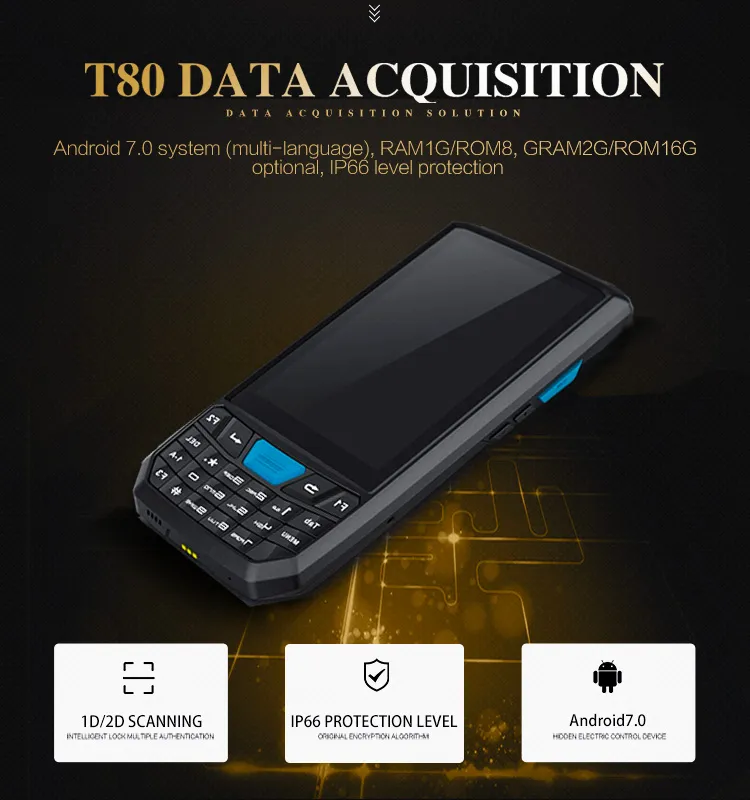

Rugged Design: Water-Proof and IP66 Grade Protection
High Endurance: 4200mAh Large Capacity Battery
Ergonomic: Compact design with wrist strap for portable use

Product Gallery

Technical Parameters

Structural & Performance
Dimensions166mm(L)X77.5mm(W)X22mm(D)
Display Screen4.5inch IPS 480*854 px Multi-point touch
OS / CPUAndroid 8.1 / ARM CORTEX-A53 Quad-Core 2.0G
Memory1G/2G RAM + 8G/16G Flash (Support SD up to 32G)
BatteryRechargeable Li-polymer 3.8V 4200mAh
Data Communication
WIFI / 4GIEEE802.11 a/b/G/n / FDD-LTE & TDD-LTE
Bluetoothbt 2.0+EDR/3.0+HS/4.1+HS (5-10m)
GPSSupport GPS, Galileo, Glonass, Beidou
Operating Environment
Protection GradeIP66 Sealed Environment
Drop Spec1.5m drop to cement floor (6 sides)
TemperatureOperating: -20°C to 55°C; Storage: -25°C to 70°C

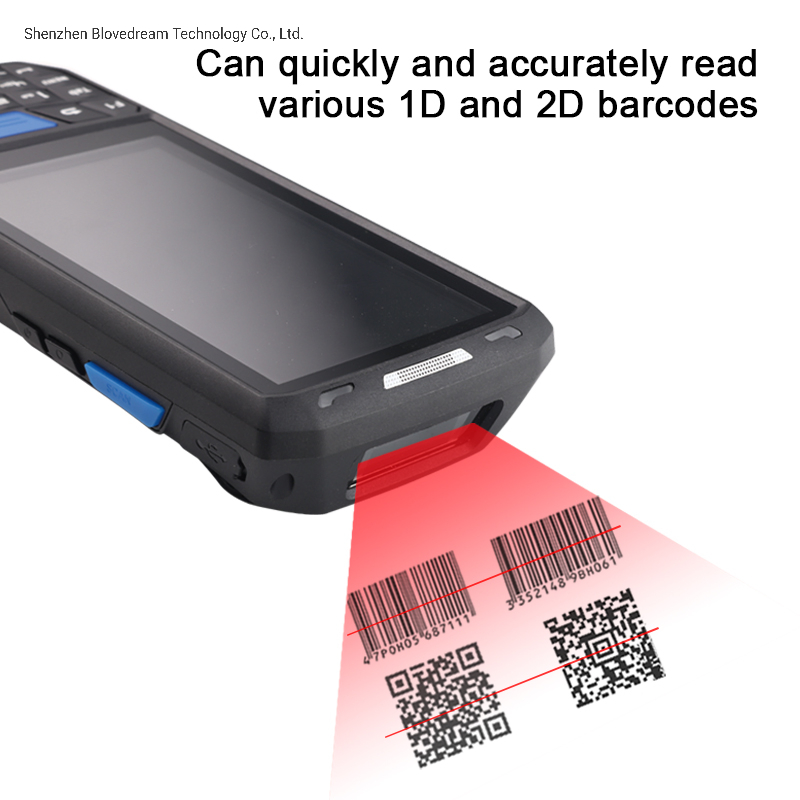

Scanner Options
1D LaserSymbol 955, Honeywell N4313 (104 scans/sec)
2D CMOSHoneywell N6603, NewLand 3096

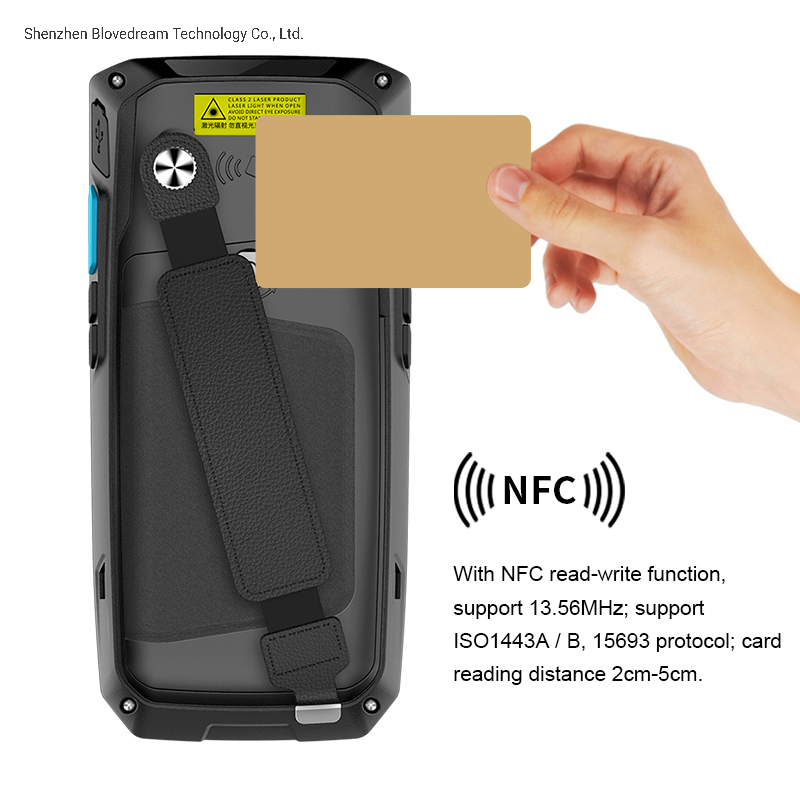

RFID / NFCLF (125kHz/134kHz), NFC (13.56MHz)

After-Sales Service

13 months warranty for quality issues (excluding human factors).
Free spare parts (LCD, housing, keyboard) provided for local repairs.
Professional video guidance for assembly and repair maintenance.
Lifetime technical assistance and professional technical team support.

Frequently Asked Questions

What operating system does the T80 PDA use?
The T80 PDA runs on Safedroid OS, which is a highly optimized version of Android 8.1.
Does this device support barcode scanning?
Yes, it supports optional 1D Laser scanning (Symbol/Honeywell) and 2D CMOS scanning (Honeywell/NewLand).
Is the device suitable for harsh industrial environments?
Absolutely. It features an industrial rugged design with an IP66 rating for water and dust protection, and it can withstand 1.5m drops.
How long is the battery life?
It is equipped with a high-capacity 4200mAh rechargeable Li-polymer battery designed to meet critical professional requirements.
What type of wireless connectivity is supported?
The T80 supports 4G LTE, Wi-Fi (IEEE802.11 a/b/g/n), Bluetooth, and GPS (including Galileo, Glonass, and Beidou).
Do you provide technical support for developers?
Yes, we provide a free SDK and lifetime technical assistance to help with software integration and development.
