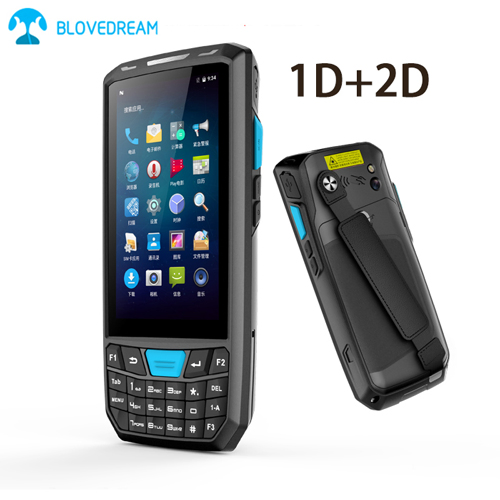

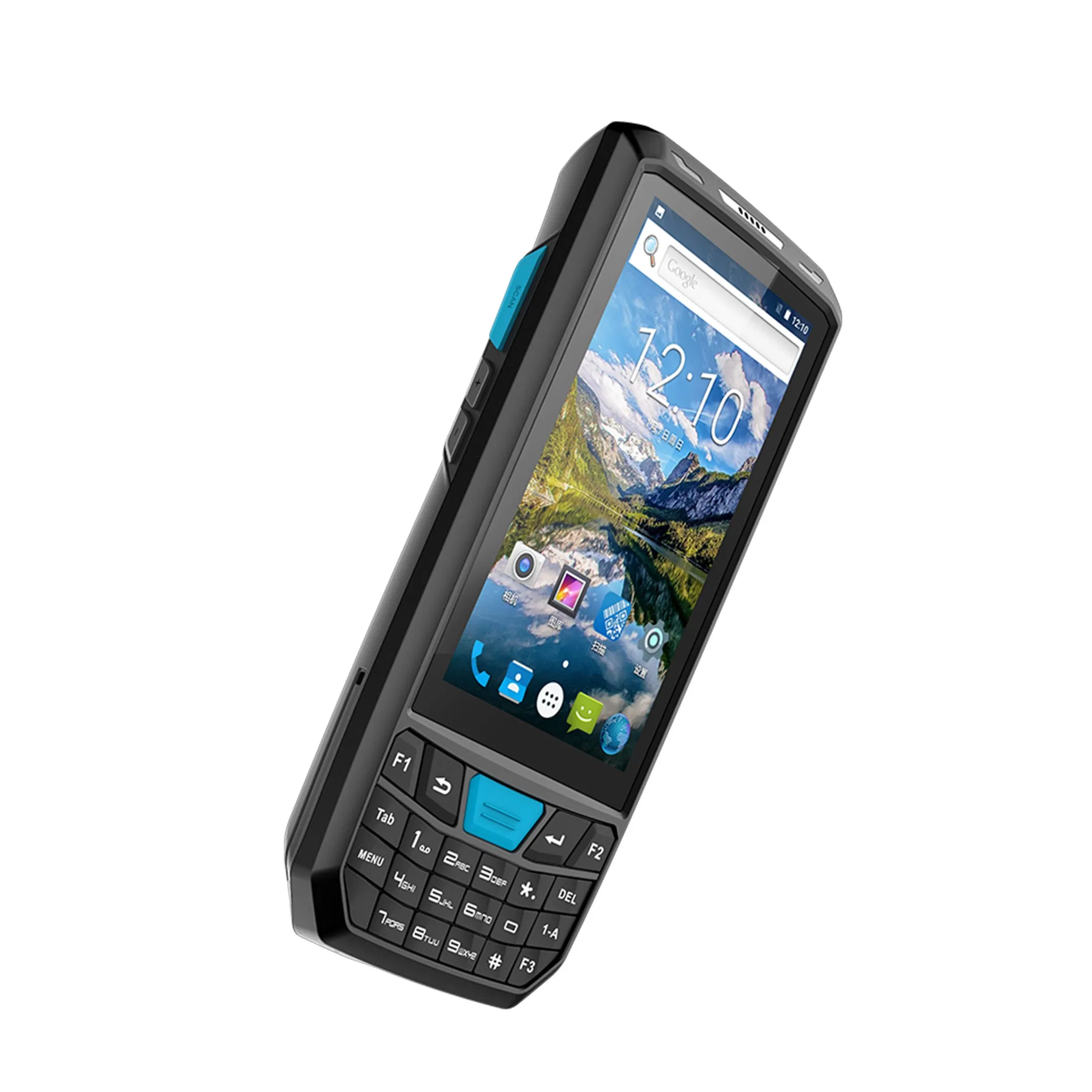

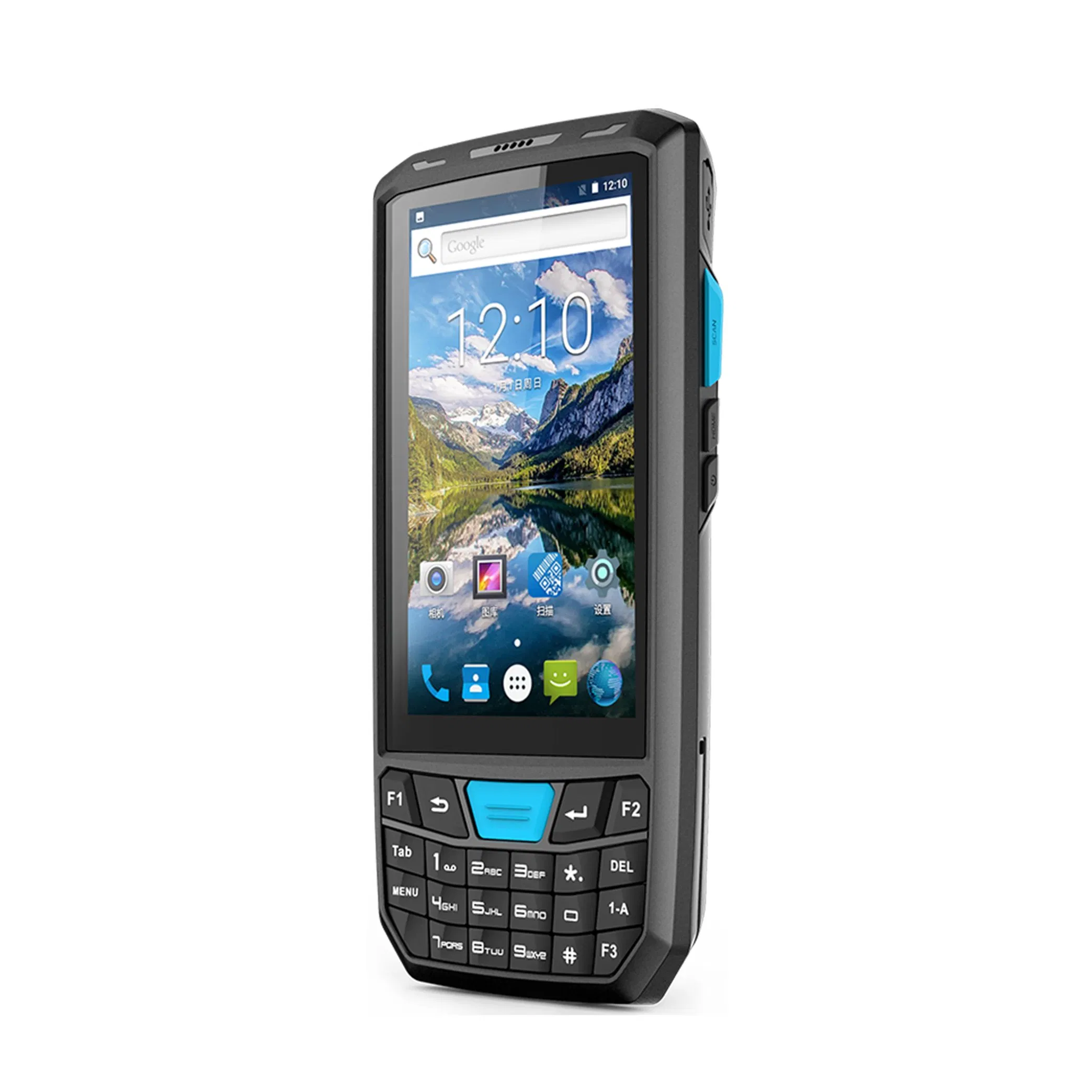

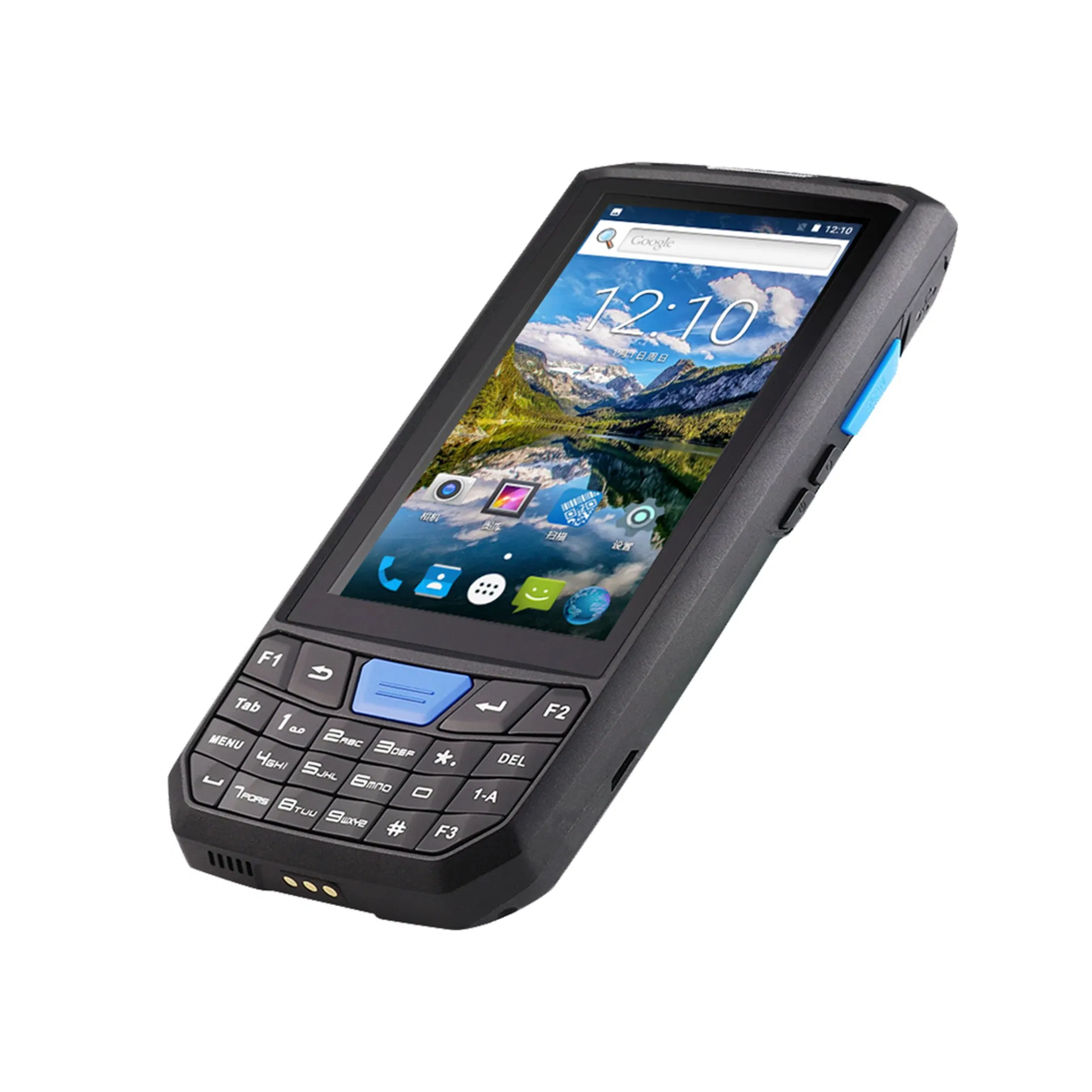

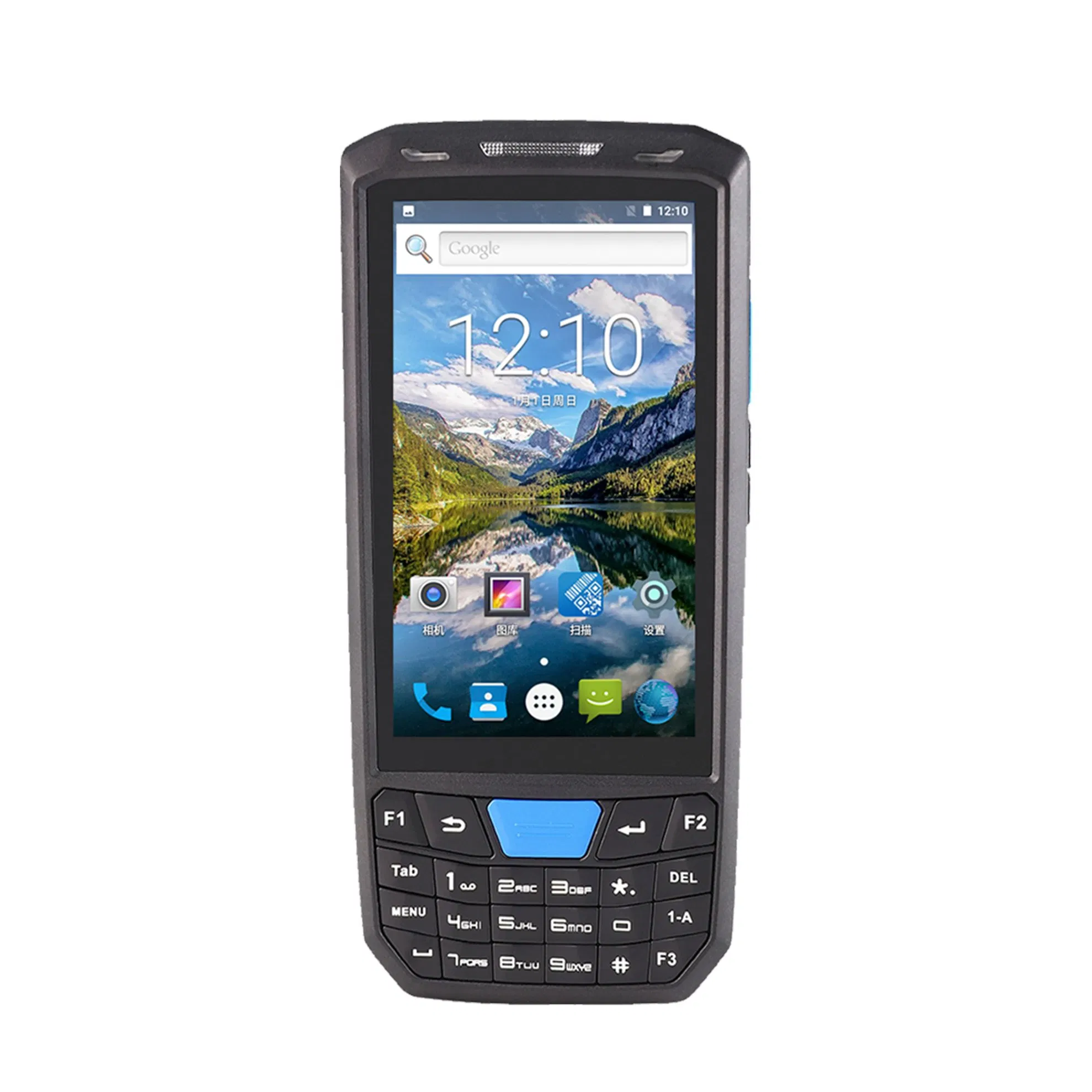

Rugged Handheld PDA Industrial Mobile Computer

Rugged Handheld PDA Industrial Mobile Computer

Rugged Handheld PDA Industrial Mobile Computer

Rugged Handheld PDA Industrial Mobile Computer

Rugged Handheld PDA Industrial Mobile Computer

1 / 5

Rugged Handheld PDA Industrial Mobile Computer

Rugged Handheld PDA Industrial Mobile Computer

Rugged Handheld PDA Industrial Mobile Computer

Rugged Handheld PDA Industrial Mobile Computer

Rugged Handheld PDA Industrial Mobile Computer

Rugged Handheld PDA Industrial Mobile Computer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

T80s

OS

Android

Memory

2g RAM + 16g ROM

Applications

Handheld Computer Equipment

CPU Type

Mtk

Internet

GPRS / 4G LTE

Classification

Bar-code Scanner

Dimensions

166mm(L) X 77.5mm(W) X 22mm(D)

Origin

China

Capacity

5000piece/Month

Product Description

Rugged Handheld PDA Industrial Mobile Computer designed for high-performance data collection in demanding environments.

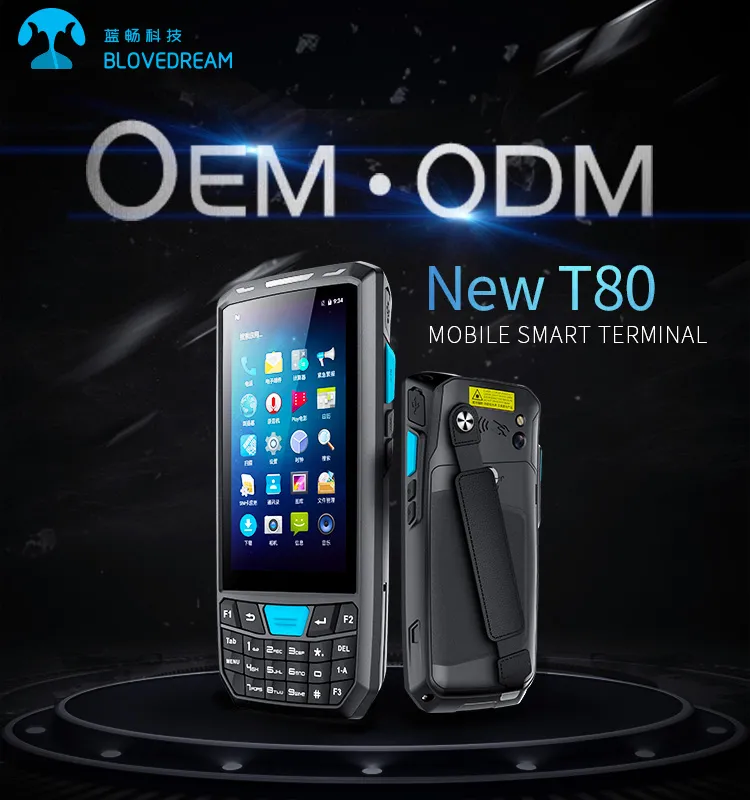

PDA Display 1

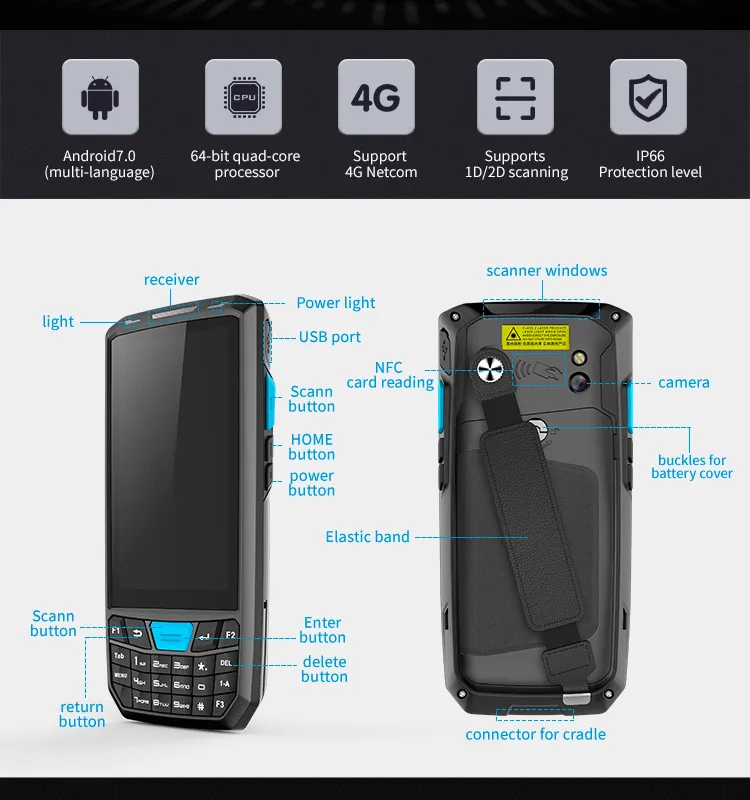

PDA Display 2

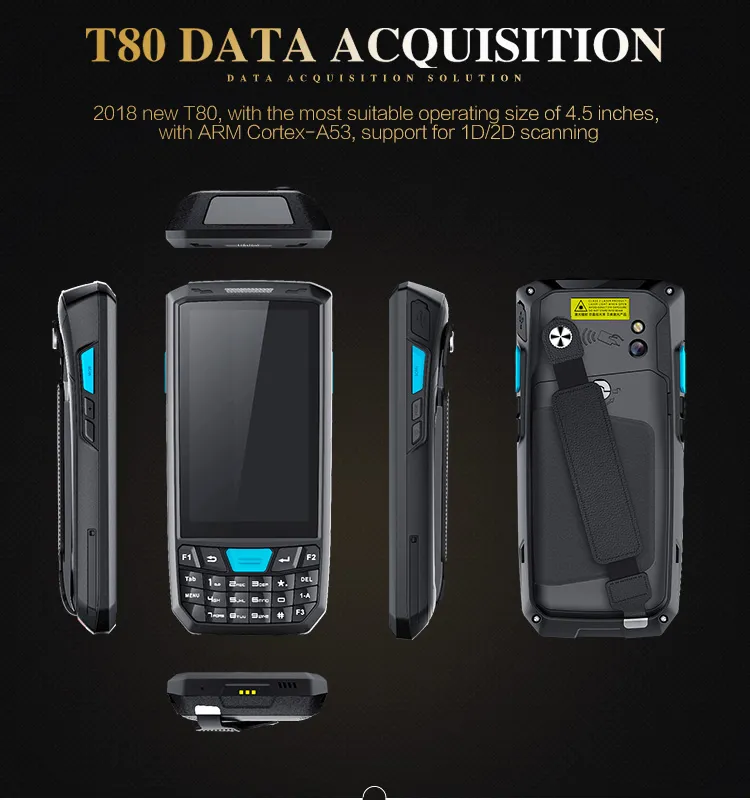

PDA Display 3

PDA Display 4

PDA Display 5

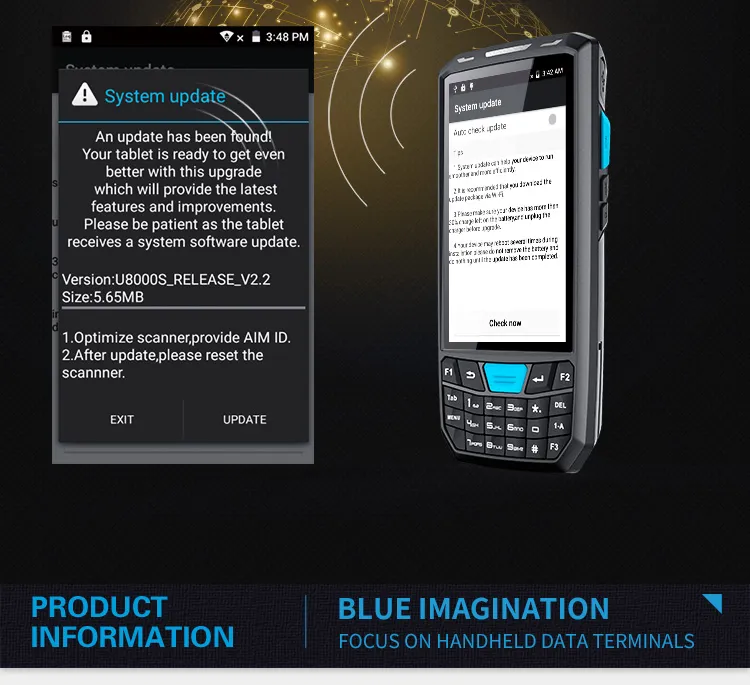

PDA Features

Technical Specification

Structural Parameters
Weight	<500g
Display Screen	4.5inch IPS 480*854 px with Multi-point touch capacitive
Expand Port	SIM card, micro SD (TF) Card
Communication	Type-C USB
Battery Capacity	Rechargeable Li-polymer Battery 3.8V 4200mAh
Performance Parameters
OS	Android 8.1
CPU	ARM CORTEX-A53 64bit Quad-Core 2.0G
RAM/ROM	2G RAM / 16G NAND Flash Storage
Data Communication
WI-FI / BT	IEEE802.11 a/b/g/n / BT 4.1+HS
4G Network	TDD-LTE (B38,B39,B40,B41), FDD-LTE (B1,B3)
GPS	Support GPS, Galileo, Glonass, Beidou
Operating Environment
Operating Temp	-20°C to 55°C
Drop Specs	1.5m drop to cement floor (6 sides)
Sealed Environment	IP66

Optional Scanning Modules

Type	Details
1D Laser	Symbol 955, Honeywell N4313; Supports UPC/EAN, Code128, etc.
2D CMOS	Honeywell N6603, NewLand 3096; Supports PDF417, QR code, DataMatrix.
LF RFID	125kHz, 134kHz (FDX-B / HDX); Range 3-8cm.
NFC Reader	13.56MHz; ISO/IEC 18092; Range 2-4cm.

Scan Module 1

Scan Module 2

Scan Module 3

Scan Module 4

Service & Support

13 Months Warranty

Covers quality issues (excluding human factors) with repair or replacement options.

Spare Parts Support

Provision of free spare parts (LCD, housing, keyboards) for local maintenance.

Technical Guidance

Video tutorials for assembly/repair and on-site support if required.

Lifetime Assistance

Continuous technical support throughout the product lifecycle.

Frequently Asked Questions

1. What operating system does the T80s PDA run?

The device runs on the Android 8.1 operating system, providing a familiar and flexible interface for industrial applications.

2. Is the handheld computer durable enough for outdoor use?

Yes, it features an IP66 industrial protection rating and is designed to withstand 1.5m drops to cement floors on all 6 sides.

3. What are the battery specifications?

It is equipped with a high-capacity 4200mAh rechargeable Li-polymer battery (3.8V) to ensure long-lasting performance during shifts.

4. Does it support both 1D and 2D barcode scanning?

Yes, the T80s offers optional modules for both 1D Laser scanning (Symbol/Honeywell) and 2D CMOS scanning (Honeywell/NewLand).

5. What wireless connectivity options are available?

The device supports 4G LTE, 3G WCDMA, 2G GSM, Dual-band Wi-Fi (802.11 a/b/g/n), Bluetooth 4.1, and GPS (including Galileo and Beidou).

6. Can I expand the storage capacity?

Absolutely. While it comes with standard 16G ROM, it includes a micro SD/TF card port that supports expansion up to 32GB.
