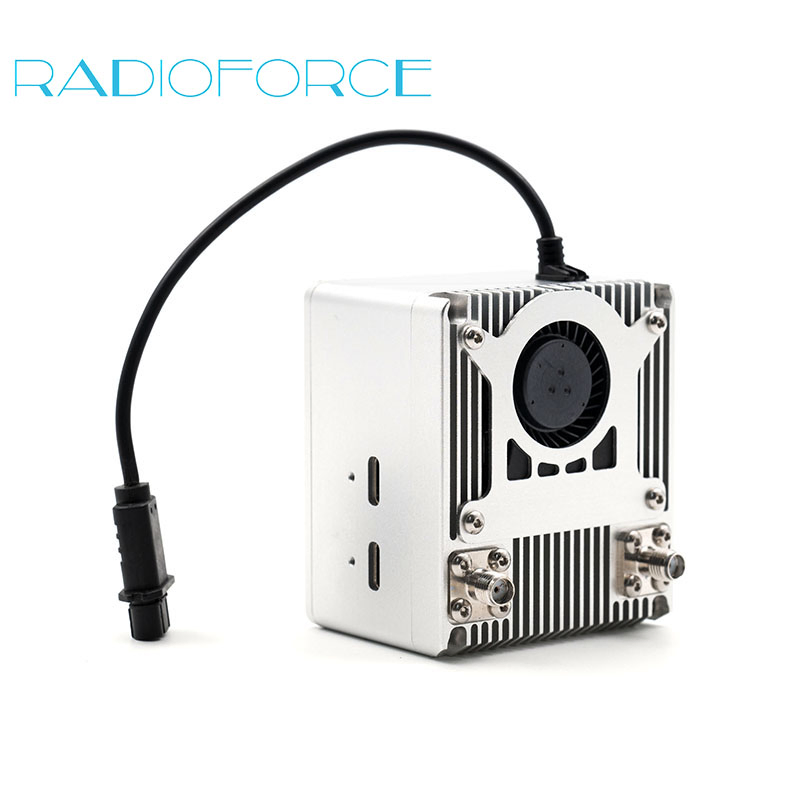

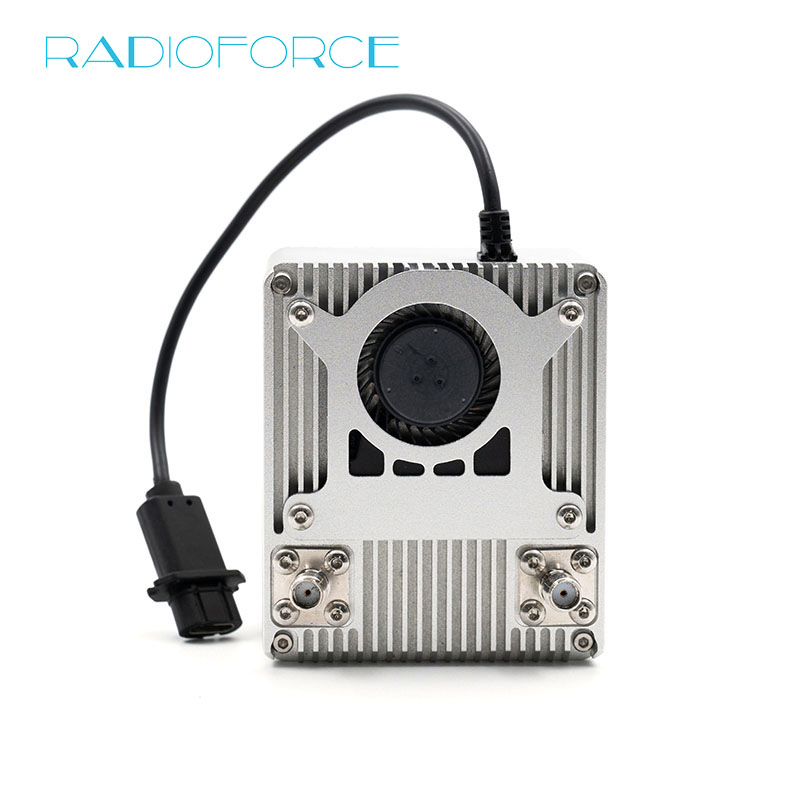

drone emergency command system transmitter tactical manet light video mesh Link transmitter

Product Overview

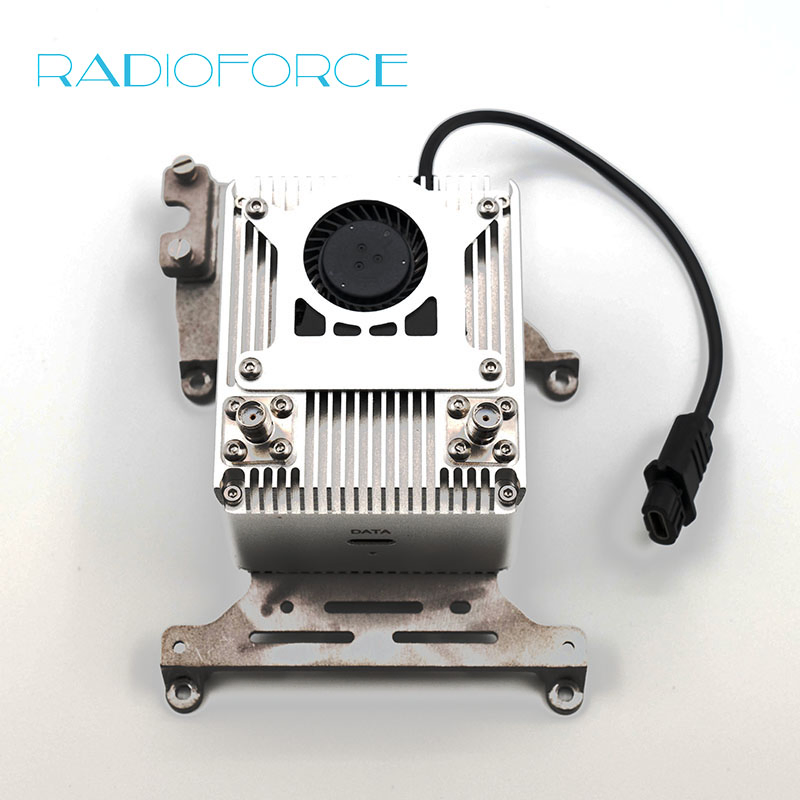

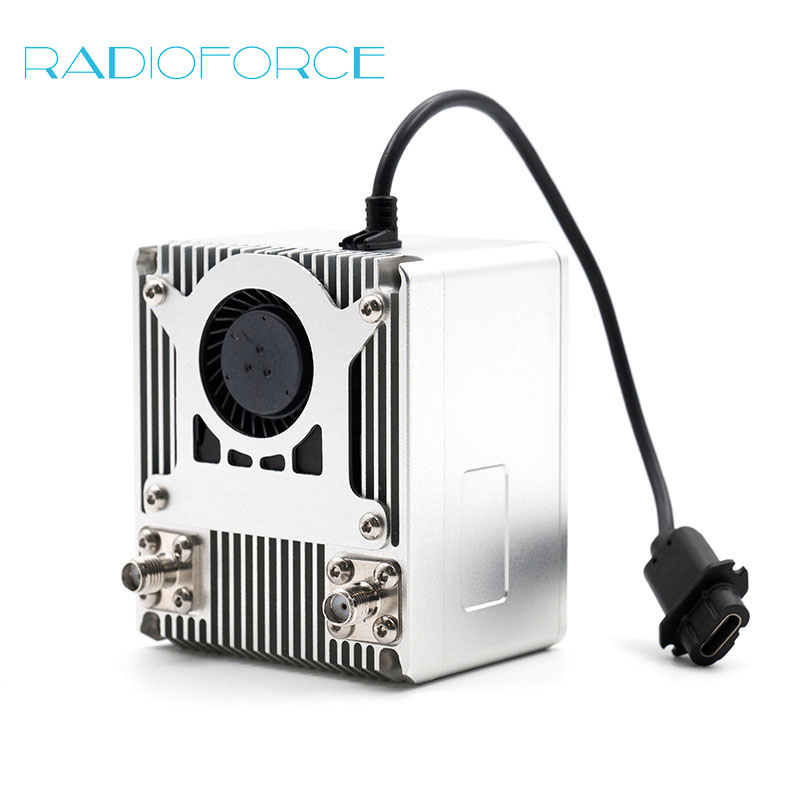

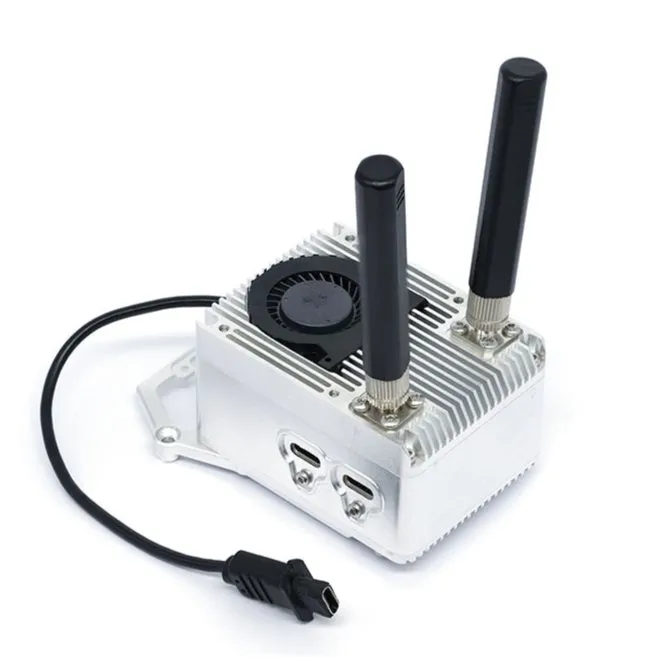

RFEG-302-S IP Mesh Radios Series

Based on SDR architecture, this series can be loaded with different waveforms to meet diverse needs. Supports mesh mode, point-to-point, and point-to-multipoint modes with IAS (Interference Avoidance Scheme).

Basic Specifications

Model NO.

RFEG-302-S

Network

Ethernet

Waveform

COFDM

TX Power

30dbm x 2 channels

Frequency

1230-1550MHz

Distance

LOS-20km, NLOS-1km

Core Advantages

The RFEG-302-S integrates high-performance wireless swarm UAV UGV video data links and powerful edge computing modules into a lightweight, high-protection unit.

⚡

Reduced Latency
Real-time data processing near the device minimizes transmission time.

🛡️

Enhanced Security
Local processing reduces risk of sensitive data exposure.

🤖

Increased Autonomy
Distributed networks and AI enable independent decision-making.

Detailed Specifications

General Parameters
Working Mode	Ad hoc network, PTP, PTMP
RX Sensitivity	-106dBm @ 1.25MHz
Bandwidth	1.25/2.5/5/10/20MHz (Optional)
Throughput	Up to 30Mbps (Diversity) / 60Mbps (MIMO)
Capacity	Up to 8 nodes (Options: 32, 64, 128)
AI Computing Power	22 TOPS INT8
Processor	Huawei Ascend 310 (8-core ARM A55)
Memory/Storage	8GB LPDDR4X / 128GB eMMC

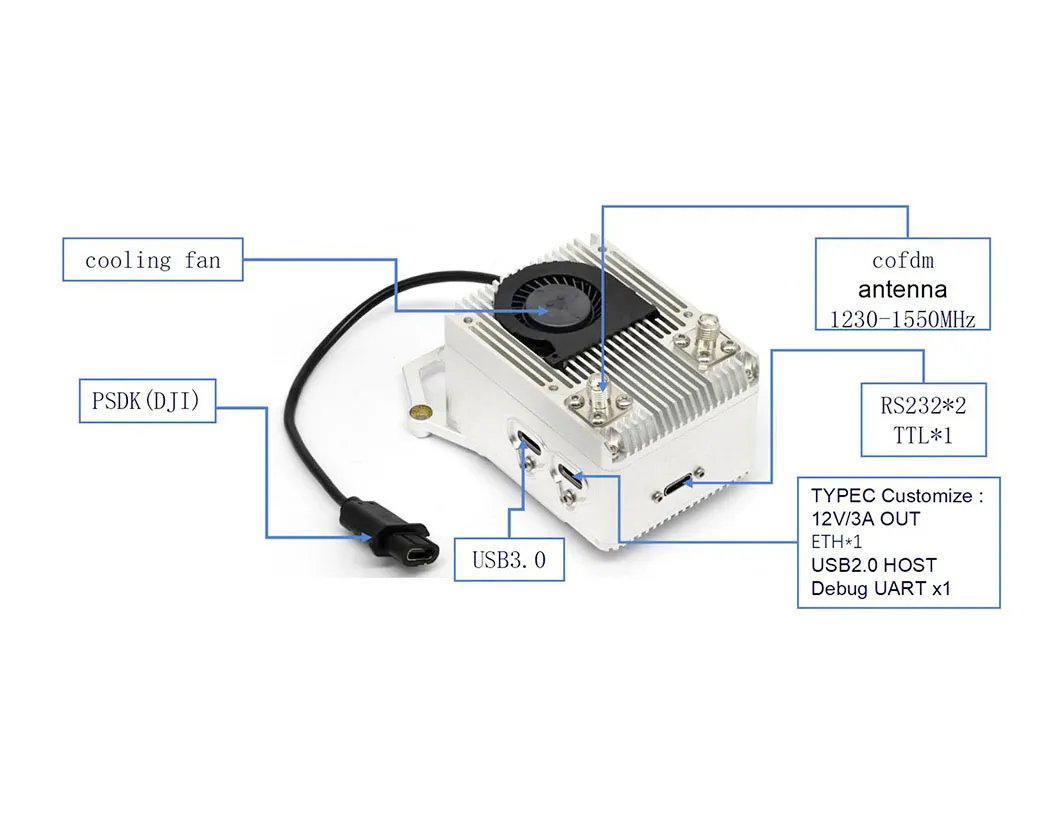

Interfaces	USB 3.0, USB 2.0, UART, Fast Ethernet (Type-C)
OS	Ubuntu 18.04.4 LTS

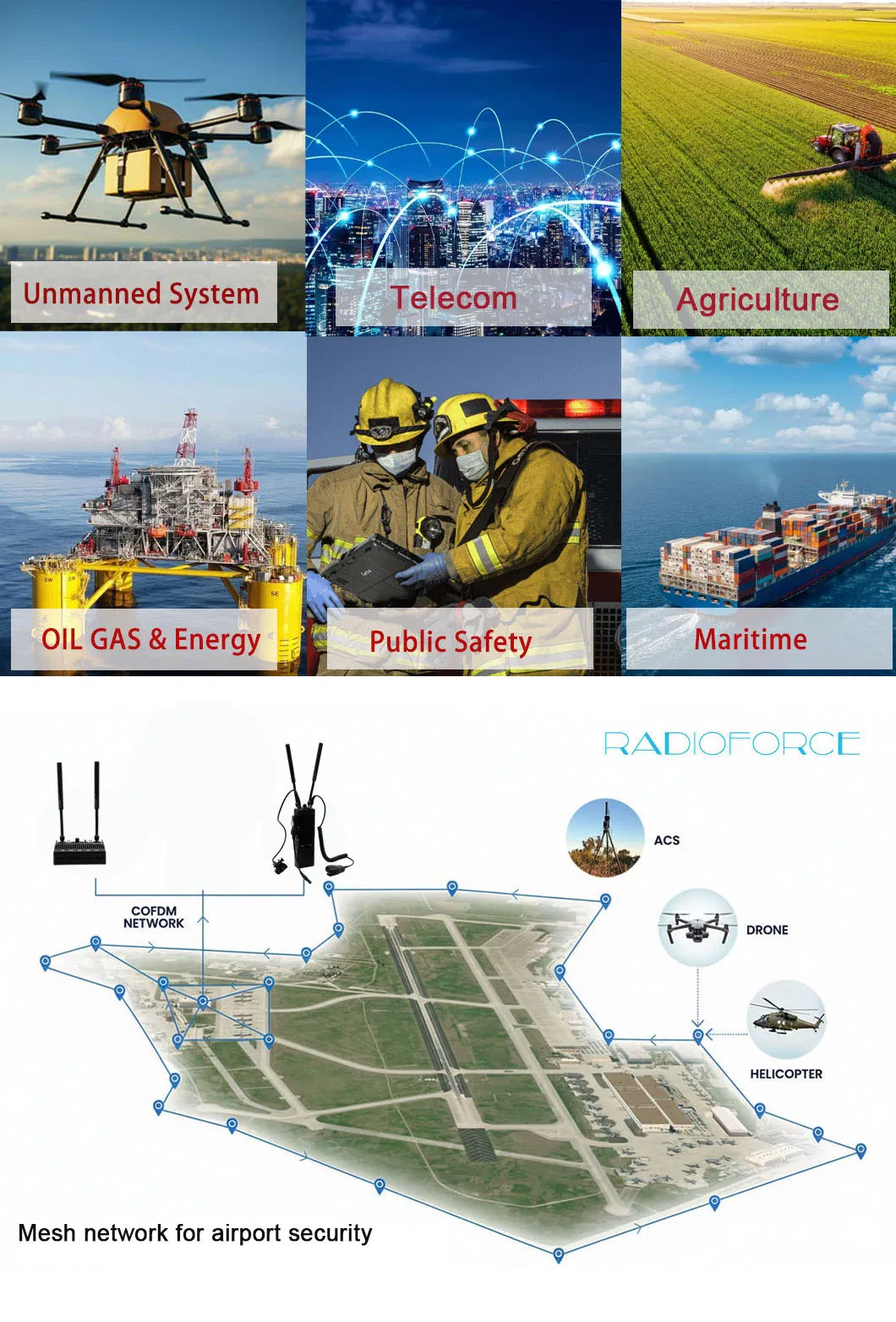

Applications

Robots and unmanned vehicles (UAV/UGV) for reconnaissance and surveillance.
Air-to-air, air-to-ground, and ground-to-ground mission-critical communications.
Urban MANET networking for emergency response and disaster relief.
Maritime videolink communications and ship-to-shore connectivity.
Reliable communication links in mines, tunnels, and underground facilities.

Professional Support

Our technical team brings years of expertise in wireless communication, backed by proprietary patents and advanced testing platforms. We specialize in SDR-based modules supporting airborne, vehicle-mounted, and body-worn applications.

Frequently Asked Questions

What is the maximum transmission range of the RFEG-302-S?

Under Line-of-Sight (LOS) conditions, it can reach up to 20km. For Non-Line-of-Sight (NLOS) environments like urban areas, the typical range is around 1km.

What makes this radio suitable for AI applications?

It features a built-in Huawei Ascend 310 processor with 22 TOPS of AI computing power, allowing for real-time edge processing and autonomous decision-making.

Does the system support anti-interference features?

Yes, it supports an Interference Avoidance Scheme (IAS) and COFDM waveform to ensure stable communication in complex RF environments.

How many nodes can be connected in a single mesh network?

The standard configuration supports up to 8 nodes, but it can be expanded to 32, 64, or even 128 nodes depending on requirements.

What are the power requirements for this unit?

The device accepts a power input range of 12V-24V, with a power consumption between 15W and 40W during operation.

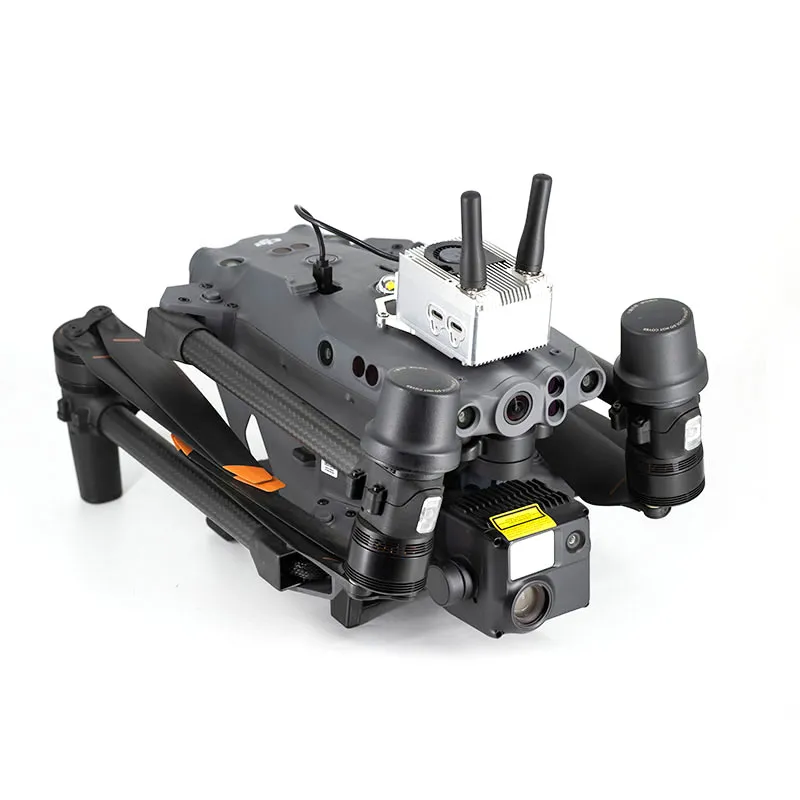

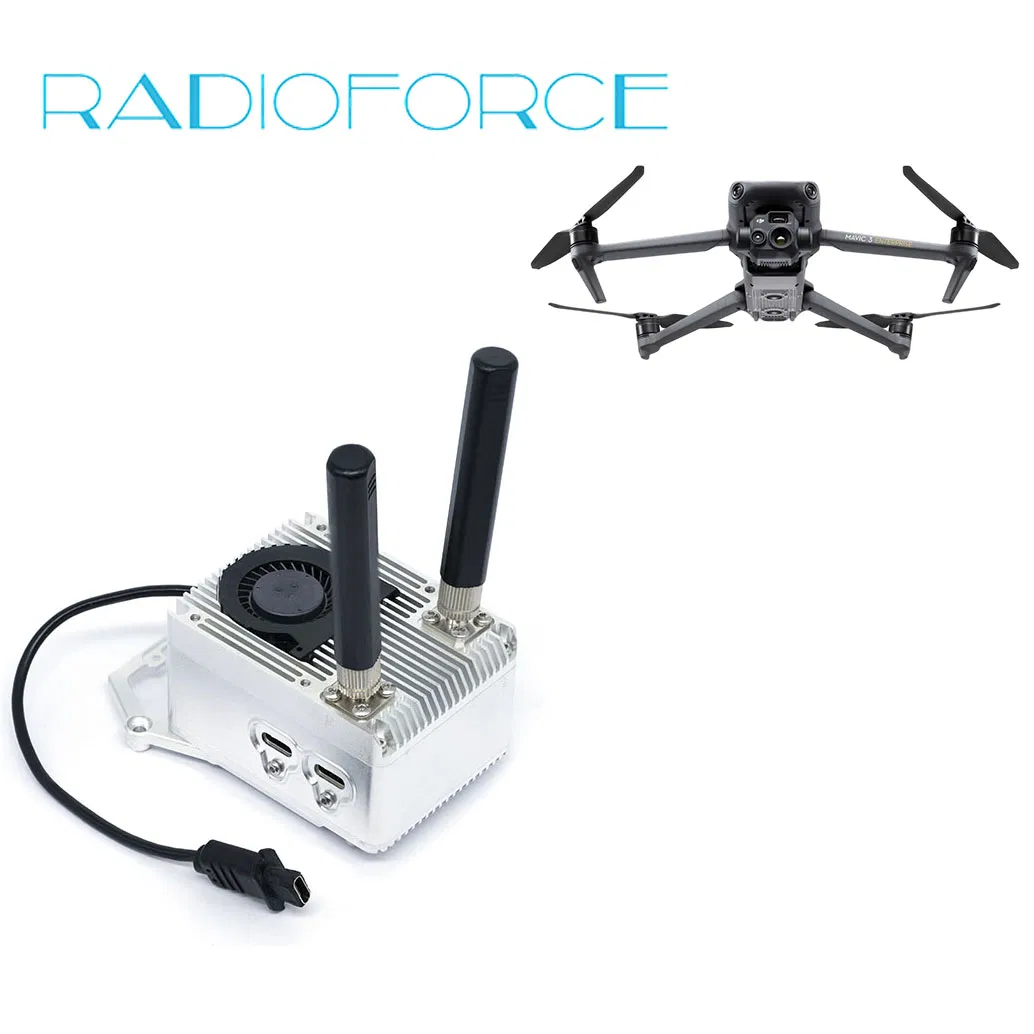

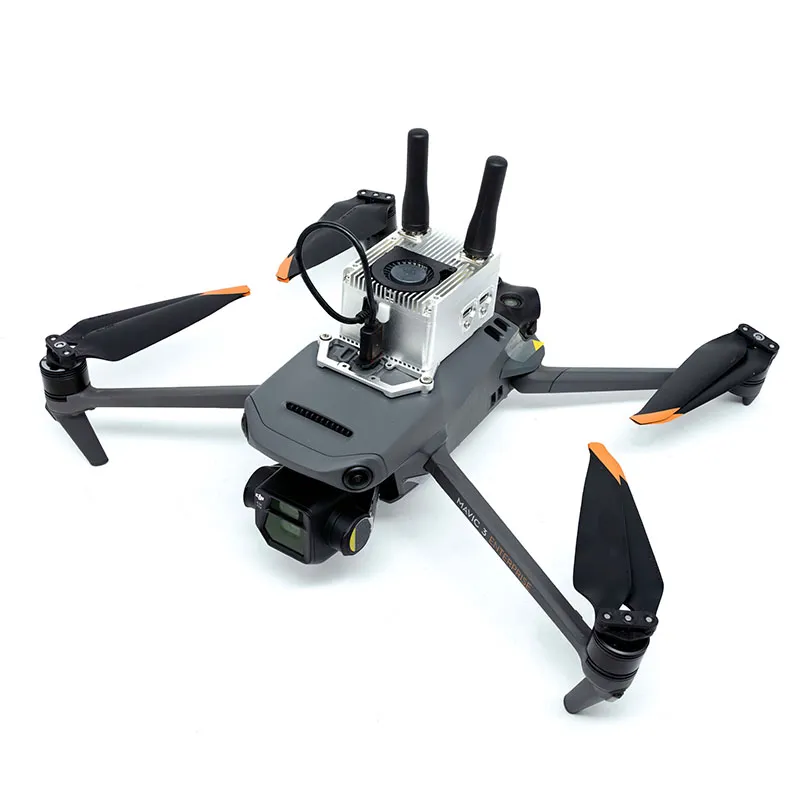

Is it compatible with DJI systems?

Yes, it supports DJI Series integration through PSDK and OSDK protocols.
