Fireman Wireless PTZ Dome HD CCTV Transmission Emergency Command Terminal 4G Portable Battery Video Surveillance Camera

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.TSP230-B-LA2-1H
ModulationFSK
PackageCarton
Specification51*46*33cm
HS Code8517629900
Capacity20,000/Year
Package Size51.00cm * 46.00cm * 33.00cm
Gross Weight13.000kg

Product Overview

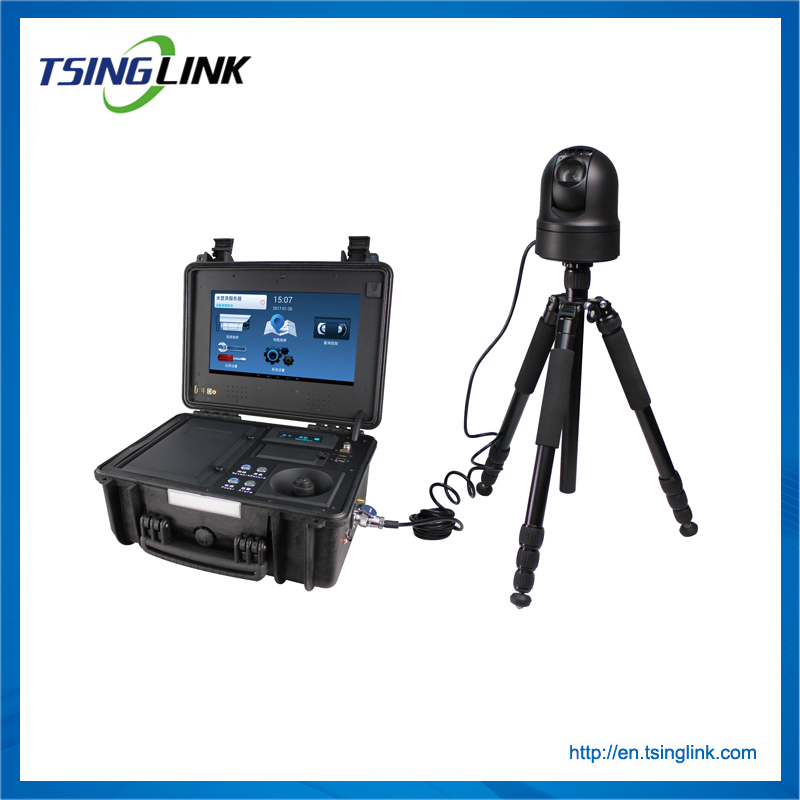

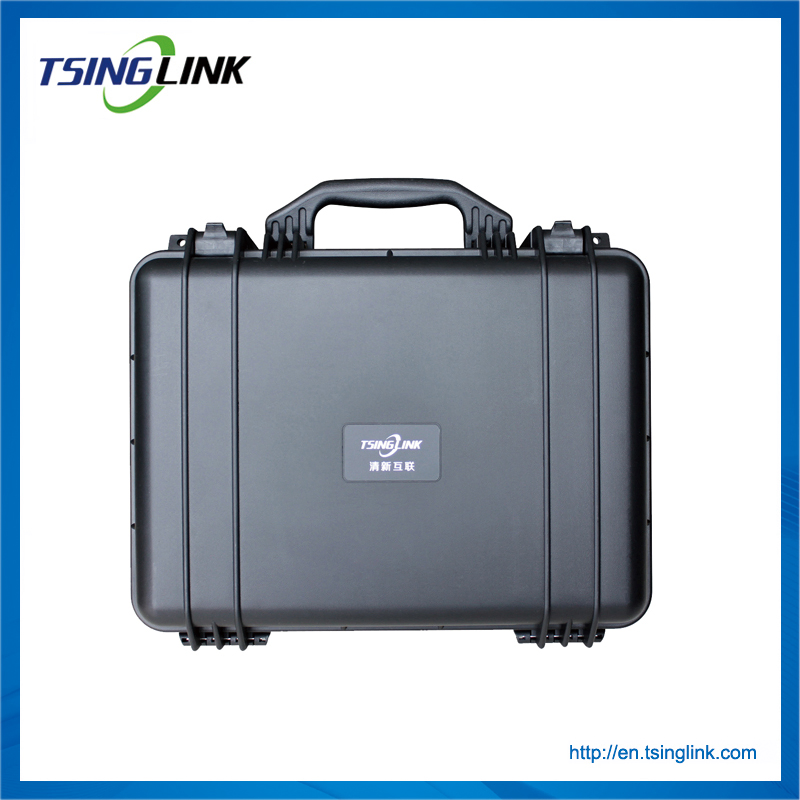

The 4G HD portable emergency command suitcase is a full-featured integrative product with functions of high-definition, smooth, and stable video effect, real-time location, emergency, dispatching, cluster call, etc. It is a complete set of emergency command devices specially designed for unexpected emergencies, providing technical support for realizing "smooth communication, real-time scene, complete data, and command in place". The product is widely applied in emergency command, public security, criminal investigation, traffic patrol, civil air defense, border defense, urban management, electric power, and road administration.

Key Features

  • Three-proofing design, IP66 protection level

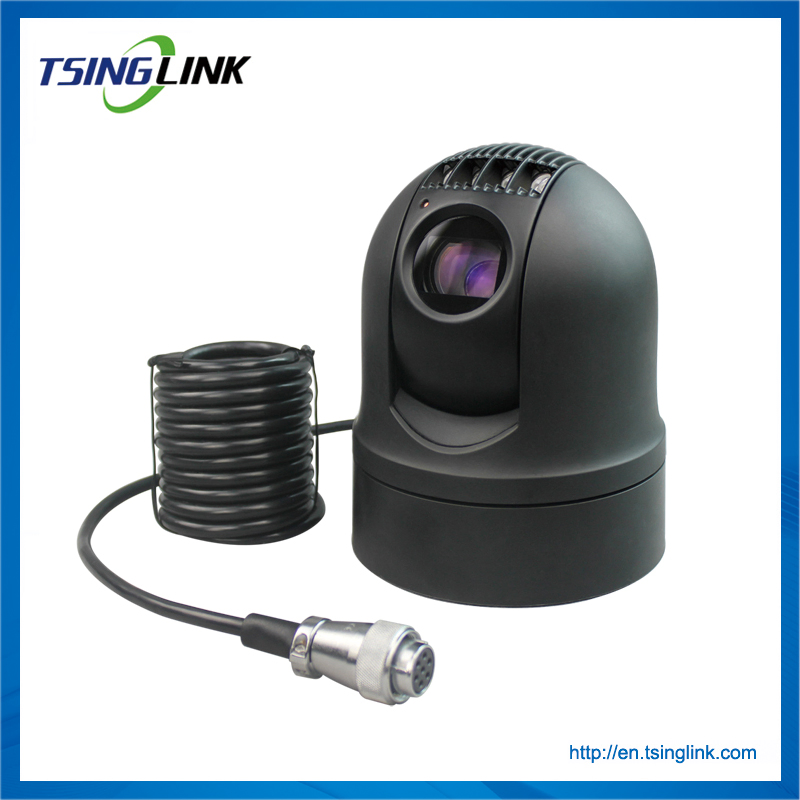

  • 2-channel video: one built-in 1080P/720P 2.0 megapixel HD waterproof speed dome, one external connection DV input

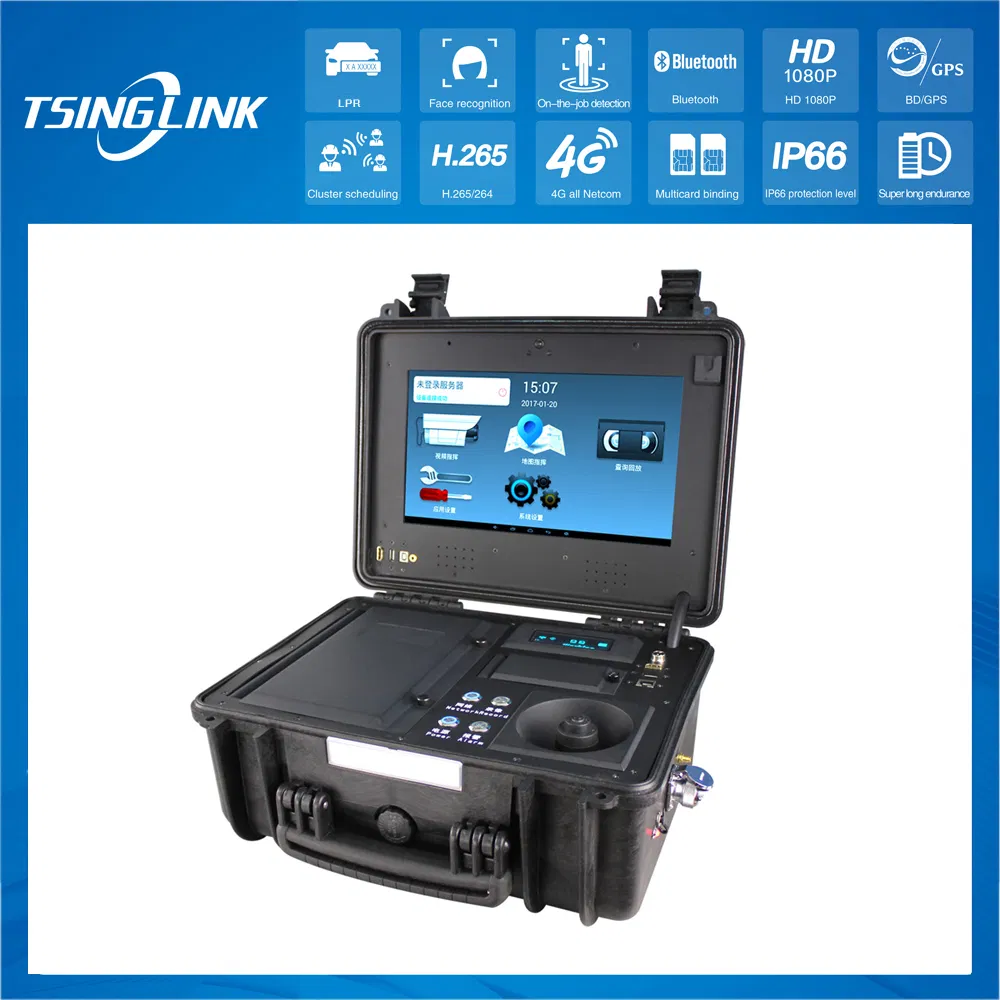

  • Embedded high-definition touch screen and joystick control panel, clear image, sensitive operation
  • Adapt to all networks, multi-card binding, support 3G / 4G / WIFI / Bluetooth / BANG maritime satellite
  • Support hard disk storage and TF card storage
  • Built-in large-capacity lithium battery, supporting up to 8-hour working time
  • Support GPS hybrid location, rapid positioning with high accuracy
  • Support cluster call, cluster scheduling, call recording, and dispatching command issue
  • Compatible with cloud video management platforms and dedicated command center consoles

Technical Specifications

Operation system Android + Linux
Video & Audio
Compression H.264 / H.265
Video Input 2 Channel video input
Resolution 1080P / 720P / D1 / CIF
Local Display HD touch screen
Audio Type Built-in MIC, speaker, support external hand MIC
Network & Storage
Hard Disk / SD Card Support 2.5" HDD & Multi SD card storage
3G/4G Network WCDMA, EVDO, TD-SCDMA, TDD-LTE, FDD-LTE
WIFI / Satellite 802.11a/b/g 2.4G / BGAN maritime satellite
Physical Interface & Others

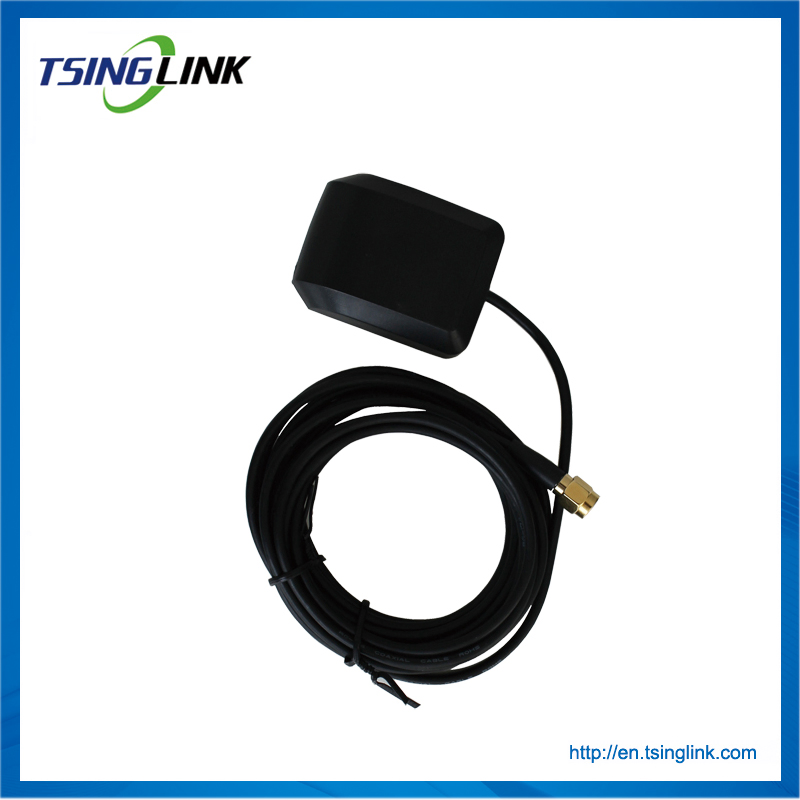

Positioning Built-in positioning module, support Beidou/GPS hybrid positioning
Interface USB 2.0, Ethernet RJ45, Control Rocker
Protection Level IP67
Size / Temp. 495mm*395mm*215mm / -30° to 65ºC

Equipment & Facility

Command Suitcase Overview

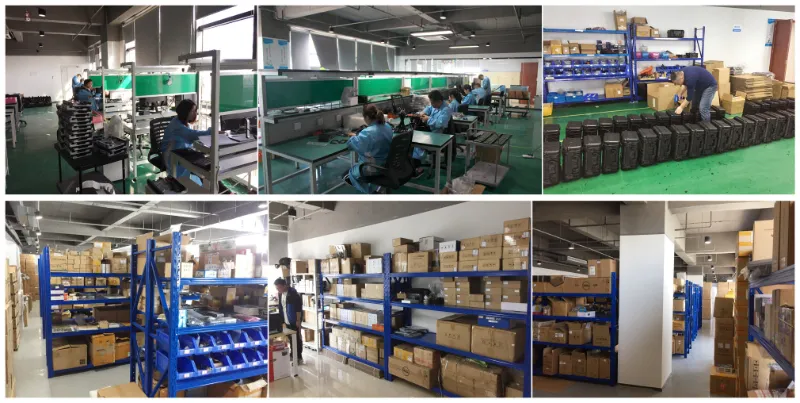

Production Workshop
Product Exhibition

Frequently Asked Questions

Q1: Are you a factory or a trading company?
We are a professional factory with nearly two decades of experience, featuring a 4,000 square meter workshop and over 150 employees. We handle independent import and export operations to serve overseas customers directly.
Q2: What is the minimum order quantity (MOQ)?
Our standard MOQ is 10 pieces per model, but we accept smaller quantities as trial orders to help you test the market.
Q3: Can I request a sample before a bulk order?
Yes, samples are available. Sample fees and freight charges will be provided in a proforma invoice. Once payment is confirmed, the sample will be dispatched with a tracking number.
Q4: What are the payment terms?
We accept T/T (Telegraphic Transfer), Western Union for small orders, and L/C for larger volume orders.
Q5: What is the typical delivery time?
Usually, it takes 7-15 working days after receiving payment, depending on the order quantity. Our sales team will provide an estimated timeframe before final payment.
Q6: How do you ensure product quality?
We utilize ISO management systems and ERP control for procurement. Our equipment undergoes continuous fatigue testing, and we welcome pre-shipment inspections or third-party supervision.
