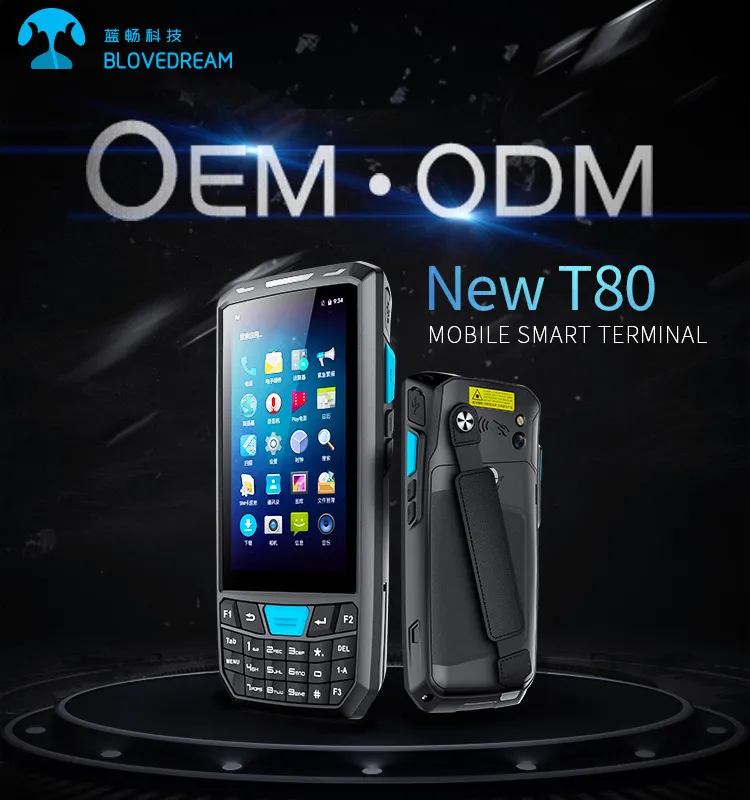

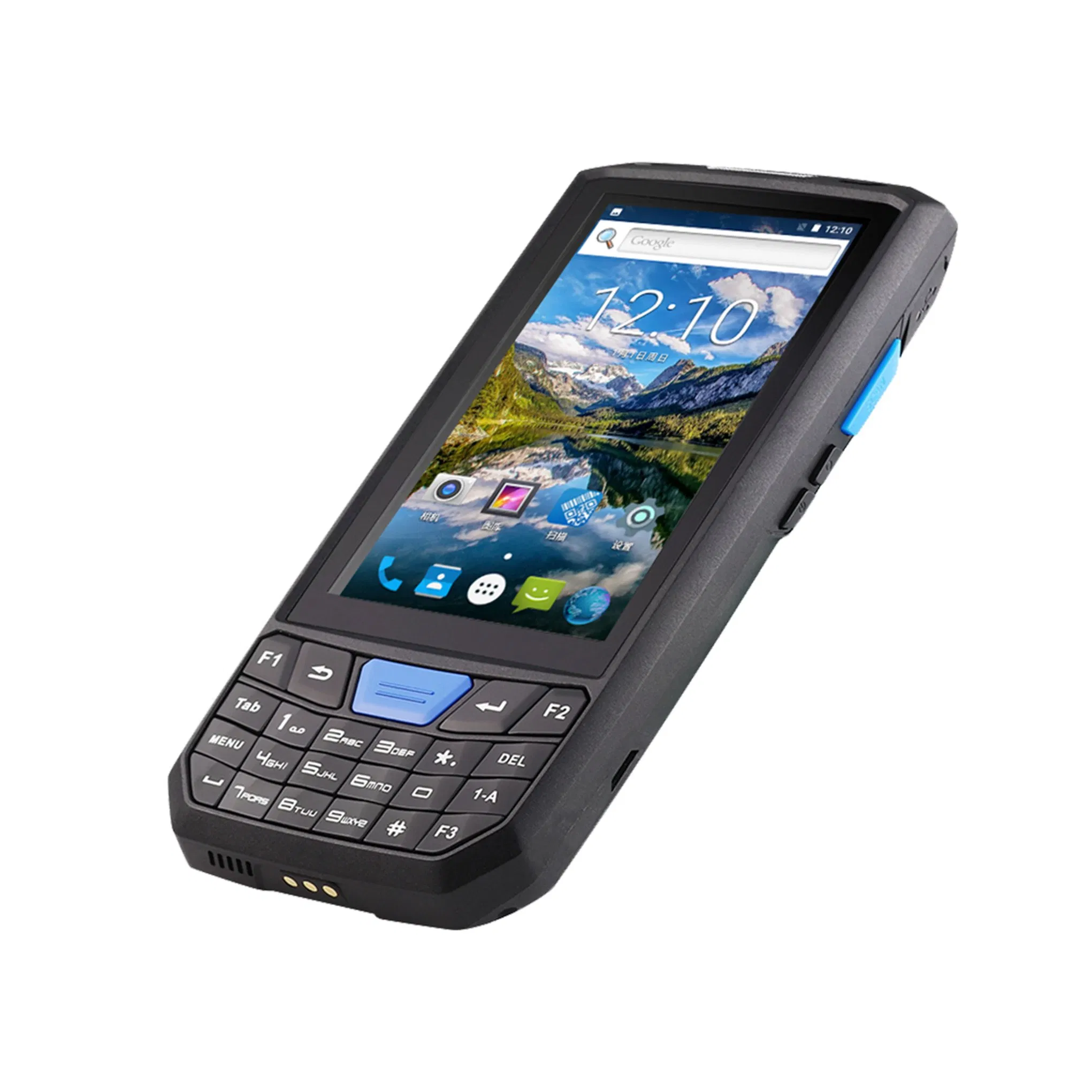

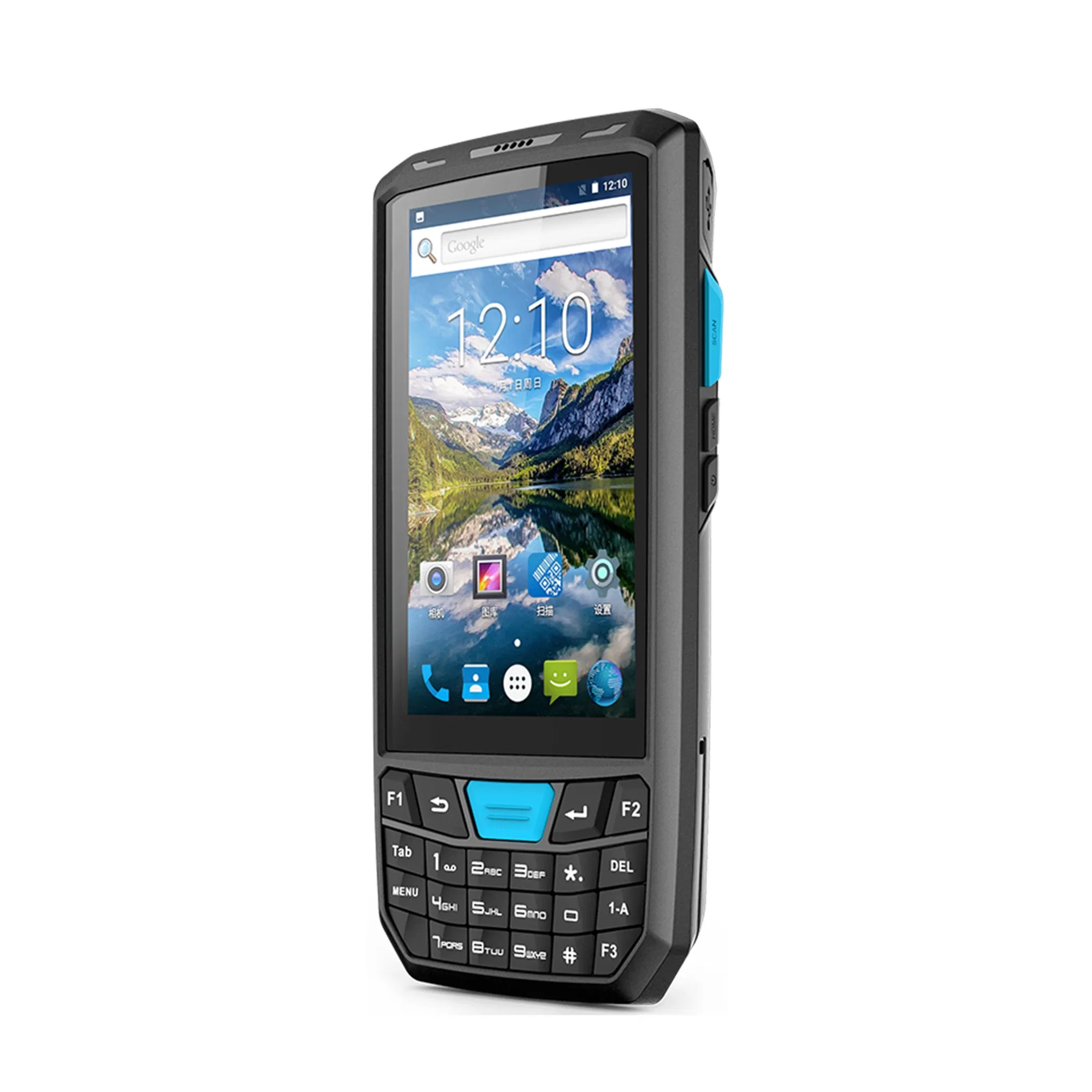

NFC WiFi Handheld Device Rugged PDA

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

T80s

Android

Memory Capacity

2g RAM+16g ROM

Applications

Handheld Computer Equipment

CPU Type

Mtk

Internet Connection

GPRS

Classification

Bar-code Scanner

Product Name

NFC WiFi Handheld Device Rugged PDA

Transport Package

Retail Box + Export Carton

Specification

166mm(L)X77.5mm(W)X22mm(D)

Origin

China

HS Code

8471604000

Product Description

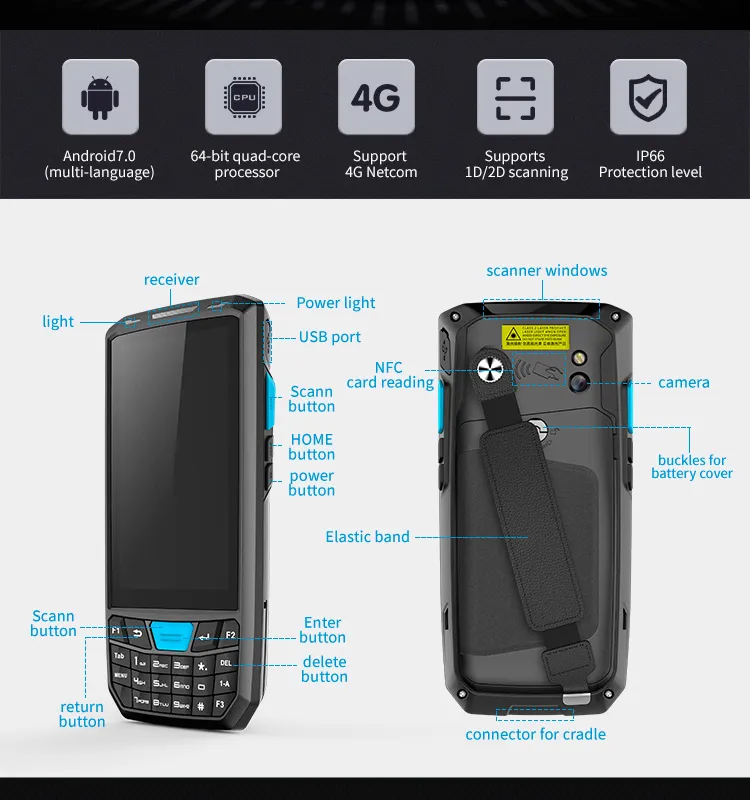

Structural Parameter

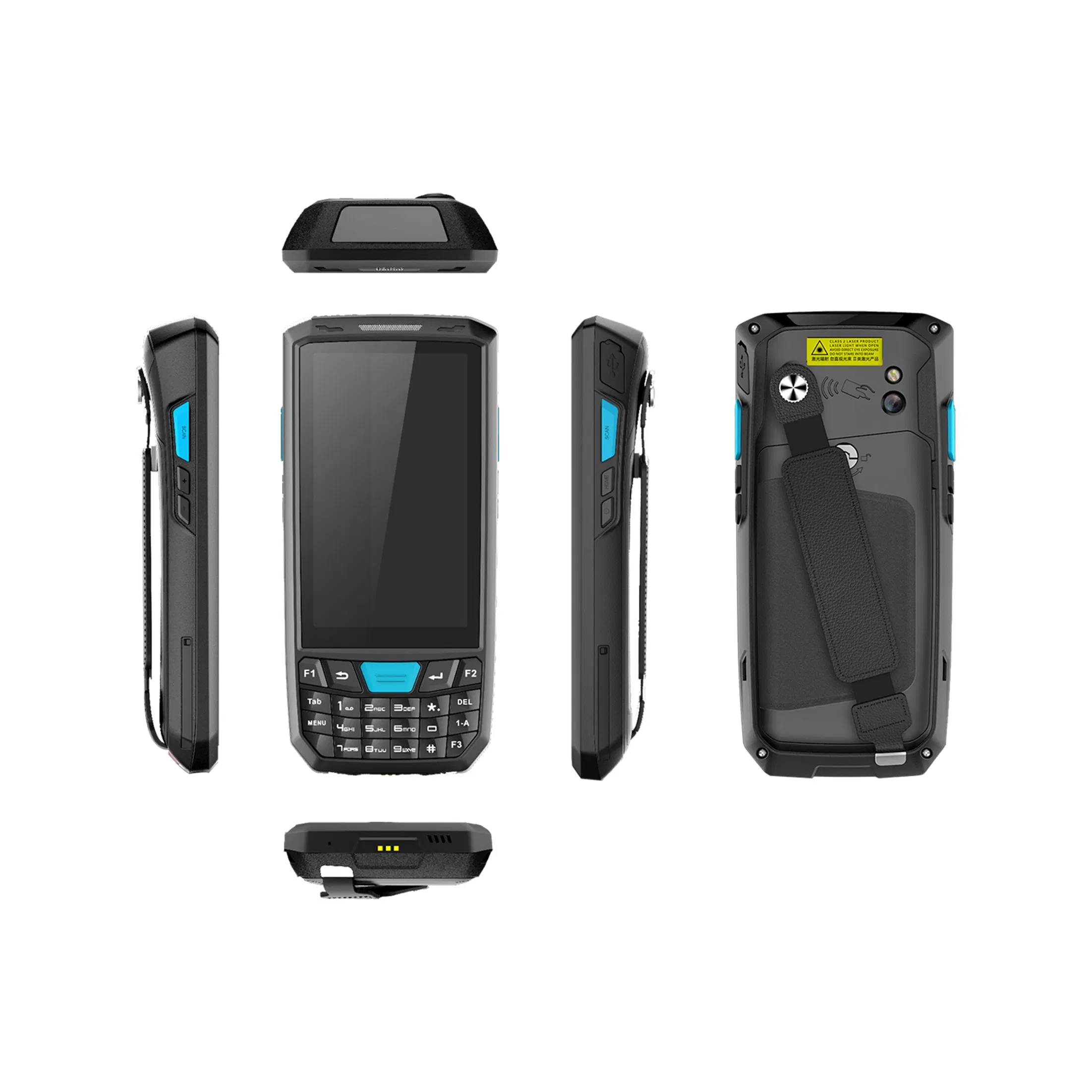

Dimensions	166mm(L)X77.5mm(W)X22mm(D)
Weight	<500g

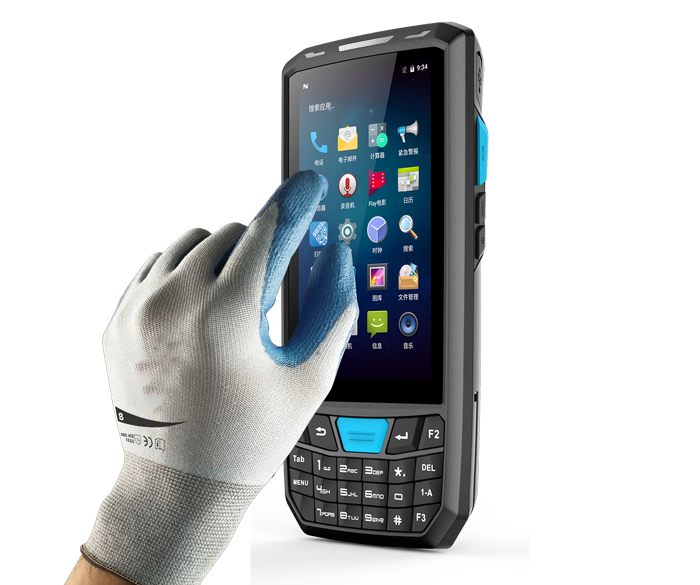

Display Screen	4.5inch IPS 480*854 px with Multi-point touch capactive screen
Expand Port	SIM card, micro SD (TF) Card
Communication Interface	Type-C USB
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity	Rechargeable Li-polymer Battery 3.8V 4200mAh
Key	Silicone keyboard
Performance Parameter
OS	Android 8.1
CPU	ARM CORTEX-A53 64bit Quad-Core 2.0G
RAM	1G/2G RAM
Flash ROM	Standard 8G/16G NAND Flash Storage (micro SD/TF Max 32G)
Data Communication
WI-FI	Support IEEE802.11 a/b/G/n protocol
4G/3G/2G	FDD/TDD-LTE, WCDMA, GSM/edge/GPRS
Bluetooth	Support BT 2.0+EDR/3.0+HS/4.1+HS (5-10m)
GPS	Support GPS, Galileo, Glonass, Beidou
Operating Environment
Operating Temp	-20°C to 55°C
Sealed Environment	IP66
Drop Specifications	1.5m drop to cement floor

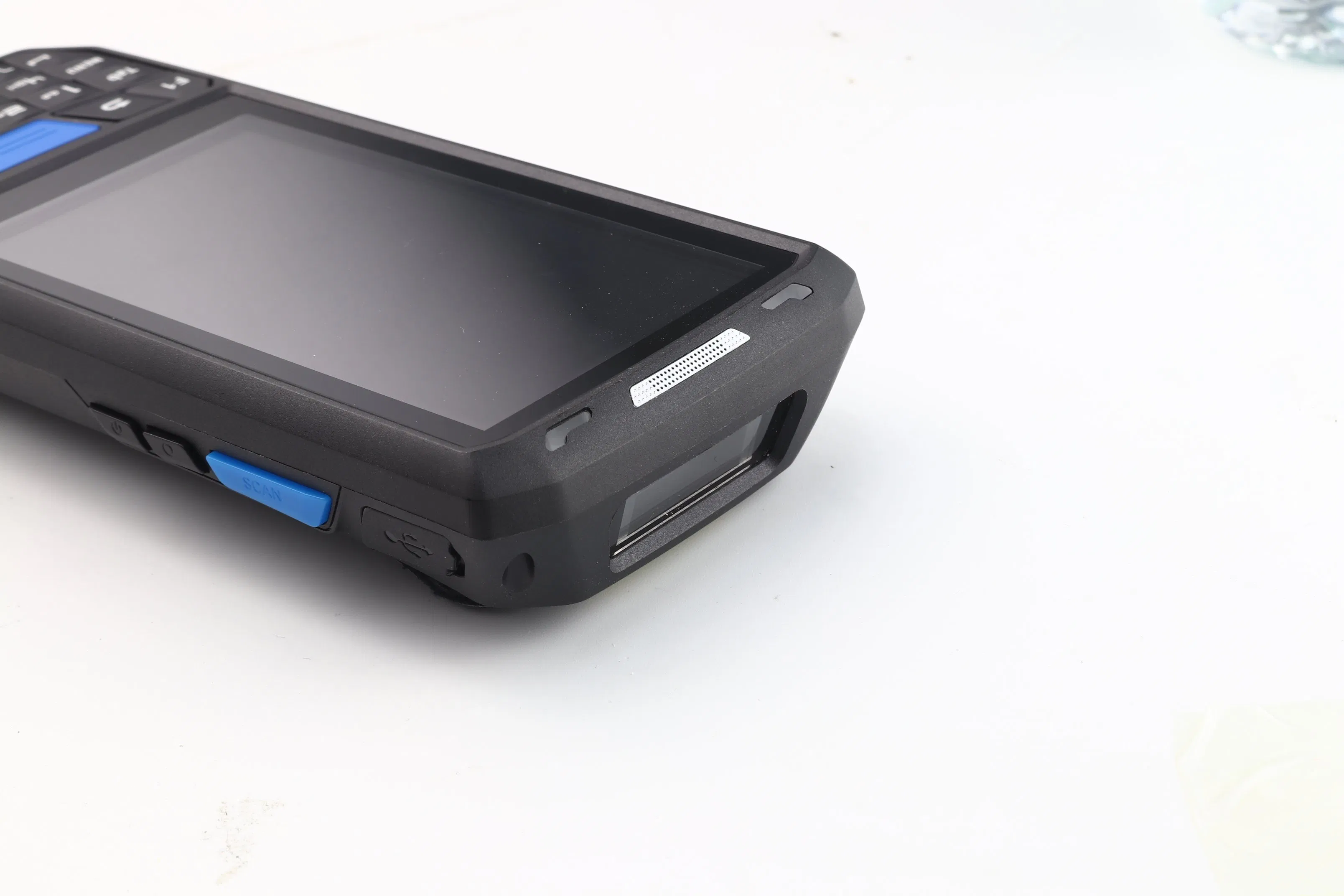

Scanner Options (Optional)
1D Laser	Symbol 955, Honeywell N4313, Mingde 966
2D CMOS	Honeywell N6603, NewLand 3096
NFC/RFID	13.56MHz (ISO/IEC 18092), LF 125kHz/134kHz

After-Sales Service

✔ 13 months warranty for quality issues (excluding human factors).

✔ Free spare parts (2% LCD/housing/keyboard, 1% other parts) for local repairs.

✔ Technical video guidance for assembly and repairment.

✔ On-site technical support and lifetime technical assistance.

Frequently Asked Questions

Q1: What is the battery life of the T80s PDA?

The device is equipped with a high-capacity 4200mAh rechargeable Li-polymer battery (3.8V), providing long-lasting performance for industrial handheld use.

Q2: Does this device support 4G and dual-band WiFi?

Yes, it supports FDD/TDD-LTE 4G networks and IEEE802.11 a/b/g/n wireless protocols for stable internet connectivity.

Q3: How rugged is the T80s for industrial environments?

The T80s is IP66 sealed against dust and water. It can withstand impacts from a 1.5m drop to cement floors and 1000 rolls from 0.5m.

Q4: Can I scan both 1D and 2D barcodes?

Yes, there are optional modules for 1D Laser scanners (Symbol/Honeywell) and 2D CMOS scanners (Honeywell/NewLand) to meet different scanning needs.

Q5: What operating system does it run?

The device runs on Android 8.1, powered by an ARM CORTEX-A53 64-bit Quad-Core 2.0GHz processor for smooth operation.

Q6: Is NFC or RFID reading supported?

Yes, the device offers optional modules for NFC (13.56MHz) and LF RFID (125kHz or 134kHz) reading capabilities.
