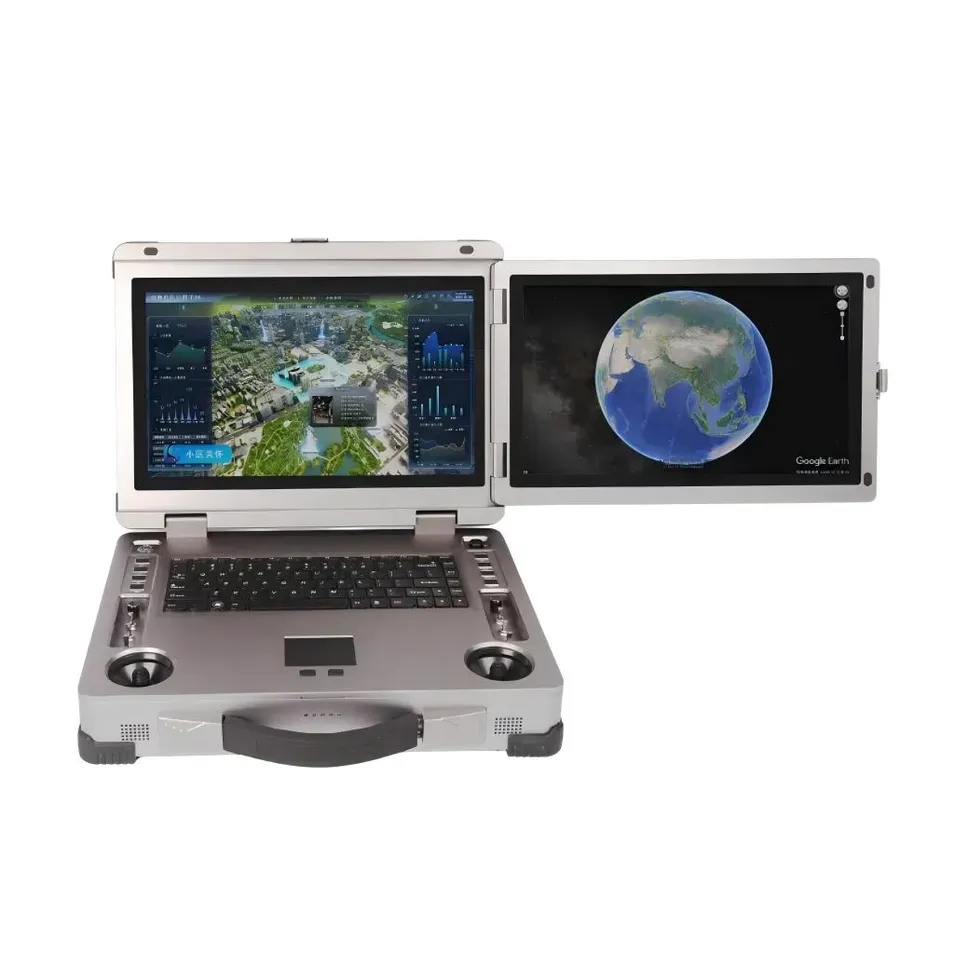

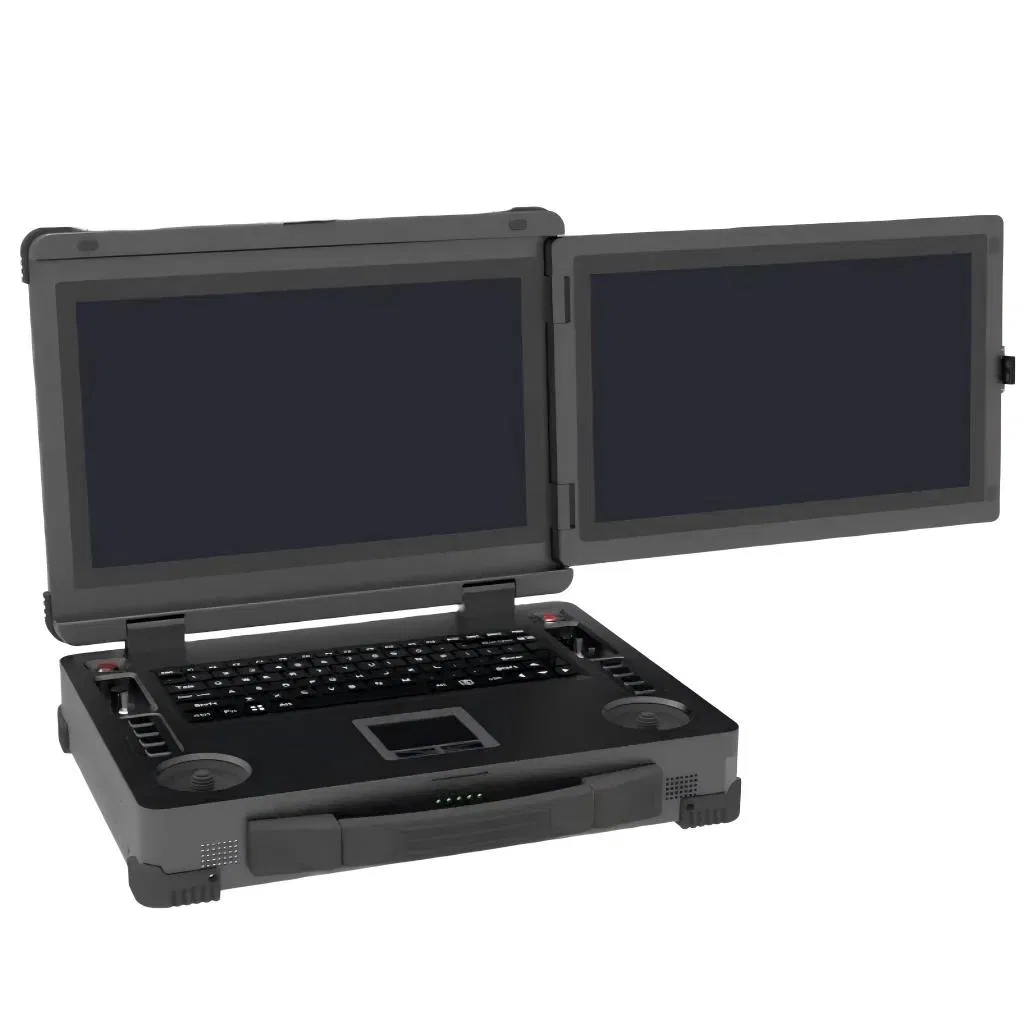

PRO Uav Ground Station Agr Dual-Screen Uav Ground Station 15.6-Inch Touch Displays 20 Channels Portable Controller

i

Basic Specifications

Model NO.	GDS-D15
Product Name	Dual-Screen Ground Control Station
CPU	Intel I7 11th Gen
Operating System	Windows 10 / Linux
Screen Size	15.6 Inches × 2 (Dual)
Screen Brightness	1000 Nits (Sunlight Readable)
Resolution	1920 × 1080
Battery Capacity	266 Wh
Working Duration	4-6 Hours
Frame Weight	10 Kg
Operating Temp	-10°C ~ 60°C

★

Product Introduction

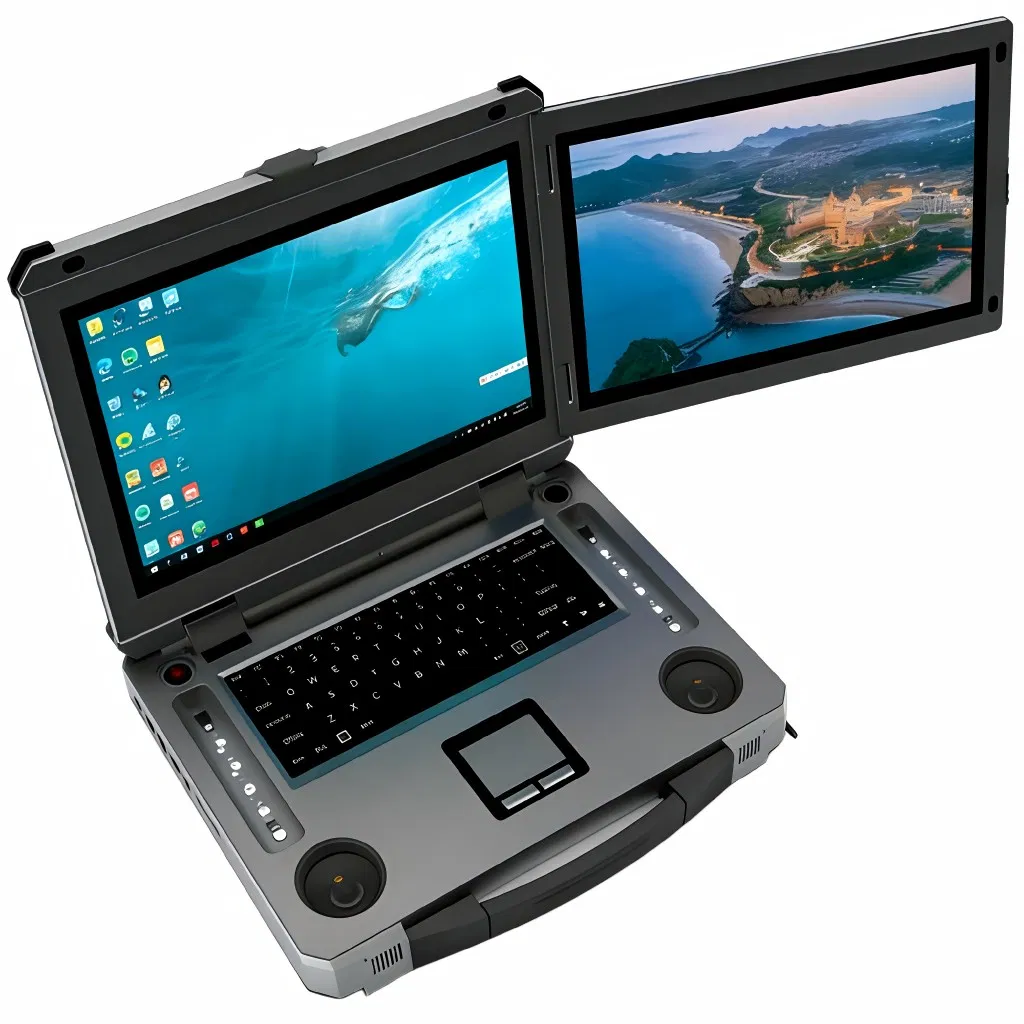

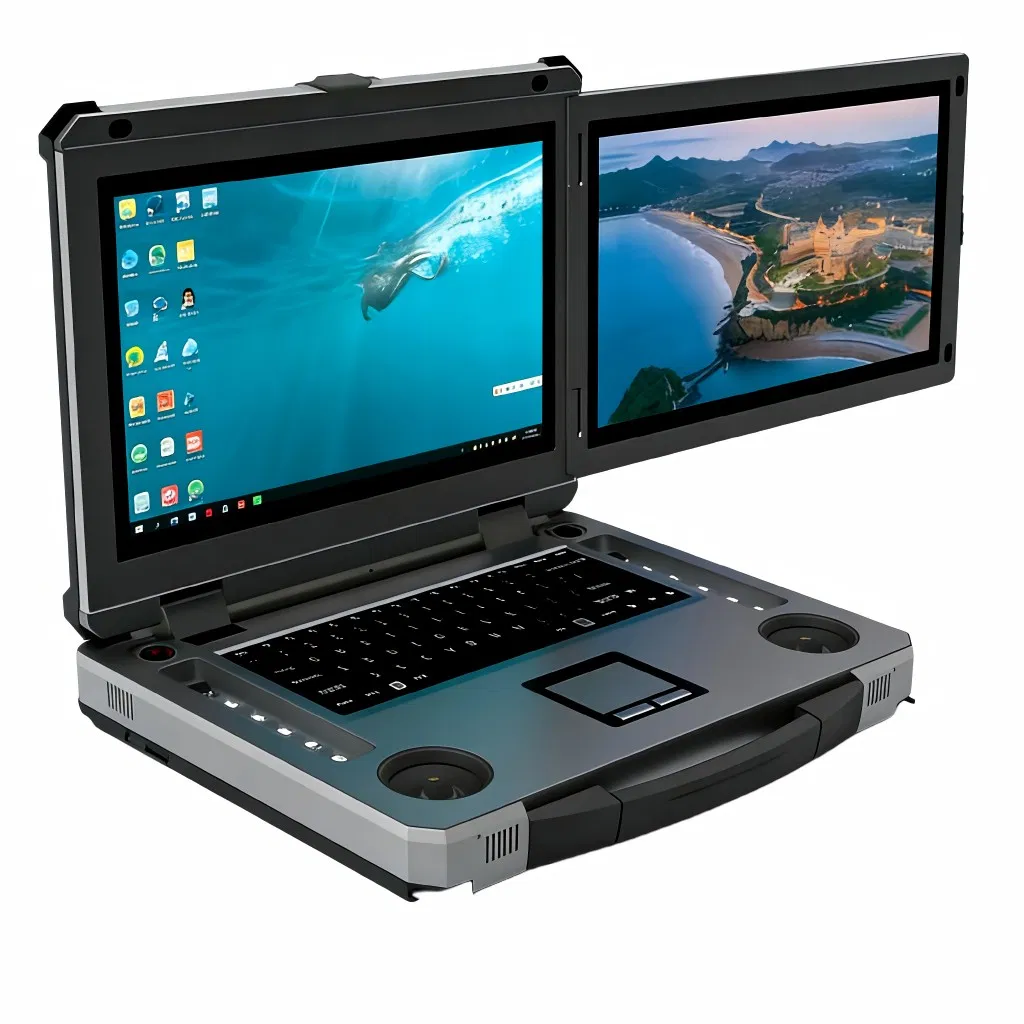

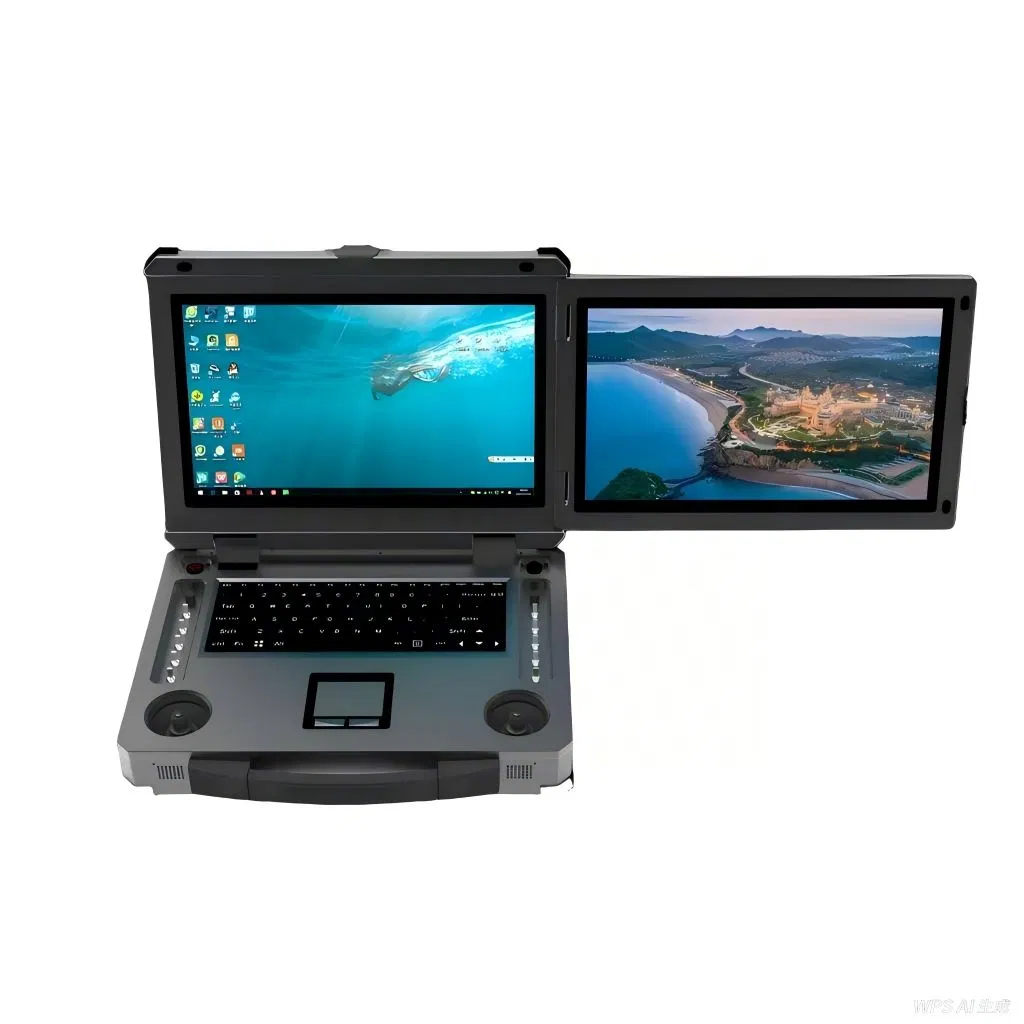

The GDS-D15 is a professional portable dual-screen drone ground station designed for precise drone monitoring and field operations. Featuring two 15.6-inch sunlight-readable touchscreens, it provides real-time flight control and comprehensive data management in a single rugged unit.

Core Advantages

High-performance Intel i7 CPU, 16 GB RAM, and 512 GB SSD.
Supports 20 channels with SBUS and USB-HID protocols.
Built-in 266 Wh battery for extended field missions (4–6 hours).
Durable aluminum alloy construction for industrial environments.

Functional Modules

3 joysticks and 6 toggle switches for precise maneuvering.
8 programmable buttons and 2 knobs.
Extensive reserved ports: 6×RS232, 2×USB, 1×RJ45.
12V 3A reserved power supply output.

📷

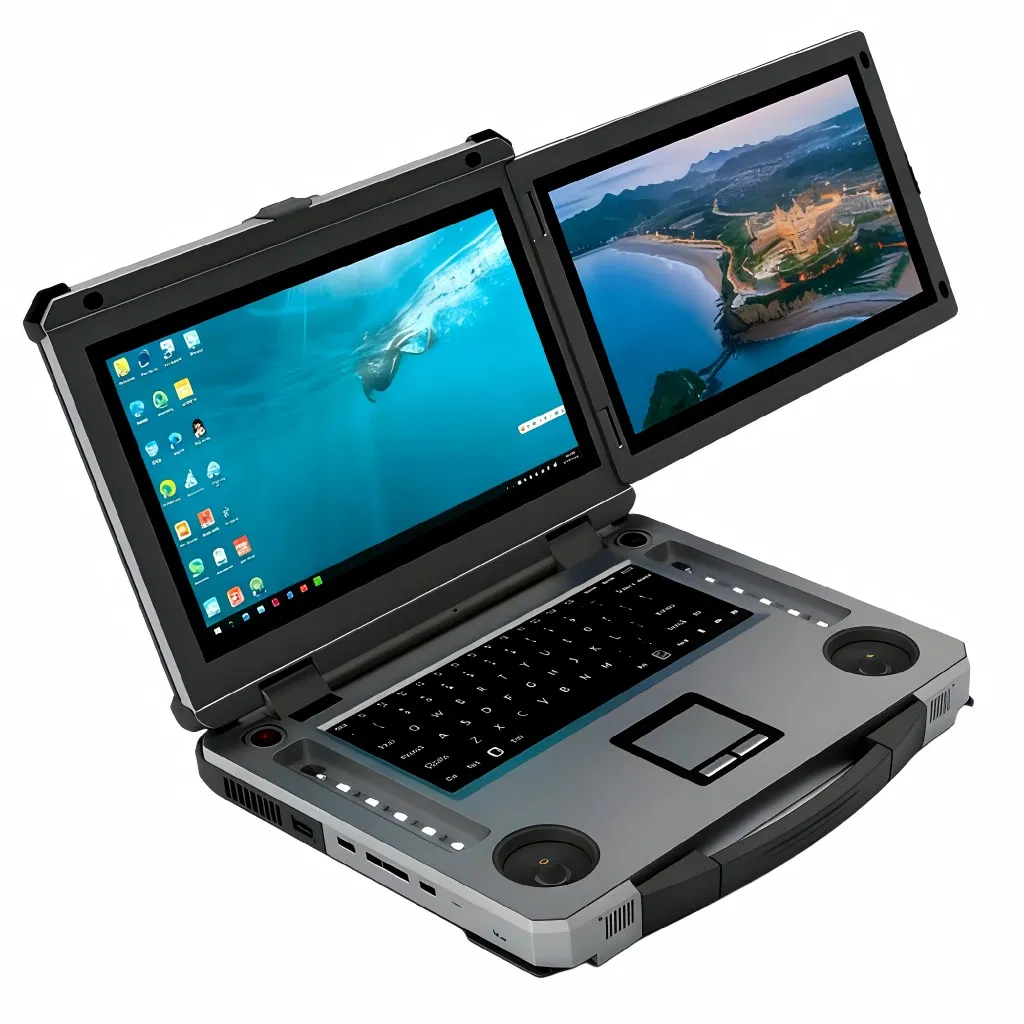

Detailed Display

⚙

Applications & Strength

Usage Scenarios

Perfectly suited for field drone operations, real-time mission monitoring, and multi-drone coordination. It is widely applied in industrial inspections, mapping, logistics, emergency response, and UAV research.

Solutions & Quality

We provide integrated UAV R&D, system integration, and field testing. Every unit undergoes rigorous pre-shipment inspection, including functional testing of screens, ports, battery, and control modules to ensure reliability.

✓

Quality & Logistics

?

Frequently Asked Questions

How long can the ground station operate on a single charge?

The built-in 266 Wh battery supports approximately 4–6 hours of continuous operation depending on usage.

What are the display specifications?

It features dual 15.6-inch 10-point capacitive touchscreens with a resolution of 1920 × 1080 and a high brightness of 1000 nits, making it sunlight-readable.

Which operating systems are compatible?

The system supports both Windows 10 and Linux environments, powered by an Intel i7 11th Gen processor.

What is the operating temperature range?

The device is designed for industrial outdoor use, operating reliably between -10°C and 60°C.

Can it control multiple drones or custom setups?

Yes, it supports up to 20 channels and is compatible with SBUS, USB-HID, and various custom protocols for versatile UAV mission coordination.

What physical connectivity ports are available?

The station includes multiple reserved ports: 6x RS232, 2x USB, 1x RJ45, and a 12V 3A power output for peripheral devices.
