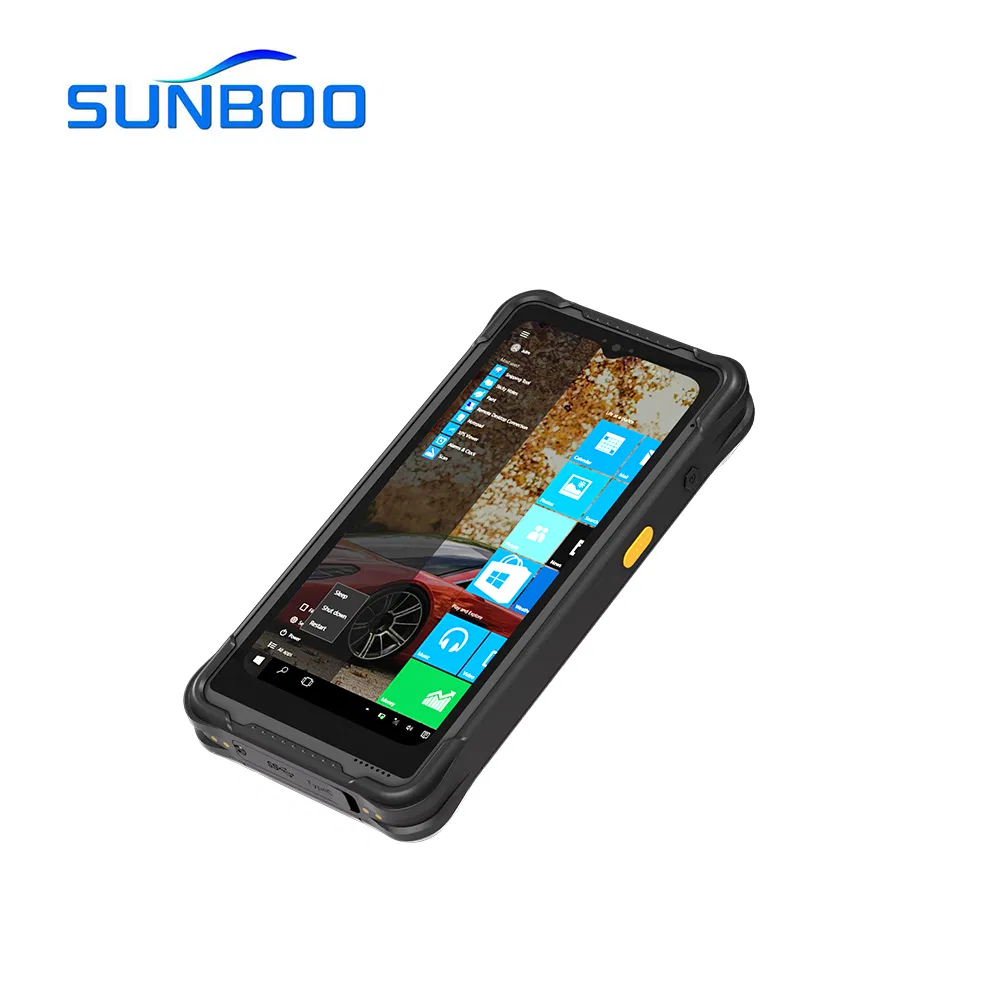

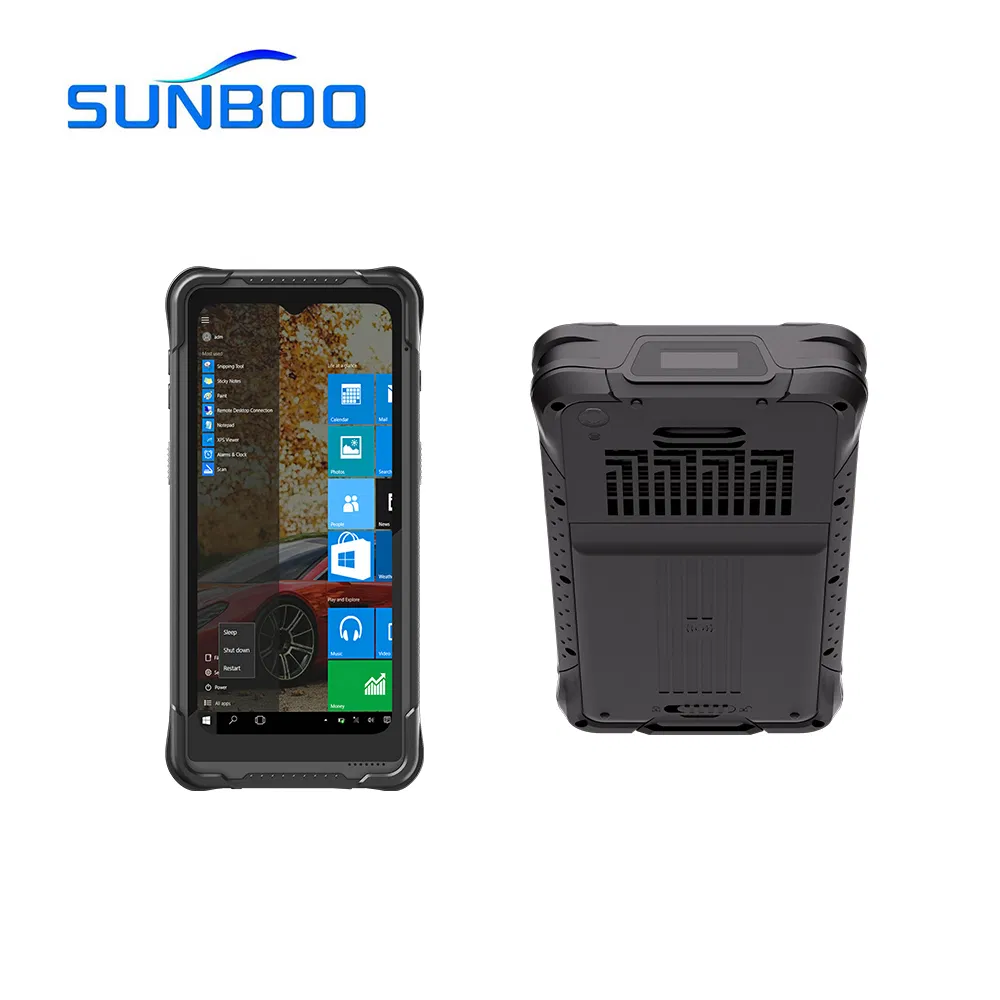

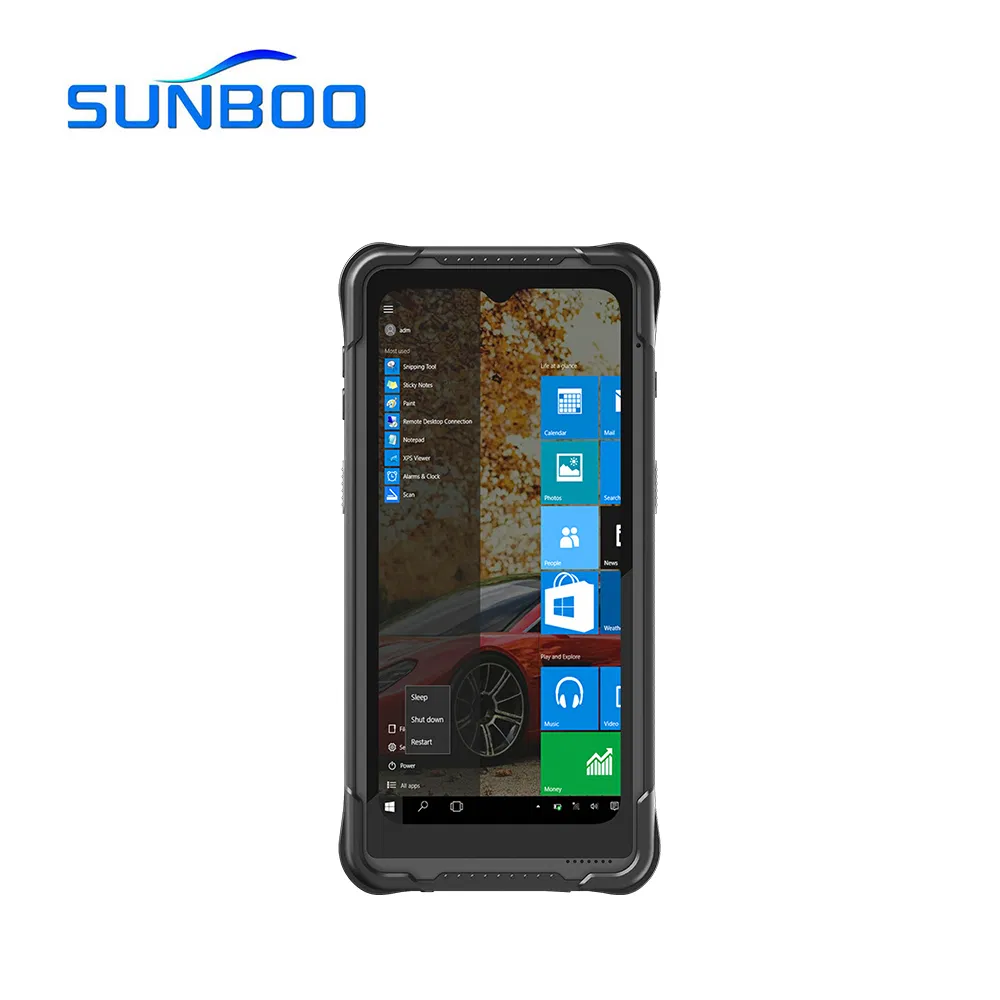

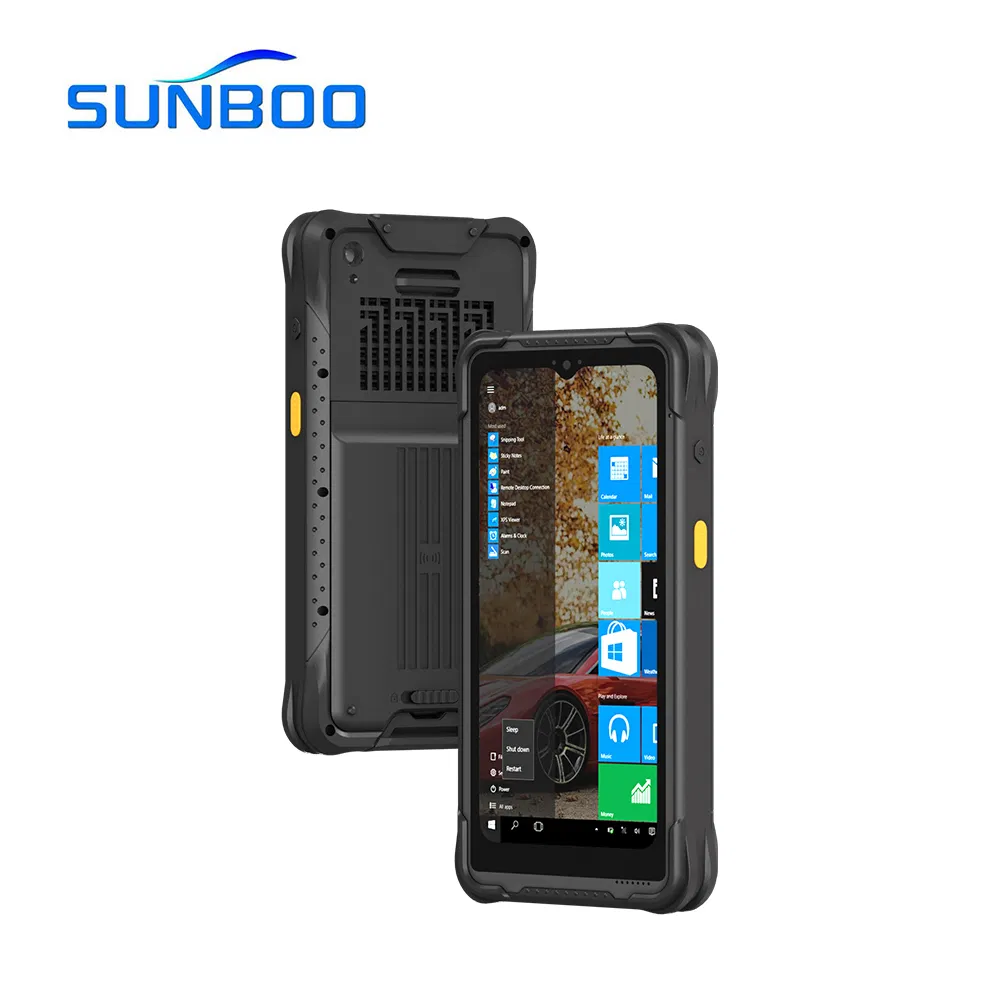

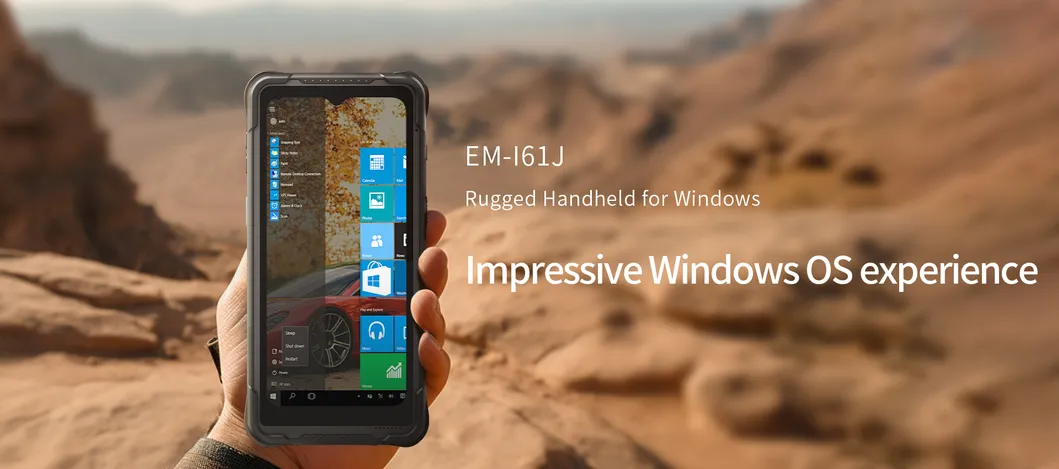

Rugged Handheld Smart PDA with 8GB RAM and 128GB ROM

1 / 5

Rugged Handheld Smart PDA with 8GB RAM and 128GB ROM

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.I61J-7

OSWindows

CPU TypeIntel Atom

Memory64MB / 8GB RAM

Display Size183.1*88.6*24.1mm

Weight470g

Battery4000mAh

GradeIP65

ApplicationsHandheld Computer Equipment

ClassificationBar-code Scanner

⚙️

Technical Specifications

Hardware & Software Configuration
Product Form	6.5 inch Rugged Handheld
Material	ABS+PC+Metal
Dimension / Weight	183.188.624.1mm / 470g
System Performance
CPU	Intel JASPER LAKE N5100
GPU	Intel® UHD Graphics 620
Memory	RAM 8GB LPDDR4 / ROM 128GB EMMC
Operating System	Windows 10 (IOT), Optional Windows 11 (IOT)
Display & Touch

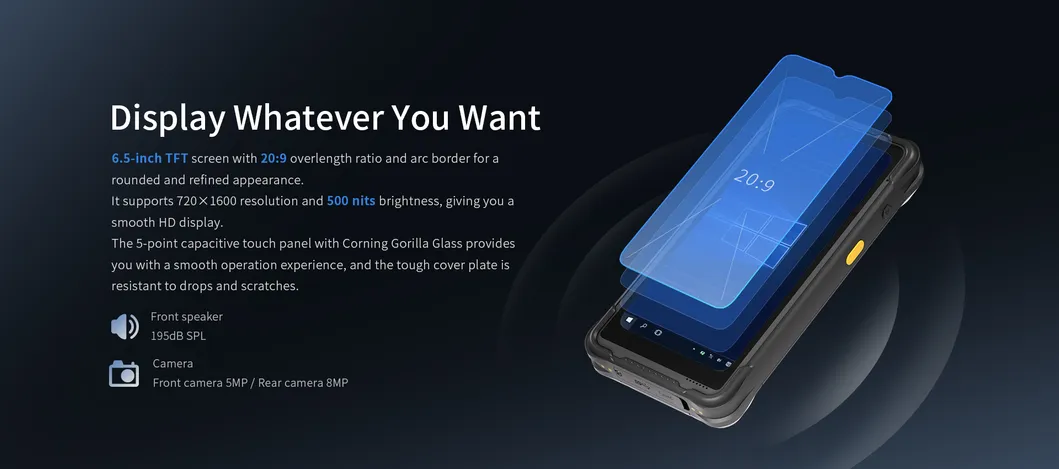

Display Type	IPS, 6.5 inch Full Laminated TFT color, 720*1600
Brightness	500cd/cm²
Touch Panel	5 points Capacitive, Corning Gorilla Glass, 6H Hardness
Connectivity & Multimedia
Camera	Front 5M / Rear 8M Autofocus with Flash
Battery	7.4V/4000mAh Polymer Lithium Ion (Approx. 6 hours)
Wireless	WiFi 2.4G+5.8G (802.11 ac/b/g/n), BT5.0, NFC Support
Network	4G LTE FDD/TDD, WCDMA, GSM (Multi-region support)
Navigation	GPS + GLONASS
I/O Interfaces

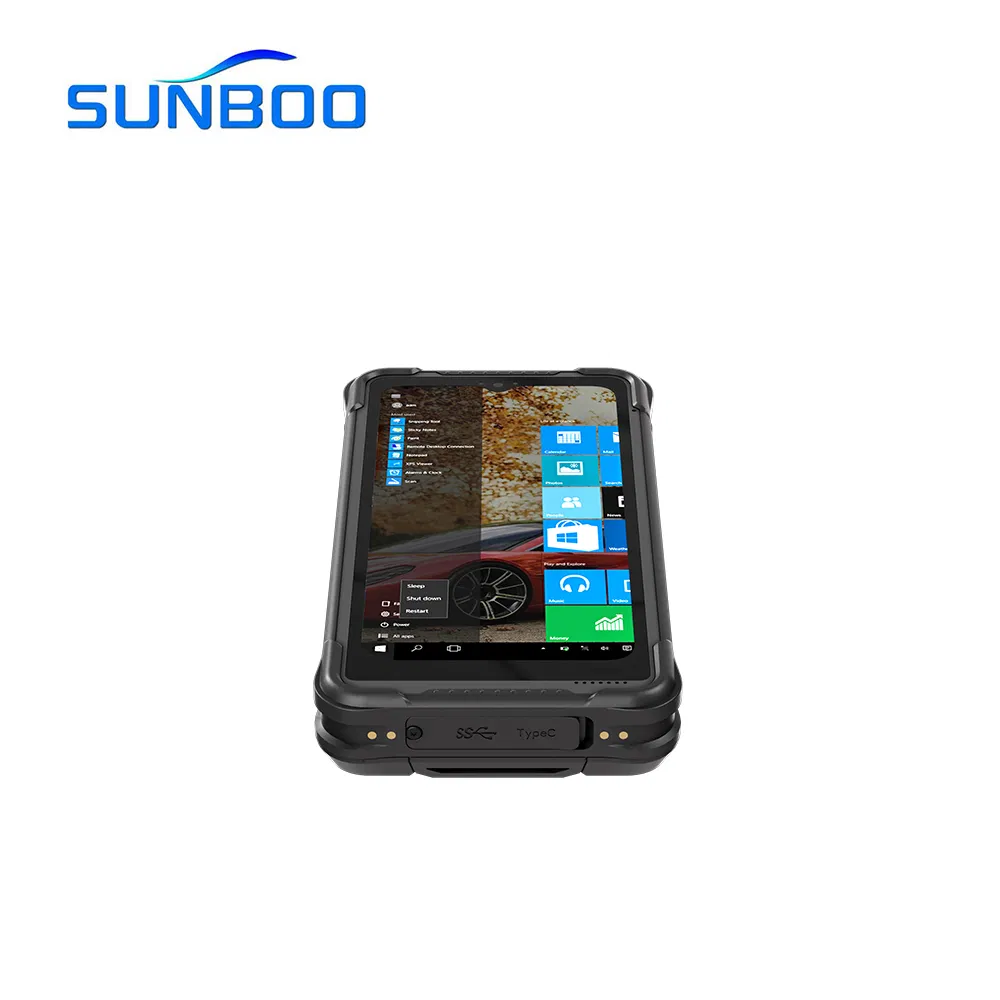

Ports	TYPE-C 2.0 (OTG), USB-A 3.0, TF Card (Max 512GB), Nano-SIM, Pogo Pin

🖼️

Product Display

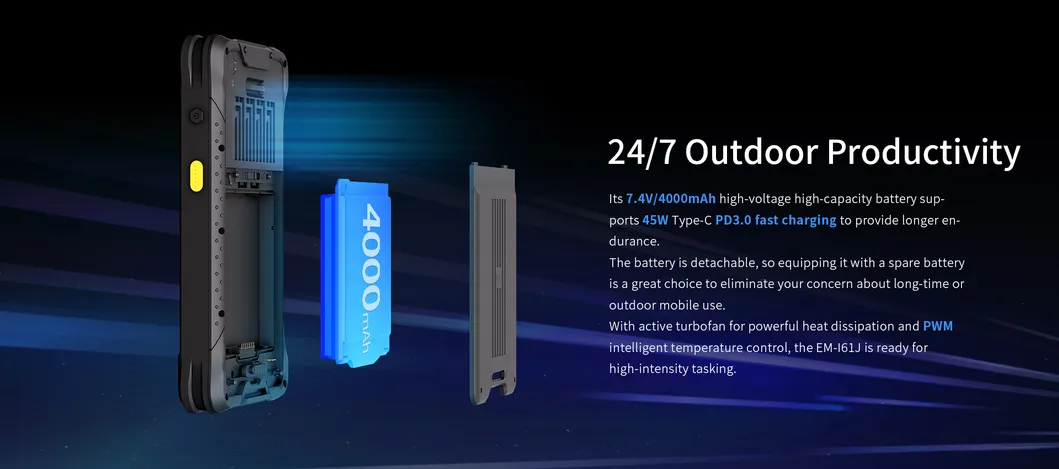

Rugged Handheld Smart PDA Industrial Use

Rugged Handheld Smart PDA Scanning Function

📦

Packaging & Delivery

Package Size21.50cm * 16.50cm * 25.00cm

Gross Weight2.500kg

Standard Package1 PCS per BOX

❓

Frequently Asked Questions

What operating system does this rugged handheld use?

It comes with Windows 10 IOT installed, with an option to upgrade to Windows 11 IOT.

What is the screen size and durability?

The device features a 6.5-inch IPS display protected by Corning Gorilla Glass with a hardness rating of 6H or higher, making it highly scratch-resistant.

Is this device suitable for outdoor or harsh environments?

Yes, it is IP65 rated, meaning it is protected against dust ingress and low-pressure water jets, suitable for industrial and field use.

What are the memory and storage specifications?

The unit is equipped with 8GB of LPDDR4 RAM and 128GB of EMMC storage, expandable via TF card up to 512GB.

How long does the battery last on a single charge?

The 4000mAh battery provides approximately 6 hours of continuous use at 50% brightness and volume during HD video playback.

Does it support barcode scanning?

Yes, the device is classified as a bar-code scanner and includes dedicated scanning buttons on both the left and right sides for ease of use.
