Smart Ground Control System Agr Dual-Screen Uav Ground Station 15.6-Inch Touch Displays 20 Channels Portable Controller

Basic Info.

Model NO.

GDS-D15

Product Name

Dual-Screen Ground Control Station

Frame Weight

10 Kg

Operating System

Windows 10 / Linux

Material

Aluminum Alloy + High-Strength

Screen Size

15.6 Inches × 2

Temperature Range

-10°C ~ 60°

CPU

Intel I7 11th Gen

Graphics Card

Intel Iris Xe

Screen Brightness

1000 Nits

Battery Capacity

266 Wh

Working Duration

4-6 Hours

Product Introduction

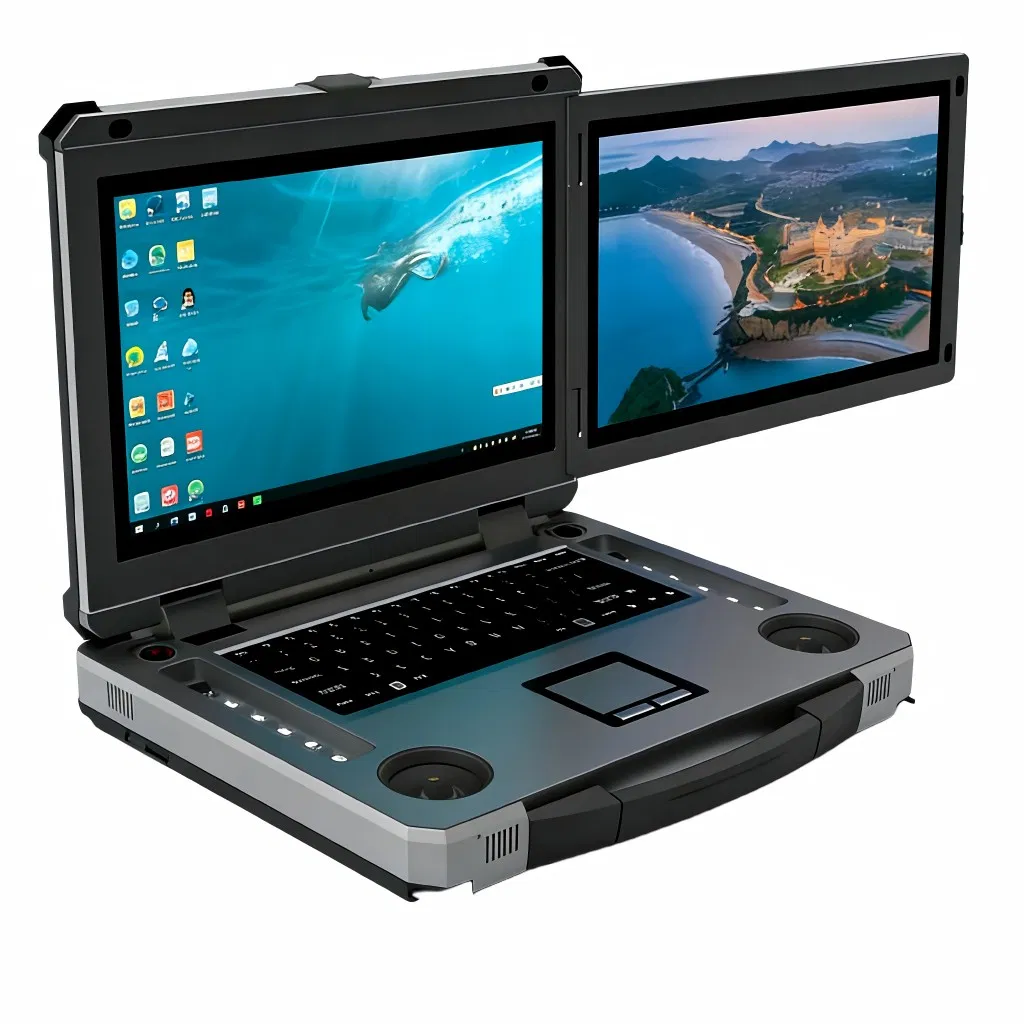

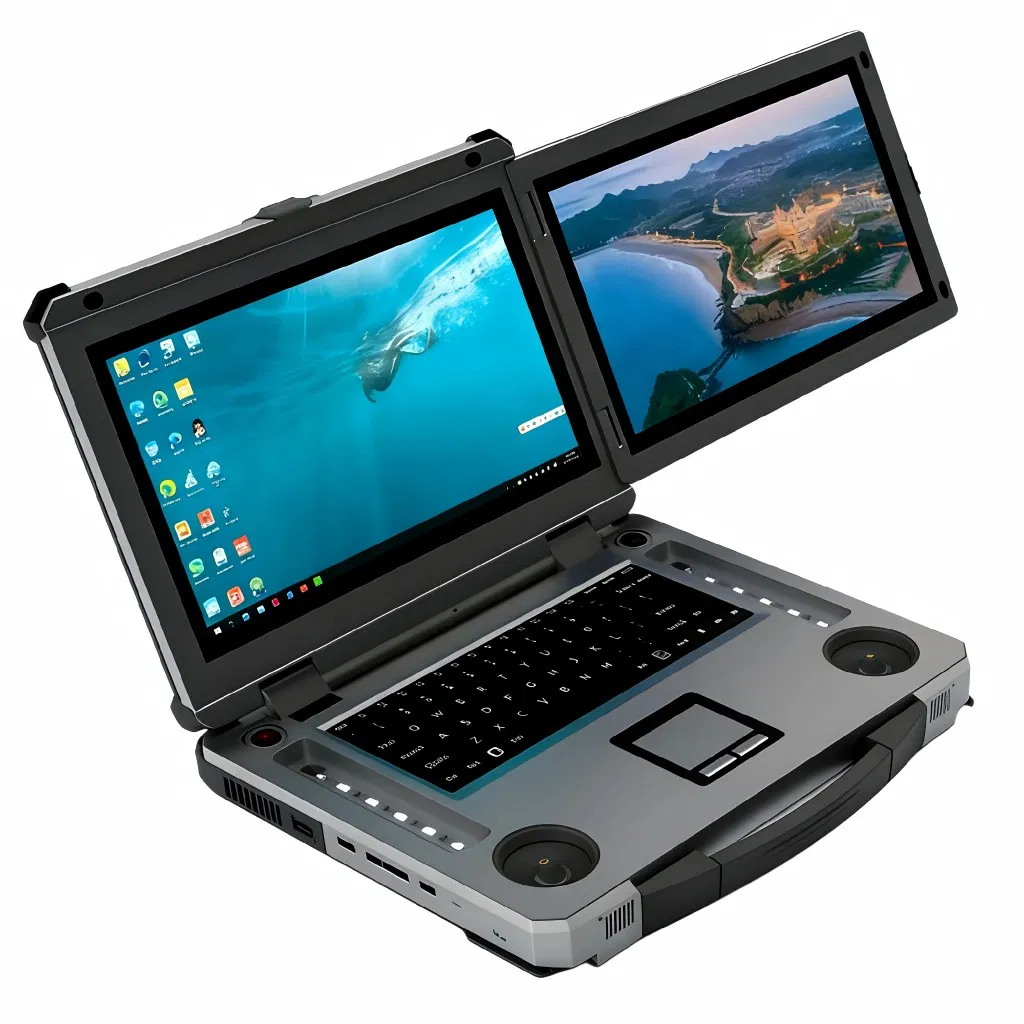

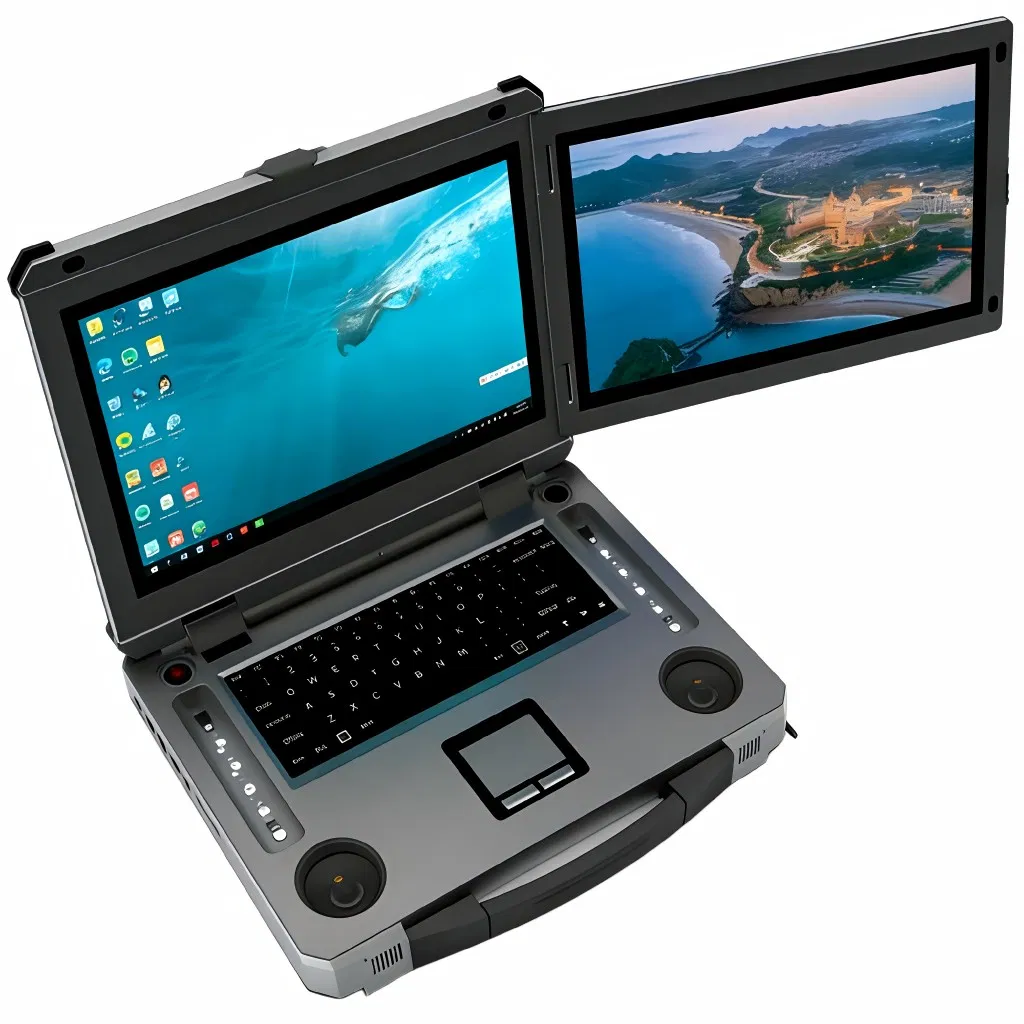

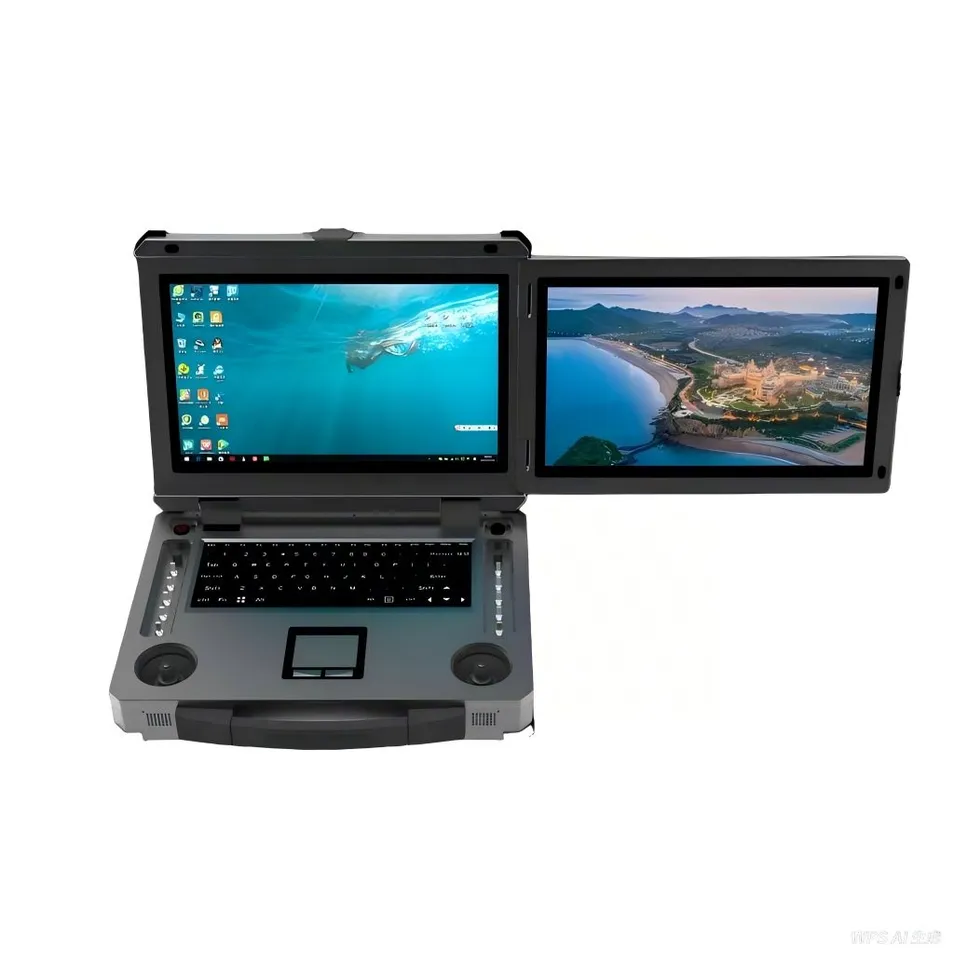

Dual-Screen Drone Ground Station – Portable 15.6″ ×2

Portable dual-screen ground station for precise drone monitoring and field operation. Two 15.6-inch sunlight-readable touchscreens for real-time flight control and data management.

Core Advantages & Features

Powerful Performance: Intel i7 CPU, 16 GB RAM, 512 GB SSD for seamless drone monitoring.
Control Versatility: Supports 20 channels, SBUS, USB-HID, and custom protocols.
Dual High-Res Displays: Dual 1080p touch displays, 10-point capacitive touch with 1000 nits brightness.
Long Endurance: Built-in 266 Wh battery supporting 4–6 hours of continuous operation.
Rugged Design: Industrial-grade aluminum alloy construction for temperatures from -10°C to 60°C.

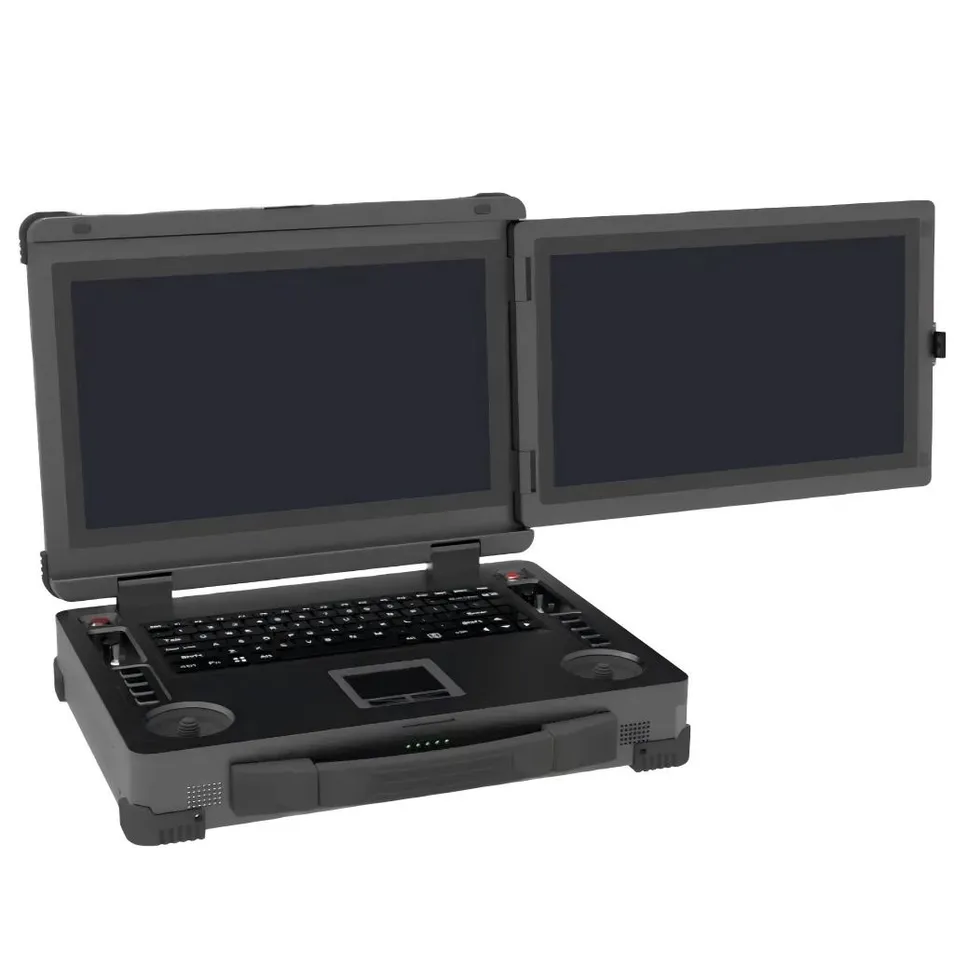

Structural Highlights

Functional Interface: 3 joysticks, 6 toggle switches, 2 knobs, and 8 programmable buttons.

Reserved Ports: 6×RS232, 2×USB, 1×RJ45, and 12V 3A power supply output for external accessories.

Technical Specifications

Dimensions:	416 × 330 × 100 mm	Frame weight:	10 kg
Operating System:	Windows 10 / Linux	GPU:	Intel Iris Xe
Connectivity:	Wi-Fi 2.4G/5.8G, Bluetooth 4.0	Brightness:	1000 nits

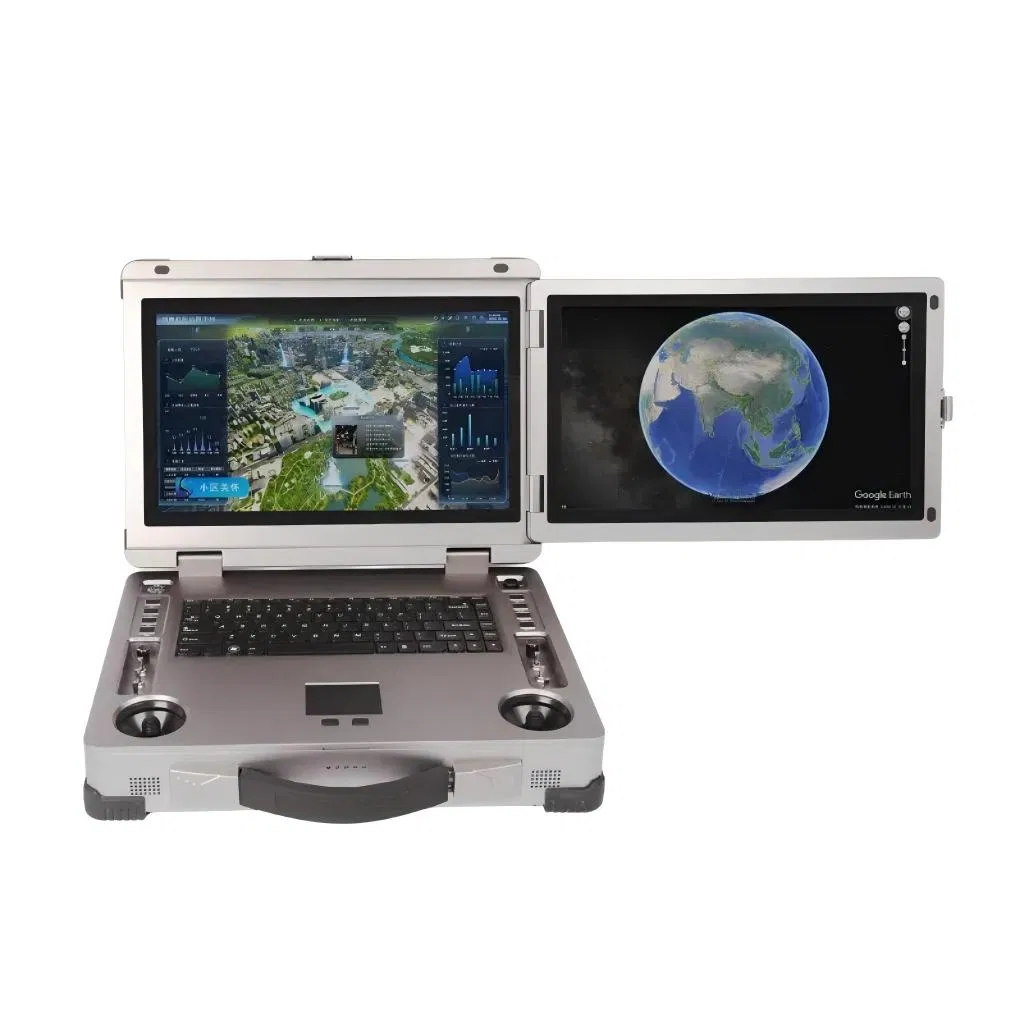

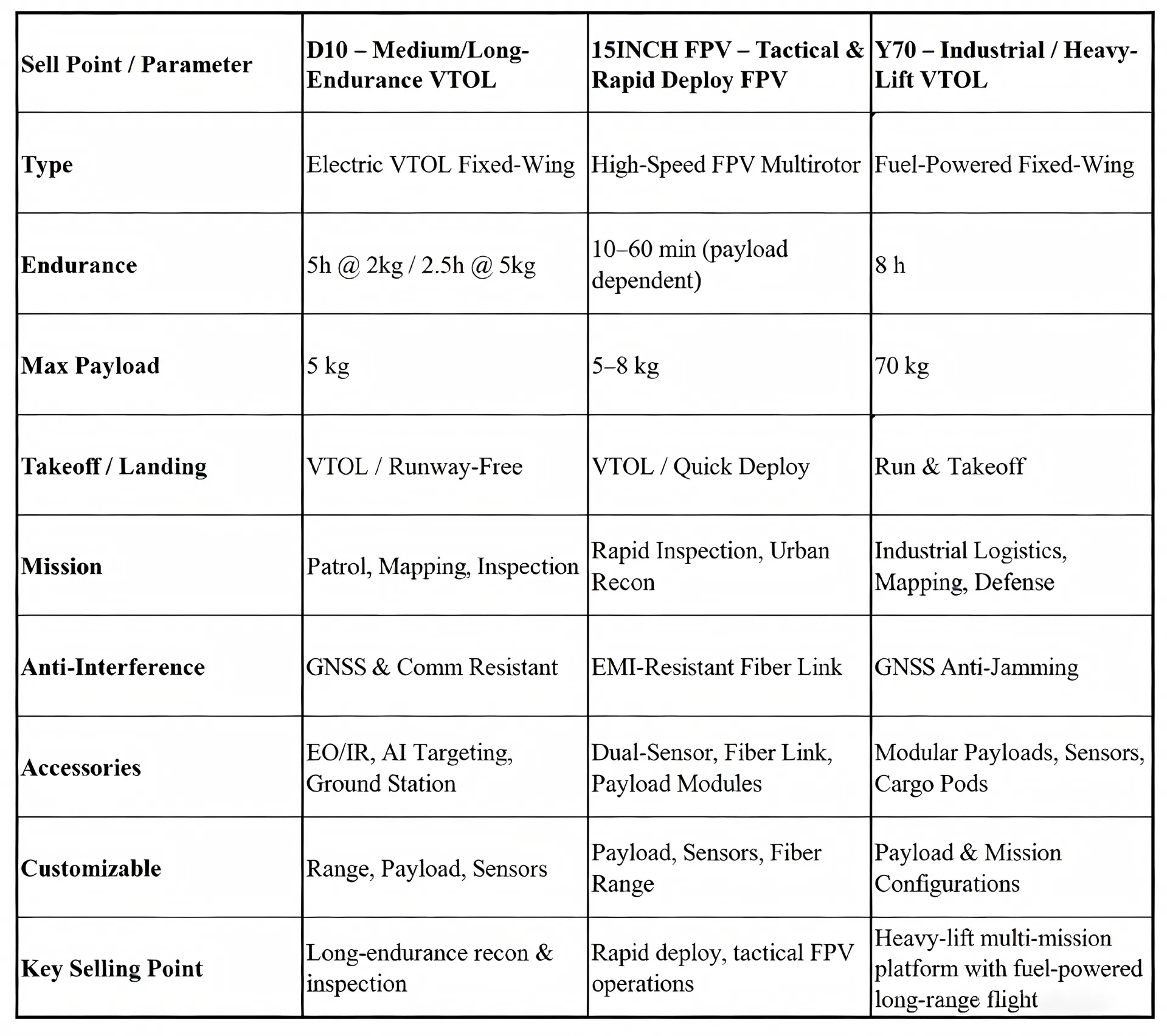

Main Product Displays

Advanced Drone Technology Solutions

Expertise in high-performance UAV platforms including FPV drones, VTOL fixed-wing UAVs, and multi-rotor systems. Solutions are widely utilized in aerial surveillance, industrial inspection, and emergency response. Beyond platforms, integrated systems include EO/IR gimbal imaging, industrial autopilot controllers, and fiber-optic data links.

Certifications & Global Presence

Packaging & Shipping

Quality Assurance: All units undergo pre-shipment functional testing of screens, battery, and control modules.

Safe Transit: Modular export packaging with protective foam inserts ensures safe international delivery.

Frequently Asked Questions

❓ How long can the ground station operate on a single charge?

The built-in 266 Wh battery supports 4–6 hours of continuous operation in the field.

❓ Can it control multiple drones simultaneously?

Yes, the ground station supports 20 channels and custom protocols, enabling multi-drone coordination and real-time monitoring.

❓ Are the screens readable under direct sunlight?

Yes, both 15.6-inch displays feature a high brightness of 1000 nits, specifically designed for outdoor sunlight readability.

❓ What are the supported operating temperatures?

The system is designed for industrial environments and operates effectively within a range of -10°C to 60°C.

❓ What connectivity options are available for data transmission?

It includes Wi-Fi (2.4G/5.8G), Bluetooth 4.0, USB, HDMI, RJ45, and SBUS ports for versatile UAV setups.

❓ Is the system customizable for specific payloads?

Yes, the hardware includes reserved ports (RS232, USB, RJ45) and expandable software support for various sensor, gimbal, and mission-specific integrations.
