HawkEye Camera
1 / 5
| Model NO. | SOAR970 |
| Type | IP Camera |
| Sensor | CMOS |
| HDMI Format | 1080P |
| Kind | Autofocus Lens |
| Certification | RoHS, ISO9001: 2000 |
| Feature | Waterproof / Weatherproof, High Definition, Auto BLC |
| Sensor Size | 1/2.8'' |
| Image Sensor | 1/2.8" Progressive Scan CMOS, 2MP |
| Effective Pixels | 1920(H) X 1080(V), 2 Megapixels |
| Focal Length | 5mm~130mm |
| Optical Zoom | Optical Zoom 26X, 16X Digital Zoom |
| IR Distance | 150m |
| Compression | H.265/H.264 / Mjpeg |
| Power | DC12~24V, 40W(Max) |
| Mount Option | Vehicle Mouting, Ceiling/Tripod Mounting |

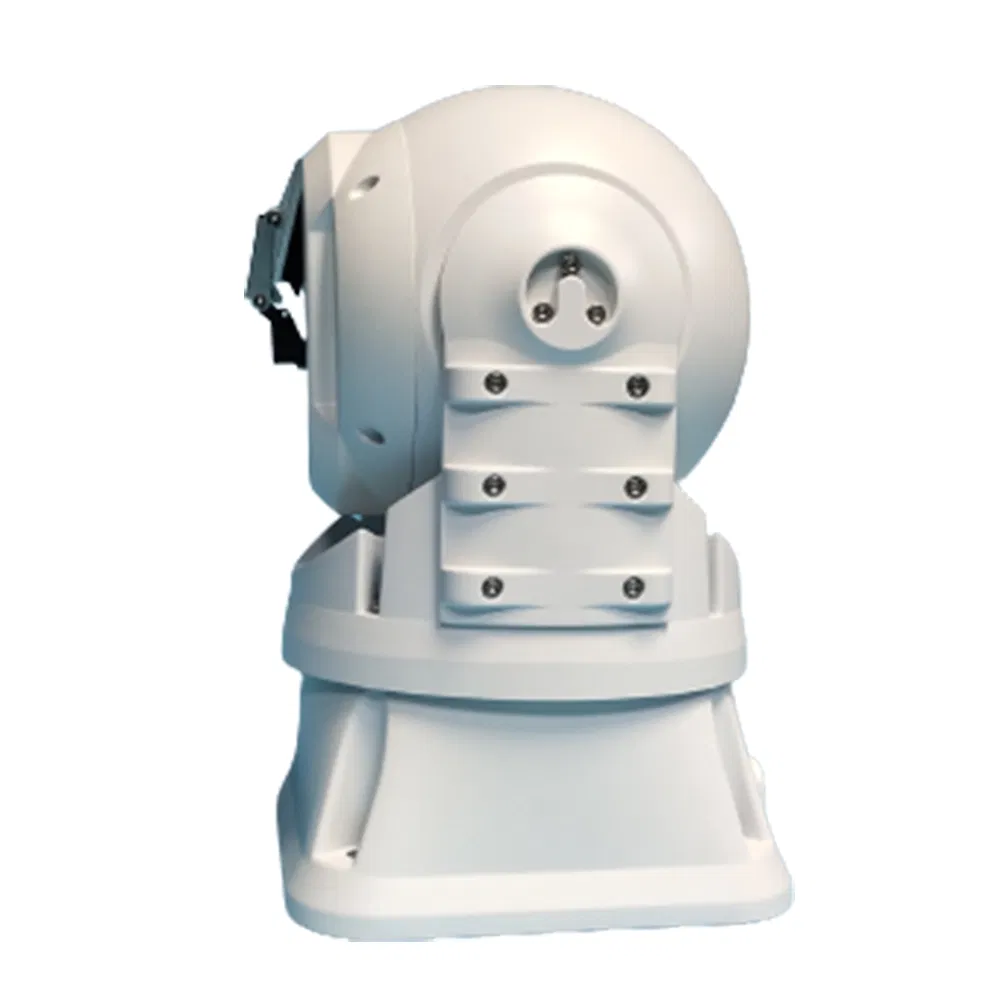

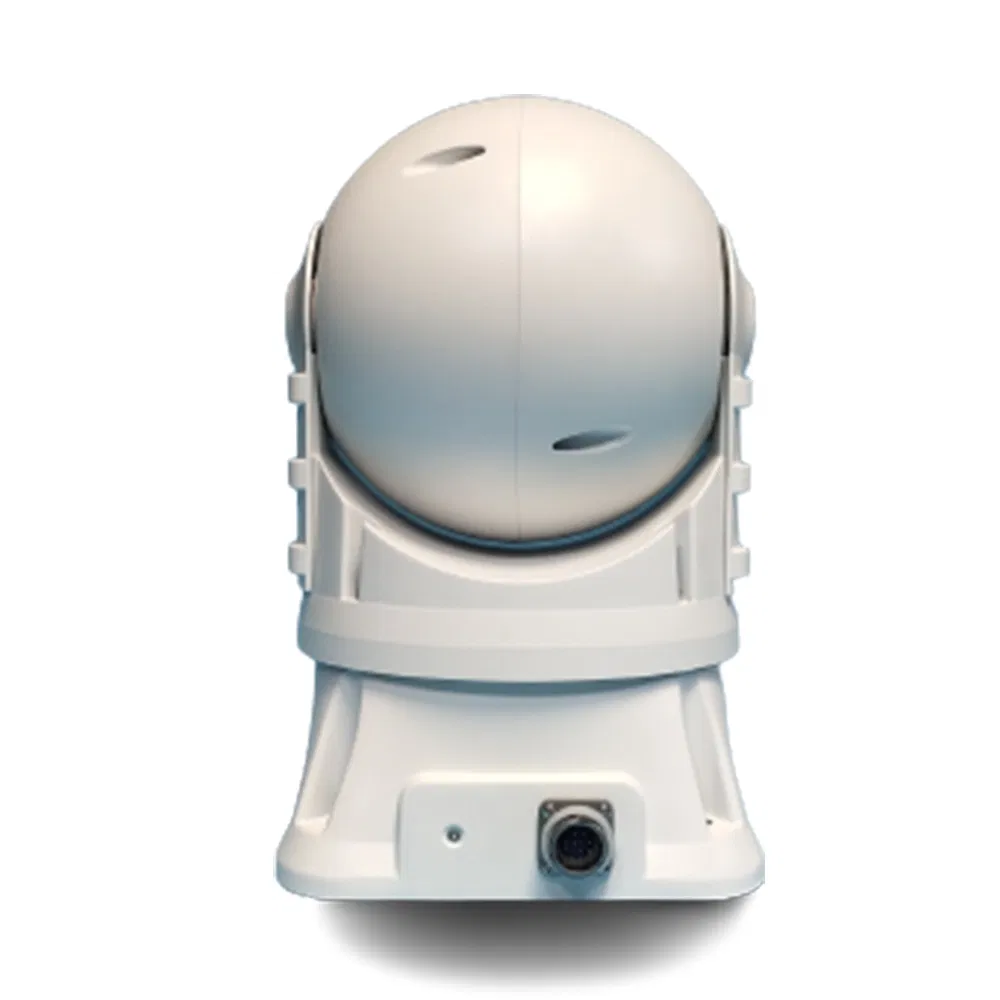

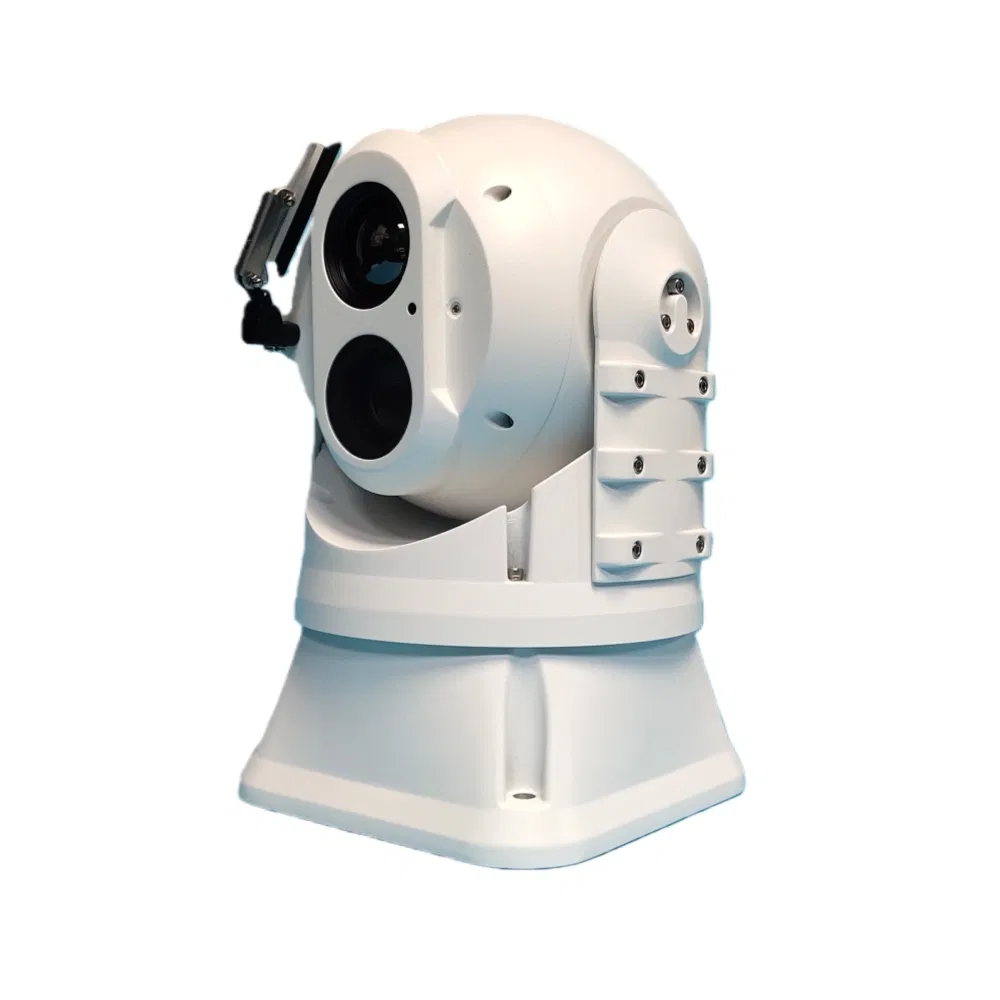

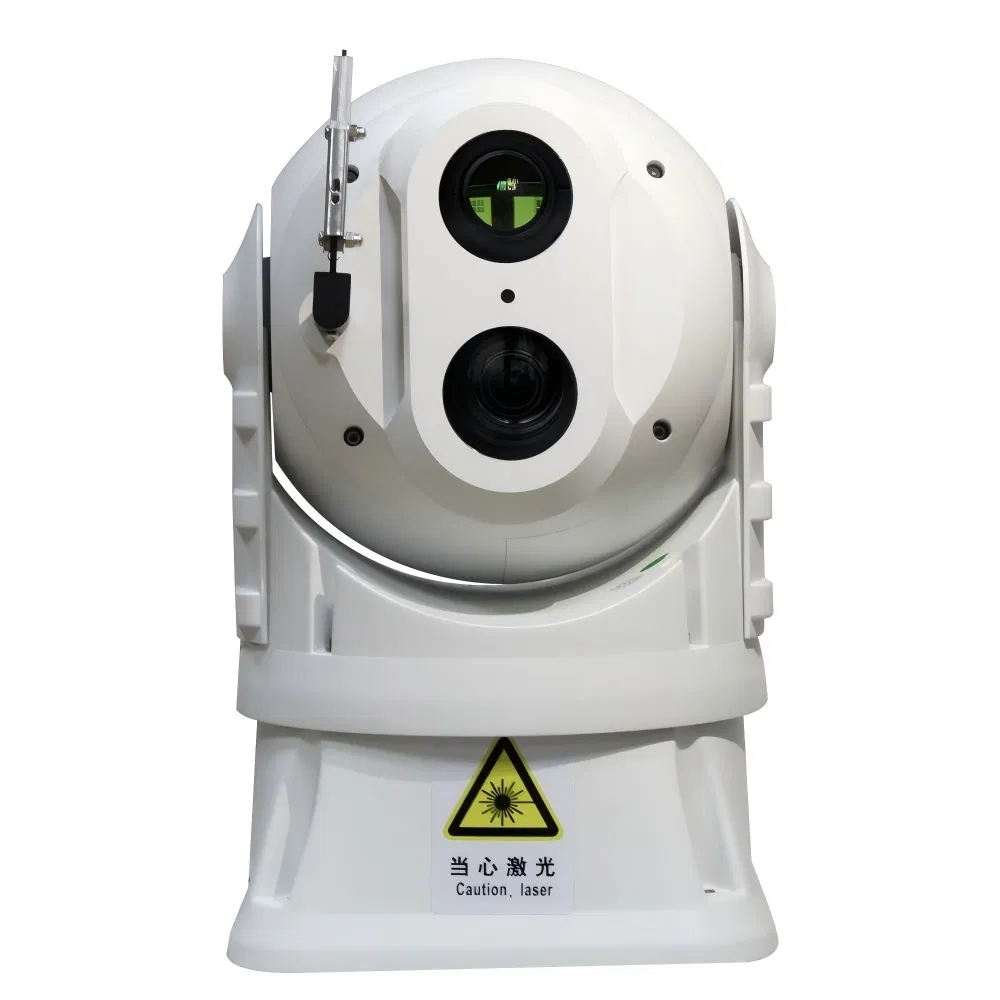

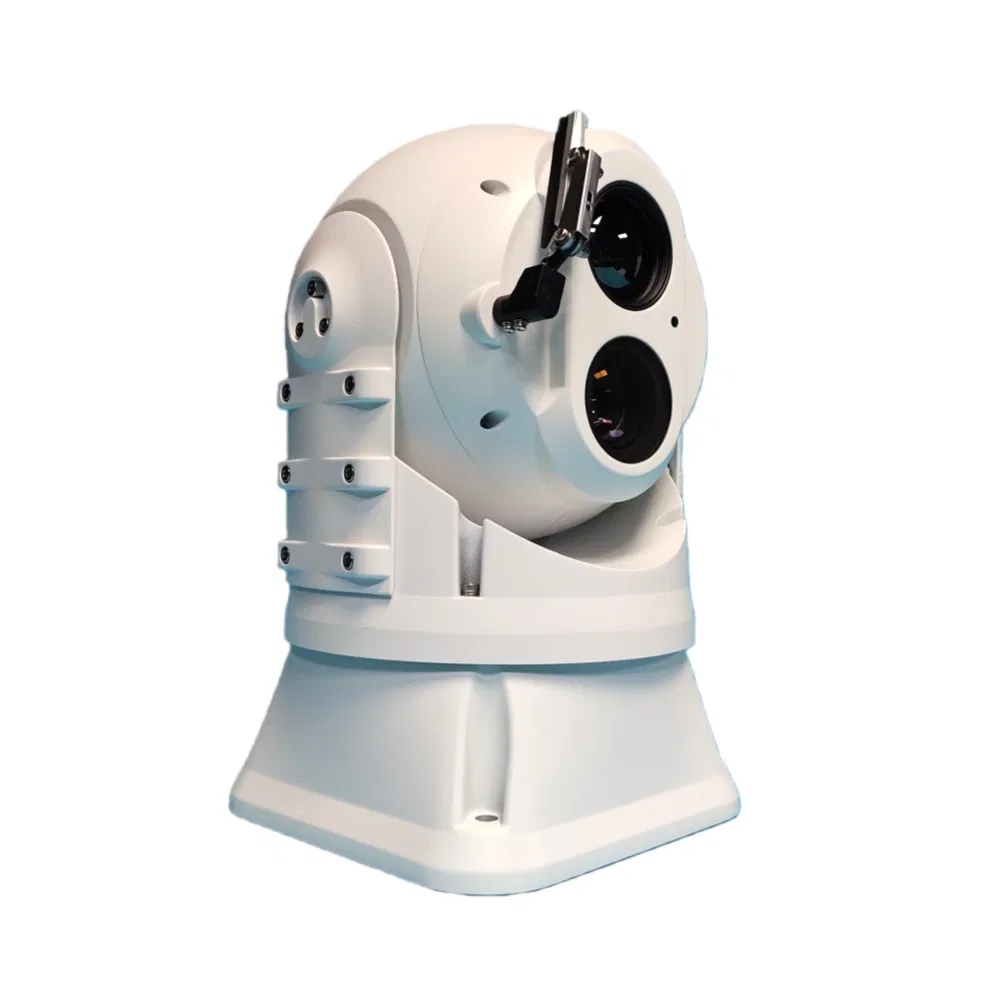

SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to Ip67, it is also widely applied in marine application. The PTZ can be optionally be ordered with HDIP(2MP, 4MP, 4K); Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness; it can be with dual sensor options, with HD visible camera (2MP/4MP/8MP, up to 33x zoom) and thermal imager (640x512/1280x1024, up to 40mm focal length).
The SOAR970 is built to withstand the harshest conditions. Featuring an IP67-rated waterproof and dustproof housing, it provides complete protection against immersion, heavy rain, salt spray, and airborne particulates. This robust construction makes it the ideal choice for marine surveillance, coastal monitoring, and offshore platforms.
Versatile Deployment Scenarios:

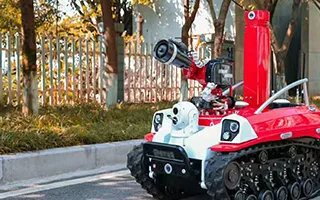

• Robotic Surveillance: Integrate easily into inspection robots.

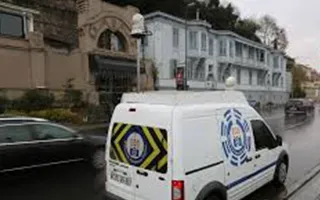

• Vehicle-Mounted Surveillance: Perfect for patrol cars and SWAT vehicles.
• Marine and Shipboard Monitoring: Ideal for commercial vessels and yachts.
| Thermal Imaging | |
| Detector | VOx Uncooled Infrared FPA |
| Array Format/Pixel Pitch | 640x512/12μm |
| Frame Rate | 50Hz |
| Lens | 40mm |
| NETD | ≤50mk@25℃, F#1.0 |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Minimum Illumination | Color: 0.05Lux; B/W: 0.01Lux (IR on) |
| Focal Length | 5.5mm~180mm (33X Optical) |
| Pan/Tilt & General | |
| Pan/Tilt Range | 360° Endless / –20° ~ +90° |
| Power | DC 12V-24V; Consumption: ≤24w |
| Ingress Protection | IP66 / IP67 |
| Dimension | φ197*316 mm |
| Weight | 6.5 kg |
Patrol, Emergency Command, Riot Control, Border Security, and VIP Protection.
Tactical Reconnaissance, Convoy Security, Forward Operating Base Defense, and Target Acquisition.
Power Grid Inspection, Pipeline Surveillance, Railway Security, and Mining Operations.
Fire Command, Flood Assessment, Earthquake Zones, and Search & Rescue.

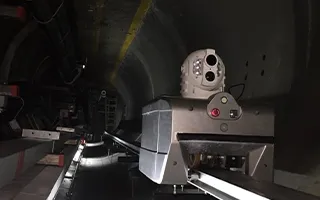

Highway Patrol, Tunnel/Bridge Inspection, Airport Ground Security, and Port Terminal Operations.
Anti-Poaching Operations, Wildlife Monitoring, Forest Protection, and Marine Conservation.
