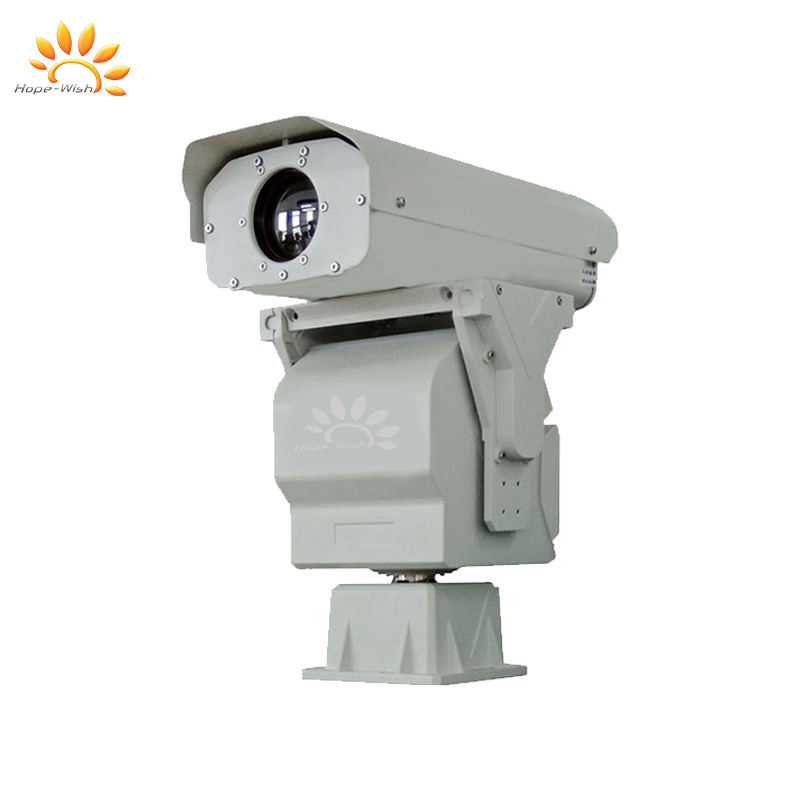

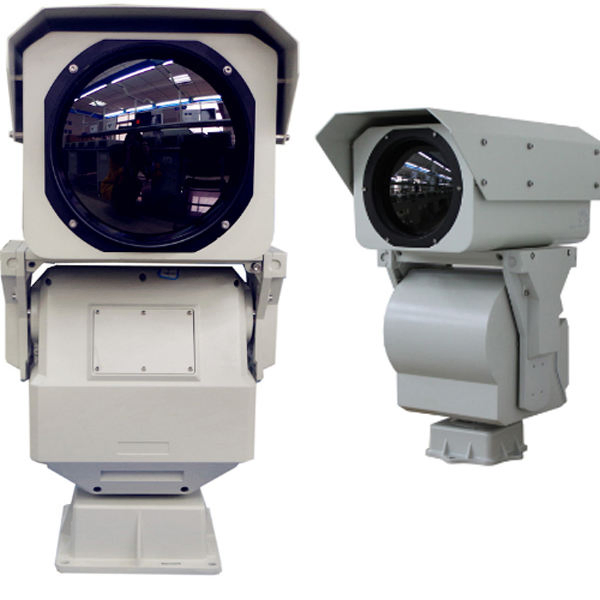

13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module
13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module
13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module
13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module
13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module
1 / 5
13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module
13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module
13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module
13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module
13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module

13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Infrared Camera Module

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Box Camera
Send Inquiry

Product Description

Basic Information
Model NO.HP-TC6307
TypeIP Camera
SensorCMOS
Horizontal Resolution420tvl
CertificationCE, FCC, RoHS
FeatureWaterproof / Weatherproof
Effective Distance≧30m
Sensor Size1/3 inch
Warranty1 Year
Video CompressionH.264
Data StorageNVR
Customized SupportOEM, ODM
Product Description

TC65 series long range thermal imaging camera is based on the latest uncooled IR sensitive technology and continuously IR optical zoom. User could get a best imaging details with 640*512 resolution uncooled FPA sensor, advanced digital circuit and image processing algorithm. Special design of 5X optical zooming lens have detection distance 16km, suit for both seeking and watching. One integral aluminum alloy housing make sure the camera works well outdoor.

TC45 series thermal camera integrate high sensitive FPA sensor, electronic and optical systems, could penetrate fog/dirt/rain/snow and image 24 hours.

Thermal Imaging Camera Banner
Product Advantages
01
NETD 50mk enhance the imaging details even in foggy, rainy, or snowy weather conditions.
02
Special AS optical zooming lens and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
03
Non-uniform image correction technology provides stable working temperature without TEC, ensuring good image uniformity and dynamic range.
04
SDE digital image processing eliminates noise; supports 10 pseudo color images plus B/W and B/W inverse modes.
05
One integral aluminum alloy housing, weatherproof IP 66, waterproof, and anti-dust for extreme durability.

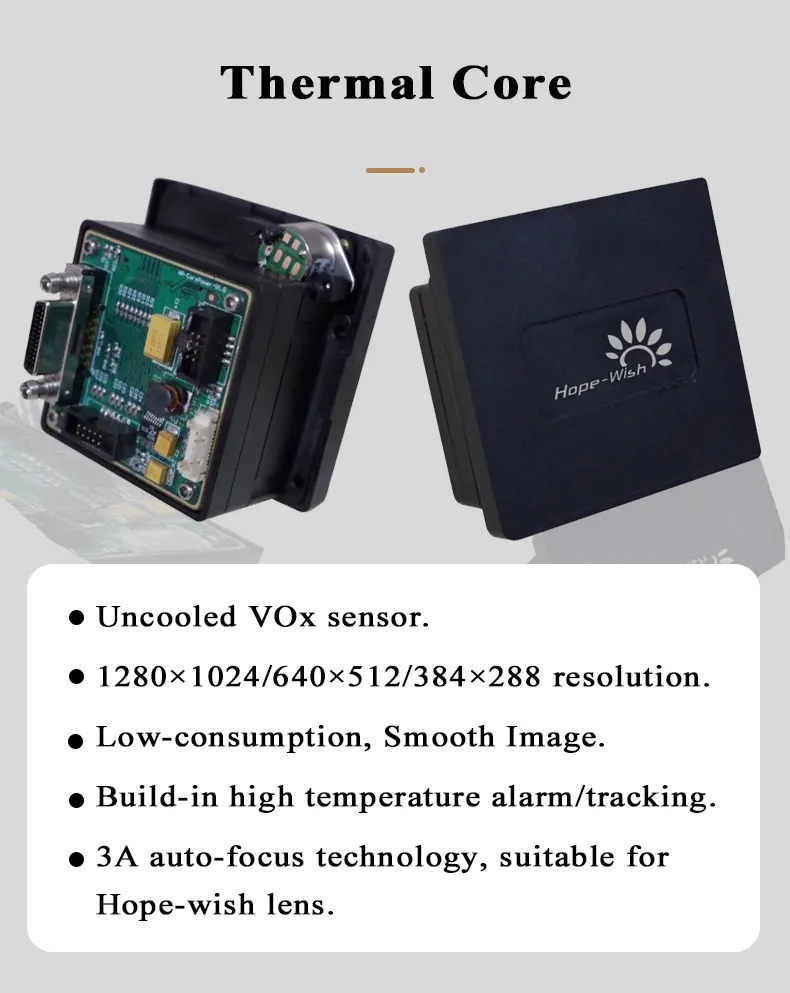

Advantage Graphic 1

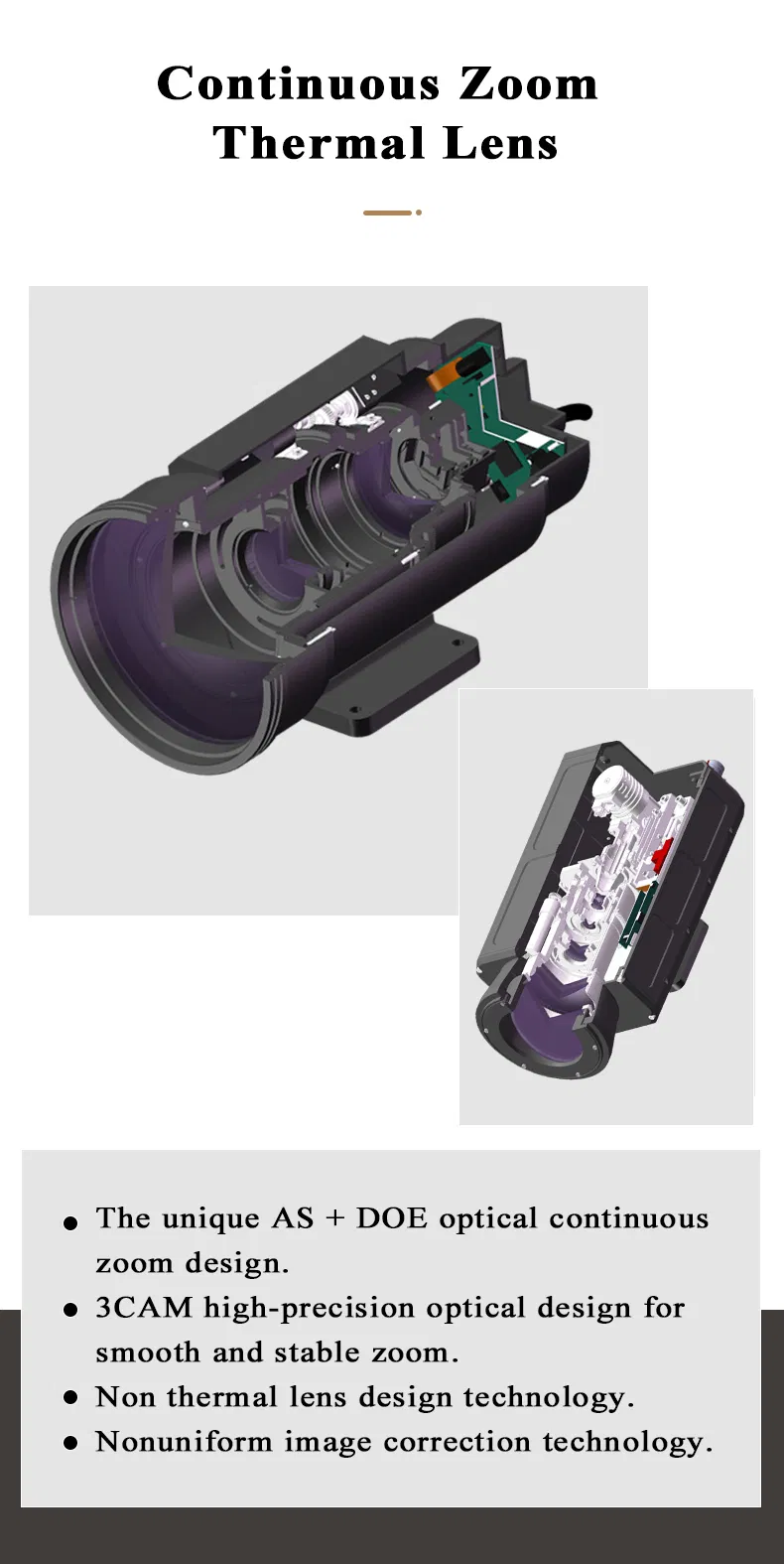

Advantage Graphic 2
Technical Parameters
Detection DistanceVehicle: 6500m / Human: 2500m
IdentificationVehicle: 1800m / Human: 700m
Thermal Sensor5th generation FPA VOx Detector
Resolution640 × 512 pixel (384 × 288 optional)
NETD50mK (@25 F1.0)
Focal Length25 - 75mm
Field of View24°×18° - 8°× 6°
PTZ RotationPan: 0-360° Continuous, Tilt: -45° to +45°
Rotation SpeedPan: 0.01°~60°/S, Tilt: 0.01°/S~30°/S
Network ProtocolTCP/IP, UDP, IPv4/v6, HTTP, RTSP, ONVIF2.0, GB28181
Protection LevelIP66 Waterproof
Power SupplyAC/DC24V
Application & Industry Solutions
Our solutions cover border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other critical industries.

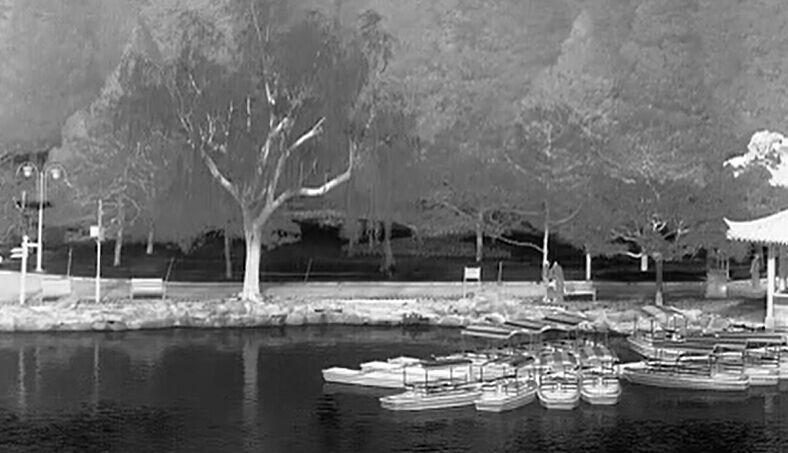

Features Display

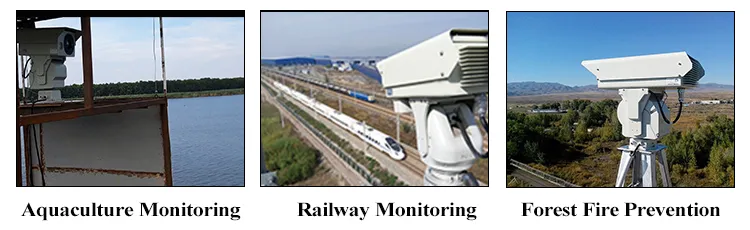

Application Scenarios
Factory and R&D 1

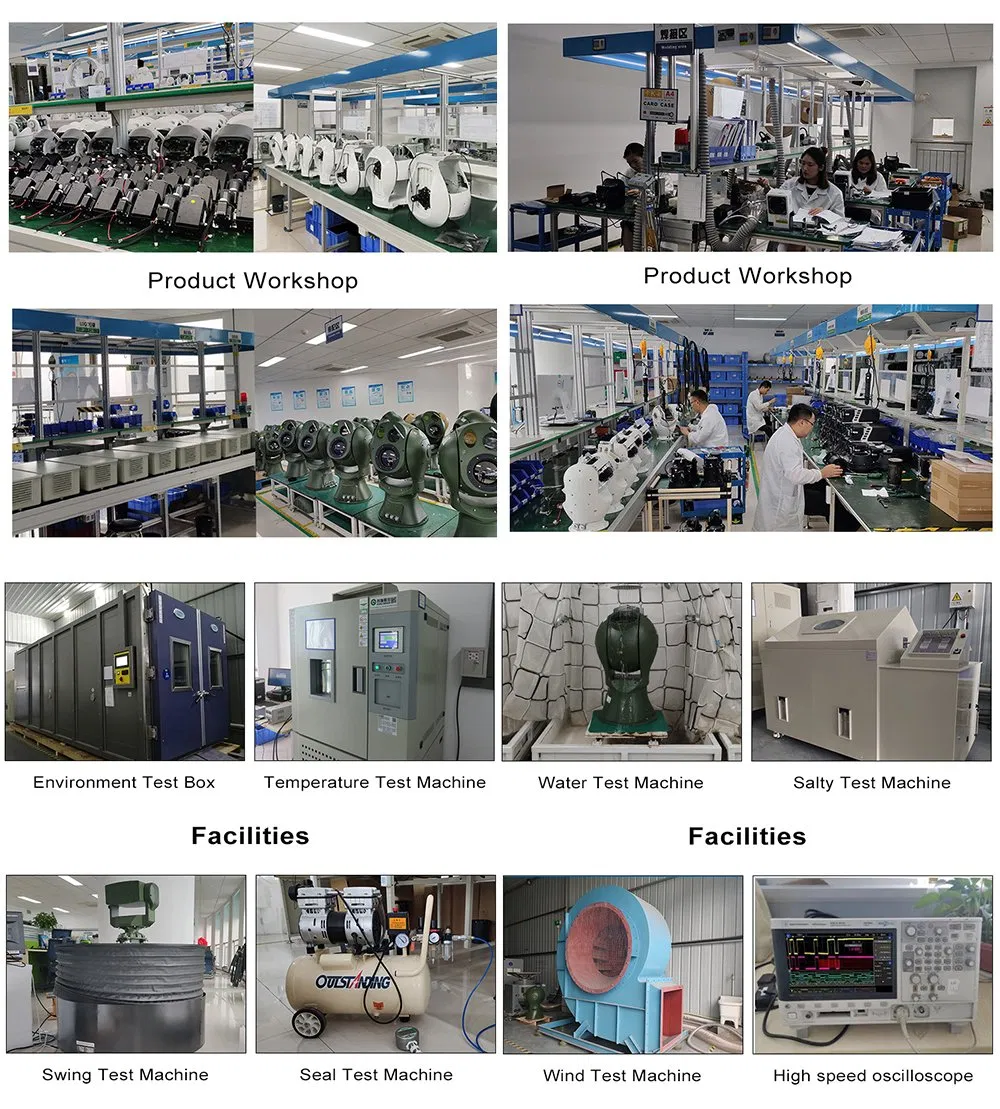

Factory and R&D 2
Frequently Asked Questions
What are your core superiorities in thermal imaging?
We possess independent core technology in thermal imaging and laser infrared imaging. We specialize in night vision camera systems and provide comprehensive optoelectronic solutions for complex environments.
Do you support OEM or ODM services?
Yes, we highly welcome OEM and ODM projects. We can provide customized products and competitive pricing to meet your specific requirements.
What is the weather protection rating for this camera?
This camera features an IP66 protection level, making it completely waterproof, anti-dust, and suitable for extreme outdoor weather conditions.
What is the maximum detection range of the TC65 series?
The TC65 series can detect targets at a distance of up to 16km, depending on the environment and target size, such as vehicles or large vessels.
Which industries are your thermal cameras typically used in?
Our products are widely used in coastal defense, forest fire prevention, intelligent transportation, marine surveillance, and anti-UAV systems.
How does the SDE digital image processing benefit the user?
SDE (Smart Digital Enhancement) technology effectively eliminates image noise and enhances details, providing clearer visuals in low-contrast environments.
