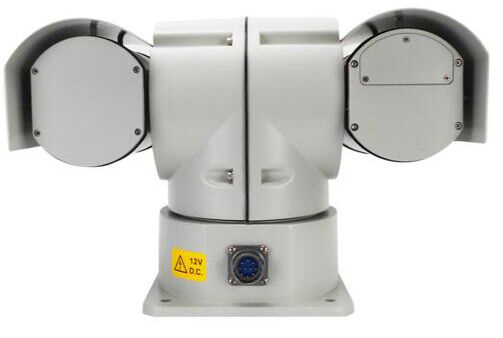

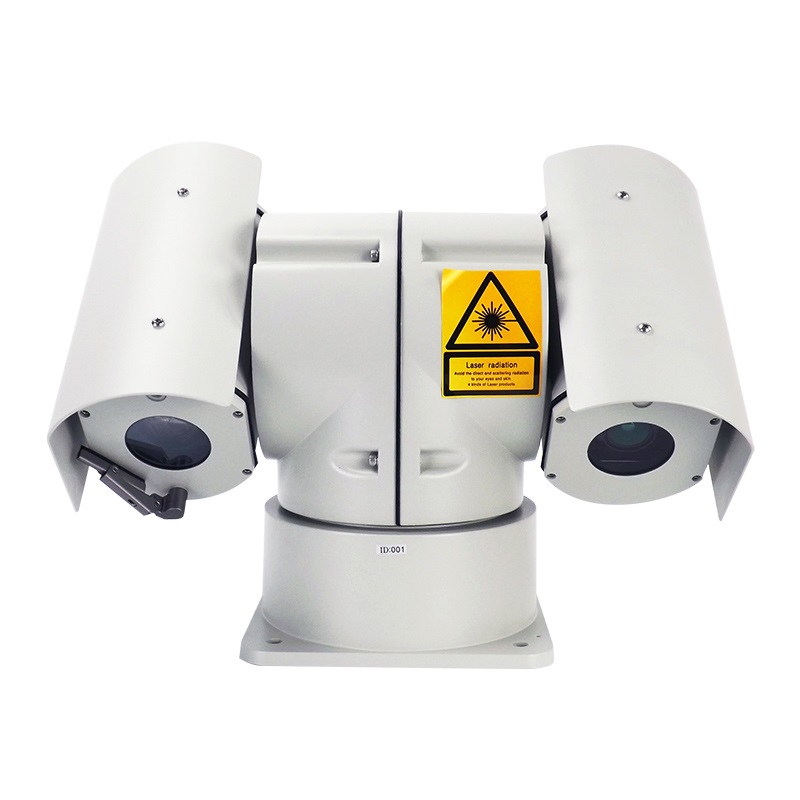

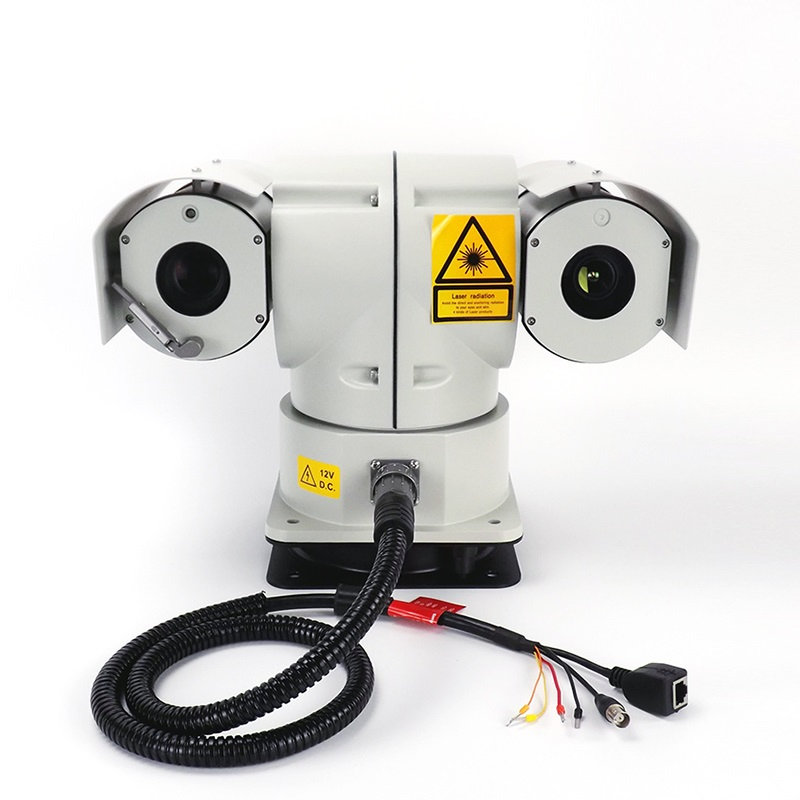

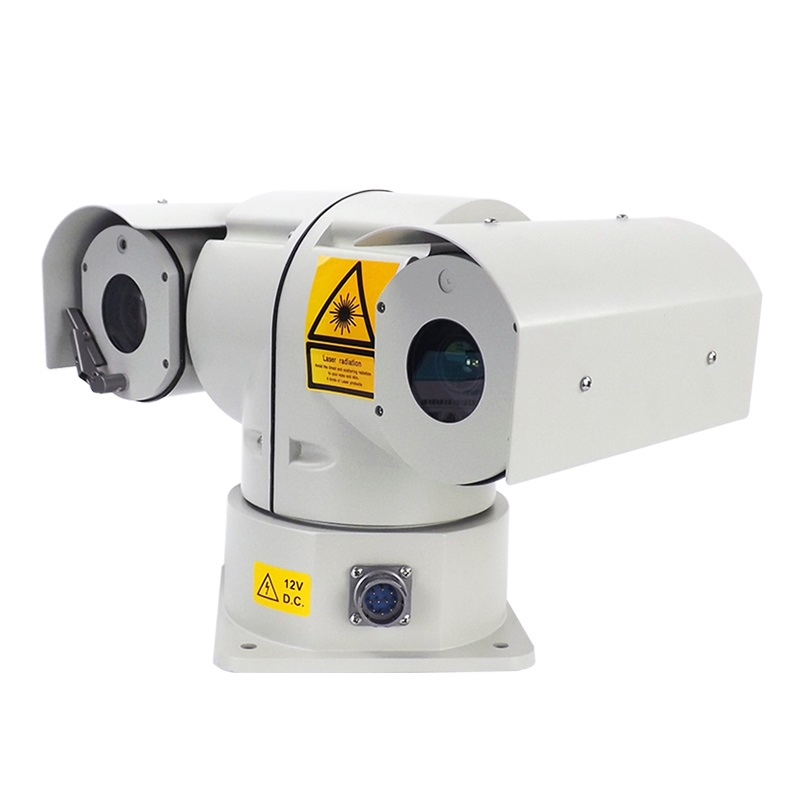

20X Zoom 2.0MP 300m Night Vision 3W Laser PTZ HD IP Camera

1 / 5

20X Zoom 2.0MP 300m Night Vision 3W Laser PTZ HD IP Camera

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SHJ-HD-TL-3W

Type

IP Camera

Sensor

CMOS (1/3 inch)

HDMI Format

1080P

Horizontal Res.

650tvl

Lens Type

Autofocus Lens

Certification

CE, FCC, CCC, RoHS, ISO9001

Effective Dist.

300m

Feature

Waterproof, Auto BLC

HS Code

8525801390

Origin

China

Capacity

1000PCS/Month

Product Overview

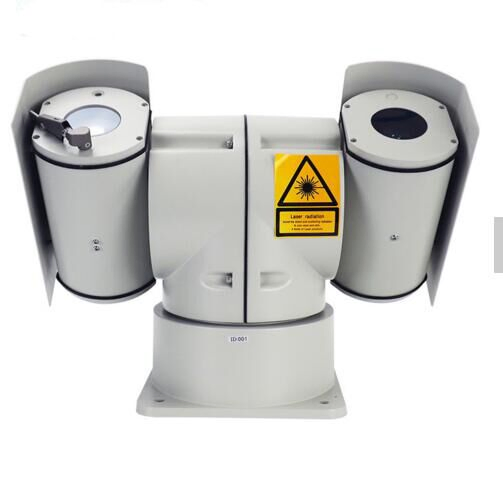

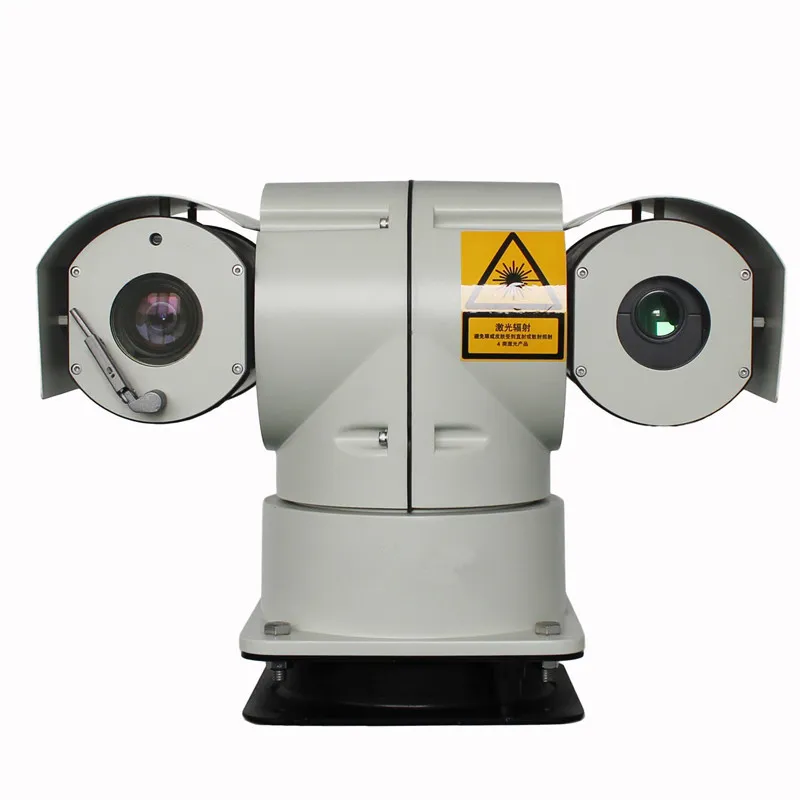

20x Zoom 2.0MP 300m Night Vision 3W Laser PTZ HD IP Camera

Laser zoom PTZ with night vision distance up to 300m-500m. Integrated design for outdoor surveillance with 360° endless high-speed rotation. Includes decoder, wiper, fan, and heater for extreme environment monitoring.

Key Features

🛡️

Defogging & Defrosting: Independent module solves camera and lens fogging issues.

🔥

Integrated Heating: High-quality heating parts ensure effective antifogging for the entire housing.

🏗️

Stable Structure: Upper and lower integrated structure prevents bump and dislocation between PTZ and infrared housing.

⚡

Regulator Module: Standard original module filters vehicle transient current instability for PTZ stability.

🌙

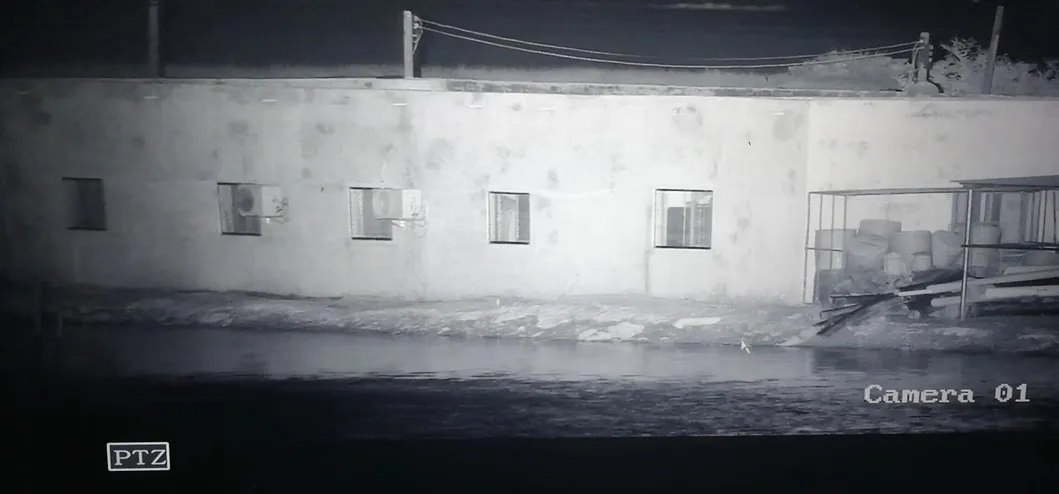

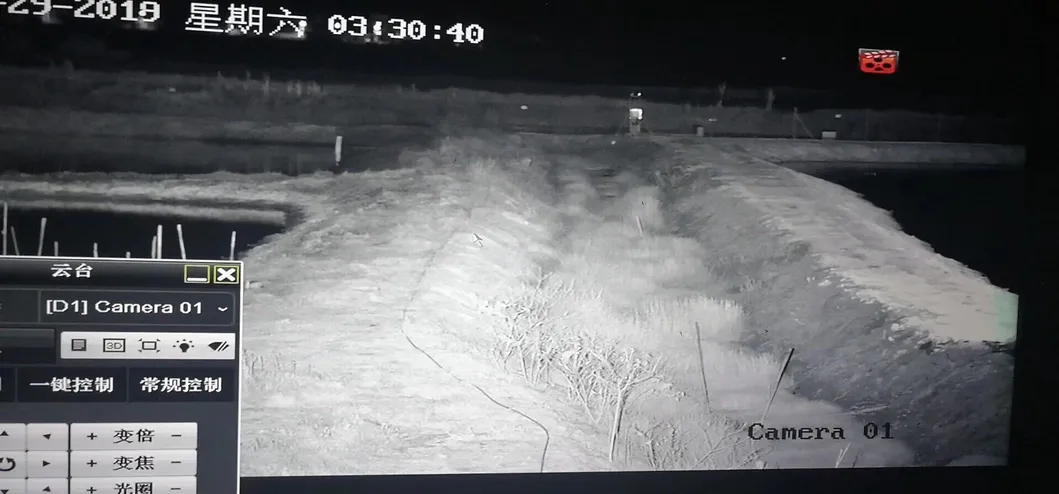

Laser Night Vision: Imported 808nm laser with synchronous zoom, adjustable angle from 1° to 50°, 300m-500m range.

Typical Applications

🚔 Police Enforcement

🚒 Fire Emergency

🚑 120 Command

🛣️ Road Mobile Patrol

🏗️ Urban Management

🚚 Special Inspections

Technical Data

PTZ Performance
Pan Speed	Preset: 100°/s \| Control: 0°~60°/S
Tilt Speed	Preset: 80°/s \| Control: 0°~40°/S
Rotation Range	Pan: 360° Endless \| Tilt: +60° ~ -90°
Presets & Tracking	256 Positions \| 6 Tracking lines
Communication	RS485, Built-in 16 protocols (PelcoD-P, etc.)
Protection Grade	IP66 Waterproof
Working Temp.	-35° ~ +55°
Impact Resistance	≥4G

Camera Module Data (20x / 30x Optical Zoom)
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	1920x1080 (1080P) @ 25/30fps
Focal Length	20x: 4.7-94mm	30x: 4.5-135mm
Video Compression	H.265 / H.264
Audio Compression	G.722.1, G.711, MP2L2, AAC, PCM
Network Protocol	TCP/IP, HTTP, RTSP, ONVIF, GB28181
Storage	Support MicroSD storage

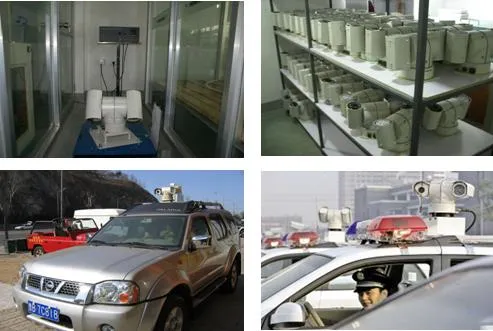

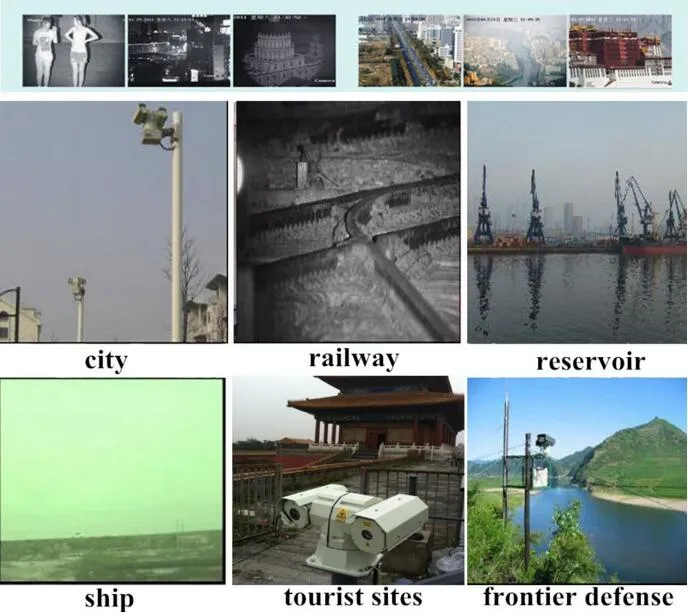

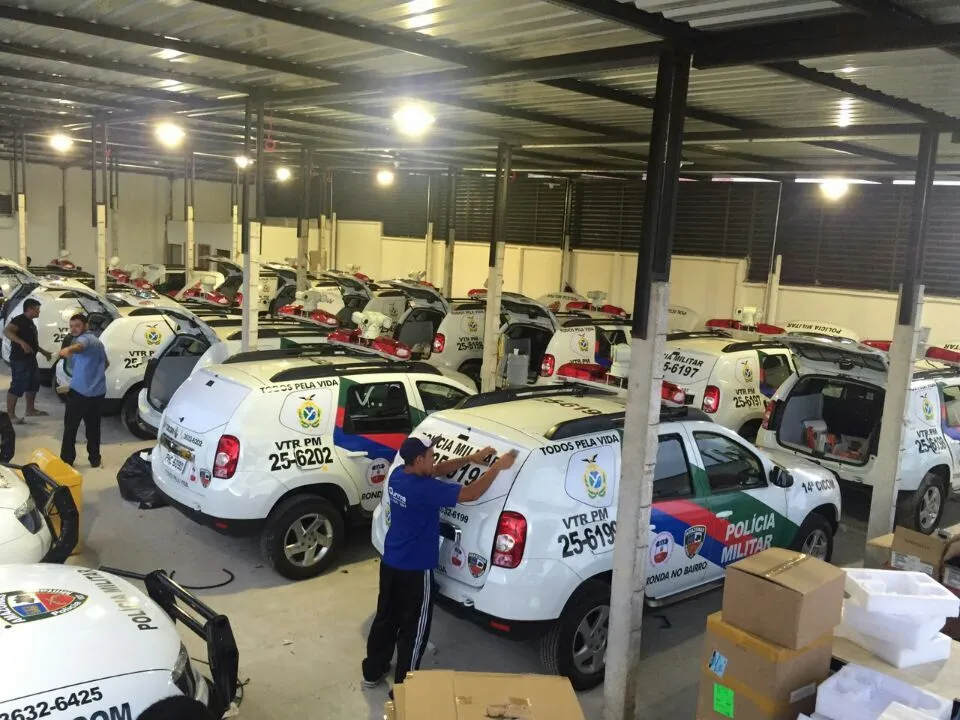

Project Cases

Frequently Asked Questions

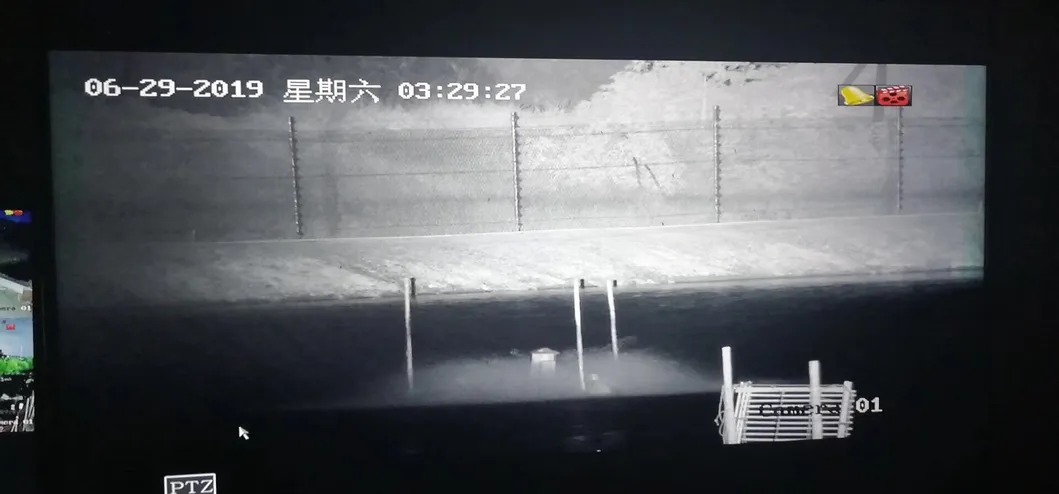

What is the maximum night vision distance of this camera?

This PTZ camera features a powerful 3W/5W laser supplement, allowing for clear night vision coverage between 300m and 500m depending on the environment.

Does the camera support extreme weather conditions?

Yes, it is rated IP66 and equipped with an independent defogging/defrosting module, internal heater, and a wiper to ensure stable operation from -35°C to +55°C.

What video output formats are available?

The system supports multiple versions including HD IP (H.265/H.264), SDI HD lossless real-time transmission, and Coaxial HD (AHD/CVI/TVI) for versatile integration.

Is the zoom synchronous with the laser?

Yes, the 808nm laser achieves synchronous zoom. The laser spot angle is automatically or manually adjusted (from 1° to 50°) to match the camera's magnification levels.

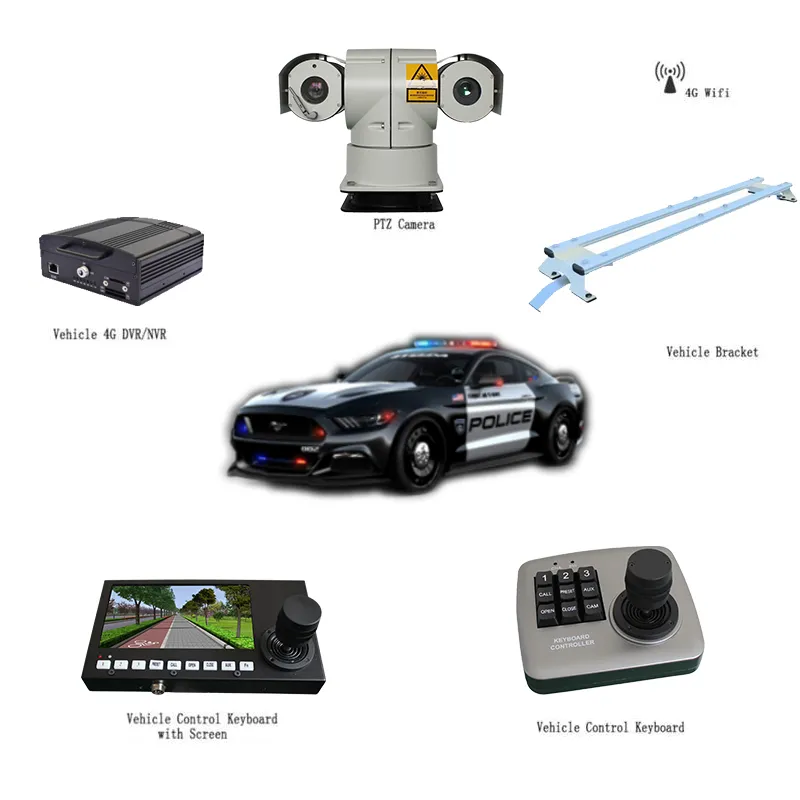

Can this camera be installed on vehicles?

Absolutely. It includes a standard regulator module to filter transient current instability common in vehicles, making it ideal for police, fire, and emergency command vehicles.

What are the storage and protocol options?

The camera supports MicroSD card storage and is compatible with mainstream protocols including ONVIF, PSIA, CGI, and GB28181 for seamless platform docking.
