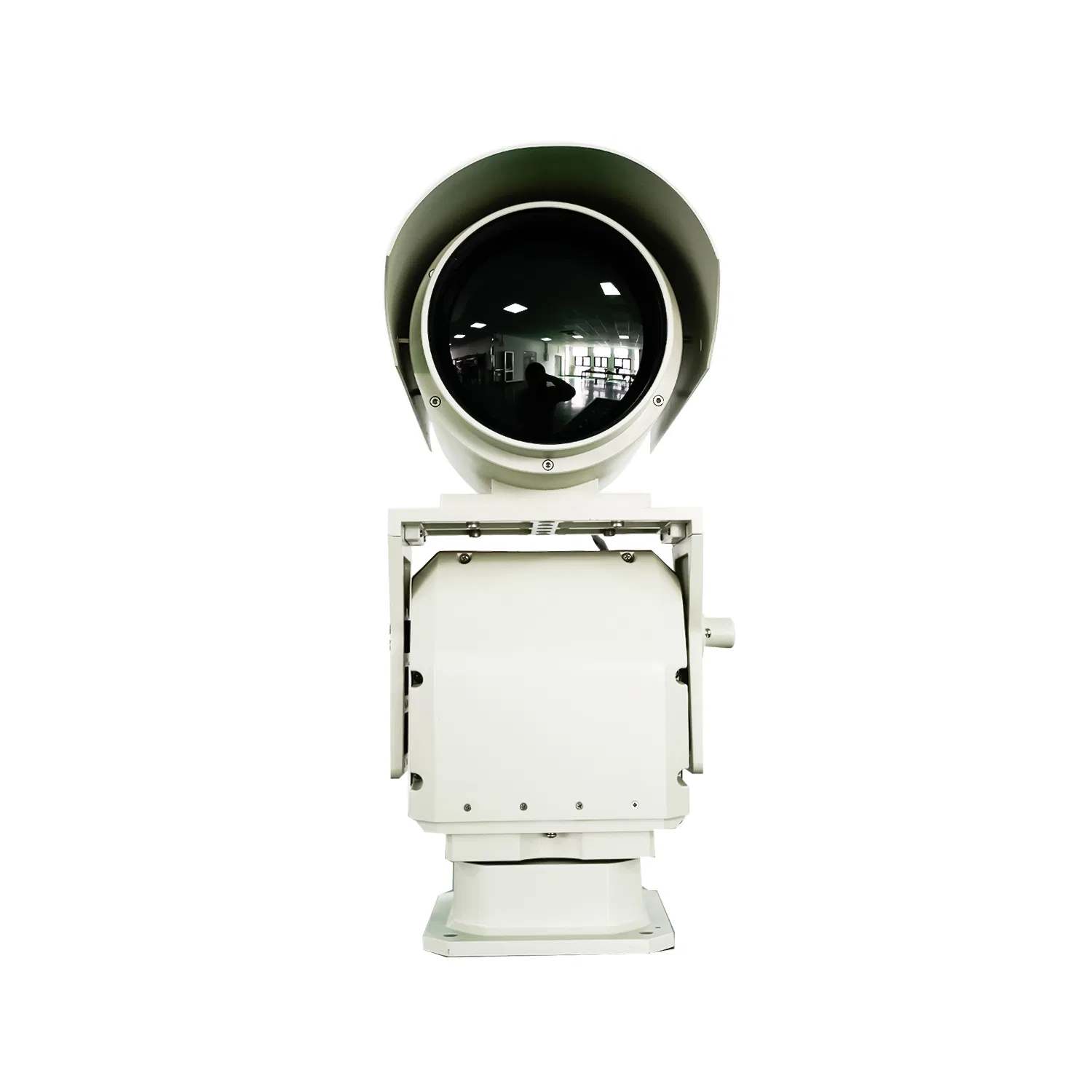

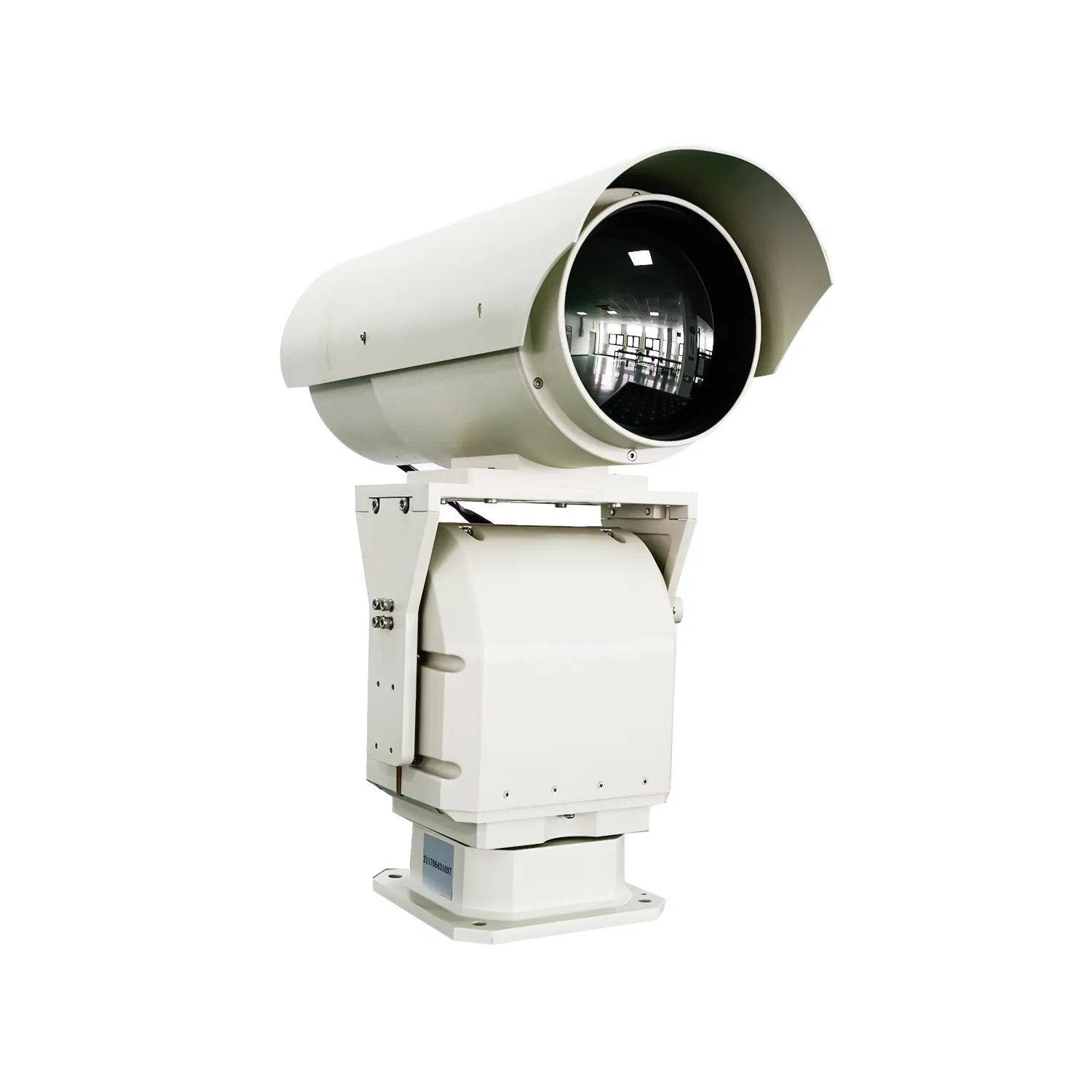

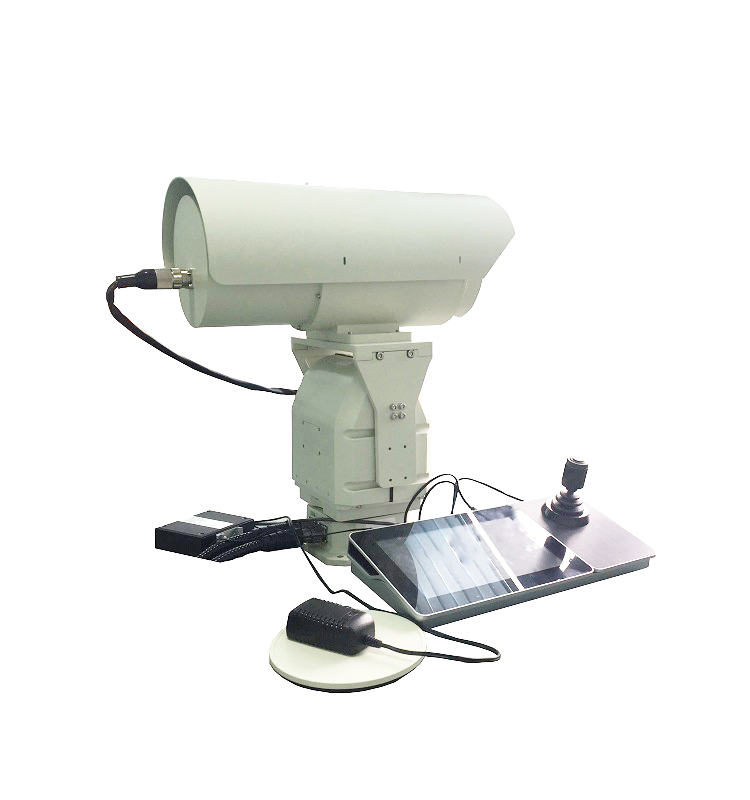

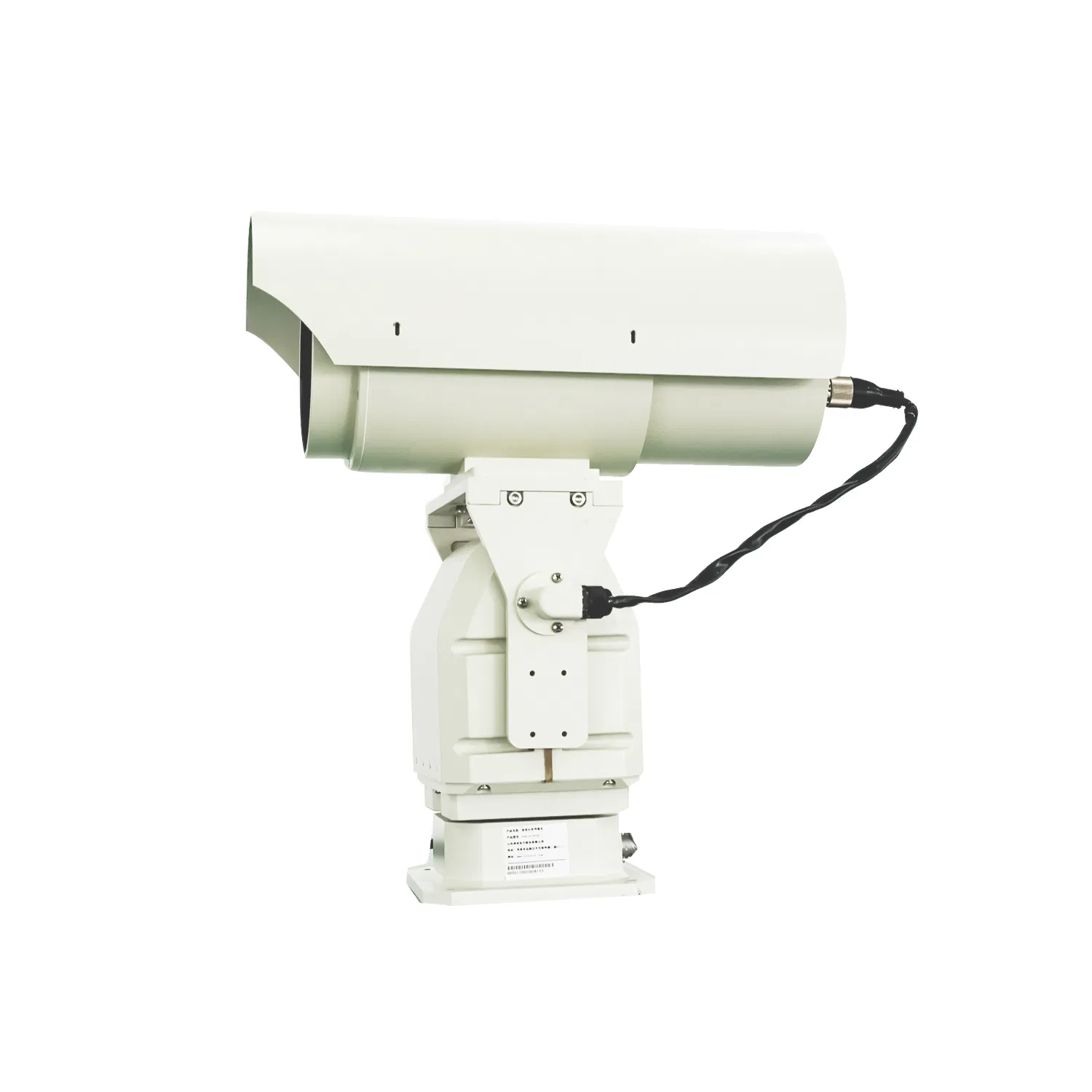

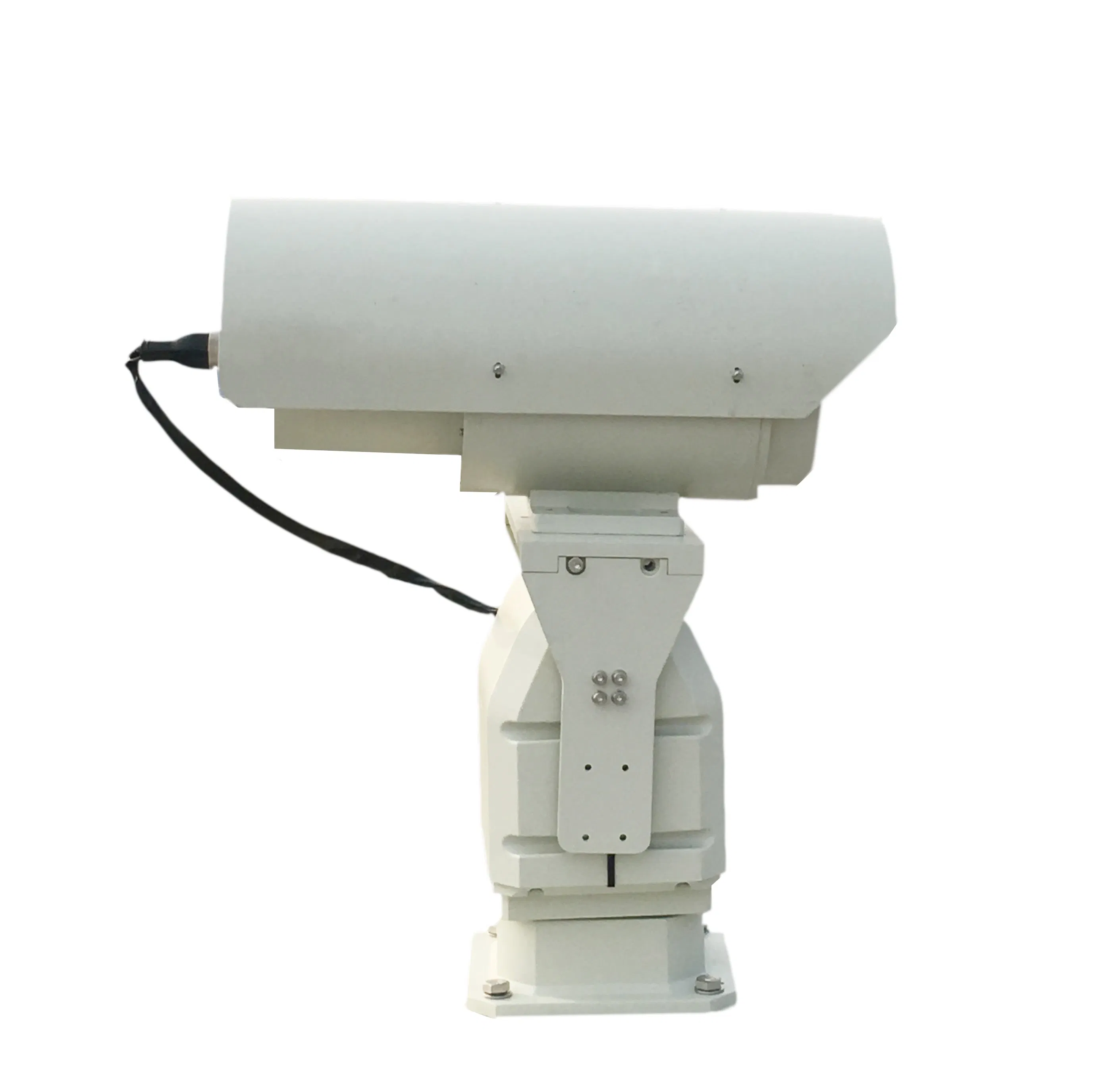

180mm Outdoor Long Distance Surveillance Infrared Thermal Camera

Customization:	Available
Technology:	Infrared
Style:	Zoom Lens

Basic Specifications

Model NO.

SHR-TIR185R

Type

CCTV Camera

Sensor

Vox

Format

PAL/NTSC Video Output

Resolution

384X288

Certification

CE, FCC

Feature

Waterproof / Weatherproof

Detection Distance

0-11880m

Focal Length

36-180mm

IP Rating

IP66

Main Features

High resolution uncooled microbolometer infrared focal plane arrays (Vox).
25µm or 17 µm pixel for fine image quality and long-distance target observation.
High sensitivity with NETD reaching 50mk at 25Hz frame rate.
Advanced 30~150mm continuous zooming for wide-range searching and identification.
Advanced image noise reduction with DDE function; multiple output modes (hot white/black/pseudo color).
Low power consumption and quick start-up with stable performance and high uniformity.
RS 485 interface control and analog video signal output.
Precision casting aluminium alloy shell, nitrogen-filled, waterproof, and anti-harsh environment design.

Technical Indicators

Category	Parameter	Specification
Monitoring Distance	Object Type	People (4320m Detect) / Vehicle (11880m Detect)
	Recognition	People (1080m) / Vehicle (2970m)
	Identification	People (540m) / Vehicle (1440m)
Detector Specs	Type	Uncooled FPA detector (vox)
	Resolution	384×288 (640×512 optional)
	NETD	≤50mK
	FFC	Auto/Manual/Scene
Thermal Lens	Focal Length	36~180mm, 5x optical zoom
	FOV	2.5°×2.0°~12.7°×10.2°
	Control	E zoom/focus (Auto focus optional)
Pan-Tilt	Rotation	Pan: 0°~360° continuous; Tilt: +30°~-45°
	Speed	Pan: 0.1°~9°/S; Tilt: 0.1~4°/S
	Presets	255 Presets
Environment	Protection	IP66, Anti-vibration, Anti-thunder 2000V

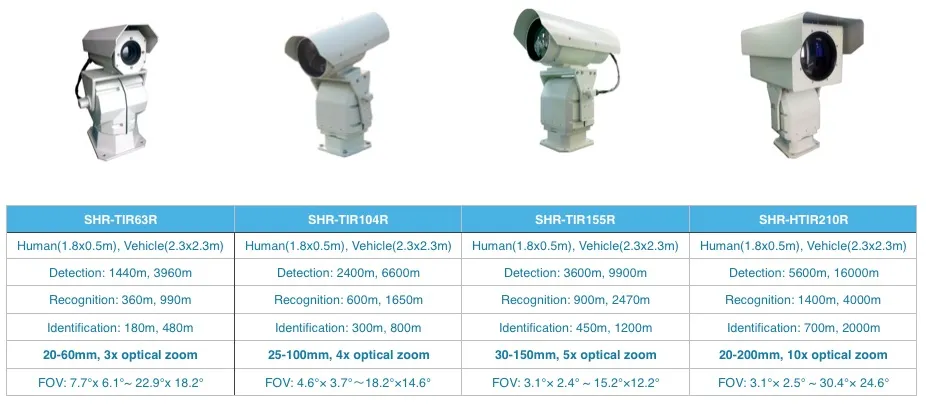

Product Gallery & Series

Applications & Services

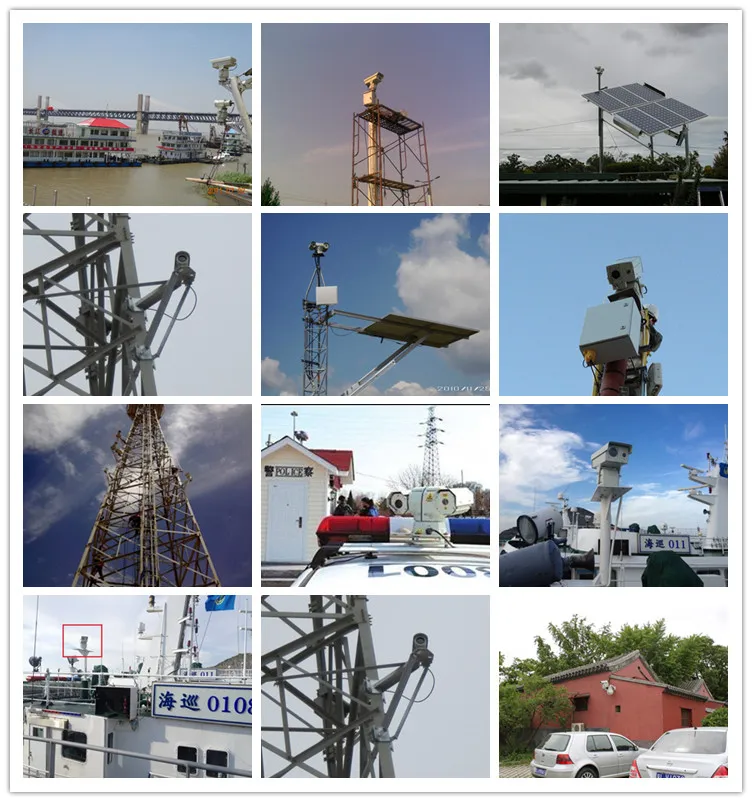

These products are widely used for outdoor surveillance including oilfield monitoring, city safety projects, frontier defense, shipboard, railway, airport, and tourist site monitoring.

Warranty: Generally one year, with extended warranty options available.
Support: Life-long technical support via a professional team.
Customization: OEM and customized product solutions available to meet specific needs.

Frequently Asked Questions

What is the maximum detection range of this thermal camera?

The camera can detect vehicles at a distance of up to 11,880 meters and people at up to 4,320 meters under optimal conditions.

Does the camera support zoom functionality?

Yes, it features a 36~180mm lens providing 5x optical continuous zoom, allowing for both wide-range searching and detailed identification.

Is this camera suitable for harsh outdoor environments?

Absolutely. It has an IP66 rating, is nitrogen-filled, and features a precision casting aluminum alloy shell designed to resist water, dust, and vibration.

What type of sensor is used in this device?

The camera uses a high-resolution uncooled FPA microbolometer infrared focal plane array (Vox sensor).

What are the power requirements?

The camera typically operates on DC12V, and a power adapter for AC220V/DC12V is usually equipped.

Can I integrate this camera into an existing security system?

Yes, it supports RS485 interface control and standard analog video output (BNC), making it compatible with most professional monitoring systems.
