PProduct Description

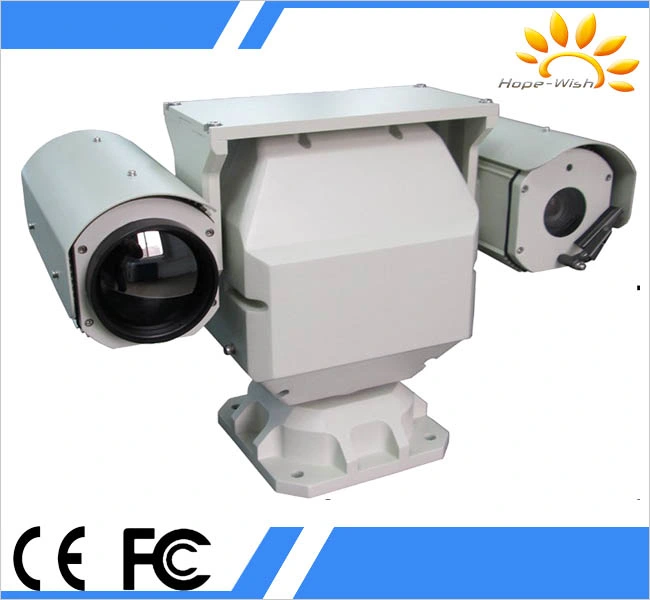

GTVC Series Vehicle Mounted Optical System Thermal Camera is a day/night thermal imaging solution. It integrates thermal imaging cameras, HD visible light cameras, laser ranging, dynamic organization, precision gears, digital decoder, and a high-performance image processing unit. The all-reinforced structural design featuring super-strength stainless steel center bearings ensures the equipment operates properly even under vehicle bump conditions.
With a simple mechanical design and compact structure, it offers high positioning accuracy and reliability. The system provides operational flexibility, starting and stopping smoothly for easy control. Internal industrial embedded electronics control zoom, focus, and pan-tilt rotation. The shell is made of super alloy with IP66 grade protection, ensuring long-term operation in harsh outdoor environments.
Consists of infrared thermal imaging and visible light camera with anti-shock reinforcement.
NETD 50mk for delicate picture quality, minimal interference from rain, snow, or fog.
360° continuous rotation observation with heavy-duty CNC pan-tilt (20kg-50kg load).
Full-reinforced structural design to meet vehicle environmental vibration and anti-shock requirements.
IP66 protection class: anti-rain and anti-dust for harsh environments.
STechnical Specifications
| Vehicle Detection |
6500m |
8600m |
13000m |
16400m |
| Human Detection |
2500m |
3400m |
4800m |
5800m |
| Thermal Sensor |
VOx uncooled detector, 324*256(640*512 optional); 7.5um-14um response, 50mk NETD |
| Thermal Lens |
25mm~75mm |
21mm~105mm |
31mm~155mm |
38~190mm |
| Visible Camera |
1/1.8'' CMOS, 2.1MP, 1920*1080, 0.001lux; ICR optical filter; H.264 |
| Visible Lens |
4.3~129mm |
12~320mm |
15~528mm |
25~750mm |
| PTZ |
Range |
Pan 360° continuous, tilt + 45 ° ~ -45 ° |
| Speed |
Pan 0.01~15°/S; tilt 0.01~15°/S |
| Protection |
IP66, Integrated multi-window aluminum housing with wiper |
| Operating Temp |
-35ºC ~ +65ºC |
?Frequently Asked Questions
1. What is the maximum detection range for this vehicle-mounted system?
Depending on the specific model, the system can detect vehicles at distances ranging from 6,500 meters up to 16,400 meters, and human targets from 2,500 meters up to 5,800 meters.
2. How does the camera perform in extreme outdoor environments?
The camera is built with an IP66-rated aluminum alloy housing, making it waterproof and dustproof. It is designed to operate in temperatures ranging from -35ºC to +65ºC and includes anti-shock reinforcement for vehicle vibration.
3. What sensors are integrated into the GTVC series?
The system combines a high-sensitivity VOx uncooled thermal detector (NETD 50mk) and a 2.1-megapixel HD visible light CMOS sensor for comprehensive day and night surveillance.
4. Can the PTZ rotate fully?
Yes, the system features a heavy-duty CNC pan-tilt that supports 360-degree continuous rotation and a tilt range of +45° to -45°, ensuring no dead ends during observation.
5. Is the camera equipped with stabilization for moving vehicles?
Yes, it features a full-reinforced structural design with super-strength stainless steel center bearings and a special damping base to meet environmental vibration and anti-shock requirements for wheeled vehicles.
6. Does the system support night vision imaging?
Absolutely. The infrared thermal imaging unit provides clear imagery regardless of lighting conditions, and the visible light camera features an ICR optical filter for low-light performance.
