Product Description

Basic Information
Model NO.
QCK100A
Certification
RoHS
Warranty
1-3 Years
Dimensions
80mm × 55mm × 20mm
Net Weight
80g
Network
4G Full Netcom
Positioning
Beidou/GPS
Working Voltage
DC9V—45V
Standby Current
12V/<20mA
Origin
China
Product Introduction

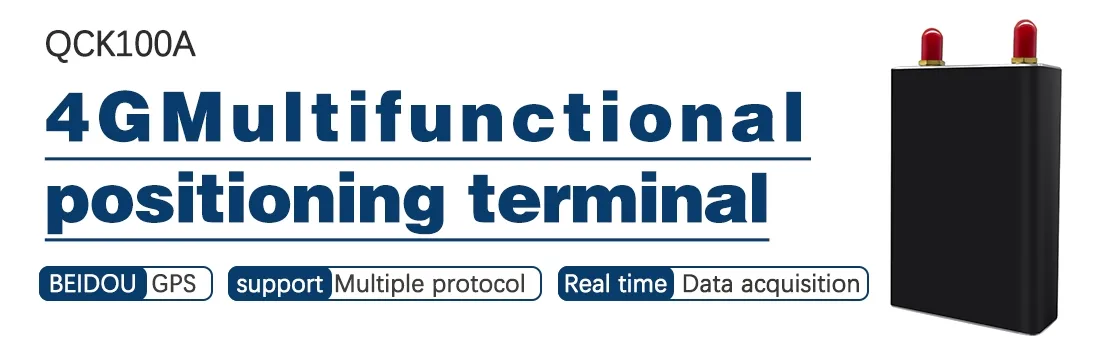

Data Terminal 4G Vehicle Locator

Product Model: QCK100A

This product is a multifunctional car locator featuring a highly modular design. Encased in a high-end aluminum alloy shell, it is both durable and easy to install. It supports multiple protocols including standard JT808, RS485/RS232 serial ports, and Beidou/GPS dual-star positioning.

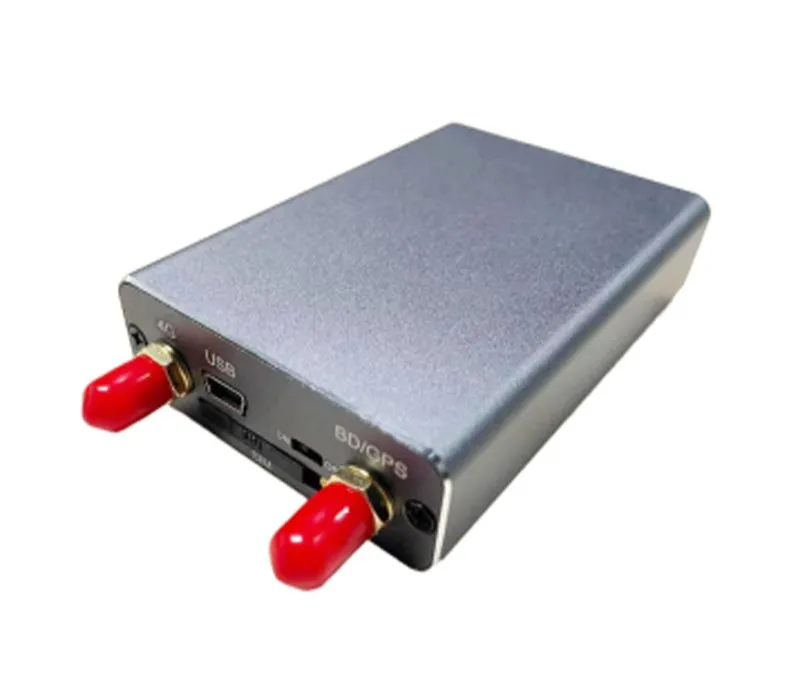

Locator View 1

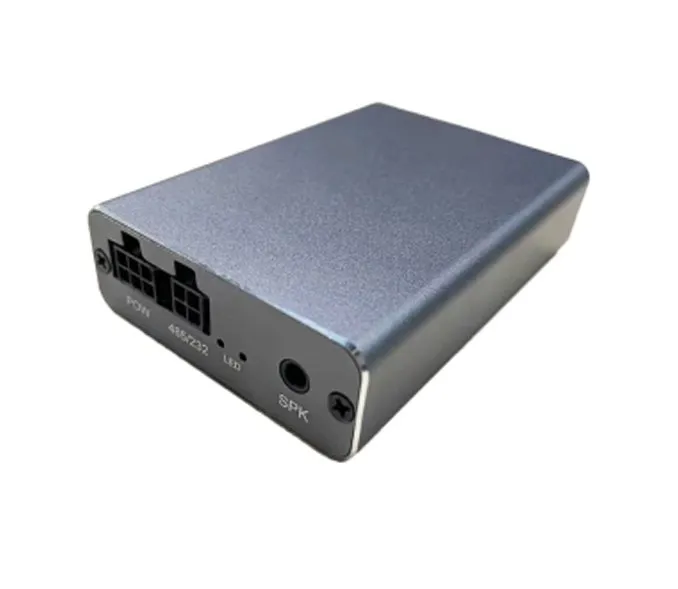

Locator View 2

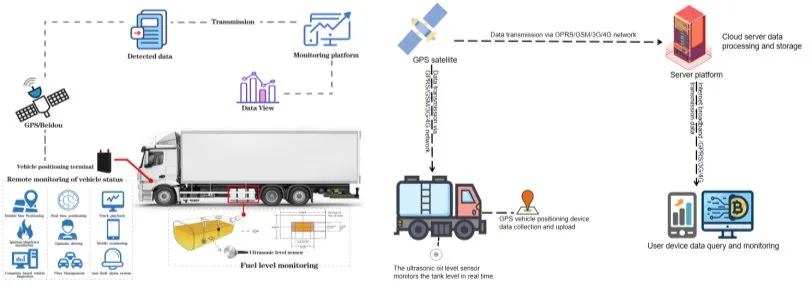

Key Features
Functional Features
Tracking & Positioning Real-time tracking with data uploaded at adjustable intervals (default 30s).
Status Monitoring Detects ignition status, power-off alarms, overspeed alerts, and fuel circuit status.
Peripheral Integration Supports fuel consumption sensors, temperature sensors, and voice broadcasting.
Smart Compensation Features blind spot and inflection point data compensation to ensure smooth trajectory maps.
Technical Specifications
No. Project Item Technical Parameters
1Device ModelQCK100A
2Dimensions80mm * 55mm * 20mm
3Weight80g
4Network4G Full Network Connectivity
5Frequency BandsFDD-LTE(B1/B3/B5/B8), TDD-LTE(B38/B39/B40/B41), GSM: 900/1800MHz
6Positioning ModuleBD/GPS
7Sensitivity-165dBm
8AccuracyGPS Error <10m
9Working VoltageDC9V - 45V
10Storage Temperature-40℃ to +85℃
11Backup Battery4.2V/180mA Lithium battery

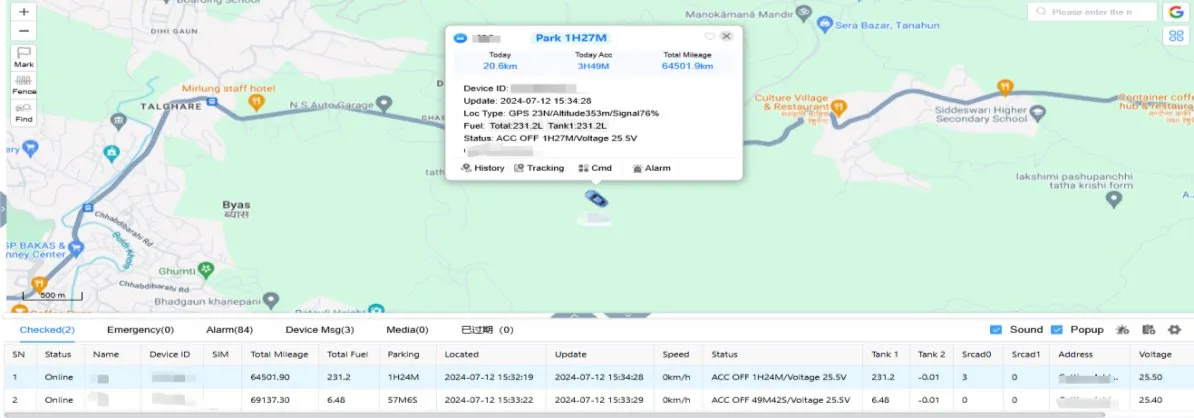

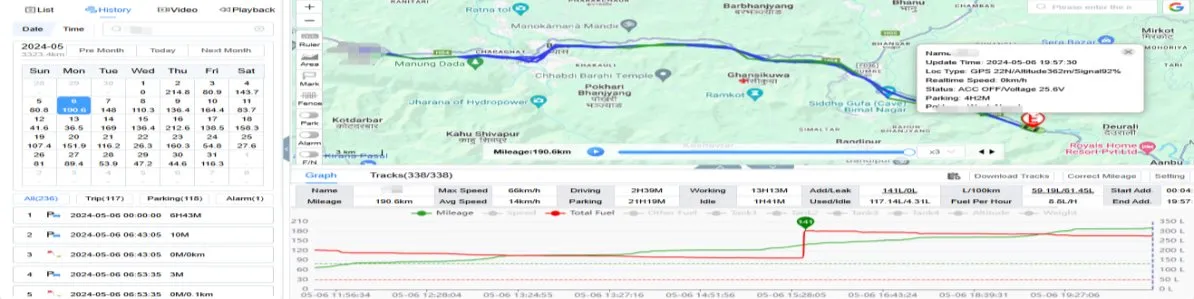

Connectivity Specs Power Specs
Application Fields

Suitable for all motor vehicles including logistics fleets, dump trucks, anti-theft systems, and global satellite command systems across diverse industries.

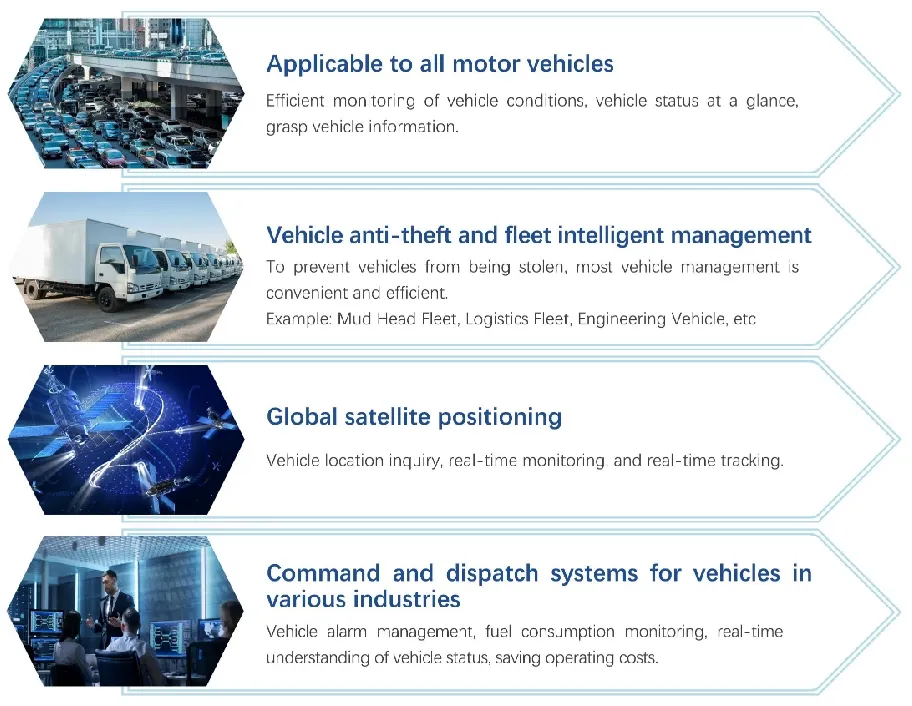

Application Examples
Production & Facilities

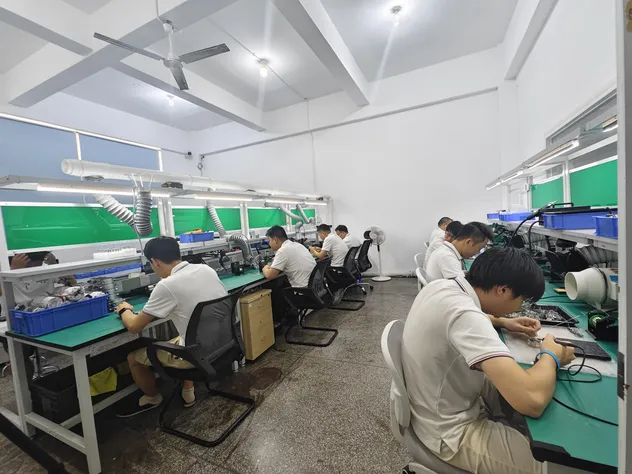

Workshop 1

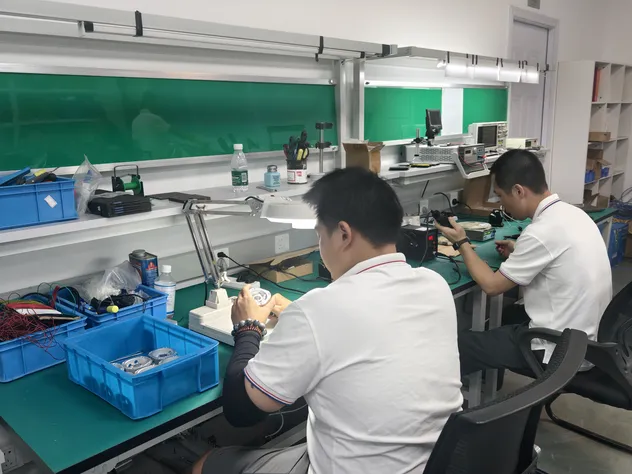

Workshop 2

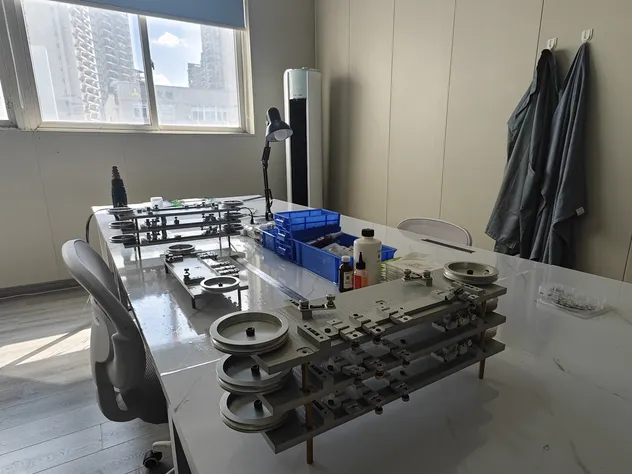

Workshop 3
Frequently Asked Questions
What is the core expertise of your production?
We specialize in R&D and manufacturing of precision sensors and IoT solutions, including Automotive IoT (ultrasonic level sensors, telematics units) and structural monitoring sensors.
Are you a manufacturer or a trading company?
We are a direct manufacturer with an in-house R&D center and production facilities. All products are independently designed and strictly quality-controlled.
What is the Minimum Order Quantity (MOQ)?
For standard products, the MOQ starts from 10 units. For customized projects, the MOQ varies based on complexity.
What is the typical lead time for an order?
Standard products usually ship within 15-30 days after confirmation. Customized products may take longer depending on specific requirements.
Can I request samples before placing a bulk order?
Yes, samples are available. We charge for samples and freight, but the sample cost will be refunded once a formal bulk order is placed.
Does the device support remote firmware updates?
Yes, the device supports remote upgrades via TFTP deployed on the server, allowing for easy maintenance without physical access.
