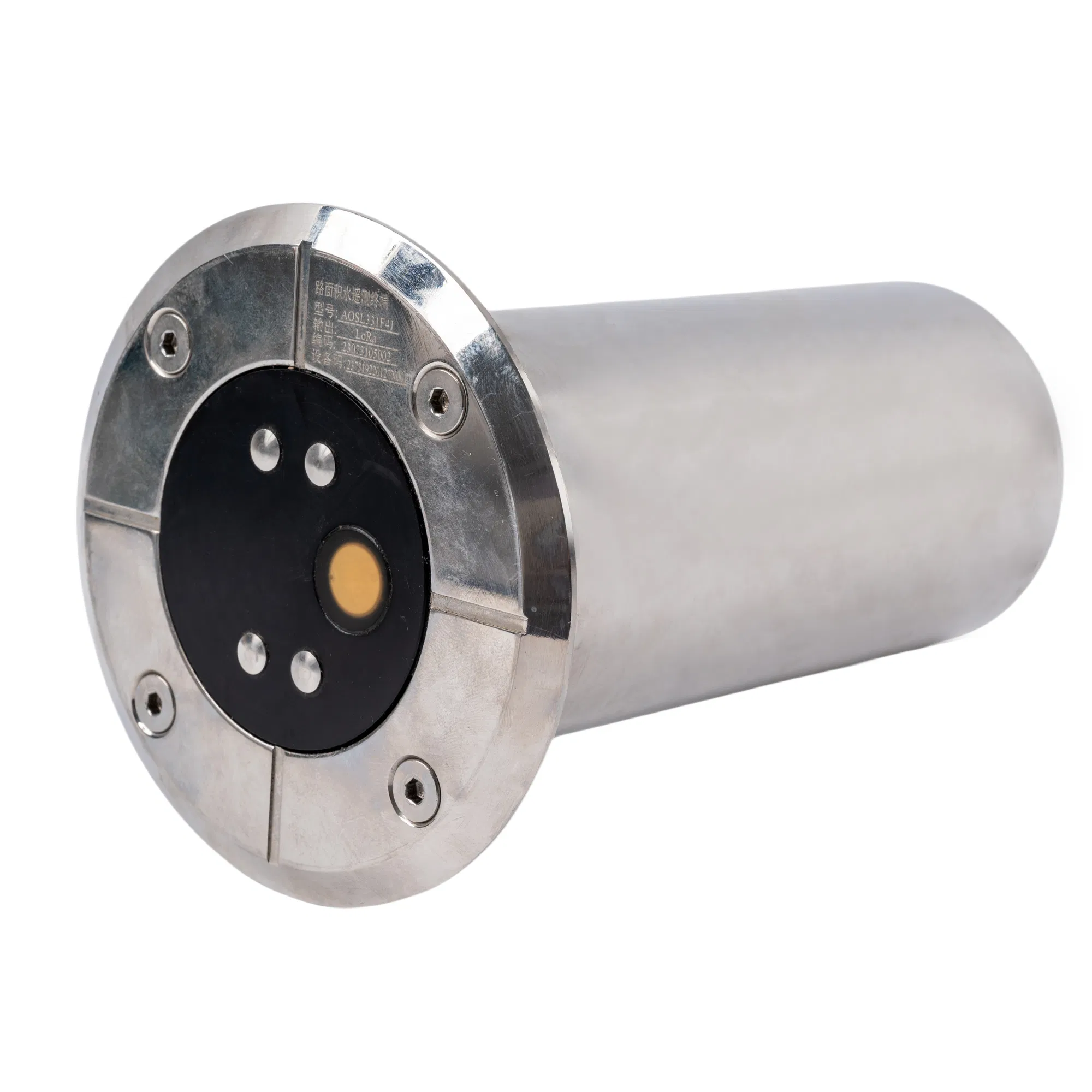

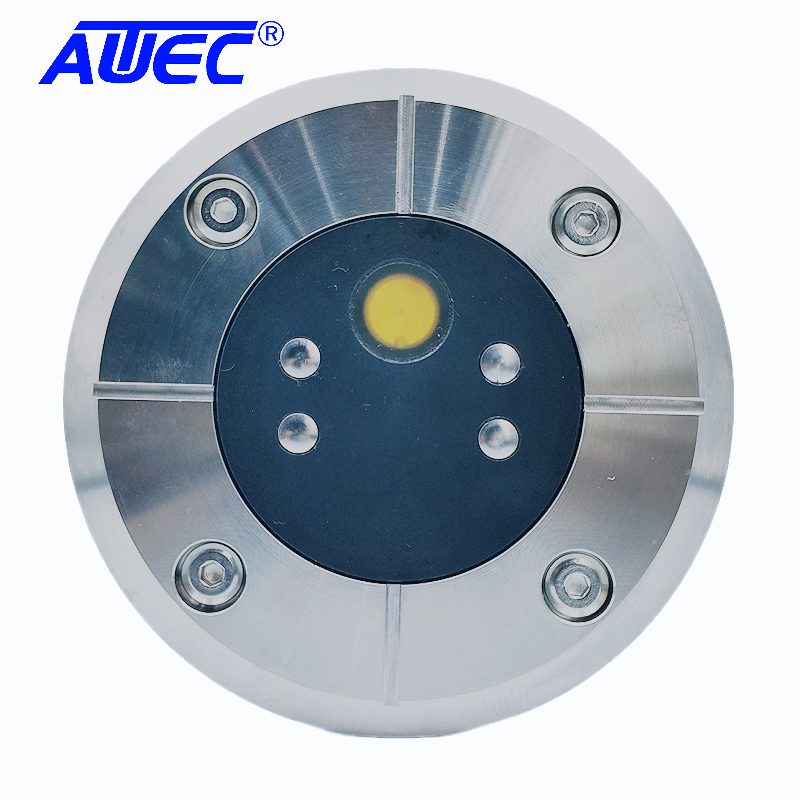

Aosl33 (Buried Type) Road Surface Waterlogging Remote Monitoring Terminal

Still deciding? Get samples of $ !
Order Sample

Product Description

Technical Specifications
Model NO.
AOSL33
Water Level Range
0-2m
Resolution
0.001m
Precision
0.5%
Package Size
15.00cm * 15.00cm * 15.00cm
Package Gross Weight
8.000kg
Transport Package
Standard Carton
HS Code
9026100000
Product Overview

The product utilizes a composite sensor combining ultrasonic, pressure (optional), and conductivity measurements to detect water levels. Two sets of backup conductivity sensors are responsible for triggering water accumulation alerts, while ultrasonic and pressure (optional) sensors ensure precise water level measurement.

Reporting Frequency: During dry conditions, a safe status report is transmitted every 2 hours (configurable); during water accumulation, reports are sent every 5 minutes (configurable).
Main Technical Parameters
Measurement: water level, conductivity, temperature, signal strength
NB-IOT model: 0-0.5 meters (Signal > -80dB)
LORA RF version: 0-1.6 meters
Stainless steel pit press shell

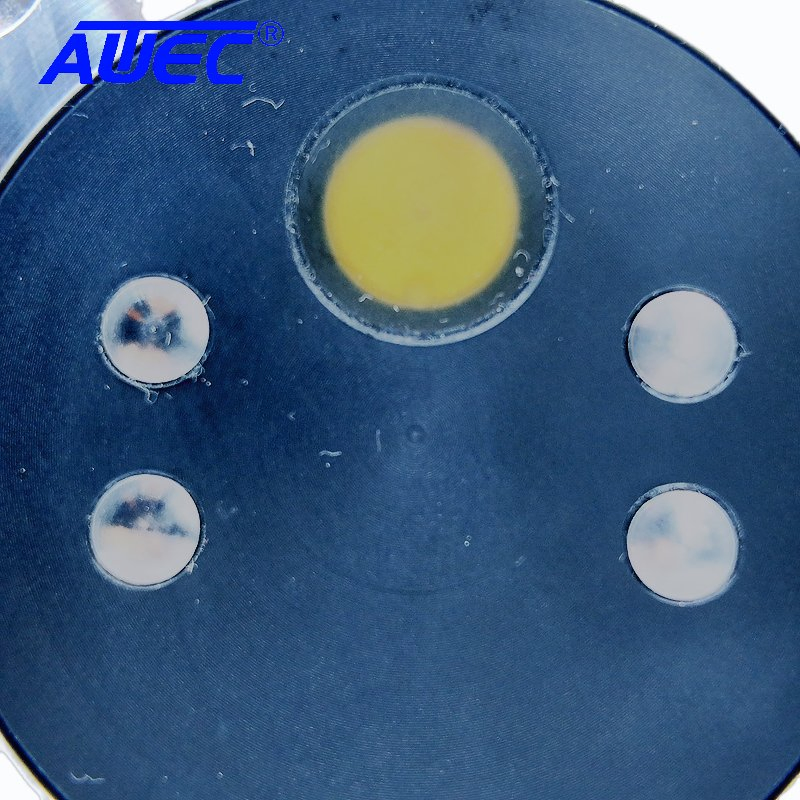

Ultrasonic and conductivity dual-mode sensor
Built-in integrated dedicated antenna
Easy battery replacement for low maintenance
Compact size, buried installation
NB & LORA support remote OTA
All parameters support remote setting
Sediment permeability testing capable
Safety report & Airborne wake-up technology
Application Scenarios

Measurement and warning of water accumulation on municipal roads, park roads, and important facilities (such as power facilities including transformers, substations, etc.).

Important Reminder: When using NB-IOT for direct wireless upload, confirm signal strength and stability at the installation point to ensure data transmission reliability. For unstable signal areas, please choose the robust LORA RF version.

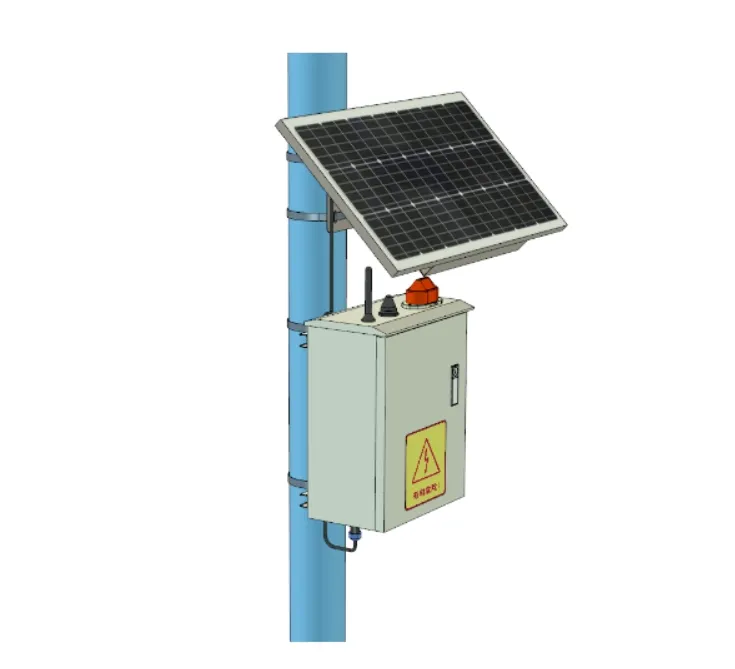

Signal Concentrator & System Display
Signal Concentrator Details 1
Signal Concentrator Details 2
Signal Concentrator Details 3
Signal Concentrator Details 4
Frequently Asked Questions
How does the AOSL33 detect water levels?
It uses a composite sensing system combining ultrasonic, conductivity, and optional pressure sensors for high-precision measurement and redundant backup.
What is the reporting frequency during emergency waterlogging?
During water accumulation events, the terminal transmits reports every 5 minutes (configurable) to provide real-time monitoring data.
Does the terminal affect the urban landscape after installation?
No, the terminal features a compact design intended for buried installation, ensuring it does not interfere with the aesthetic of municipal roads or parks.
Can the device parameters be adjusted remotely?
Yes, the AOSL33 supports remote OTA (Over-the-Air) updates and remote parameter configuration for both NB-IOT and LORA versions.
What should I consider when choosing between NB-IOT and LORA versions?
NB-IOT is ideal for direct wireless upload where signal strength is better than -80dB. LORA RF is recommended for areas where NB signal stability cannot be confirmed.
Is the battery easy to maintain?
The product is designed for convenient battery replacement, which significantly reduces long-term maintenance costs and complexity.
