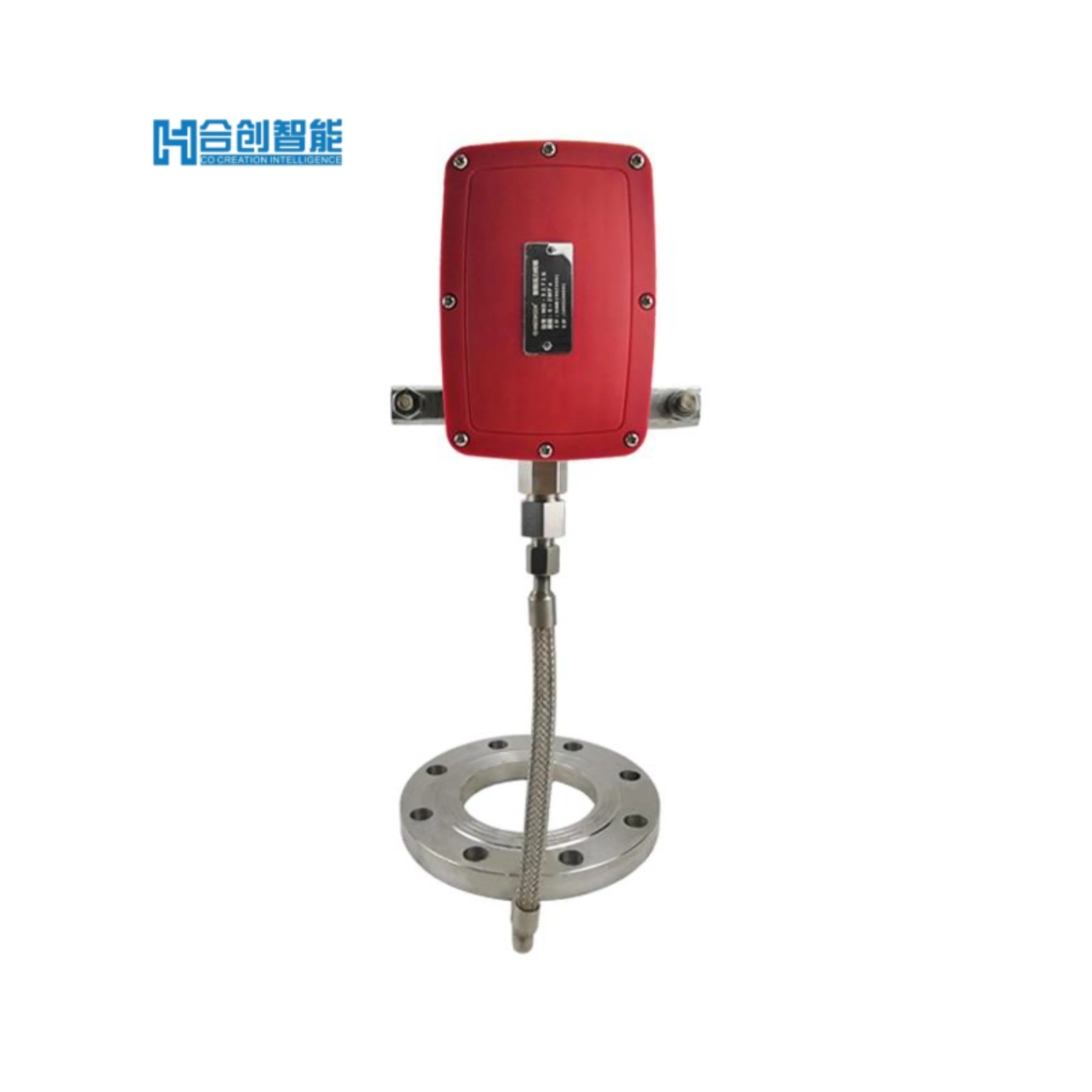

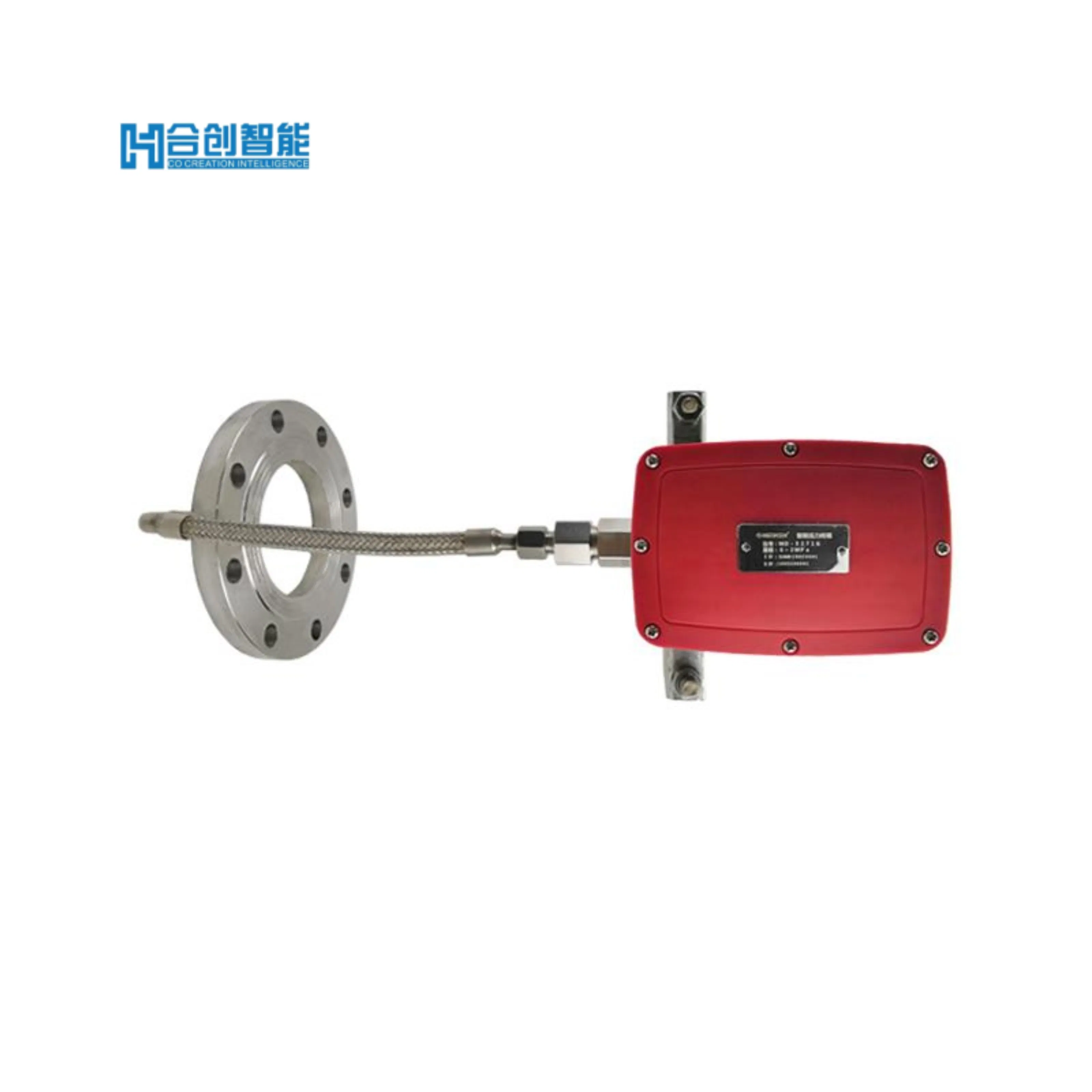

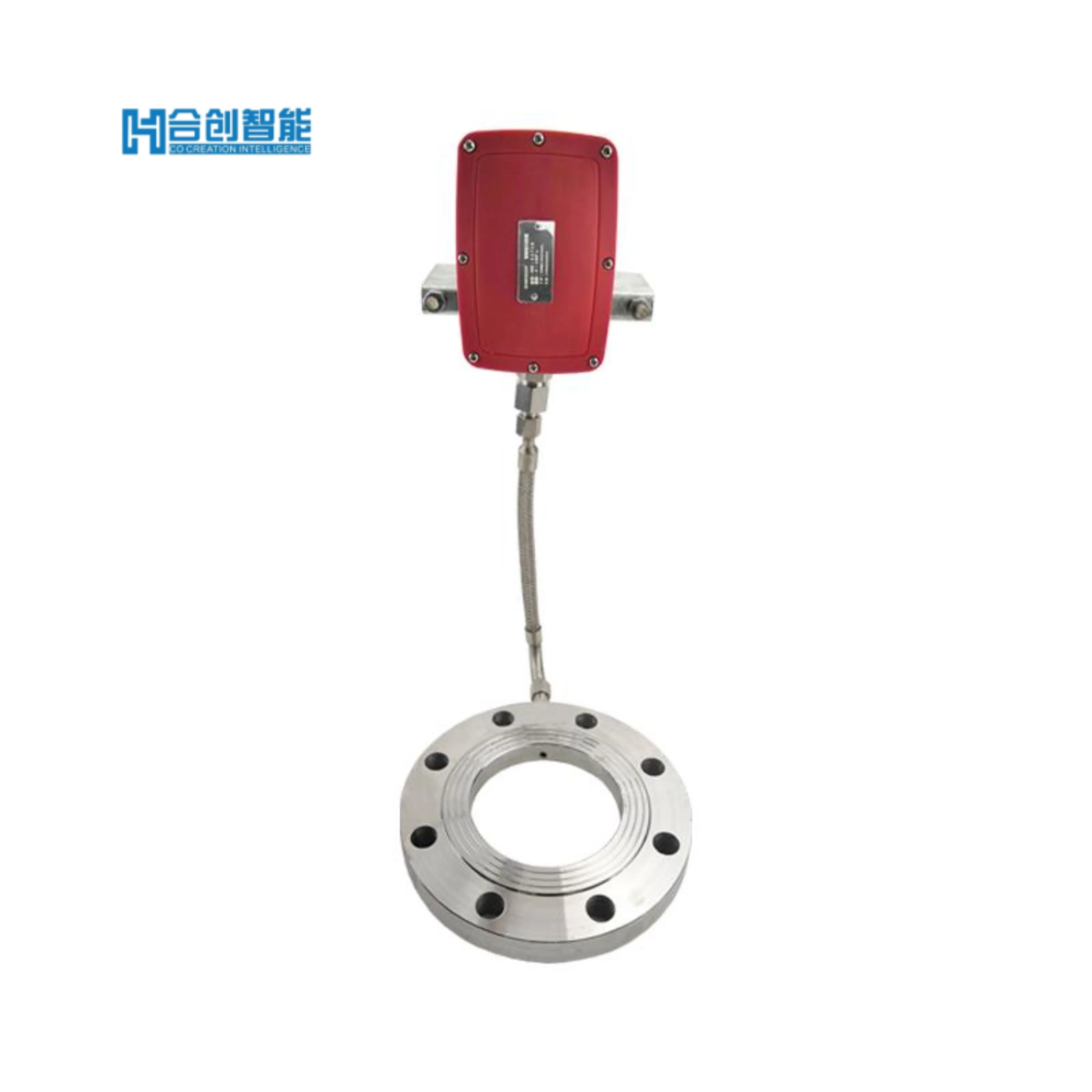

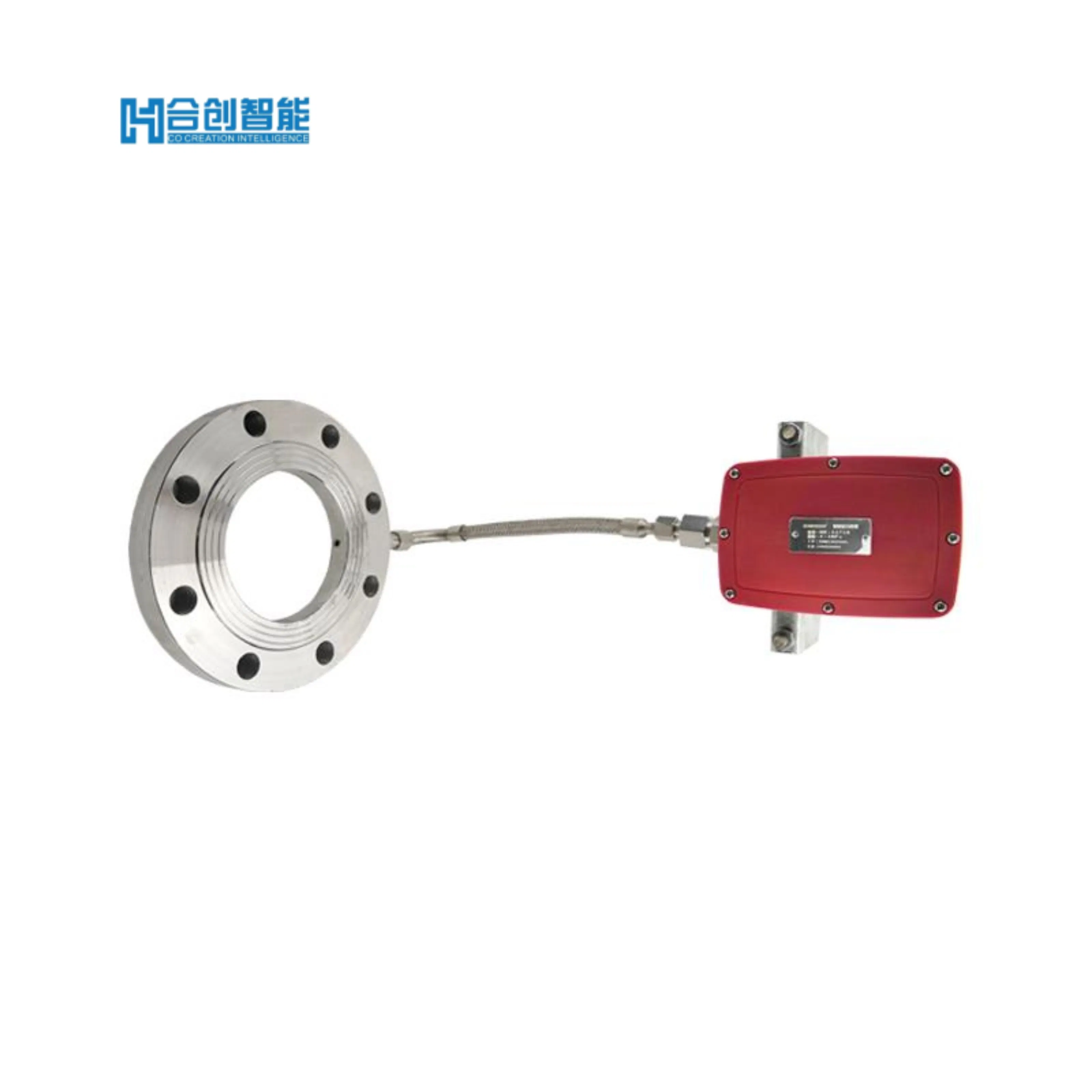

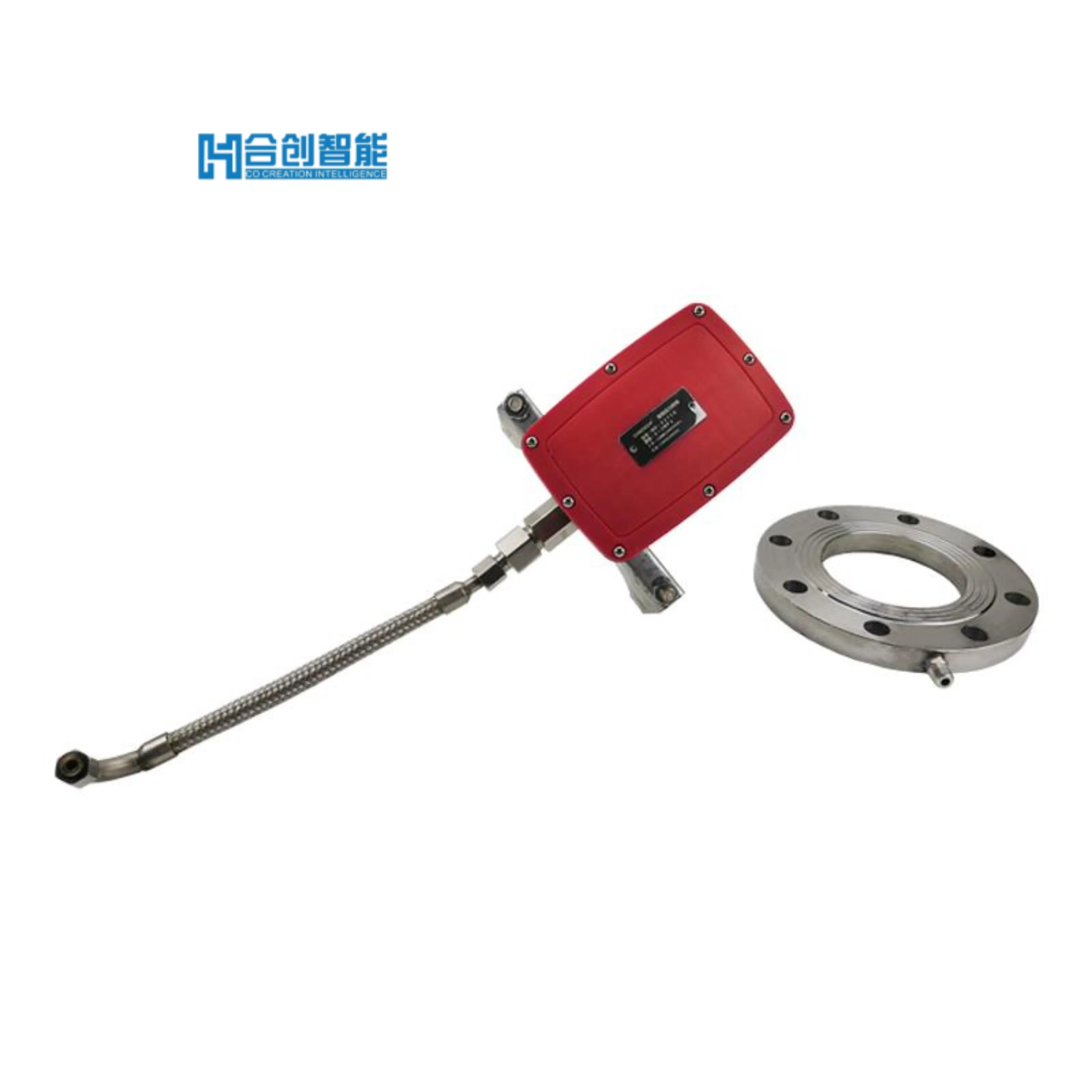

Hc-01h Wireless Smart Fire Hydrant Monitoring Terminal with Nb-IoT & IP68

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
HC-01H
Measuring Medium
Liquid
Accuracy Grade
0.5G
Pressure Range
0~1.5kPa
IP Rating
IP68
Certification
Sil3
Communication
Nb-IoT
Sensor Core
Diffused Silicon
Product Description

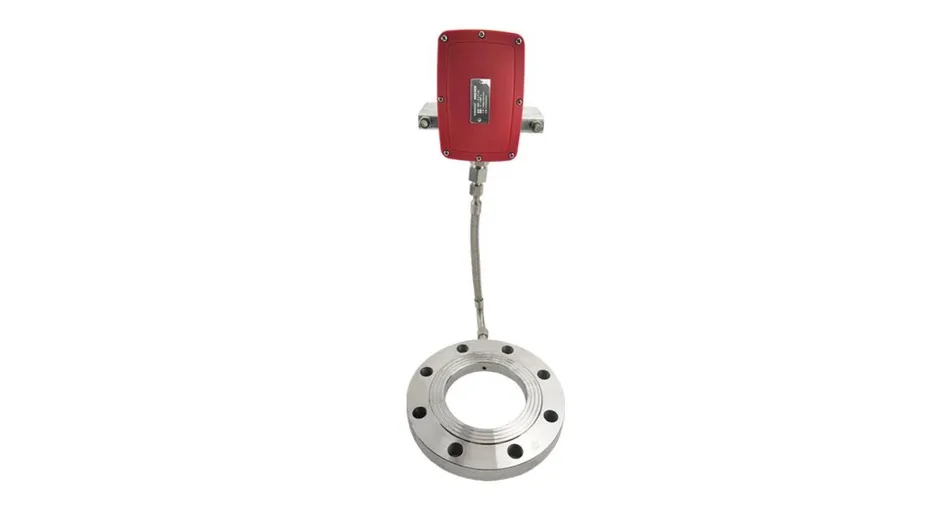

Smart Fire Hydrant Monitoring Terminal

The HC-01H represents the cutting edge in fire hydrant monitoring technology. This wireless terminal utilizes advanced NB-IoT communication and integrated sensors to provide real-time monitoring of hydrant status, pressure conditions, and physical security. Its ultra-low power design ensures years of maintenance-free operation, making it ideal for municipal water systems and fire protection networks.

Key Features
  • Real-time pressure monitoring
  • Tilt and impact detection
  • Dual configuration (Bluetooth/Remote)
  • Automated data reporting
  • IP68 Robust housing
  • Long-life battery technology
Technical Specifications
ParameterSpecificationParameterSpecification
ModelHC-01H Tilt Threshold≥30° (Adjustable)
CommunicationNB-IoT Power Supply3.6V Lithium Battery (38Ah)
Pressure Range0-2.5MPa Operating Current<70μA (Sleep)
Accuracy Class0.5 Environment-20℃ to 70℃
Housing MaterialCast Aluminum Weight5.5kg
Certifications

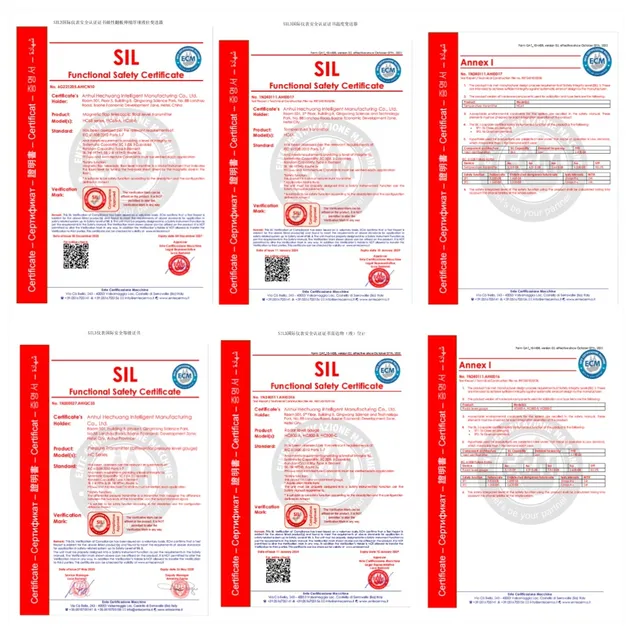

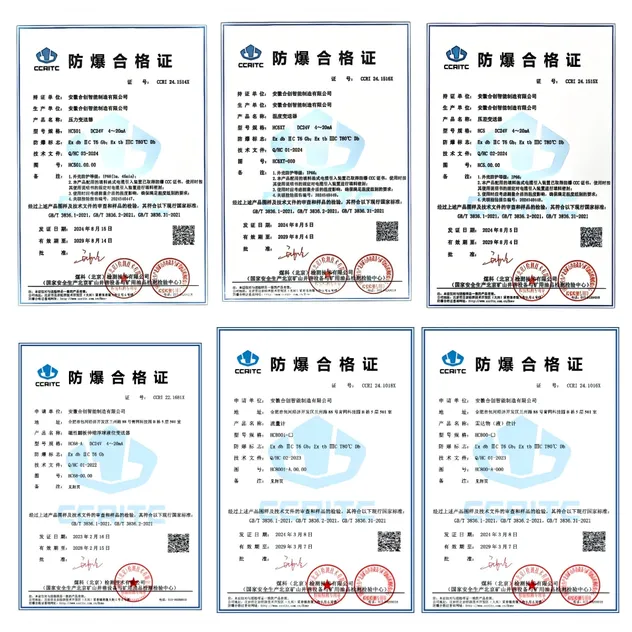

Certification 1 Certification 2 Certification 3

Our products hold SIL certification, indicating meeting safety integrity level requirements. The explosion-proof certificates prove the ability to operate safely in hazardous environments such as petroleum and chemical industries.

Manufacturing & R&D Strength

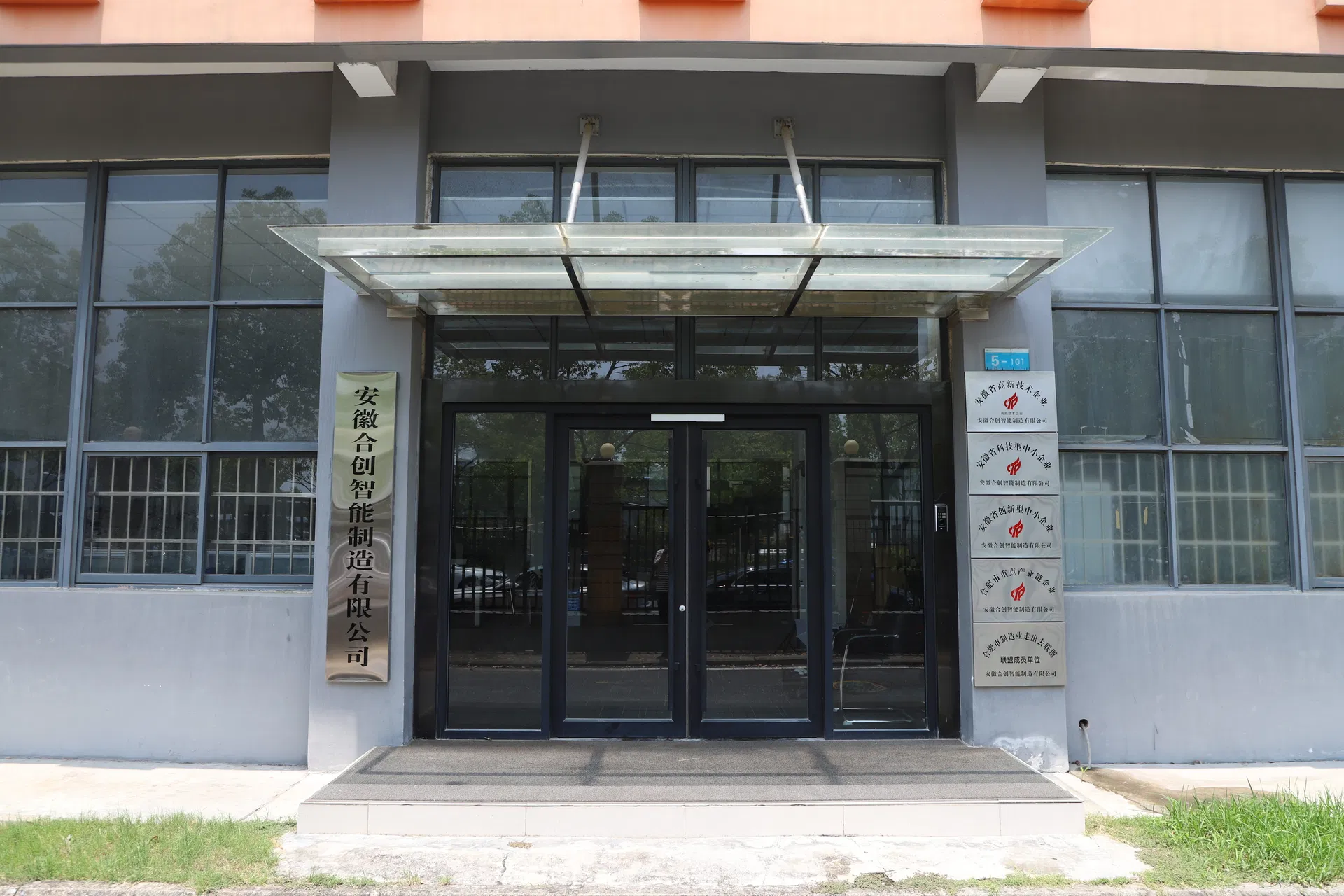

Factory Overview

Equipped with internationally advanced production lines and precision machining centers, we focus on intelligent pressure, differential pressure, temperature, and level measurement instruments. Our R&D team continuously innovates, holding multiple national patents and computer software copyrights to ensure cutting-edge data analysis and control functions.

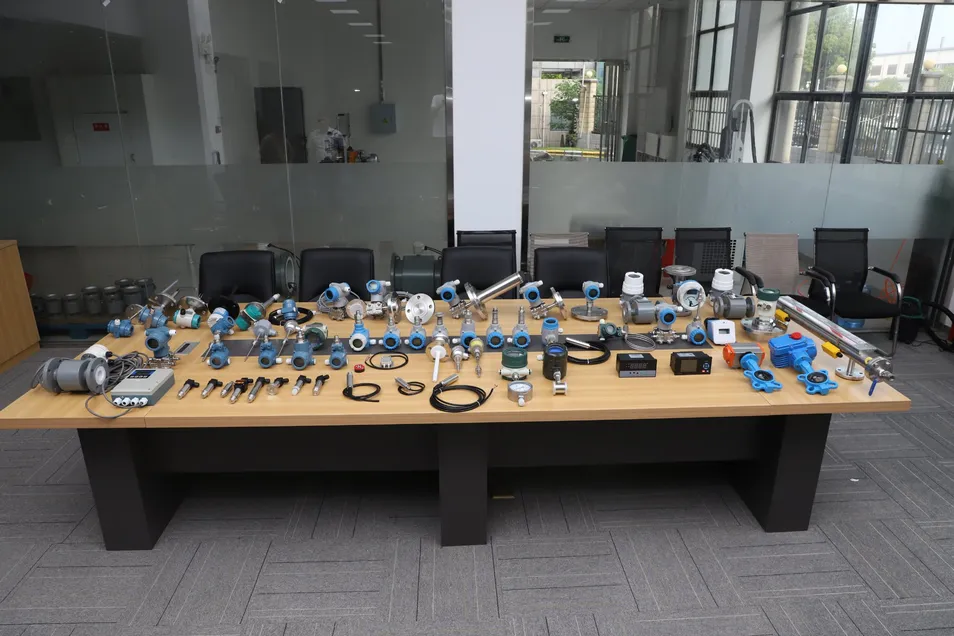

Production Line 1 Production Line 2
Frequently Asked Questions
1. What is the primary function of the HC-01H terminal?
The HC-01H is designed for real-time monitoring of fire hydrant pressure, status, and physical security (tilt/impact detection) using NB-IoT technology.
2. Does the device support outdoor harsh environments?
Yes, the device features a robust housing with an IP68 protection rating, making it completely waterproof and dustproof for outdoor municipal use.
3. What are the communication and data reporting intervals?
By default, it collects data every 3 minutes and transmits it every 120 minutes. These intervals are fully configurable based on your network requirements.
4. How is the device powered and what is the battery life?
It is powered by a high-capacity 3.6V/38Ah Lithium battery. Combined with its ultra-low power sleep mode (<70μA), it provides long-term maintenance-free operation.
5. Can the pressure range and interface be customized?
Yes, we provide OEM/ODM services. The pressure range (standard 0-2.5MPa), connection interface (standard M20×1.5mm), and materials can be customized.
6. What certifications does the product carry for safety?
The terminal holds SIL3 safety integrity certification and explosion-proof certification, ensuring reliability in high-risk industrial environments.
