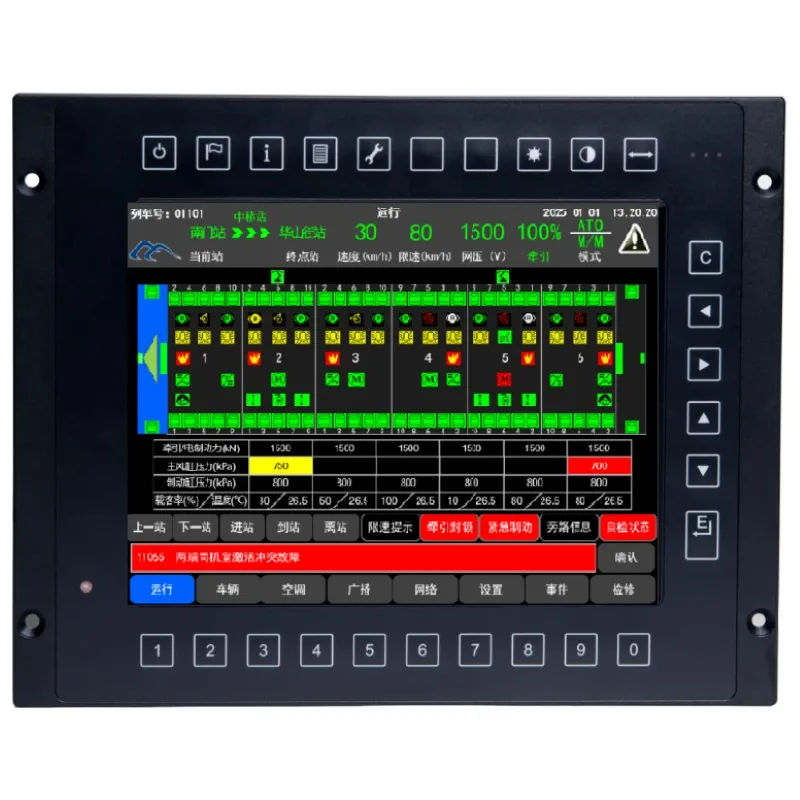

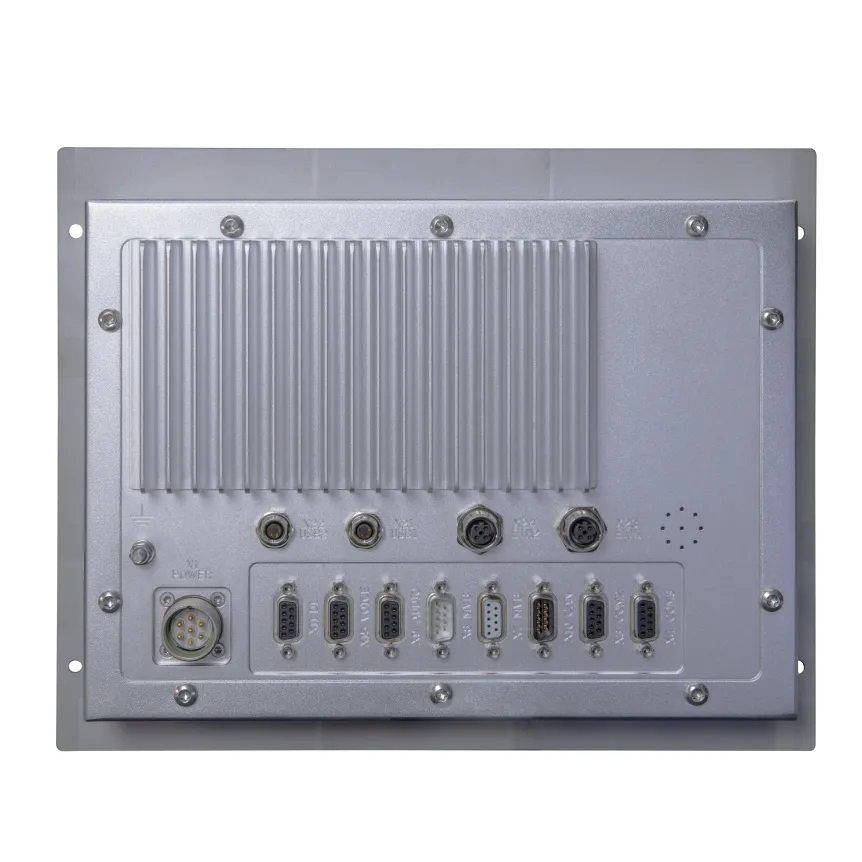

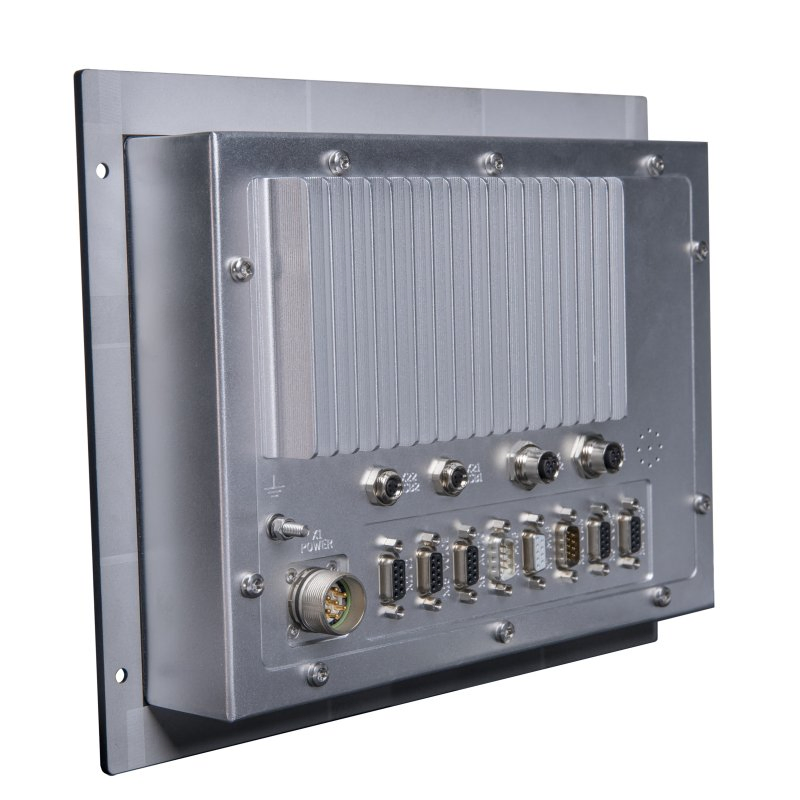

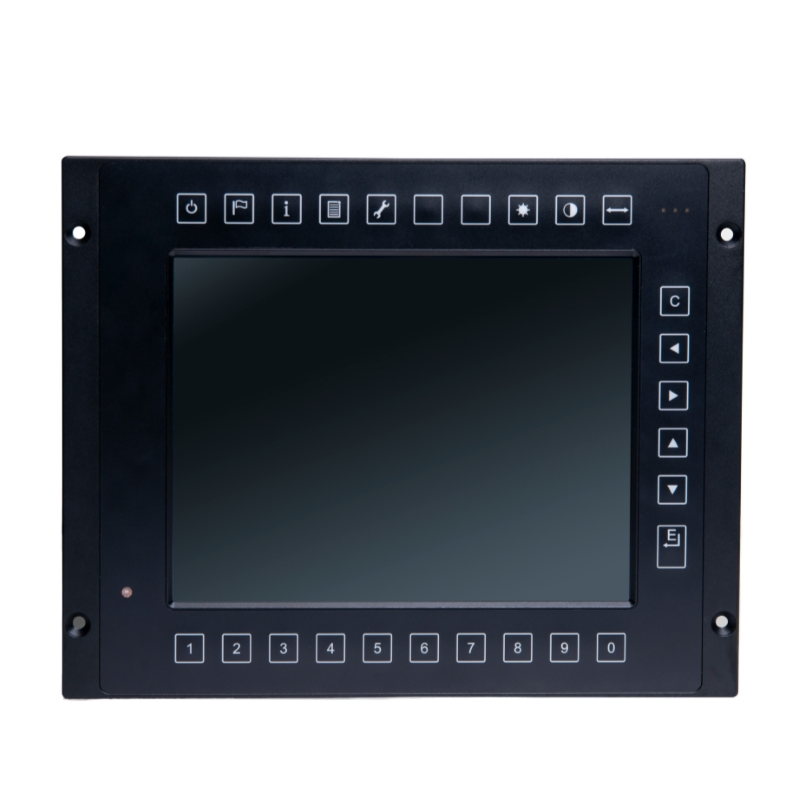

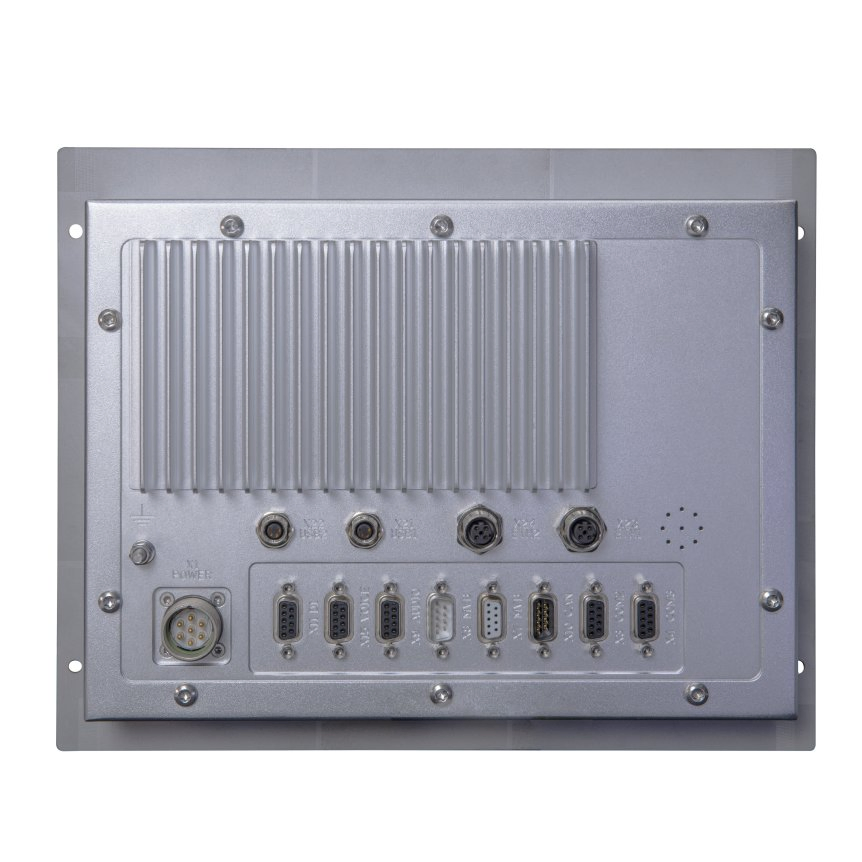

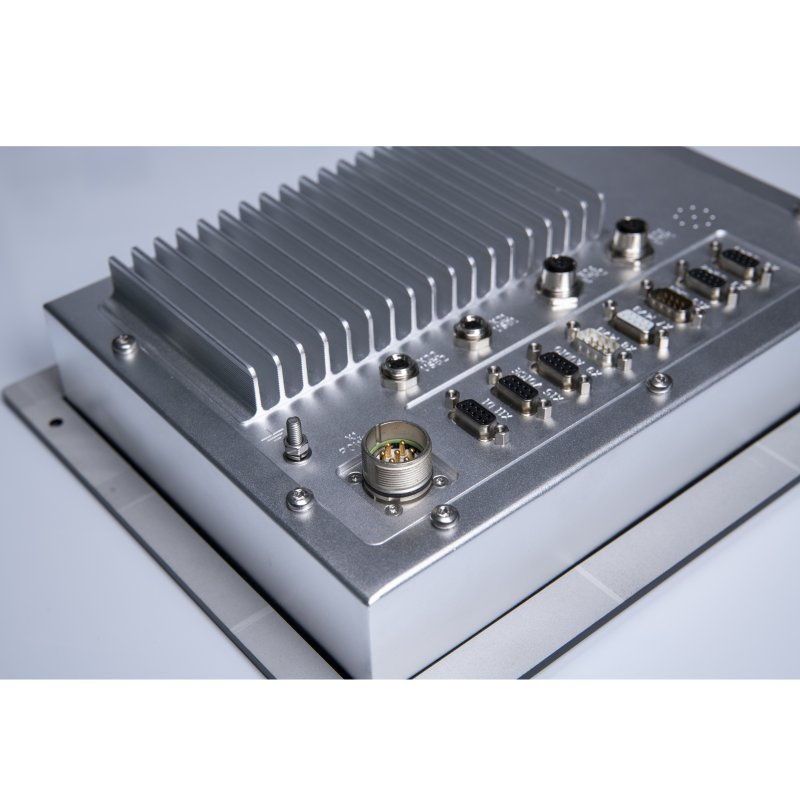

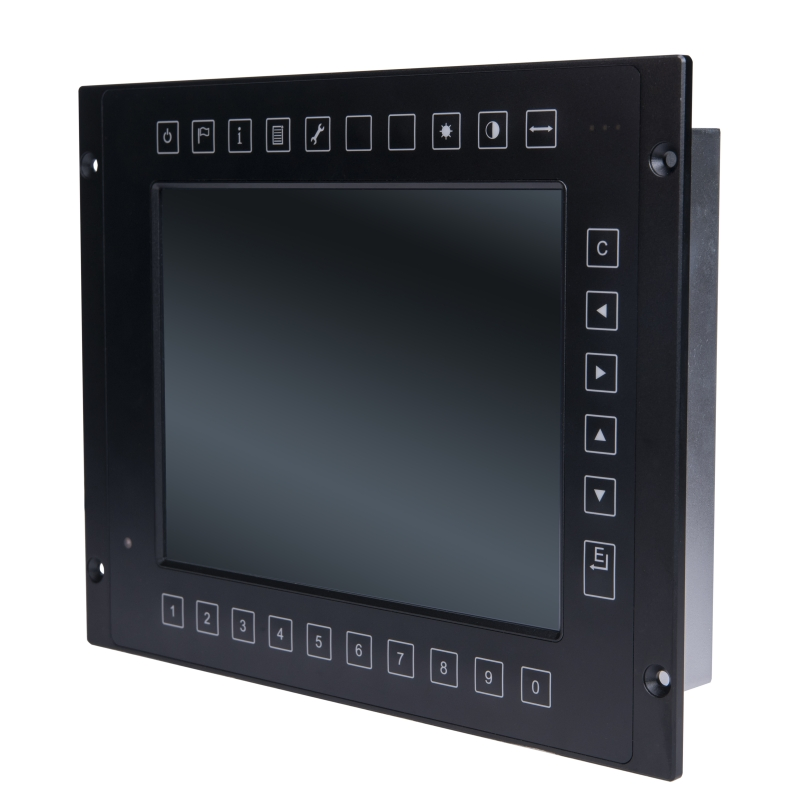

Our driver machine interface (DMI) is a customizable, industrial-grade HMI panel designed for railway vehicles. It can serve as both a driver console terminal and a TCMS-integrated display for various types of rolling stock including high-speed trains, metros, and locomotives. It is fully customizable to meet various requirements in different railway systems. We offer flexible configurations including: display sizes, touch types, operating systems, processor platforms, interfaces and many functional expansions.
We support ODM/OEM services, and hardware/software customization according to project specifications. Let us know your requirements - we deliver railway-grade HMI solutions tailored to your system.
| Hardware | Display Size | 10.4 inch |
| Resolution | 800*600 | |
| Brightness | Not less than 400nits (Adjustable) | |
| Viewing Angle | Horizontal: -85° to +85° / Vertical: -85° to +65° | |
| Touch Input | Resistive / Capacitive | |
| Processor | Quad-core ARM 1.8GHz | |
| RAM / Memory | 2GB / 8GB (eMMC) | |
| Input Voltage | DC 110V (-30%~+25%) | |
| Thermal Design | Fanless design, Passive cooling | |
| Standards | EN 50155, GB/T 25119 | |
| Mechanical | Dimensions / Weight | 315 mm * 250 mm * 81.1 mm / < 4kg |
