Basic Information
Interface
BNC \ VGA \ HDMI
CPU
Arm Cortex A53 Dual Cores
Compression
H.264 / H.265
Product Description
The vehicle integrates satellite positioning monitoring, 8-channel 1080P high-definition video monitoring, 4G wireless communication, remote dispatching, emergency alarm, voice broadcasting, LED/LCD display control and rich expansion interface functions. With multi-core processor and powerful neural network engine, it supports a variety of AI intelligent functions and passenger flow statistics.
Product Characteristics
●
Audio & Video Monitoring
Support 8-channel full HD 1080P audio and video surveillance, using H.265 high compression.
●
Artificial Intelligence
Built-in passenger flow statistics and supports ADAS/DMS technology.
●
Continuous Recording
Support 256G SD card and single hard disk with shock protection for continuous recording.
●
Network Connectivity
Supports 4G/3G/2G Netcom, WIFI, and Ethernet connectivity.
●
Dual-Mode Positioning
Support GPS/BD dual-mode positioning for precise vehicle tracking.
●
Emergency Alarm System
Support ITMS platform for emergency, speeding, route deviation, and fatigue driving alarms.
Technical Parameters
| Project |
Category |
Description |
| System |
CPU |
ARM Cortex A53 dual cores |
| OS |
Linux |
| Video/Audio |
Encoding |
H.264/H.265 |
| Input |
8-way 1080P HD video + 1-way IPC |
| Positioning |
Mode |
Beidou/GPS/Global Navigation |
| Wireless |
4G/LTE |
Support GPRS/WCDMA/FDD-LTE/TDD-LTE |
| Storage |
HDD/SSD |
1T HDD (Max) / 2T SSD (Max) |
| SD Card |
256GB (Max) |
| Interface |
Serial |
RS232 x1, RS485 x1 |
| Ethernet |
1x 6-core air port (100M) |
| Environment |
Voltage |
DC 9V ~ 36V |
| Temperature |
-20°C ~ 70°C |

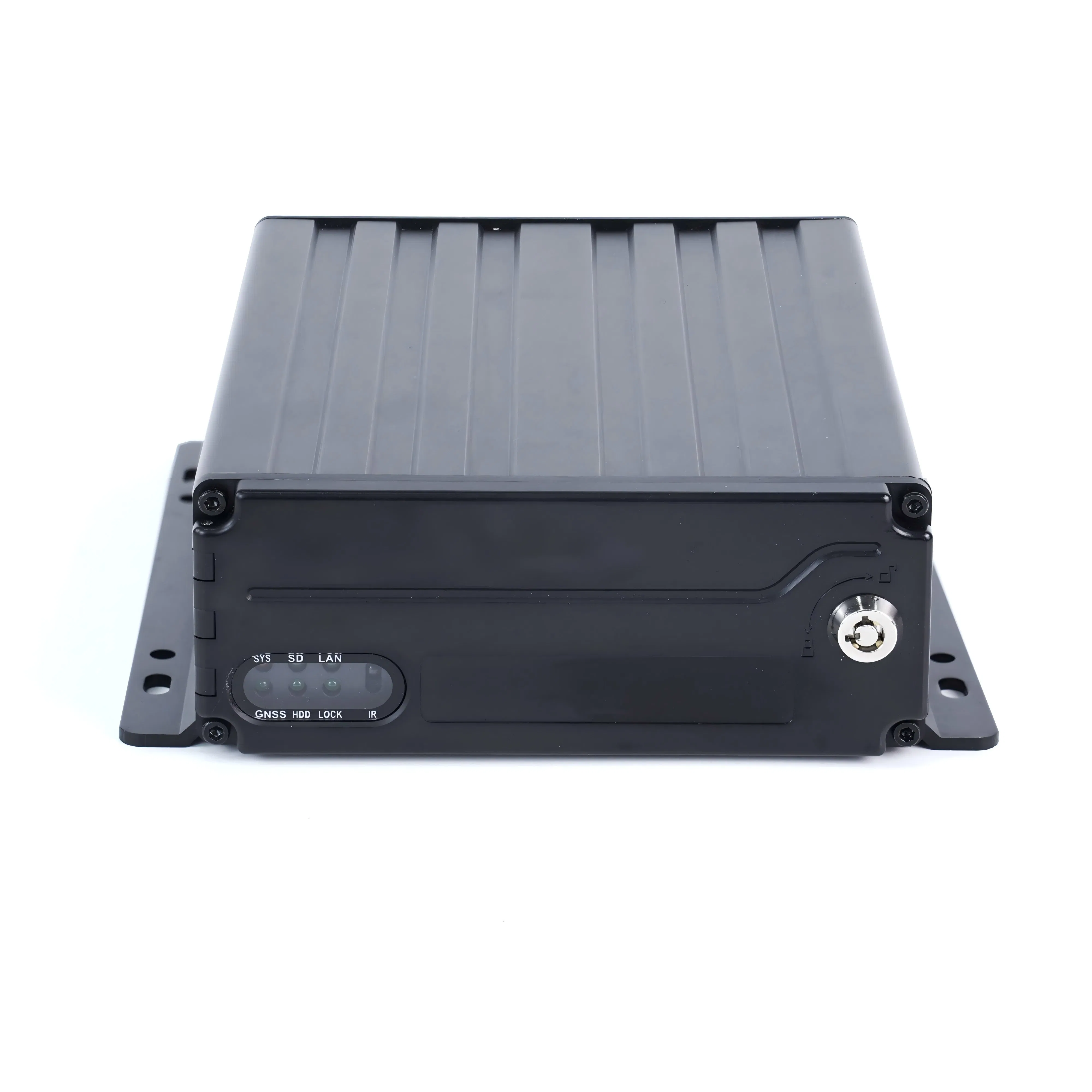

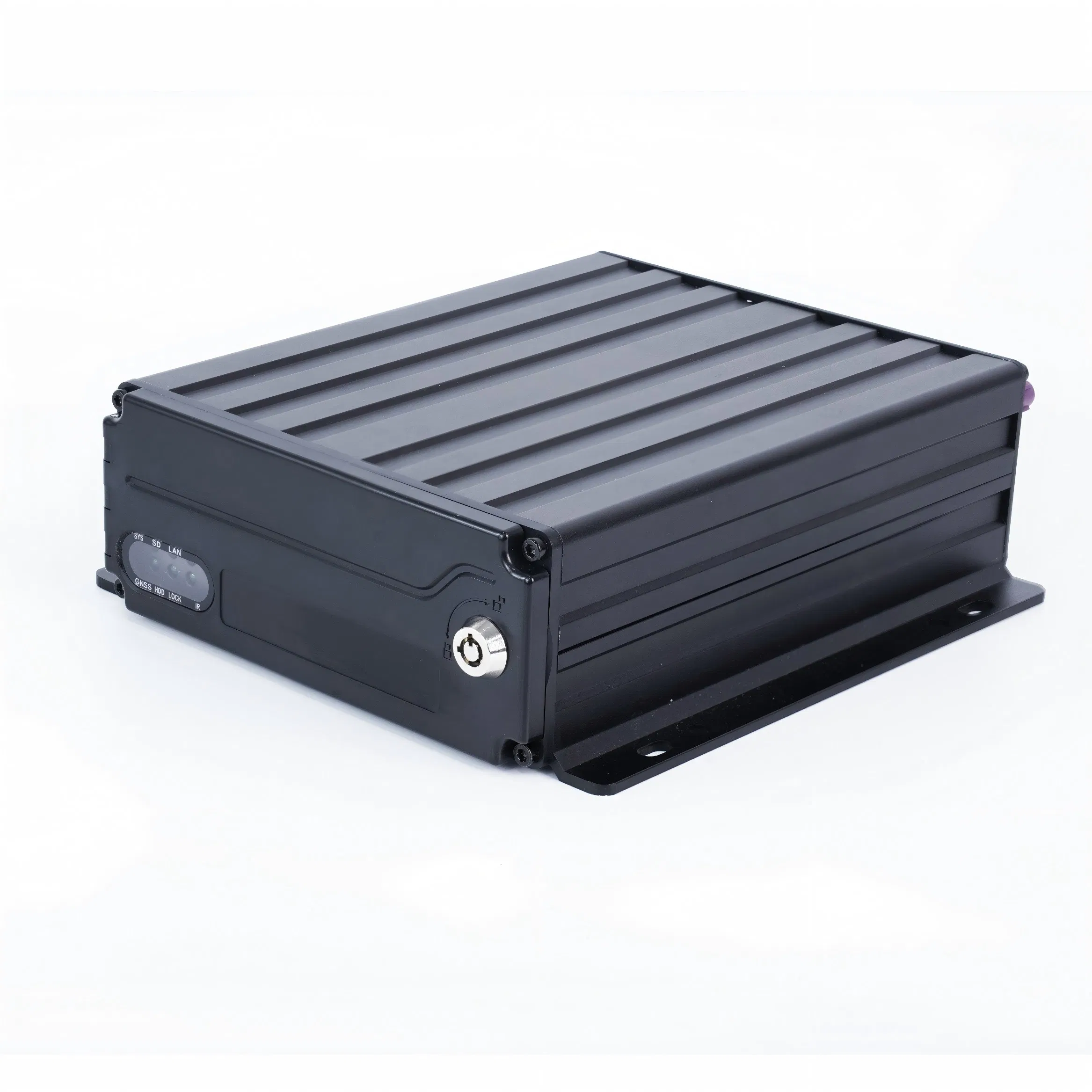

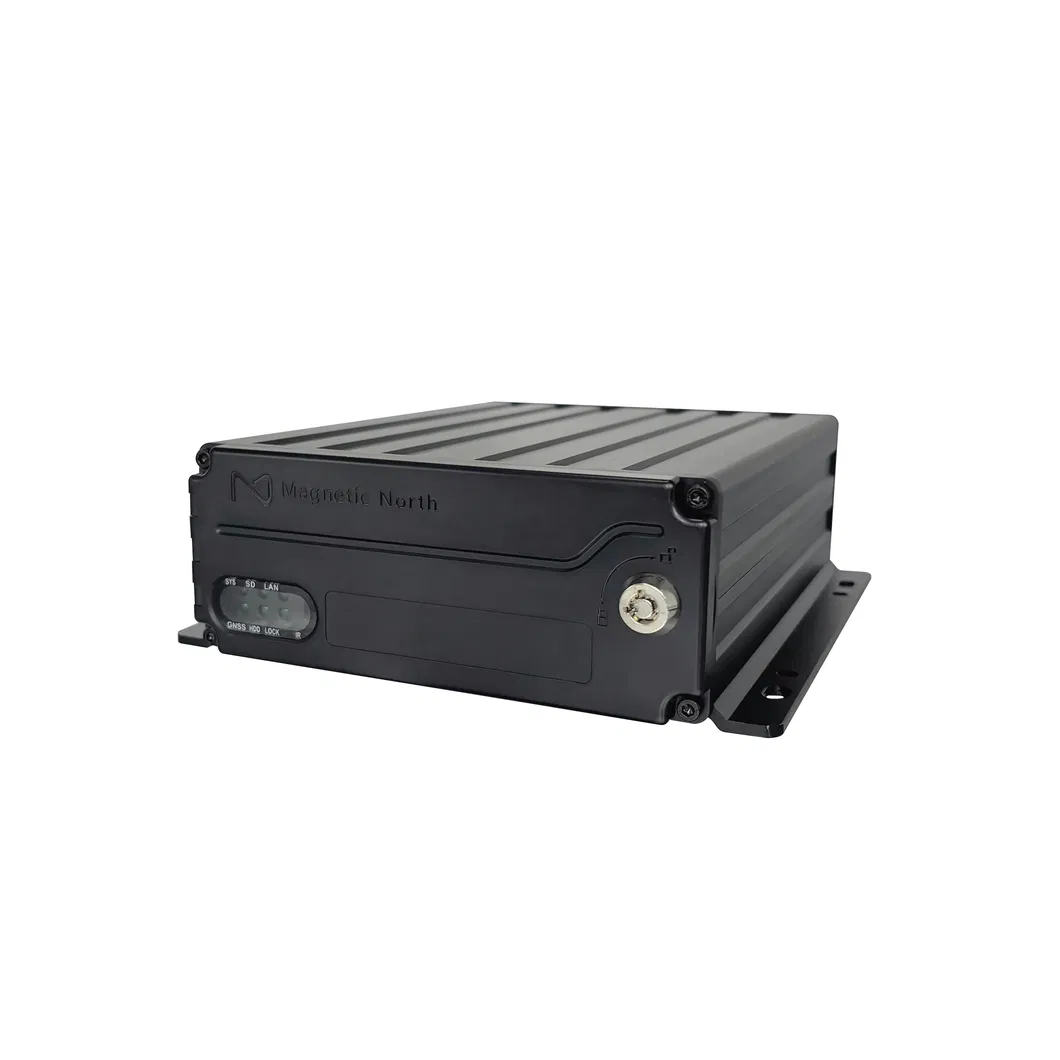

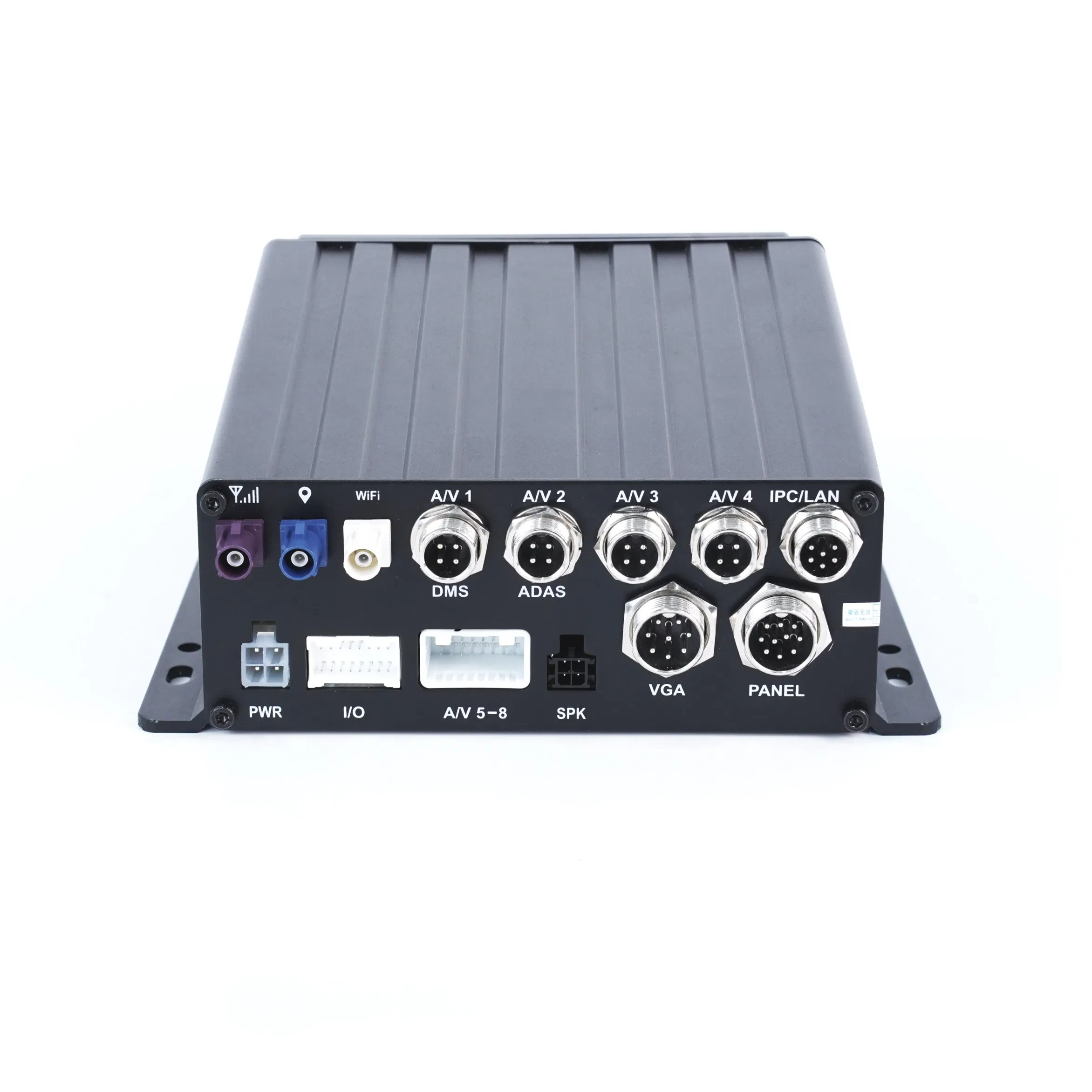

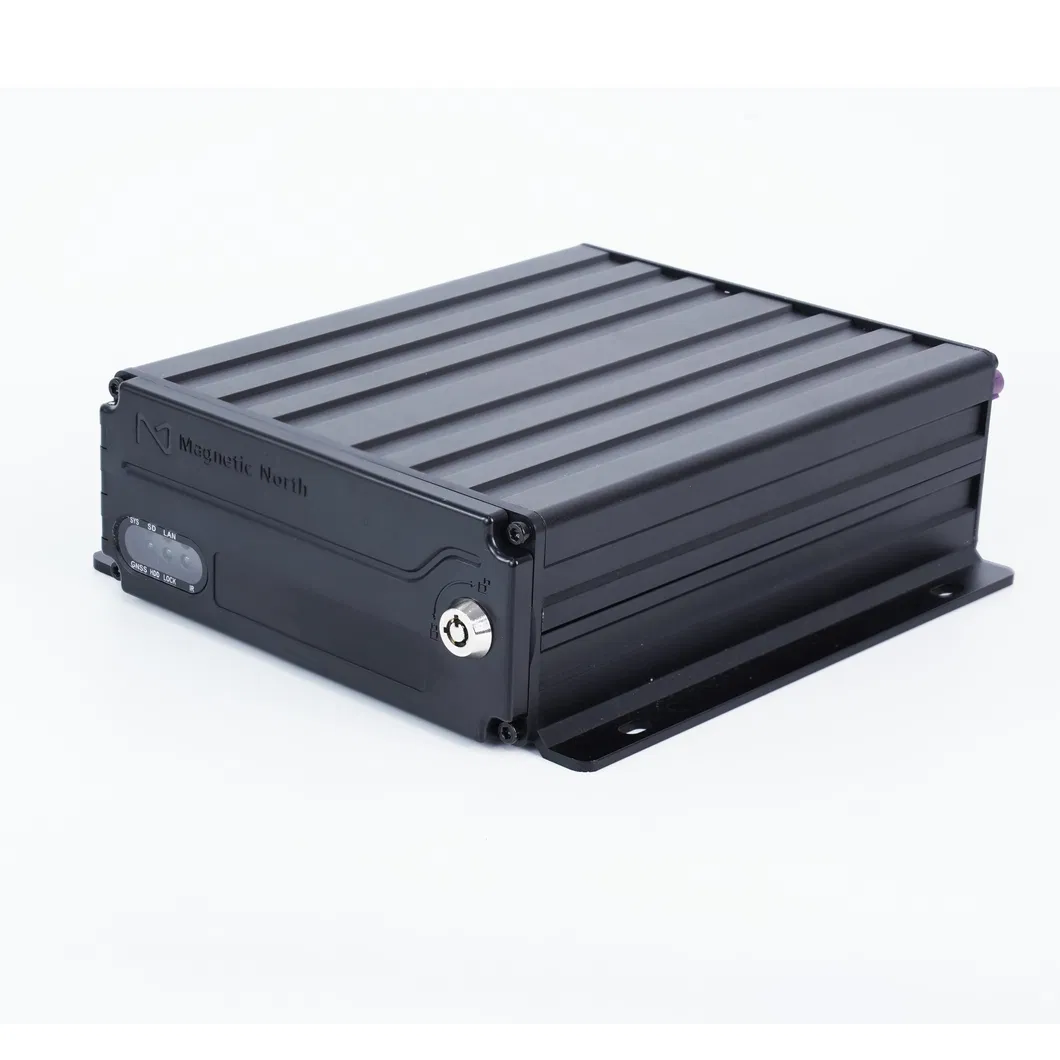

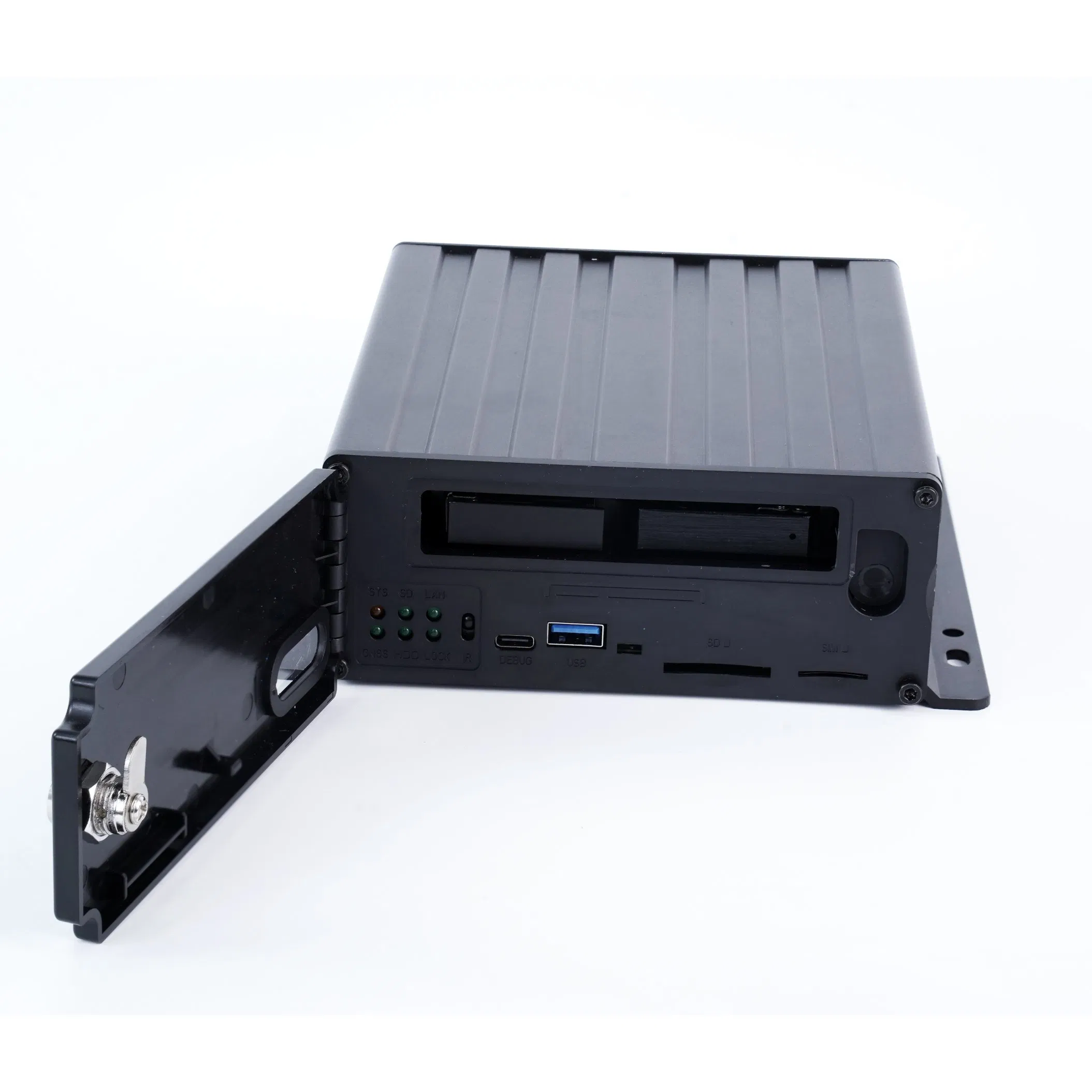

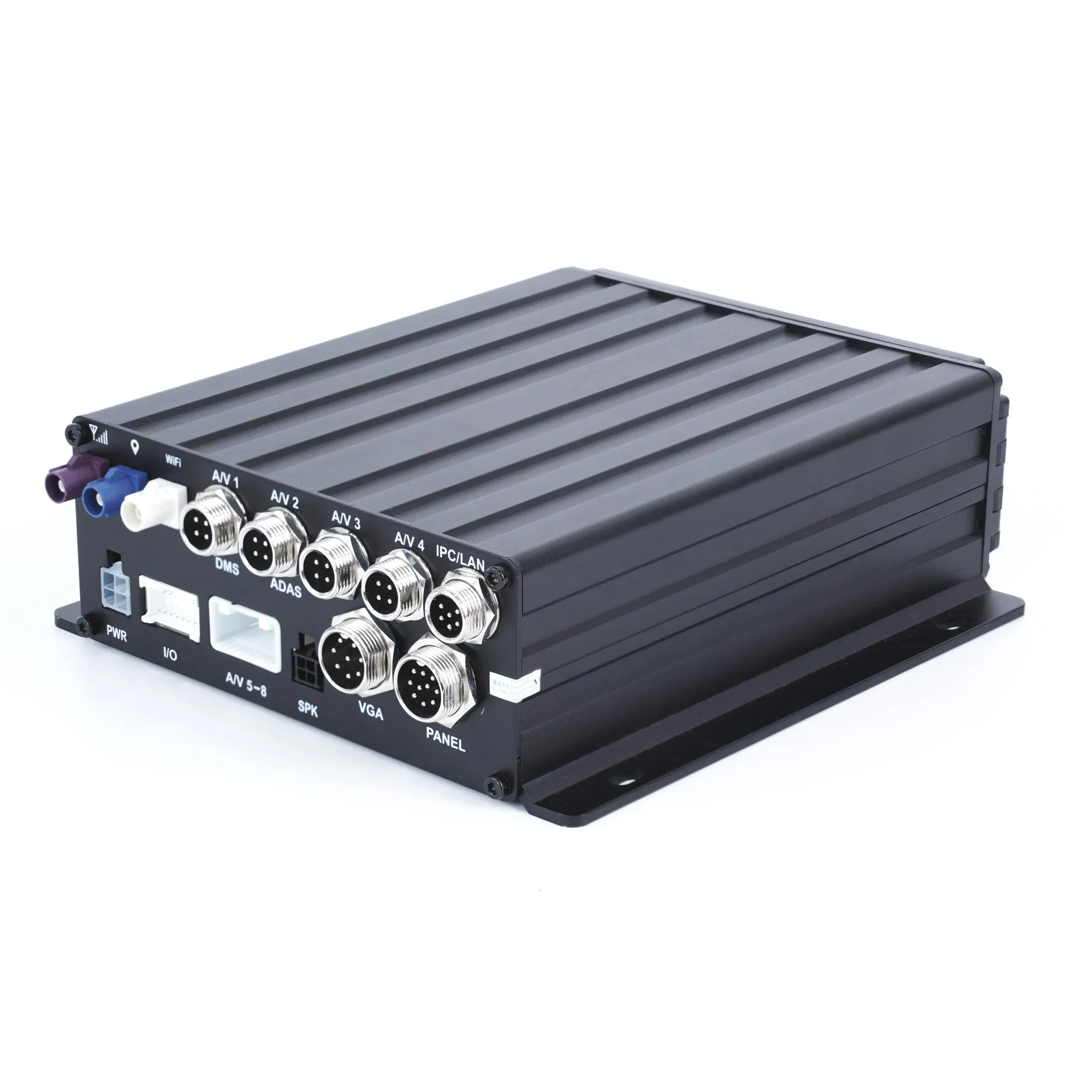

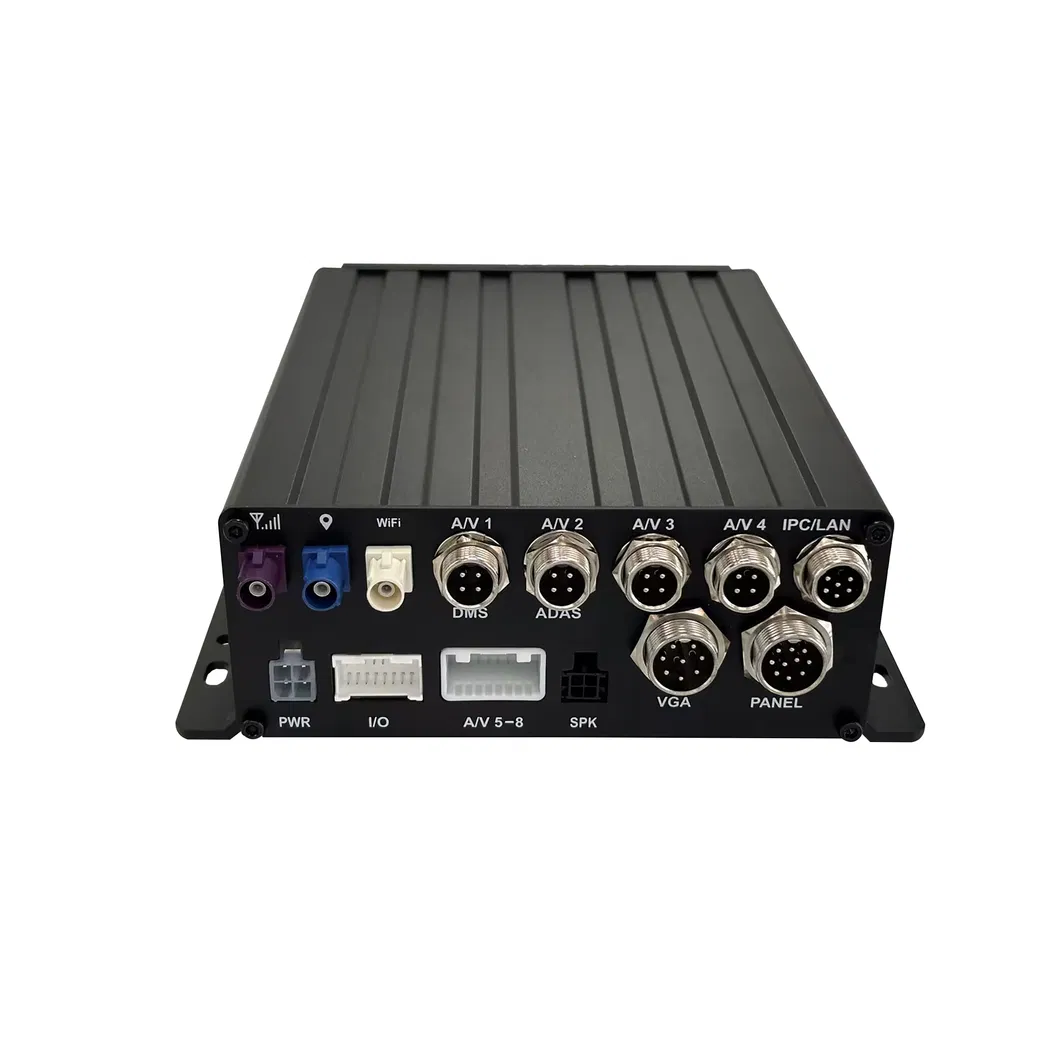

Product Gallery
Frequently Asked Questions
How many cameras can this vehicle terminal support?
The system supports up to 8 channels of 1080P high-definition video monitoring plus 1-way IPC input.
What are the storage capabilities for video recording?
It supports a maximum of 1TB for HDD, 2TB for SSD, and up to 256GB via SD card, featuring shock protection for stable recording.
Does this device support AI intelligent driving features?
Yes, it features a powerful neural network engine that supports ADAS (Advanced Driver Assistance Systems), DMS (Driver Monitoring System), and passenger flow statistics.
What type of network connectivity is supported?
The terminal is highly versatile, supporting 4G/3G/2G cellular networks, WIFI (802.11 b/g/n), and 100M Ethernet.
What is the required power supply for the terminal?
The device operates on a wide voltage range of DC 9V to 36V, making it compatible with both 12V and 24V vehicle systems.
Can it trigger alarms for unsafe driving behavior?
Yes, when connected to the ITMS platform, it can trigger alarms for speeding, fatigue driving, route deviation, and emergency situations.
