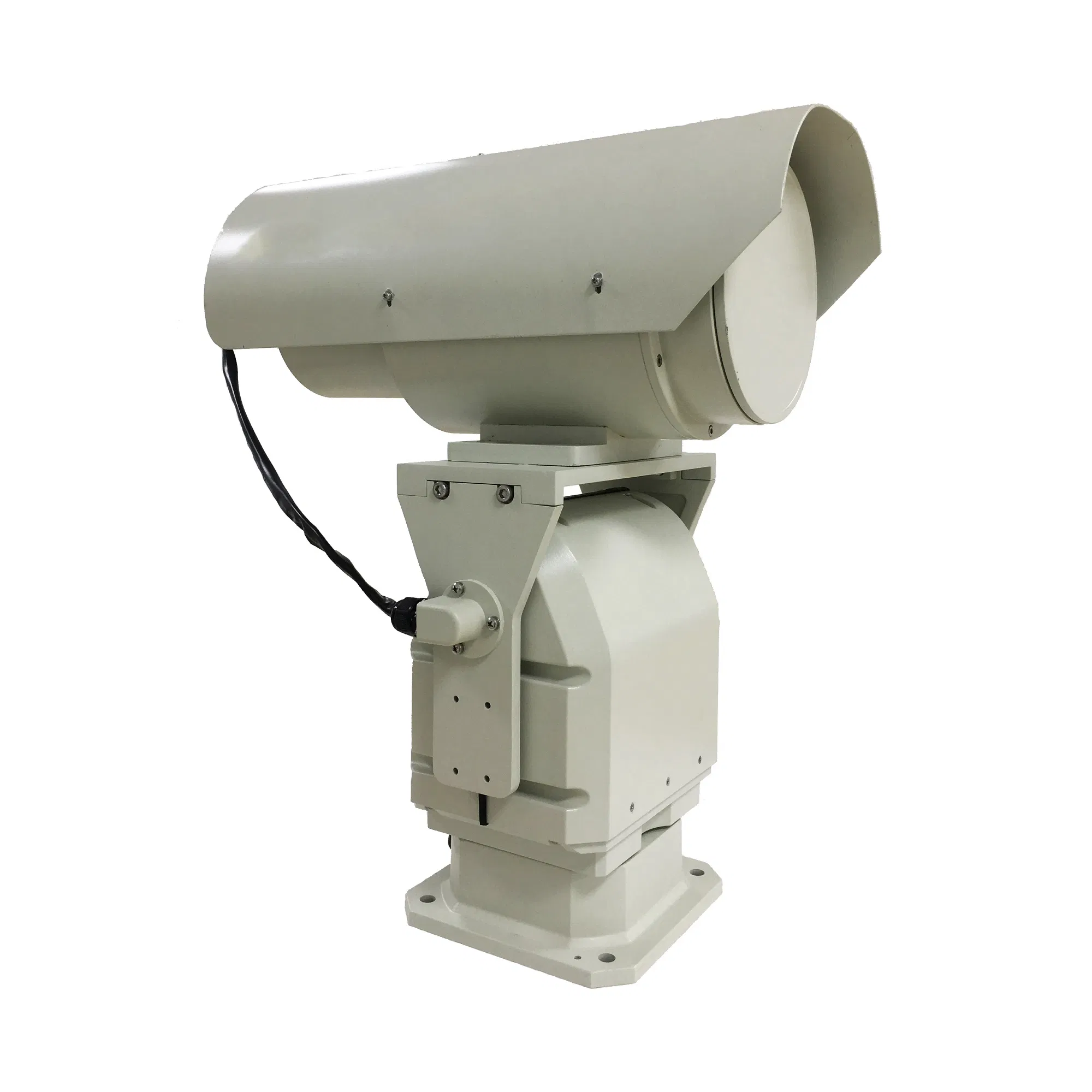

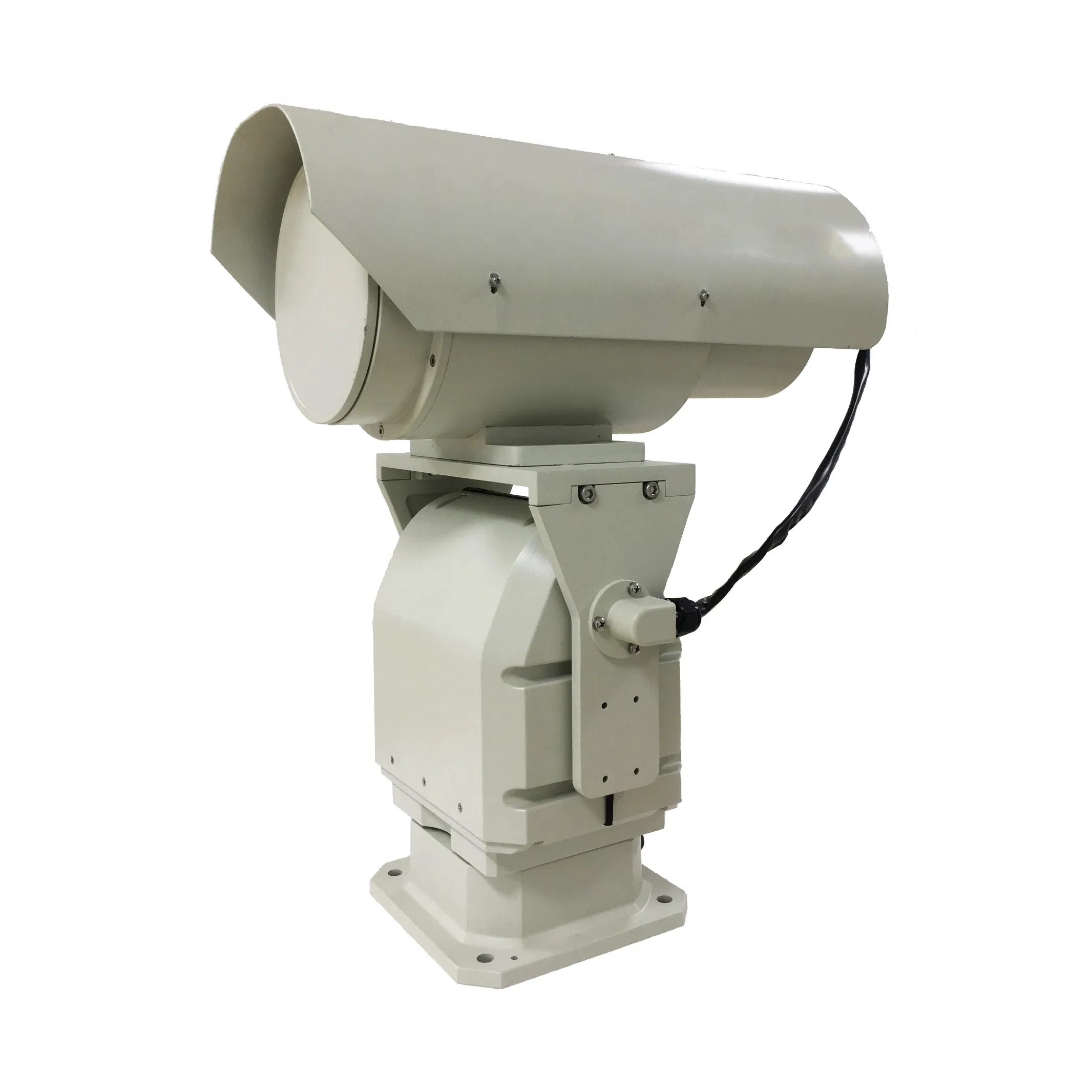

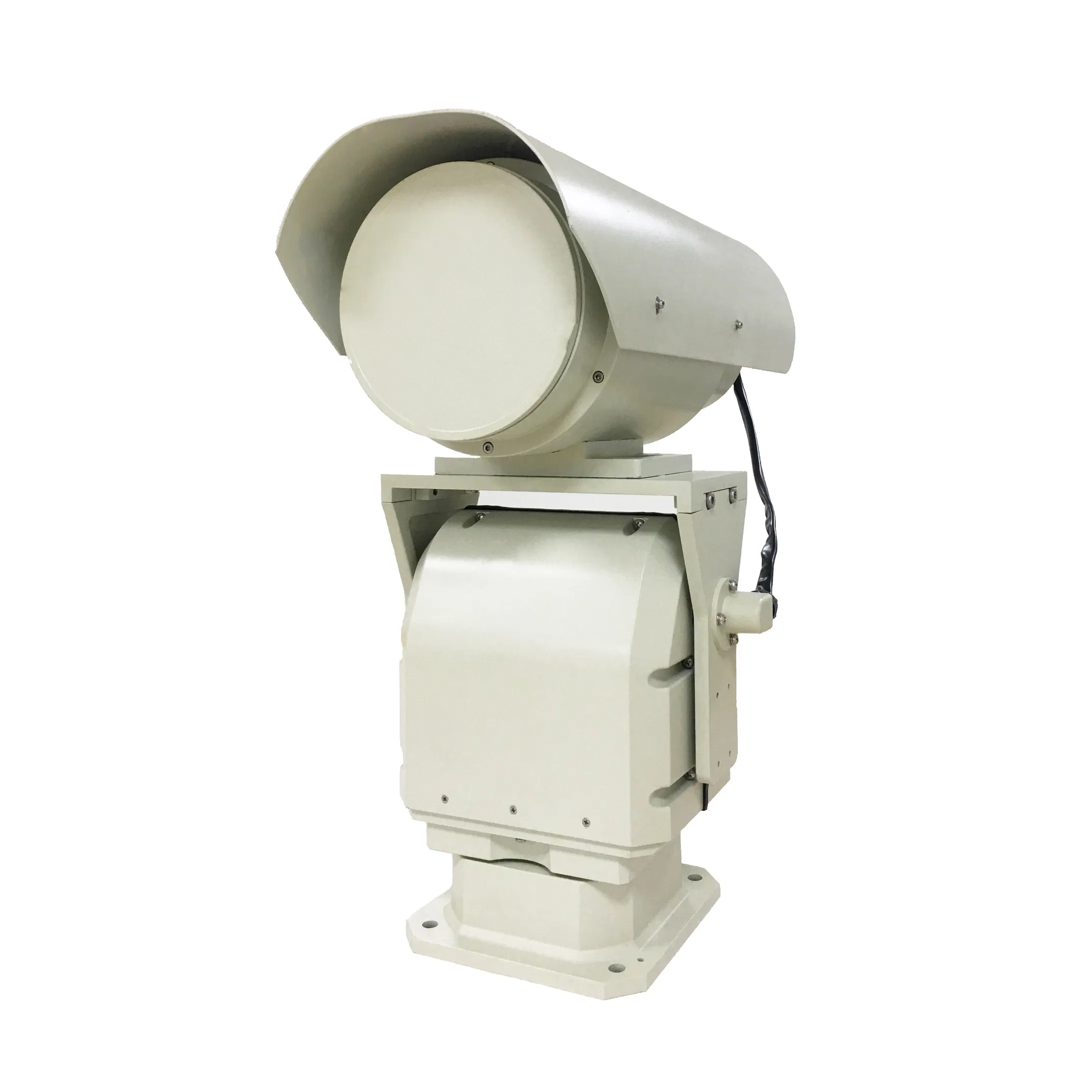

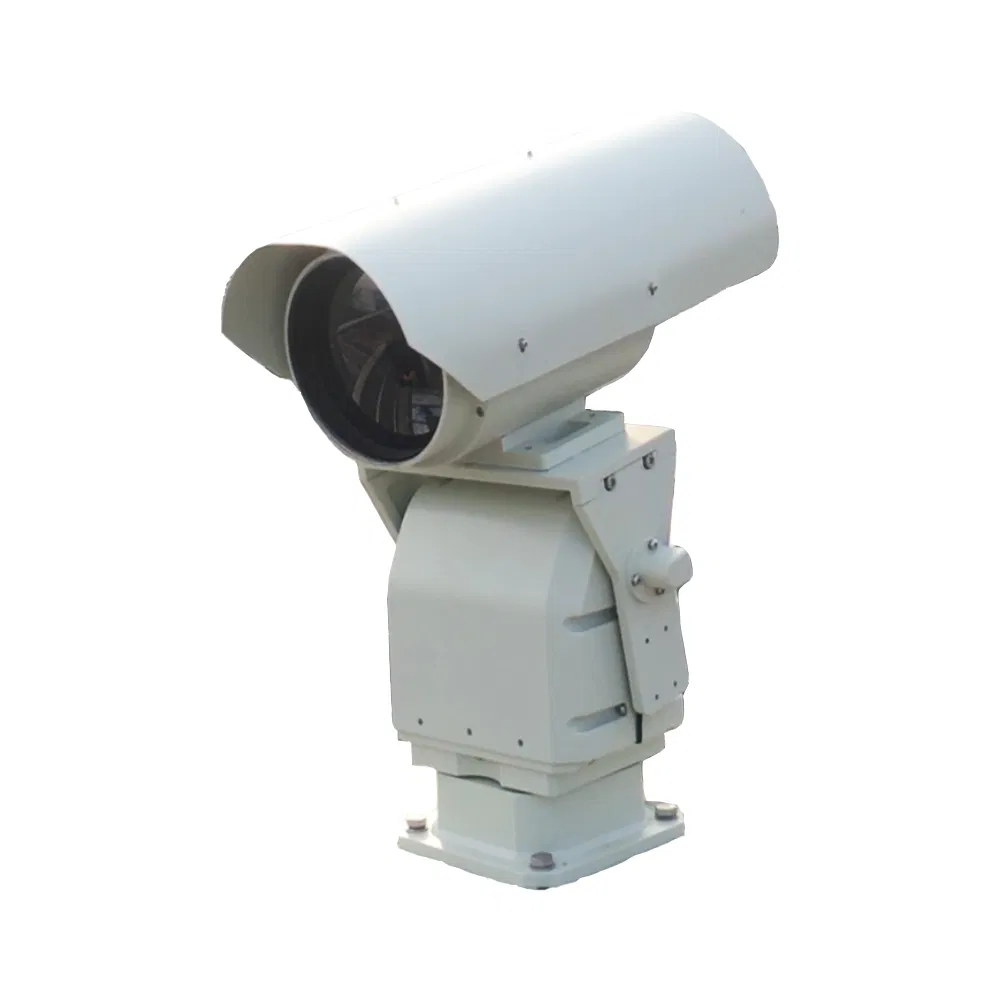

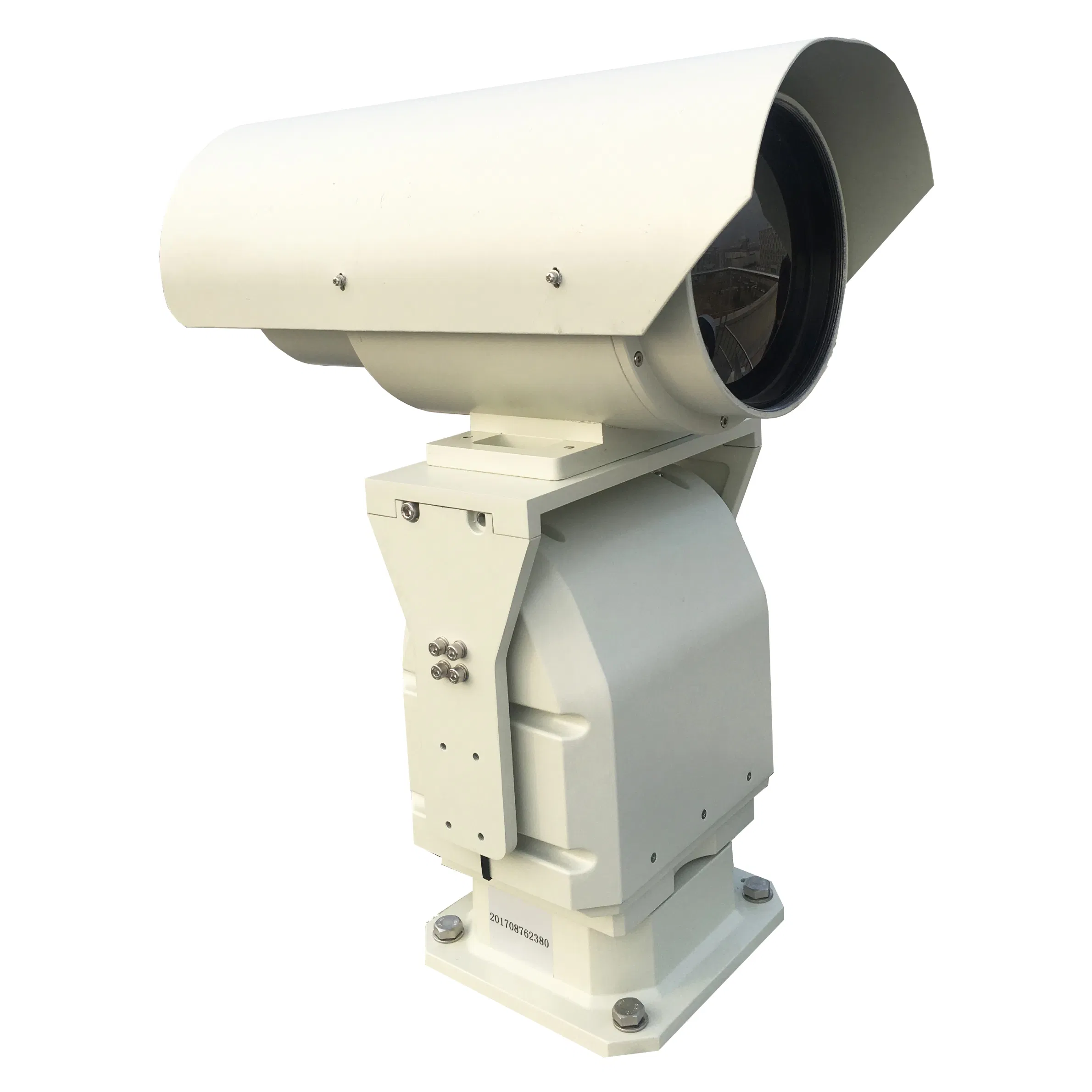

4km Long Range PTZ Thermal Image Camera for Minery Surveillance

1 / 5

4km Long Range PTZ Thermal Image Camera for Minery Surveillance

Customization:	Available
Technology:	Infrared
Style:	Zoom Lens

Send Inquiry

Product Description

Basic Specifications

Model NO.

SHR-HTIR185R

Type

CCTV Camera

Sensor

Vox

HDMI Format

PAL Video Output

Resolution

324X 256

Certification

CE, FCC, RoHS

Feature

Waterproof / Weatherproof

Effective Distance

≥30m

Detection Range

0-11880m

Focal Length

36-180m

IP Grade

IP66

Capacity

2000 Units / Month

★

Main Features

High resolution uncooled microbolometer infrared focal plane arrays (Vox).
25µm or 17 µm pixel for fine image quality and clear observation of small targets.
High sensitivity with NETD ≤ 50mk at 25Hz frame rate.
30~150mm continuous zooming for wide-range search and long-distance identification.
Advanced image noise reduction and DDE function (Hot white/black/pseudo color output).
Low power consumption, quick start-up, and high performance stability.
Precision casting aluminium alloy shell, IP66 waterproof and nitrogen-filled.
RS 485 interface control with analog video signal output.

⚙

Technical Indicators

Monitoring Distance	Target	People (1.8m×0.5m)	Vehicle (2.3m×2.3m)
	Detect	4320m	11880m
	Recognize	1080m	2970m
	Identification	540m	1440m
Detector & Lens	Detector Type	Uncooled FPA detector (vox)
	Resolution	384×288 (640×512 optional)
	Focal Length	36~180mm, 5x optical zoom
	NETD	≤50mK
Pan-tilt	Rotating Angle	Pan: 0°~ 360° continuous; Tilt: +30°~ -45°
	Rotating Speed	Pan: 0.1°~9°/S; Tilt: 0.1~4°/S
	Presets	255
Environment	Temperature	-25ºC~+55ºC (Customizable to -40ºC)
	Protection	IP66, Anti-thunder 2000V
	Impact/Vibration	GB/T 4857.10-2005 / GB/T 15412-94

📷

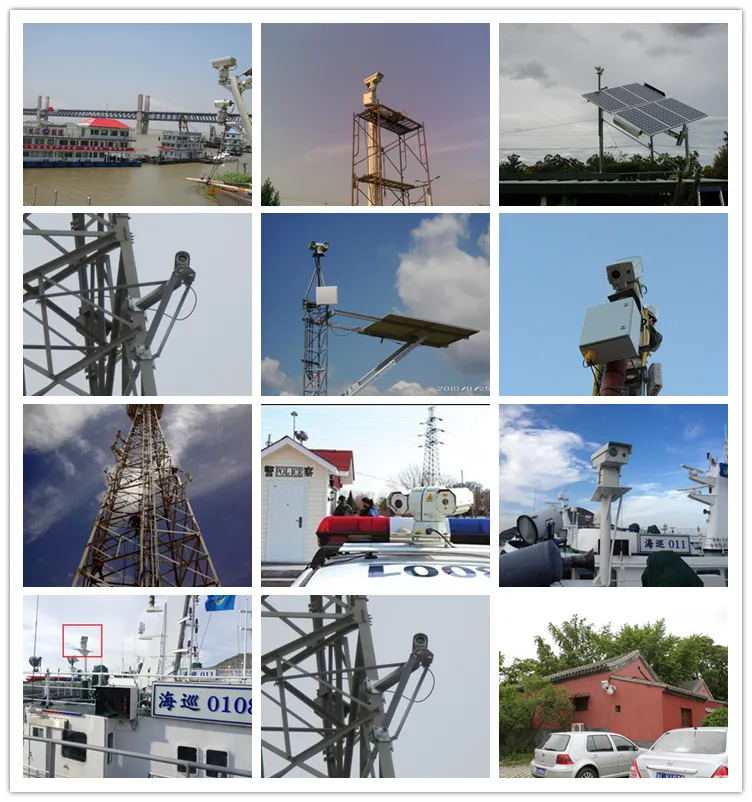

Product Display & Applications

This long range PTZ thermal camera is ideal for outdoor surveillance including oilfield monitoring, border defense, seaports, railways, airports, and tourist site security.

Certifications & Shipping

🛠

Our Services

Warranty: One year standard warranty with extended options available.
Support: Life-long technical support via professional technical and sales teams.
Customization: OEM and customized product solutions available.

Frequently Asked Questions

What is the maximum detection distance for this camera?

The camera can detect vehicles at distances up to 11,880 meters and people at up to 4,320 meters under optimal conditions.

Is the camera suitable for harsh outdoor environments?

Yes, it features an IP66 international protection rating, is nitrogen-filled, and is built with a precision casting aluminum alloy shell to resist anti-harsh environments.

What kind of zoom capabilities does the thermal lens have?

The camera is equipped with a 36~180mm continuous optical zoom lens, providing a 5x optical zoom range for both wide-area search and detailed target identification.

What are the power requirements and consumption?

The camera operates on DC12V/AC24V. The power consumption is very efficient, typically ≤30W for the pan-tilt system and ≤8W for the thermal camera module.

Does the system support remote control and standard protocols?

Yes, it supports RS485 interface control and is compatible with Pelco-D and Pelco-P protocols with multiple baud rate options.

What is the delivery time after placing an order?

Standard delivery typically takes 7-20 days after order confirmation, depending on the production season and the specific order quantity.
