Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring
Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring
Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring
Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring
Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring
1 / 5
Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring
Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring
Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring
Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring
Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring

Advanced 8-Channel 1080P Ai Vehicle Terminal for Smart Monitoring

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
ES102-Z8
Interface
BNC\VGA\HDIM
Operating System
Linux
Supported Hard Disks
3
Compression Format
H.264
Certification
CE, RoHS
Warranty Time
One Year
Input Channels
8
DDR
1GB
Flash
256MB
CPU
Arm Cortexa53 Dual Cores CPU
Origin
China
🔍 Product Overview
The vehicle integrates satellite positioning monitoring, 8-channel 1080P high-definition video monitoring, 4G wireless communication, remote dispatching, emergency alarm, voice broadcasting, LED/LCD display control and rich expansion interface functions. With multi-core processor and powerful neural network engine, it supports a variety of AI intelligent functions, passenger flow statistics, and comprehensive driver assistance.
⭐ Key Characteristics
📹 Audio and Video Monitoring Support 8+1 full HD 1080P audio and video surveillance video, using H.265 high compression.
🤖 Artificial Intelligence Support AI technology, built-in passenger flow statistics, ADAS, and DMS systems.
💾 Continuous Recording Support 256G SD card and single hard disk with shock protection mechanism for stable recording.
🌐 All Netcom Standard Support 4G/3G/2G Netcom, WIFI, and Ethernet connectivity.
📍 Dual-mode Positioning Precision tracking via GPS/BD dual-mode positioning systems.
🚨 Emergency Alarm ITMS platform support for speeding, route deviation, fatigue driving, and equipment failure alarms.
⚙️ Technical Parameters
Category Project Description
SystemOperating SystemLinux
CPUARM CortexA53 dual cores CPU
DDR1GB
Flash256MB
Video & AudioEncoding FormatH.264/H.265
Video Input8-way 1080P HD video + 1-way IPC
Video Output1 CVBS output, supports 8-channel preview
Audio Input8-way audio, 2.0Vp-p
IP IntercomSupport terminal and background IP intercom
PositioningModeBeidou/GPS/Global Navigation Satellite Positioning
WirelessCommunication4G (FDD-LTE/TDD-LTE), 3G, WIFI 2.4GHz
StorageHDD Storage1T (MAX)
SSD Storage2T (MAX)
SD Storage256GB (MAX)
PowerOperating VoltageDC: 9V ~ 36V, typical 12V/24V
EnvironmentTemperature-20°C ~ 70°C | Humidity: 0 ~ 95%
🖼️ Product Showcase
8-Channel Ai Vehicle Terminal

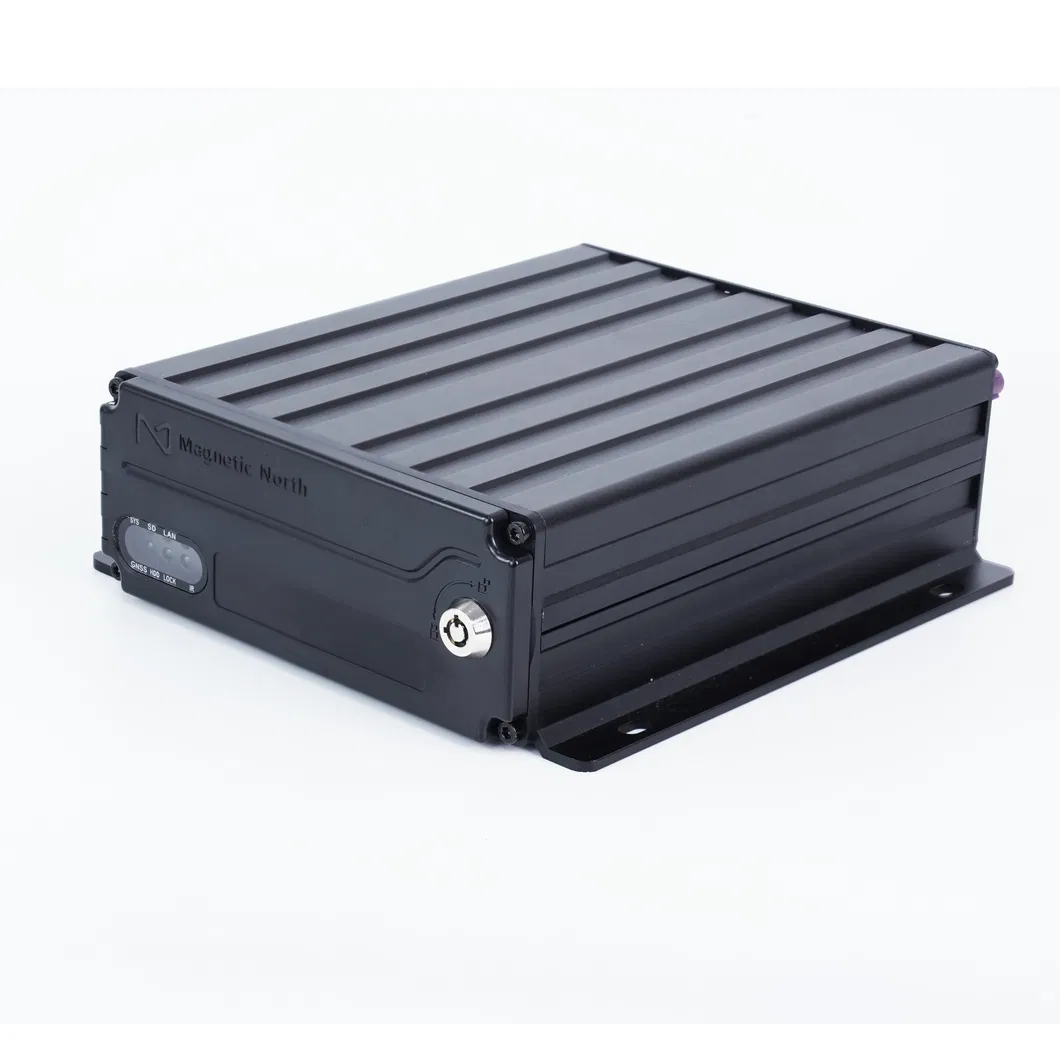

Vehicle Smart Monitoring Device
Advanced AI Terminal Interface
❓ FAQ
Q1: How many video channels does the ES102-Z8 support? The device supports up to 8 channels of 1080P high-definition video monitoring plus 1-way IPC.
Q2: Does the device support AI intelligent driving features? Yes, it features a powerful neural network engine that supports ADAS (Advanced Driver Assistance Systems) and DMS (Driver Monitoring System).
Q3: What are the storage capabilities for long-term recording? It supports up to 1T HDD, 2T SSD, and dual 256GB SD cards, ensuring continuous recording even in shock-heavy environments.
Q4: What type of network connectivity is available? It is compatible with 4G/3G/2G Netcom standards, WIFI (IEEE 802.11 b/g/n), and 100M Ethernet.
Q5: Is the terminal suitable for extreme weather conditions? Yes, it is designed to operate in temperatures ranging from -20°C to 70°C and humidity up to 95%.
Q6: What satellite positioning systems are integrated? The device uses dual-mode positioning, supporting both GPS and Beidou (BD) for global navigation.
