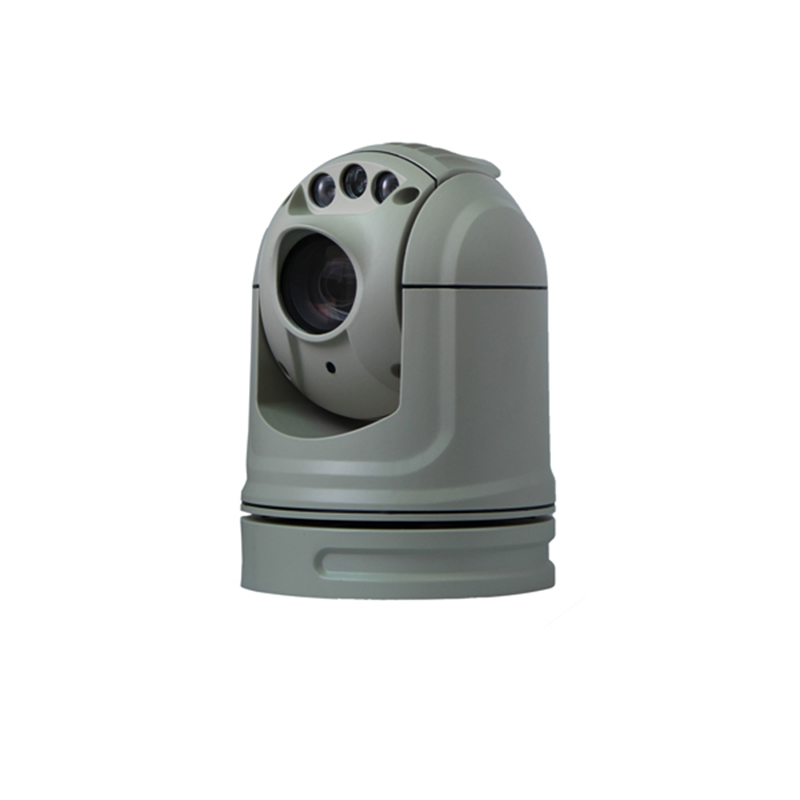

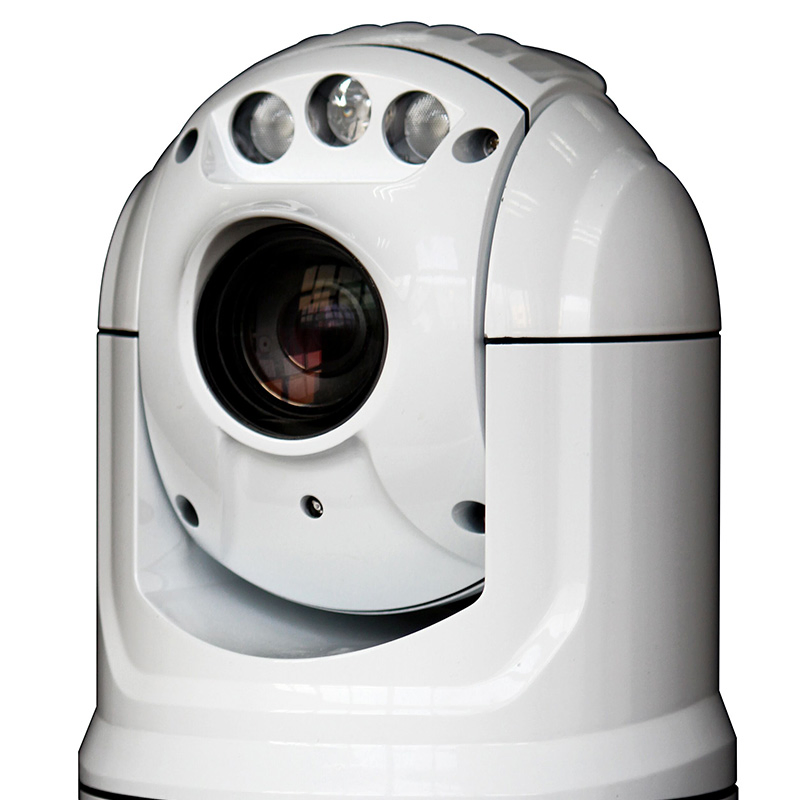

High-Performance Dual Sensor Thermal PTZ Camera for Mobile Use

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt

Product Description

Basic Information

Model NO.:SOAR971-TH Series
Type:IP Camera
Sensor:CMOS
HDMI Format:2MP, 4MP, 8MP
Horizontal Res.:2MP, 4MP, 8MP
Certification:CE
Effective Distance:1km
Thermal Imager:640X512/1280X1024
Sensor Size:1/2.8 Inch
Capacity:500piece/Month

Product Description

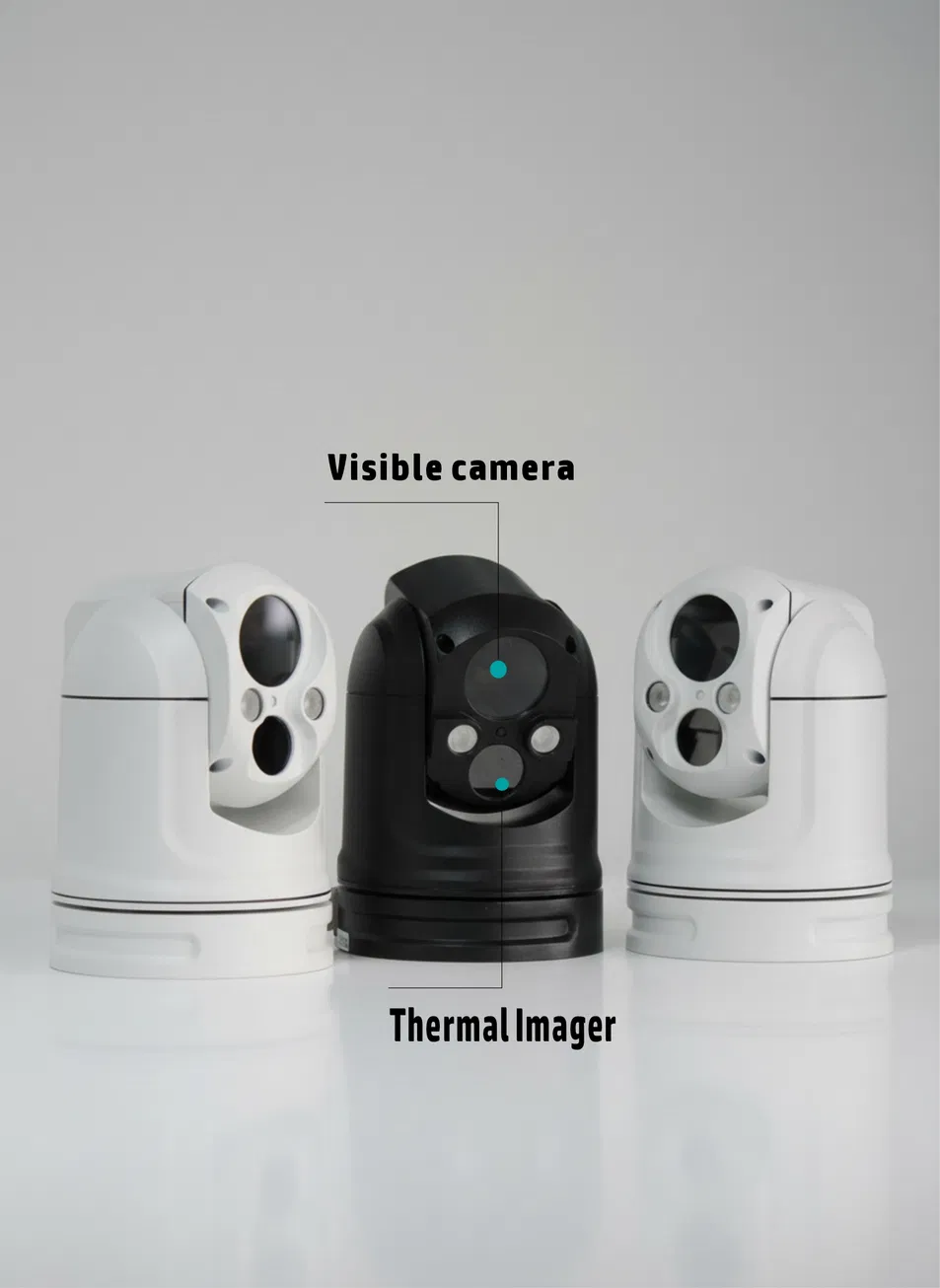

High-Performance Dual Sensor Thermal PTZ Camera

Rugged Mobile Surveillance Thermal Imaging PTZ

We've engineered the exceptional optics of our 30X zoom lens into a rugged, space-efficient form factor—and pushed capabilities even further. Unlike conventional single-configuration PTZ systems, the SOAR971 PTZ offers modular versatility to match your operational demands. Choose from visible-light imaging paired with high-intensity IR or white-light illuminators for enhanced night vision, integrate a precision 500-meter laser module for long-range targeting and designation, or deploy the dual-spectrum variant combining EO optics with thermal imaging for superior detection in complete darkness and adverse conditions.

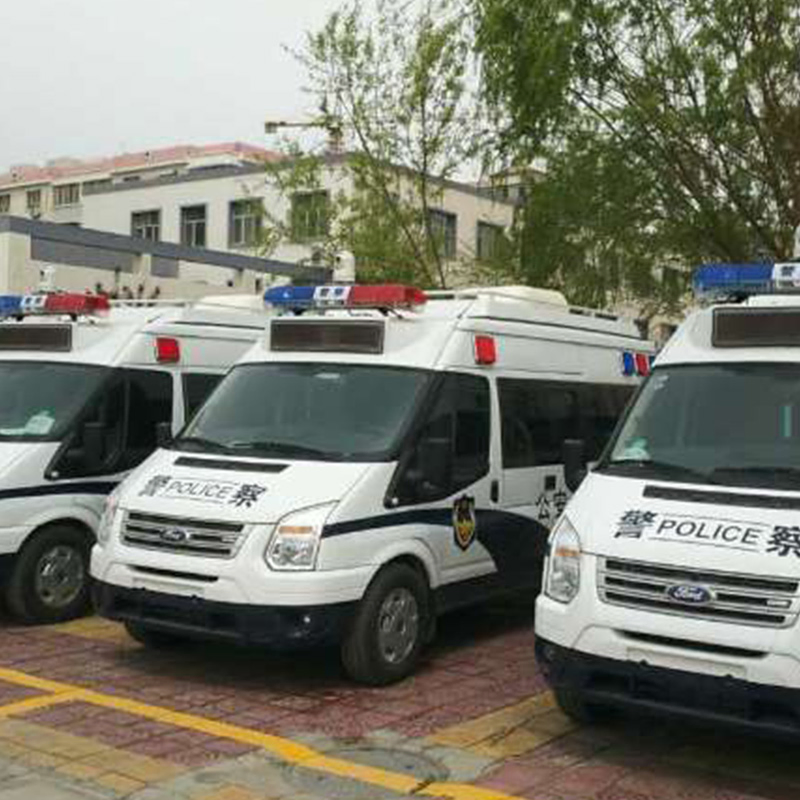

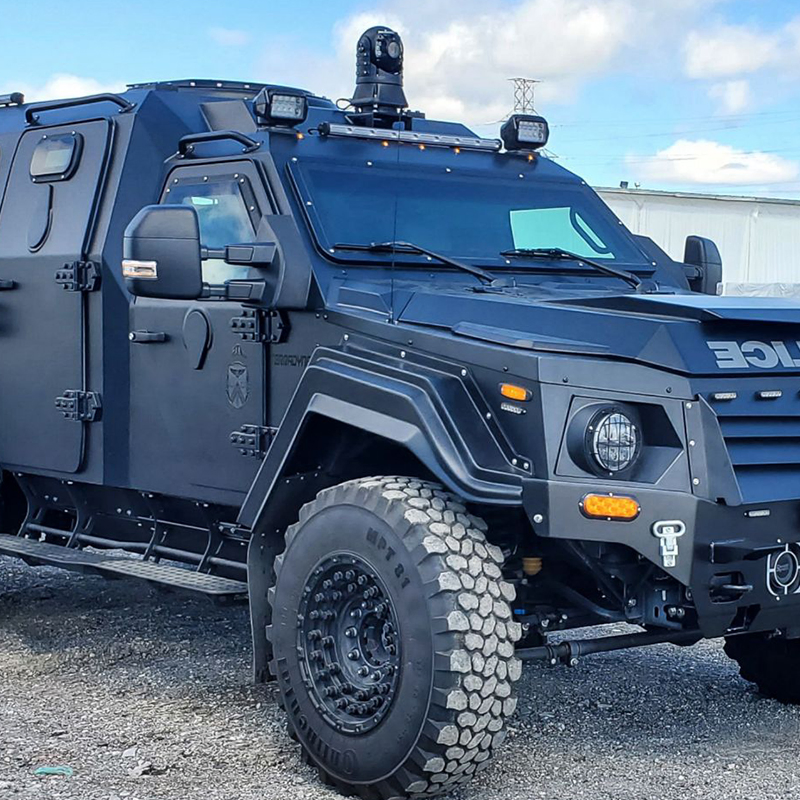

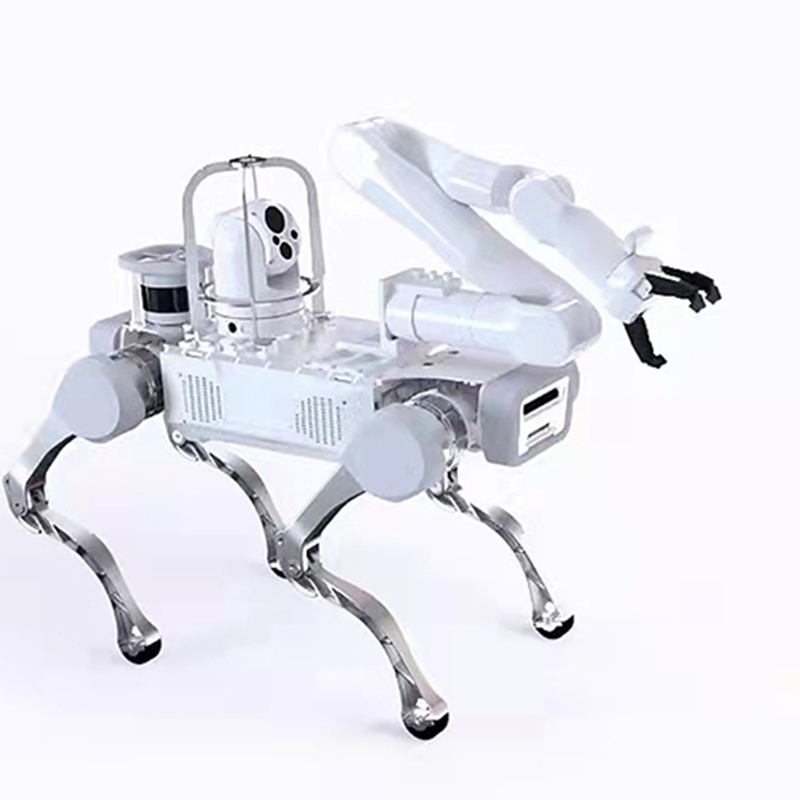

Built for motion, its compact frame and rapid-mount magnetic base enable seamless integration onto patrol vehicles, robotic platforms, USVs, and heavy machinery operating in hazardous extraction environments. From mobile law enforcement operations and emergency perimeter establishment to autonomous maritime patrol and subterranean monitoring, this hardened PTZ solution adapts to any mission profile where flexibility, durability, and uncompromising imaging performance are non-negotiable.

Product Highlights

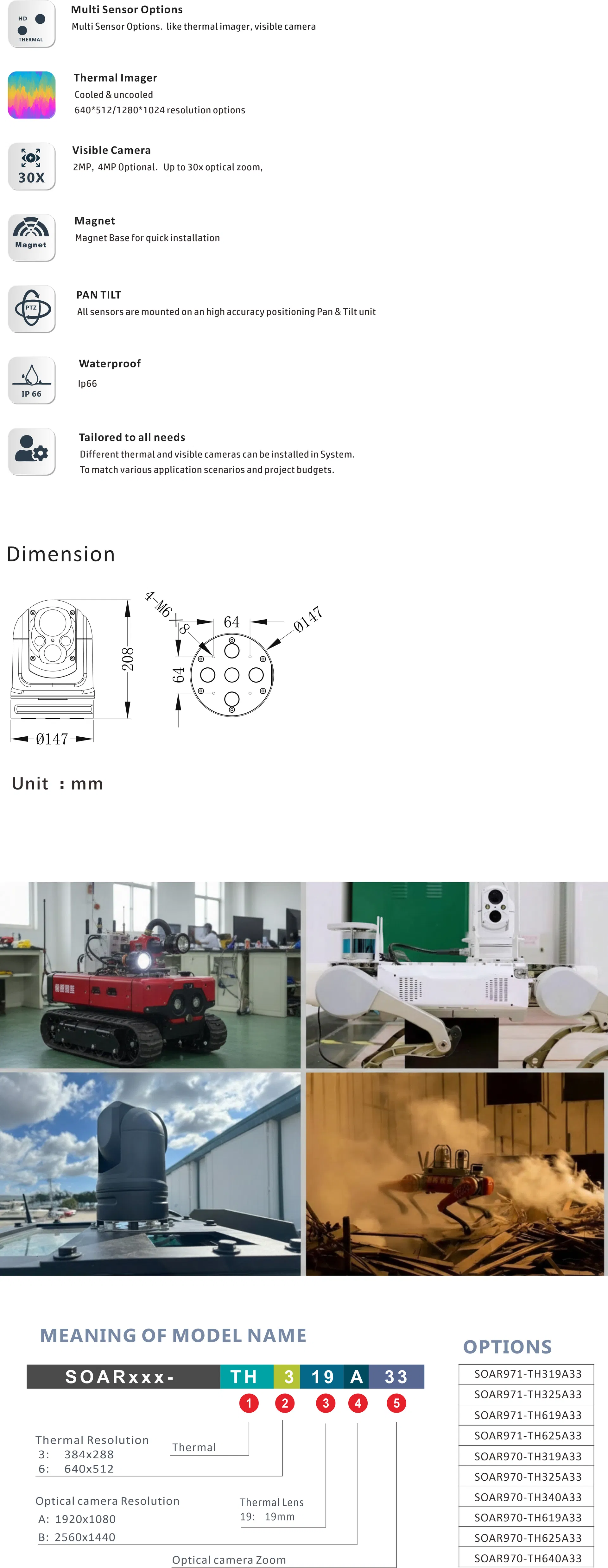

Product Highlights Diagram

Technical Specification

Model: SOAR971-TH625A33
Thermal Imaging
DetectorUncooled amorphous silicon FPA
Array format/Pixel pitch640x512/12μm
NETD≤50mK@25℃, F#1.0
Lens25 mm, F1.0
FOV17°×14°
Daytime Camera
Image Sensor1/2.8” Progressive Scan CMOS
Resolution2MP, 1920X1080
Focal Length5.5-180mm, 33x Optical Zoom
Video CompressionH.265 / H.264 / MJPEG
Pan/Tilt
Pan/Tilt Range360° Endless / –20° ~ +90°
Pan/Tilt SpeedPan: 60°/s, Tilt: 50°/s
General
PowerDC 12V-24V; Consumption ≤24w
Protection LevelIP66
Weight3.5 kg

Product Gallery

Application 1
Application 2
Application 3
Application 4
Application 5

Frequently Asked Questions

What is the estimated delivery timeline?
For small orders, delivery typically requires 7 working days. For bulk or OEM orders, timelines are confirmed based on current production capacity.
Is there a minimum order quantity (MOQ)?
The MOQ varies depending on the specific product model and customization requirements.
What payment methods are supported?
We accept standard international payment terms, including T/T (Telegraphic Transfer).
What is the warranty coverage for these cameras?
PTZ products and modules are covered by a standard 1-year hardware warranty.
Do you provide technical after-sales support?
Yes, we offer lifetime technical support. Our engineering team typically responds to technical inquiries within 24 hours.
Can this camera be integrated with mobile platforms?
Absolutely. It is specifically designed for mobile use on patrol vehicles, robotic platforms, and maritime vessels using rapid-mount systems.
