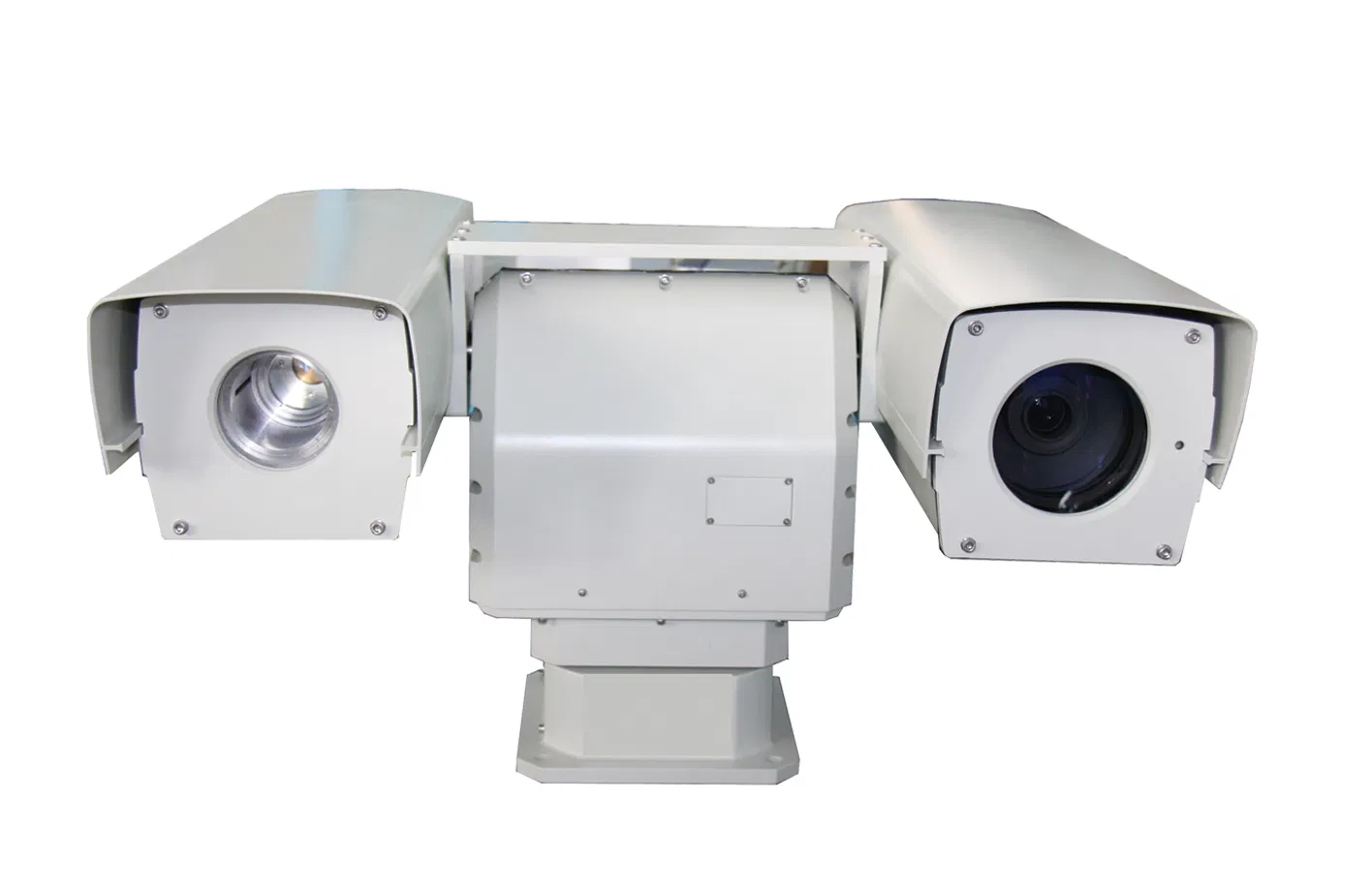

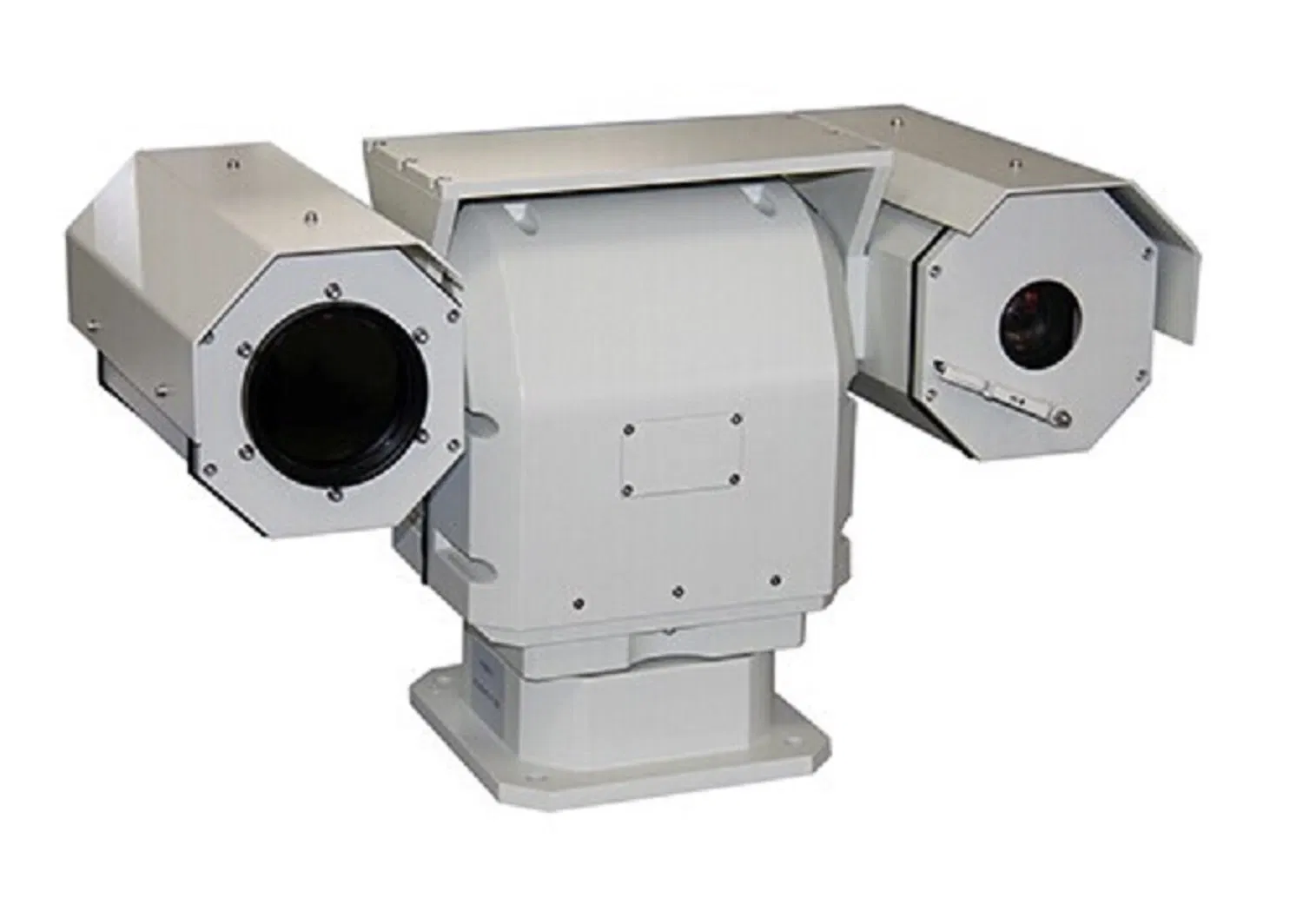

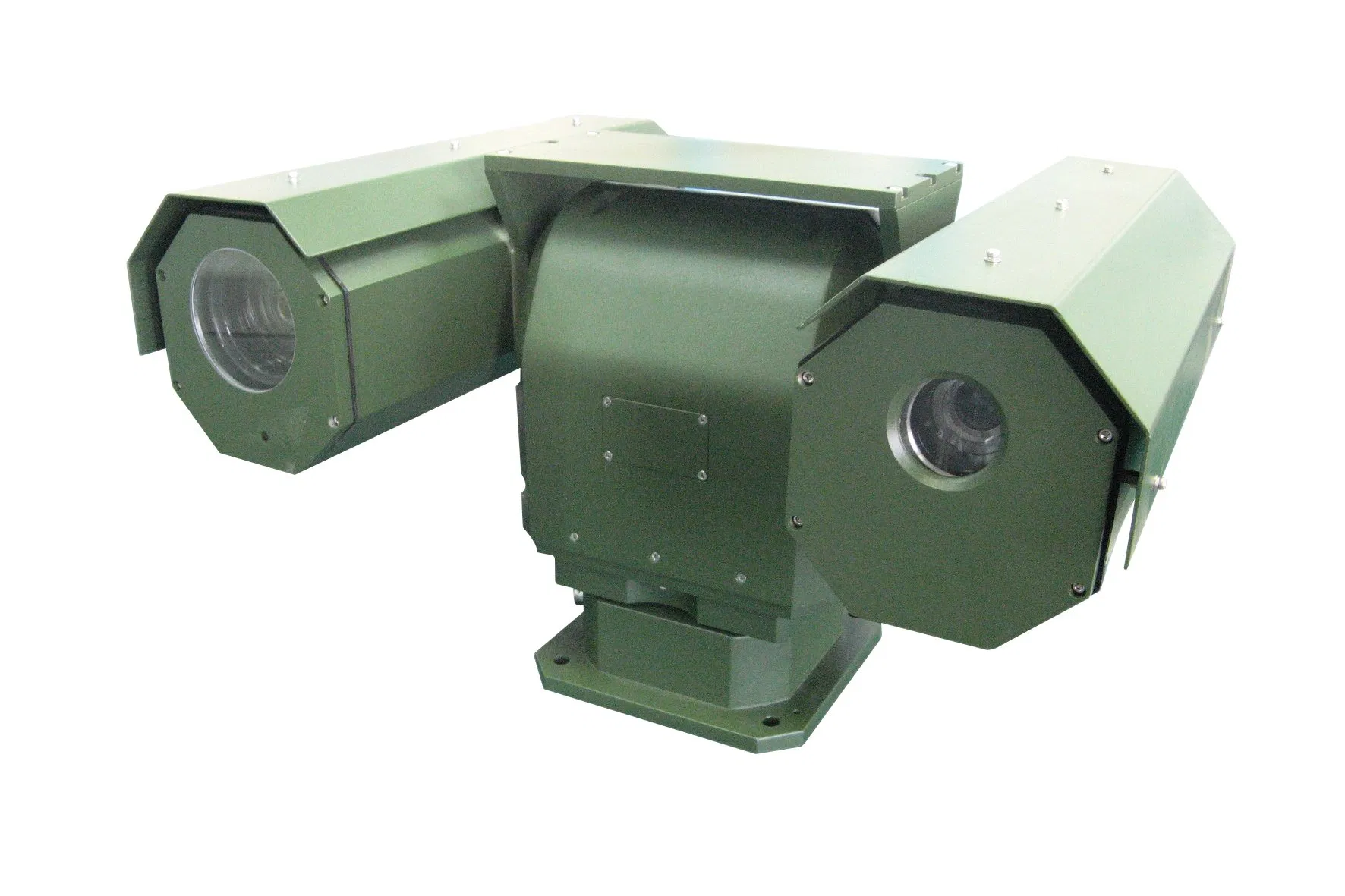

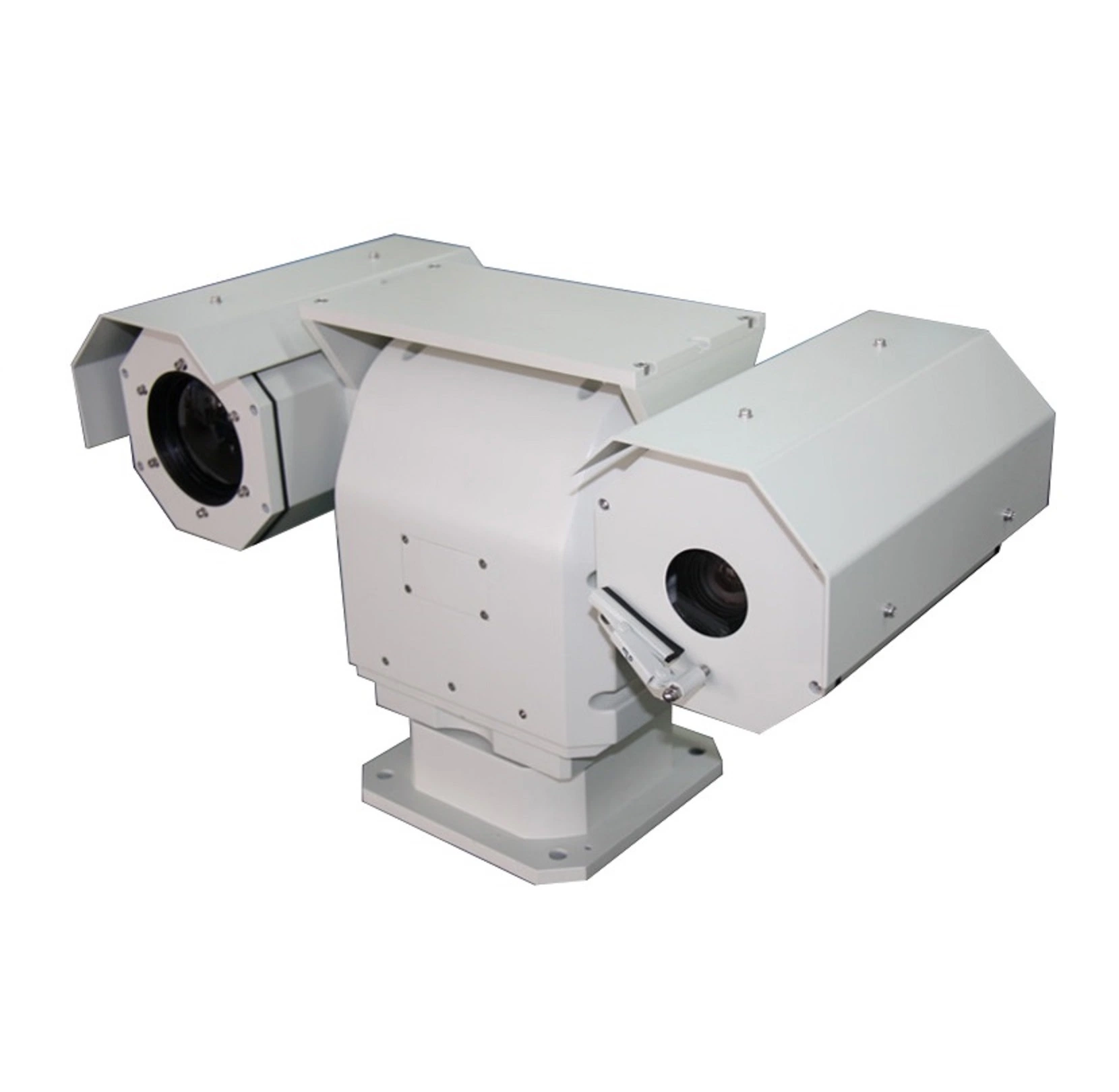

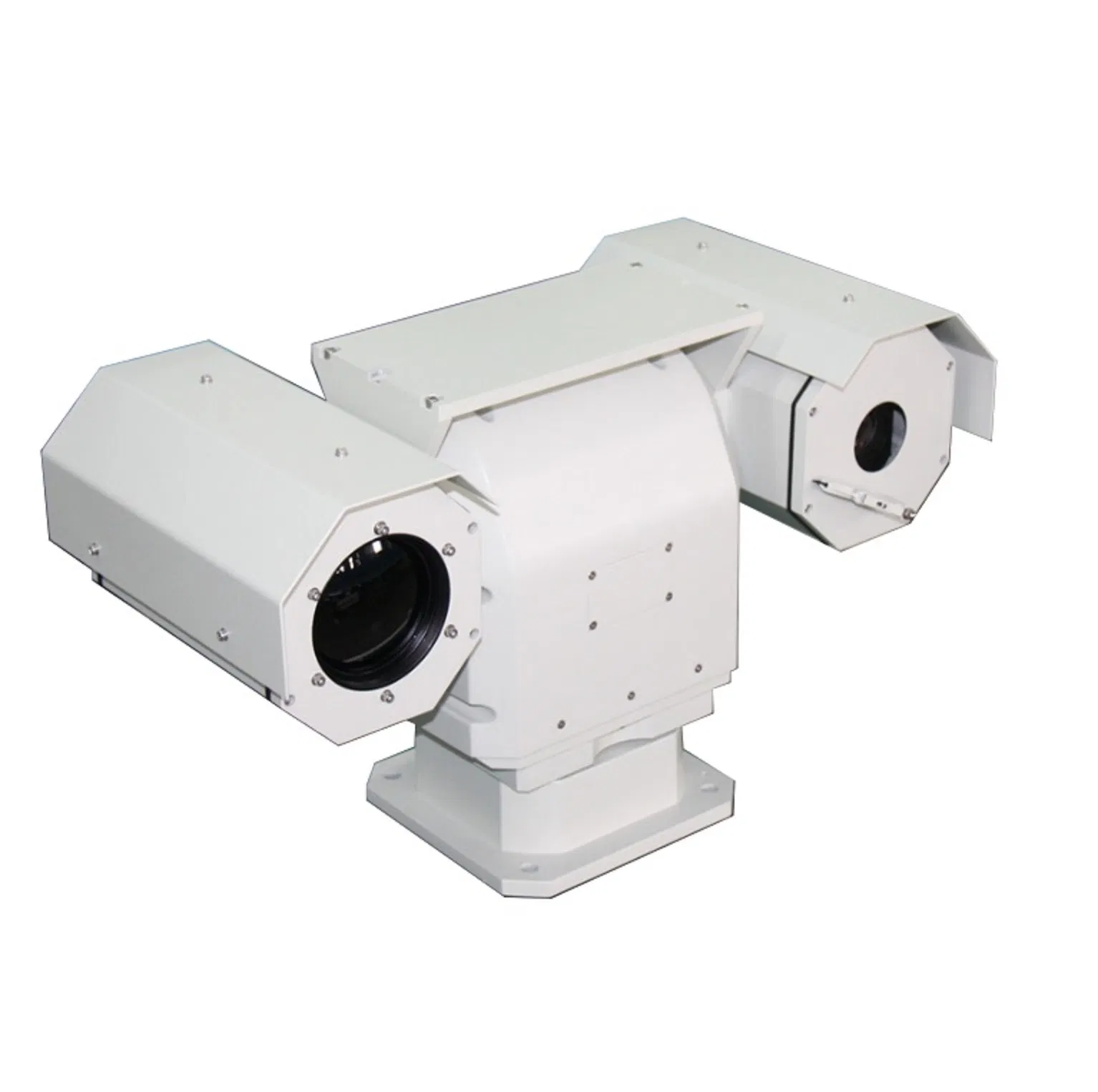

1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System
1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System
1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System
1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System
1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System
1 / 5
1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System
1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System
1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System
1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System
1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System

1080P HD 2MP Day Light Camera and Thermal Imaging Night Vision Camera Hybrid PTZ System

Customization: Available
Technology: Long Wave Infrared Thermal Imaging
Style: Pan/Tilt
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.:SHR-VLV1000TIR104R
Type:Thermal Analog/IP Camera
Sensor:Uncooled Fpa Detector (Vox)
HDMI Format:1080P
Kind:Autofocus Lens
Protection Grade:IP66
Effective Distance:Over 1000m
Thermal Lens:25-100mm, 4X Optical Zoom
Day Camera:30X Optical Zooming, 2.1MP
Video Resolution:1280X1080
🚀 Key Features
  • High resolution uncooled microbolometer infrared focal plane arrays (Vox), available in 384×288 or 640×512.
  • 25µm super small pixel ensures fine image quality and clearer detection for small targets at long distances.
  • Exceptional sensitivity with NETD reaching 50mk at 25Hz frame rate.
  • World-class 25~100mm continuous zooming for wide-range search and precise identification.
  • Advanced image noise reduction and DDE function; supports hot white, hot black, and pseudo color outputs.
  • Low power consumption, quick start-up, and highly stable performance with image uniformity.
  • Rugged precision casting aluminum alloy shell, nitrogen-filled, waterproof, and designed for harsh environments.

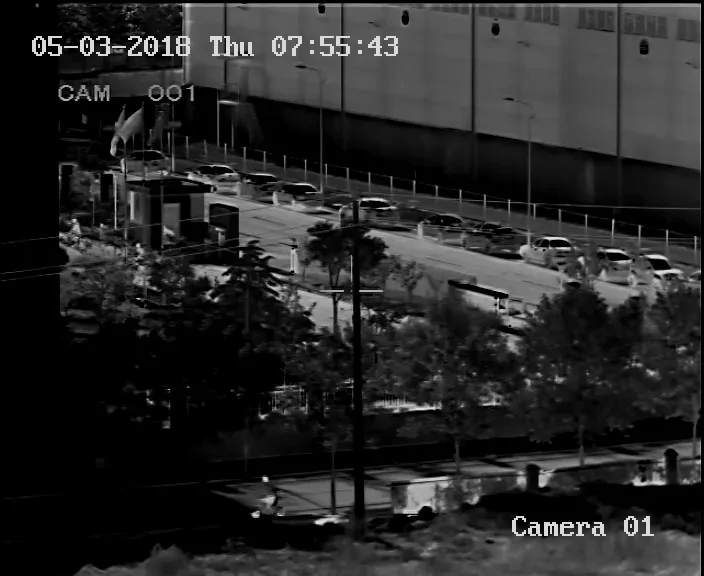

Thermal Imaging Camera System

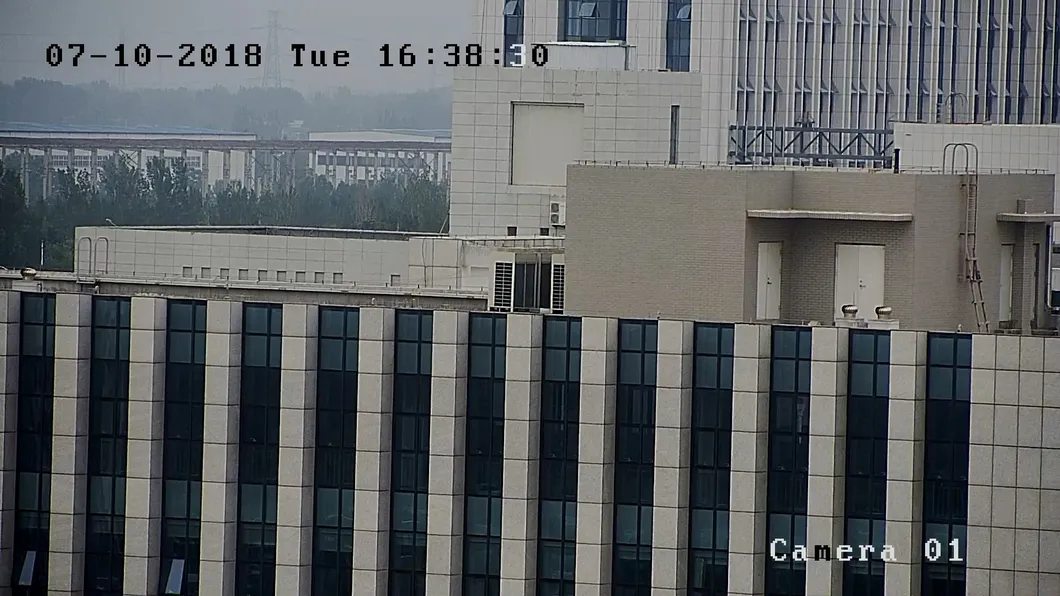

Hybrid PTZ System Detail
📊 Technical Specifications
Performance Distance
Visible Light 1000m
Human (1.8m×0.5m) Detect: 2910m Recognize: 730m / Identify: 360m
Vehicle (2.3m×2.3m) Detect: 8320m Recognize: 2080m / Identify: 1040m
Thermal Imager
Sensor Type Uncooled infrared focal plane detector (Vox)
Pixels & Pitch 640x480, 8~14μm wave length
Lens 25-100mm 4X optical zoom, auto focus
HD Day Camera
Imaging Sensor 1/2.8" Progressive Scan CMOS, 2.1 Megapixels
Zoom 4.5~135mm, 30x optical zooming
Resolution 1280×1080p (25fps), H.264 Coding
PTZ Mechanical
Rotation Pan: 360° (0°~30°/s); Tilt: ±90° (0°~22°/s)
Environmental & Physical
Working Temp -25℃ ~ +60℃ (Storage: -40℃ ~ +85℃)
Weight / Size 15.5kg / 516.5×240×310mm
🛠 Professional Services
  • Warranty: Standard one-year warranty with extended options available.
  • Support: Life-long technical support from professional engineering teams.
  • Customization: We accept OEM orders and offer fully customized product specifications.
  • Reliability: Professional troubleshooting and maintenance procedures.
❓ Frequently Asked Questions
1. What is the maximum detection range for this thermal camera? The system can detect vehicles at distances up to 8320m and humans up to 2910m, with identification distances of 1040m and 360m respectively.
2. Does the system support night vision for both cameras? Yes, it is a hybrid system. The thermal camera provides vision based on heat signatures in total darkness, while the HD day camera features low-light sensitivity (0.01 LUX) for clear imaging in evening conditions.
3. Is this camera suitable for harsh outdoor environments? Absolutely. The camera is IP66 rated, nitrogen-filled, and housed in a precision-cast aluminum alloy shell, making it waterproof and salt-fog proof for 48 hours.
4. What are the zoom capabilities of the hybrid PTZ? The thermal imager features a 4X optical continuous zoom (25-100mm), while the visible light camera provides a powerful 30X optical zoom.
5. Can the PTZ be controlled remotely via software? Yes, the system supports various network protocols including TCP/IP, RTSP, and SNMP, allowing full control via IP software and Hikvision platform compatibility.
6. What power consumption should be expected? The unit is designed for efficiency with a power consumption of ≤30W, making it suitable for various surveillance installations.
