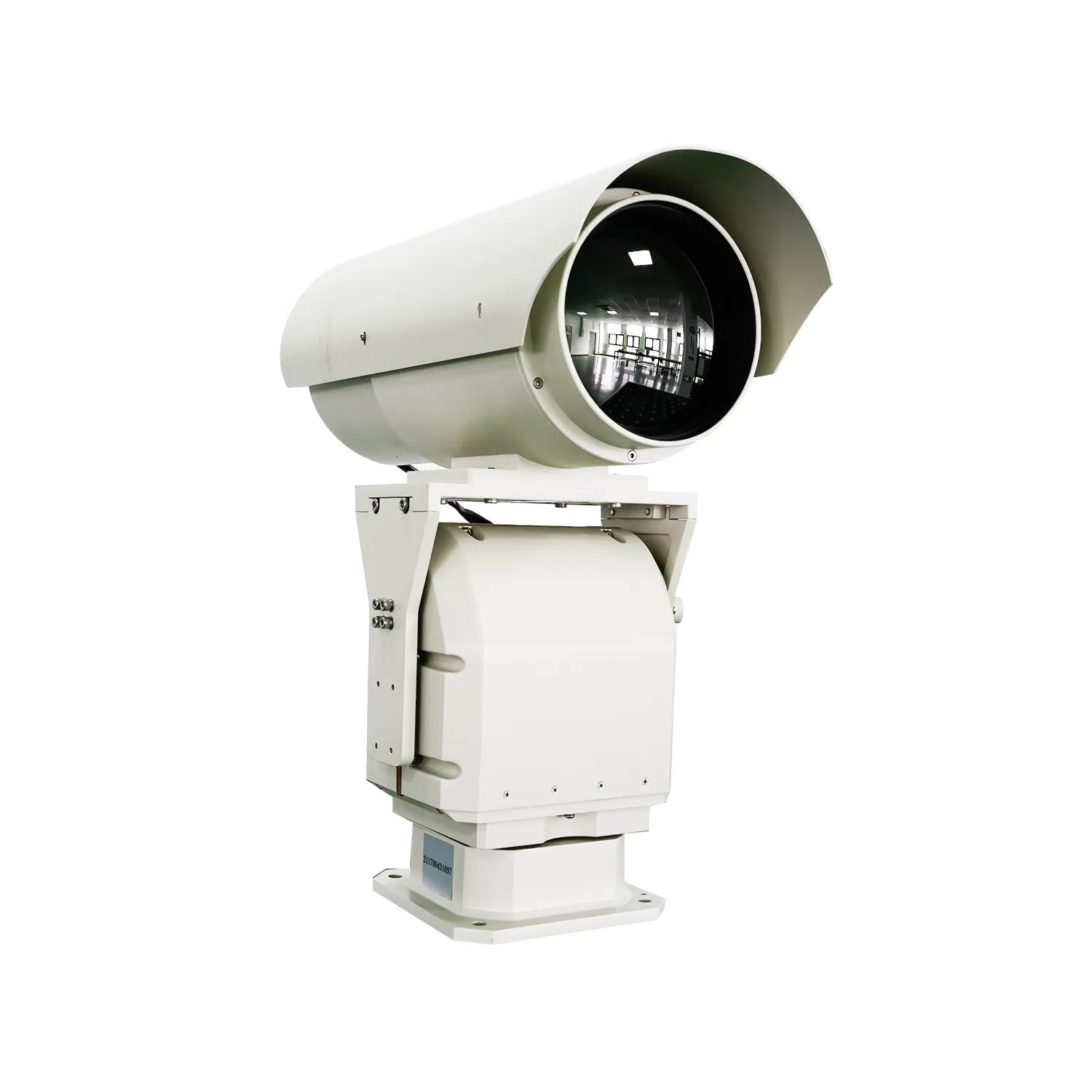

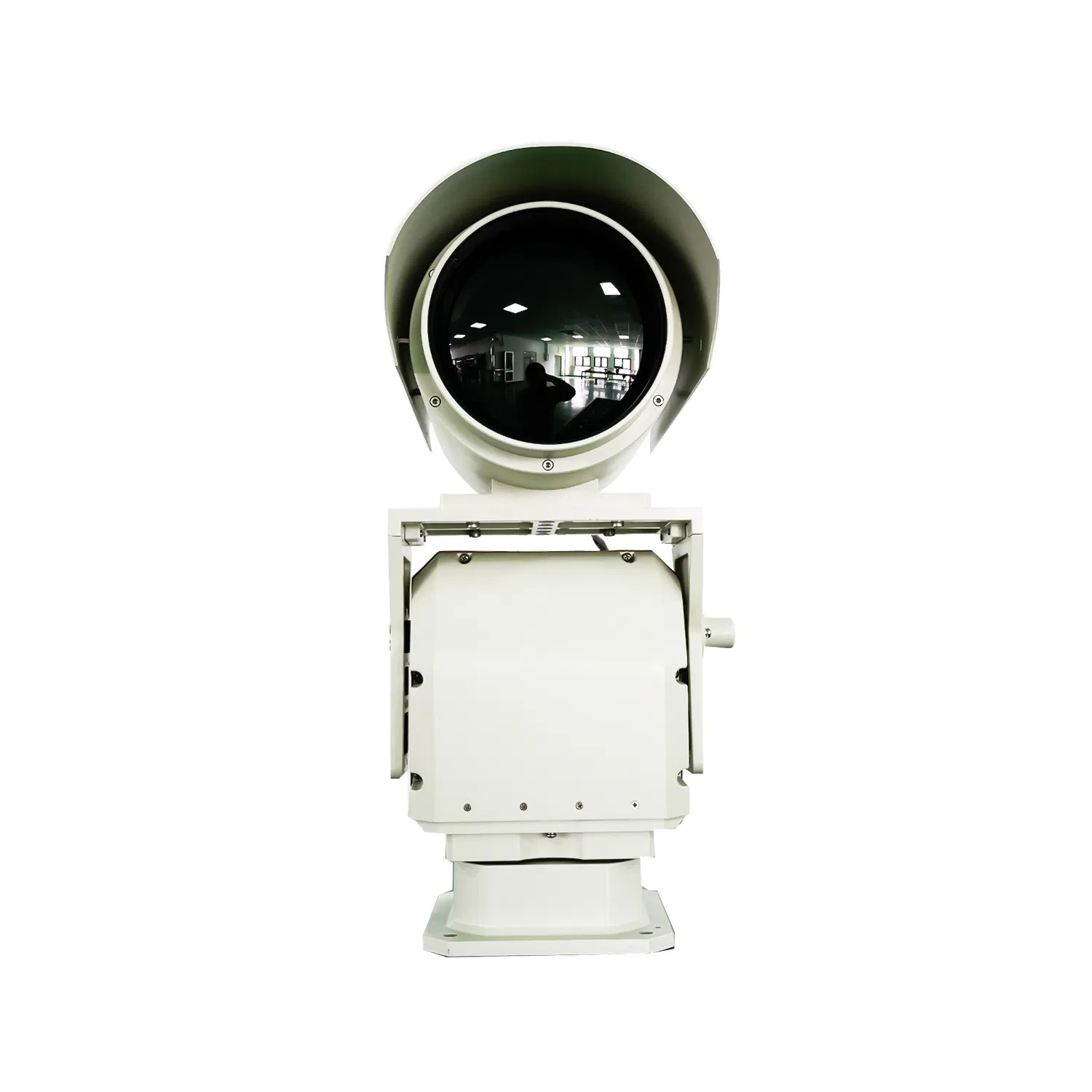

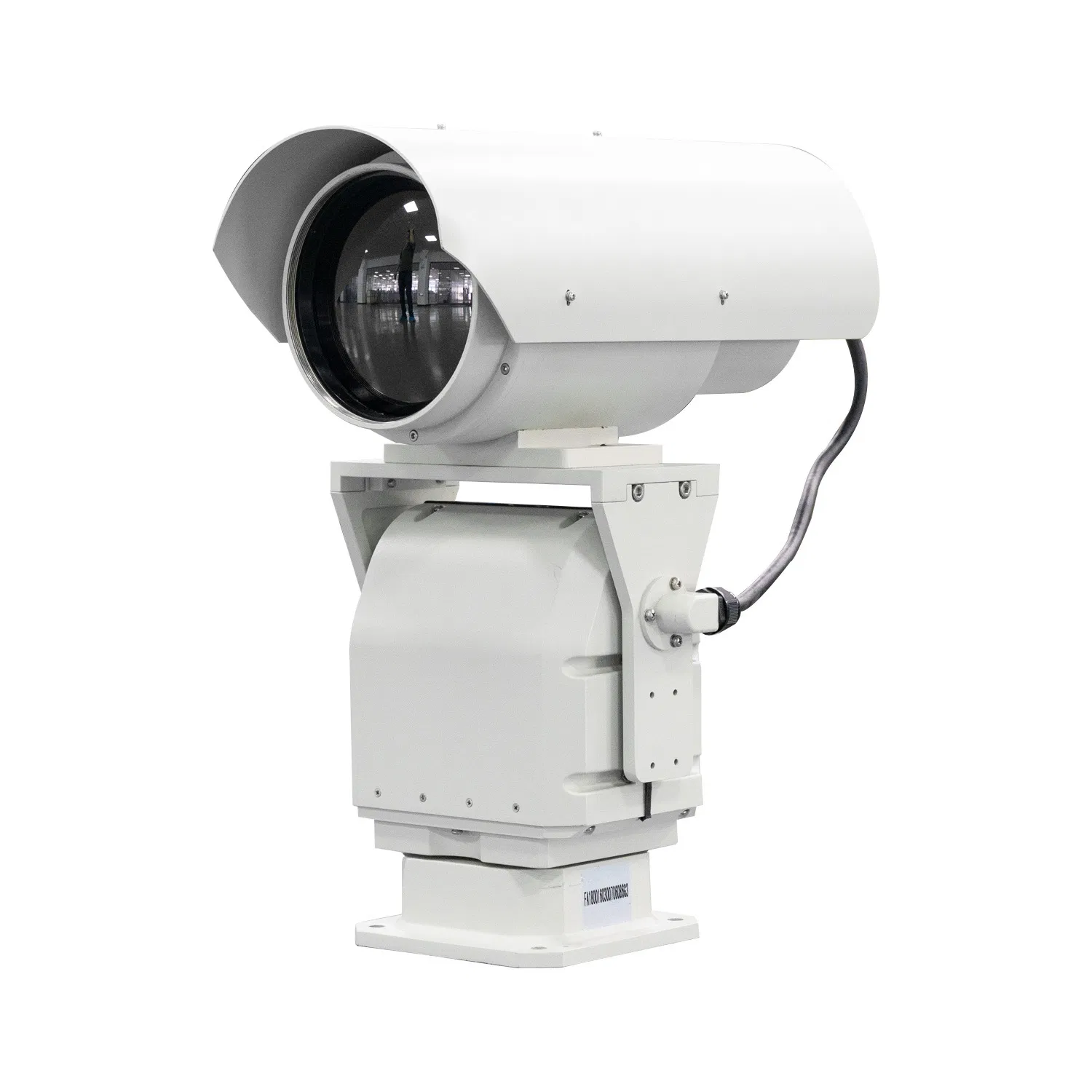

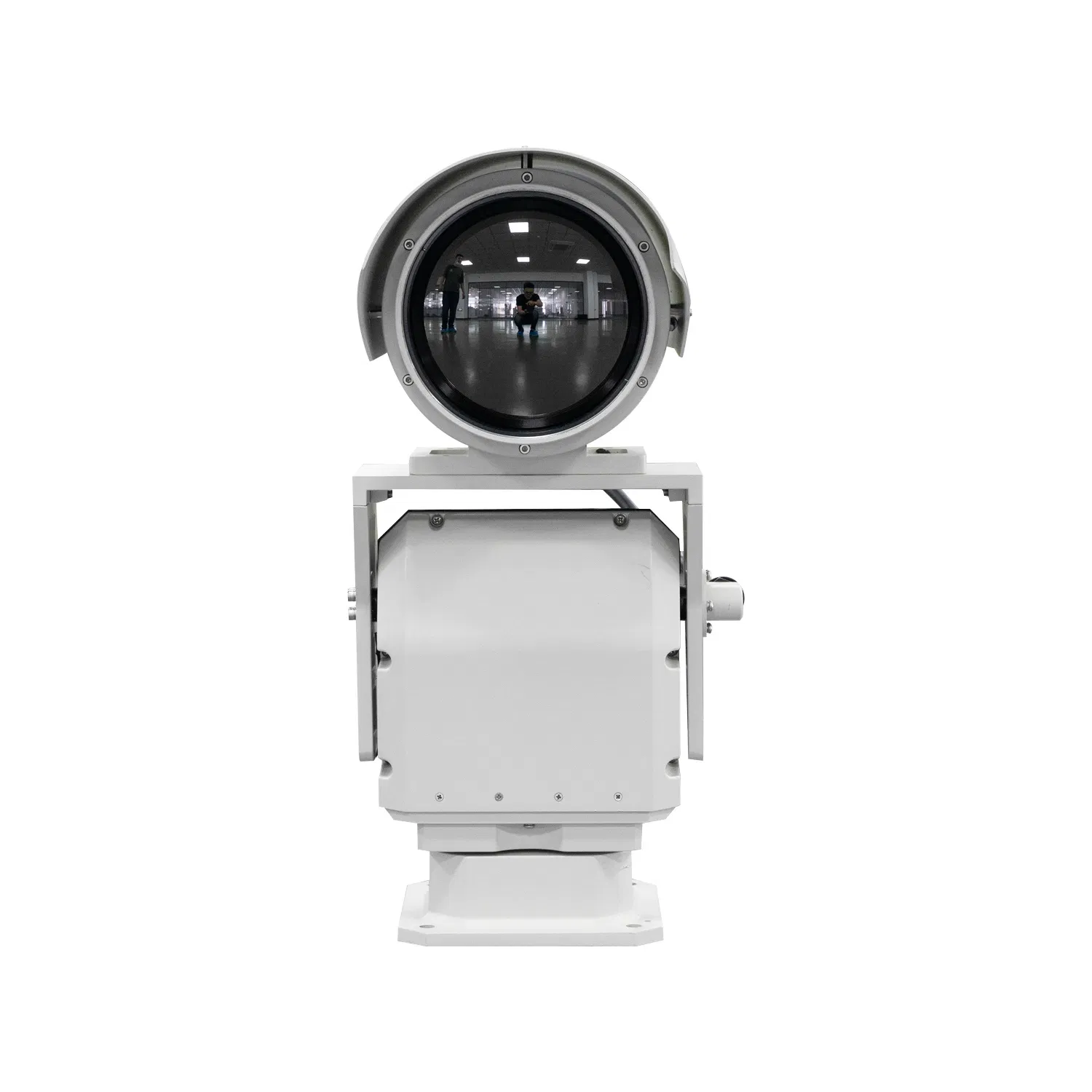

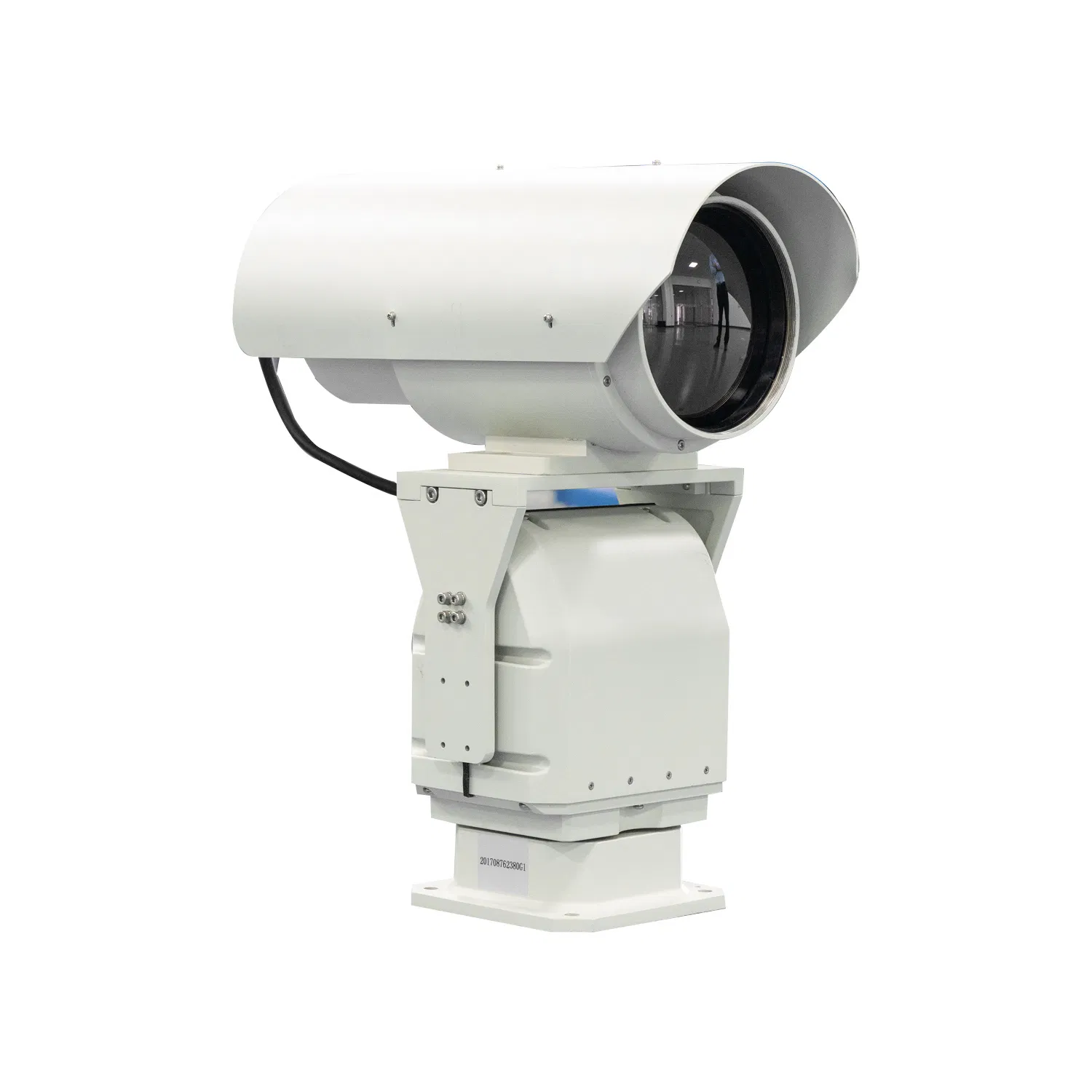

Infrared Outdoor Onvif PTZ Thermal Image Camera with Long Range Monitoring Distance

1 / 5

Infrared Outdoor Onvif PTZ Thermal Image Camera with Long Range Monitoring Distance

Customization:	Available
Technology:	Infrared
Style:	Zoom Lens

Send Inquiry

Product Description

🔭

Long Range

Up to 11880m Detection

🔍

5x Optical Zoom

36~180mm Continuous

🛡️

IP66 Protection

Weatherproof & Rugged

■

Basic Specifications

Model NO.

SHR-HTIR185R

Type

CCTV Camera

Sensor

Vox Uncooled FPA

Resolution

324x256 (384x288/640x512 opt)

Video Output

PAL Analog Output

Effective Distance

≧30m

IP Rating

IP66

Focal Length

36-180mm

Power Supply

DC12V / AC24V

Certification

CE, FCC

■

Main Features

✔ High resolution uncooled microbolometer infrared focal plane arrays (Vox).
✔ 25µm or 17µm pixel for fine image quality and small target observation.
✔ High sensitivity with NETD ≤50mk at 25Hz frame rate.
✔ 36~180mm continuous zooming for wide range search and long-distance identification.
✔ Advanced image noise reduction and DDE function (Hot white/Hot black/Pseudo color).
✔ Precision casting aluminium alloy shell, nitrogen-filled, waterproof, and anti-harsh environment.
✔ Low power consumption and quick start-up performance.

■

Technical Indicators

Monitoring Distance	Detection	People: 4320m / Vehicle: 11880m
	Recognition	People: 1080m / Vehicle: 2970m
	Identification	People: 540m / Vehicle: 1440m
Detector	Type	Uncooled FPA detector (Vox), 384×288 resolution
Thermal Lens	Focal Length	36~180mm, 5x Optical Zoom
Pan-Tilt	Rotation	Pan: 0°~360° Cont.; Tilt: +30°~-45°
Environment	Temp Range	Working: -25ºC~+55ºC; Storage: -40ºC~+65ºC
Protection	Rating	IP66, Anti-vibration, Anti-impact, Anti-thunder (2000V)

■

Product Gallery

Packaging & Quality Assurance

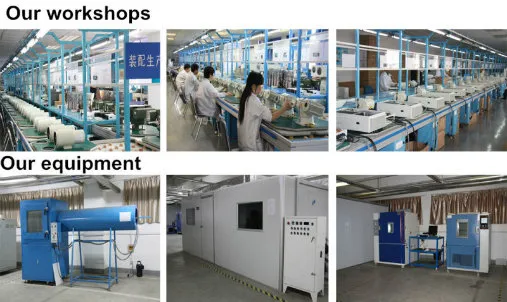

Factory & Exhibition

■

Our Services

● Warranty: Standard one-year warranty with extended options available.
● Support: Life-long technical support and professional troubleshooting.
● Customization: OEM and customized product development available.

■

Frequently Asked Questions

What is the maximum detection range of this thermal camera?

The camera can detect vehicles at a distance of up to 11,880 meters and people at approximately 4,320 meters under optimal conditions.

Does the camera support zoom functionality?

Yes, it features a 36~180mm continuous optical zoom (5x) lens, allowing for both wide-area surveillance and long-range target identification.

Is the device suitable for outdoor use in extreme weather?

Absolutely. The camera is IP66 rated, nitrogen-sealed, and made from precision casting aluminium alloy, designed to withstand harsh environments and anti-thunder protection up to 2000V.

What kind of sensor is used in this thermal imaging system?

It utilizes a high-resolution uncooled microbolometer infrared focal plane array (Vox) with a high sensitivity NETD of ≤50mk.

What are the power requirements and control interfaces?

The camera operates on DC12V or AC24V power. It supports RS485 interface control using Pelco-D or Pelco-P protocols and provides PAL analog video output.

How long does delivery usually take?

Standard delivery time is between 7-20 days after order confirmation, depending on the production season and the specific order quantity.
