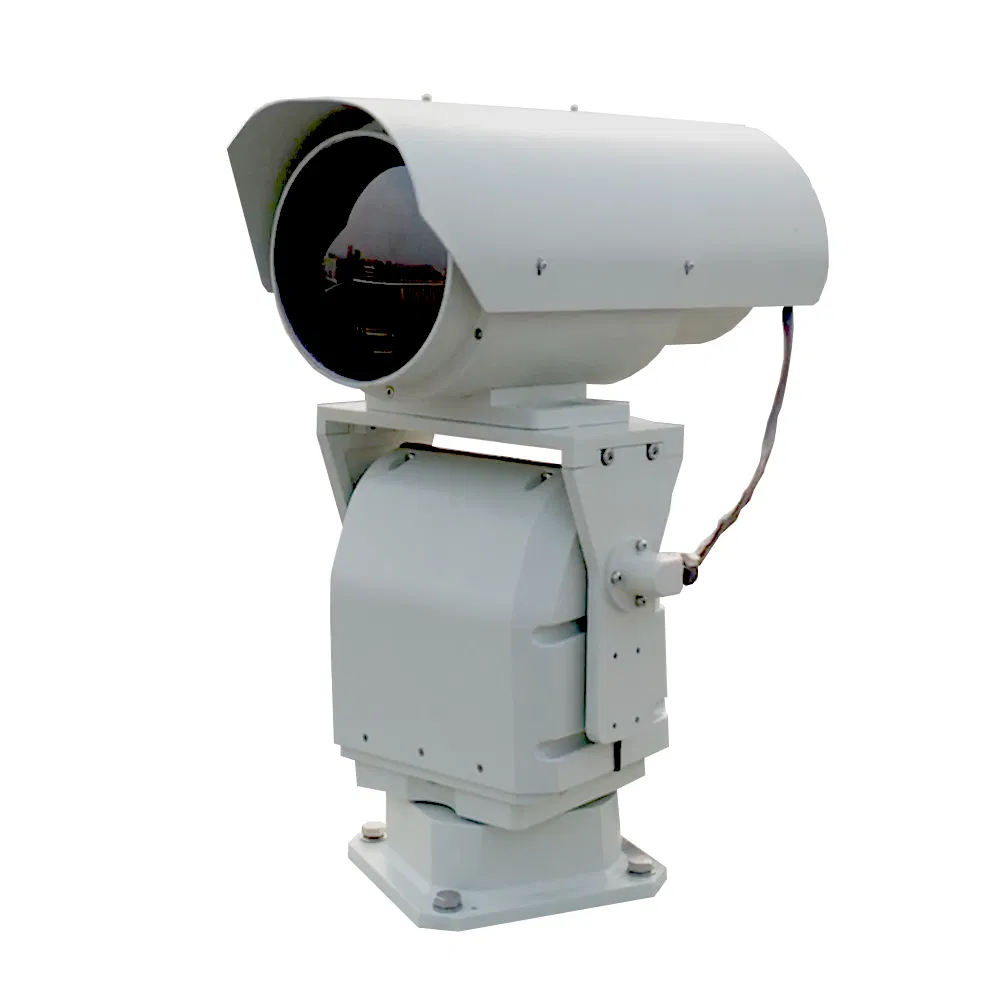

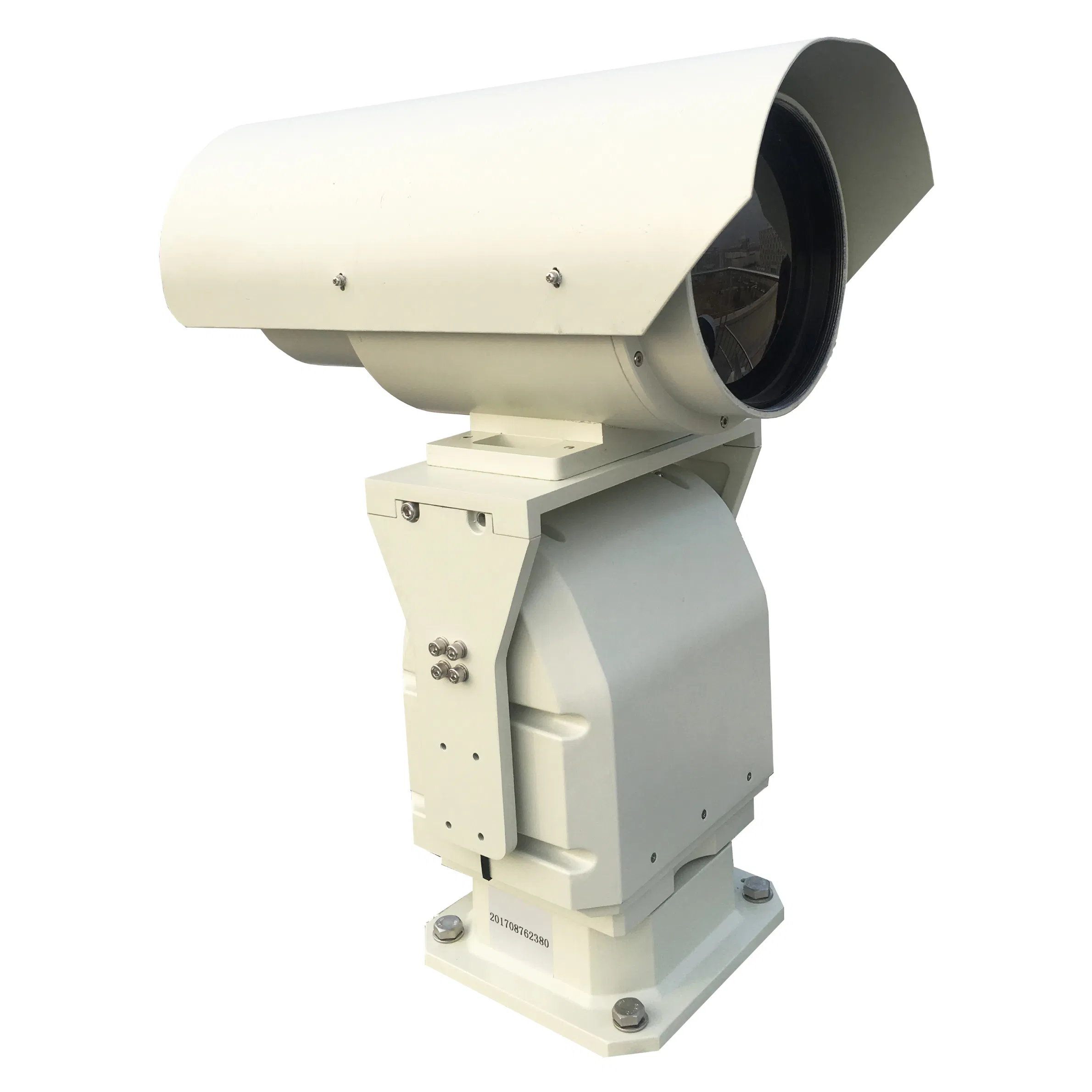

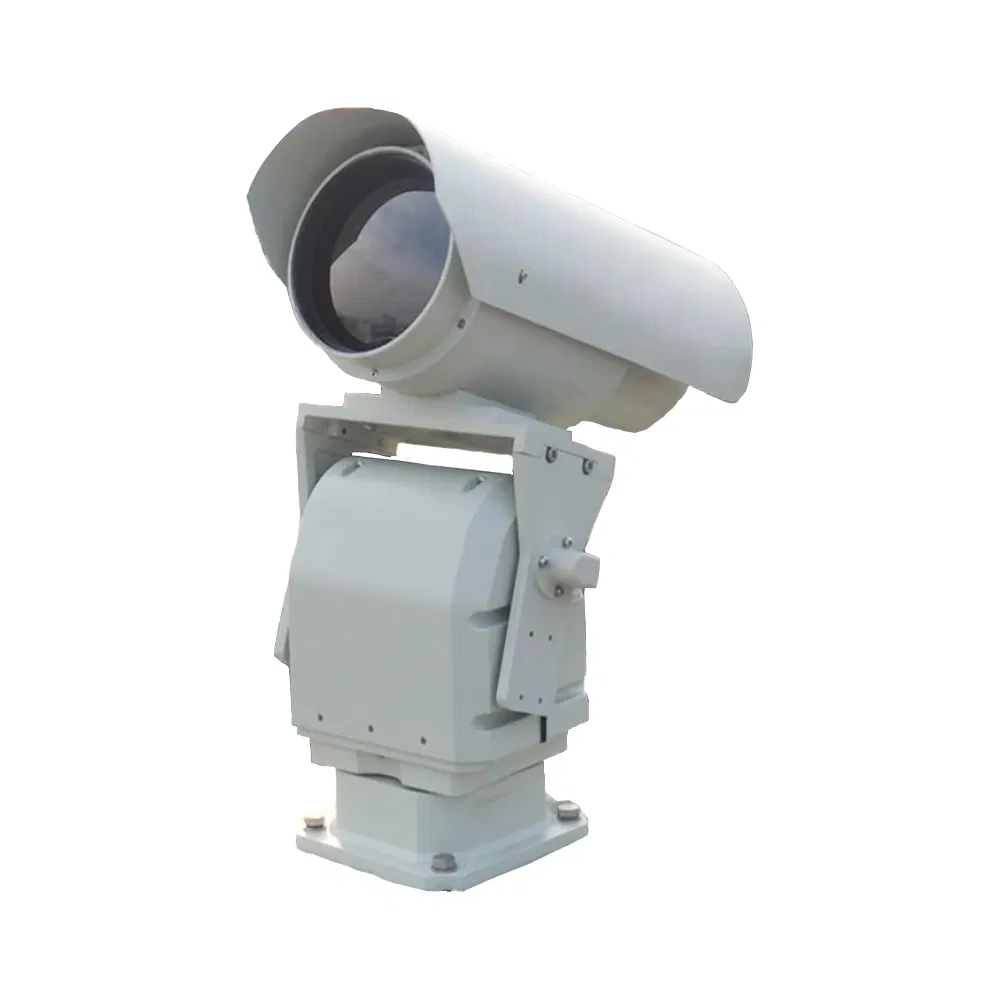

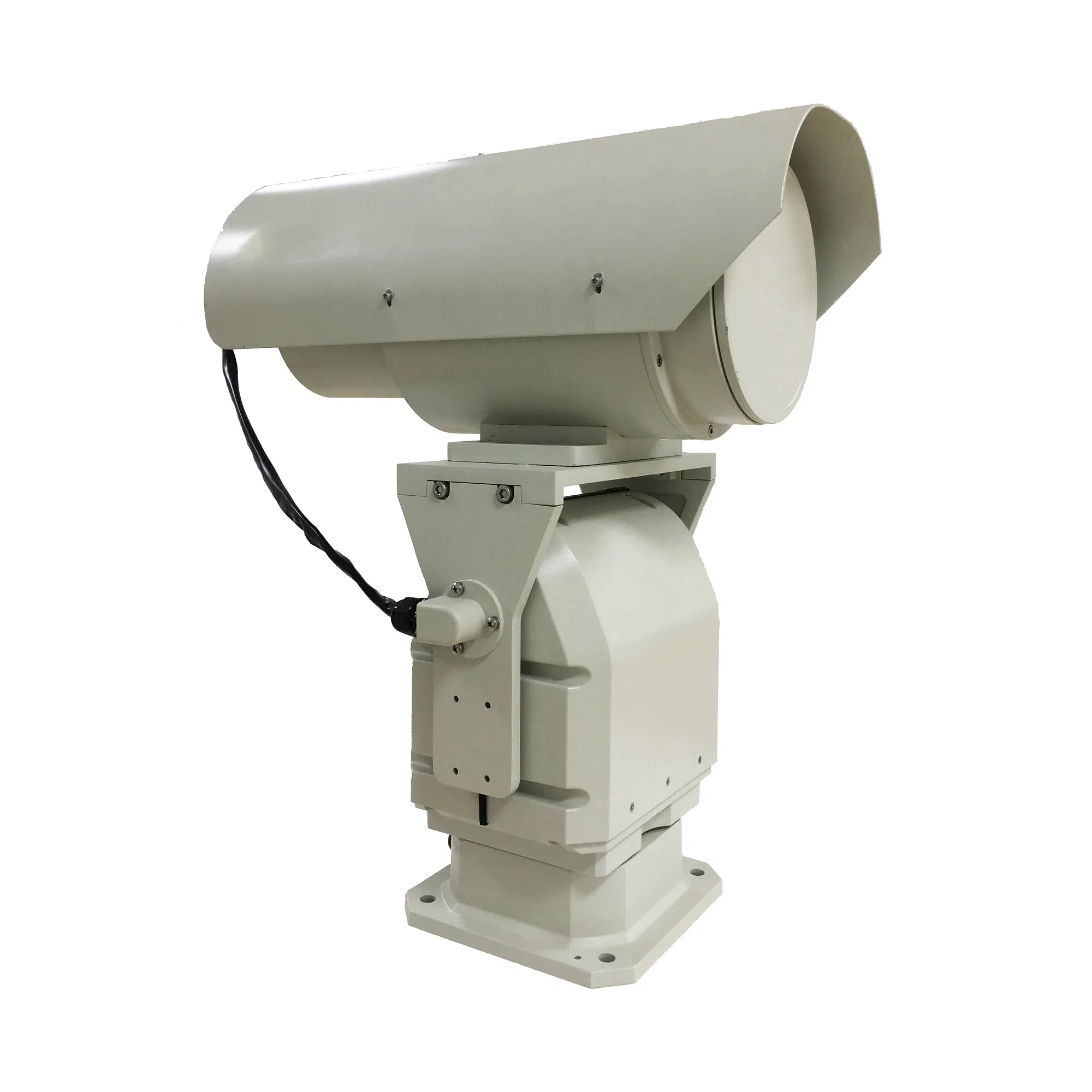

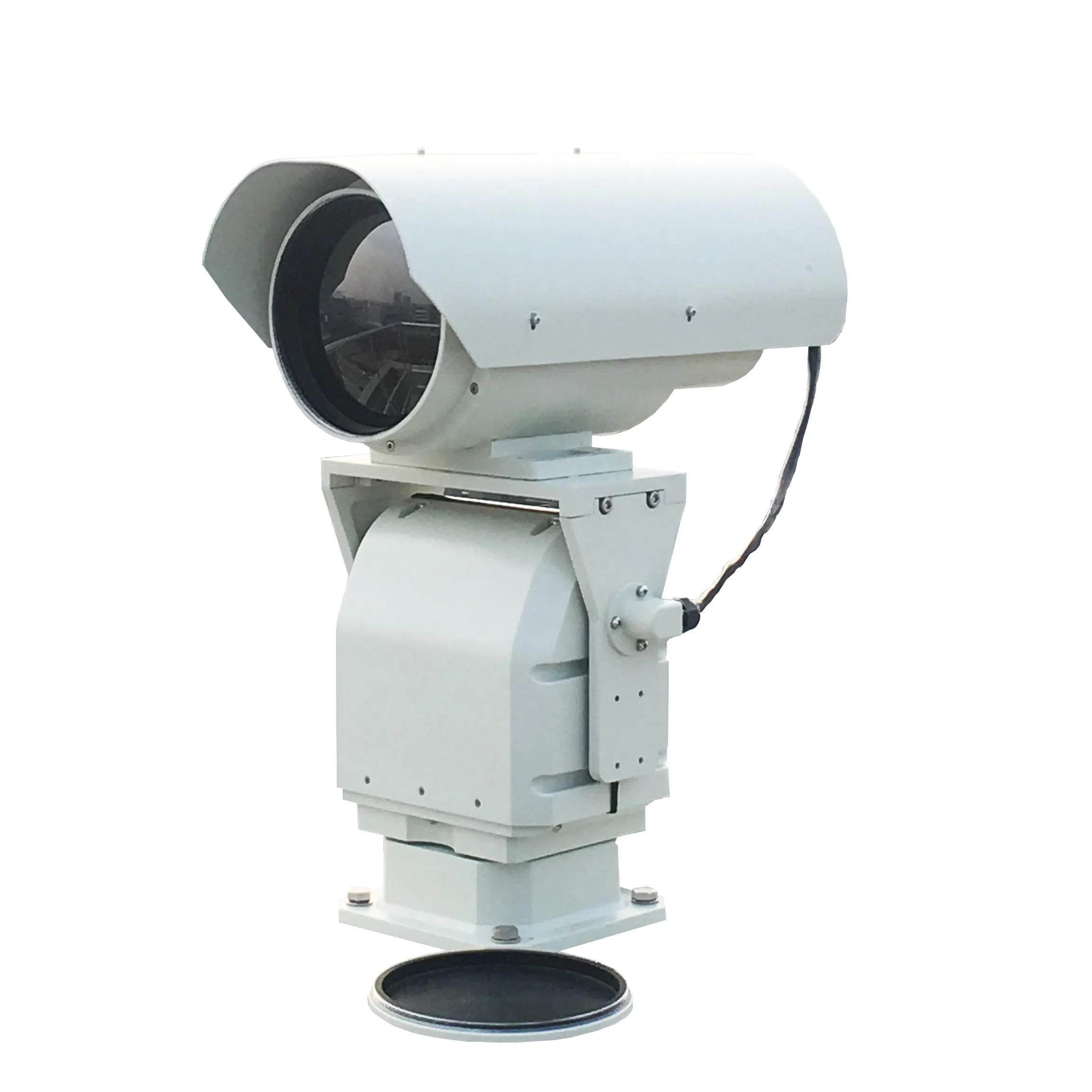

Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement
Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement
Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement
Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement
Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement
1 / 5
Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement
Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement
Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement
Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement
Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement

Vessel Mounted Infrared Thermal Imaging Camera for Law Enforcement

Customization: Available
Technology: Infrared
Style: Zoom Lens
Send Inquiry

Product Description

Basic Information
Model NO.
SHR-HTIR185R
Type
CCTV Camera
Sensor
Vox
HDMI Format
PAL Video Output
Resolution
320 X 240
Certification
CE, FCC
Feature
Waterproof / Weatherproof
IP Rating
IP66
Focal Length
36-180m
Detection
0-11880m
Main Features
  • High resolution uncooled microbolometer infrared focal plane arrays, vox.
  • 25µm or 17 µm pixel, fine image quality for small target detection.
  • High sensitivity, NETD can reach 50mk and frame at 25Hz.
  • 30~150mm continuous zooming for wide range search and identify far targets.
  • Advanced image noise reduction processing with DDE function.
  • Low power consumption, quick start-up, and stable performance.
  • RS 485 interface control with analog video signal output.
  • Precision casting aluminium alloy shell, sealed and waterproof (IP66).
  • Anti-harsh environment with nitrogen inside for extended working lifetime.
Technical Indicators
Monitoring Distance Object People(1.8m×0.5m) Vehicle(2.3m×2.3m)
Detect 4320m 11880m
Recognize 1080m 2970m
Identification 540m 1440m
Detector Detector type Uncooled FPA detector(vox)
Resolution 384×288, pixel 25µm (640×512 optional)
NETD ≤50mK
Video output PAL
Thermal lens Focal length 36~180mm, 5x optical zoom
FOV 2.5°×2.0°~12.7°×10.2°
Environment Working Temp -25ºC~+55ºC
IP Protection IP66
Anti-thunder 2000V
Product Series & Application

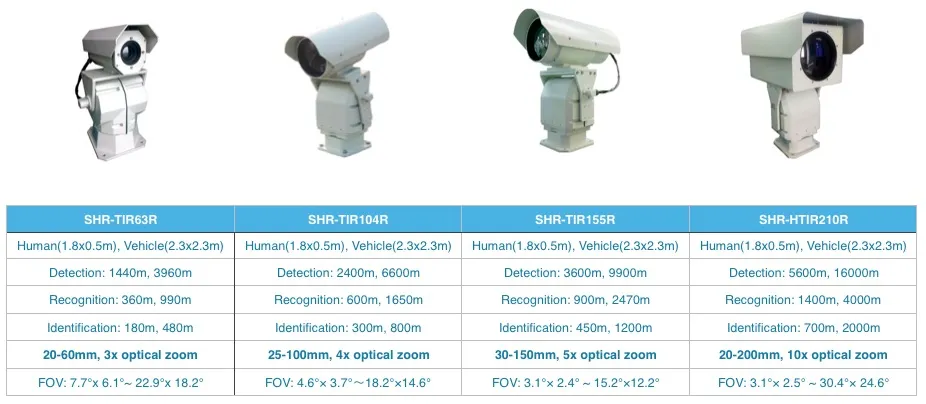

Thermal Camera Series

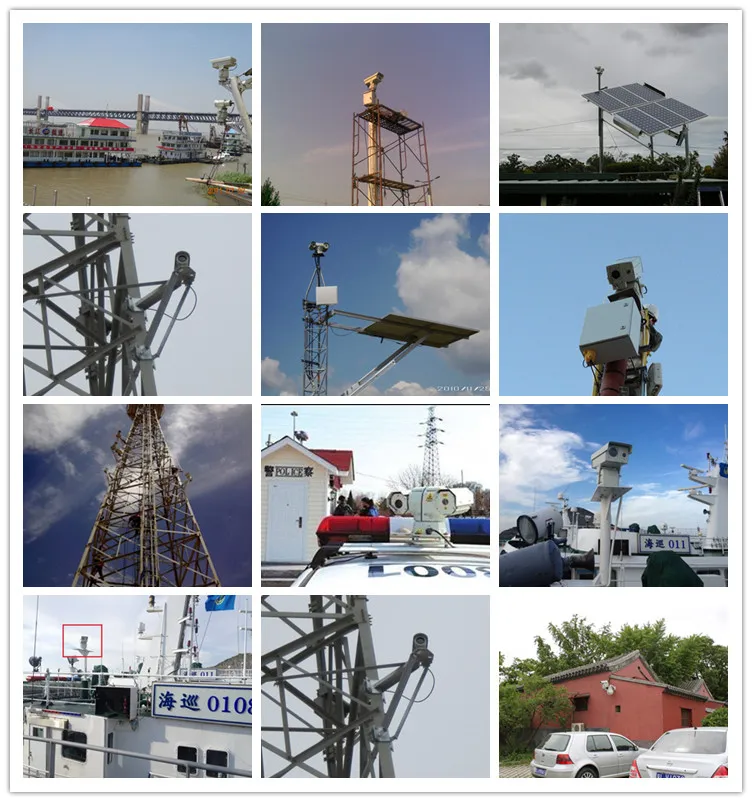

Application Scenarios

This imaging system is widely used for outdoor surveillance such as oilfield monitoring, city monitoring project, frontier defense, shipboard, seaport, railway, highway, airport, and tourist sites monitoring.

Package & Certification
Package Details
Certifications
Package
Standard Wooden or Carton cases
Delivery
7-20 days after order confirmed
Our Services
  • One year warranty standard (Extended warranty available).
  • Life-long technical support with professional troubleshooting.
  • OEM and Customized product options available.
Frequently Asked Questions
What is the maximum detection distance for vehicles?
The camera can detect vehicles at a distance of up to 11,880 meters and recognize them at approximately 2,970 meters.
Is the camera suitable for marine or vessel mounting?
Yes, it features a precision casting aluminium alloy shell, is IP66 waterproof, and nitrogen-filled to resist harsh maritime environments.
What kind of zoom capability does the thermal lens offer?
It provides 36~180mm continuous optical zooming (5x zoom), allowing for both wide-range searching and long-distance identification.
What are the power requirements for this system?
The system standardly uses DC12V, but AC24V options are available depending on the pan-tilt configuration.
Does the camera support image enhancement features?
Yes, it includes DDE (Digital Detail Enhancement) and image noise reduction processing to ensure clear images with high uniformity.
What is the operating temperature range?
The standard working temperature is -25ºC to +55ºC, and it can be customized for extreme environments from -40ºC to +55ºC.
