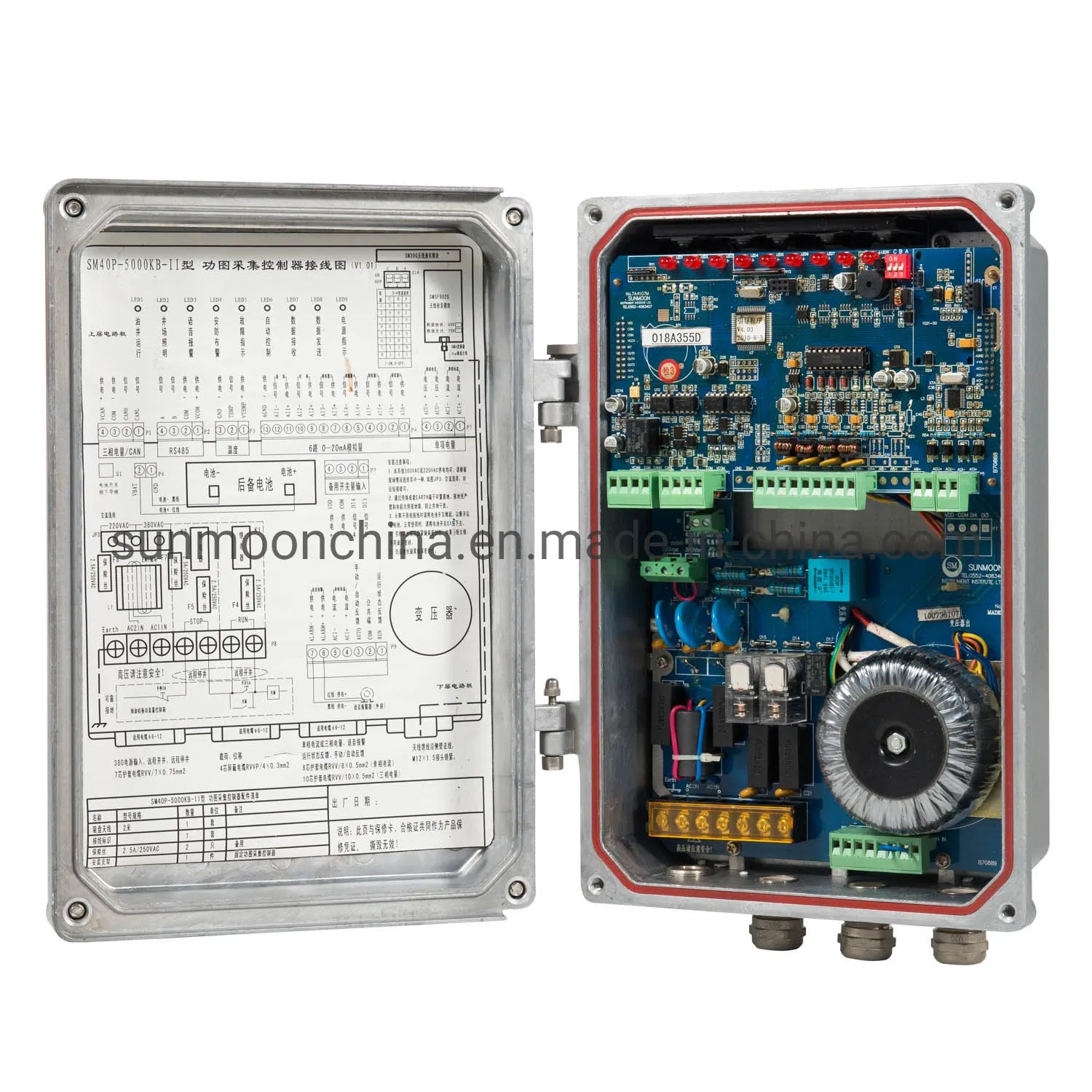

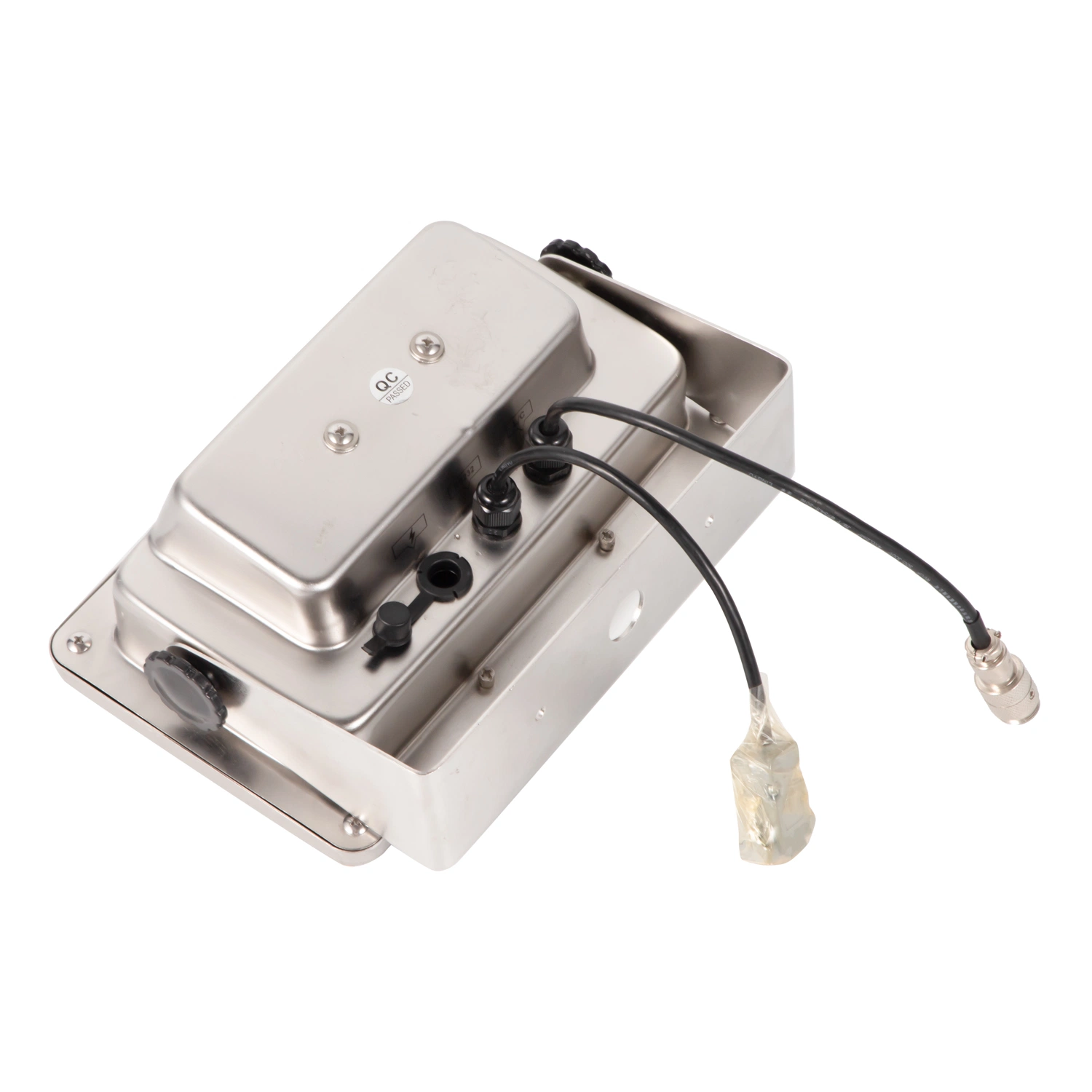

The Intelligent oil well monitoring terminal integrates dynamometer chart, electric quantity, well parameter acquisition, and pumping unit control. The structure design is exquisite and compact, making installation convenient and maintenance simple while maintaining a high comprehensive price ratio.

• Oil Well Monitoring: Support for power charts, current charts, and power charts.
• Parameter Tracking: Monitoring of maximum/minimum load, stroke, oil pressure, casing pressure, and wellhead temperature.
• Electricity Monitoring: Comprehensive tracking of three-phase and single-phase current, voltage, active power, and power factor.
• Remote Control: Features remote opening and shutdown with voice alarm functionality.
• System Alarms: Real-time alerts for shutdown, opening, power outages, and three-phase current imbalance.

• Environment: Outdoor installation with IP65 sealed die-casting aluminum case. Working temperature: -40°C to +85°C.
• EMC Protection: IEC 61000-4-4 strength grade 3.
• Communication: SMSF local wireless (433MHz, ISM band) with distance > 300m; GFSK modulation.
• Interfaces: EIA-RS485-A (photoelectric isolation), CAN bus (Specification 2.0), and 6-channel Analog interface (16-bit sampling).
• Relay Outputs: Four-way relay switch (3A/250VAC) with independent insurance protection.
• Data Storage: Timing storage for up to 600 power chart data points to prevent loss during communication failures.
• Power Supply: Industrial grade with EMI/lightning protection, compatible with 220V/380V/660V.
