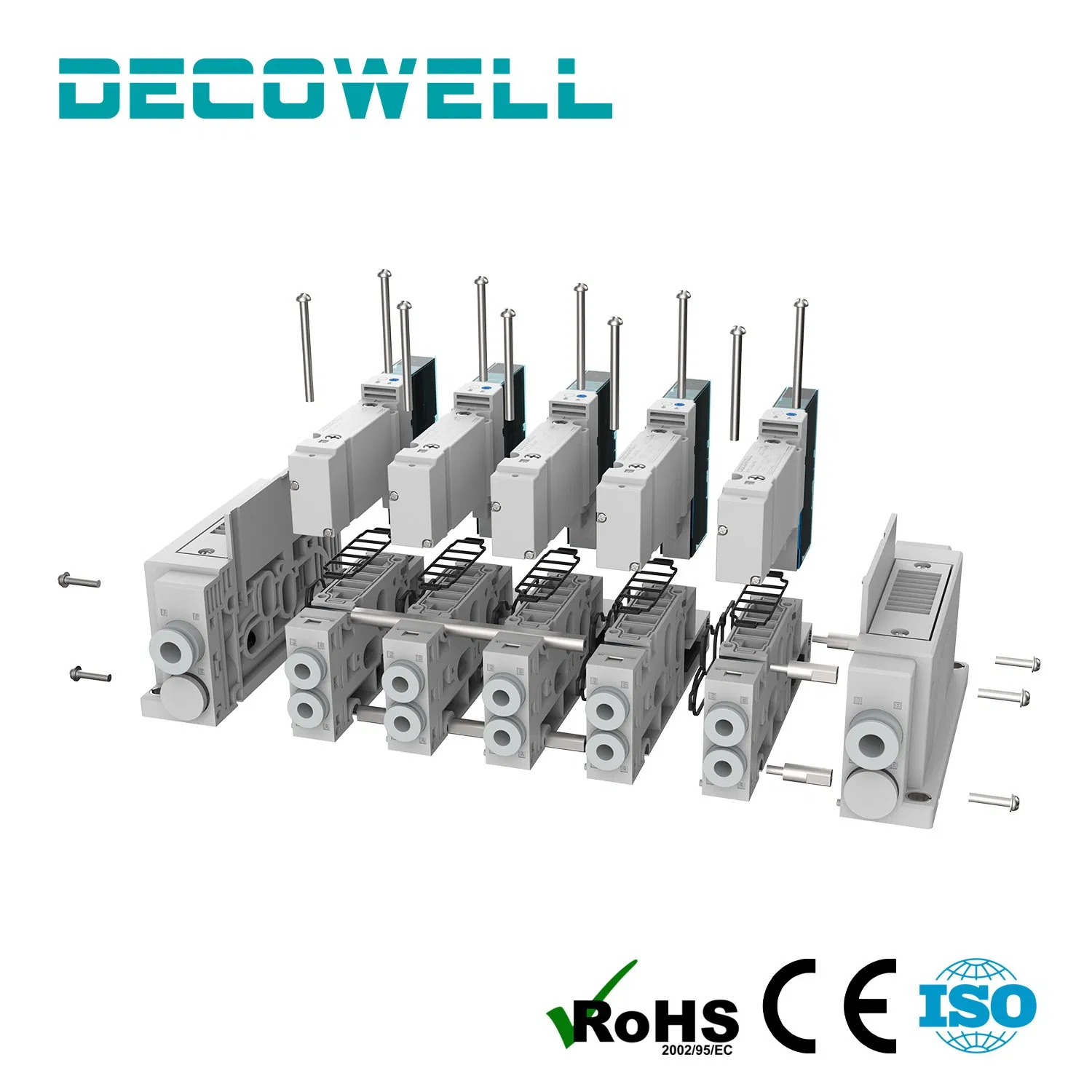

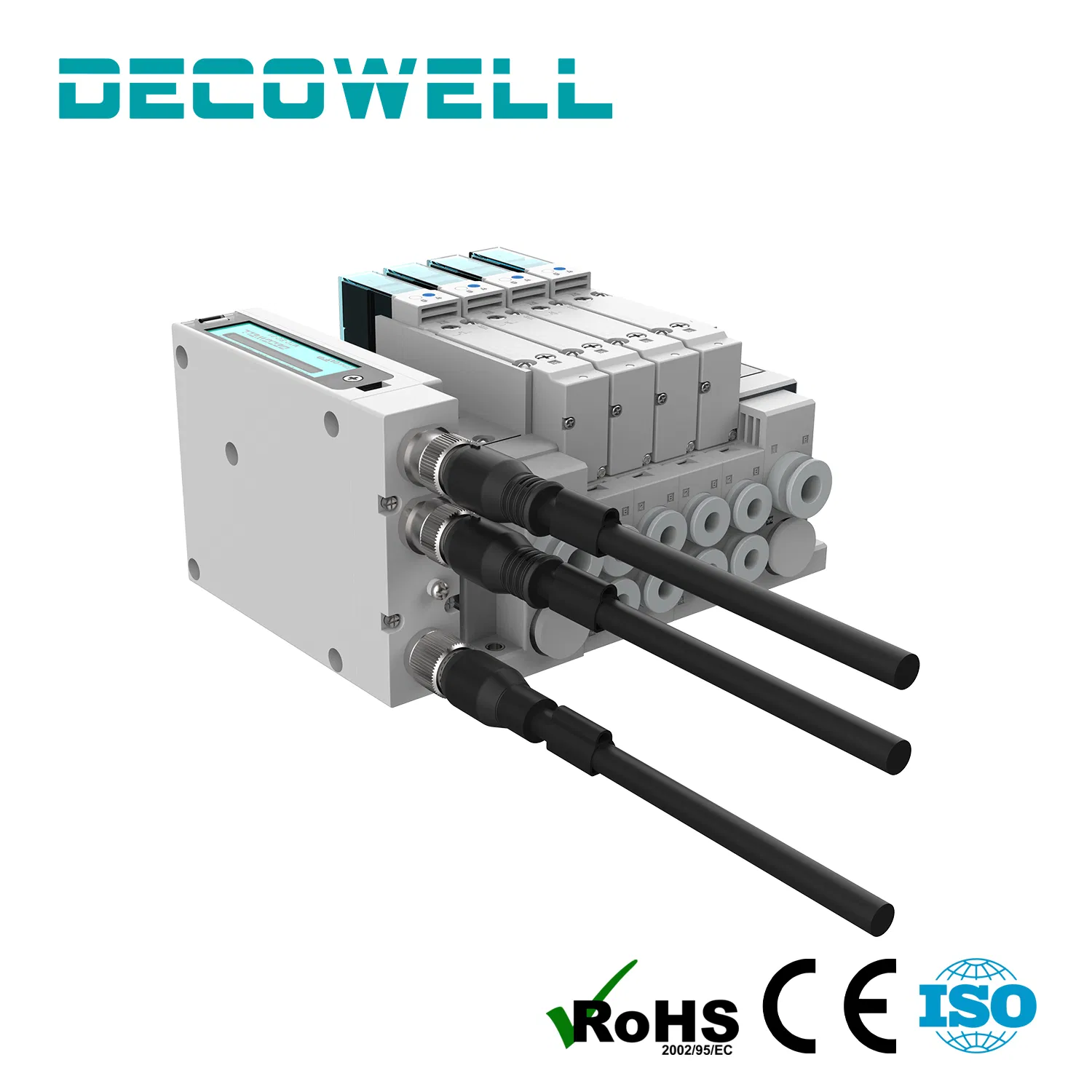

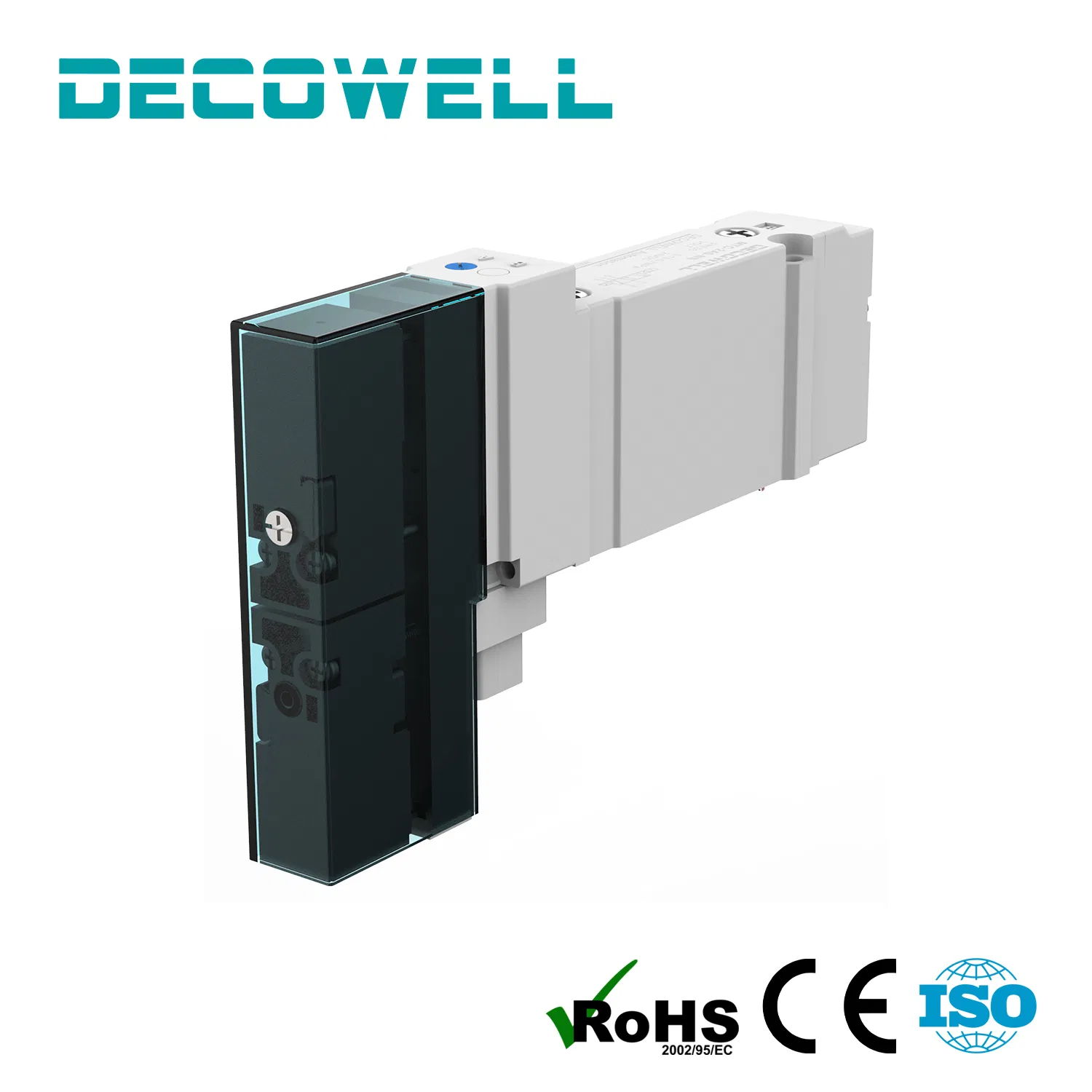

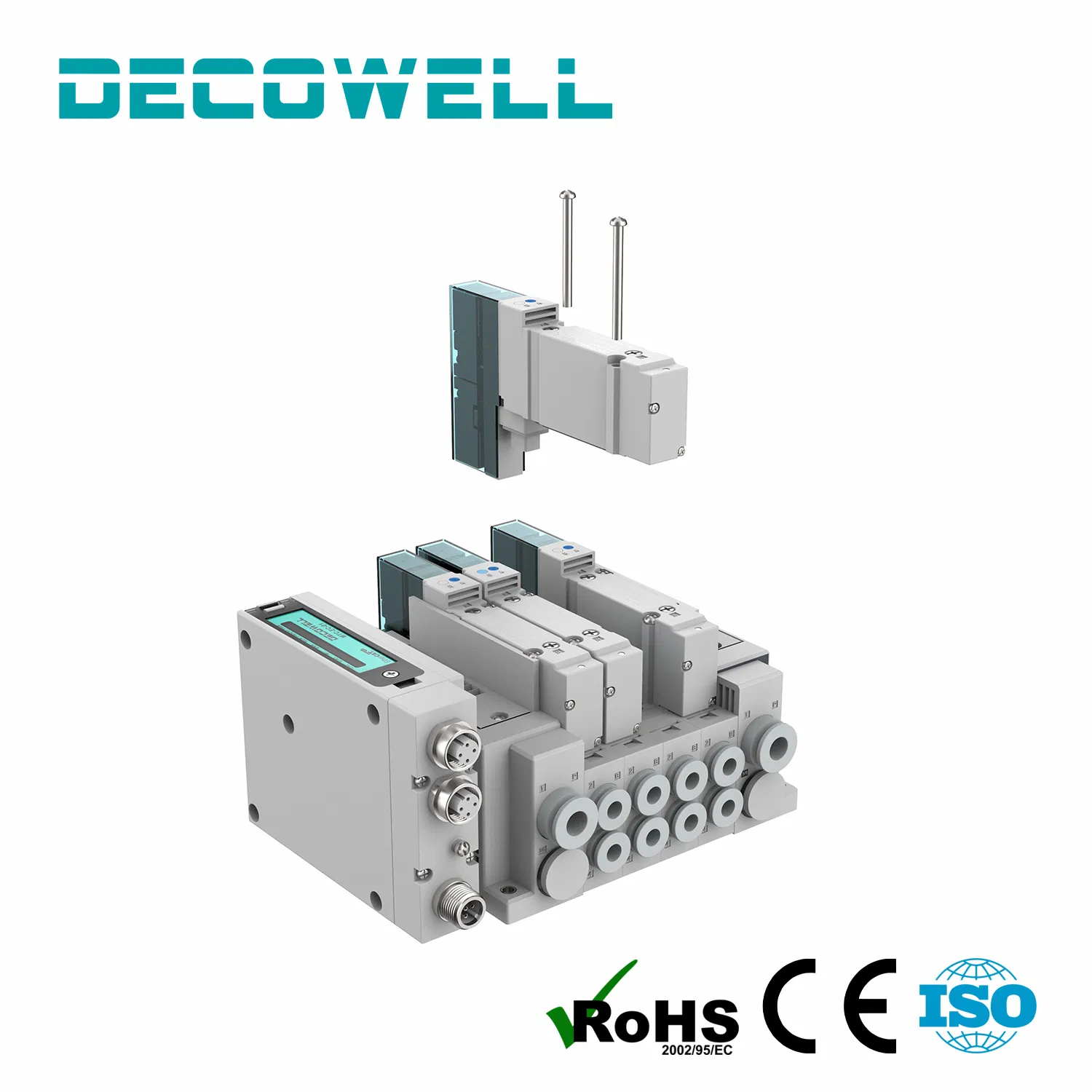

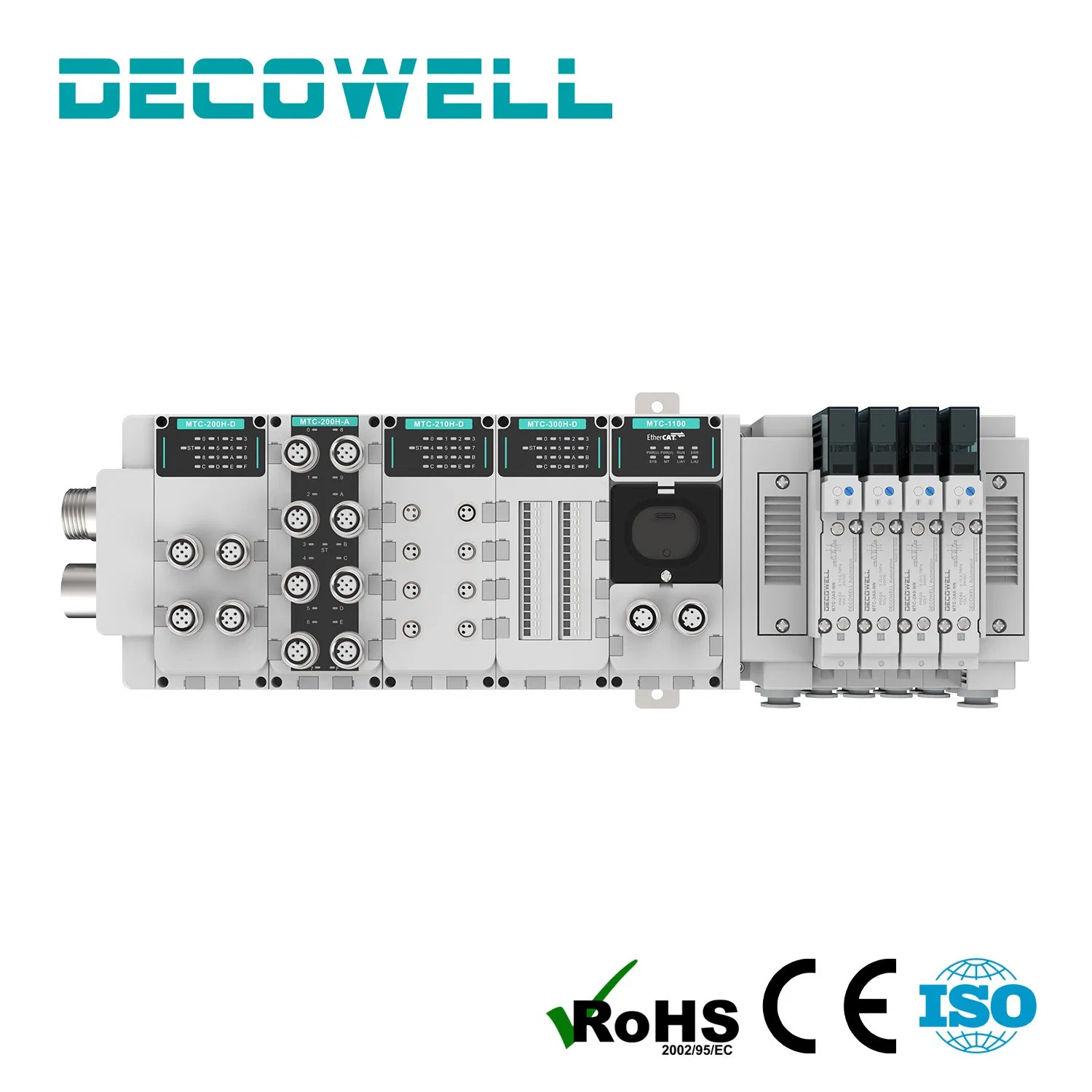

Intelligent Valve Terminal System with Advanced Diagnostic Monitoring

Customization: Available
Function: Automatic Control
Certification: RoHS, ISO: 9001, CE, UL

Product Description

Basic Information
Model NO.MTC
MaterialABS+PC
Product ModelMtc-Ec-01
Module TypeCompact Valve Island Ethercat Communication Module
Bus Speed100Mbps
Protection ClassIP67
Power Supply24V / 2.2A (Adapter) / 24V / 2A (Valve)
Dimensions90× 100× 45.4mm
Product Description

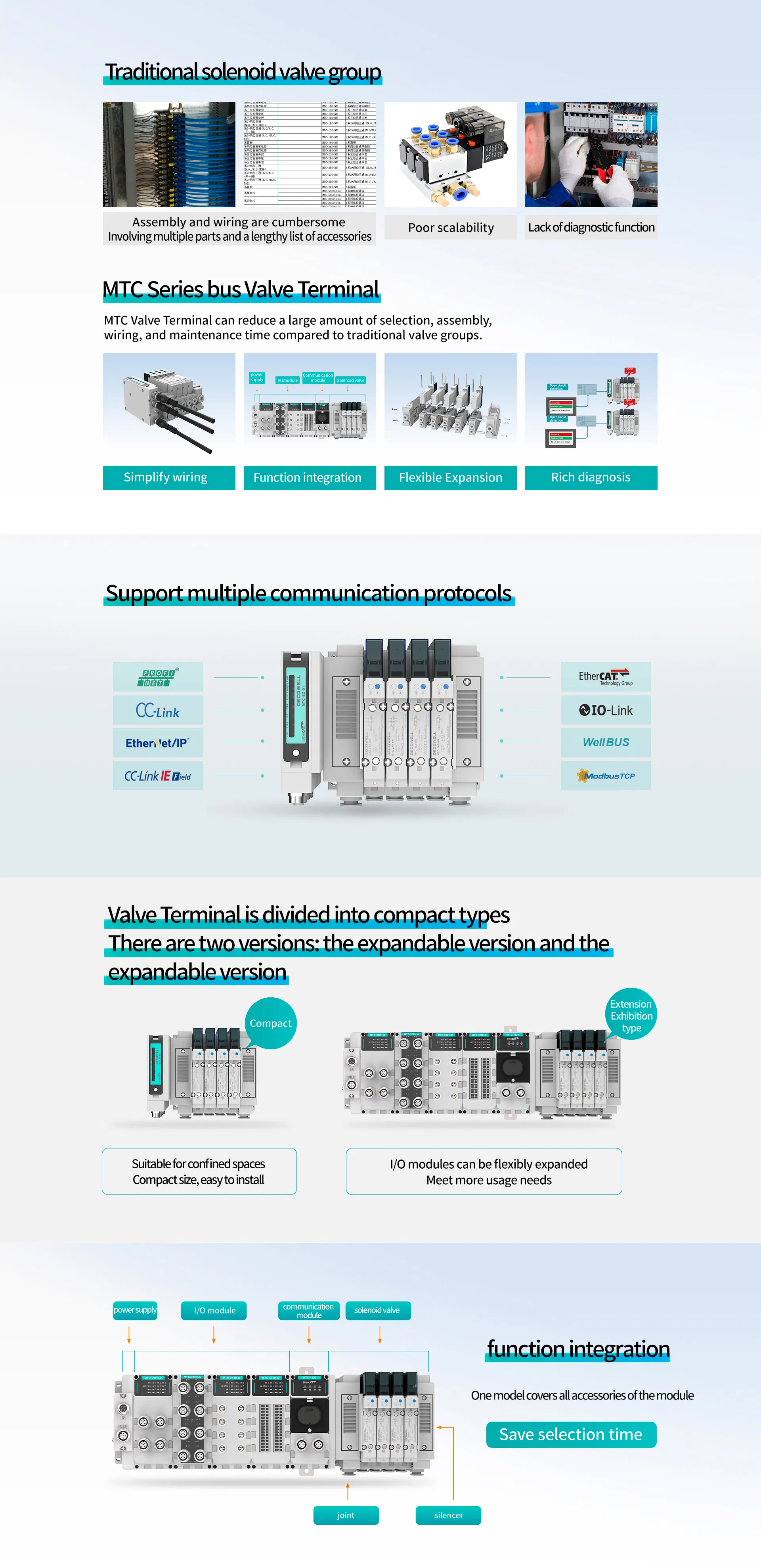

Intelligent Valve Terminal System

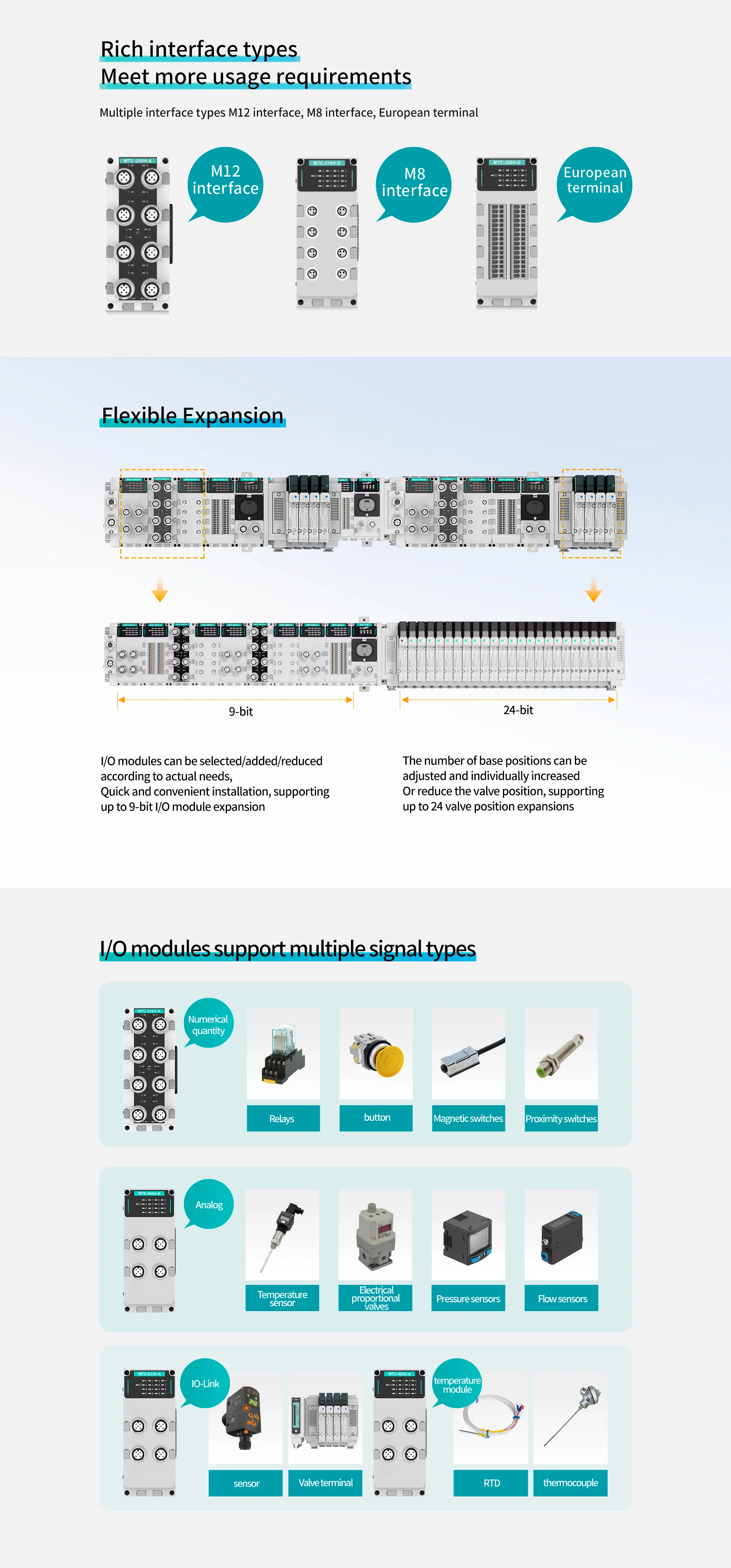

Advanced Diagnostic Monitoring

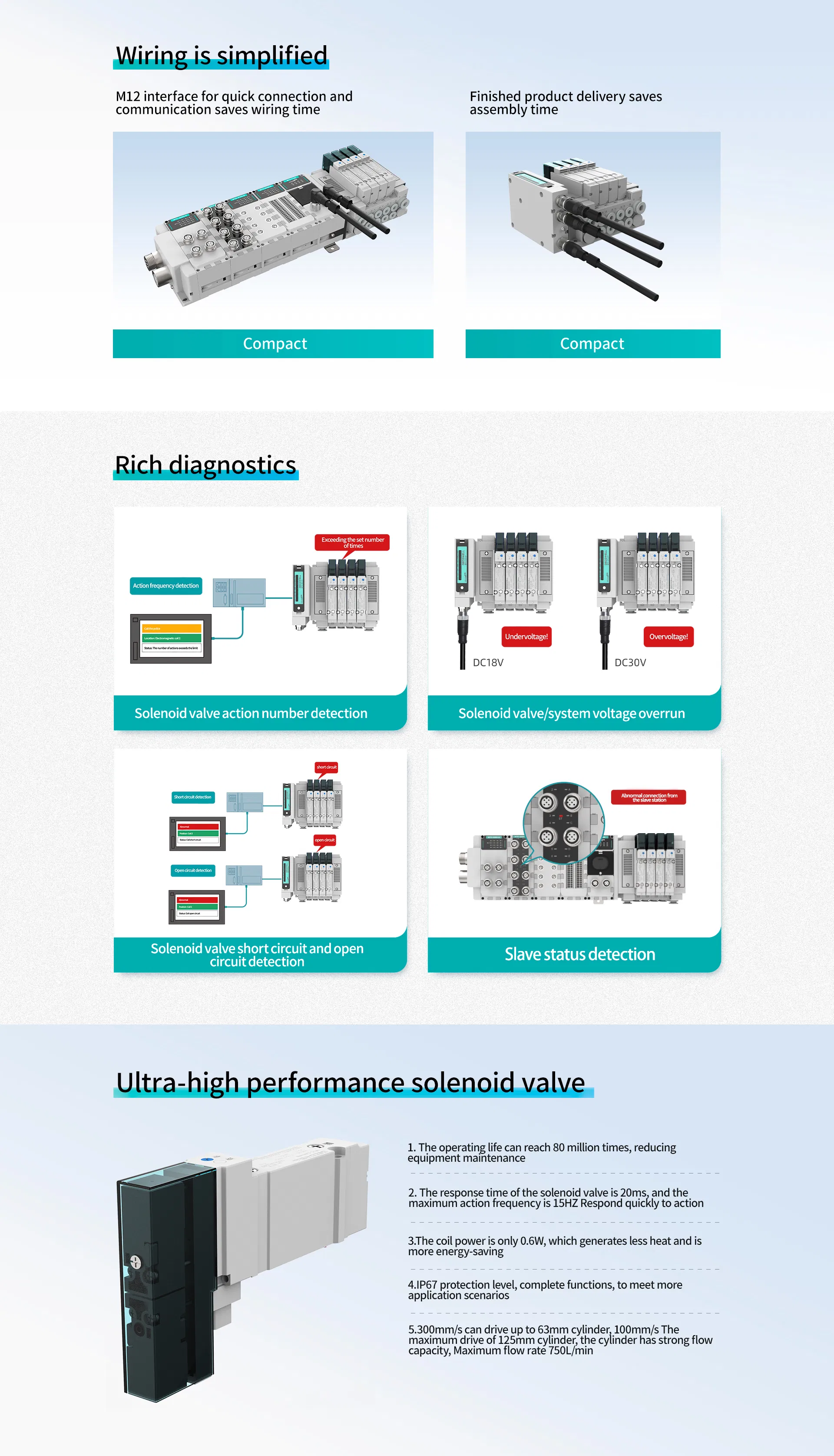

Valve Terminal Details
System Interface
Technical Specifications
ProtocolsEtherCAT; PROFINET; Ethernet IP; Modbus/TCP; CC-Link IE Field; CC-Link
Communication Distance100m
Voltage Variation±10% of rated voltage
Exception OutputHOLD/OFF/SUB
Max I/O Bytes6/4
Output Points32
Output FormNPN
ProtectionShort Circuit Protection, Reverse Connection Protection

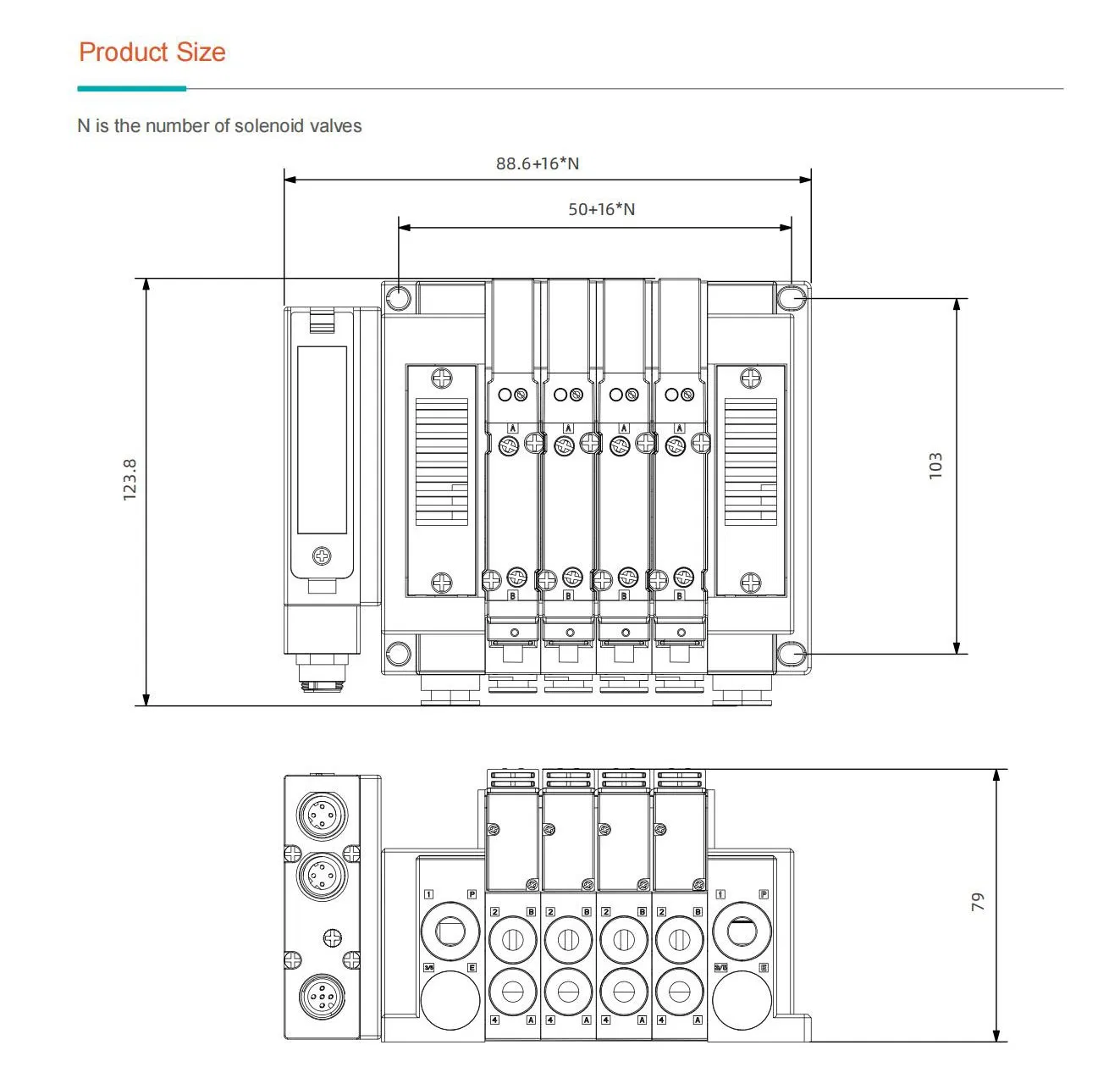

Specification Diagram

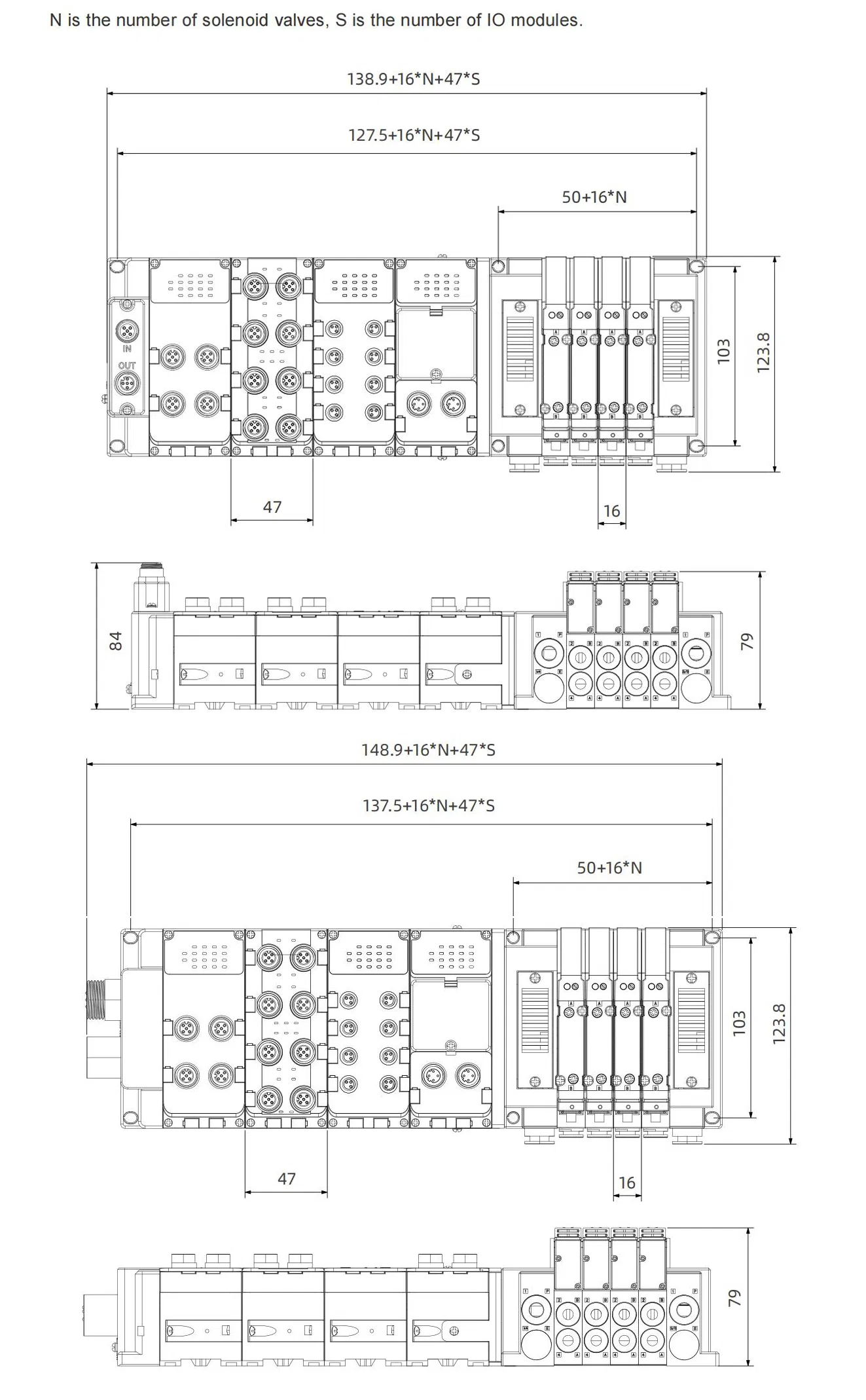

Technical Drawing
Profile & Facility
Founded in 2016, our company is a national high-tech enterprise that integrates technology research and development, production, sales, and customer service. We are dedicated to delivering cutting-edge solutions in industrial automation, specializing in comprehensive industrial bus solutions with I/O modules at the core.

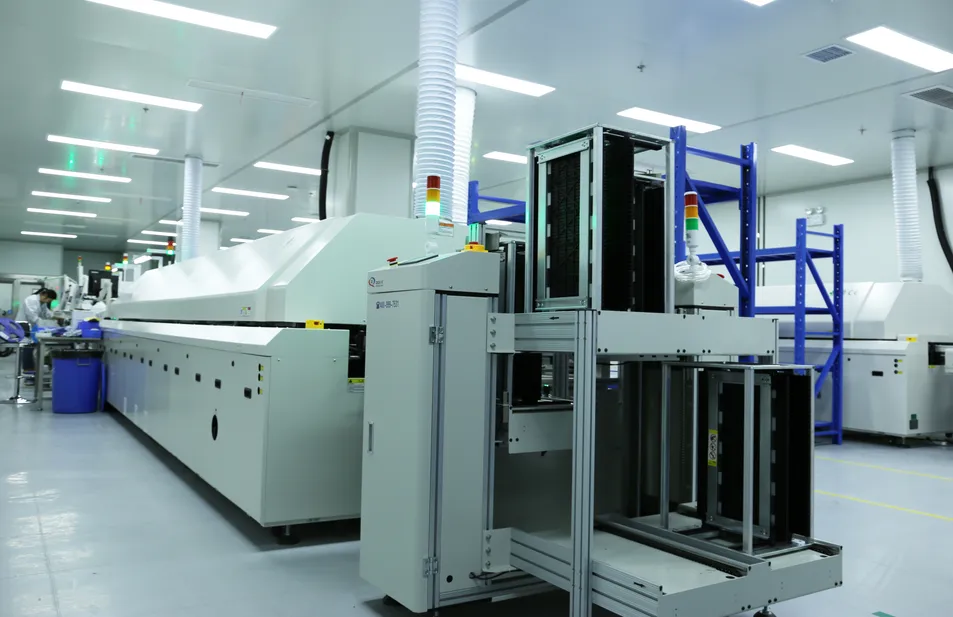

Workshop Area
Workshop Area

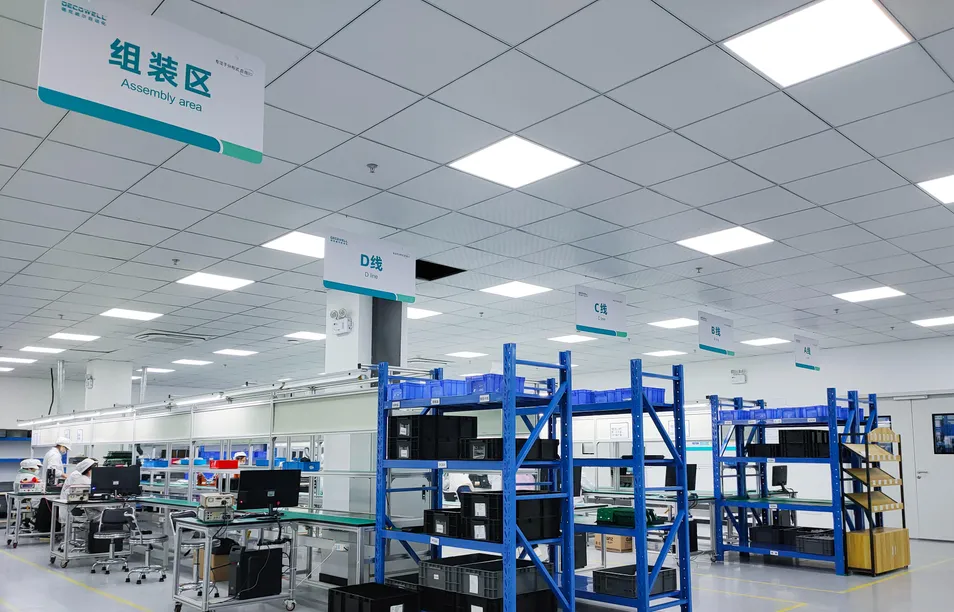

Assembly Area
Assembly Area
Repository
Repository
Showroom
Showroom
Office Area
Office Area
Certifications & Applications
Certificates Industry Applications
Global Presence
Exhibition 1
Exhibition 2
Visit 1
Visit 2
Visit 3
Frequently Asked Questions
What is your minimum order quantity (MOQ)?
Our MOQ is just 1 unit, allowing you to test and evaluate our products with ease before committing to larger orders.
Do you provide product samples?
Yes, samples are available if in stock. Customers are responsible for the sample and shipping fees.
What is the delivery time for your products?
In-stock products ship within 1-3 business days. Customized products typically require 2-4 weeks for production and shipment.
What kind of warranty do you offer?
We provide a 1-year warranty covering non-human-induced damage, starting from the date of shipment.
Do you offer OEM/ODM customization?
Yes, we provide both OEM and ODM services to tailor our industrial bus solutions to your specific application requirements.
How do you ensure the quality of your modules?
Our products meet CE, RoHS, and UL standards. Each unit undergoes rigorous testing to ensure maximum reliability and performance in industrial environments.
