5KM Night Vision Security Camera
1. Introduction

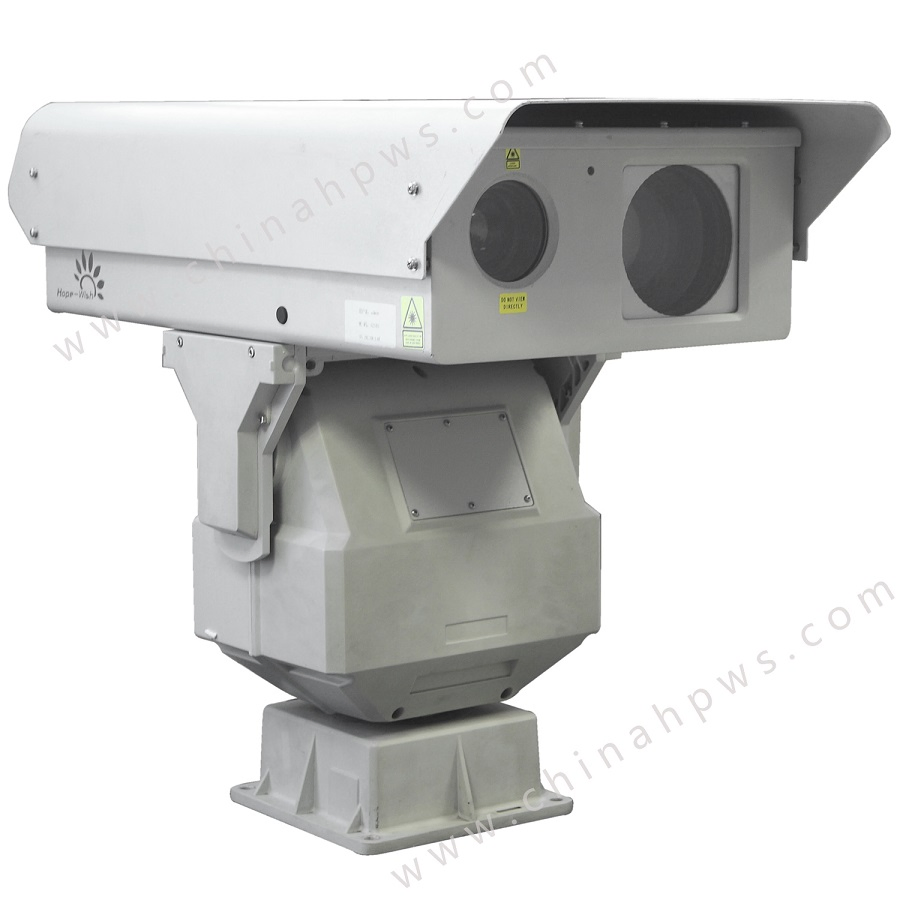

With super homogenizing laser illuminator and low illumination MP telephoto lens, RC06 series long distance laser imaging camera is designed for 24 hours monitoring. The max night detection distance is 3000m for human, vehicle and facilities. With built-in technical grade electronic control system, the camera can complete such functions as zooming, focusing and video switch easily. Its rotation is stable and accurate. One integral aluminum alloy housing and IP66 ingress protection ensures its proper functioning outdoor.
2. Application
Oilfield monitoring, navigation, fishery, aquaculture, railway & freeway security, seaport & airport security, mariculture security, city security and forest fire prevention.
3. Features
1. DSS digital stepper illumination angle control, unique laser zooming and distance matching technology, min 0.1° follow-up zooming.
2. GHT super homogenizing and power consumption control of NIR laser ensure a better effect.
3. Independent laser photoswitch.
4. Accurately optical axis aiming, 0.01° SLM optical axis aiming and locking.
5. 360° continuously rotation PT, rotation stably.
6. One integral aluminum alloy housing, IP66 ingress protection, waterproof, dustproof.
| Model |
RC0616 |
RC0630 |
RC0650 |
RC0655 |
RC0676 |
RC06150 |
RC06200 |
| Detection |
Day: 1km; Night: 500m |
Day: 2km; Night: 1km |
Day: 3km; Night: 1.5km |
Day: 4km; Night: 2km |
Day: 5km; Night: 3km |
Day: 10km; Night: 5km |
| Laser Consumption |
4W, 808nm |
6W, 808nm |
8W, 808nm |
10W, 808nm |
15W, 808nm |
40W, 808nm |
| Laser Angle |
1.5°~20° |
1°~20° |
0.7°~20° |
0.5°~20° |
0.3°~20° |
0.2°~20° |
| Lens |
10~160mm |
12~320mm |
15~528mm |
18~550mm |
30~750mm |
12.5~1500mm |
16.7~2000mm |
| CCD |
1/3'' 0.005 lux low illumination |
1/2'' 0.004lux low illumination |
| Housing |
One integral aluminum alloy, IP66 weatherproof |
| Load Duty |
20kg |
50kg |
?
Frequently Asked Questions
What is the maximum night detection distance of the RC06 series?
The RC06 series offers various models with night detection ranges from 500m up to 5km, depending on the specific model selected (e.g., RC06200 supports up to 5km at night).
Is the camera suitable for harsh outdoor environments?
Yes, the camera is built with an integral aluminum alloy housing and features IP66 ingress protection, making it waterproof, dustproof, and weatherproof.
Does this camera support 360-degree monitoring?
Yes, it features a Pan-Tilt (PT) system capable of 360° continuous rotation for comprehensive area coverage.
How does the laser zooming technology work?
It utilizes DSS digital stepper illumination angle control and unique laser zooming that matches the distance, allowing for high-precision follow-up zooming down to 0.1°.
What kind of power supply does the system require?
The system operates on AC24V±10%, 50Hz, with a power consumption of approximately 150W. A standard AC220V to AC24V adapter is included in the configuration.
Can the camera see through fog?
Optical filtering and AFR image processing for penetrating fog are available as an optional feature to enhance visibility in low-clarity conditions.
