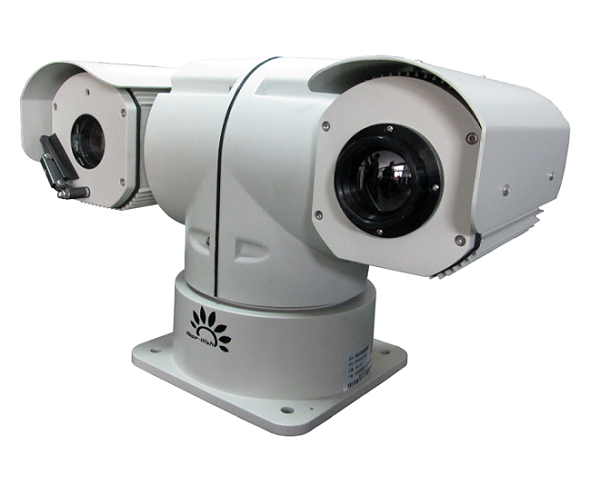

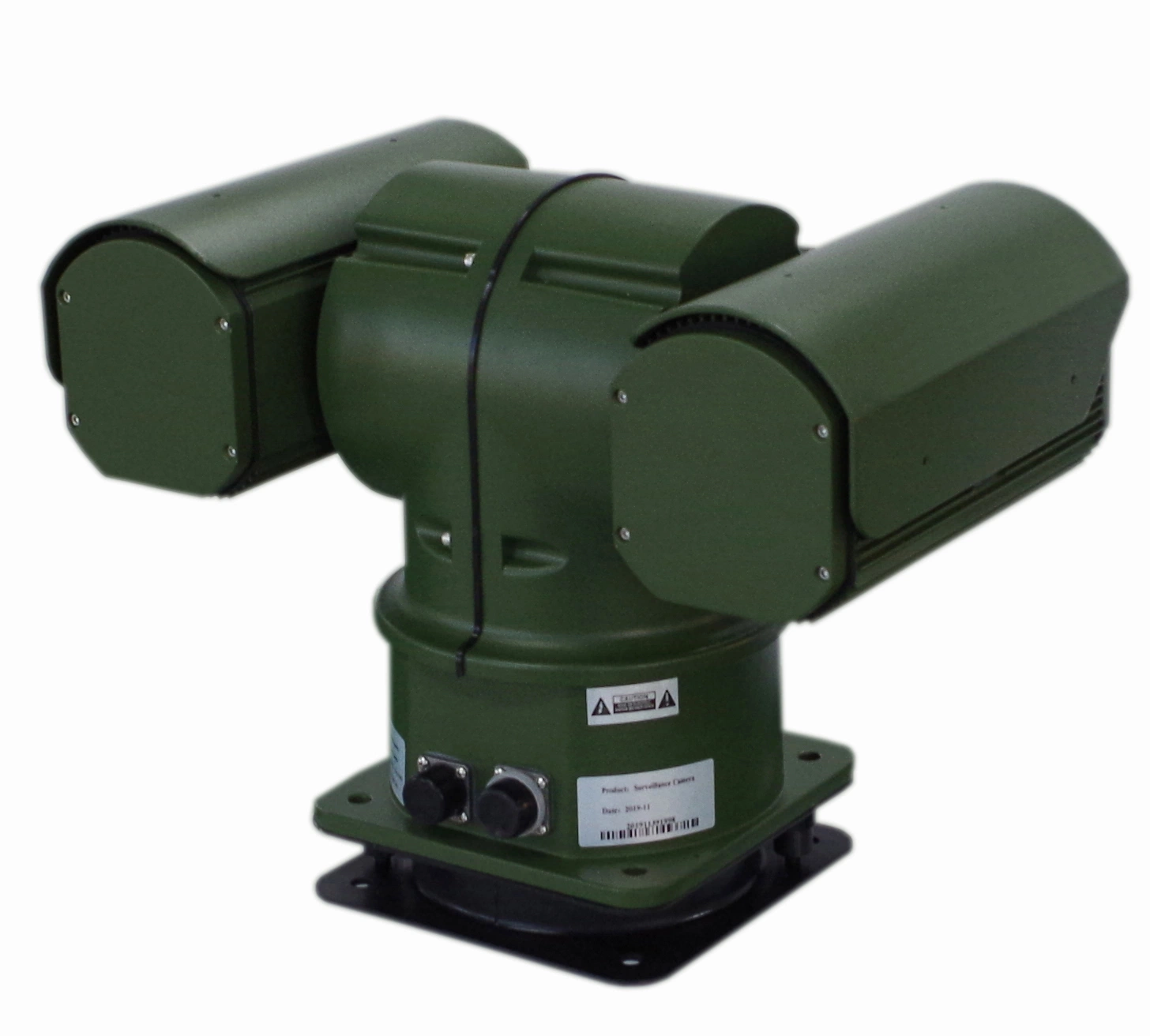

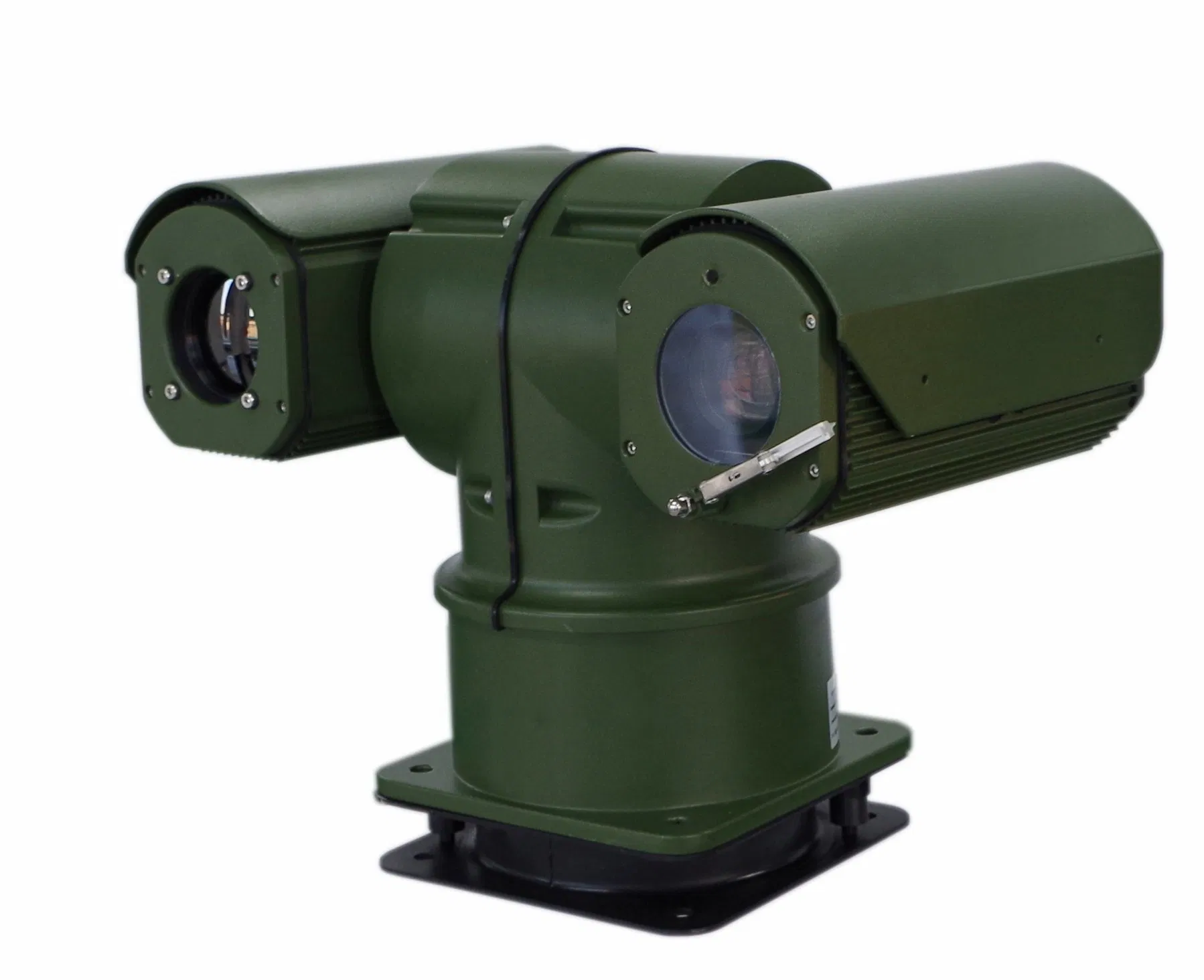

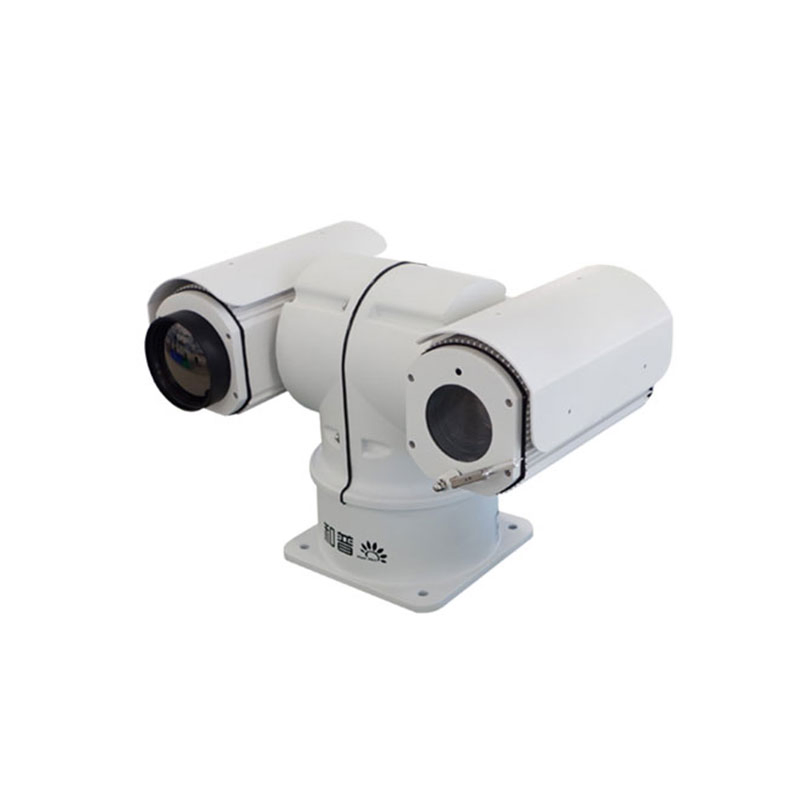

Night Vision ir Thermo vision CCTV Camera with 360 Degree PTZ
As a series of camera specially designed for special purposes, TVC Series Long Range Bi-spectrum Thermal Camera adopts 440,000 or 2,000,000 visible camera and 336*256/640*512 uncooled thermal camera with large caliber. In combination with 360 degree PT, the camera is capable of conducting 24 hours real-time monitoring within 2km-10km.
With built-in technical grade control electronic system, the camera's functions like zooming, focusing and video switch can be easily completed. The camera is IP66 rated, which ensures normal operation under tough weather conditions.
| Model | BTVC4102-0437-S | BTVC4105-0437-S | BTVC4102-1930-S | BTVC4105-1930-S |
| Detection | Vehicle: 1700m / Human: 720m | Vehicle: 4200m / Human: 1640m | Vehicle: 1700m / Human: 720m | Vehicle: 4200m / Human: 1640m |
| Thermal sensor | 336*256, UFPA, 7-14um spectral response, 50mk NETD | |||
| Thermal lens | 20mm F1.0 | 50mm F1.0 | 20mm F1.0 | 50mm F1.0 |
| Visible | 440,000 pixels, auto color to B/W CCD at 0.01Lux | 2 mega pixels, auto color to B/W CMOS at 0.01Lux | ||
| Pan/Tilt Range | Pan: 0° to 360° continuous; Tilt: -90°~+90° | |||
| Speed | Pan: 0°~100°/s; Tilt: 0°~60°/s | |||
| Ingress Protection | IP66 | |||
| Working Temp. | -35~55ºC | |||
The core R&D team focuses on laser imaging, infrared thermal imaging detection, and tracking technology research. We specialize in night vision and multispectral imaging technology, utilizing image analysis and processing based on artificial intelligence to provide comprehensive optoelectronic system solutions for long-distance, high-definition, and complex environments.
Our solutions cover border and coastal defense, anti-UAV systems, intelligent transportation, forest fire prevention, environmental protection, and marine industries. The products are recognized for excellent performance, reliable quality, and professional service across the globe.
