Thermal Infrared Camera for Patrol Car

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Product Overview

Model NO.

HP-BTVC

Type

Car Camera

Sensor

Uncooled Sensor

HDMI Format

1080P

Certification

CE, FCC, ISO9001

Detection Range

2km

Protection

Waterproof, Vandal-proof

Effective Distance

≧30m

🔍

Product Description

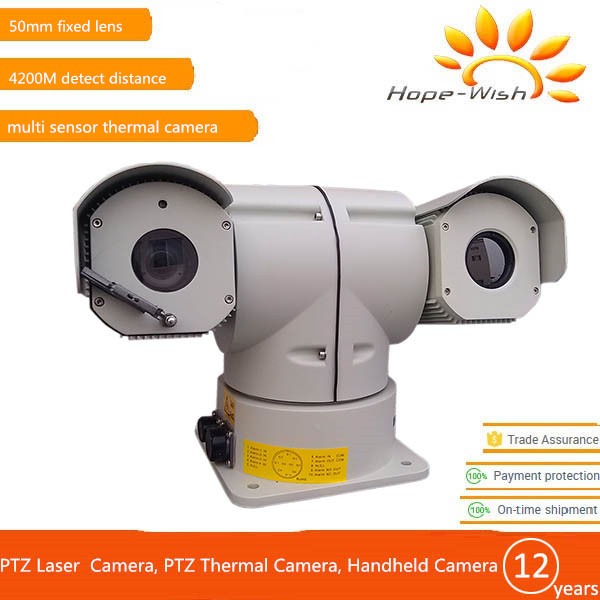

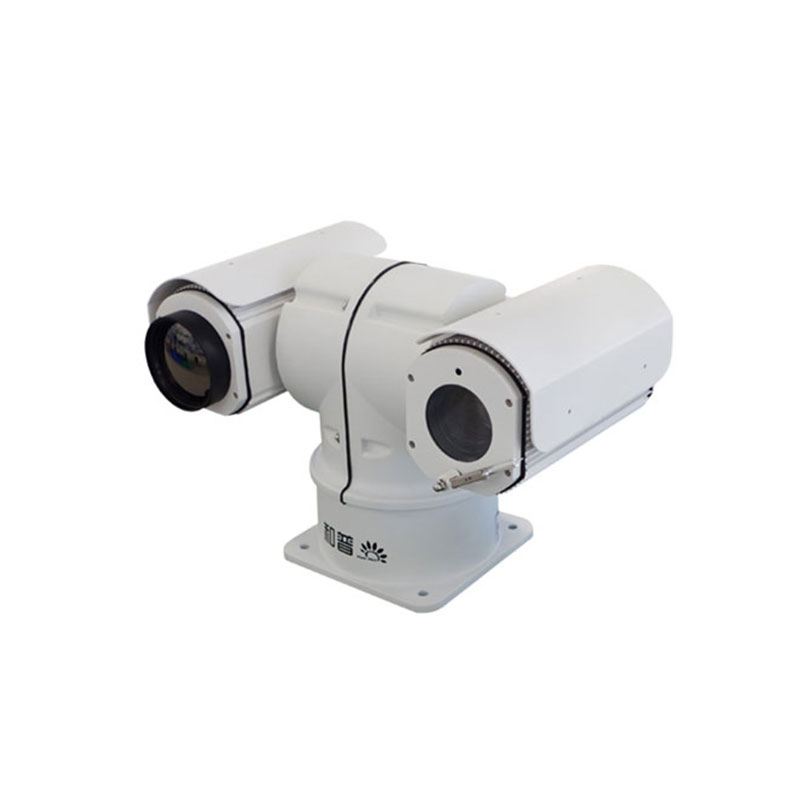

Thermal Infrared Camera for Patrol Car

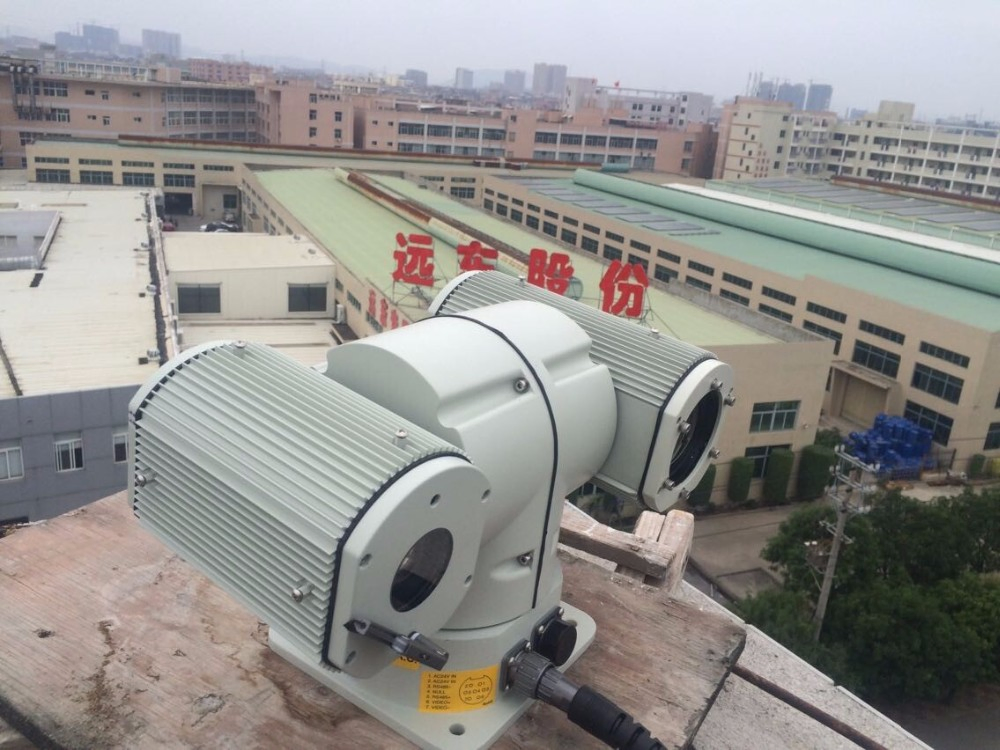

The BTVC Series T Shape Bi-spectrum Thermal Camera is a high-end intelligent surveillance solution combining thermal imaging, visible CCD, and precise gearing units. Designed for accurate positioning and compact installation, it features preseting and patrol functions to eliminate monitoring blind spots.

📋

Technical Parameters

Model	BTVC4102-1930-S	BTVC4105-1930-S
Detection (Vehicle)	1700m	4200m
Detection (Human)	720m	1640m
Thermal Sensor	336*256, UFPA, 7-14um spectral response
Thermal Lens	20mm F1.0	50mm F1.0
Visible Lens	4.3mm~129mm, 30X optical zoom, auto focus
Pan/Tilt Range	Pan: 360° continuous; Tilt: -90°~+90°
Protection	IP66, Aluminum alloy housing
Power Supply	AC24V/2.5A

💡

Core Features & Application

All-Weather Surveillance: 24-hour real-time monitoring via both thermal and visible cameras.
High Sensitivity: 50mk thermal sensitivity and SDE enhancement for clear images in fog and rain.
Robust Protection: IP66 waterproof rating and aluminum alloy housing for heat dissipation.
Anti-Surge Design: Capability to withstand 3000V instantaneous current for electrical safety.
Versatile Use: Ideal for safe cities, vehicle monitoring, oilfields, railways, and airports.

⭐

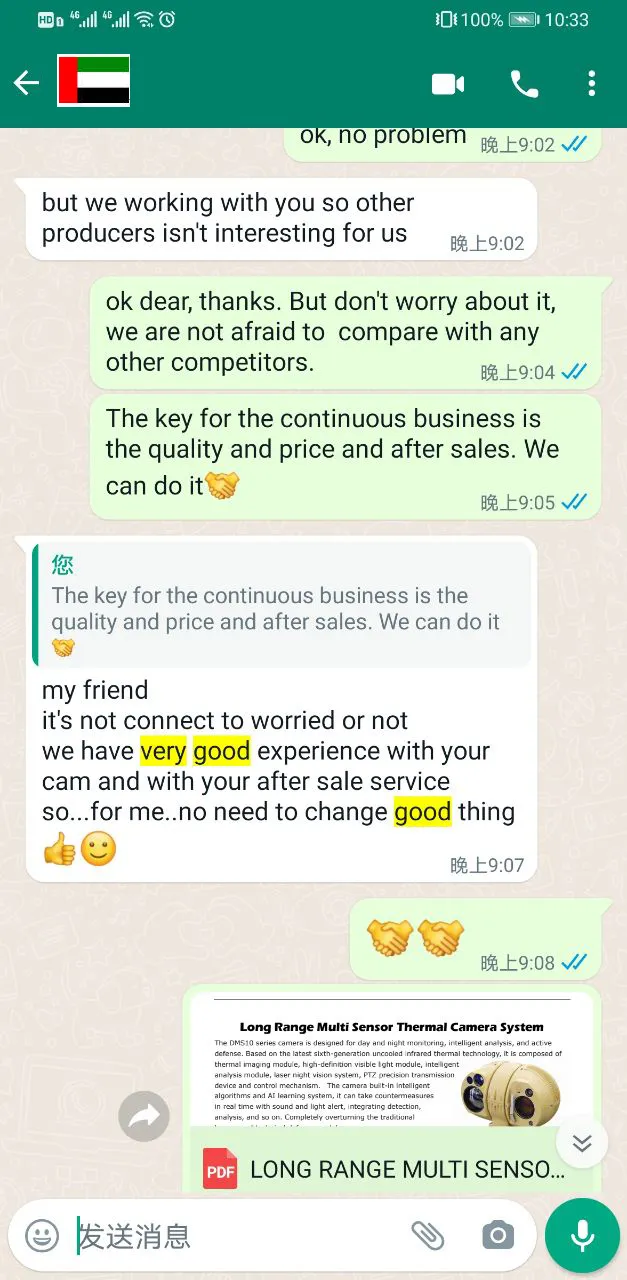

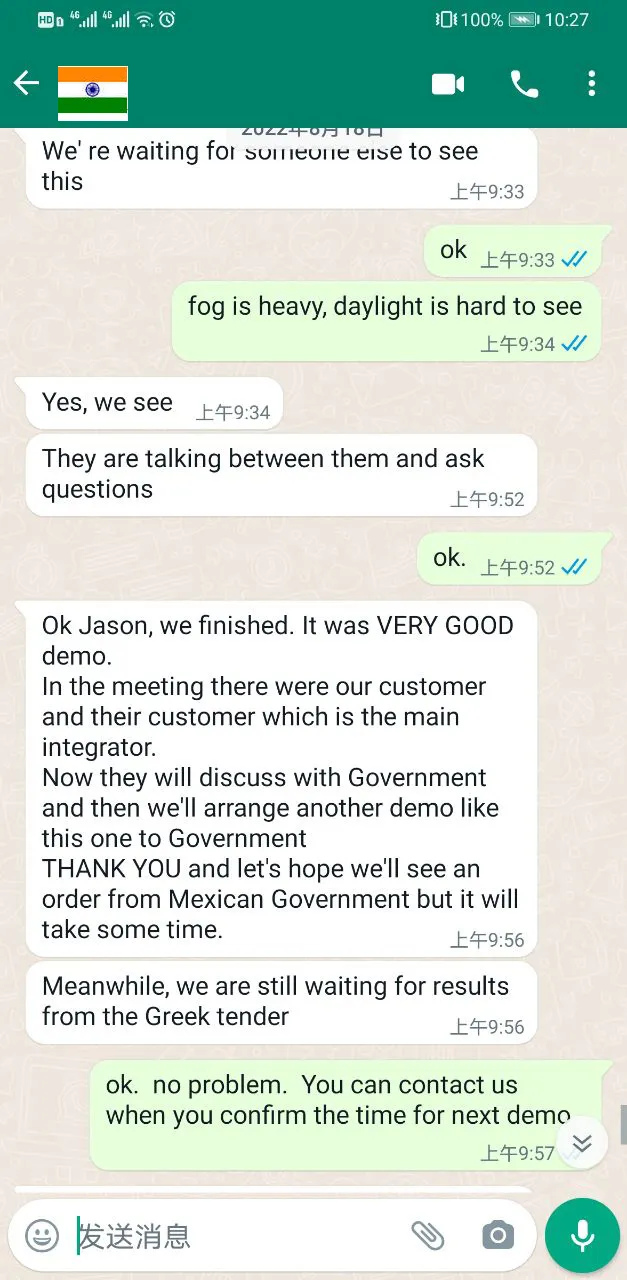

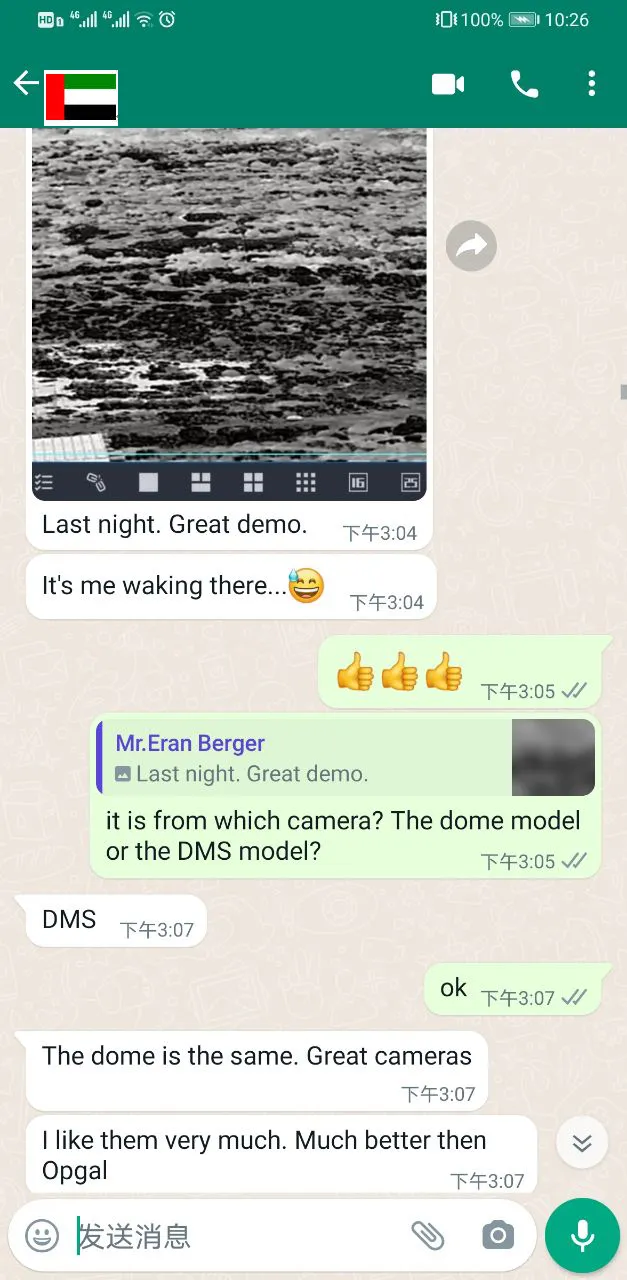

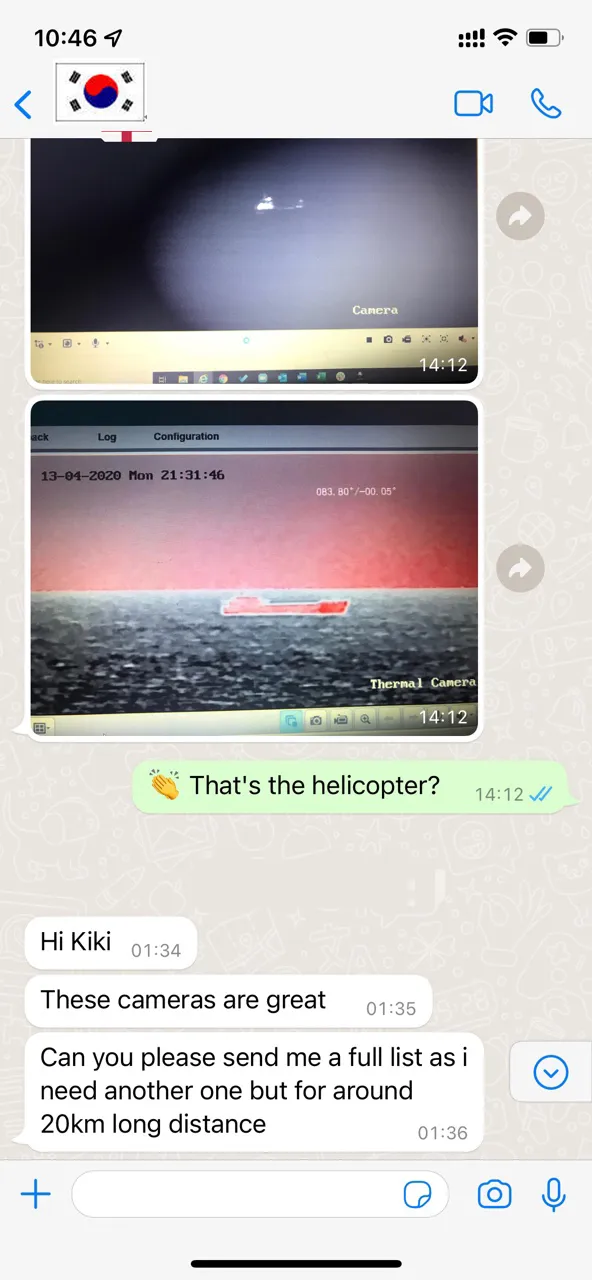

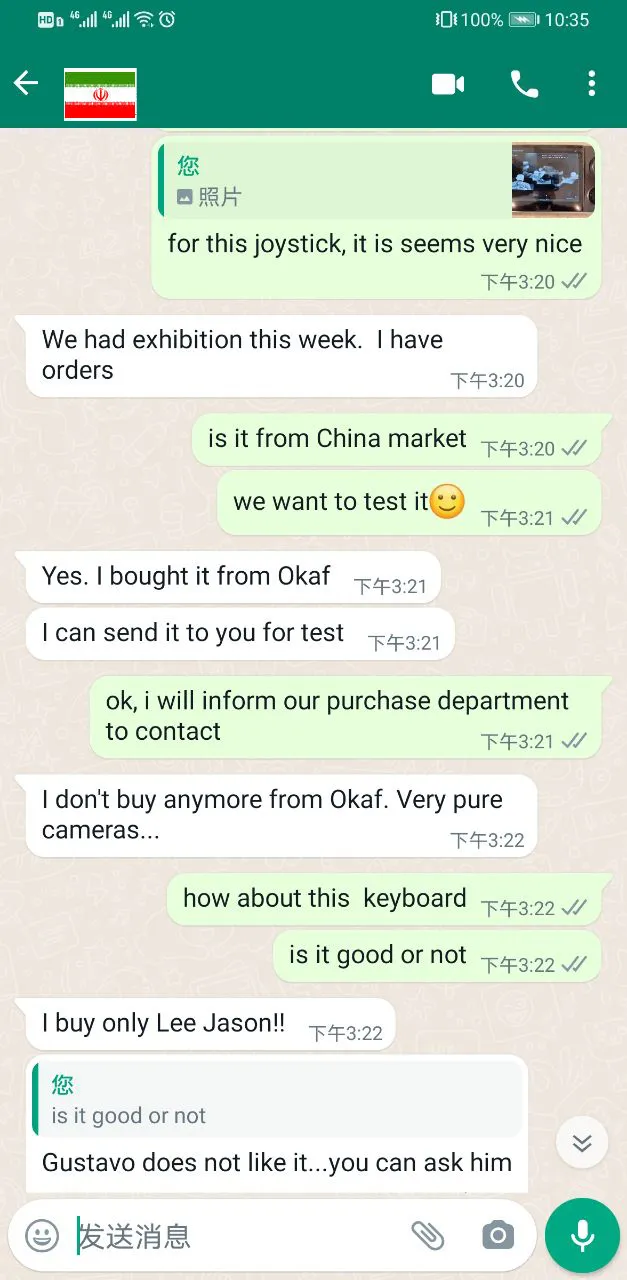

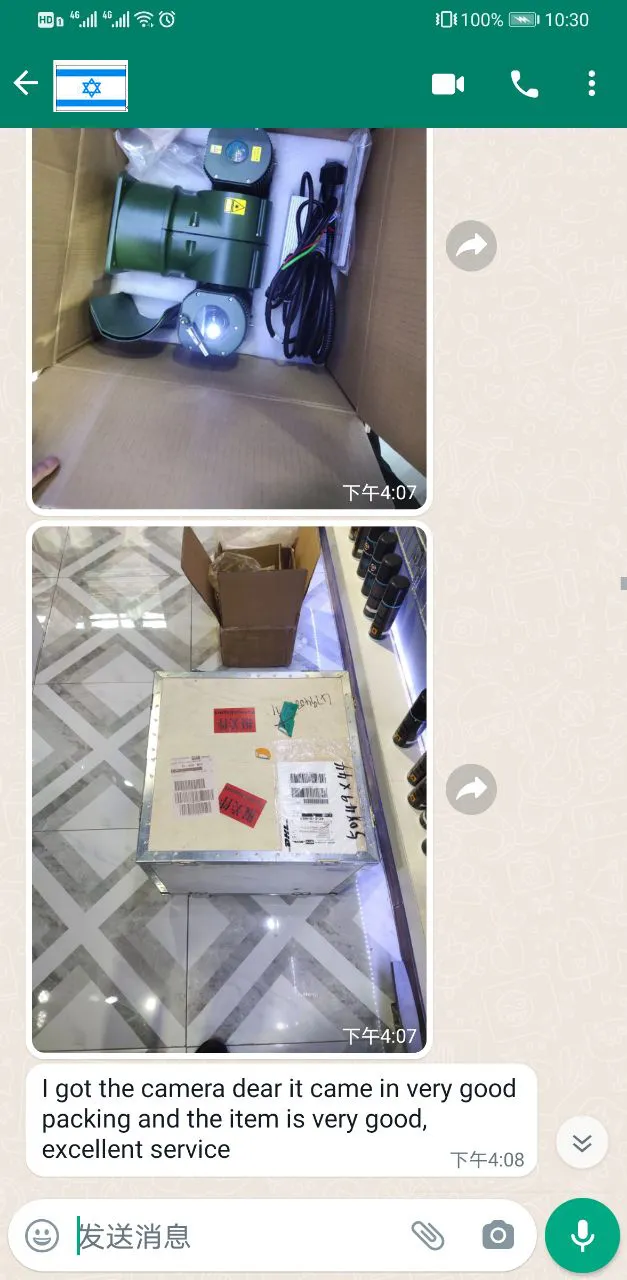

Customer Feedback

🏢

Professional Solutions

Our solutions cover border/coastal defense, anti-UAV systems, intelligent transportation, and forest fire prevention. We focus on long-distance, high-definition, and intelligent multispectral imaging technology to serve users in complex environments.

Frequently Asked Questions

Q1: What is the maximum detection distance for this camera? A1: Depending on the model, it can detect vehicles at a distance of up to 4200 meters and humans up to 1640 meters.

Q2: Can this camera operate in total darkness? A2: Yes, the thermal imaging sensor detects heat signatures, allowing for effective 24-hour real-time surveillance regardless of lighting conditions.

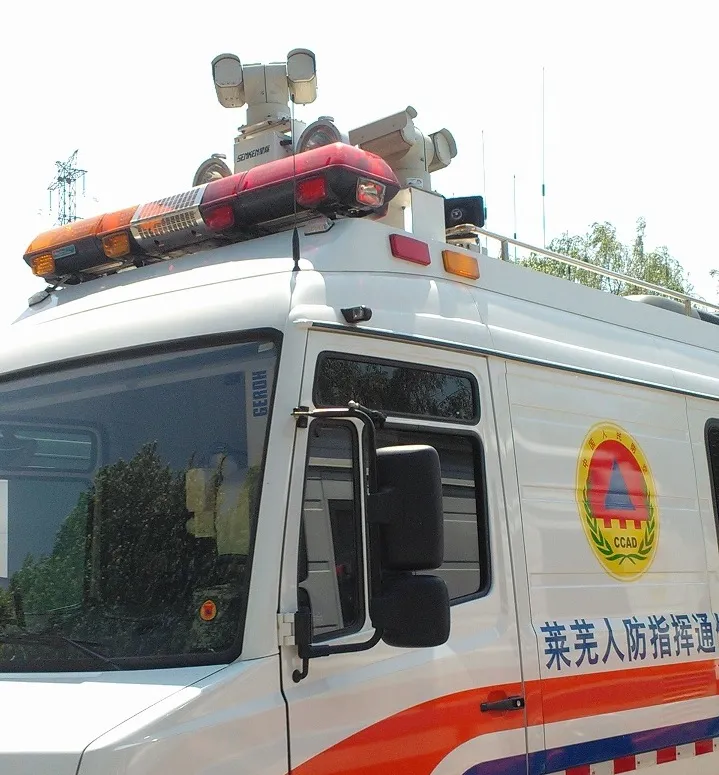

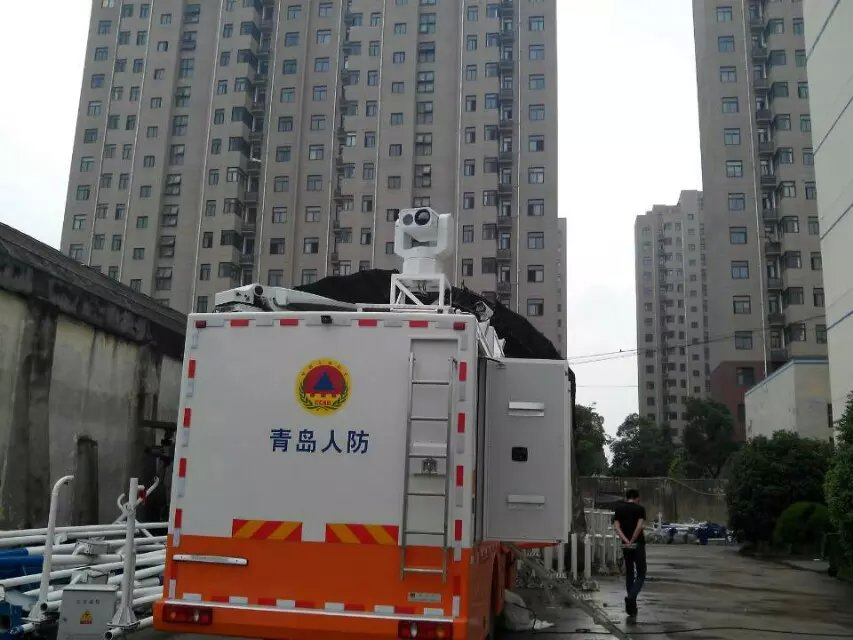

Q3: Is the camera suitable for mobile vehicle mounting? A3: Absolutely. The T-shape design and robust pan/tilt mechanism are specifically engineered for patrol cars and other vehicle-mounted monitoring applications.

Q4: How does the camera perform during bad weather like heavy fog or rain? A4: The camera features 50mk thermal sensitivity and SDE digital image enhancement, which significantly improves image clarity in foggy, rainy, or smoky environments.

Q5: What is the optical zoom capability of the visible camera? A5: The visible light camera is equipped with a 4.3mm to 129mm lens, providing a powerful 30X optical zoom with auto-focus capability.

Q6: What is the durability rating for outdoor installation? A6: The camera has an IP66 ingress protection rating and is housed in a high-quality aluminum alloy, making it resistant to water, dust, and harsh weather conditions.
