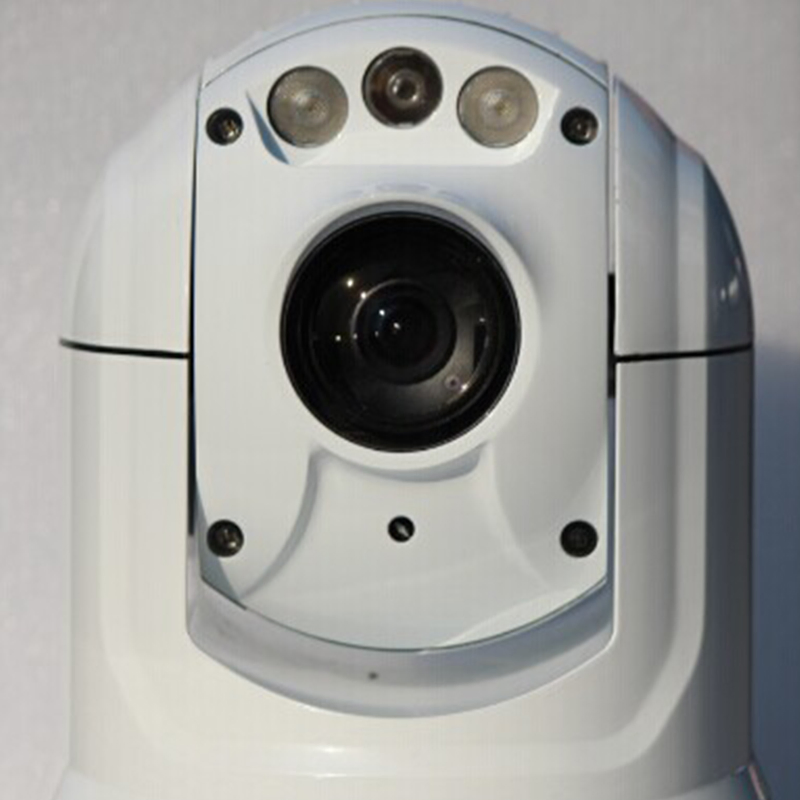

Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance
Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance
Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance
Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance
Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance
1 / 5
Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance
Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance
Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance
Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance
Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance

Cutting-Edge Thermal PTZ Camera with Dual Sensor for Vehicle Surveillance

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

📋
Basic Info
Model NO.
SOAR971-TH Series
Type
IP Camera
Sensor
CMOS
HDMI Format
2MP, 4MP, 8MP
Kind
Autofocus Lens
Certification
CE
Effective Distance
1km
Thermal Imager
640X512/1280X1024
Feature
Waterproof, High Definition, Vandal-proof, Auto BLC
🔍
Product Description

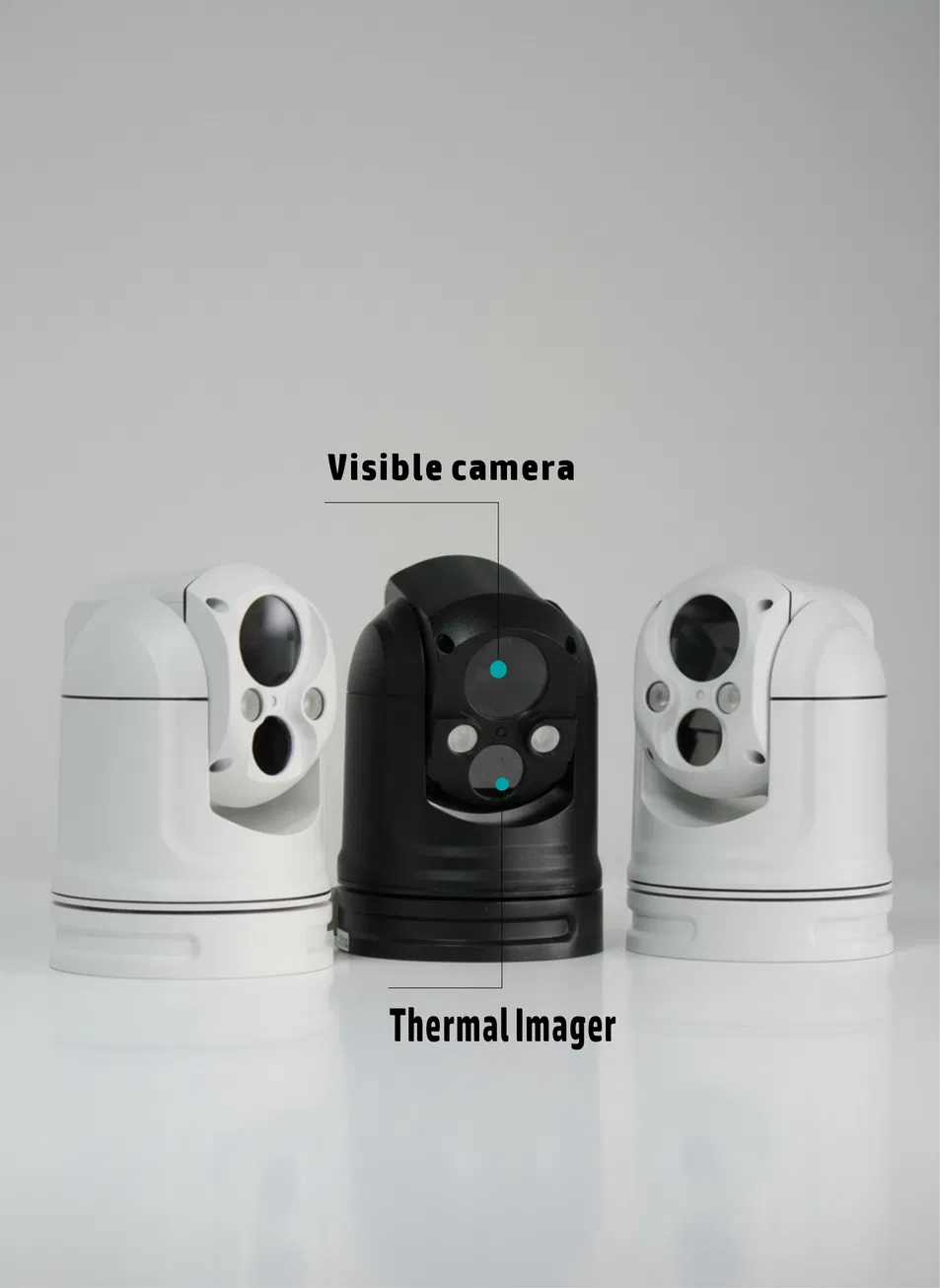

Thermal Imaging PTZ
Rugged Mobile Surveillance Thermal Imaging PTZ

We've engineered the exceptional optics of our 30X zoom lens into a rugged, space-efficient form factor. The SOAR971 PTZ offers modular versatility: choose from visible-light imaging with IR/white-light illuminators, a 500-meter laser module, or dual-spectrum EO/thermal imaging for detection in complete darkness.

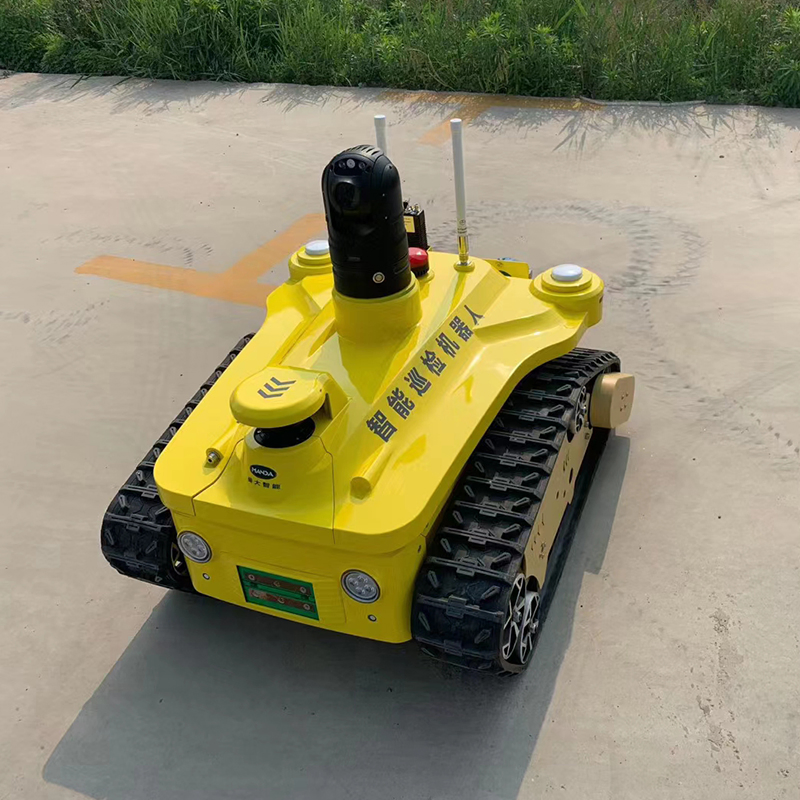

Built for motion, its compact frame and rapid-mount magnetic base enable seamless integration onto patrol vehicles, robotic platforms, USVs, and heavy machinery. This hardened solution adapts to mobile law enforcement, emergency perimeter establishment, and maritime patrol where durability is non-negotiable.

✨
Product Highlights

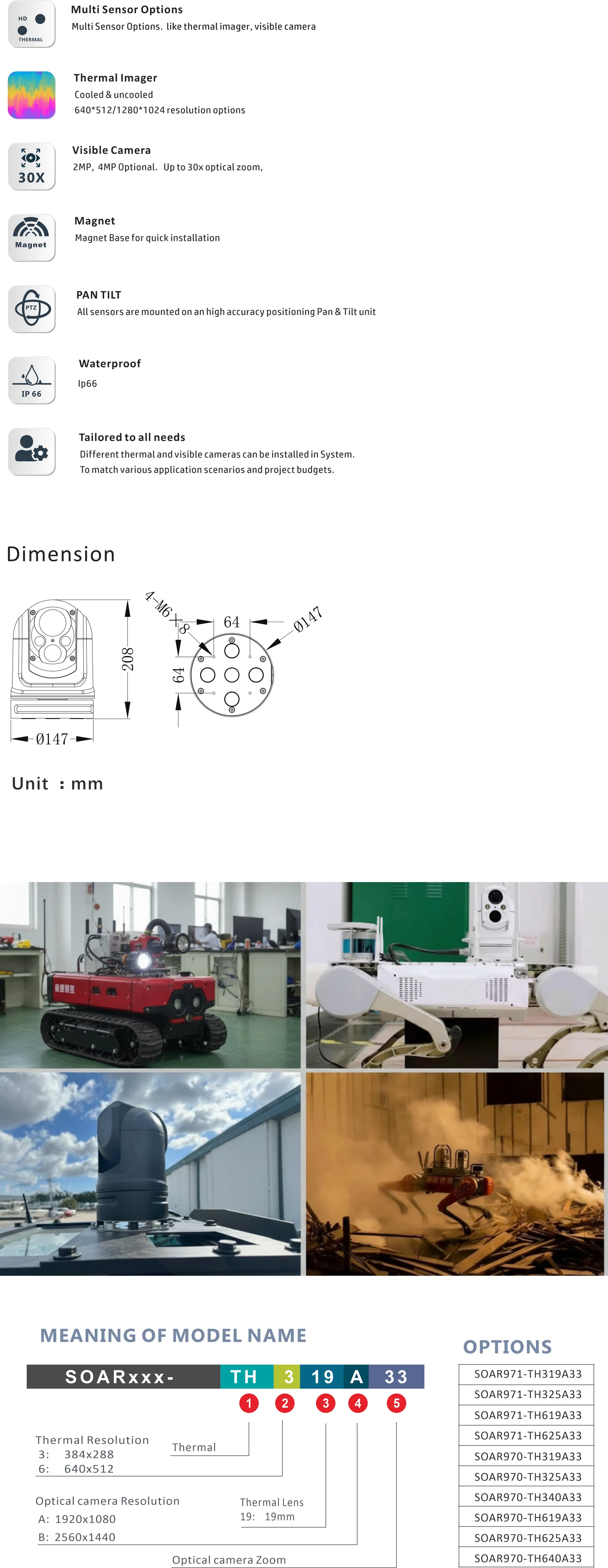

Product Highlights Diagram
📊
Technical Specifications
Parameter Details
Model No.SOAR971-TH625A33
Thermal Imaging
DetectorUncooled amorphous silicon FPA
Array format/Pixel pitch640x512/12μm
NETD≤50mK@25℃, F#1.0
Lens25 mm, F1.0
FOV17°×14°
Daytime Camera
Image Sensor1/2.8” Progressive Scan CMOS
Resolution2MP, 1920X1080
Focal Length5.5-180mm, 33x Optical Zoom
Field of ViewH: 60.5-2.3°
Pan/Tilt
Pan Range360° (endless)
Tilt Range–20° ~ +90°
General
PowerDC 12V-24V; ≤24w
Ingress ProtectionIP66
Weight3.5 kg
🖼️
Gallery & Applications

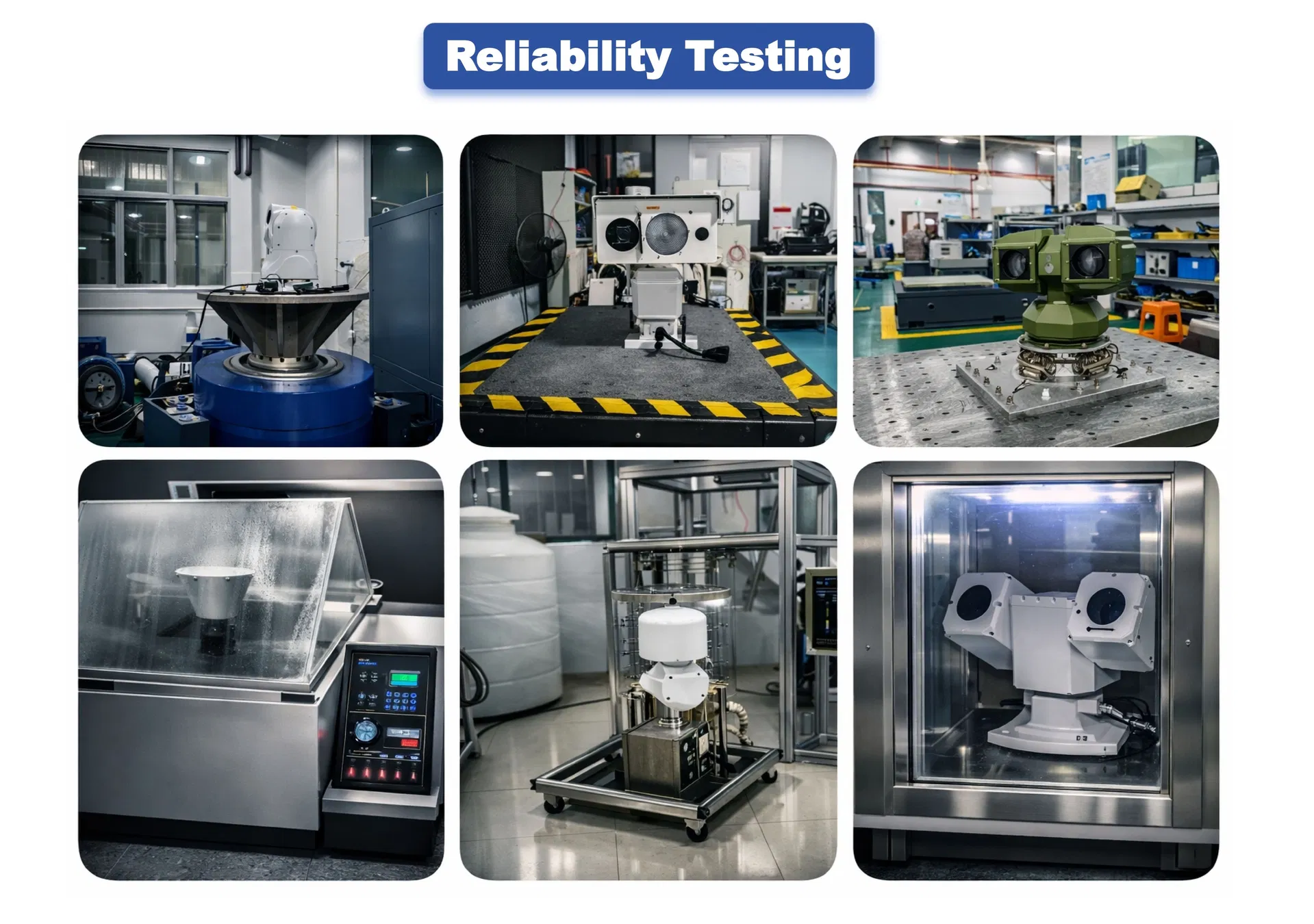

Application 1
Application 2
Application 3
Application 4
Application 5
❓
FAQ
What is the estimated delivery timeline?
For small orders, delivery typically requires 7 working days. For OEM orders, please confirm with our sales team for a specific schedule.
Is there a minimum order quantity (MOQ)?
The MOQ varies depending on the specific product model. Please contact us for details regarding your chosen configuration.
What payment methods are accepted?
We accept standard payment terms, including T/T (Telegraphic Transfer).
What is the warranty coverage for these products?
All PTZ products and camera modules are covered by a comprehensive 1-year warranty.
Do you provide after-sales technical support?
Yes, we offer lifetime technical support. Our engineering team typically responds to technical inquiries within 24 hours.
Can the PTZ be mounted on moving vehicles?
Absolutely. The system is designed for mobile surveillance with a rapid-mount magnetic base suitable for patrol vehicles and heavy machinery.
