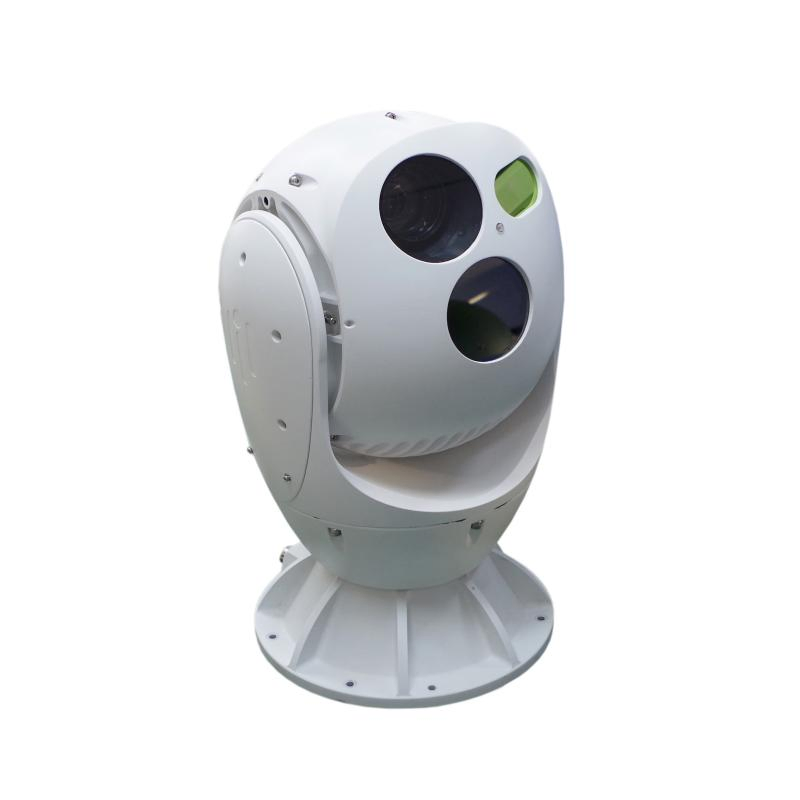

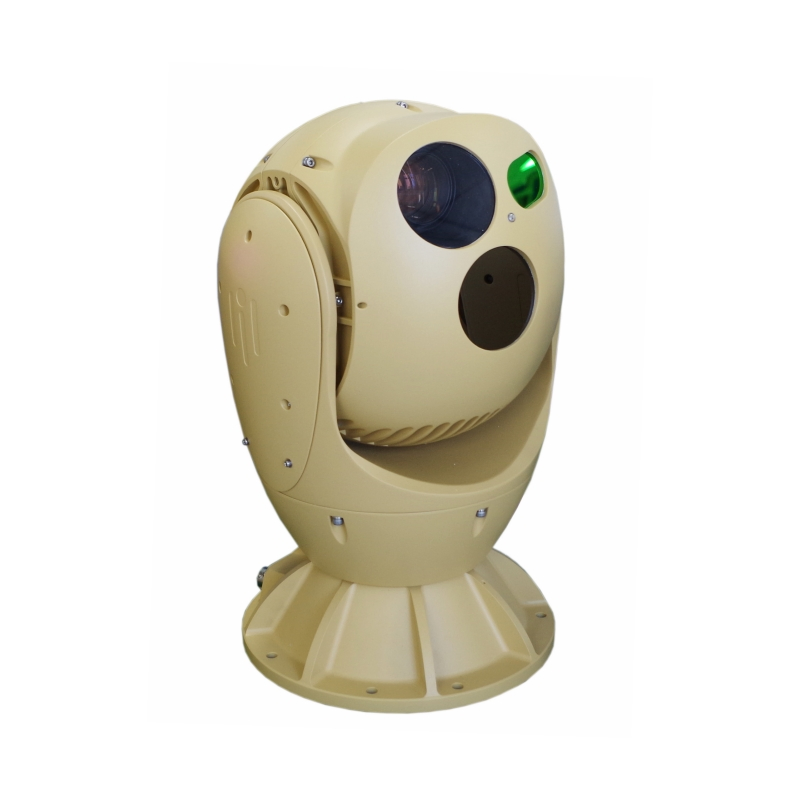

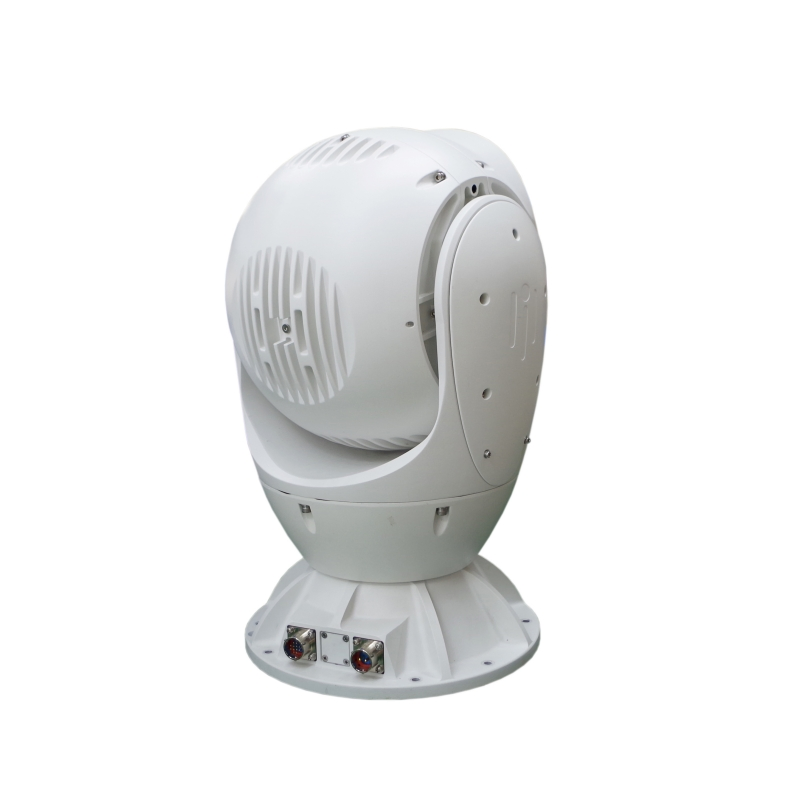

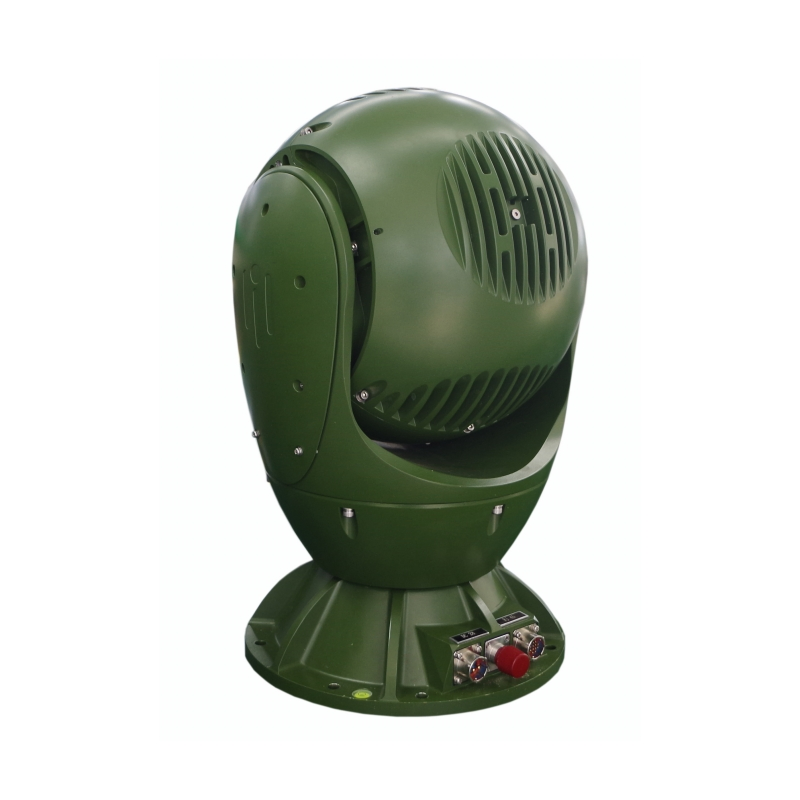

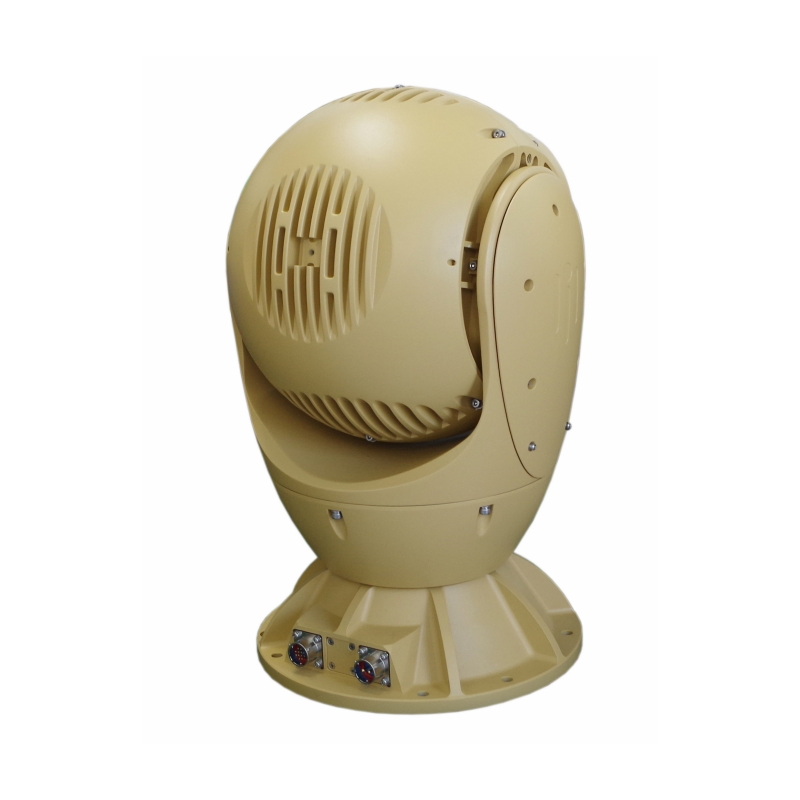

UV-Zs20 75mm 640 Lens Thermal Imaging Ship Mounted PTZ Camera

1 / 5

UV-Zs20 75mm 640 Lens Thermal Imaging Ship Mounted PTZ Camera

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview

Model NO.

UV-ZS20

Type

IP Camera

Sensor

Uncooled Fpa Sensor

HDMI Format

384*288, 640*512

Horizontal Resolution

H.265 / H.264 / Mjpeg

Kind

Autofocus Lens

Certification

CE, FCC, CCC, RoHS, ISO9001

Feature

Waterproof, High Definition, Mini Size

Product Description

ZS20 Series Multi-Sensor IOT Intelligent PTZ Camera

The ZS20 Multi-Sensor Camera integrates HD visible light camera, uncooled thermal camera, laser/LRF, automatic tracking, gyro stabilization, intelligent analysis and precise electronic control. It is designed for ship/boat video acquisition, target warning, radar linkage and other applications, which can adapt to all-weather, all-time, full-dimensional discovery. The distance to small ships and islands can reach up to 6 km.

The shell is made of super strong aluminum alloy material with strong wind resistance and low agitation. Protection grade reaches IP66. With special salt-spray protection (C5-M level), it ensures long-term stable operation in harsh marine environments.

120°/s fast rotation speed and 0.02° accuracy for target tracking
Front-end auto-tracking functions for high accuracy
Function of life index recording for thermal camera
2-axis gyro image stabilizer for stable images during waves and strong wind
IP66 design for salty, strong light, and water spray environments
Single IP address access for both visible and thermal cameras

Product Parameters

Thermal Sensor Specifications
Sensor	5th generation uncooled FPA sensor
Effective Pixels	640x512
Pixel Size	17μm
NETD	≤45mK
Spectral Range	7.5 ~ 14μm, LWIR
Detection Distance (DRI)
Vehicle (2.3*2.3 m)	Detection: 6.3km; Recognition: 1.8km
Human (1.8*0.6m)	Detection: 2.5km; Recognition: 0.7km
Visible Camera
Sensor	1/2.8'' Star Level CMOS
Resolution	1920*1440
Optical Lens	7~322mm, 46x Zoom
PTZ Mechanism
Rotation	Pan: 360° Continuous; Tilt: -45° ~ +90°
Speed	Pan/Tilt: 0.01~120°/S
Gyro Stabilization	2-axis gyro stable, accuracy 2mrad (Optional)

Our Advantages

Technical Excellence

Certifications

Frequently Asked Questions

1. What makes the ZS20 suitable for marine environments? The camera features an IP66/IP67 waterproof rating and a special salt-spray coating (C5-M level), which prevents corrosion from seawater and harsh oceanic conditions.

2. How far can the camera detect targets at night? Utilizing its 5th generation thermal sensor, it can detect vehicles up to 6.3km away and humans up to 2.5km, even in total darkness.

3. What is the benefit of the 2-axis gyro stabilization? Gyro stabilization compensates for the movement of the ship and vibration from wind, ensuring a steady and clear video feed even in rough seas.

4. Does the camera support automatic target tracking? Yes, it features front-end intelligent AI analysis that supports intrusion detection and automatic tracking of land, air, and sea targets.

5. Can the visible and thermal cameras be controlled together? Yes, the system is designed with a single IP address option, allowing users to view, set, and control both the visible and thermal sensors through one interface.

6. What types of intelligent analysis are built-in? The camera supports fire detection, intrusion detection, boundary crossing, people gathering, and target temperature filtering for advanced security monitoring.
