Vehicle Mounted City Surveillance Camera for Day and Night

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Basic Specifications

Model NO.

BRC0426

Type

Video Camera

Sensor

CCD

HDMI Format

720P

Resolution

600tvl

Kind

Autofocus Lens

Certification

CE, FCC, ISO9001: 2000

Effective Distance

≧30m

Sensor Size

1/4 inch

Warranty

One Year

Protection

Waterproof / Vandal-proof

Capacity

500 Sets Per Month

Product Description

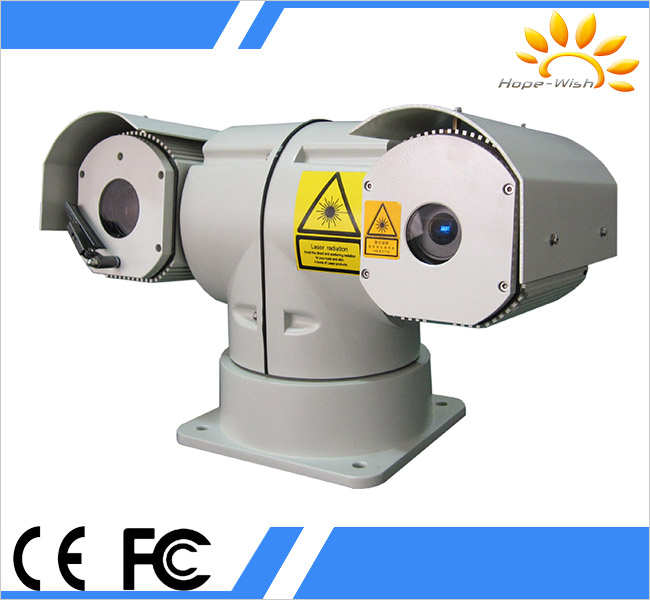

🔍 36X Zoom Night Vision NIR Laser Camera

The BRC04 series NIR laser camera is a high cost-efficient solution consisting of NIR laser illumination, PT unit, precise gearing, zoom lens, digital decoder, CCD, and MCU. The mechanical design of the PTZ is engineered for simplicity and stability, allowing it to rotate to proposed positions quickly and accurately.

Equipped with 128 presets, patrol, scan, recording, and pattern functions, this camera can be customized for any environment. It also features automatic exposure and automatic focus functions for seamless operation.

🌐 Wide Applications

Perfectly suited for City security, oilfield monitoring, lake & river monitoring, freeway & railway security, as well as seaport & airport security environments.

Technical Parameters

Model	BRC0418	BRC0427	BRC0426	BRC0436	BRC0436X
Detection	Day: 400m; Night: 300m	Day: 500m; Night: 300m	Day: 500m; Night: 300m	Day: 600m; Night: 300m	Day: 600m; Night: 450m
CCD	1/4'' color to B/W CCD, 440,000 pixel, automatic ICR switch
Focal Length	4.1~73.8mm (18x Opt)	3.5~95mm (27x Opt)	3.5~91mm (26x Opt)	3.4~122.4mm (36x Opt)
FOV	48°~2.8°	54.2°~2.1°	54.2°~2.2°	57.8°~1.7°
Rotation	Pan: 0°~360° continuous; Tilt: -90°~+90°
Protocol	Integrate 16 kinds of control protocols, including PELCO-D/P
Environment	IP66 Waterproof, Operational Temp: -35~55ºC

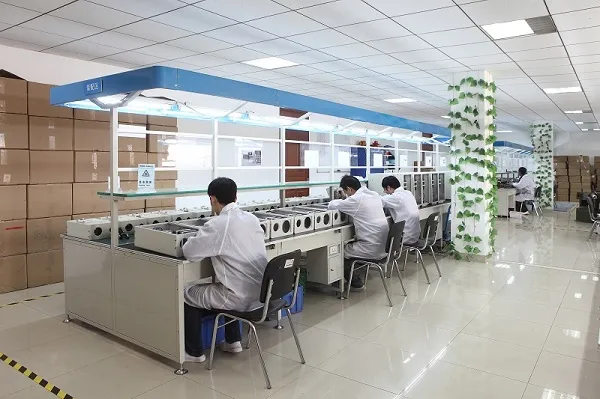

Factory & Exhibition

Frequently Asked Questions

What is the maximum night vision distance?

The BRC04 series provides impressive night vision capabilities, with the BRC0436X model reaching up to 450 meters in total darkness using NIR laser illumination.

Is the camera suitable for harsh outdoor weather?

Yes, the camera is IP66 waterproof rated and features an operational temperature range of -35°C to 55°C, making it ideal for extreme environments.

How many preset positions can be configured?

The system supports up to 128 programmable presets, along with dedicated paths for line scanning, patrols, and pattern recording.

Does the camera support automatic focus and exposure?

Yes, the camera is equipped with MCU-controlled automatic exposure and automatic focus functions to ensure clear imagery under changing light conditions.

What control protocols are compatible with this PTZ camera?

The camera integrates 16 types of mainstream control protocols, including the widely used PELCO-D and PELCO-P protocols.

Does the system include maintenance features like wipers?

Yes, the hardware includes built-in heating, demisting, and a wiper system to maintain lens clarity in rain or fog.
