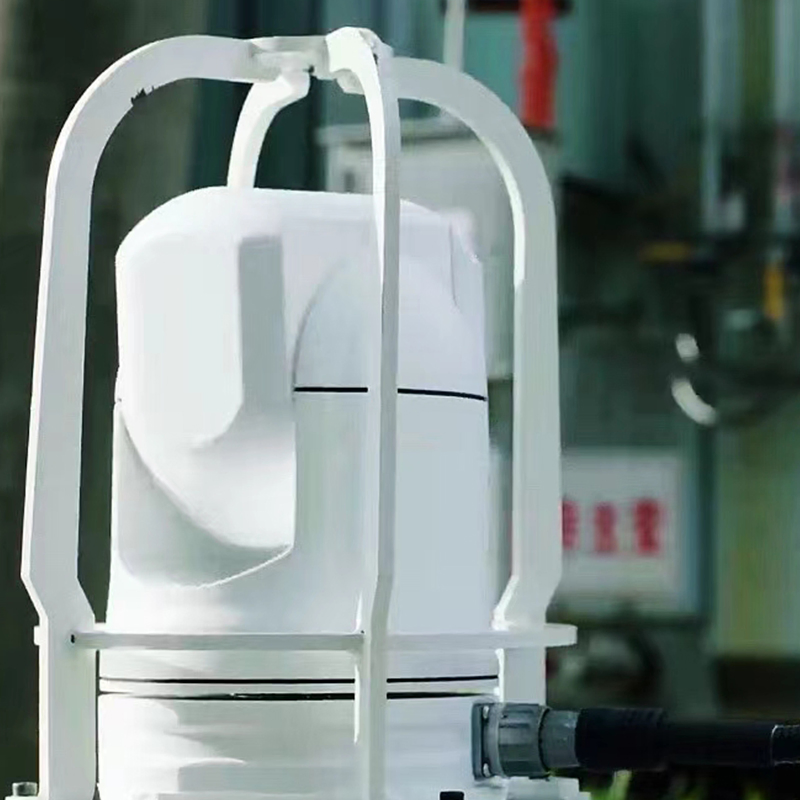

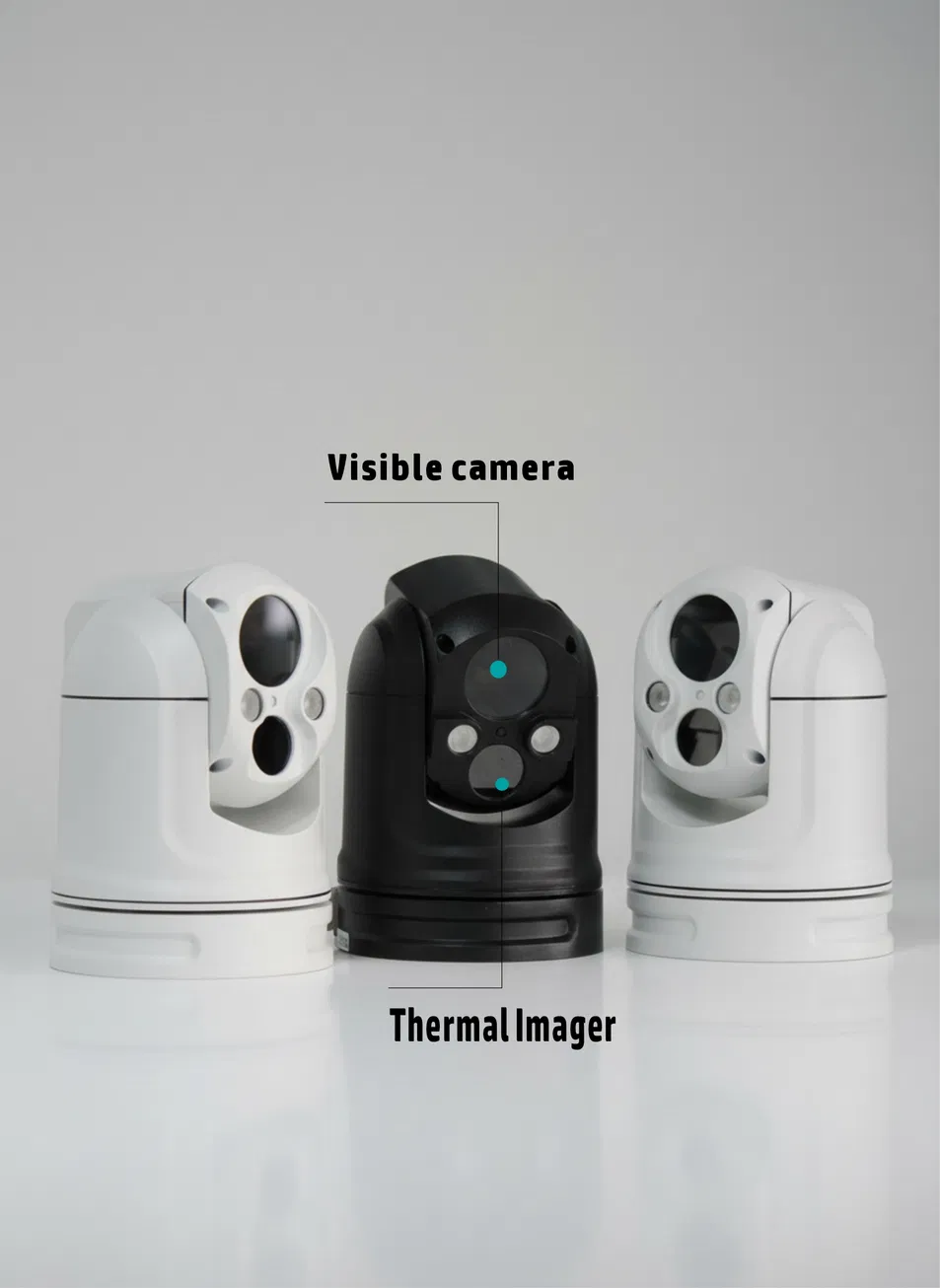

We've engineered the exceptional optics of our 30X zoom lens into a rugged, space-efficient form factor—and pushed capabilities even further. Unlike conventional single-configuration PTZ systems, the SOAR971 PTZ offers modular versatility to match your operational demands.

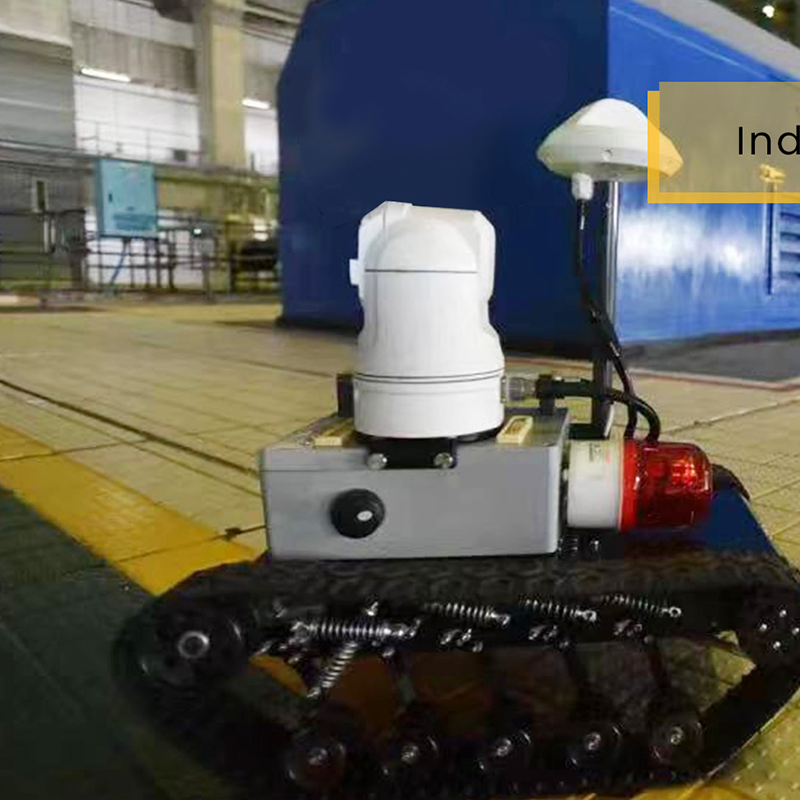

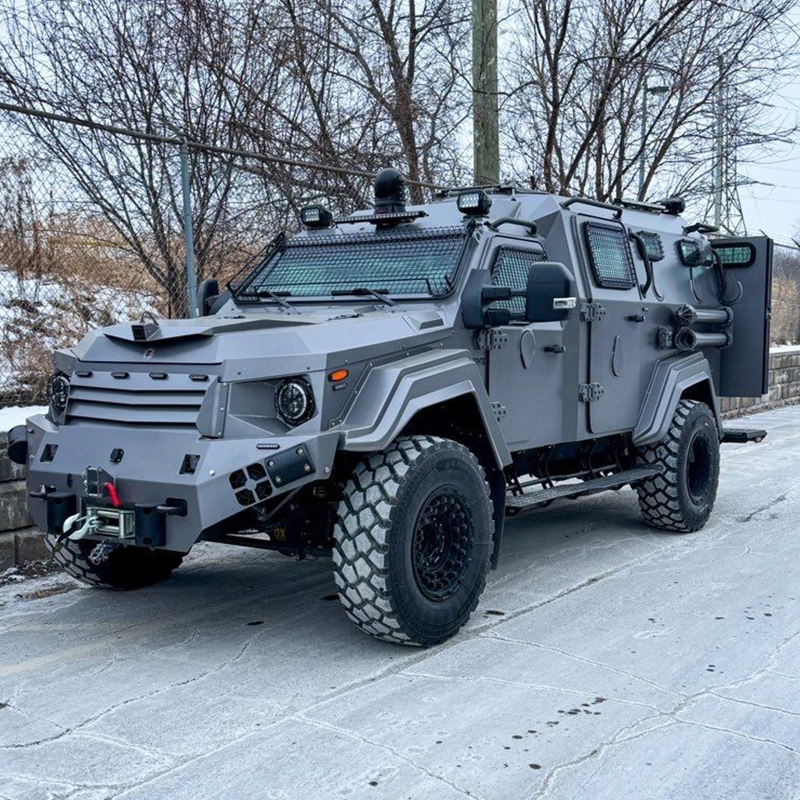

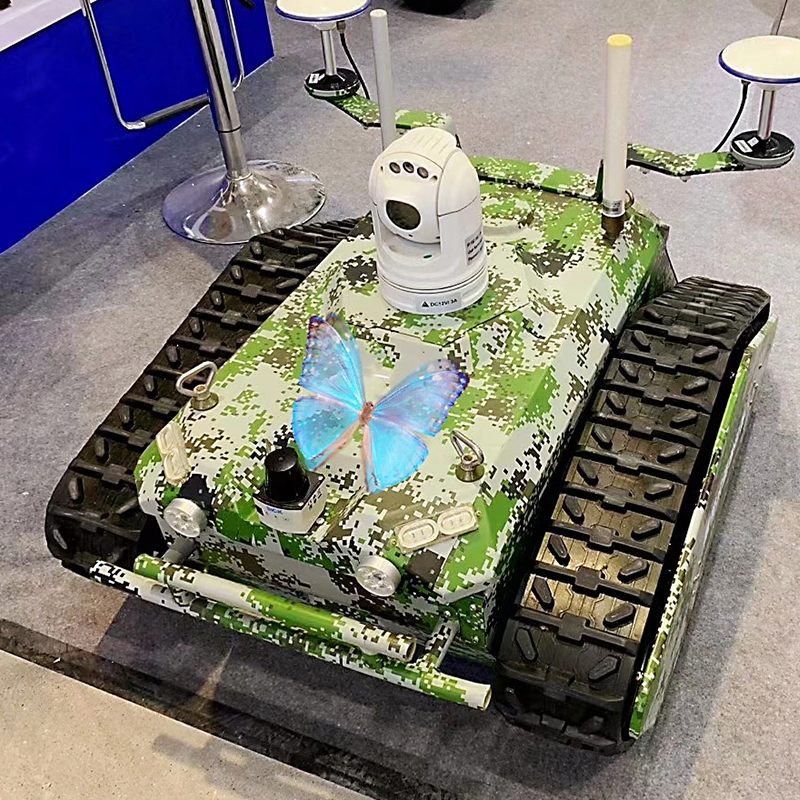

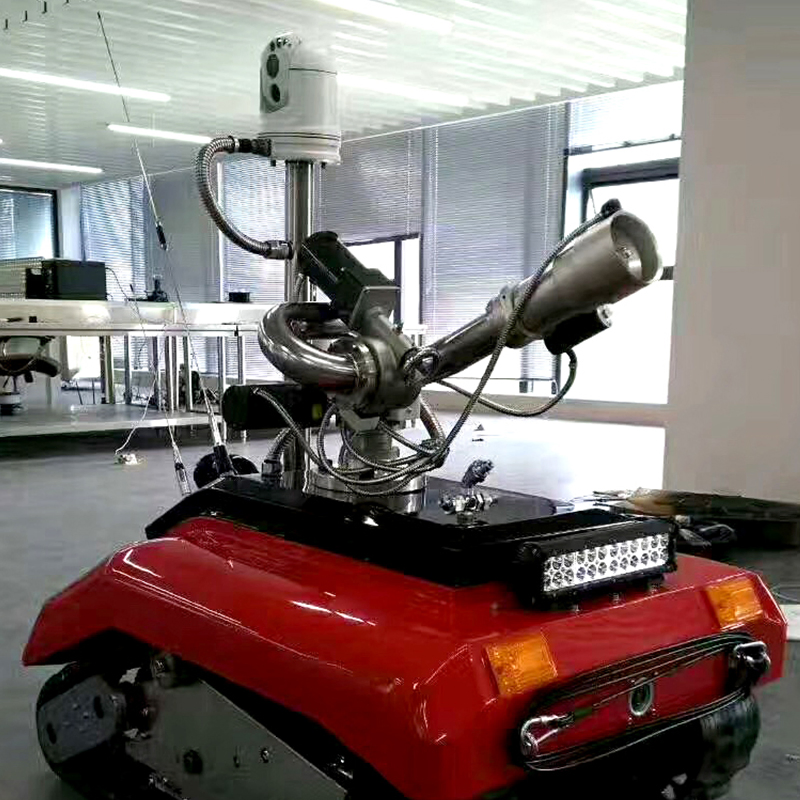

Built for motion, its compact frame and rapid-mount magnetic base enable seamless integration onto patrol vehicles, robotic platforms, USVs, and heavy machinery. It adapts to any mission profile where flexibility, durability, and uncompromising imaging performance are non-negotiable.
| Model No. | SOAR971-TH625A33 |
| Thermal Imaging | |
| Detector | Uncooled amorphous silicon FPA |
| Array format/Pixel pitch | 640x512/12μm |
| NETD | ≤50mK@25℃, F#1.0 |
| Lens | 25 mm, F1.0 |
| FOV | 17°×14° |
| Daytime Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Resolution | 2MP, 1920X1080 |
| Focal Length | 5.5-180mm, 33x Optical Zoom |
| Video Compression | H.265 / H.264 / MJPEG |
| Pan/Tilt | |
| Pan Range | 360° (endless) |
| Tilt Range | –20° ~ +90° (auto reverse) |
| General | |
| Power | DC 12V-24V; Power consumption: ≤24w |
| Working Temperature | -40℃~60℃ |
| Protection Level | IP66 |
| Weight | 3.5 kg |
