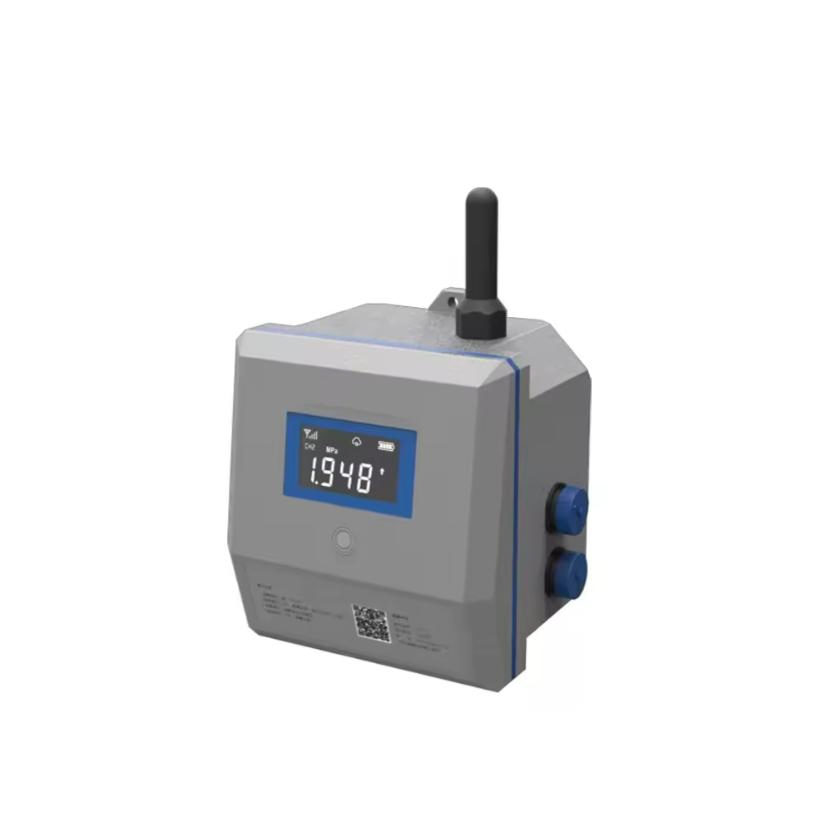

IP68 Protection Wireless Downhole Remote Monitoring Terminal

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Information

Model NO.:atech-11
Customized:Customized
Frequency:430/470MHz
Distance:1000m (Open Area)
Wetted Parts:SS316L
Temperature:-20~60℃
Origin:China
Capacity:1000 sets/Year
🔍

Product Description

The pressure transmitter is a high-precision, low-power radio transmission pressure measuring instrument. Powered by a lithium battery and featuring an IP65 waterproof cast aluminum housing, it supports data recording and data supplementary transmission functions. With no wiring or external power supply required, it eliminates the need for cable trays, significantly saving manpower and construction costs. It is the ideal upgrade for traditional pressure detection systems.

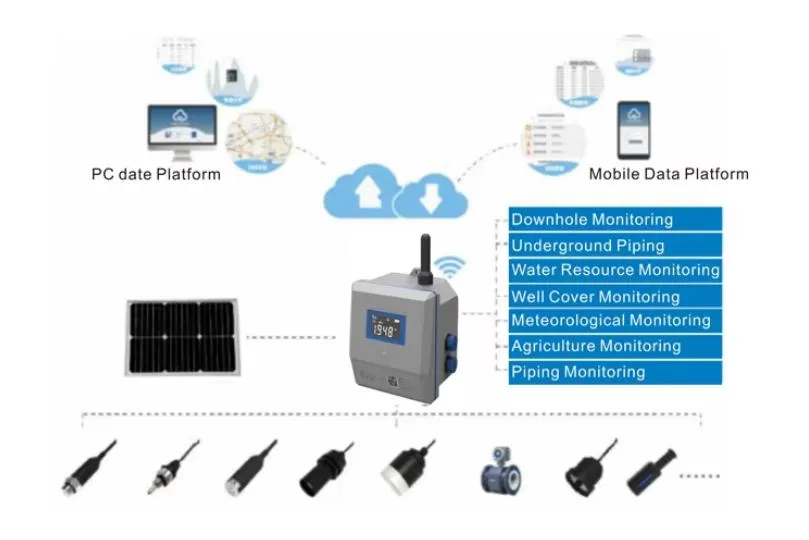

Wireless Monitoring Terminal
Outline Dimension147×262.5×105.5mm
Sensor AccessMax. 8-way
Power SupplyBattery / 12V~28V DC / 110V~240V AC / Solar Power
InterfaceAI / DI / PI / RS485 / Camera
Data TransmissionNB-IoT / LoRa / 2G / Multi-Bands
Wake-up ModeMagnetic activation / Timing / Alarm wake-up
DisplaySegment LCD with backlight
ProtectionIP68
Housing MaterialPA6 + 30% GF
InstallationHoop and wall mounting
📦

Packaging & Delivery

Package Size:30.00cm * 30.00cm * 30.00cm
Gross Weight:5.000kg
Packaging details
🏭

Production & Manufacturing

We specialize in sensor production and sales. Our main product range includes pressure sensors and transmitters, level transmitters, water level sensors, pressure gauges, melt pressure transmitters, temperature sensors, oil pressure sensors, explosion-proof pressure transducers, commercial marine pressure transducers, fuel tank pressure sensors, and load cells.

Based on technological innovation, strong production capacity, and strict quality control, we meet diverse OEM and ODM demands. With rich experience and professional technology, we provide high-performance solutions for various industrial applications.

Production Facility 1 Production Facility 2 Quality Control
🤝

Exhibition Showcase

Exhibition Photo 1 Exhibition Photo 2

Frequently Asked Questions

What is the transmission range of this wireless transmitter?
The device supports a transmission distance of up to 1000 meters in an open area.
What power supply options are supported?
It can be powered by a built-in battery, 12V~28V DC, 110V~240V AC, or Solar Power depending on your requirements.
What is the protection rating for the device?
The monitoring terminal has an IP68 protection rating, making it suitable for harsh environments.
Can this device access multiple sensors?
Yes, it supports up to 8-way sensor parameter access via various interfaces like AI, DI, PI, and RS485.
Does it support remote data transmission?
Yes, it supports multiple data transmission protocols including NB-IoT, LoRa, 2G, and Multi-Bands.
What are the installation methods?
The device is designed for easy installation via hoop or wall mounting options.
