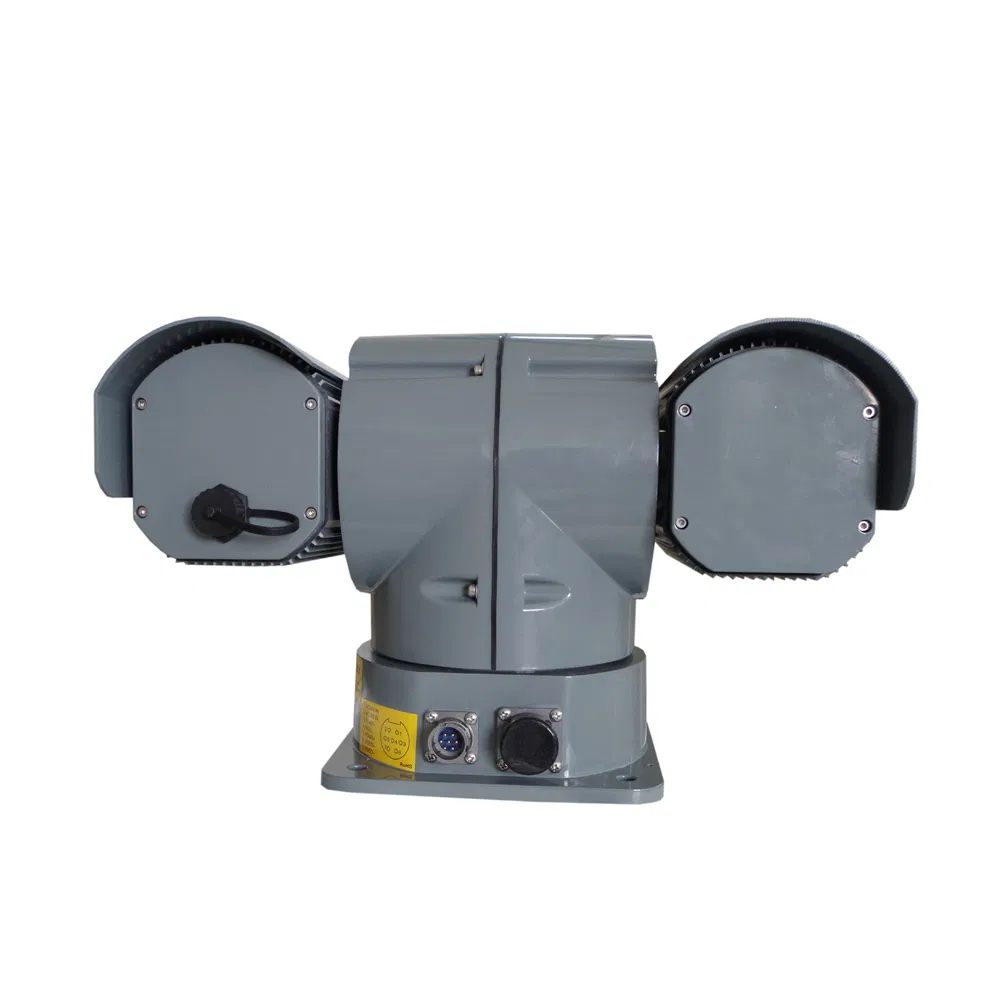

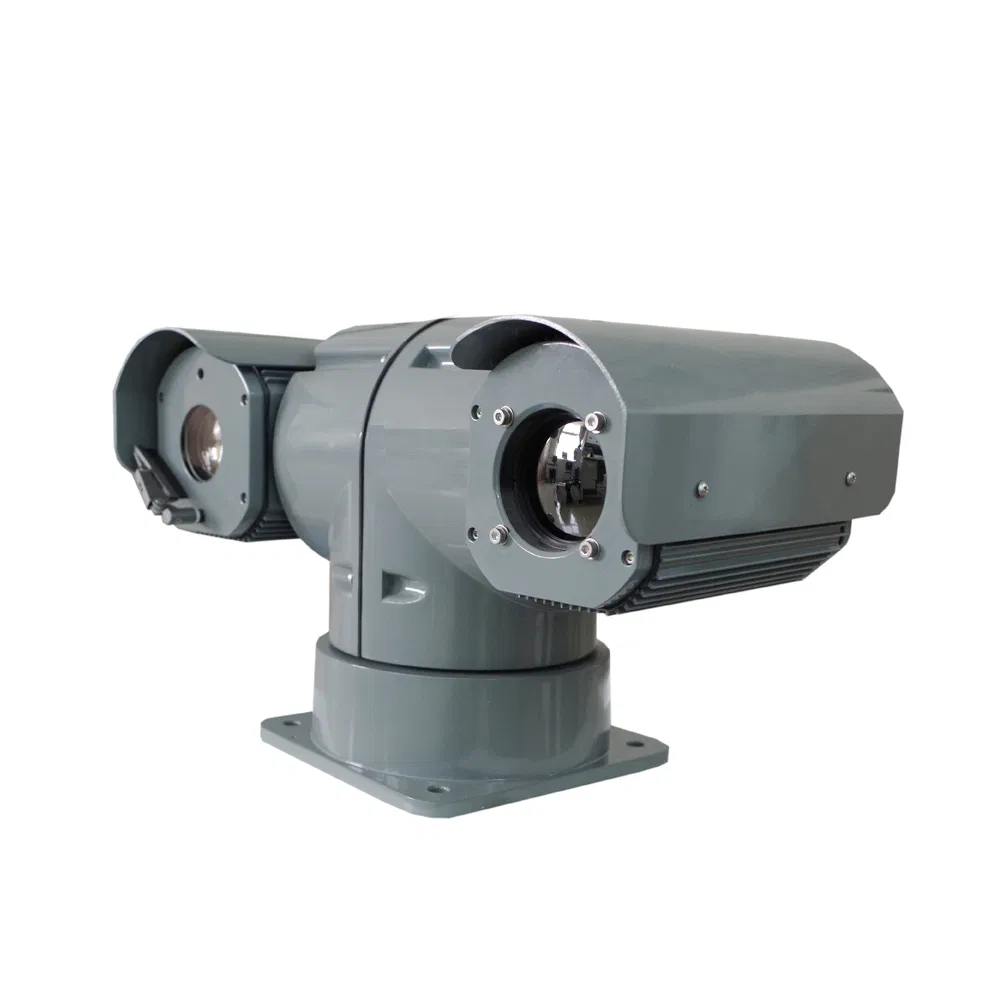

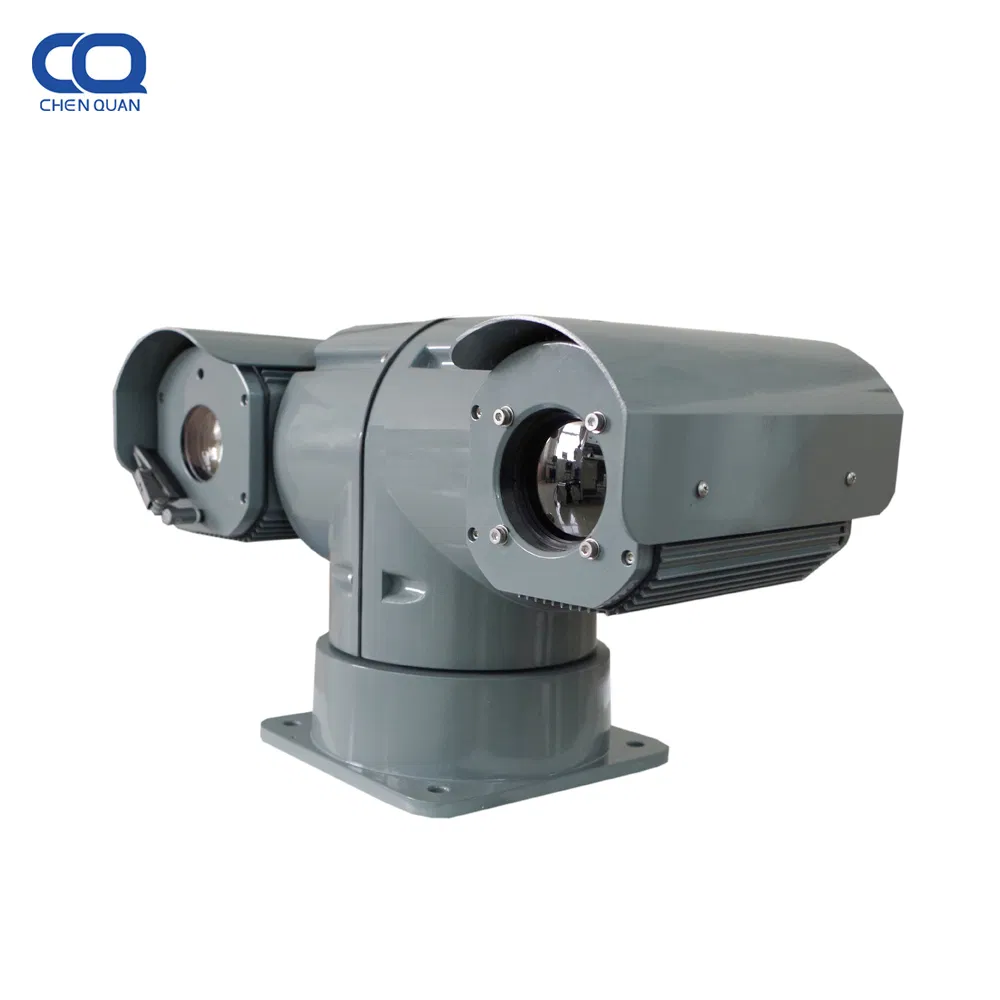

HawkEye Camera
1 / 3
| Model | CQ-BTVC41C07-2132 | |
| Thermal Distance (DRI) | Vehicle (2.3x2.3m) | Detection: 6.3km; Recognition: 1.8km; Identification: 0.9km |
| Human (1.8x0.6m) | Detection: 2.5km; Recognition: 0.7km; Identification: 0.35km | |

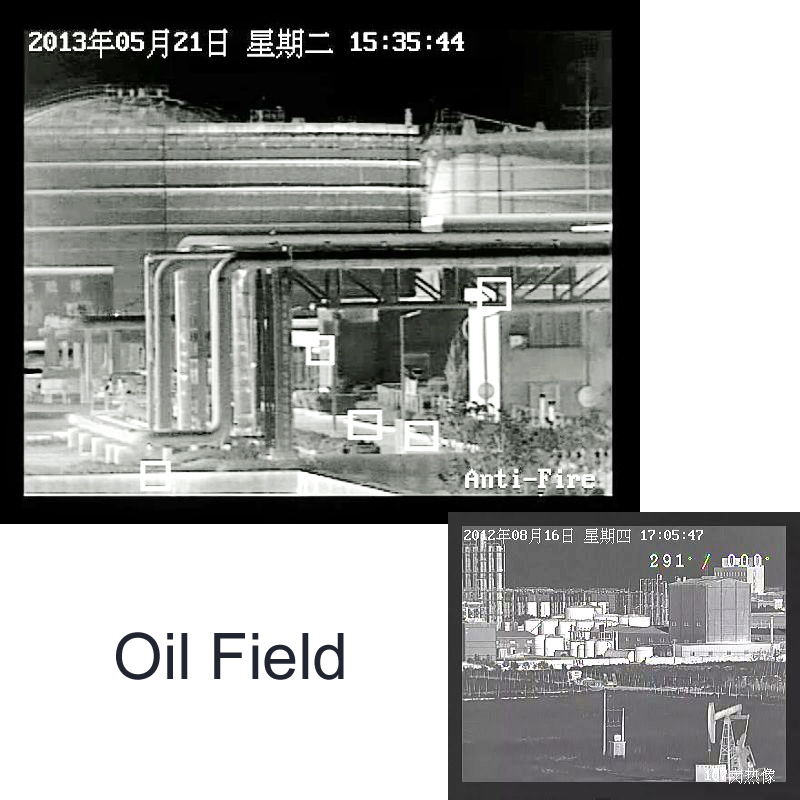

| Fire Detection (2x2m) | 4km | |
| IVS Range | 2.3km for Vehicle; 0.8km for Human | |

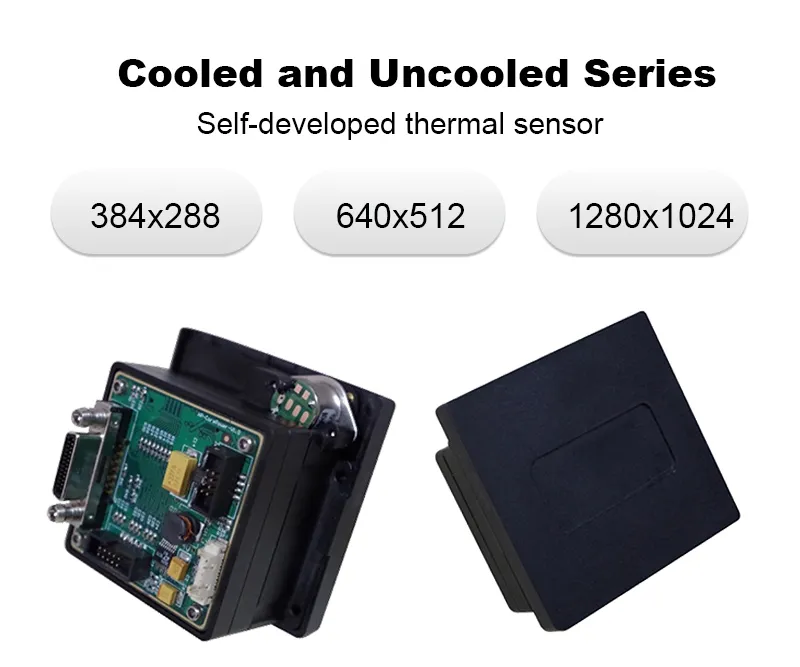

| Thermal Sensor | Sensor | 5th generation uncooled FPA sensor |
| Effective Pixels | 384x288 50Hz | |
| Pixel Size | 17μm | |
| NETD | ≤45mK | |
| Spectral Range | 7.5~14μm, LWIR | |
| Thermal Lens | Focal length | 75mm Fixed |
| FOV | 18.5°×13.9° | |
| Angular radian | 0.227mrad | |
| Visible Distance (DRI) | Vehicle (2.3x2.3m) | Detection: 14km; Recognition: 8.6km; Identification: 4km |
| Human (1.8x0.6m) | Detection: 5.6km; Recognition: 3.5km; Identification: 1.5km | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) | |
| SD Card | Support | |
| Visible Lens | Focal Lens | 8-320mm 30X/40X |
| Image Stabilization | Support | |
| Focus Control | Manual/Auto | |
| PTZ Control | Patrol | 6*patrol route, 1* patrol line |
| Rotation | Pan: 360°, Tilt: -90~+90° | |
| Speed | Pan: 0.01~100°/S, Tilt: 0.01~60°/S | |
| Preset | 255 Positions | |
| Enhance | Fan/Wiper/Heater attached | |
| Environmental | Operate Temp | -25ºC~+55ºC (-40ºC optional) |
| Ingress Protect | IP66 | |
| Housing | Three-resistance coating, Seawater corrosion resistance | |
| Power | AC24V / DC12V | |
