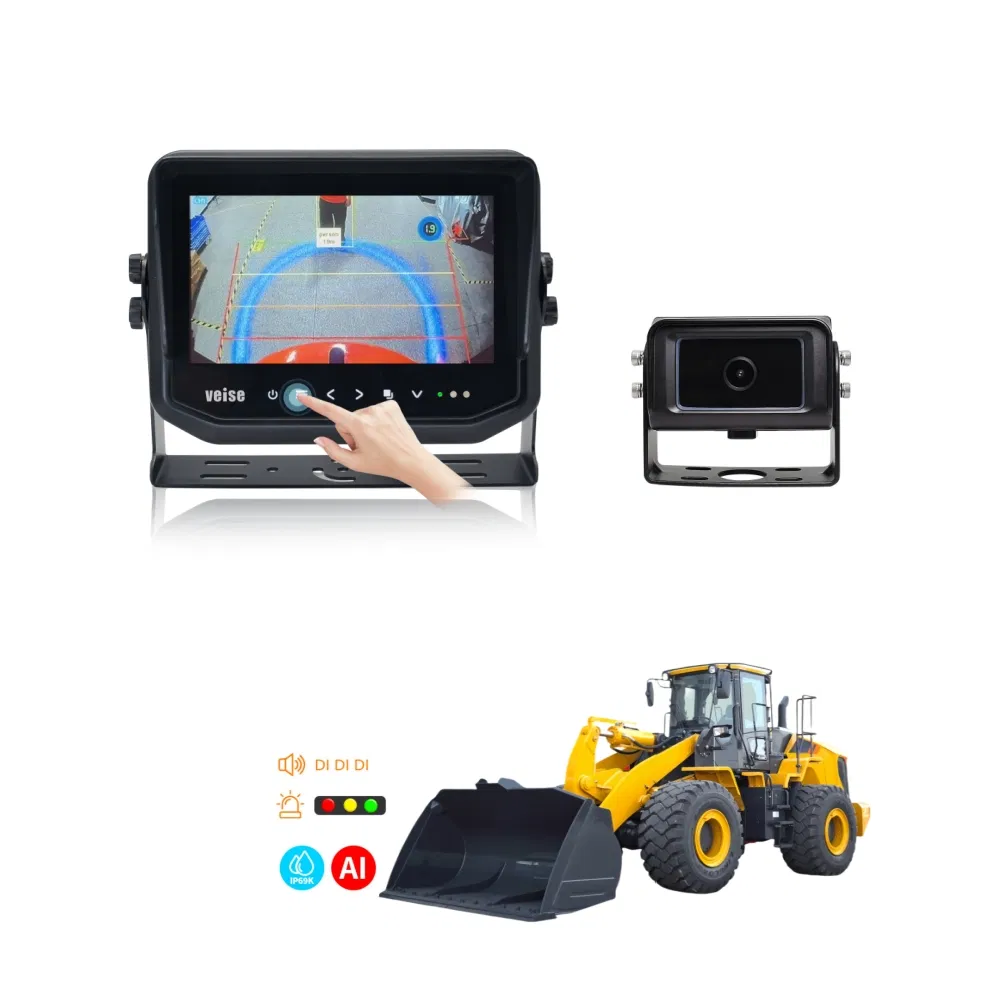

System Model: HDS-7181J122MAIF1 | Built-in Sound and Light Reminder

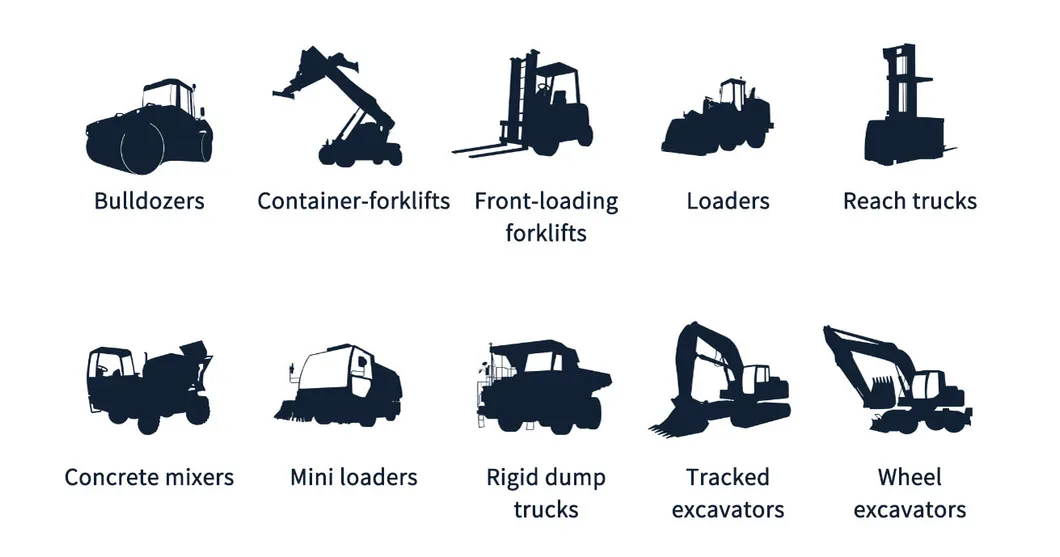

Summarize: The AI pedestrian detection warning system eliminates the need for complex radar wiring. It uses human shape analysis to capture personnel in real-time, sending signals to a built-in buzzer and LED strobe light. This system enhances vehicle operation efficiency and prevents safety hazards in trucks, forklifts, and construction machinery.

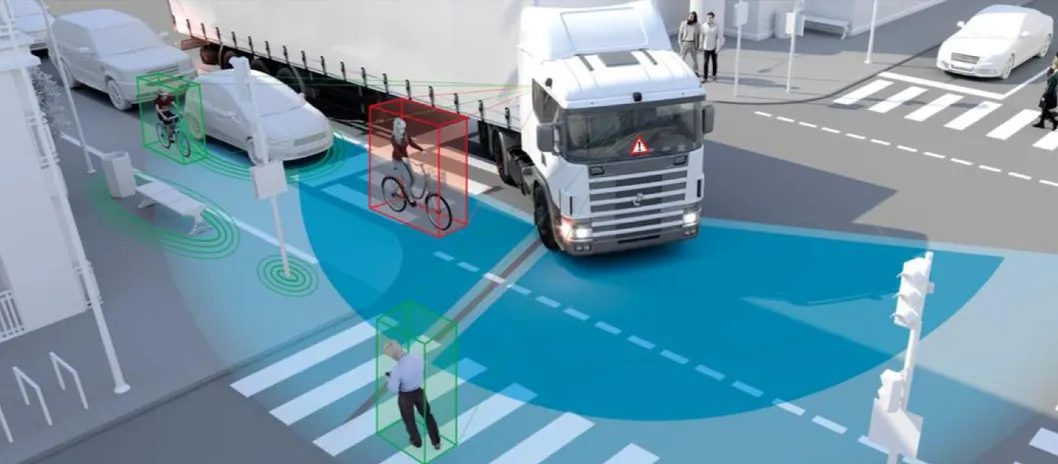

Large vehicles have significant blind spots. When driving at high speeds or turning, accidents involving motorcyclists or pedestrians can occur easily without advanced detection systems.

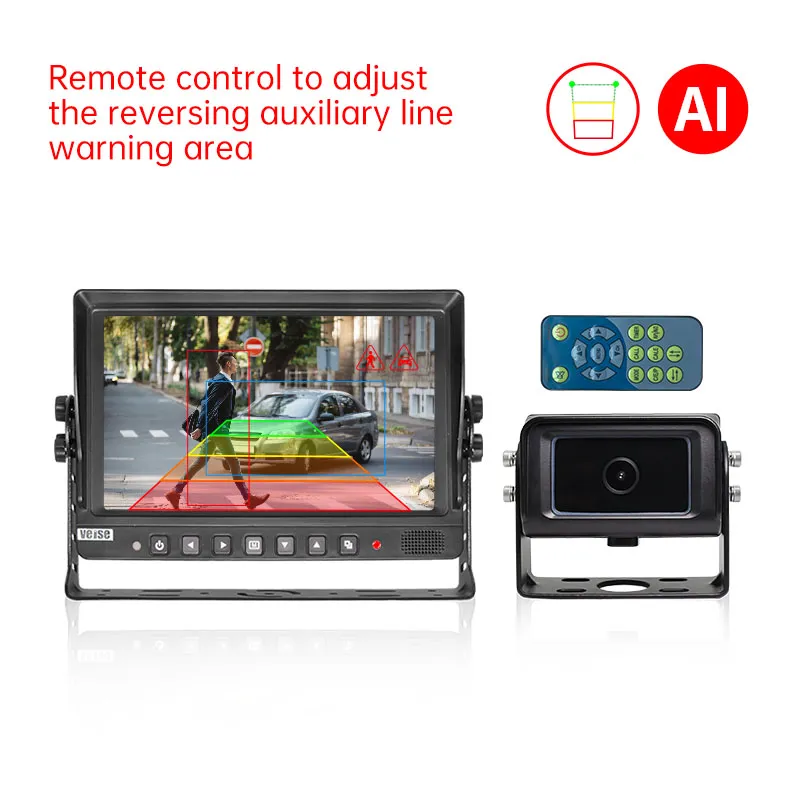

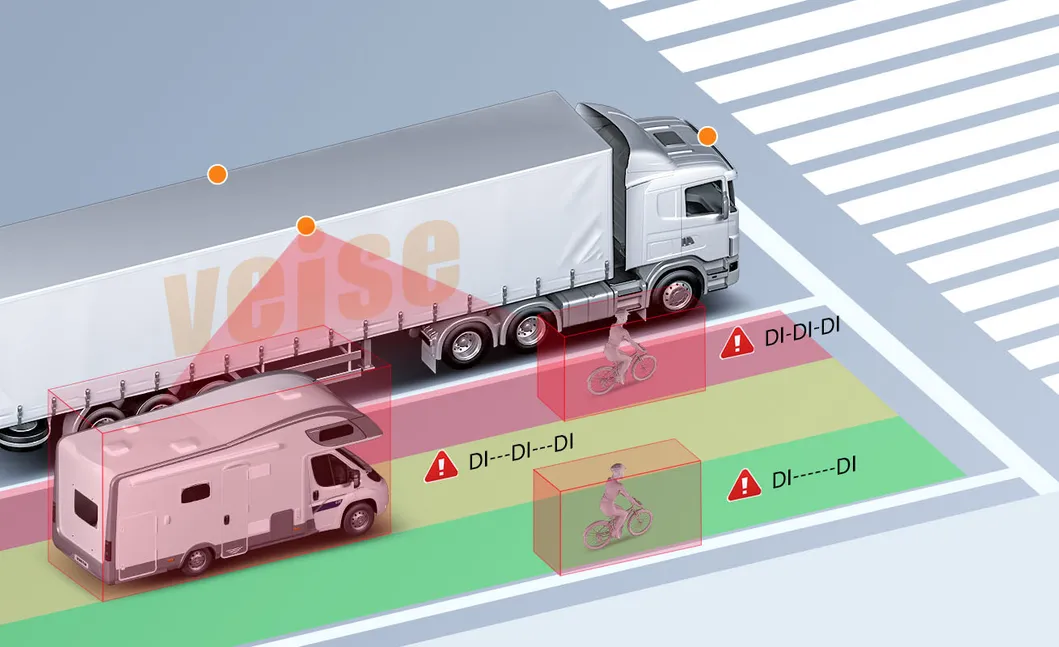

This system detects bicycle riders, pedestrians, and vehicles in real-time. Users can toggle detection alerts based on preference, and cameras can be mounted on the rear, side, or overhead.

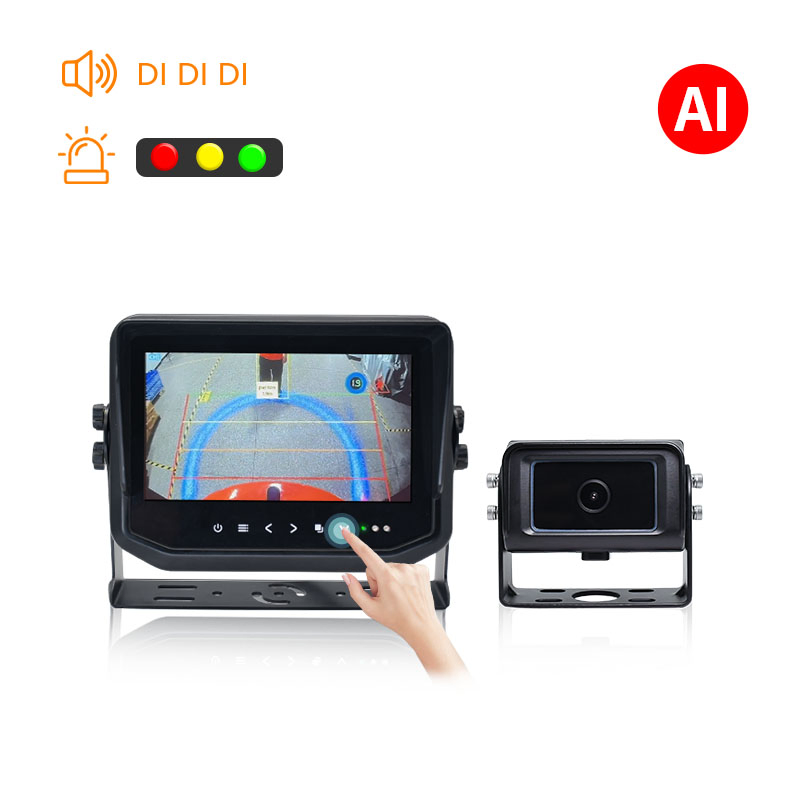

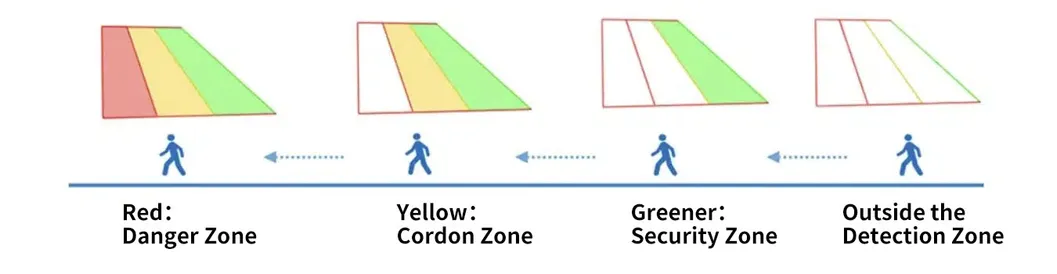

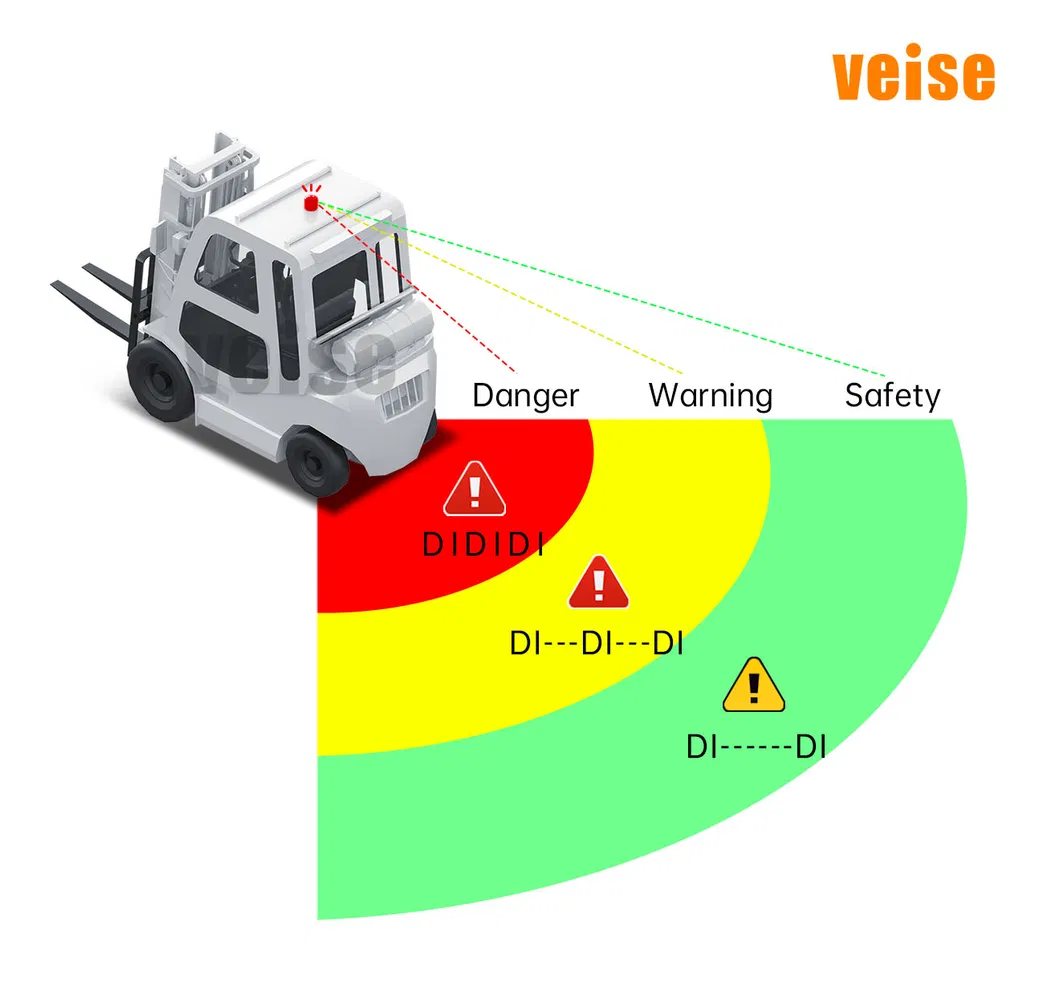

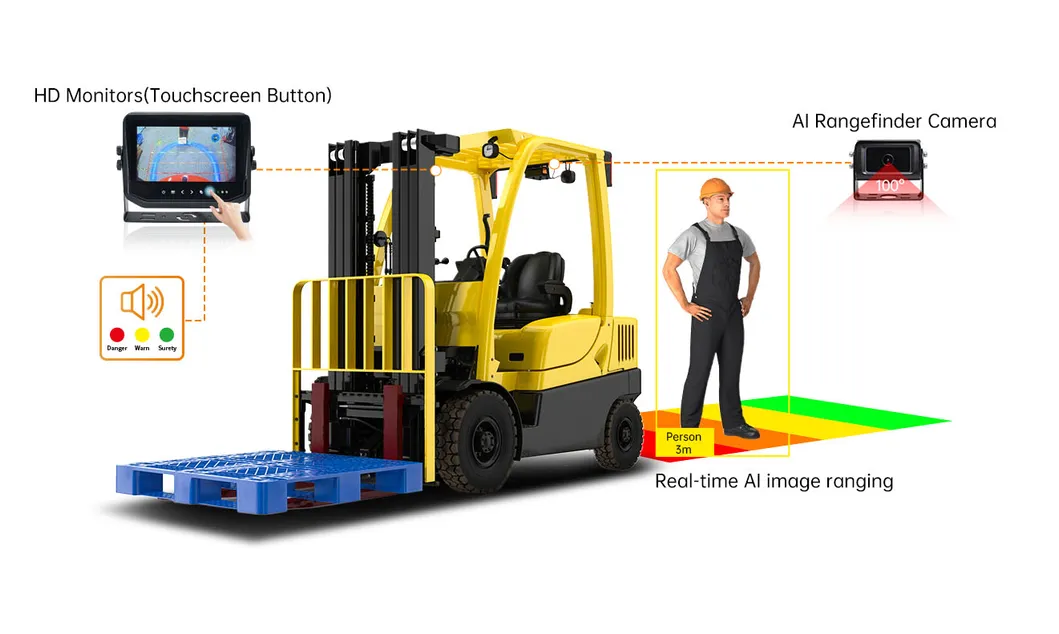

AI cameras capture personnel and trigger an instant warning. The monitor features a built-in buzzer and LED strobe alerts to ensure the driver is notified even when focused on operation.

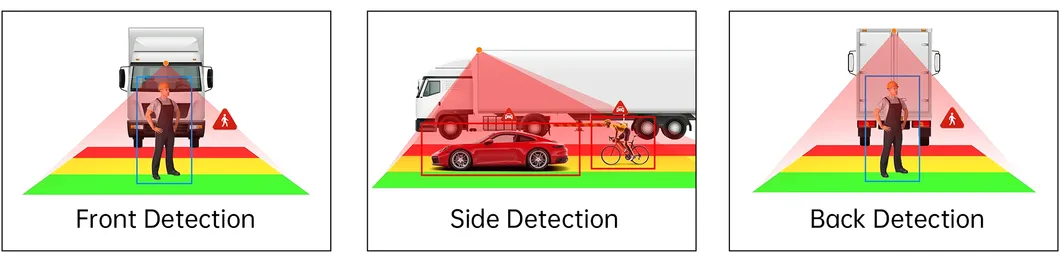

Equipped with wide-angle lenses (140-150 degrees horizontal), offering a broader range for monitoring dangerous blind spots.

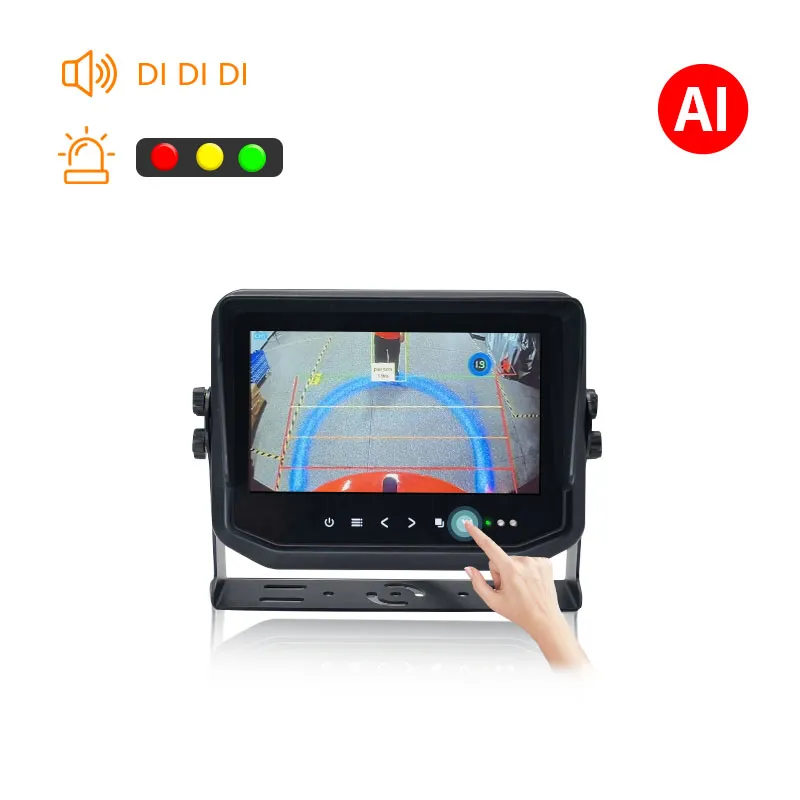

| Monitor Model | MHD-7181J (7-Inch IPS) |
| Resolution | 1024 X 600 |
| Brightness | 600 cd/m² |
| Voltage | DC 11-32V |
| Operating Temp | -20°C To +70°C |
| Vibration Resistance | 5G (GB/T 2423.56-2018) |

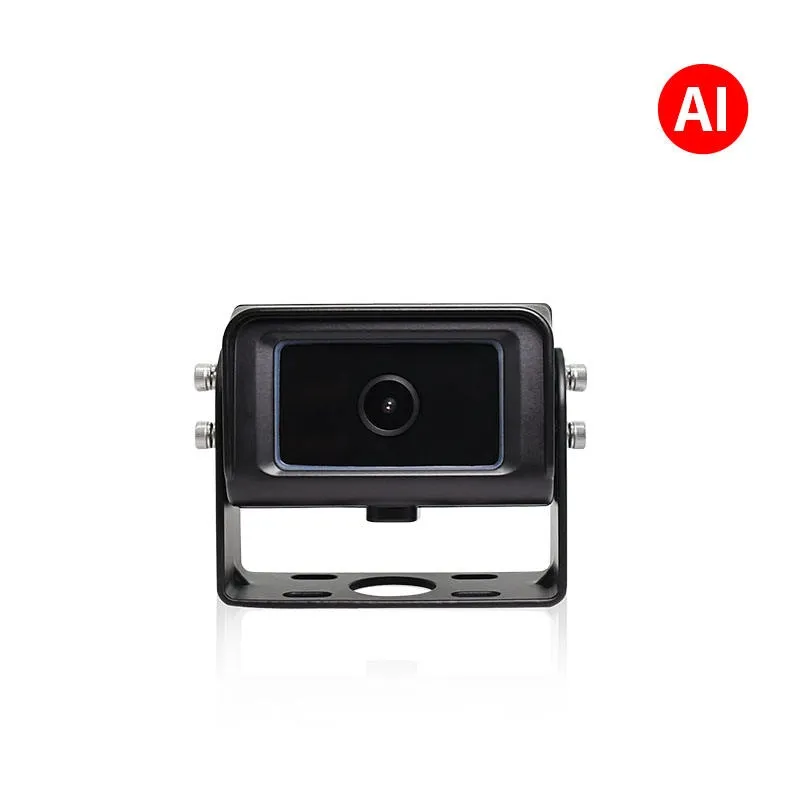

| Camera Model | CHD-122MAIF-W |
| Image Sensor | 1/2.9" Color CMOS (1080P) |
| Detection Target | Pedestrians / Non-Motorized Vehicles |
| Image Ranging | 0-5 Meters (Customizable) |
| Waterproof Rating | IP69K |
| Housing Material | Aluminum Alloy |
