HawkEye Camera
1 / 5

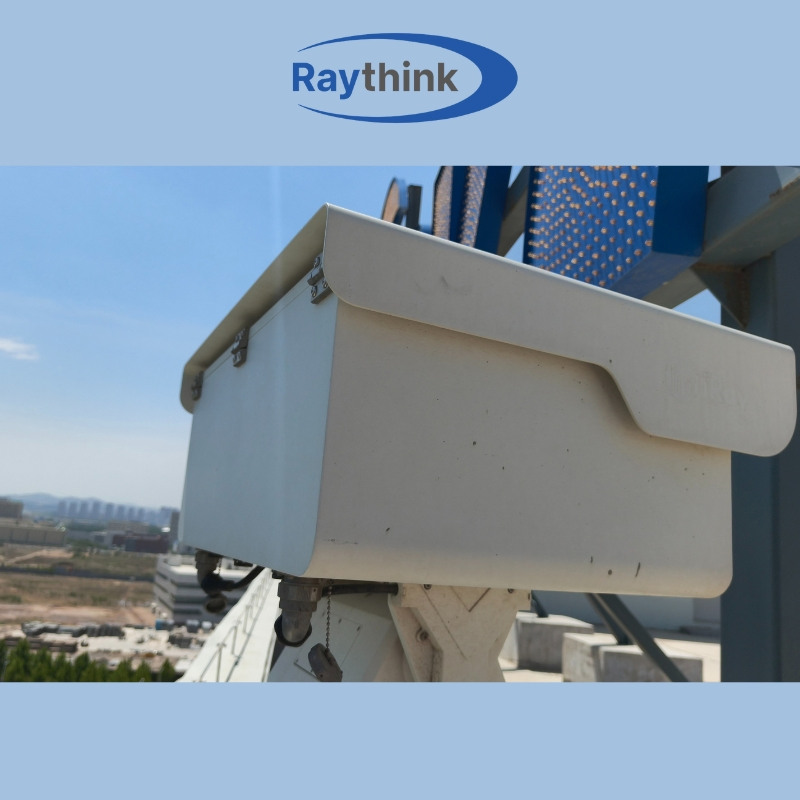

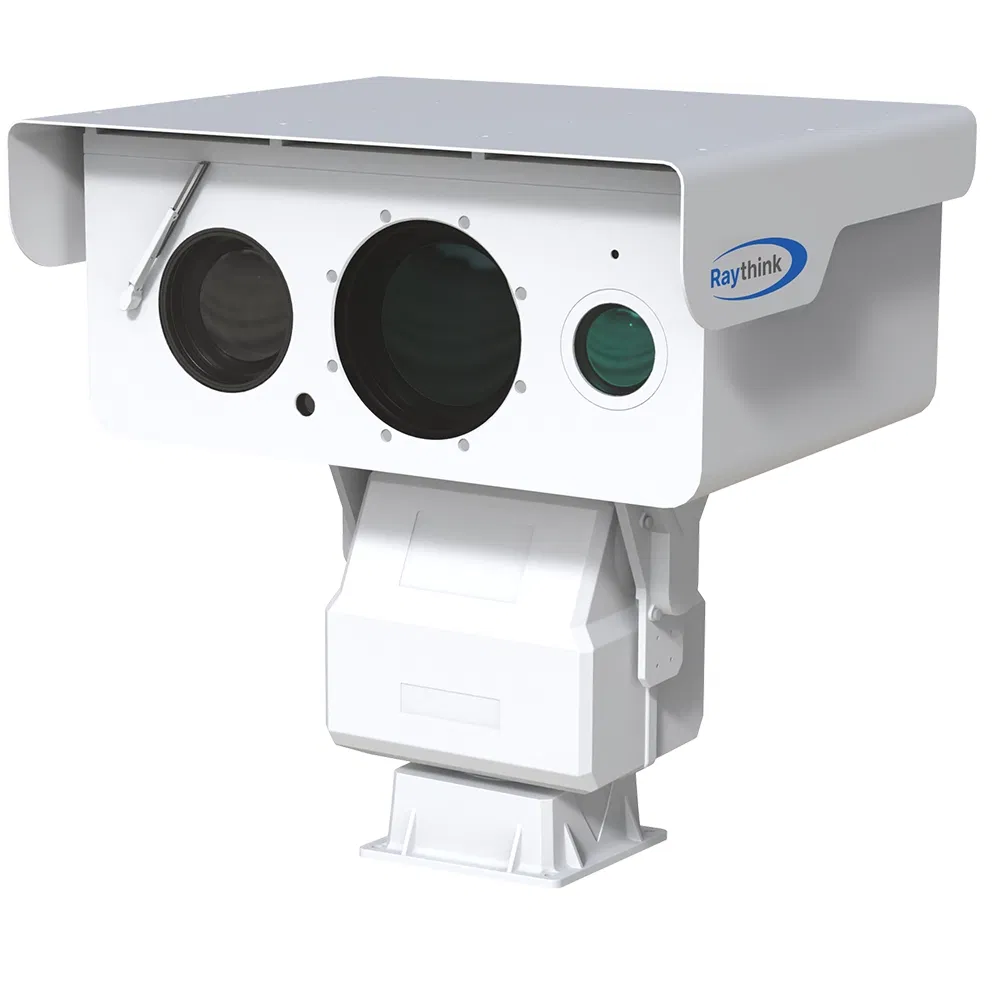

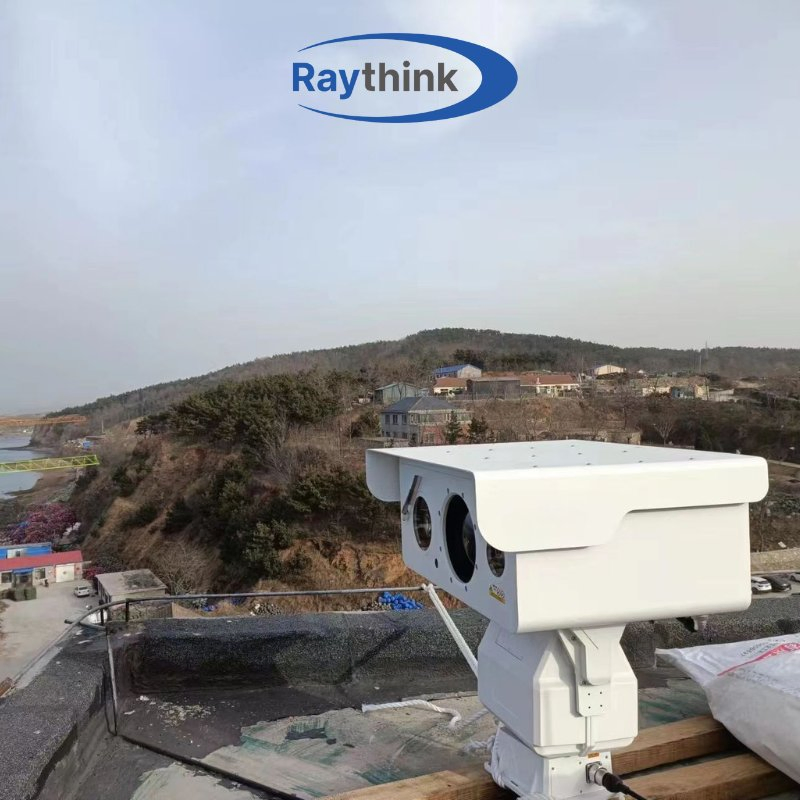

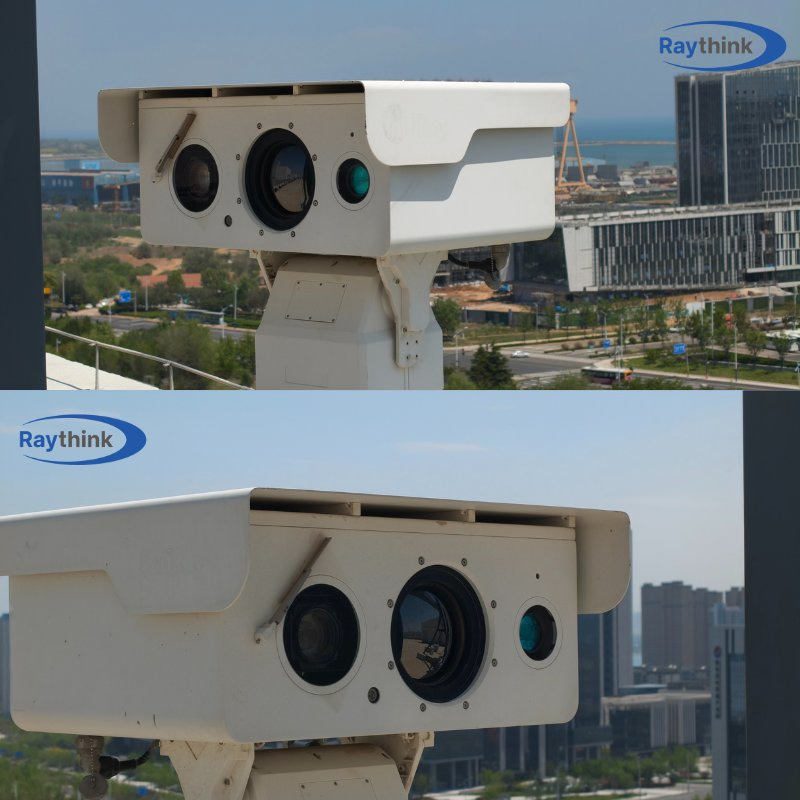

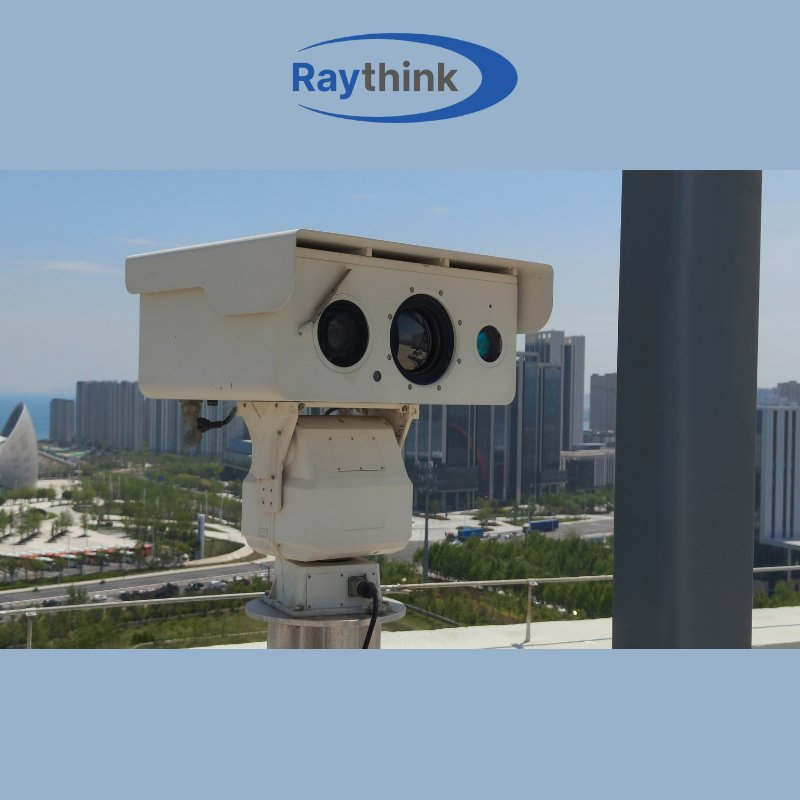

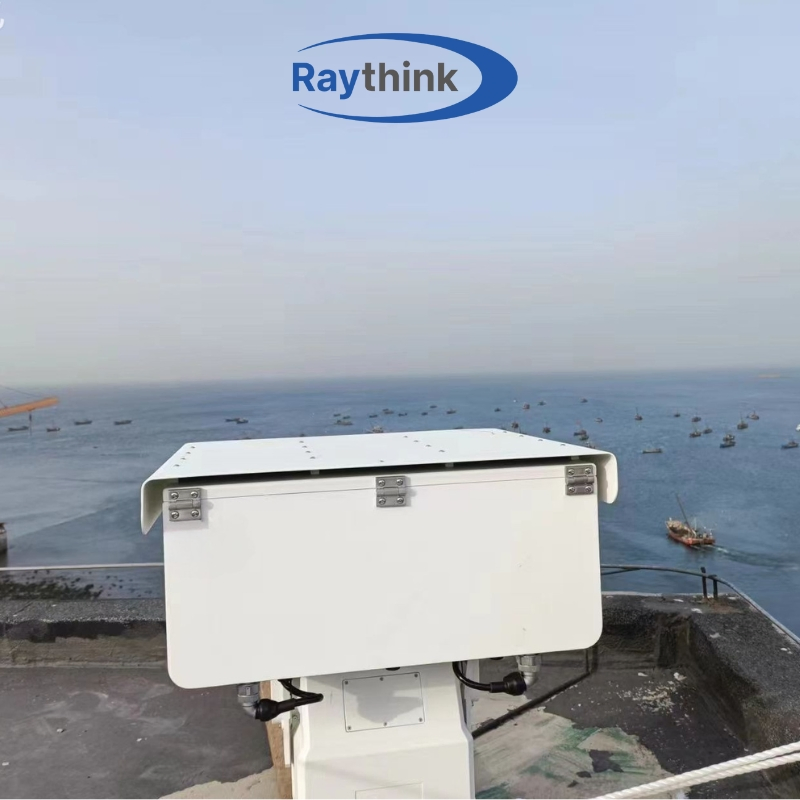

PC8 series is a long-range surveillance solution that integrates HD visible light, laser illumination, infrared thermal imaging and PTZ system, with intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection inside. It provides all-weather, 24/7 surveillance for scenarios such as perimeter surveillance, forest fire prevention and critical area protection.
Support TPM technology and meeting the FIPS 140-3 Level 3 standard.
| Technical Specifications | PC8S4L3 |
|---|---|
| Thermal Module | |
| Detector Type | VOx, uncooled FPA detector |
| Spectral Range | 8~14μm |
| NETD | ≤40mK(@25°C,F#1.0,25Hz) |
| Resolution | 1280×1024 |
| Pixel Pitch | 12μm |
| Focal Length | 30~150mm/25~225mm |
| Optical Module | |
| Sensor | 1/1.8" 4-megapixel CMOS image sensor |
| Focal Length | 6~300mm/15~775mm |
| Resolution | 2688×1520 |
| Laser Illuminator | |
| Laser Distance | 3000m |
| PTZ | |
| Pan | 360° continuous, 0.01°~60°/s |
| Tilt | -60°~+60°, 0.01°~15°/s |
| Scan Mode | Preset/Pattern Scan/Patrol Scan/Linear Scan/Panorama Scan |
| Smart Function | |
| Smoke & Fire Detection | Support |
| VCA | Support Line crossing & Intrusion detection |
| General | |
| Protection | IP66 Standard; TVS 6000V Lightning Protection |
| Power Consumption | ≤200W |
| Dimensions (mm) | 645*680.5*550 |
